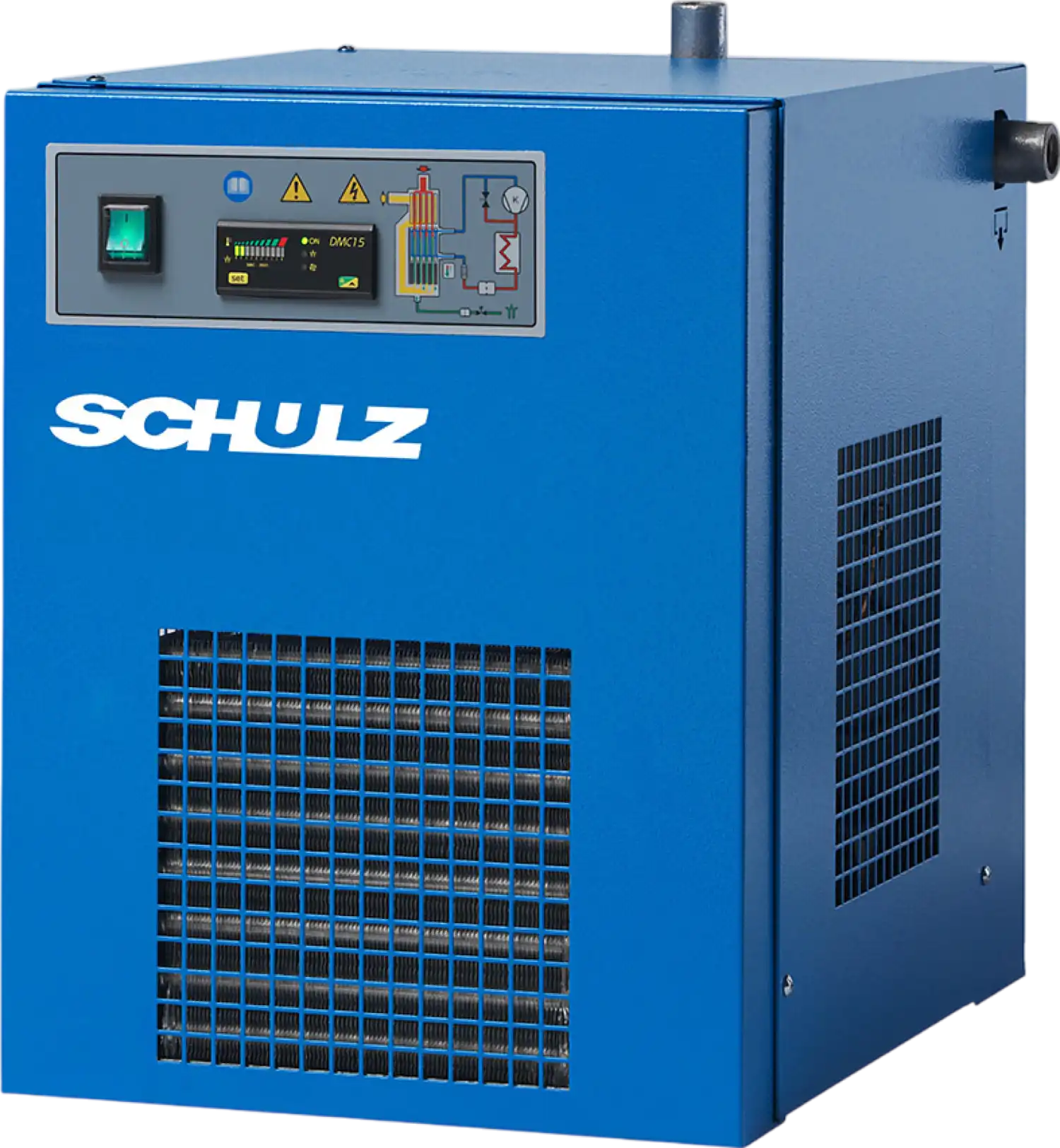

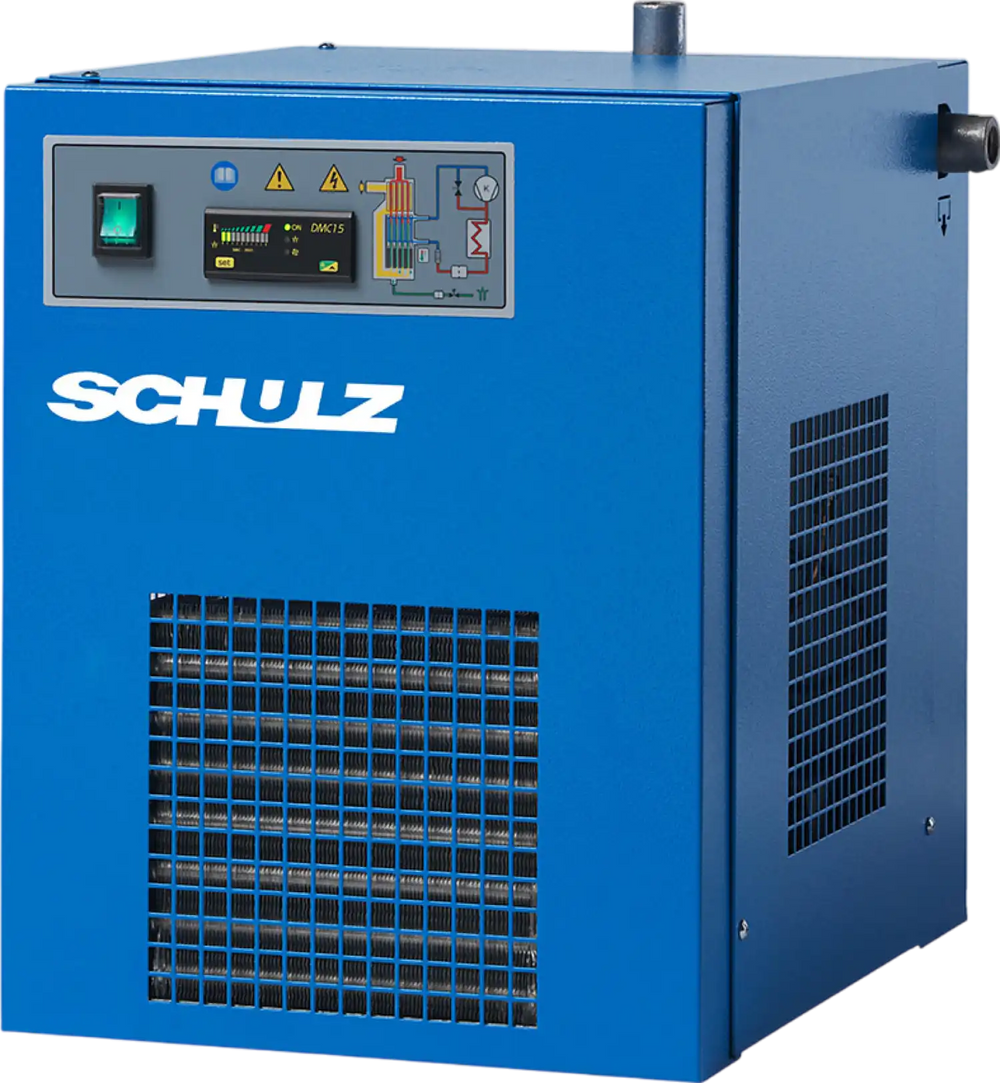

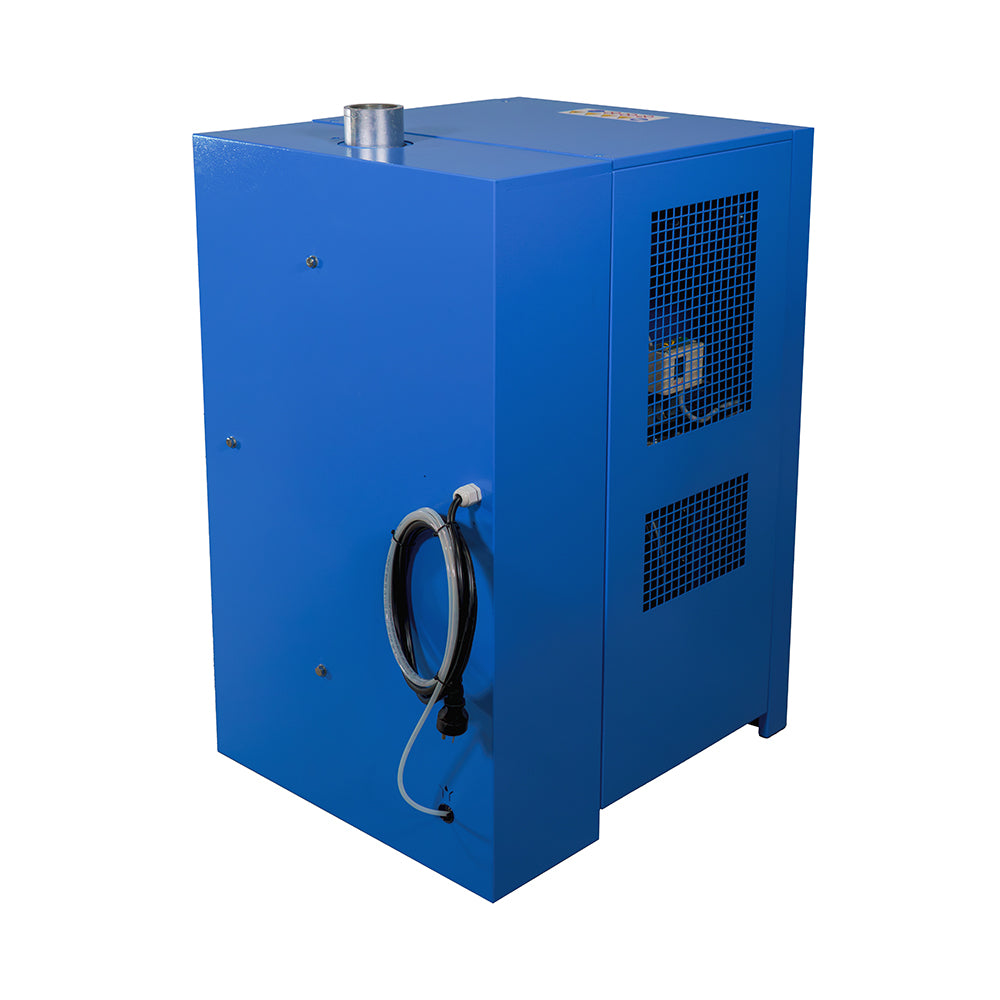

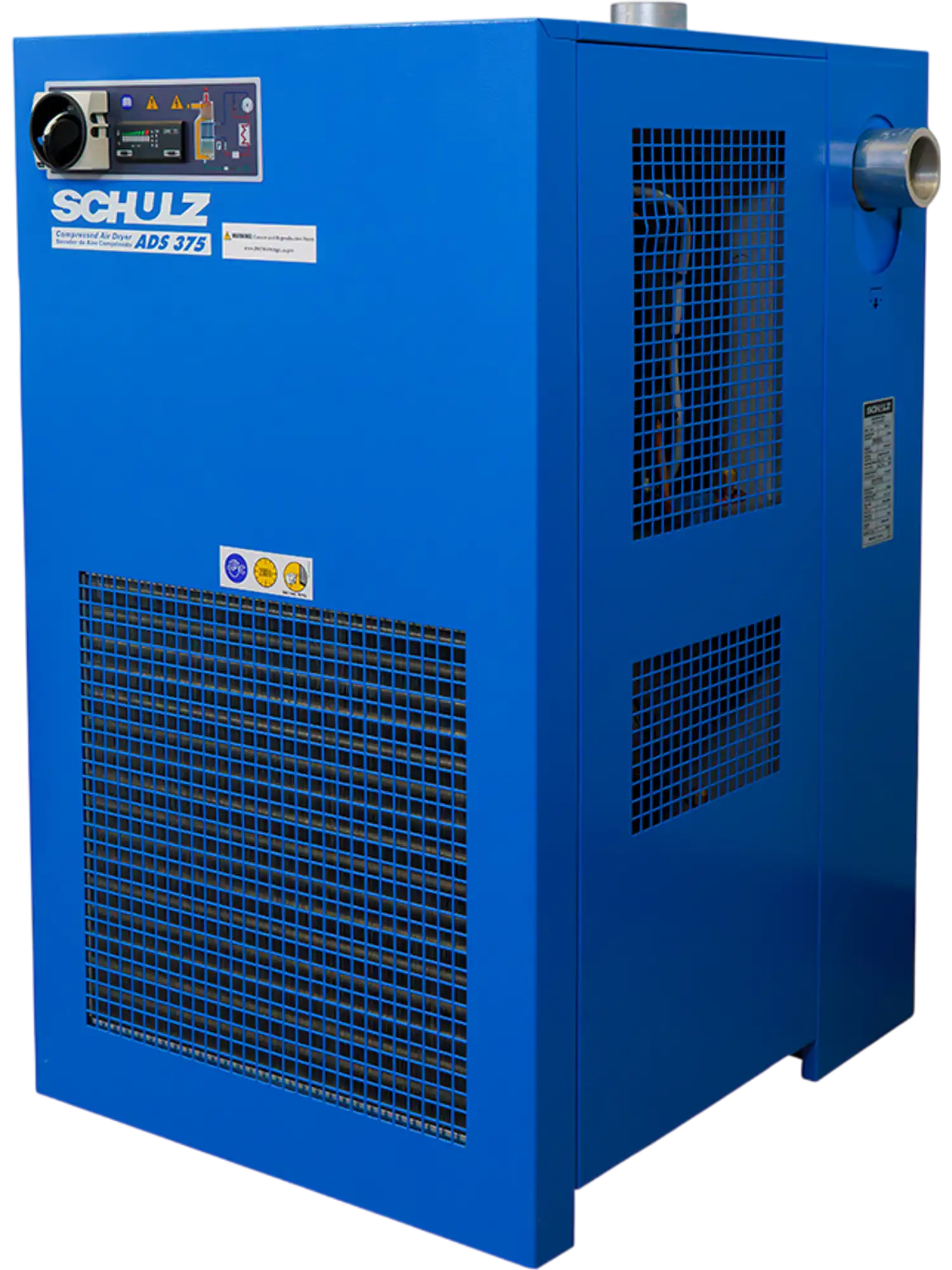

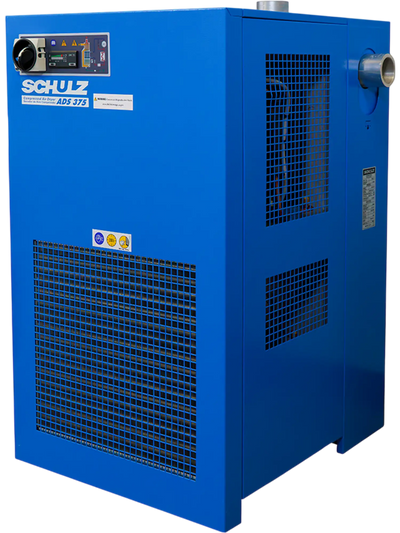

Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New

Manufacturer: Schulz

SKU: ADS-375-UE

Featured image for product 7980519391421
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Featured image for product 7980519391421

Featured image for product 7980519391421
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New

Flow (CFM)





QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

$12,440.00

C

$8,845.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Be the first to know when the product is back

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New

Schulz ADS-375 Refrigerated Air Dryer Non-Cycling 375 CFM 230V Single Phase New

Product Overview

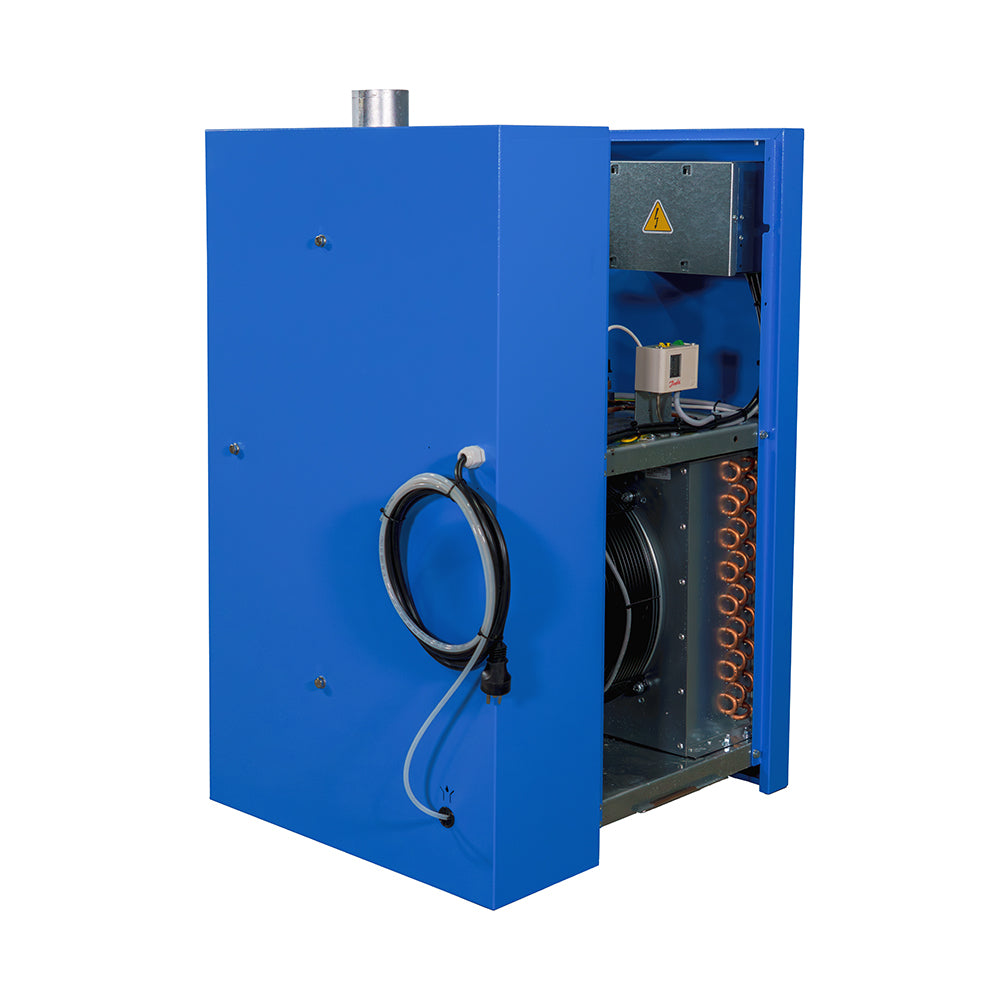

Schulz ADS air dryers are designed to deliver high-quality compressed air, ensuring your systems operate efficiently and with reduced maintenance needs. This air dryer effectively reduces moisture content to prevent corrosion, extend equipment lifespan, and lower operating costs. The dryers have excellent performance, even in situations where ambient temperatures are elevated up to 113°F. The panels are easily removable and allow immediate access to internal components, facilitating inspection and maintenance operations.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year warranty

checkmark

Manufacturer direct shipping from GA

checkmark

Authorized Schulz dealer

Features

  • Excellent performance even where ambient and inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum
  • Energy efficient sizing; matches the compressors displacement, saving energy

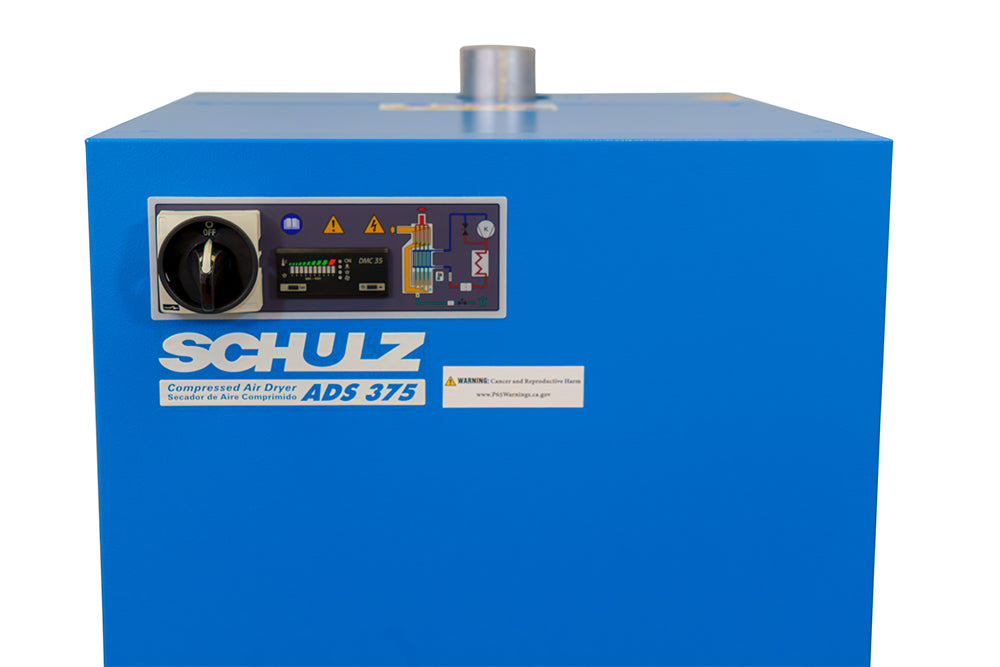

  • Electronic controller digitally shows temperature & dew point

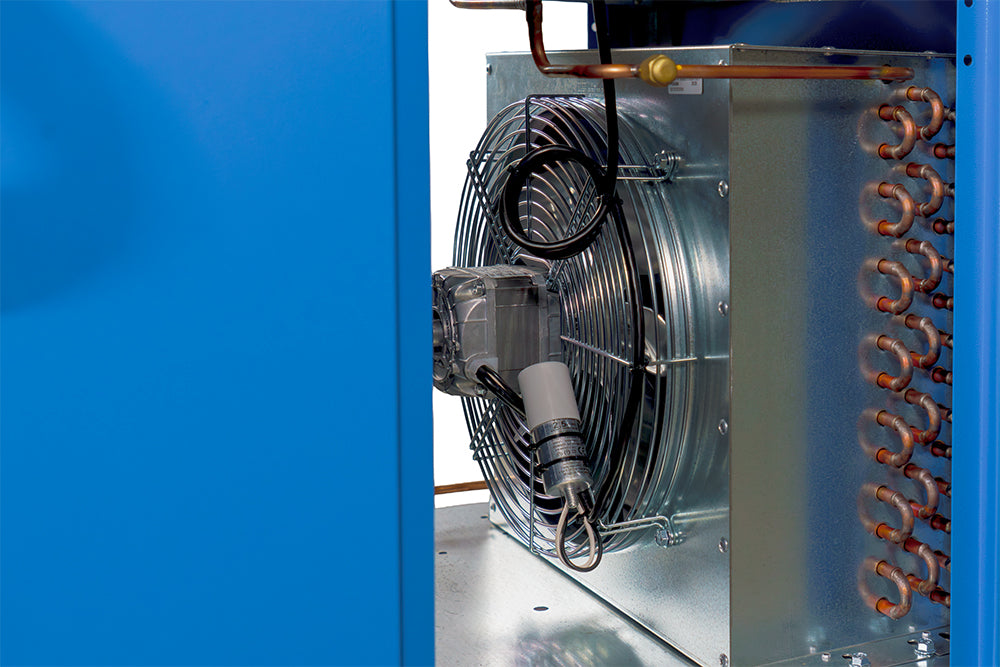

  • High-efficiency compressor; circulates the refrigerant through the system
  • Quick disconnect automatic drain valve doesn't need special tools
  • R407c refrigerant is effective and easier on the environment
  • Requires a 230V, single phase circuit
  • Compact footprint; conveniently sized at 25" x 22" x 39", easy to install

Specifications

Model ADS-375
Air Flow 375 CFM
Rated Pressure 100 PSI
Maximum Pressure 203 PSI
Max Inlet Temp 131°F
Max Ambient Temp 113°F
Connection 2" NPT-F
Voltage 230V
Frequency 60 Hz
Phase Single
Nominal Voltage 9.1 A
Refrigerant Fluid R407c
Dimensions 25" x 22" x 39"
Weight 212 lbs

Package Contents

Schulz ADS-375 Non-Cycling Refrigerated Air Dryer

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year warranty. Pre-filter with a minimum of 1-micron must be installed to validate warranty.
