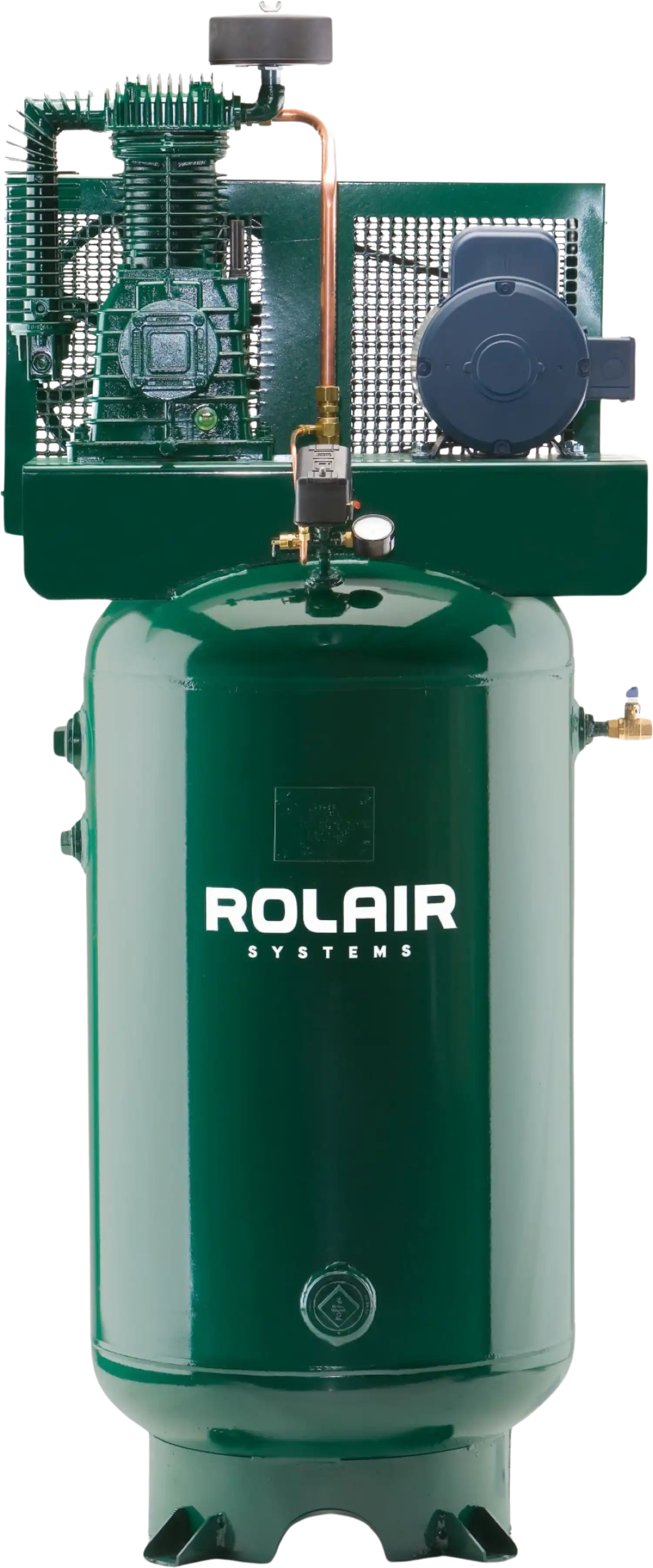

Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 230V 1-Phase with Magnetic Starter Manufacturer RFB

Manufacturer: Rolair

SKU: V5180K30B-19R

Featured image for product 7926485385405
Featured image for product 7926485385405

QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$3,519.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Be the first to know when the product is back

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 230V 1-Phase with Magnetic Starter Manufacturer RFB

Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 230V 1-Phase with Magnetic Starter Manufacturer RFB

Product Overview

The ROLAIR® 5-HP, 15.3 CFM @ 175 PSI, Vertical 80 Gallon Compressor is a stationary unit designed to power high-pressure pneumatic tools in the workshop. With an output of 15.3 cubic-feet-per-minute (CFM) at 175 pounds-per-square-inch (PSI), you can power sanders, grinders, nail guns and more. This stationary air compressor is driven by a 5-horsepower motor operates on 230 volt single phase power. Thanks to a thermal reset overload protection feature, the motor will automatically shut down to prevent damage from overheating. The air reserve tank for this Rolair compressor boasts a superior storage capacity of 80 gallons. The tank's vertical design is even ergonomically beneficial since it takes up less space. This 5-hp air compressor uses a double-cylinder, two-stage fuel pump that's designed to be highly fuel efficient. Being manufactured with steel and cast iron, this durable unit is built to last.



*Limited Availability* Manufacturer Refurbished units. Most look brand new, some may show minor signs of use. They are items that are returned due to under sizing, shipping damage, or other minor issues. All refurbished units are repaired and tested to ensure proper operation. Ships from the manufacturer.

vendor logo
divider
authorized dealer
checkmark

90 day warranty

checkmark

Manufacturer direct shipping from WI

checkmark

Authorized Rolair dealer

Features

  • Single Phase Model 230 Volt
  • Pressure Switch - Start/Stop Operation
  • 145-175 PSI Settings
  • On/Off Switch
  • Automatic Unloading Device for Loadless Starts
  • Heavy Duty Brass Shut-Off Valve
  • Pressure Gauge, 0-300 PSI in 5 lb. Graduations
  • Safety Relief Valve - ASME Approved
  • Multiple V-Belt Drive
  • Intake Filter/Silencer with Replaceable Element
  • Totally Enclosed Steel Belt Guard

Specifications

Unit Model V5180K30B
Installed Accessory Magnetic Starter (Part# MAG51F230V)
Power Type Electric
Horse Power 5 HP
Voltage 230V
Phase Single
Amp Draw 25.6
CFM Displaced 20.6 - 23.1 CFM
CFM Delivered 15.3 - 180.0 CFM
Motor RPM 1750 RPM
Lubrication Type Splash Lubrication
Pump Type Two-Stage
Pump Drive Belt Drive
Pump Oil Capacity 47 oz.
Aftercooler No
Reed Valve System Yes (Standard)
Tank Capacity 80 gal.
Tank Outlet 1/2 in.
Electronic Drain Valve No
Tank Configuration Vertical
Pressure Gauge Yes
Certification ASME
Product Dimensions 30 x 24 x 77 in.
Shipping Weight 495 lbs.

Package Contents

Rolair V5180K30 Air Compressor with Magnetic Starter Manufacturer RFB

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 90 day factory warranty.
