Renogy RSP250DCT Solar Panel 16BB N-Type 250W Bifacial New
Manufacturer: Renogy
SKU: RSP250DCT-US
QTY
(888) 999-1522
C
$356.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

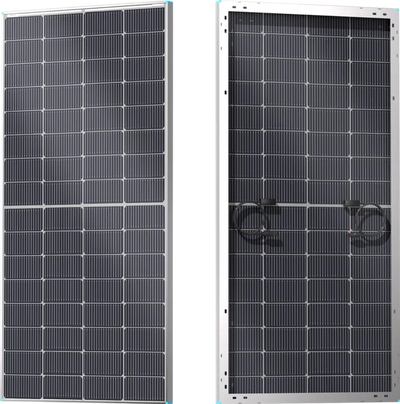

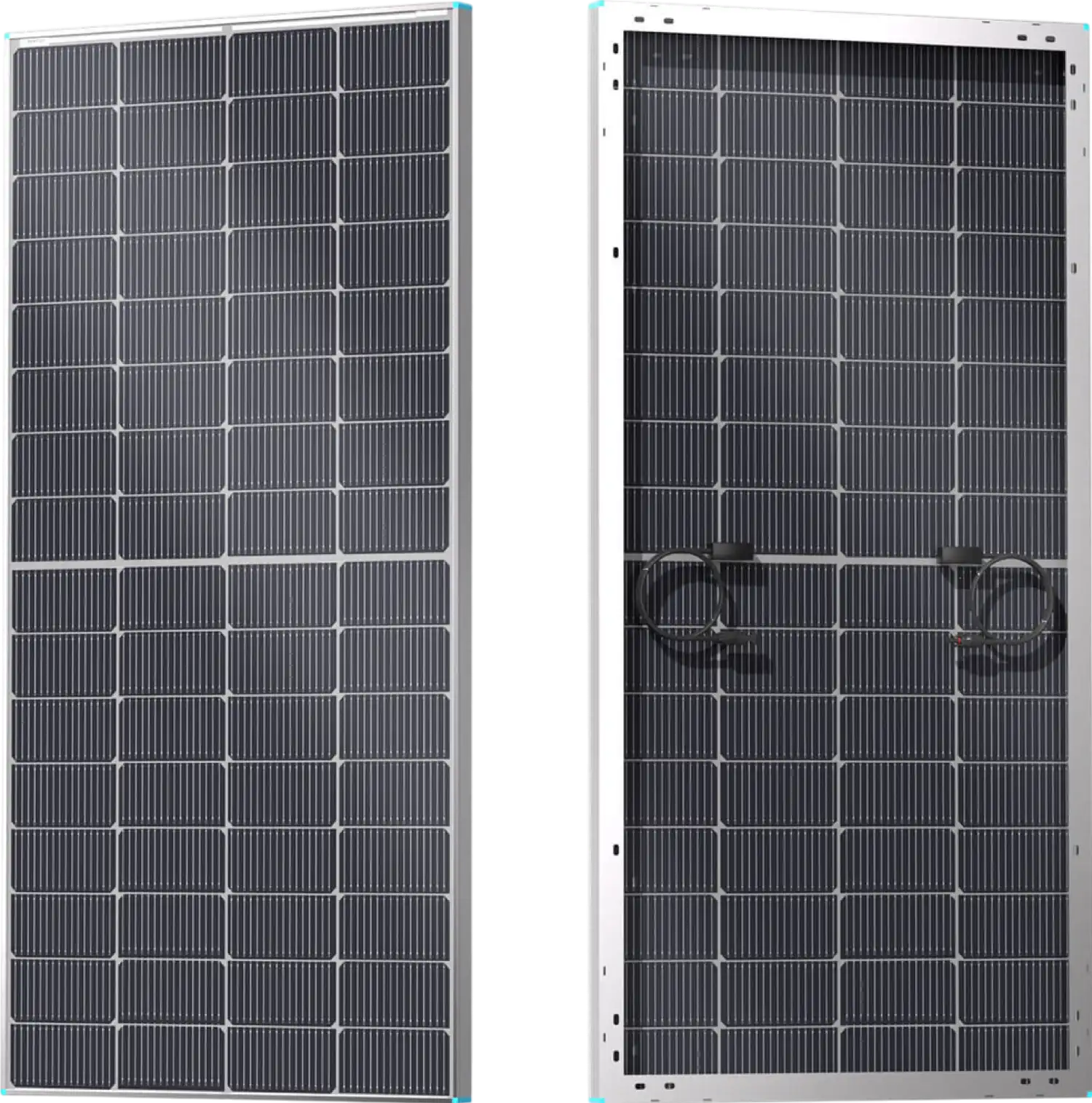

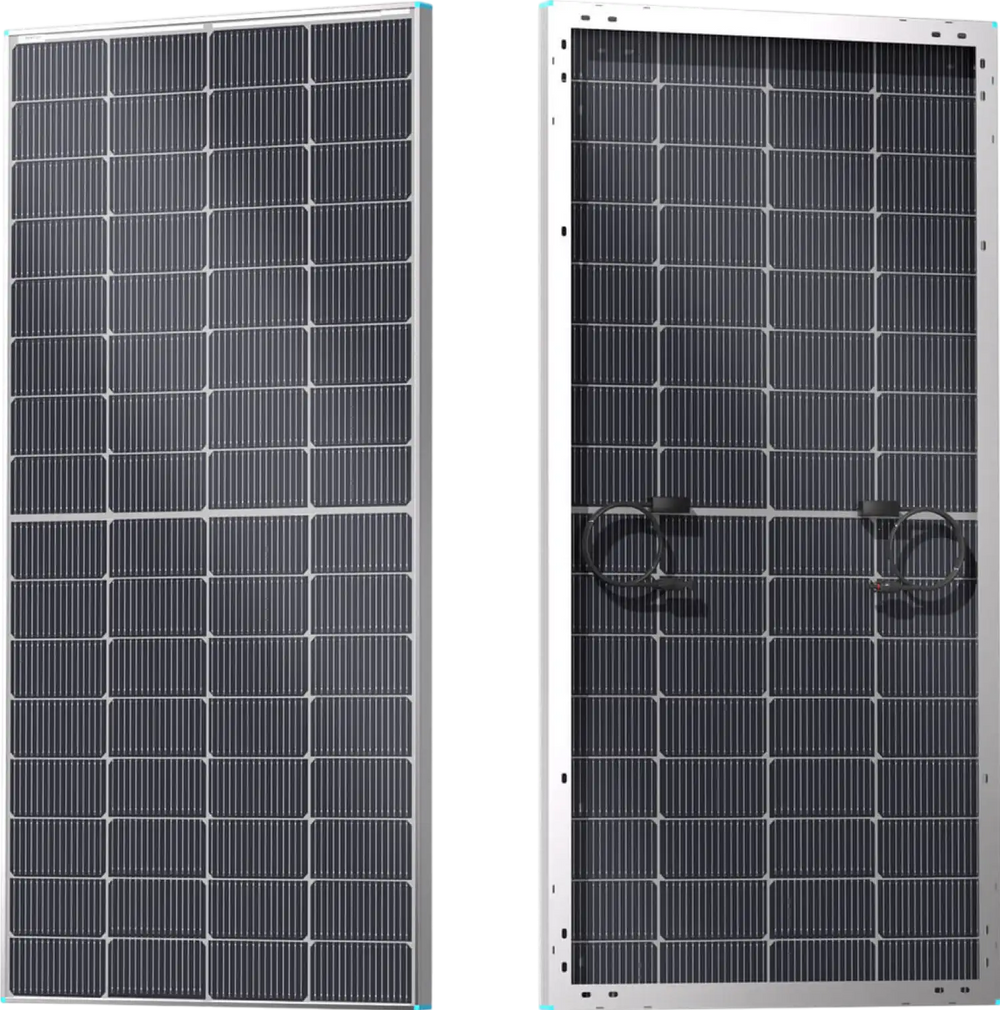

Renogy RSP250DCT Solar Panel 16BB N-Type 250W Bifacial New
Product Overview
Renogy's N-Type Bifacial Solar Panel offers a 10% higher bifaciality rate and a 20W power output boost compared to conventional p-PERC panels of the same design. Crafted with precision, this panel features low-iron tempered glass, POE film, N-Type solar cells, transparent backsheet, and a robust aluminum frame, ensuring unparalleled quality and long-lasting durability.
10 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Optimized Performance in High Temperatures: With a temperature coefficient of -0.29%/℃, n-type panels achieve cooler operation in high temperatures, leading to better performance in hot climates compared to p-PERC panels.
- 16BB for Higher Conversion Efficiency and Longer Lifespan: Advanced 16BB cell technology maximizes energy conversion while enhancing durability by minimizing the risk of microcracks.
- Stronger Aluminum Frame for Enhanced Durability: Crafted from aluminum alloy over 1.1 mm thick, this solar panel boasts a sturdier frame compared to competitors', ensuring enhanced durability.
- Bifacial Boost: 14% More Power: With an impressive 80% bifaciality factor, the rear of this panel delivers approximately 14% more power compared to that of a PERC counterpart.
- Compatible with 99% of Charge Controllers: Renogy's 100W 12V N-Type Solar Panels, with an open-circuit voltage of less than 25V, are compatible with various MPPT/PWM charge controllers.
Specifications
| Frame | Anodized Aluminum Alloy |
| Solar Cell Type | Monocrystalline |
| Maximum Power at STC | 250W |
| Module Efficiency | 21.2% |
| Open Circuit Voltage | 22.35V |
| Short Circuit Current | 13.49A |
| Optimum Operating Voltage | 19.52V |
| Optimum Operating Current | 12.81A |
| Maximum System Voltage | 1000VDC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°F~194°F (-40℃~90℃) |
| Dimensions | 60.9 x 30 x 1.2 in. (1547 x 763 x 30 mm) |
| Weight | 27.3 lbs. (12.4 kg) |
Package Contents
Renogy 16BB N-Type 250W Solar Panel
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 10 year material and workmanship warranty.
