Renogy RSP200D-US 200 Watt 12 Volt Monocrystalline Solar Panel New
Manufacturer: Renogy
SKU: RSP200D-US
QTY
(888) 999-1522
C
$290.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

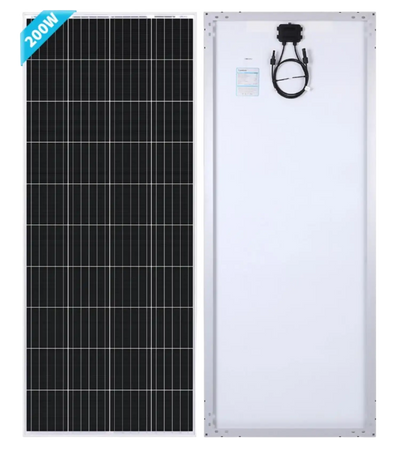

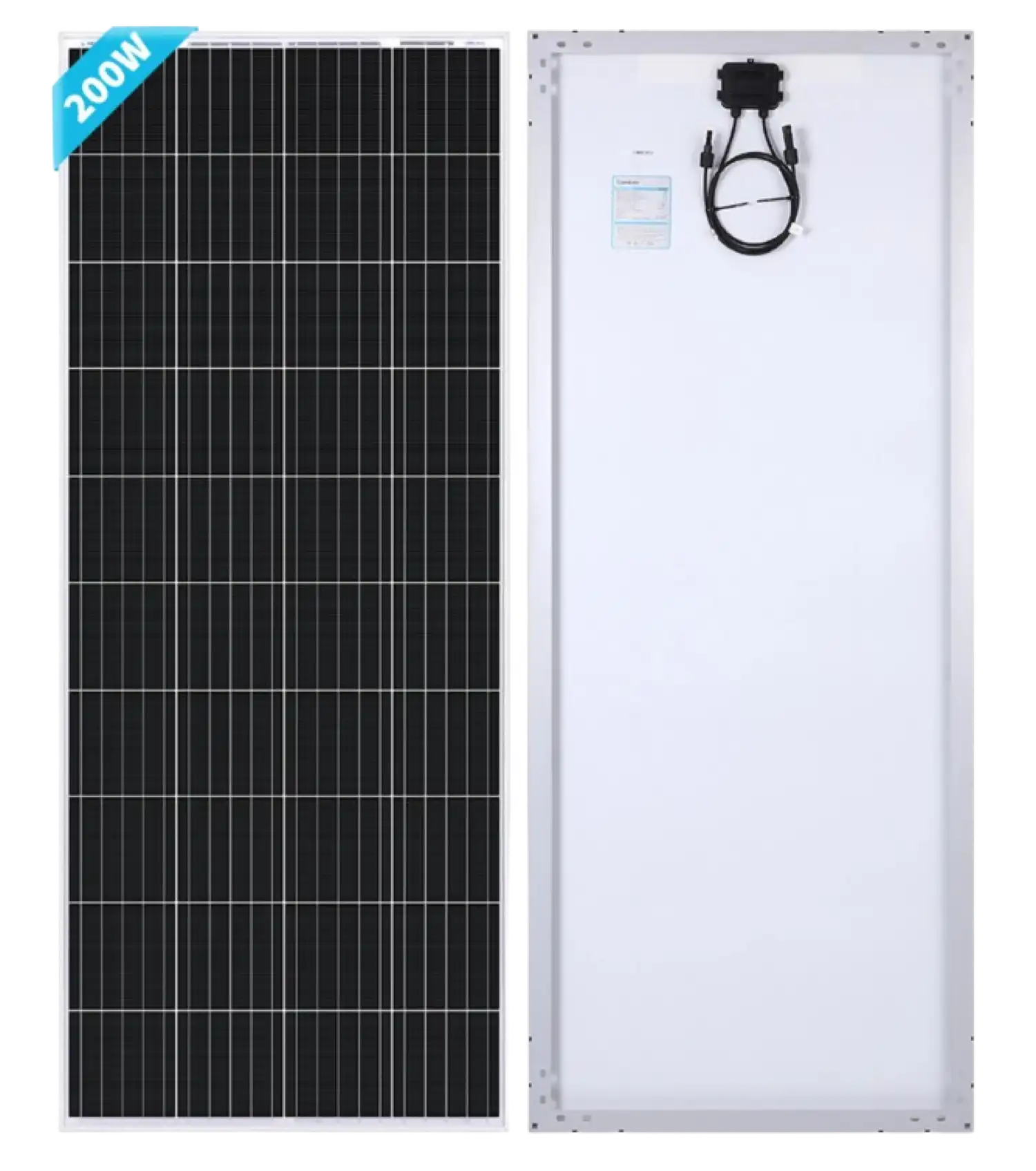

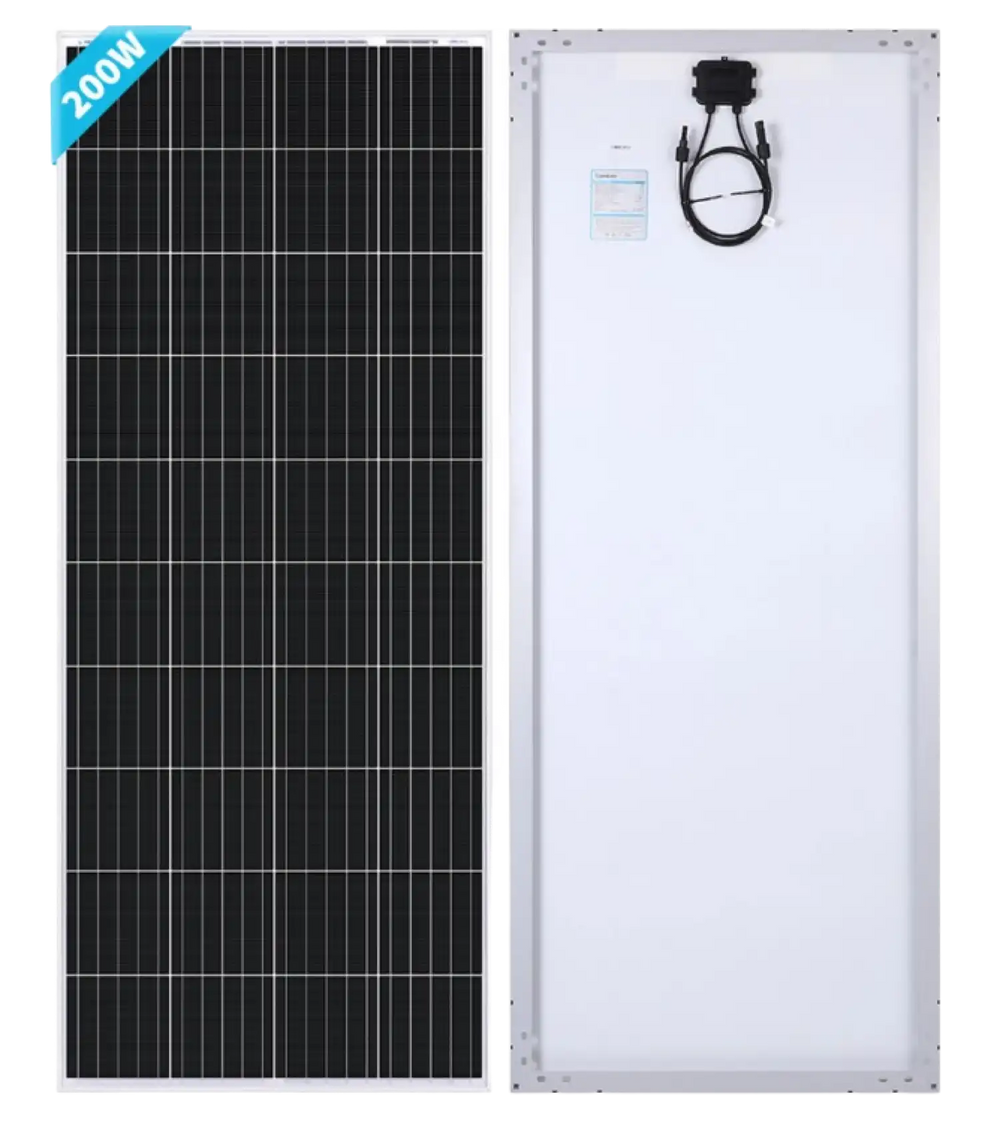

Renogy RSP200D-US 200 Watt 12 Volt Monocrystalline Solar Panel New
Product Overview
The Renogy 200 Watt 12 Volt Monocrystalline Solar Panel is the perfect component for a larger solar power (PV) system. Whether you plan to use the solar panel for seaside travels to the beach or your cabin in the mountains, this panel can be a great start or addition to any Renogy off-grid system.
5 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
- EL-tested solar modules; no hot-spot heating guaranteed
- Bypass diodes minimize power drop caused by shade
- TPT back sheet ensures smooth performance over a long period of time
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
- Pre-drilled holes included for grounding Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
- Can be used for many different applications also ground mount compatible
- Compatible with on-grid and off-grid inverters
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
Specifications
| Junction Box | IP65 |
| Connectors | Solar Connectors |
| Module Efficiency | 18.1% |
| Cell dimension | (158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells |
| Maximum Series Fuse Rating | 15A |
| Max Power at STC | 200W |
| Open Circuit Voltage | 27V |
| Short Circuit Current | 9.66A |
| Optimum Operating Voltage | 22.6 V |
| Optimum Operating Current | 8.85 A |
| Operating Temperature | -40°F ~ 194°F / -40℃ ~ 90℃ |
| Maximum System Voltage | 600 VDC UL |
| Maximum Series Fuse Rating | 15A |
| Output Cable | 14 AWG 2.95 ft. (0.9m) long |
| Dimensions | 58.7 x 27.5 x 1.38 in / 1650 x 670 x 35mm |
| Weight | 26.46 lb (12 kg) |
| Solar Cells | 40 Cells |
Package Contents
Monocrystalline Solar Panel
User Manual
Warranty
This product comes with a 5 year material and workmanship warranty.
