Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Product Overview

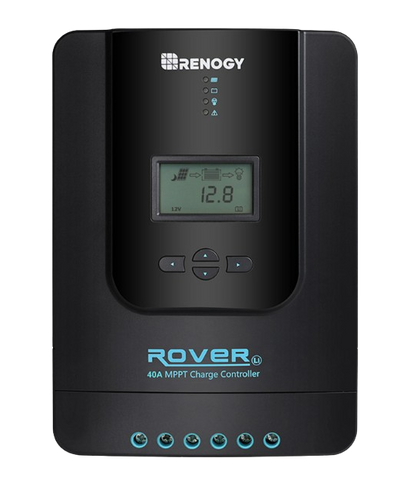

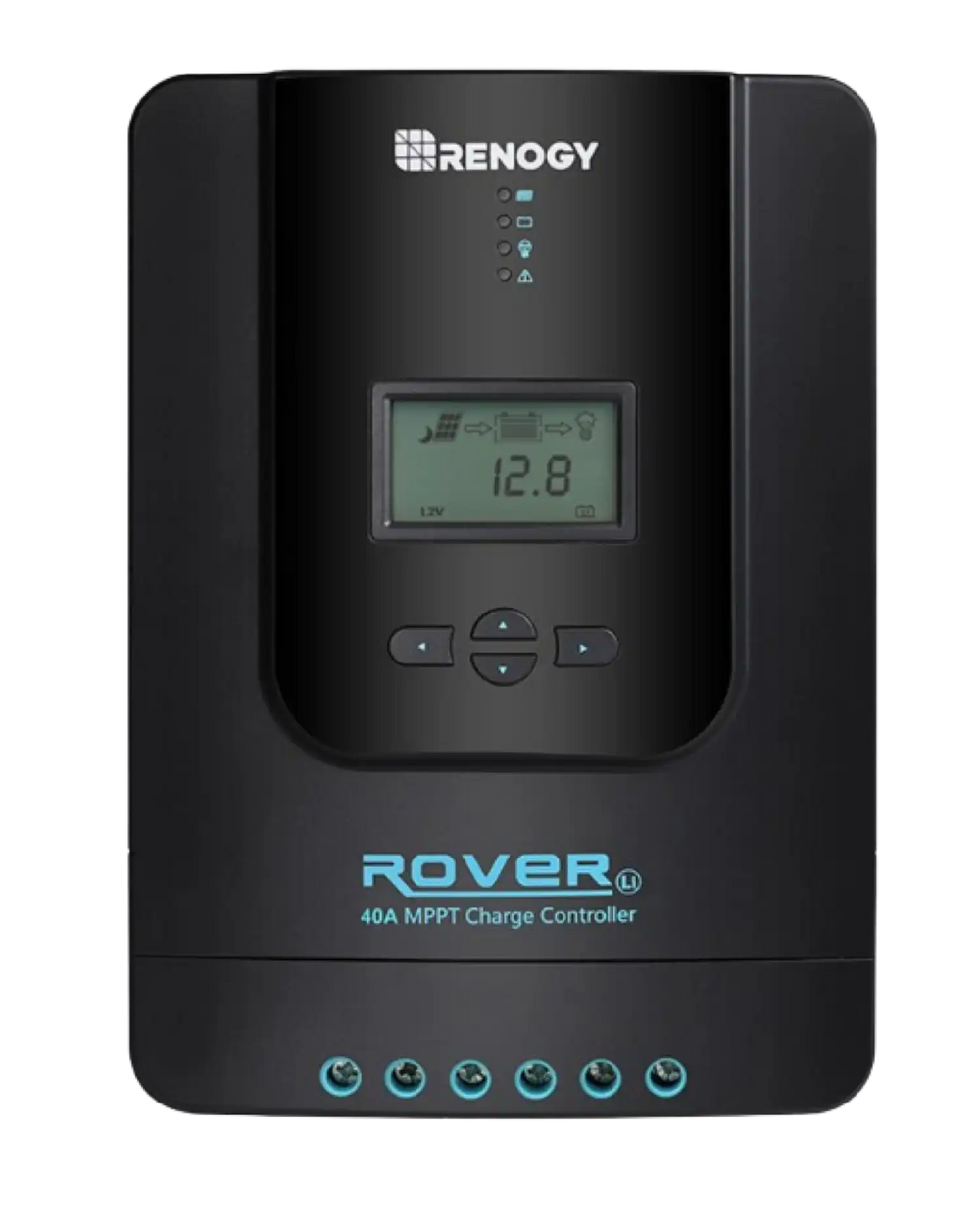

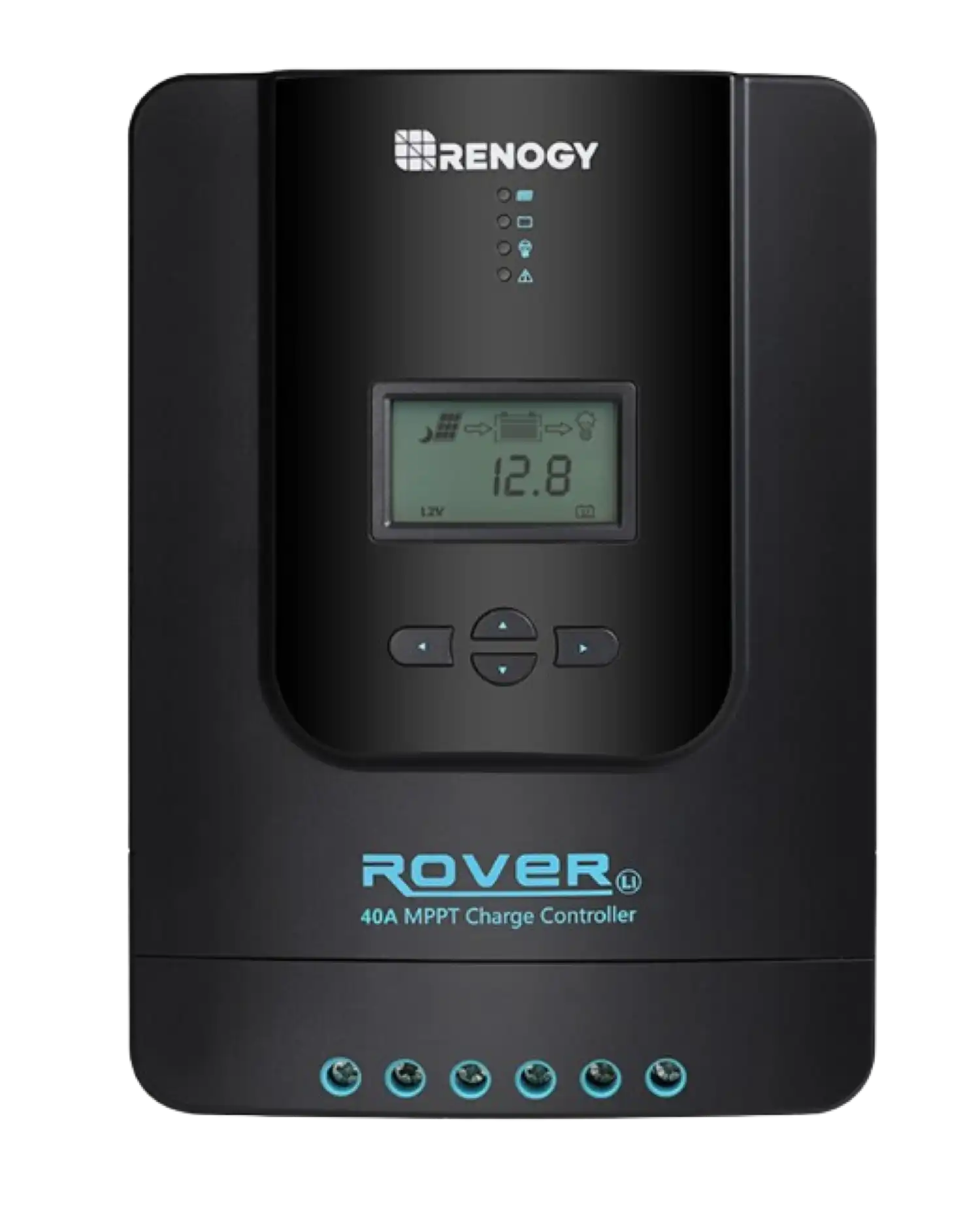

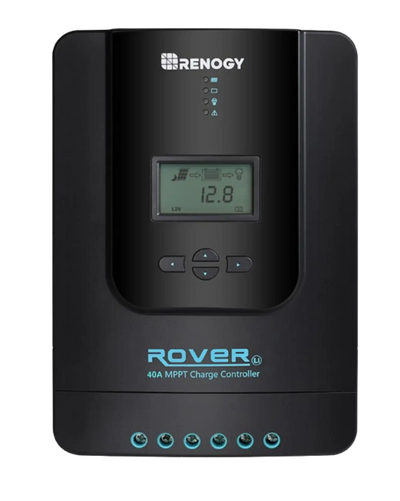

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank.
When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up.
2 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Max. Solar Input Power 12V/520W, 24V/1040W: The Rover MPPT charge controller can work with standard off-grid 12/24V solar panels with high voltage or multiple panels with voltage up to 100V. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.
- Incredibly Easy to Install and Maintain: Mounting Brackets is in the package and the RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.
- Advanced Ultra Fast Maximum Power Point Tracking: Renogy Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.
- Intelligent Charging Protection: Renogy Rover MPPT provides 4-stage charging (Bulk, Absorption, Float, and Equalization) and features a comprehensive set of electronic protection functions such as stopping reverse current at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over voltage, over load, short circuit and reverse polarity protection.
- Temperature Monitor and Compensation: Die-cast aluminum design ensures excellent heat dissipation. Fitted with a Remote Temperature Sensor, the Rover MPPT Charge Controller can measure battery temperature in real-time and use this data for very accurate temperature compensation, assuring stable and constant charging.
- 12V/24V System Voltage Automatic Identify: The Renogy Rover 40A MPPT Charge Controller supports both 12V and 24V systems and can automatically identify system voltage once connected to a Sealed, Gel, AGM, and Flooded battery (manual setting is required for 24V Lithium battery).
Specifications
| Compatible MPPT Charge Controller | RNG-CTRL-RVR20/RNG-CTRL-RVR30/RNG-CTRL-RVR40/ RNG-CTRL-RVR60S/RNG-CTRL-RVR100 |
| Compatible App | Renogy DC Home App available in both the App Store and Google Play |
| Input Voltage | 5V |
| Protection Grade | IP54 |
| Standby Power Consumption | 0.04W |
| Operating Power Consumption | 0.05W |
| Communication Range | ≤82ft (25m) |
| Serial Baud Rate | Fixed Baud Rate 9600bps |
| Cable Length | 16.4 ft (5.00m ) |
| Dimensions | 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| FCC Class B Part 15 Compliant | YES |
| Weight | 4.58oz (130g ) |
| Operation Temperature | -4°F to 185°F ('-20℃ ~ 85℃) |
| Nominal System Voltage | 12/24V Auto-Detect |
| Protection Level | IP32 |
| Rated Charge Current | 40A |
| Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Max. PV Input Voltage | 100 VDC |
| Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
| Max. PV Input Power | 12V/520W, 24V/1040W |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |
| Temperature Compensation | -3mV/°C/2V |
| Max Battery Voltage | 32V |
| Ground Type | Negative |
| Temperature Sensor | 9.8ft cable length |
| Electrical Protection | Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries. |
| CE | YES |
| Dimensions | 238 x 173 x 72.5 mm; 9.37 x 6.81 x 2.85 in |
| FCC Class B Part 15 Compliant | YES |
| Weight | 2.0kg / 4.41 lb |
| Max. Terminals Size | 8 AWG 10mm2 |
| Compatible PWM Charge Controller | RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI |
| Communication Protocol | RS232 |
| Port Type | RJ12 |
Package Contents
Rover Li 40 Amp MPPT Charge Controller
Remote Temperature Sensor
Mounting Brackets
User Manual
