Renogy RNG-100DB-H-US 100 Watt 12 Volt Flexible Monocrystalline Solar Panel New
Product Overview

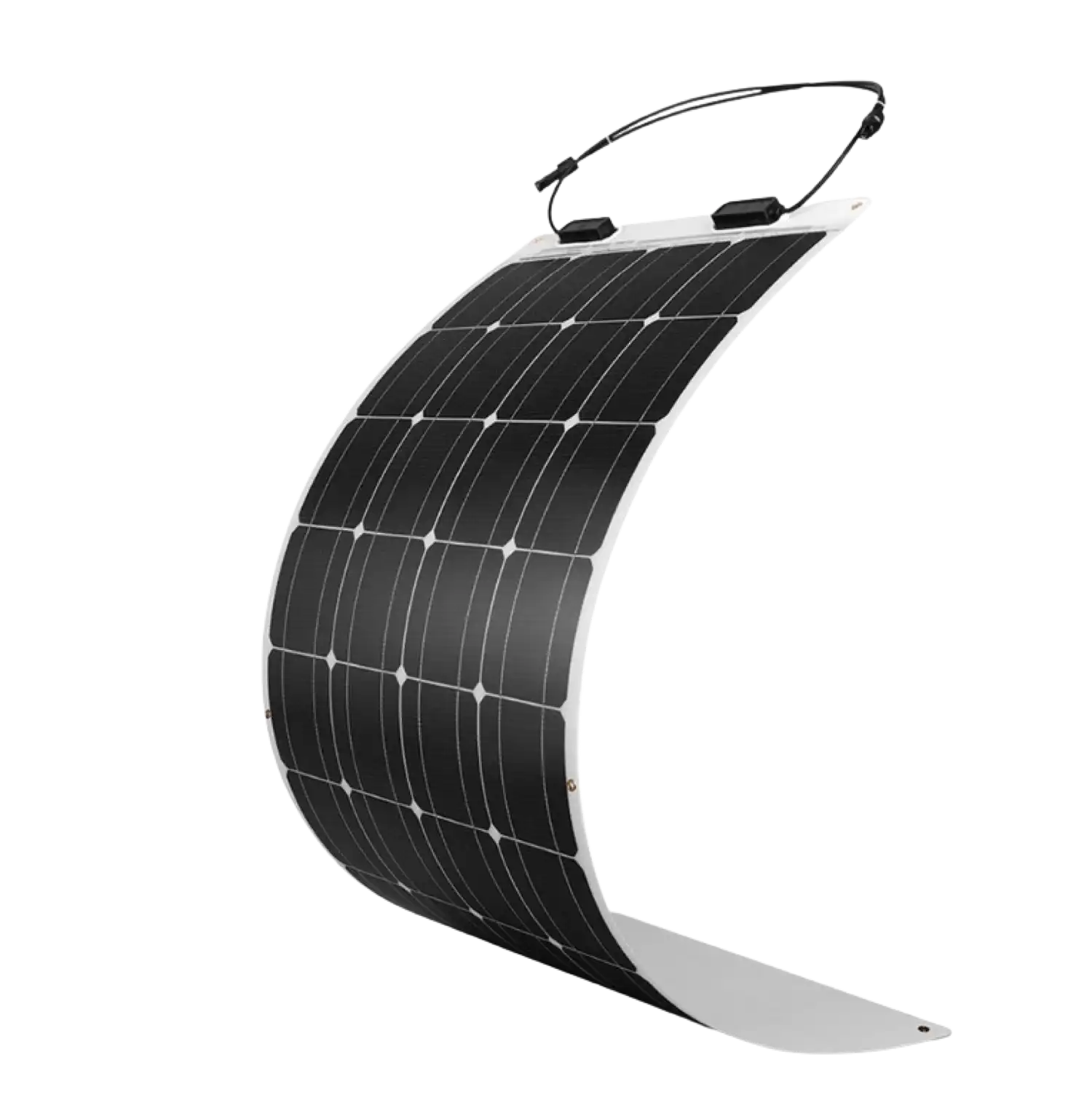

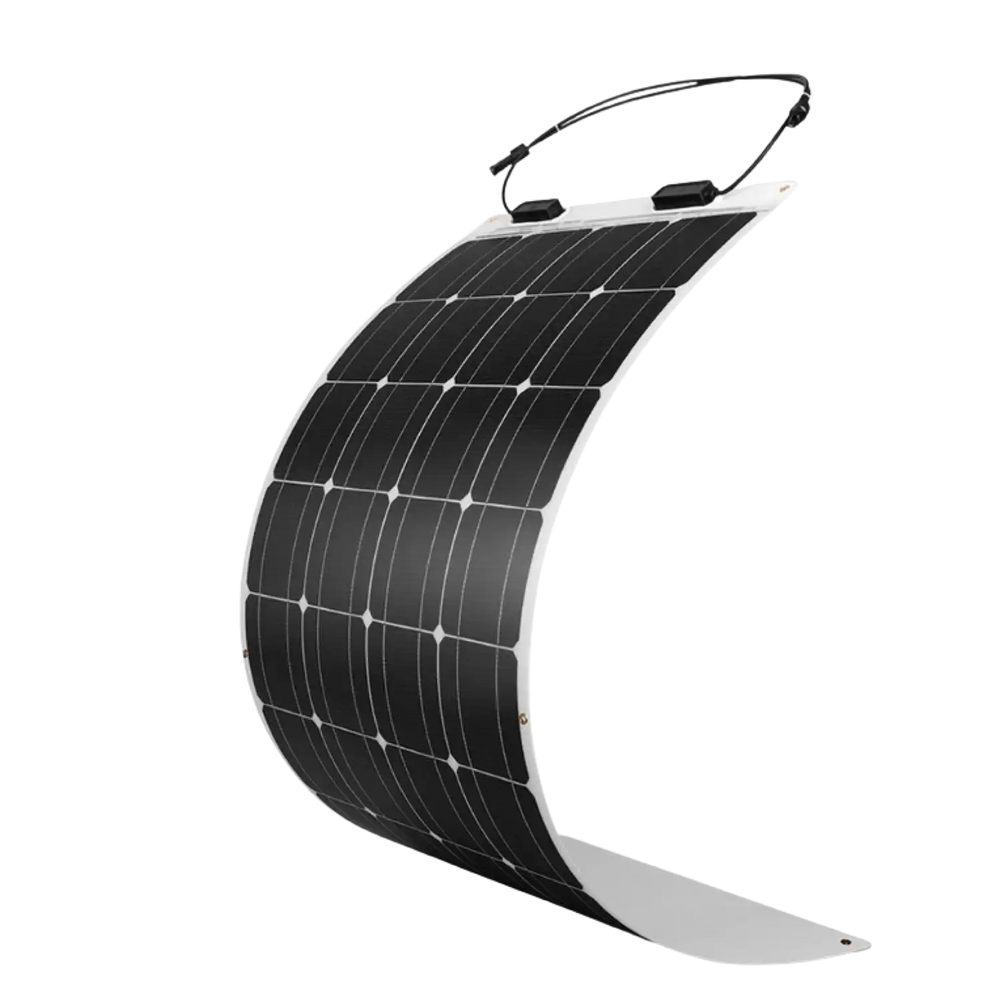

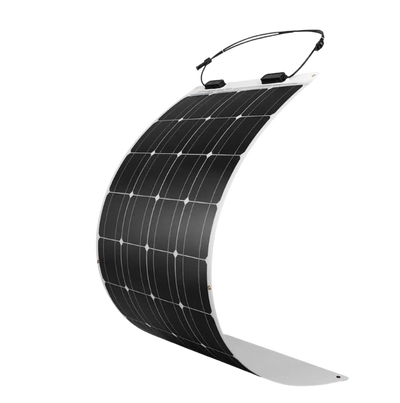

Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 100W Flexible Solar Panel is your perfect solution for a power-independent journey. IP68 junction box and IP67 solar connector, excellent weatherproof performance, perfect for marine and outdoor use.
At a weight of 4.2 pounds, this flexible solar panel only weighs 1/4 of its traditional 100W counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, Campers, Boats, and many others.
5 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Extremely Flexible: This 100W solar panel can flex up to 248 degrees, minimizing the mounting and even issues for a curved surface. Where rigid panels are inconvenient to install, get this one.
- Ultra Lightweight: Light as 4.2 pounds, this product weighs 1/4 of its rigid counterpart. Travel light with solar, embrace possibilities.
- Super Thin Lamination: This Renogy 100W flexible panel is only 0.08 inches thick! It is about 95% thinner than its rigid counterpart, ideal for a stealthy solar setup.
- Weather Resistance: Rigorously tested, the 100W panel can withstand extreme winds of up to 2400 Pa and snow loads of up to 5400 Pa. Fearless of extreme climates, backup your brave journey.
- Easy Installation: Six metal reinforced mounting holes, simple to install. You can also mount it with silicone structural adhesive.
- Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, consult a local contractor.
Specifications
| Certifications | CE, ISO |
| Weight | 4.2 lbs (1.9 kg) |
| Dimensions | 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm) |
| Maximum Power at STC | 100W Module |
| Efficiency | 14.9% |
| Optimum Operating Voltage (Vmp) | 18.9V |
| Open-Circuit Voltage (Voc) | 22.5V |
| Optimum Operating Current (Imp) | 5.29 A |
| Short-Circuit Current (Isc) | 5.75 A |
| Operating Temperature | -40°F to 185°F (-40ºC to +85ºC) |
| Maximum Series Fuse Rating | 15A |
| Maximum System Voltage | 600V DC (UL) |
Package Contents
Flexible Monocrystalline Solar Panel
User Manual
Warranty
This product comes with a 5 year material and workmanship warranty.
