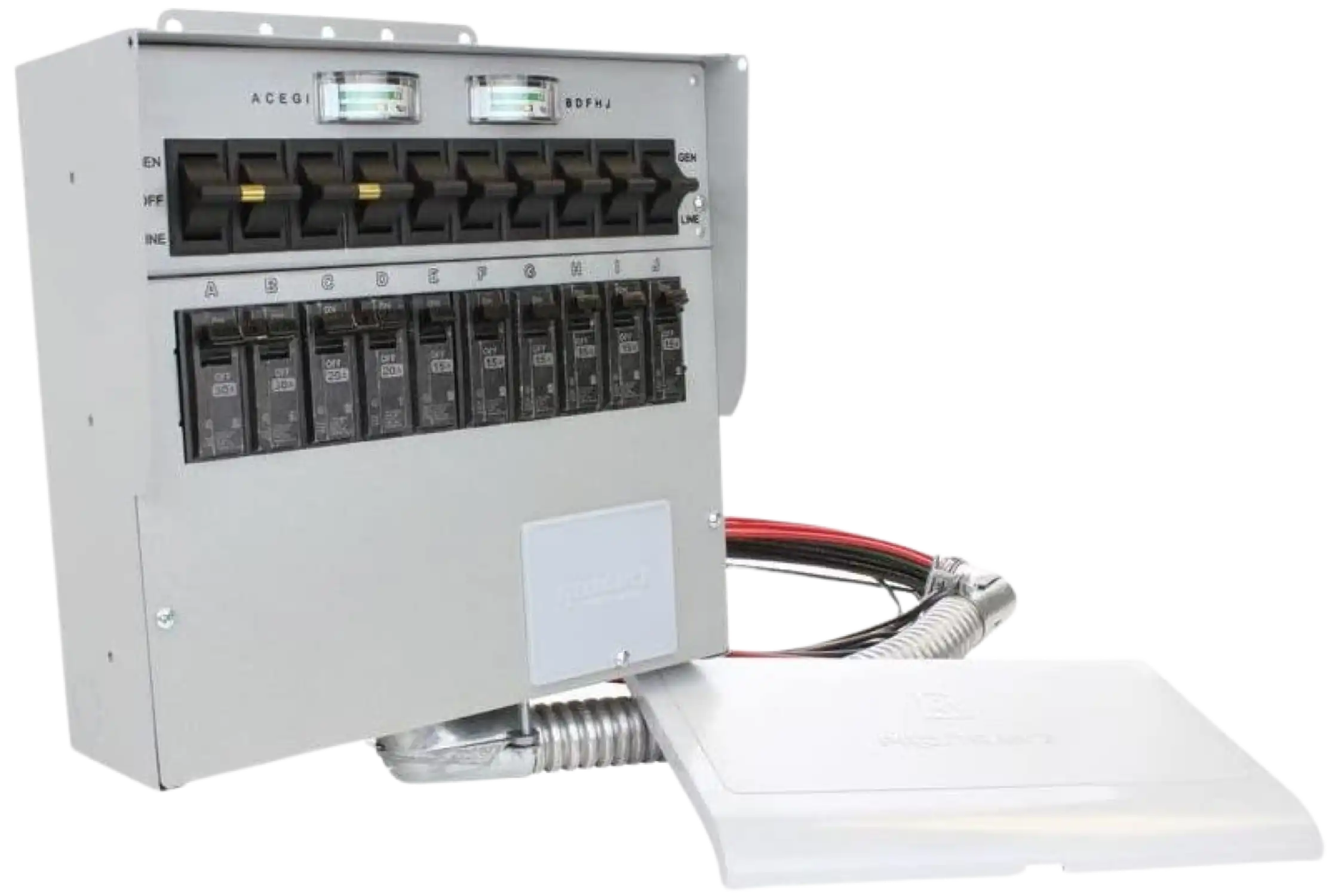

Reliance A510C Pro/Tran 2® 50 Amp 10 Circuit Manual Transfer Switch New
Product Overview
The Pro/Tran 2 is the next generation of Loadside™ manual transfer switch by Reliance Controls. These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification.
Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers. The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI & GFCI breakers.
*Note: Please make sure you have consulted with an electrician to verify the manual transfer switch is in fact the model and specification necessary for your situation.
Brand new in box
2 year factory warranty
Fast shipping from TX
Authorized Reliance dealer
Features
- Safest Way to Distribute Power - Eliminates dangerous backfeeds and electrical overloads
- Pro/Tran 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch - The next generation of Loadside manual transfer switches
- (10) Total Circuits (1" Interchangeable Style) - (1) 20A 2-Pole, (2) 20A 1-Pole & (6) 15A 1-Pole
- Powder-Coated Steel Cabinet for Indoor Installation - 18" flexible conduit with all factory wires clearly marked/colored. (6) Combination 1/2" & 3/4" knockouts for easier installation.
- Hinged, Non-Metallic Cover - Protects toggle switches/breakers & provides a finished appearance.
- Color-Coded Built-In Wattage Meter - Helps you balance and manage generator load.
- *Note - Transfer Switch is Designed for Hardwired Installation - 50-Amp (PB50) power inlet box needed to connect power cord.
- Certified to UL Standard 1008 & Meets All Required 702 NEC ANSI/NFPA 70
Specifications
| CONDUIT SIZE (INCHES) | 1 |
| CONDUIT LENGTH (INCHES) | 18 |
| WATTMETERS | YES |
| SHIPPING WEIGHT (LBS) | 17 |
| DIMENSIONS | 11"H x 11.75"W x 4.5"D |
| CABINET TYPE, NEMA | INDOOR, NEMA |
| MAX. GENERATOR RUNNING WATTS | 12500 |
| PHASE | SINGLE |
| MAX. SINGLE-POLE CIRCUITS | 10 |
| MAX. DOUBLE-POLE CIRCUITS | 5 |
| MAX. RATING PER CIRCUIT | 2/30A, 8/20A |
| MAX. COMBINED LOAD @ 125 VAC | 100 |
| MAX. COMBINED LOAD @ 250 VAC | 50 |
| POWER INLET, NEMA | NONE |
| RECOMMENDED CORD SIZE (GAUGE) | 6 |
Package Contents
Model 510C Ten-Circuit Prewired Transfer Switch
Warranty
This item comes with a 2 year manufacturers warranty.
