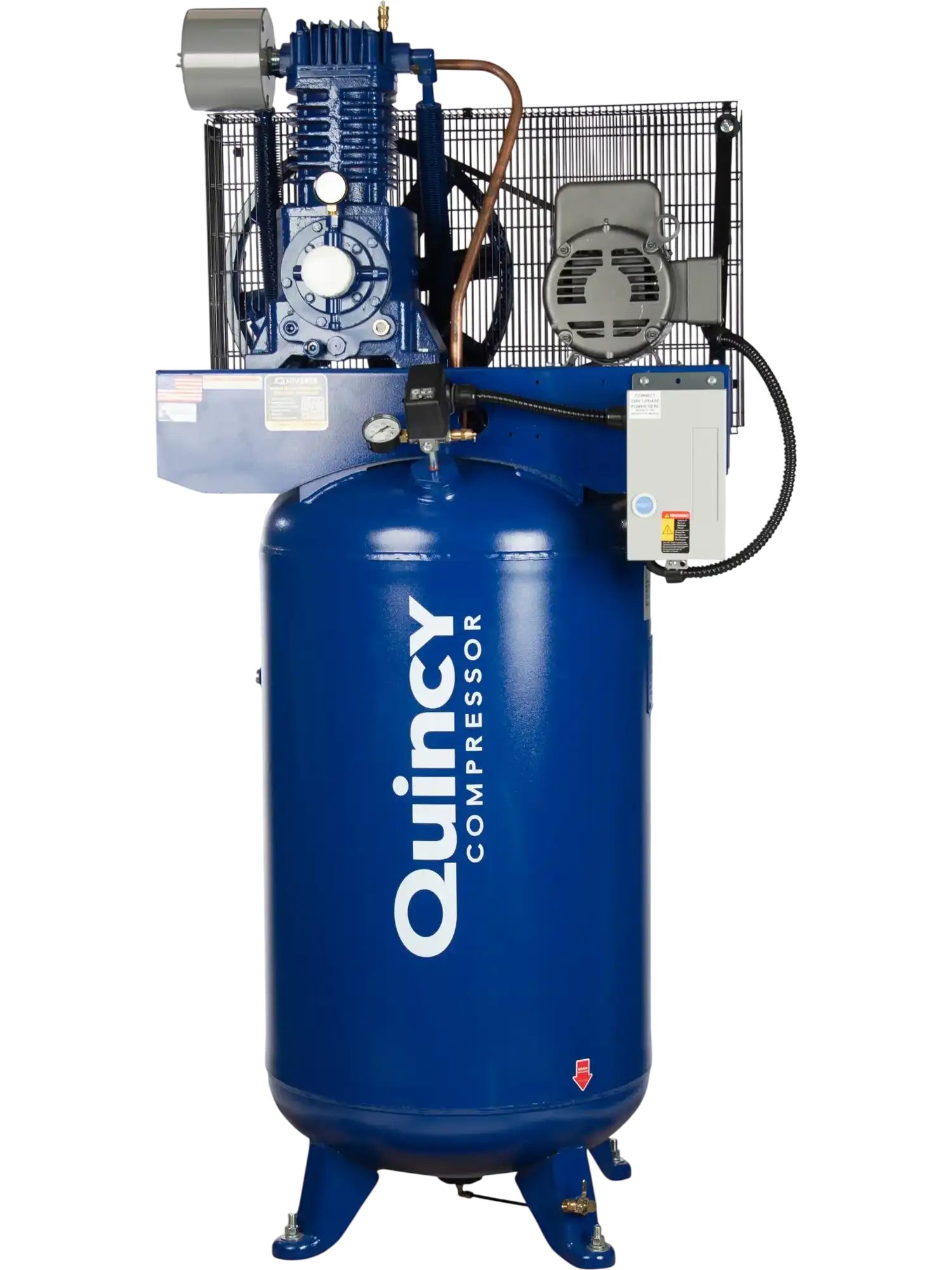

Quincy Compressor QP Two Stage Piston Air Compressor 5 HP 80 gallon Vertical Pro Plus 460V 3 Phase New
Product Overview
The Quincy Compressor 553DS80VCA46P is a two-stage piston air compressor with a 5 HP motor and a rated capacity of 17.2 CFM. Its tank-mounted configuration pairs the compressor with an 80-gallon vertical tank. Pressure lubrication is supplied by an oil pump. Cast iron construction is another key feature of this unit. Supplied in the Pro Plus package with automatic tank drain, overload protection, and low oil level shutdown, this compressor is specified for 460V, three-phase, 60 Hz power.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Splash Lubricated
- Cast-iron Crankcase, Cylinders and Flywheel
- Stainless-Steel Reed Valves with Valve Bumpers
- Ductile Iron, Double Throw Crankshaft
- Industrial Ball Bearings
- Two-Piece Aluminum Connecting Rods
- Fin and Tube Intercooler
- Automotive Style Inlet Filter/Silencer
- Motor Overload Protection
- Automatic Tank Drain
- Low Oil Level Shutdown
Specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 5 HP |
| Capacity | 17.2 CFM |
| Package | Pro Plus |
| Tank Size | 80 gallon |
| Tank Orientation | Vertical |
|---|---|
| Voltage | 460/3/60 |
Warranty
This item comes with a 1 year factory warranty.
