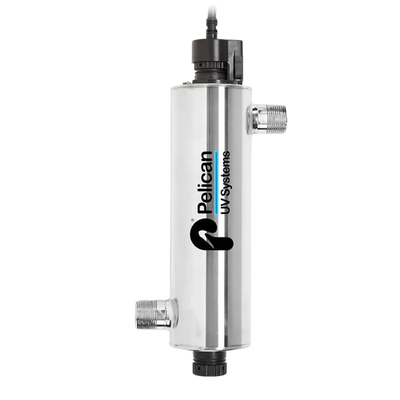

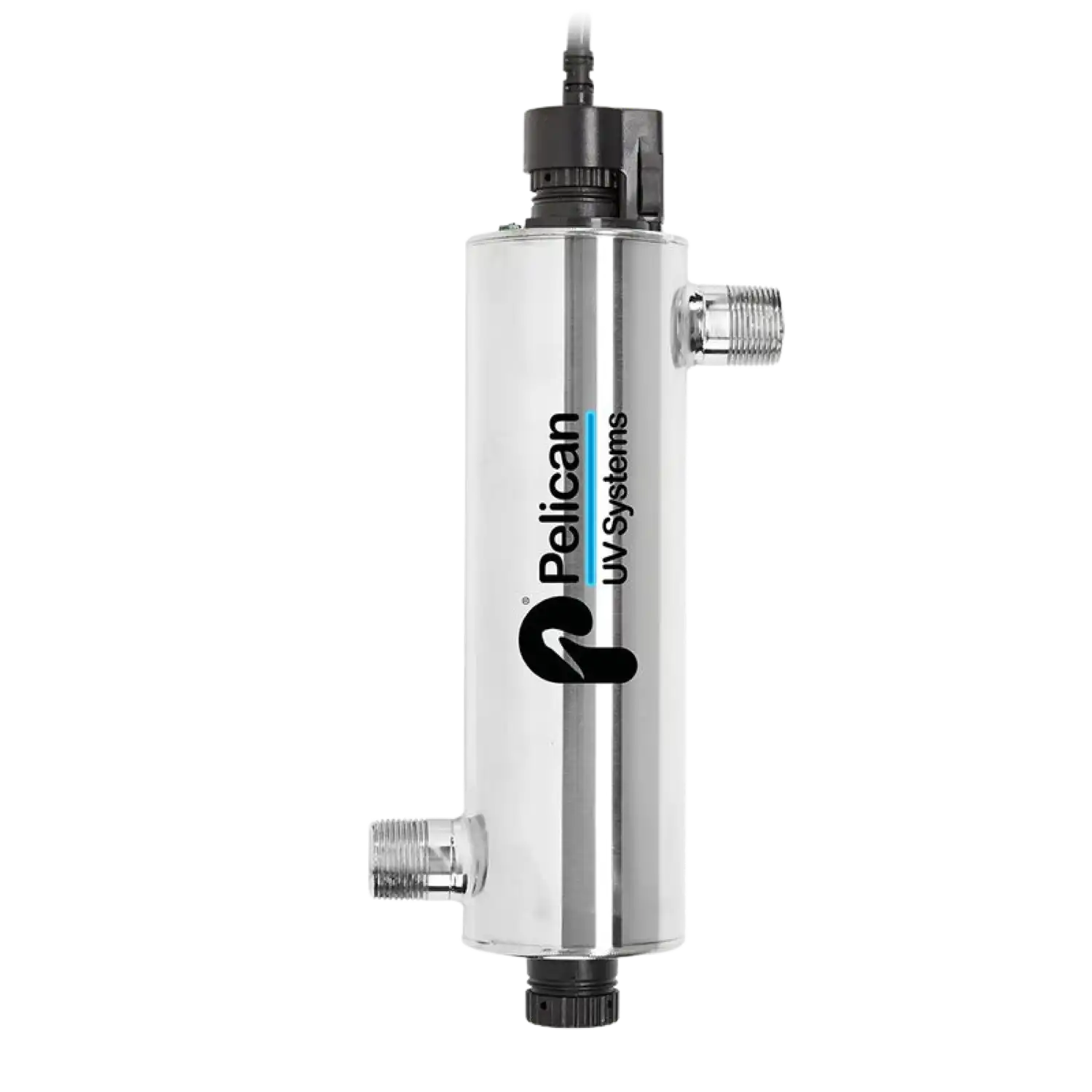

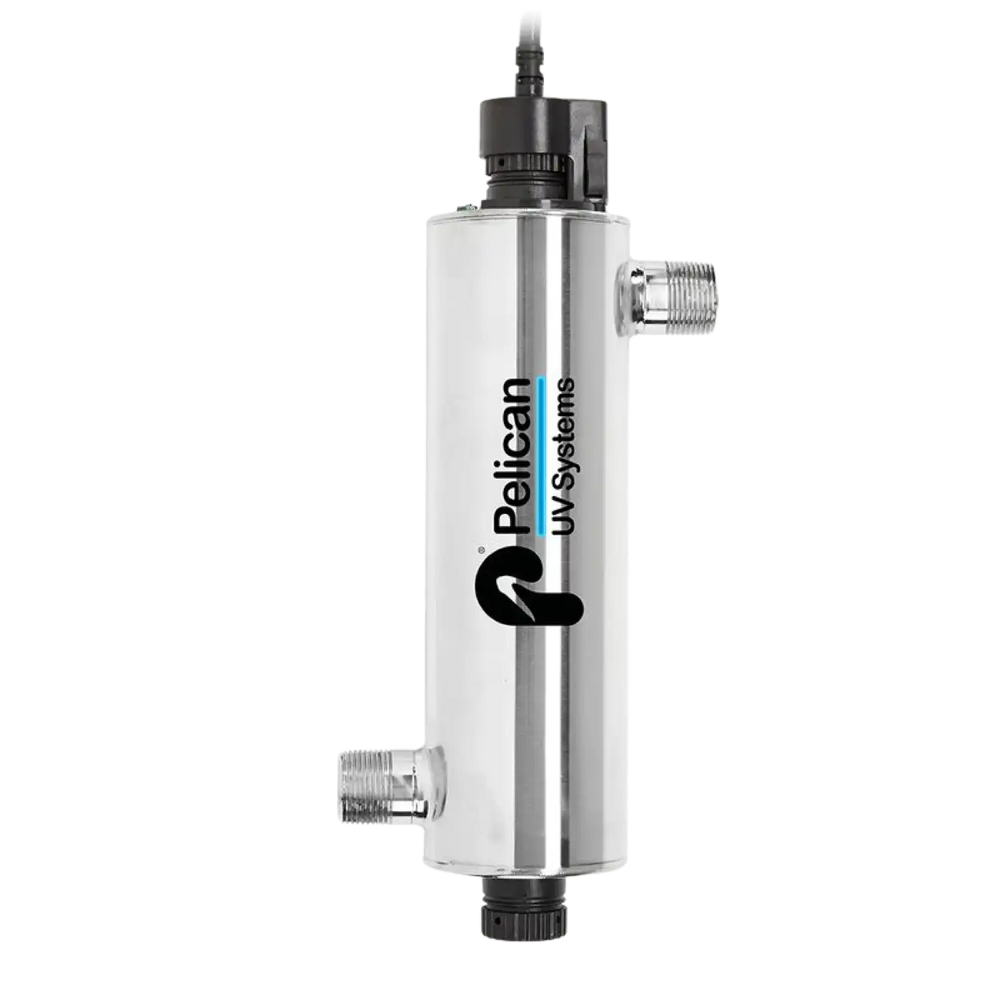

Pentair PUV-7 7 GPM UV Whole House Water Treatment and Disinfection System New
Manufacturer: Pentair
SKU: PUV-7
QTY
or
(888) 999-1522
C
$931.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Pentair PUV-7 7 GPM UV Whole House Water Treatment and Disinfection System New
Product Overview
This system has led the development of water treatment solutions using environmentally friendly ultraviolet (UV) light.
Pentair has the largest installed base of UV systems in operation on the planet, and many of their innovations define the industry standards for safeguarding your water from the damaging effects of microbial and chemical contamination.
Brand new and manufacturer direct
10 year limited manufacturer's warranty
Ships from manufacturer
Fast processing with free shipping
Authorized Pentair dealer
Features
- Confidence in Proper System Operation- Indicator lights show the status of system components. Warning lights appear when system maintenance is required.
- 9-16 GPM peak flow - Ideal for most homes
- Does not affect taste, color and odor of the water
- Easy to maintain
- Safer disinfection process without the use of harmful chemicals
- Safety Cap and Special Lamp Plug- The safety cap prevents children from accessing the lamp or electrical components. The special lamp plug ensures that no one can power the UV lamp if it is not in the UV chamber.
- No disinfection by-products
- Fast acting
- Effective against a broader range of organisms than chlorine
Specifications
| Lamp Timer Reset Button | Yes |
| Mute Button | Yes |
| Maximum rated flow at 70% UVT (16 mJ/cm2) | 16 GPM (60 LPM) |
| Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Max. Current | 1.5 Amp |
| Max Power Consumption | 35 Watts |
| Lamp Power | 25 Watts |
| UV Chamber Material | 304 SS |
| Inlet/Outlet | 1" |
| Lamp Life | 1 Year |
| Maximum Operating Pressure | 125 PSI (862 kPa) |
| Minimum Operating Pressure | 4 PSI (27.5 kPa) |
| Maximum Ambient Air Temperature | 122 F (50 C) |
| Minimum Ambient Air Temperature | 32 F (0 C) |
| Maximum Humidity | 100% |
| Maximum Hardness | 120 PPM (7 Grains Per Gallon) |
| Maximum Tannins | <0.5 PPM |
| Maximum Turbidity | <1.0 NTU |
| Maximum Iron | <0.3 PPM |
| Minimum UVT | 75% |
| Installation | Vertical or Horizontal |
| No-tools Maintenance | Yes |
| Safety Cap & Lamp Plug | Yes |
| Lamp Operation Light | No |
| Power Supply Operation Light | Yes |
| Reference Card | Yes |
| Lamp Timer Display | Yes |
Package Contents
Ultra Violet Water System and Disinfection System
Owner's Manual
Warranty
This item comes with a 10 year limited manufacturer's warranty. UV Chamber 10 years, Electrical and Hardware 3 years , UV Lamps, Sleeves, and Sensors have a 1 year warranty.
