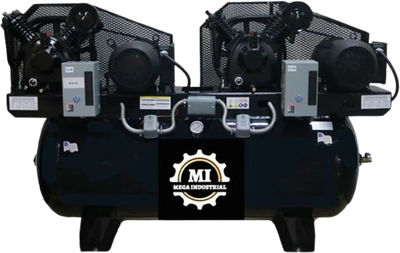

Mega Compressor MP-75120DPBA Air Compressor 120 Gallon 7.5HP 208-230V Single Phase Electric Start New
Manufacturer: Mega Compressor
SKU: MP-75120DPBA
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$12,786.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-5 Business Days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

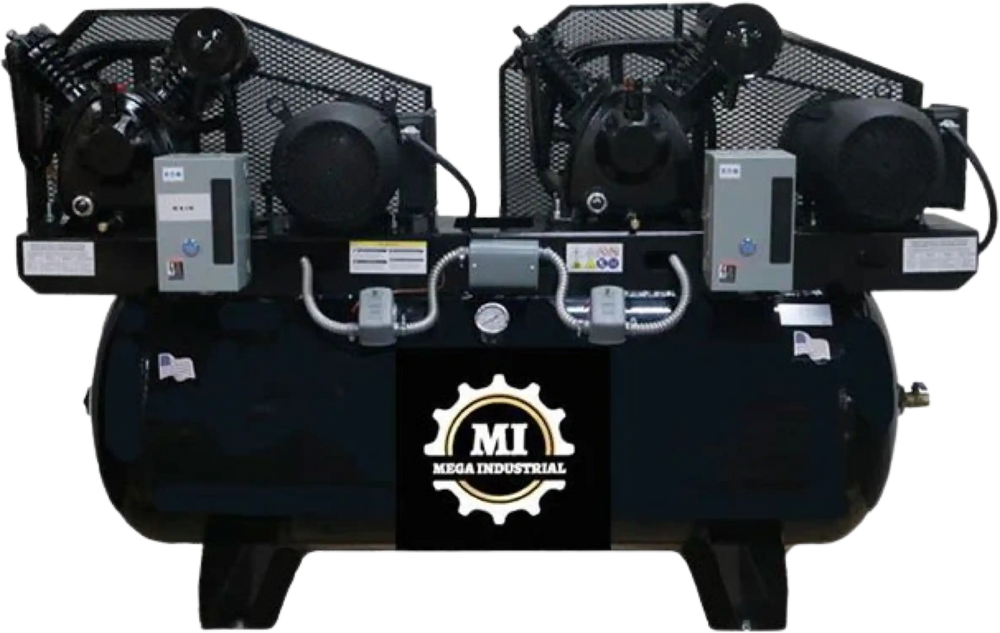

Mega Compressor MP-75120DPBA Air Compressor 120 Gallon 7.5HP 208-230V Single Phase Electric Start New
Product Overview
This 120-gallon air tank provides reliable pressure with maximum sustained output of 175 PSI. Its twin compressor pumps have a combined output of 45 CFM at 175 PSI, powered by a 7.5HP 208-230V motor for great performance.
1 year factory warranty
Ships directly from Mega Compressor out of TX and TN
Authorized Mega Compressor dealer
Features
- Cast iron, V cylinder, oil lubricated pump features
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head & machined cast iron valve plate
- Automotive style ball bearings
- Durable stainless steel reed valves
- Oil level sight glass
- Easily accessible oil fill
- Ball Valves included
- Heavy duty induction motor for maximum performance and efficiency
- 120 gallon Horizontal Tank
- 208 - 230 Single Phase Motors
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- Alternator Included
- After Cooler & Auto Drain Included
- Square D Heavy Duty Pressure Switch
- Ability to choose 1 incoming or 2 incoming power
Specifications
| Tank Size | 120 Gallon |
| Maximum Pressure | 175 PSI |
| CFM @ 175 PSI | 45 |
| CFM @ 90 PSI | 50 |
| Voltage | 208 - 230V |
| Running HP | 7.5 HP |
| Warranty | 1-Year Limited |
| Phase | Single Phase |
Package Contents
Duplex Horizontal Air Compressor
Manual
Warranty
This item comes with a 1 year factory warranty.
