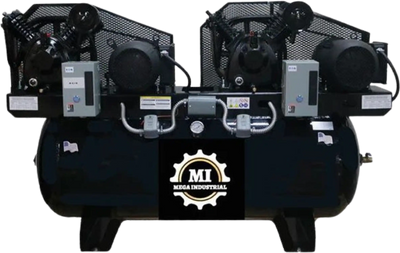

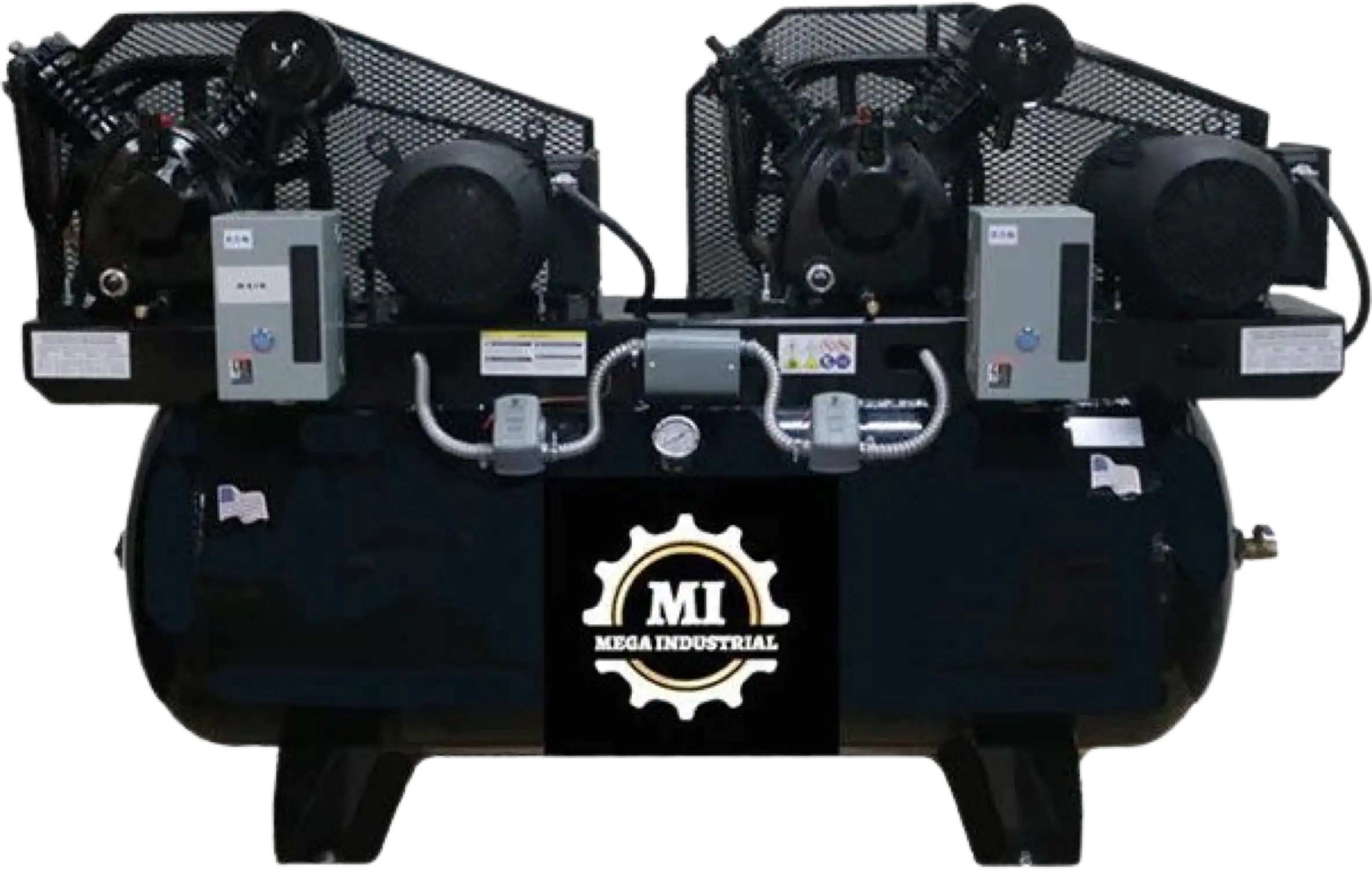

Mega Compressor MP-75120DP3BA Air Compressor 120 Gallon 7.5 HP 208-230V 3-Phase Electric Start New
Manufacturer: Mega Compressor
SKU: MP-75120DP3BA
QTY
(888) 999-1522
C
$11,559.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Exceptional Customer Service
Authorized Dealer
Mega Compressor MP-75120DP3BA Air Compressor 120 Gallon 7.5 HP 208-230V 3-Phase Electric Start New
Product Overview
This 120-gallon air compressor is a powerhouse, operating at a maximum pressure of 175 PSI and producing a CFM of 45 with 7.5 HP for 208-230V with a 3-Phase power supply.
1 year factory warranty
Ships directly from Mega Compressor out of TX and TN
Authorized Mega Compressor dealer
Features
- Cast iron, V cylinder, oil lubricated pump features
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head & machined cast iron valve plate
- Automotive style ball bearings
- Durable stainless steel reed valves
- Oil level sight glass
- Easily accessible oil fill
- Ball Valves included
- Heavy duty induction motor for maximum performance and efficiency
- 120 Gallon Horizontal Tank
- 208 - 230V Three Phase Motors
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- Alternator Included
- After Cooler & Auto Drain Included
- Square D Heavy Duty Pressure Switch
- Ability to choose 1 incoming or 2 incoming power
Specifications
| Tank Size | 120 gallon |
| Maximum Pressure | 175 PSI |
| CFM @ 175 PSI | 45 |
| Voltage | 208 - 230V |
| HP | 7.5 HP |
| Warranty | 1 Year Limited |
| Phase | 3 Phase |
Package Contents
Duplex Horizontal Air Compressor
Manual
Warranty
This item comes with a 1 year factory warranty.
