Mega Compressor MP-6560VB Electric Air Compressor 60 Gal. Vertical 5 HP 150 PSI 220V New
Manufacturer: Mega Compressor
SKU: MP-6560VB
QTY
or
(888) 999-1522
C
$1,939.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-5 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$144.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$201.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$259.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Mega Compressor MP-6560VB Electric Air Compressor 60 Gal. Vertical 5 HP 150 PSI 220V New
Product Overview
The MEGA Compressor MP-6560VB is a stationary, single-stage electric air compressor built for serious DIY and small-shop use. It features a heavy-duty 5 HP induction motor paired with an oil-lubricated cast iron pump designed for durability and cooling efficiency. Delivering 18 CFM at 90 PSI with a maximum pressure of 150 PSI, it can run a wide range of air tools for tasks like sanding, drilling, and wrenching. A 60-gallon vertical tank helps save floor space while providing ample stored air. Maintenance is simplified with an easy-access drain, oil sight glass, and accessible oil fill.
Brand new
1 year factory warranty
Manufacturer direct shipping from TX and TN
Authorized Mega Compressor dealer
Features
- Heavy-duty 5 HP induction motor
- 220V single-phase operation
- Delivers 18 CFM at 90 PSI with max 150 PSI

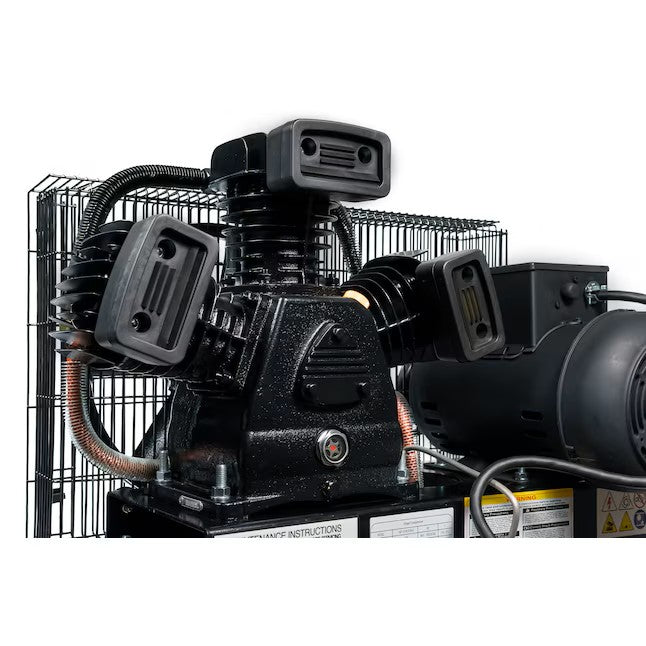

- Cast iron oil-lubricated pump
- "W" design to reduce vibration and improve cooling
- One-piece cast iron crankcase with automotive-style ball bearings
- Stainless steel reed valves for increased efficiency

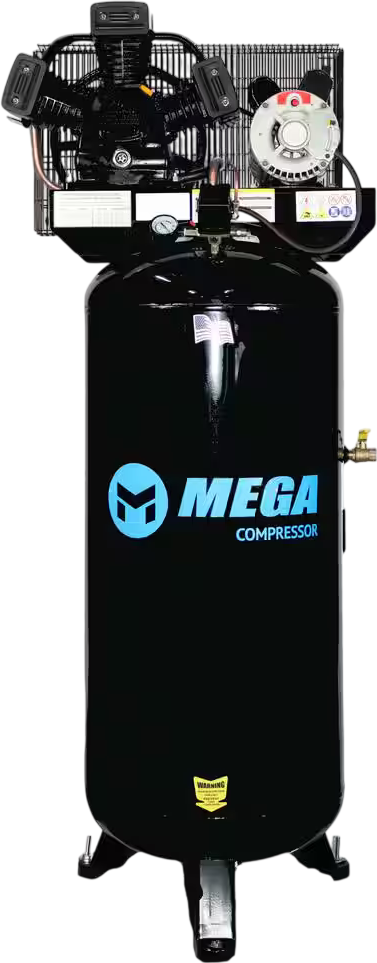

- 60-gallon vertical tank to save floor space

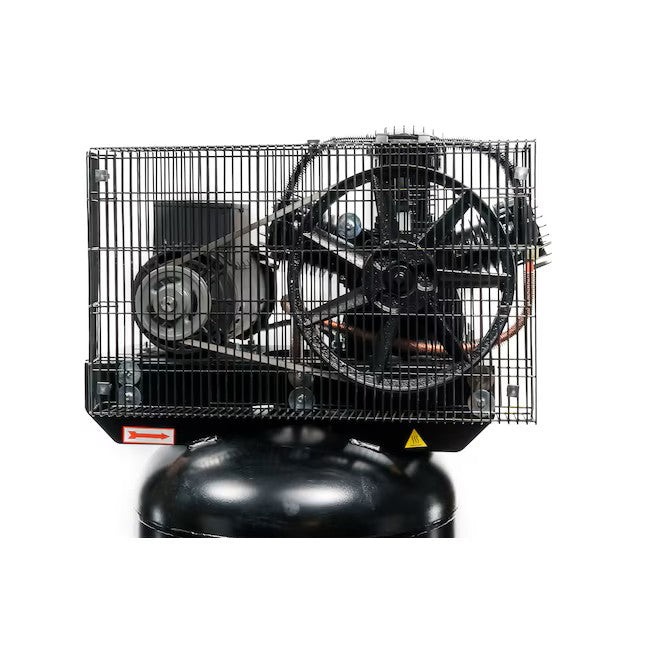

- Fully enclosed belt guard
- Easy-access manual drain for routine maintenance
- Oil sight glass for quick oil level checks
- Shipped with 100% full synthetic air compressor oil
Specifications
| Model | MP-6560VB |
| Motor Horsepower | 5 HP |
| Power Source | Electric |
| Phase | 1 |
| Voltage | 220V |
| Amperage | 18 A |
| Drive Type | Belt Drive |
| Lubrication Type | Splash Lubricated |
| Pump Low Oil Shutdown | No |
| Oil Sight Glass Included | Yes |
| Pressure Gauge Included | Yes |
| CFM @ 90PSI | 18 |
| Maximum Operating Pressure (PSI) | 150 |
| Tank Size | 60 Gallons |
| Tank Orientation | Vertical |
| Tank Outlet Size | 1/2 in. |
| Stages | Single Stage |
| Mounting Type | Stationary |
| Certifications | ASME |
| Product Weight | 418 lbs |
| Dimensions (L x W x H) | 24 in. x 23 in. x 64 in. |
Package Contents
MP-6560VB Electric Air Compressor
User Manual
Warranty
This item comes with a 1 year factory warranty.
