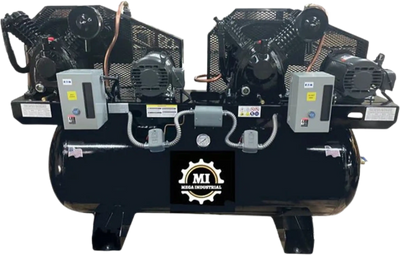

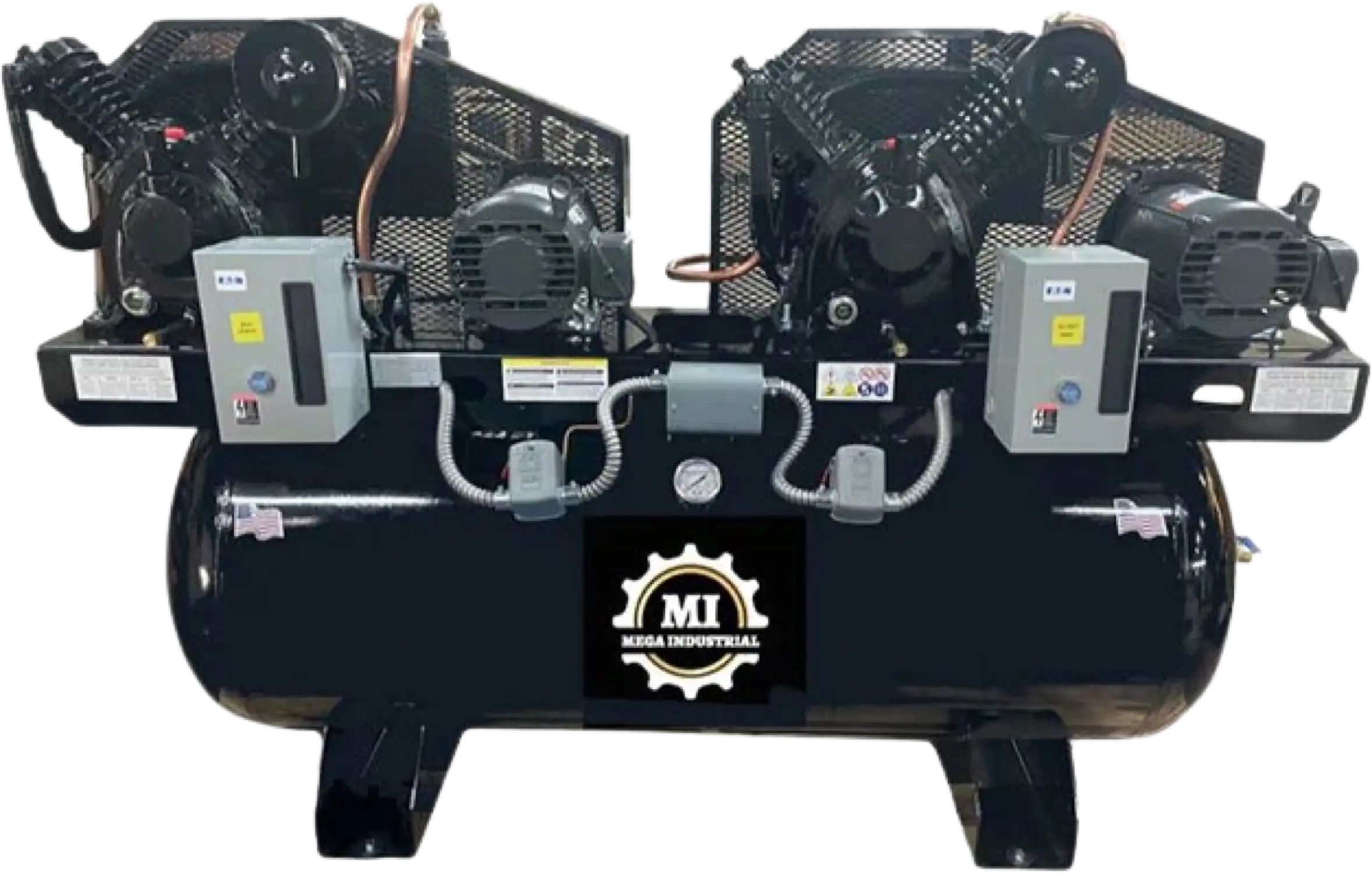

Mega Compressor MP-50120DPBA Air Compressor 5HP 460V Single Phase Electric Start New
Share
Product Overview
This 120 Gallon air tank is designed to maximize performance and efficiency. With a maximum pressure of 175 PSI and 34 CFM @ 175 PSI, you will get the most out of your 5HP motor running on 460V.
1 year factory warranty
Ships directly from Mega Compressor out of TX and TN
Authorized Mega Compressor dealer
Features
- Cast iron, V cylinder, oil lubricated pump features
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head & machined cast iron valve plate
- Automotive style ball bearings
- Durable stainless steel reed valves
- Oil level sight glass
- Easily accessible oil fill
- Ball Valves included
- Heavy duty induction motor for maximum performance and efficiency
- 120 gallon Horizontal Tank
- 460V Single Phase Motors
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- Alternator Included
- After Cooler & Auto Drain Included.
- Square D Heavy Duty Pressure Switch
- Ability to choose 1 incoming or 2 incoming power.
Specifications
| Tank Size | 120 Gallon |
| Maximum Pressure | 175 PSI |
| CFM @ 175 PS | 34 |
| Voltage | 460V |
| Running HP | 5HP |
| Warranty | 1 Year Limited |
| Phase | Single Phase |
Package Contents
Duplex Horizontal Air Compressor
Manual
Warranty
This item comes with a 1 year factory warranty.
