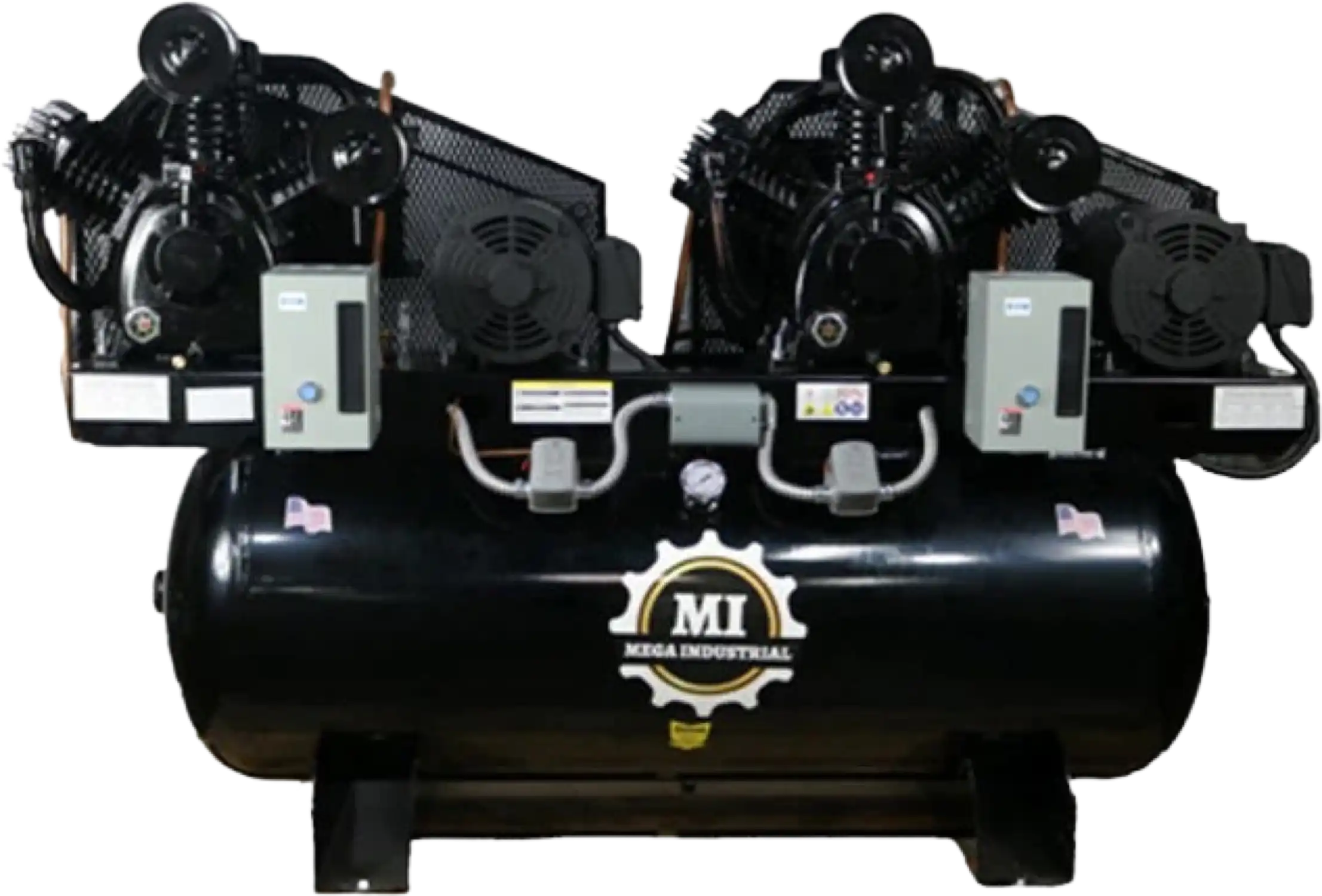

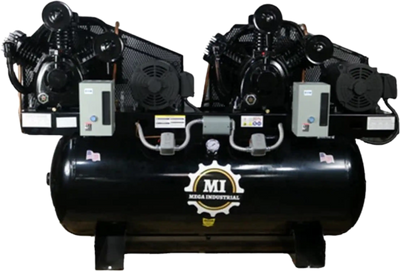

Mega Compressor MP-10120DP3BA Air Compressor 120 Gallon 10 HP 208-230V 3-Phase Electric Start New
Manufacturer: Mega Compressor
SKU: MP-10120DP3BA
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$13,112.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in 3-7 Business Days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Mega Compressor MP-10120DP3BA Air Compressor 120 Gallon 10 HP 208-230V 3-Phase Electric Start New
Product Overview
This 120-gallon industrial air tank is designed for maximum pressure of 175 PSI and has a CFM @ 175 PSI of 70. It is equipped with a 10HP motor, available in 208-230V, and delivered with a 3-phase power supply.
1 year factory warranty
Ships directly from Mega Compressor out of TX and TN
Authorized Mega Compressor dealer
Features
- Cast iron, V cylinder, oil lubricated pump features
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head & machined cast iron valve plate
- Automotive style ball bearings
- Durable stainless steel reed valves
- Oil level sight glass
- Easily accessible oil fill
- Ball Valves included
- Heavy duty induction motor for maximum performance and efficiency
- 120 gallon Horizontal Tank
- 208 - 230V Three Phase Motors
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- Alternator Included
- After Cooler & Auto Drain Included
- Square D Heavy Duty Pressure Switch
- Ability to choose 1 incoming or 2 incoming power
Specifications
| Tank Size | 120 gallon |
| Maximum Pressure | 175 PSI |
| CFM @ 175 PSI | 70 |
| Voltage | 208-230V |
| HP | 10 HP |
| Warranty | 1 Year Limited |
| Phase | 3 Phase |
Package Contents
Duplex Horizontal Air Compressor
Manual
Warranty
This item comes with a 1 year factory warranty.
