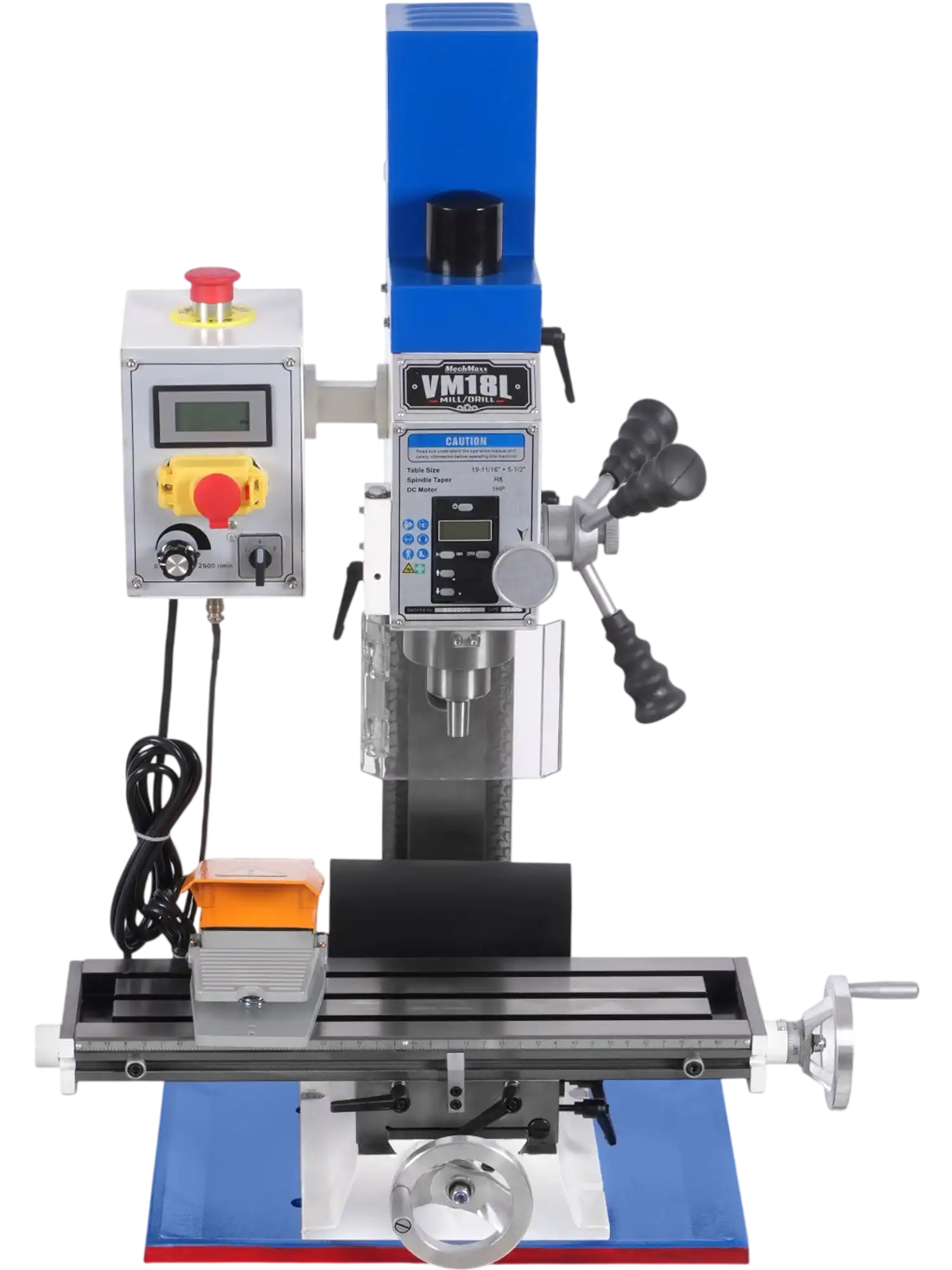

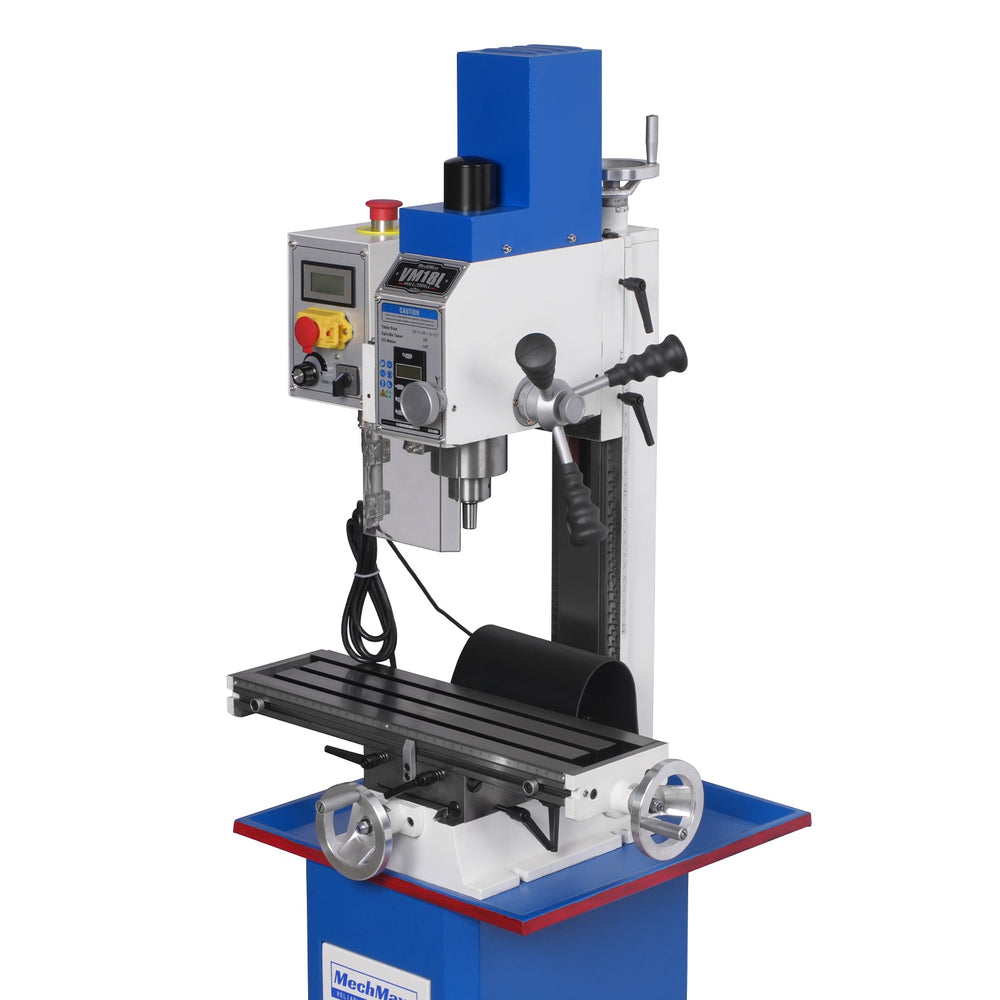

MechMaxx VM18L Mill Drill Machine 6x20" Benchtop Variable Speed R8 Spindle 1 HP 110V Brushless Motor New
Product Overview
- Variable Spindle Speed for Flexibility: VM18L offers a variable spindle speed ranging from 0 to 2500 RPM, allowing users to easily adjust the speed according to different materials and cutting conditions. This feature provides enhanced versatility for a wide variety of machining tasks.
- Enhanced Precision with R8 Spindle Taper: R8 spindle taper, the VM18L ensures high compatibility with a range of toolings, offering better precision and ease of use during various milling and drilling operations.
- Wide Cutting Capacity: outstanding cutting capabilities, including a 3/4" (18mm) drilling capacity and 2" (50mm) face milling capacity, making it ideal for both light and medium-duty machining tasks.
- Flexible Head Tilt for Multi-Angle Operations: ±60° head tilt allows for greater flexibility, enabling users to perform a variety of operations, including angled drilling, milling, and cutting, without needing to reposition the workpiecePrecise Table and Travel Movements:

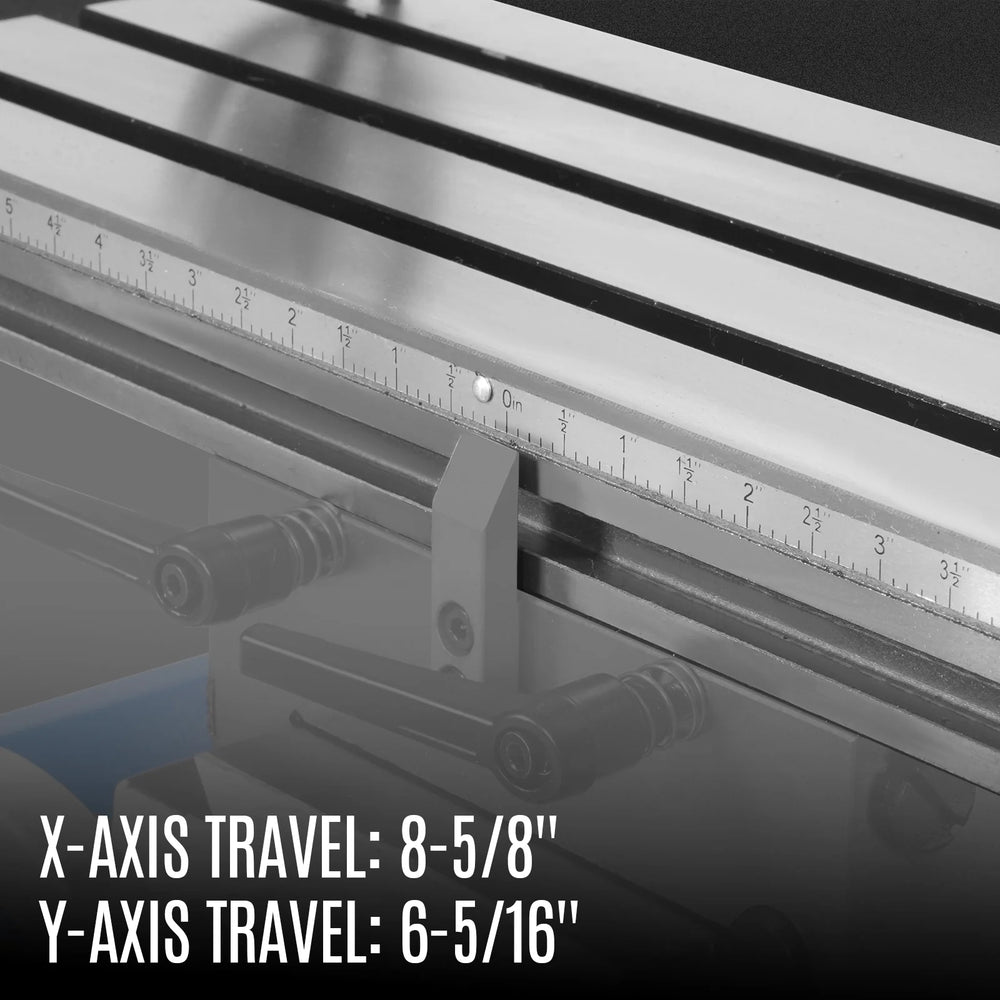

- VM18L provides precise X, Y, and Z-axis travels (X: 8-5/8" (220mm), Y: 6-5/16" (160mm), Z: 10-27/32" (275mm)), allowing for smooth and accurate adjustments to meet the needs of detailed workpieces.
- DC Brushless Motor for Reliable Performance: 1 HP DC brushless motor, the machine provides a smooth, efficient, and low-maintenance operation, contributing to long-lasting, reliable performance and energy savings.
- Compact Design with Heavy-Duty Stability: compact size, the VM18L boasts excellent stability with a square column and dovetail slide design, ensuring rigidity and minimizing vibration during operations for more precise cuts.
- User-Friendly Setup and Easy Operation: simple controls and accessible adjustments, the VM18L is designed for ease of use. Its compact size also allows for efficient space management, ideal for small workshops or professional environments.
- Convenient Shipping and Setup: VM18L comes with a manageable weight of 180 lbs (82 kg) and compact shipping dimensions, making it easy to transport and set up in various workspaces.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

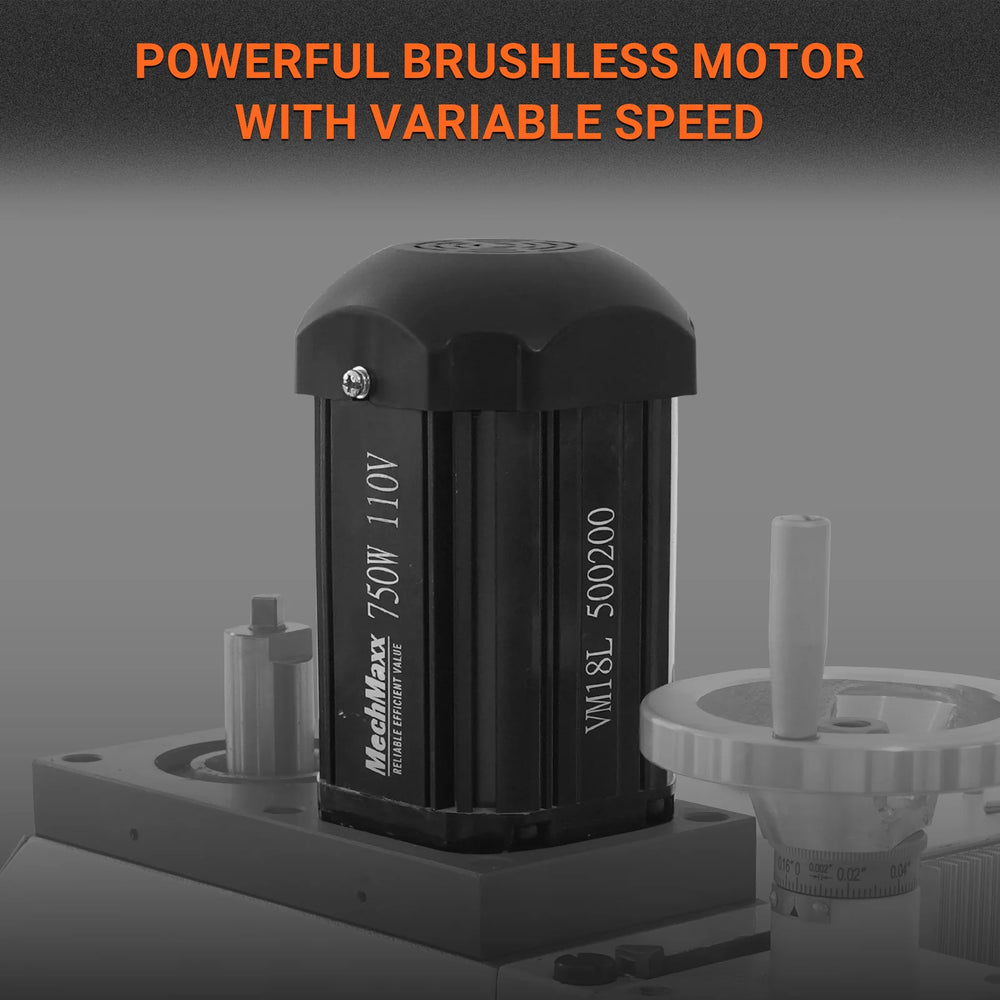

- Powerful Brushless Motor with Variable Speed: Powered by a 1HP brushless DC motor, the VM18L delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.

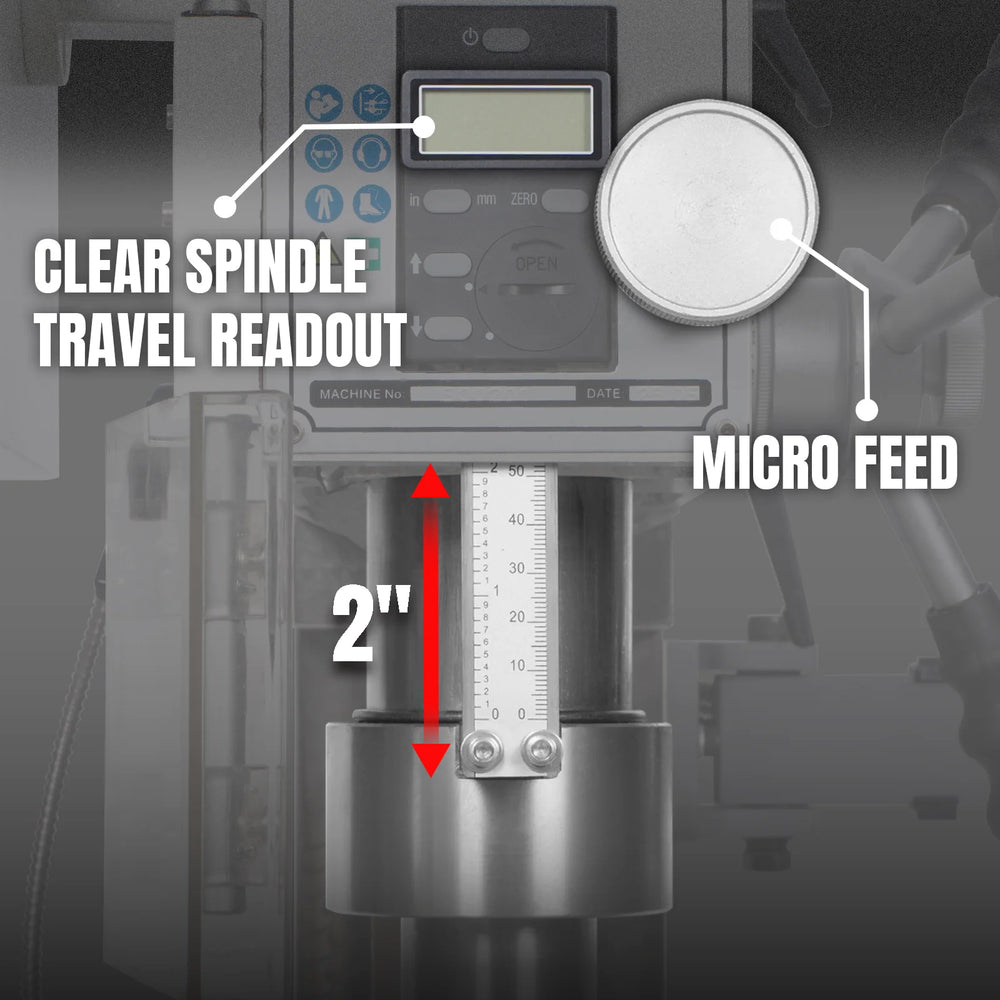

- Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.
- Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

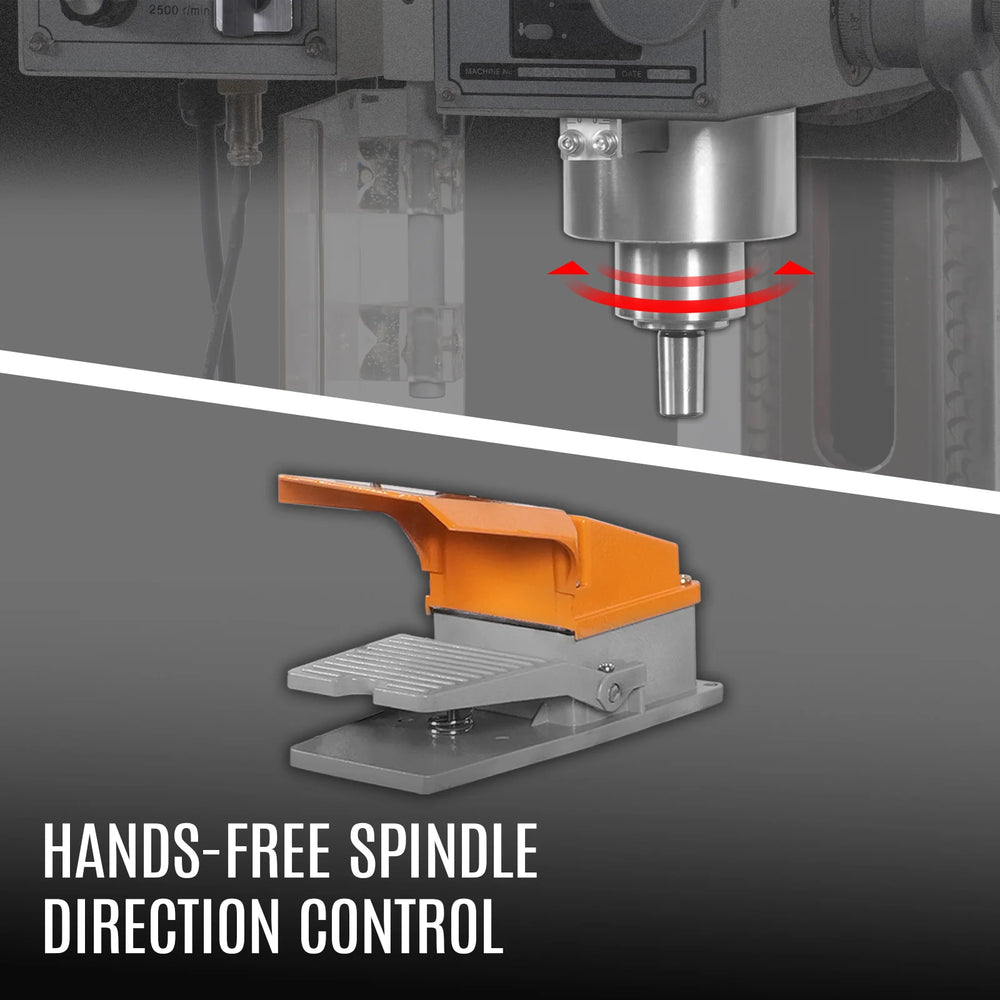

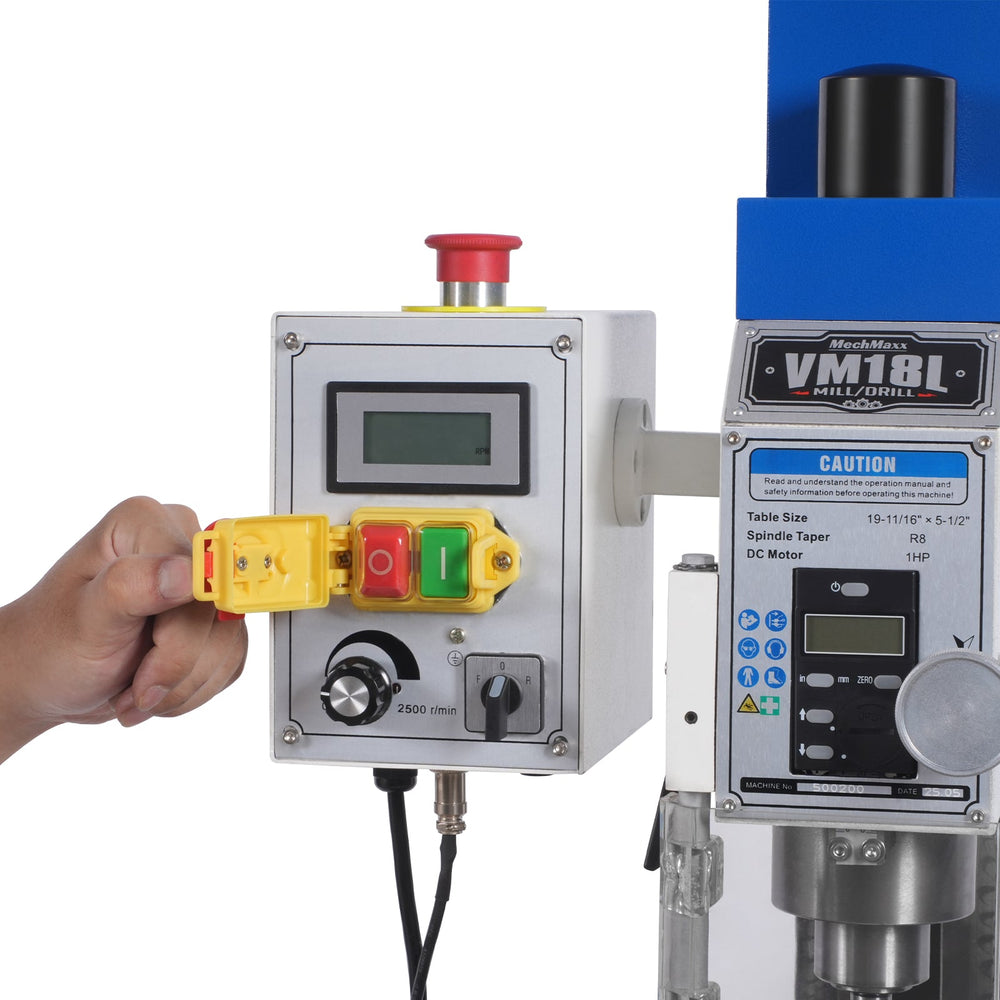

- Dual Control for Spindle Rotation: Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

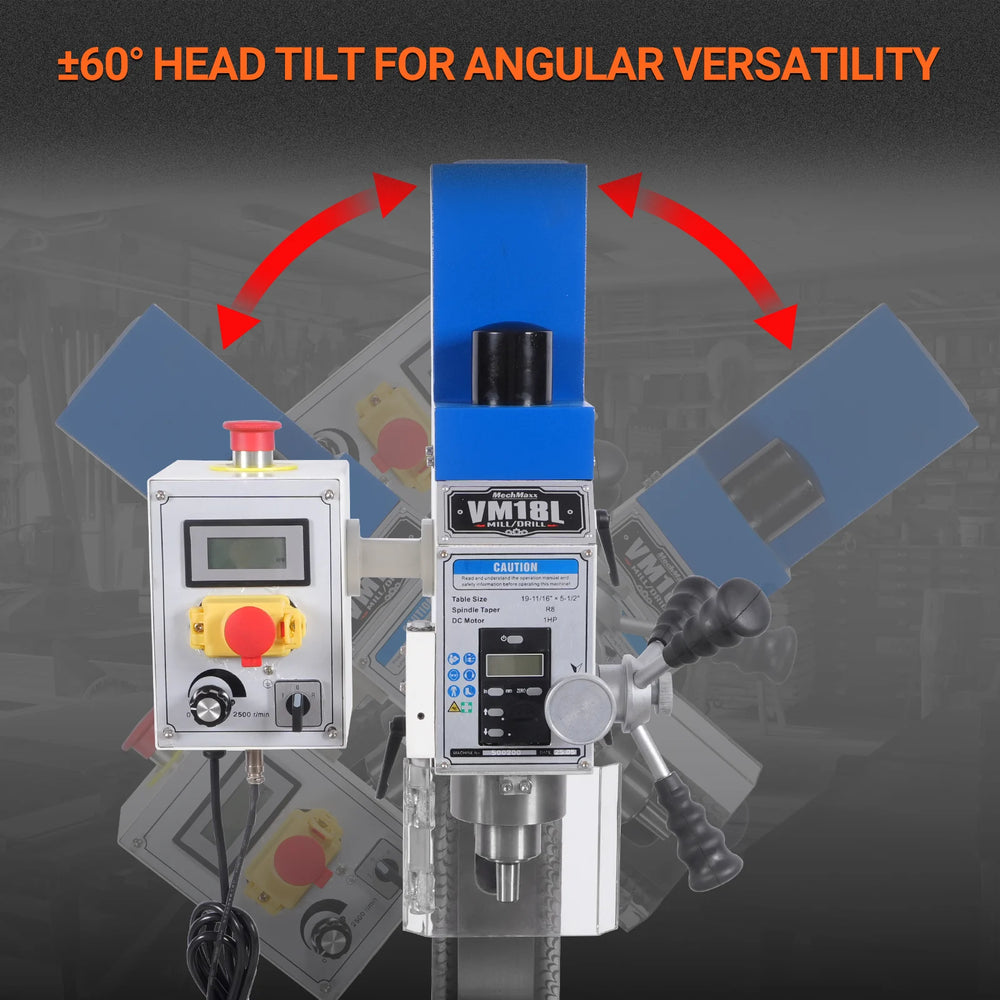

- ±60° Head Tilt for Angular Versatility: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

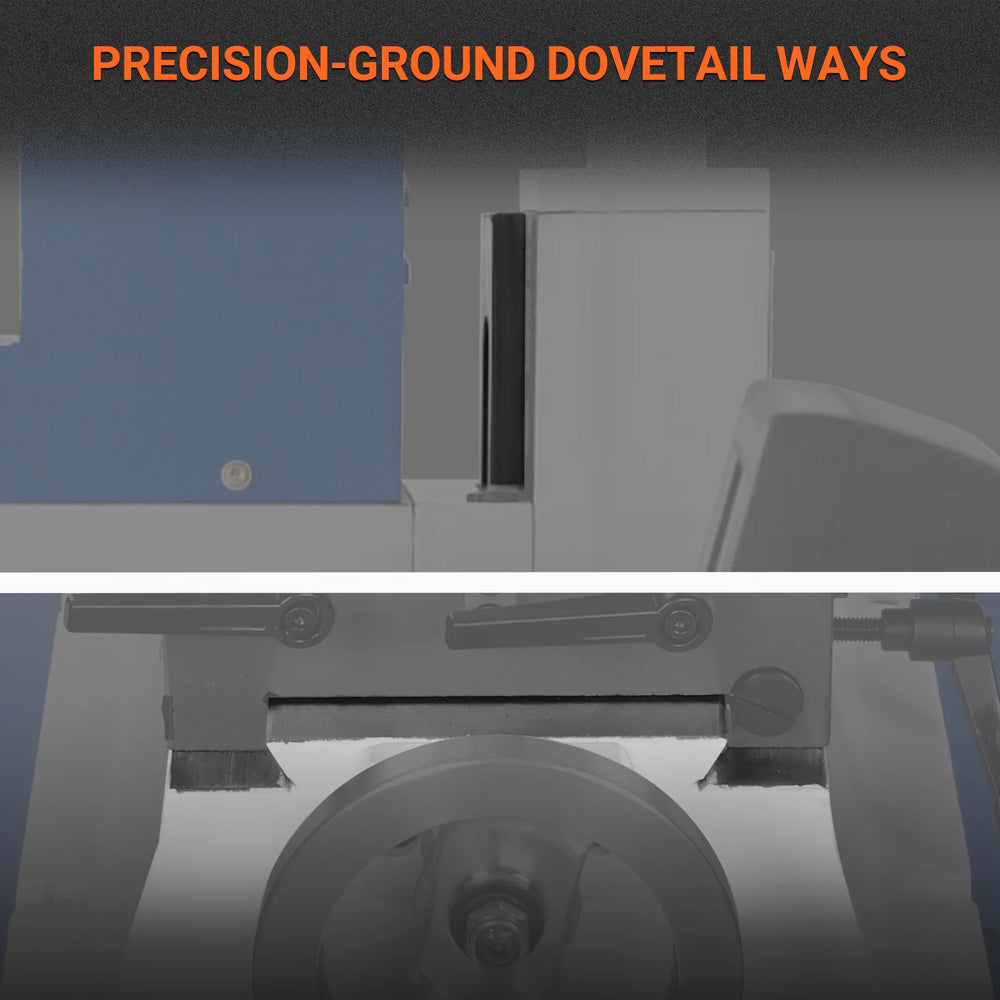

- Precision-Ground Dovetail Ways: Built with hand-scraped dovetail ways and adjustable tapered gibs, this machine delivers outstanding rigidity, surface contact, and wear resistance. Perfect for heavy loads and precise milling operations.

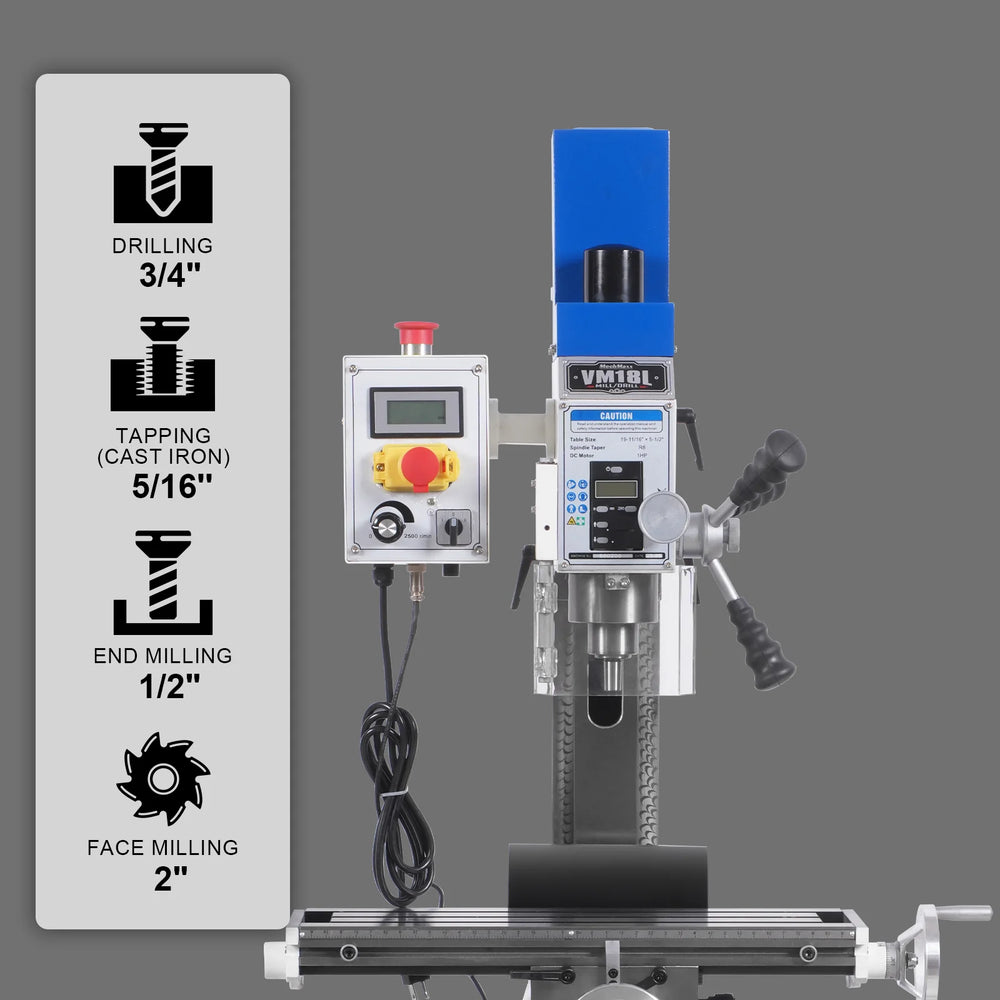

- Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM18L: Drilling up to 3/4", Tapping (Cast Iron) up to 5/16", End Milling up to 1/2", and Face Milling up to 2". Compact yet capable — this machine gets real work done.

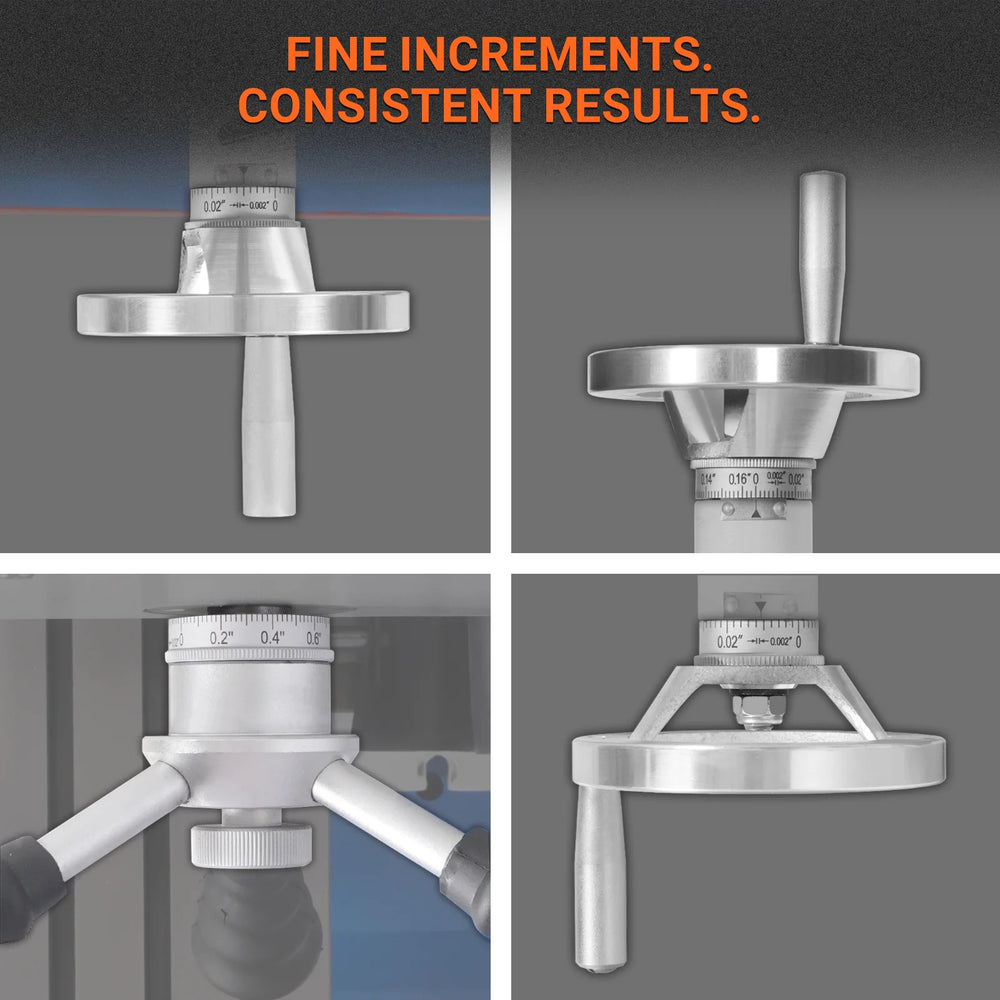

- Fine Increments. Consistent Results.: Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.

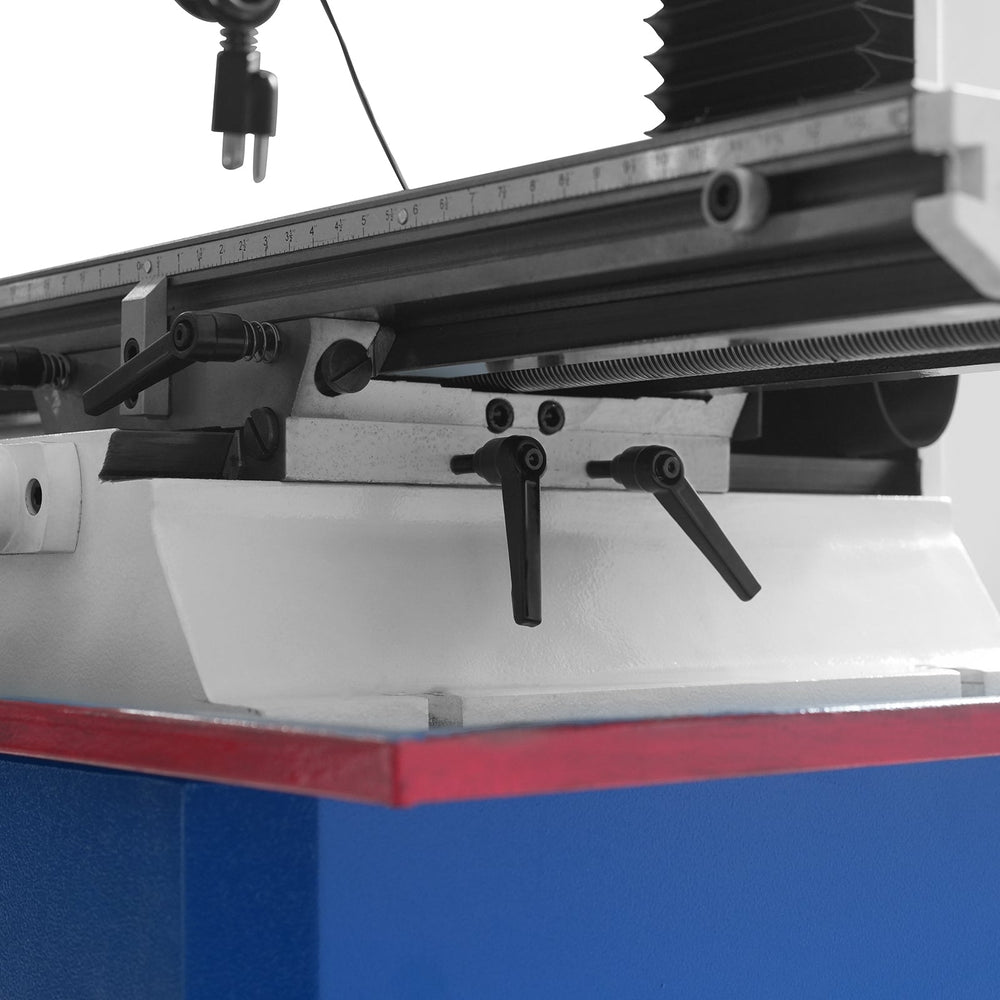

- Depth Stop & Feed Locks: • Adjustable depth stop ensures consistent hole depth. • X-axis limiters prevent overtravel for safe and precise milling. • Feed locks stabilize the axis during cutting — no drift, better finish.
Specifications
| Spindle Taper | R8 |
| Spindle Travel | 2"(50mm) |
| Quill Diameter | Ø2-3/8''(60mm) |
| Spindle Speed Range | 0-2500RPM |
| Number of Speed Steps | Variable |
| Drawbar Thread Size | 7/16"-20'' |
| Head Tilt Angle | ±90° |
| Spindle to Table Distance | 10-7/8"(275mm) |
| Spindle to Column Distance | 6-5/8"(170mm) |
| Drilling Capacity | 3/4"(18 mm) |
| End Milling Capacity | 1/2"(12mm) |
| Face Milling Capacity | 2"(50mm) |
| Table Size | 5-1/2"x19-5/8"(140x500mm) |
| T-Slot Size / No. / Centers | 3 X 3/8''(10mm) |
| X-Axis Travel | 8-5/8''(220mm) |
| Y-Axis Travel | 6-5/16''(160mm) |
| Z-Axis Travel | 10-27/32''(275mm) |
| Column Type | Square Column，Dovetail Slide |
| Drive Type | Belt |
| Motor Power | 1HP 110V 1PH Brushless |
| Motor Type | DC Brushless |
| Net / Gross Weight | 180/203lbs(82/92.5KG) |
| Overall Dimensions | 20''x19''x31''(506X476X788mm) |
| Base Size | 11''x9'' (280x220mm) |
| Shipping Dimensions | 24''x22''x34''(610X560X860mm) |
