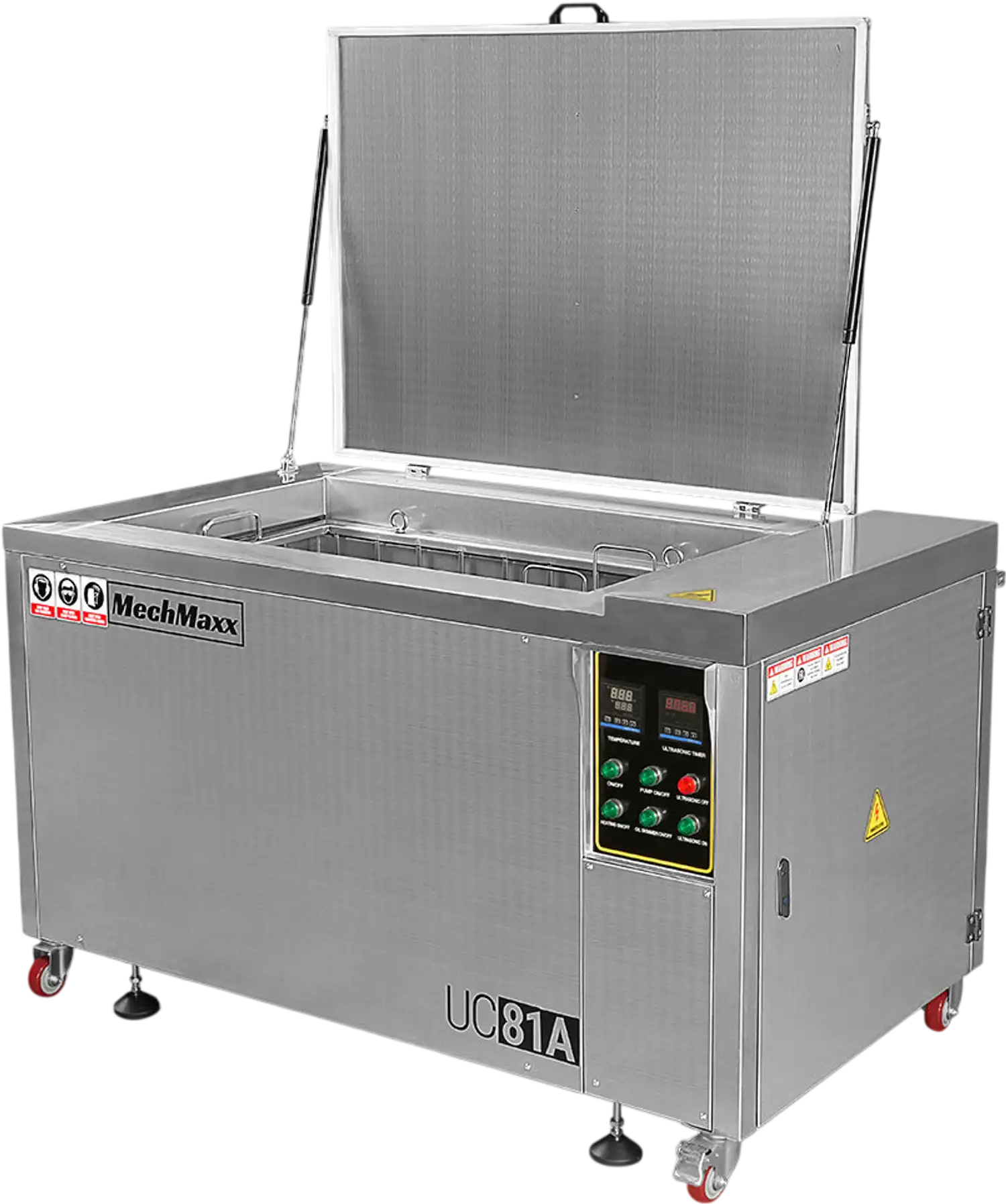

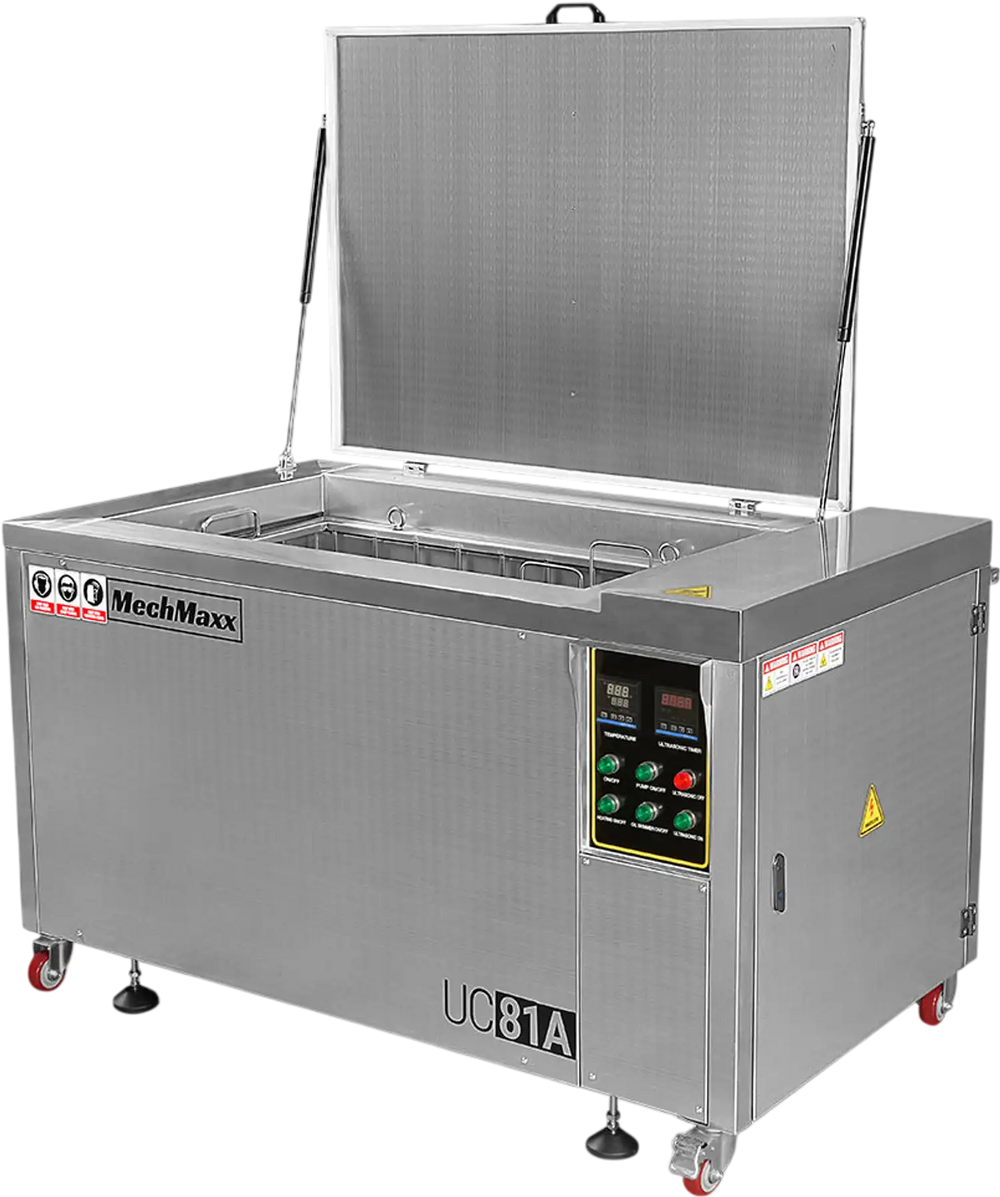

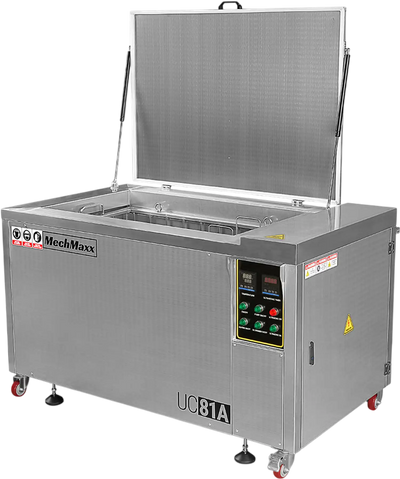

MechMaxx UC81A Ultrasonic Cleaner 81 Gal 308L Heavy Duty Industrial Parts Washer 28kHz 40 Transducers Oil Skimmer SS304 Tank 10kW Heater 208-240V 3 Phase New
Product Overview
Heavy-Duty Industrial Ultrasonic Cleaner
- Engineered for demanding production environments, this powerful ultrasonic cleaner delivers deep and consistent cleaning performance for a wide range of metal and precision parts.
- High-performance industrial cleaning system effectively removes machining chips, coolant, oil, grease, dust, fingerprints, and other stubborn contaminants from both new and used parts.
- Deep cleaning capability allows ultrasonic waves to reach complex geometries, blind holes, and internal cavities that cannot be cleaned manually.
- Ideal for cleaning CNC machined parts, automotive components, electronic parts, soldering flux residues, and injection molded components.
- Durable tank constructed from 2.0mm SUS304 stainless steel, providing excellent corrosion resistance, heat resistance, and long service life in industrial environments.

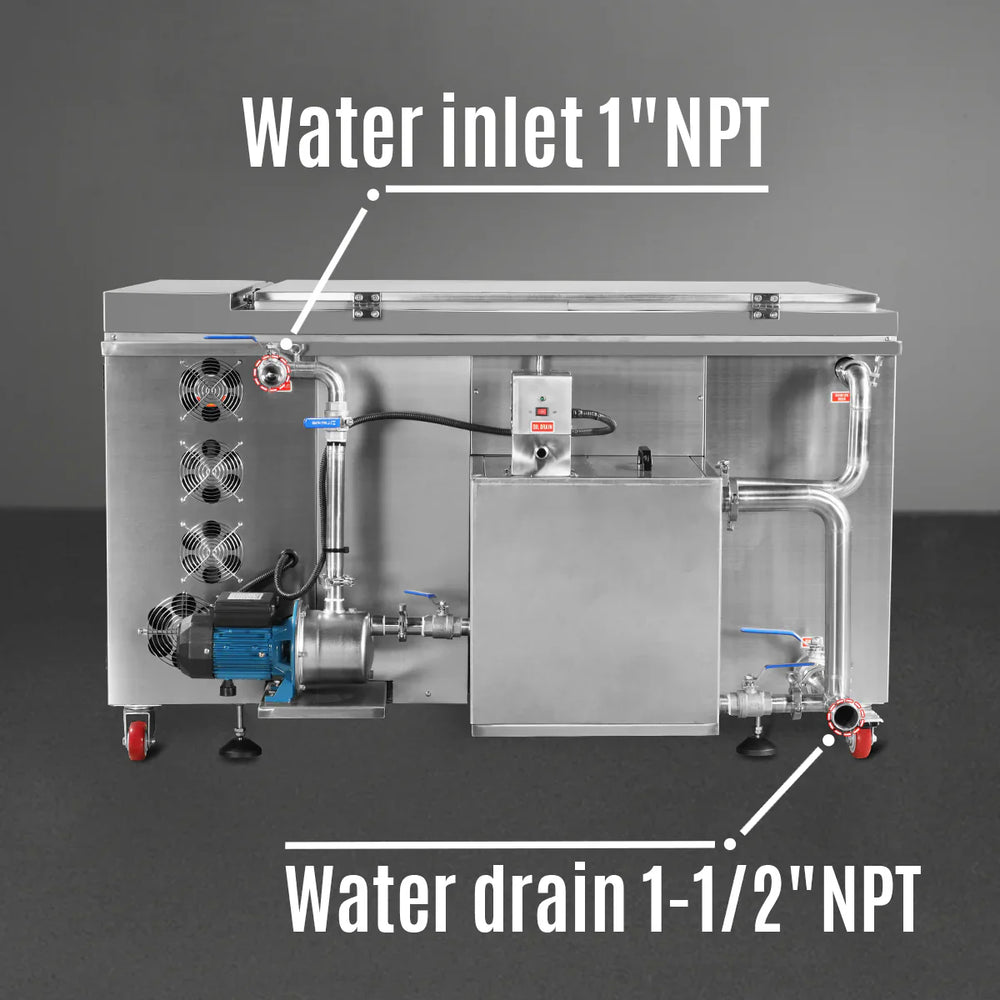

- Integrated oil-water separation system with recirculation pump and rear tank steel belt oil skimmer, efficiently removing oil contaminants and discharging waste oil separately.
- Comes with two stainless steel cleaning baskets in different sizes for flexible loading of various part types and sizes.

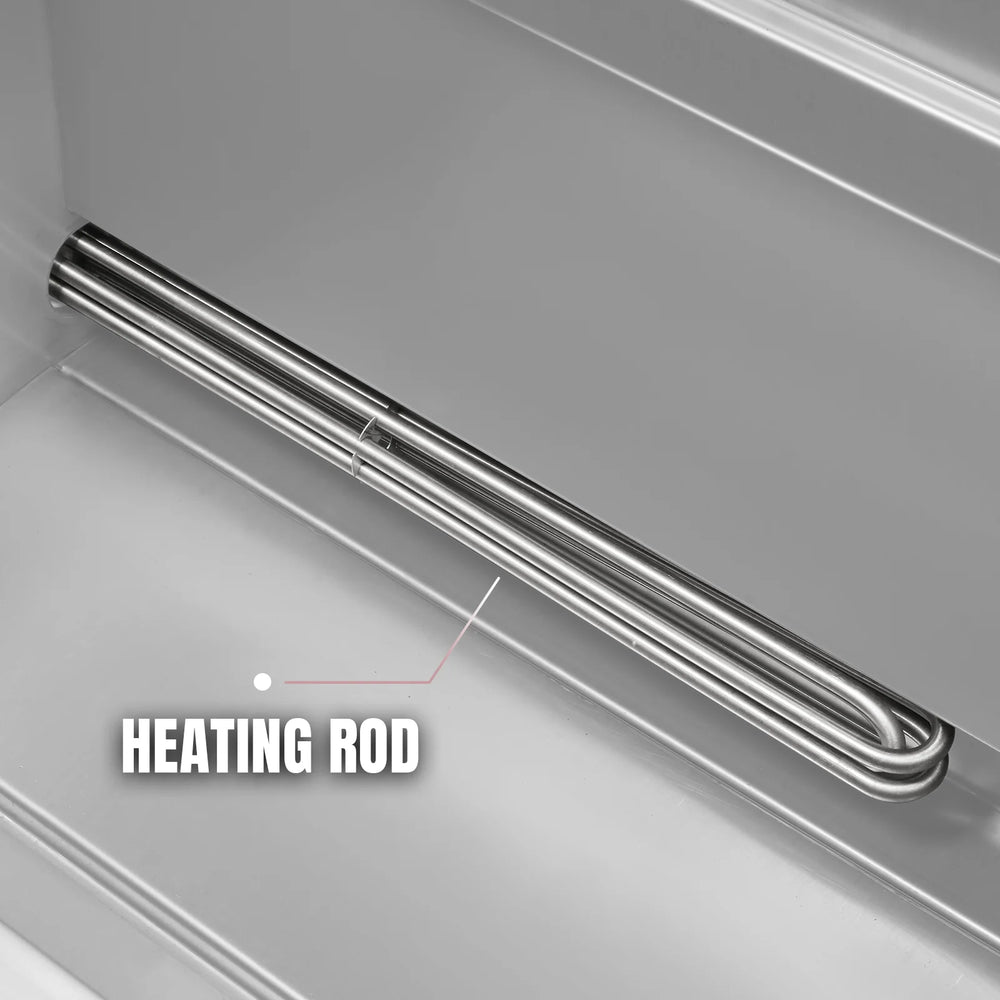

- The unit features a high-power heating element, a slanted tank floor for efficient drainage, a stable support frame for safe mounting, and a spigot for easy draining.

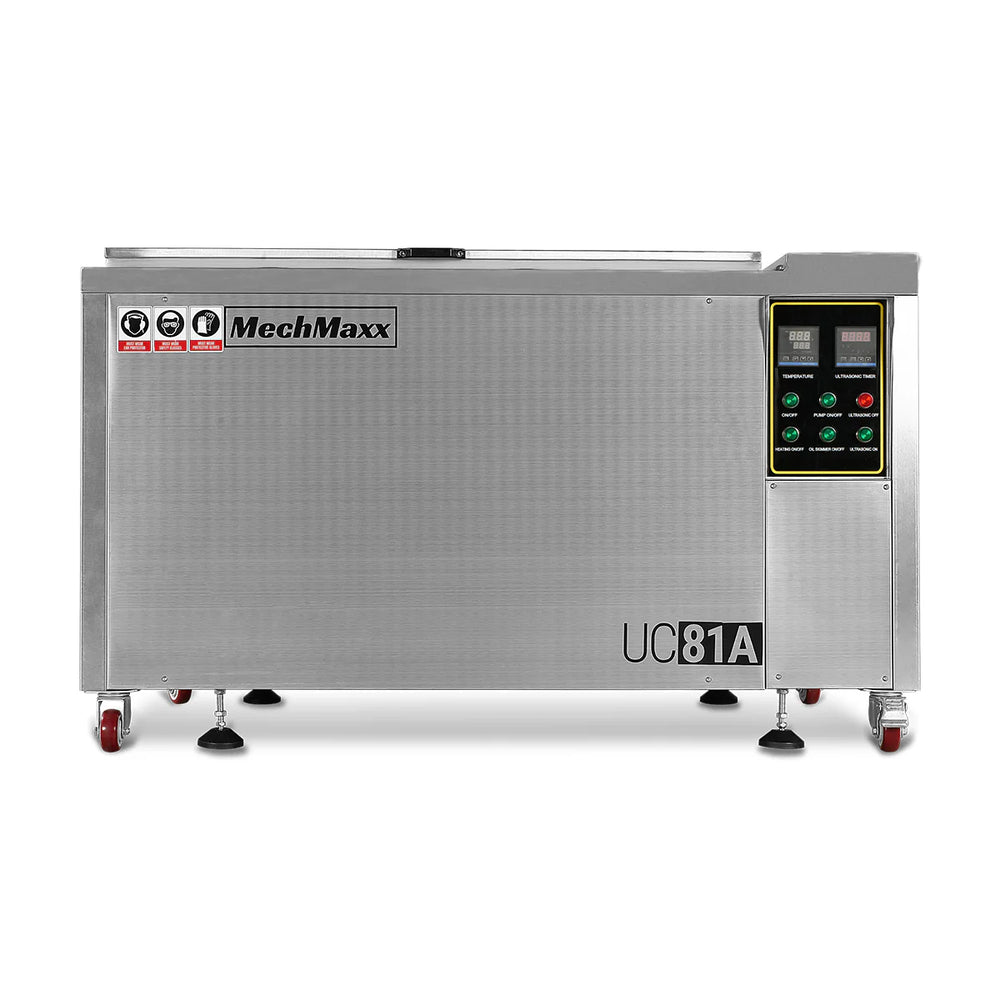

- Simple and user-friendly operation with digital temperature control and digital ultrasonic timer for precise and consistent cleaning cycles.
- Applications:Automotive parts cleaning, CNC machined components, metal fabrication parts, electronics manufacturing, injection molding parts, maintenance and refurbishment operations.
IMPORTANT NOTES:
- The recommended operating temperature for the ultrasonic cleaner is approximately 131°F (55°C). Long-term operation should not exceed 158°F (70°C).
- Do not turn on the ultrasonic or heating functions when the tank is empty. Always ensure sufficient liquid is added before operation.
- Always place items in the cleaning basket before lowering them into the tank. Do not place parts directly into the ultrasonic tank.
- Turn off the ultrasonic function before inserting or removing parts from the cleaning tank.
- Use only appropriate cleaning solutions with a recommended pH range of 7 to 13.
- Always drain the tank before moving or relocating the machine.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

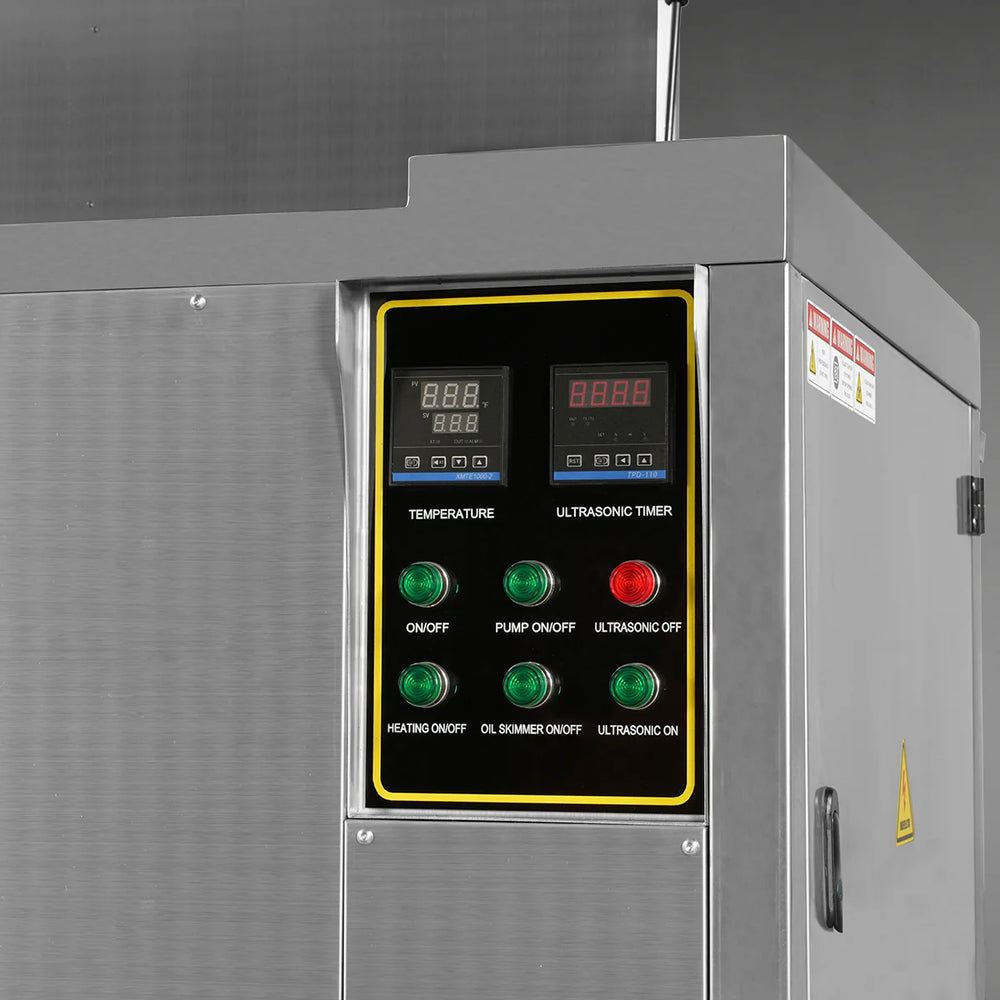

- Operation Buttons: Easy operation

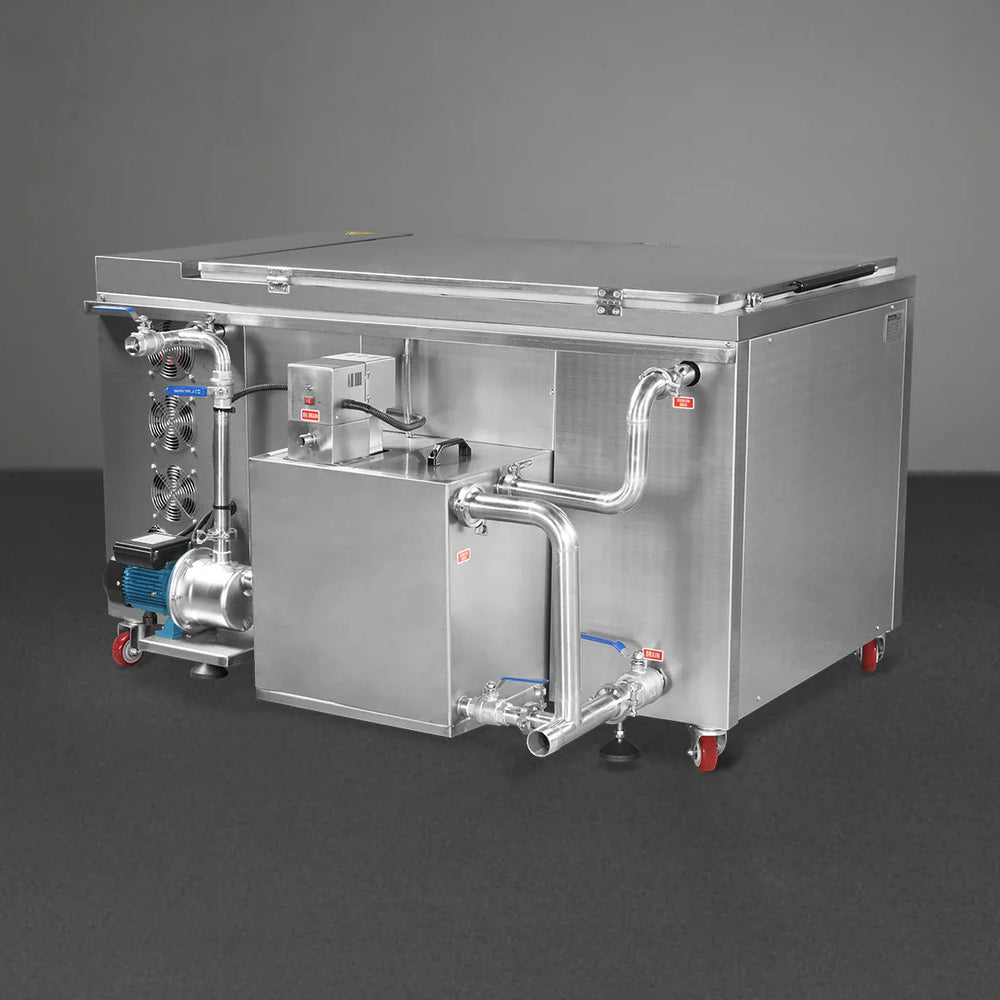

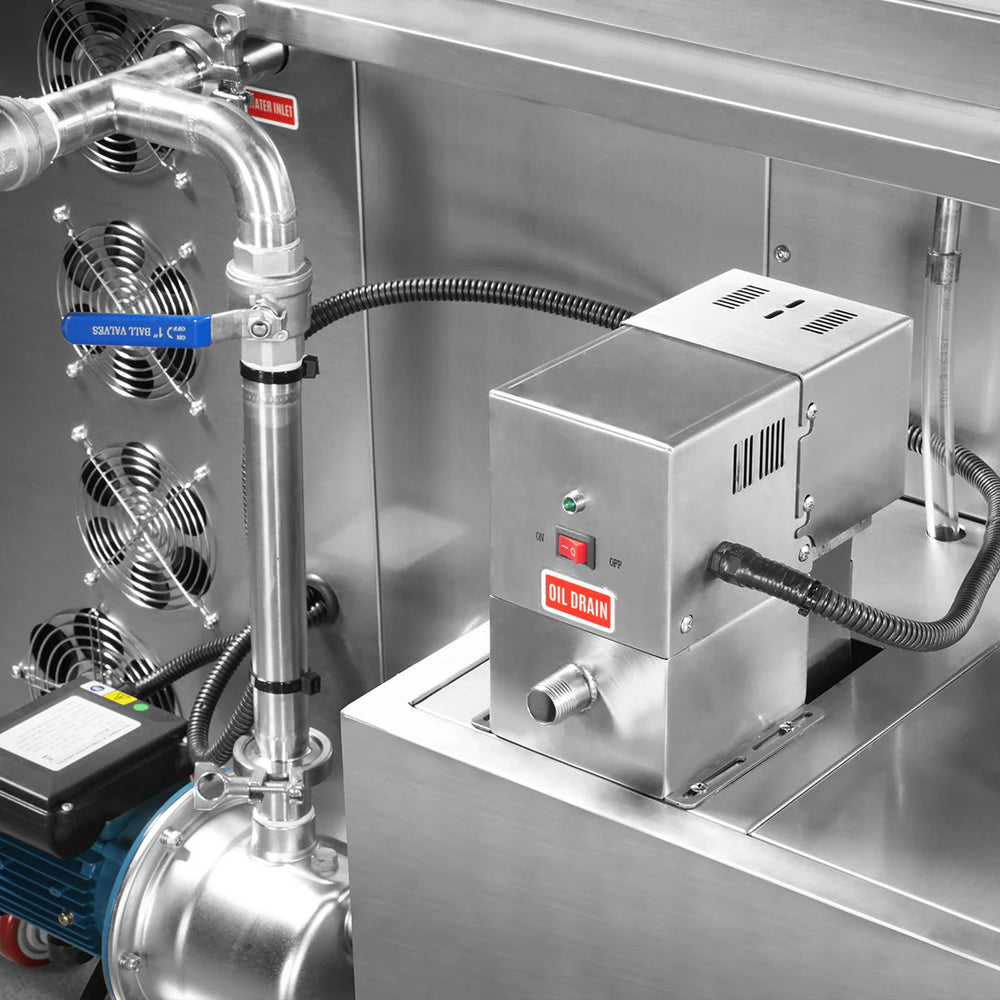

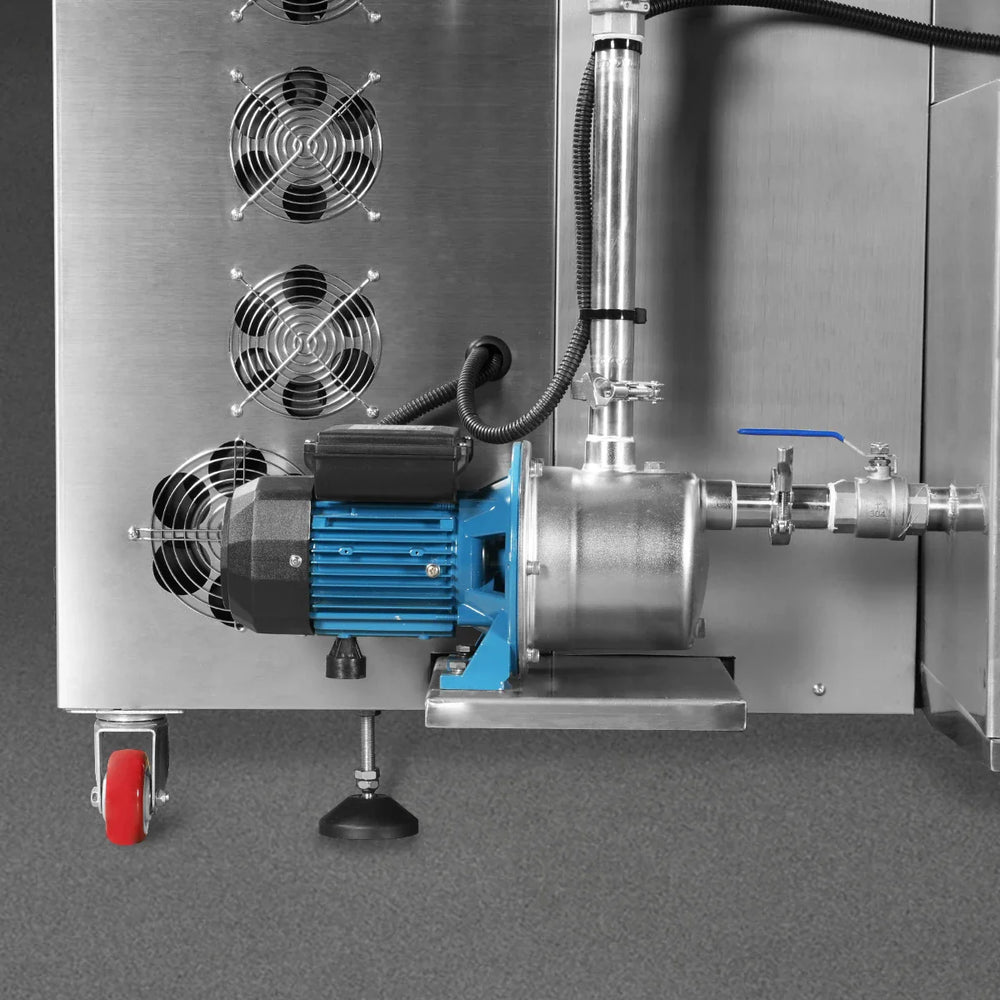

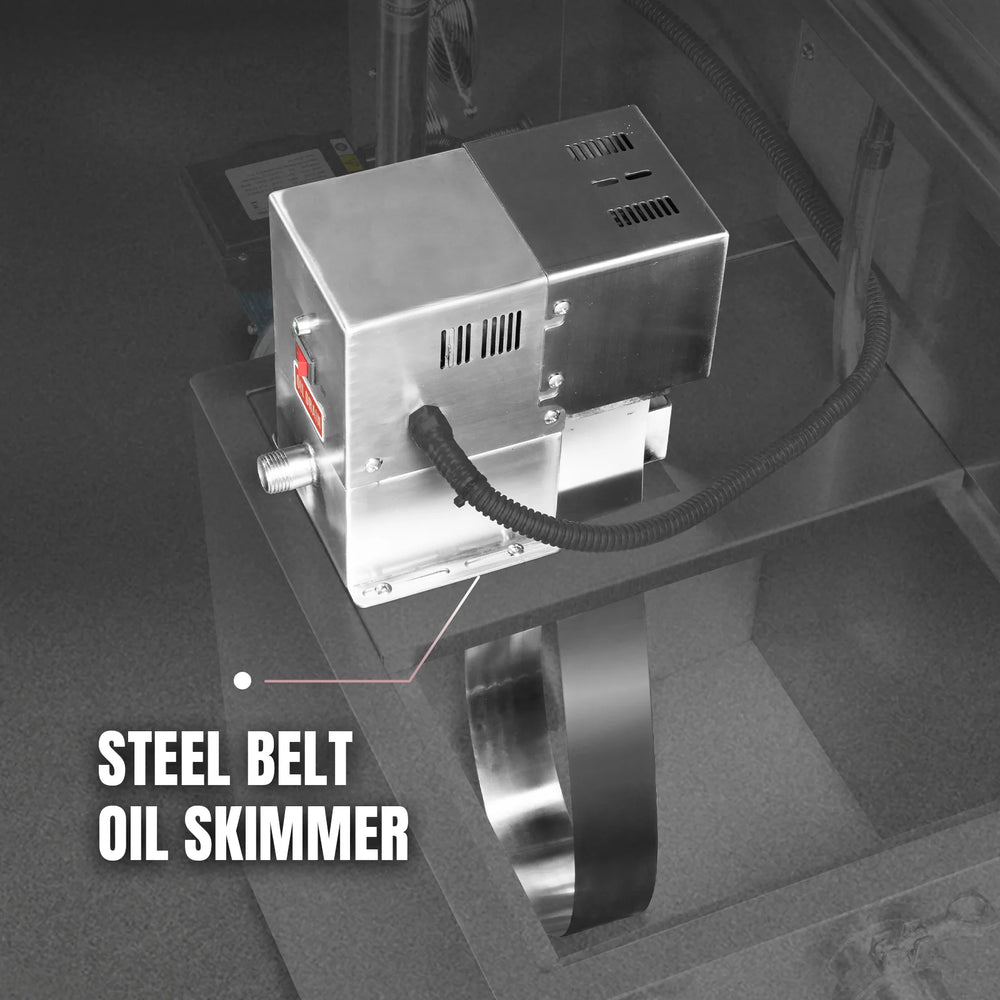

- Automatic Oil Skimmer: The recirculation pump keeps the waste water flowing through the rear tank with a steel belt oil skimmer.The steel belt effectively separates the oil from the water and discharges it through the oil drain.

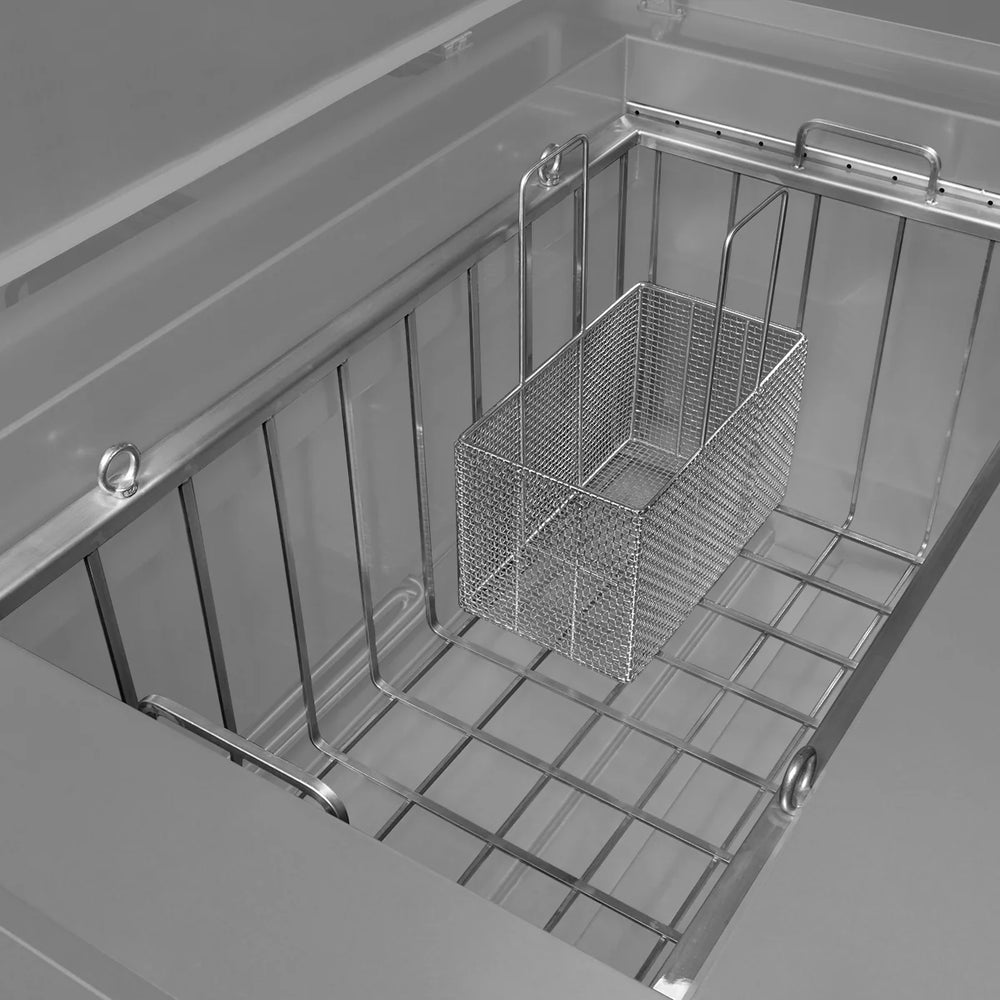

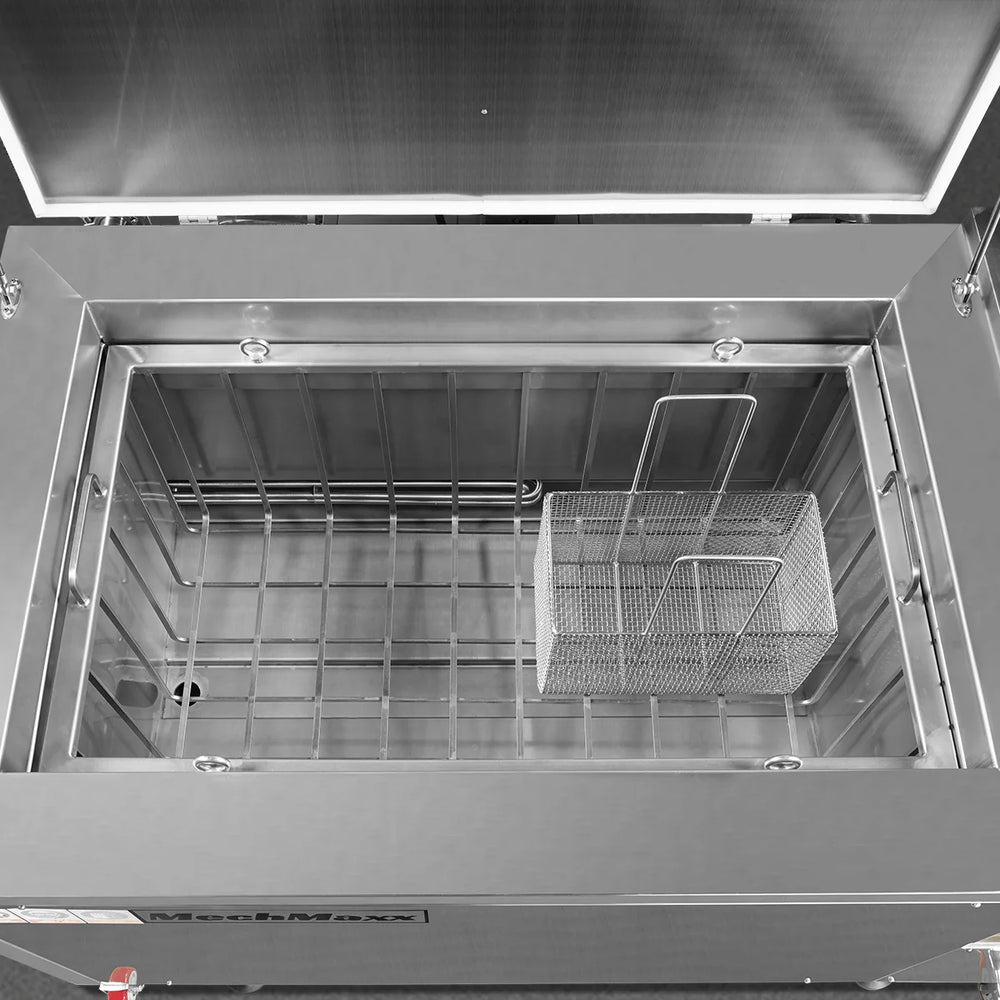

- Includes 2 Baskets: For easy cleaning of different sized items, the machine is equipped with 2 different sized cleaning baskets.
Specifications
| Model | UC81A |
| Voltage | 208–240V AC, 60Hz, 3-Phase (3P + Ground) |
| Recommended Wire | AWG 10 Cu |
| Ultrasonic power | 1.8KW / 2.5HP |
| Heating power | 10KW / 13.4HP |
| Temperature Control Range | Ambient to 149°F (65°C) |
| Ultrasonic Frequency | 28kHz |
| Transducer QTY | 40 pcs (industrial-grade) |
| Oil Skimmer Capacity | 10L / Hour |
| Machine Size（L×W×H） | 57.5×47.2×34.2 in |
| Tank Size（L×W×H） | 39.3×21.6×22 in |

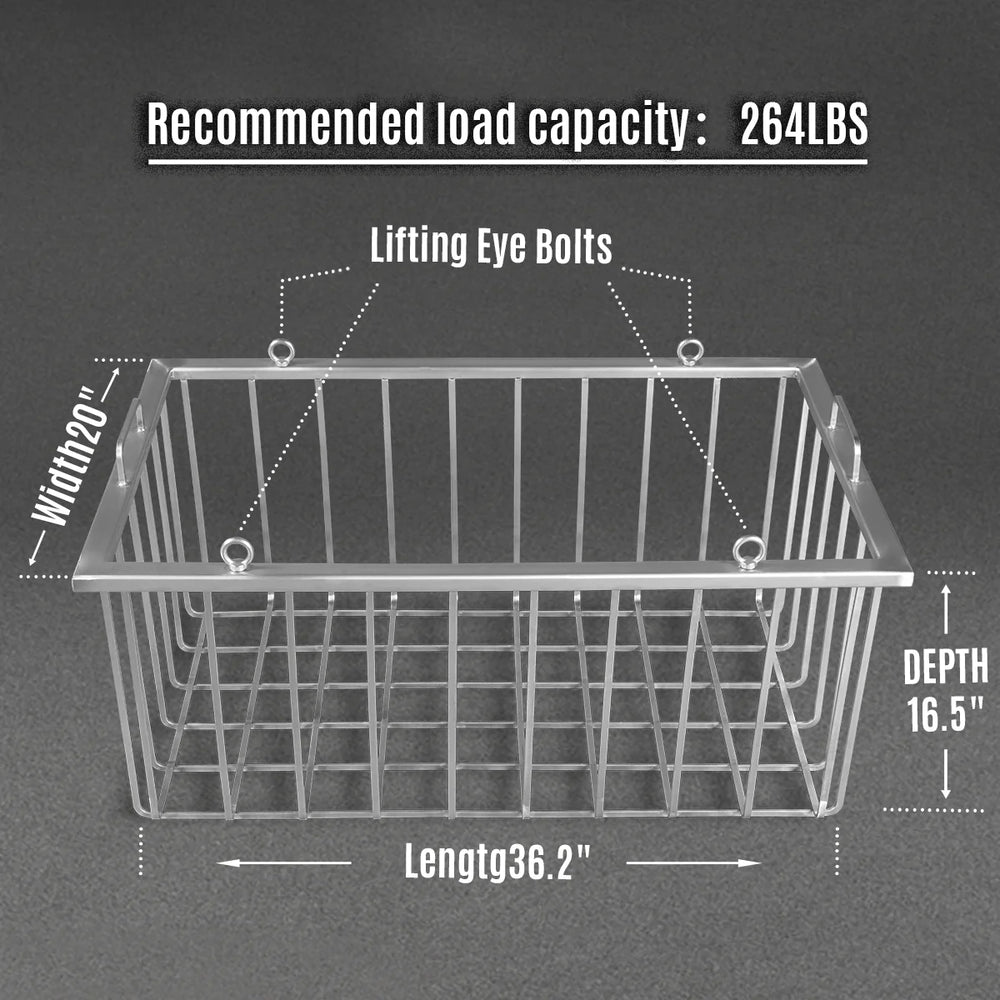

| Big Basket Size（L×W×H） | 36.2×20×16.5 in |
| Weight Capacity ( Big Basket ) | 264 lbs( 120 kg) |

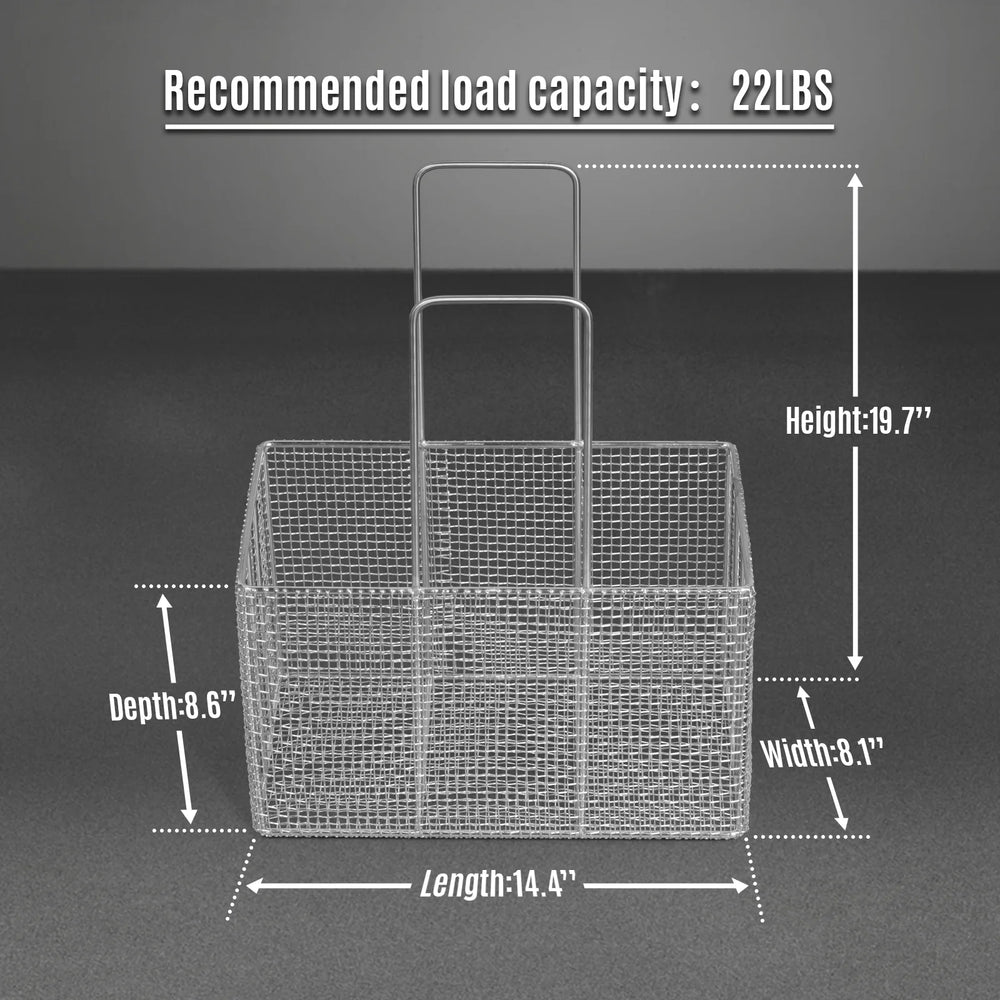

| Small Basket Size（L×W×H） | 14.4×8.1×8.6 in |
| Weight Capacity ( Small Basket ) | 22 lbs ( 10kg ) |
| Tank Volume | 81 GAL / 308 L |
| Tank material & Thickness | SUS304 / 2.0mm |
| Outer Panel Material & Thickness | SUS201 / 1.0mm |
| Packing Size（L×W×H） | 63×55.1×41.3 in |
| N.W./ G.W | 661 / 816LBS |
