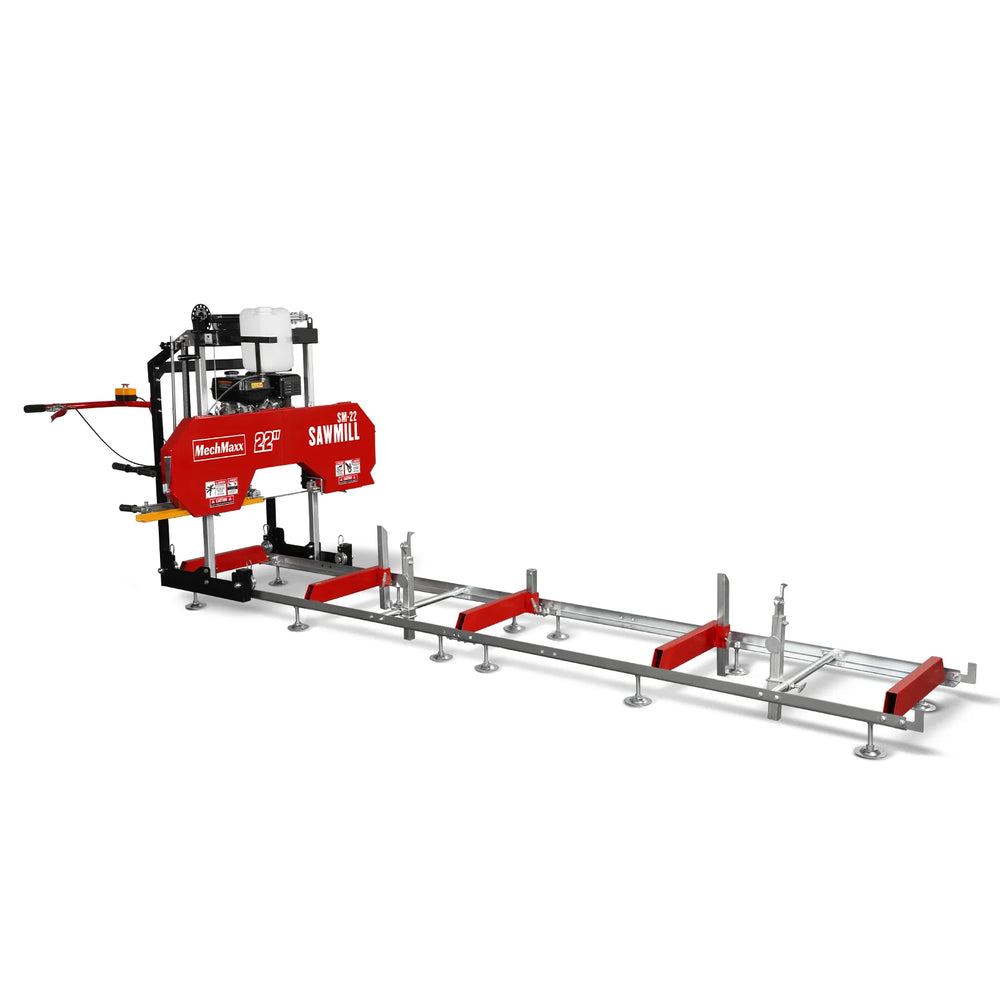

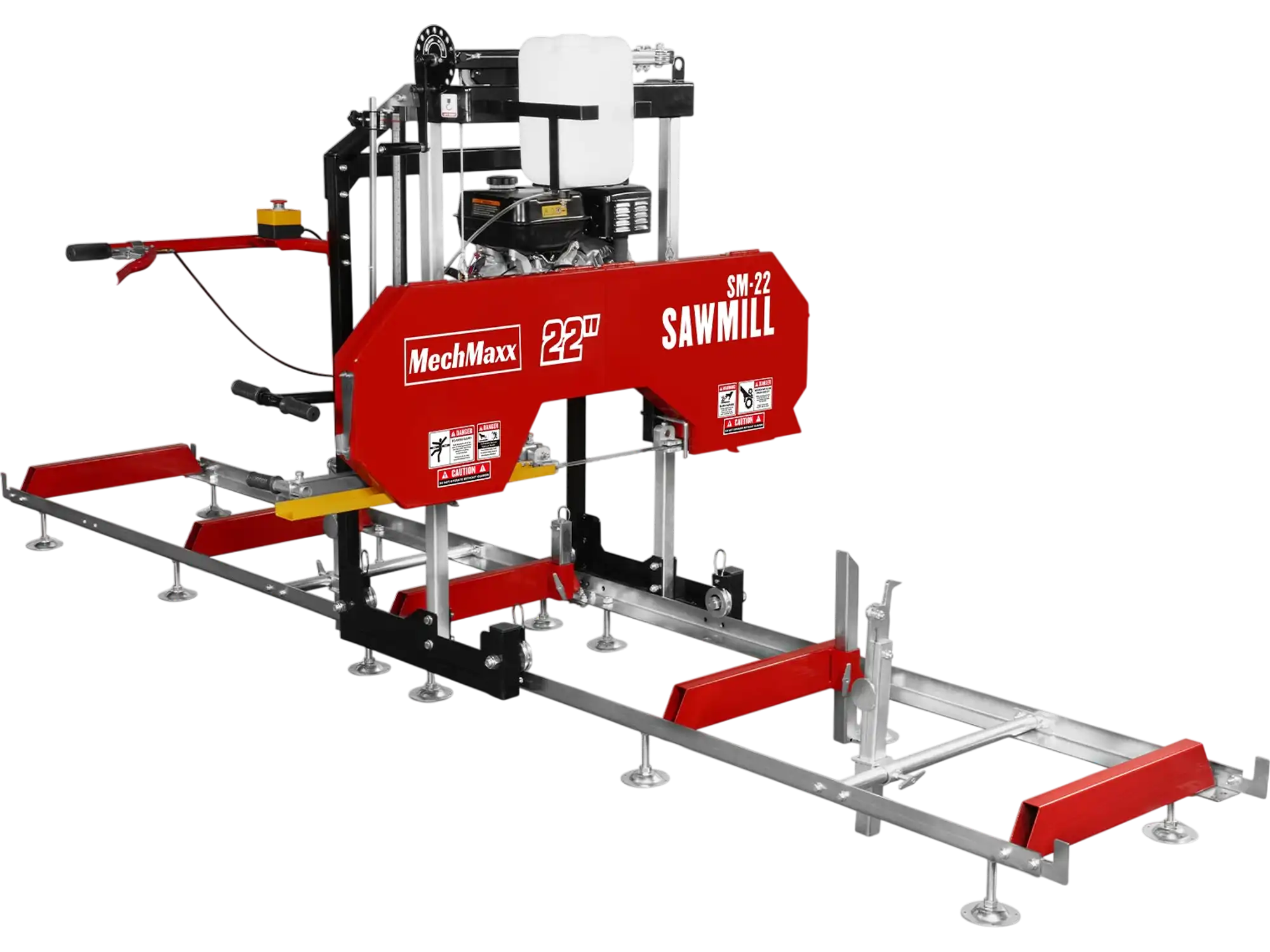

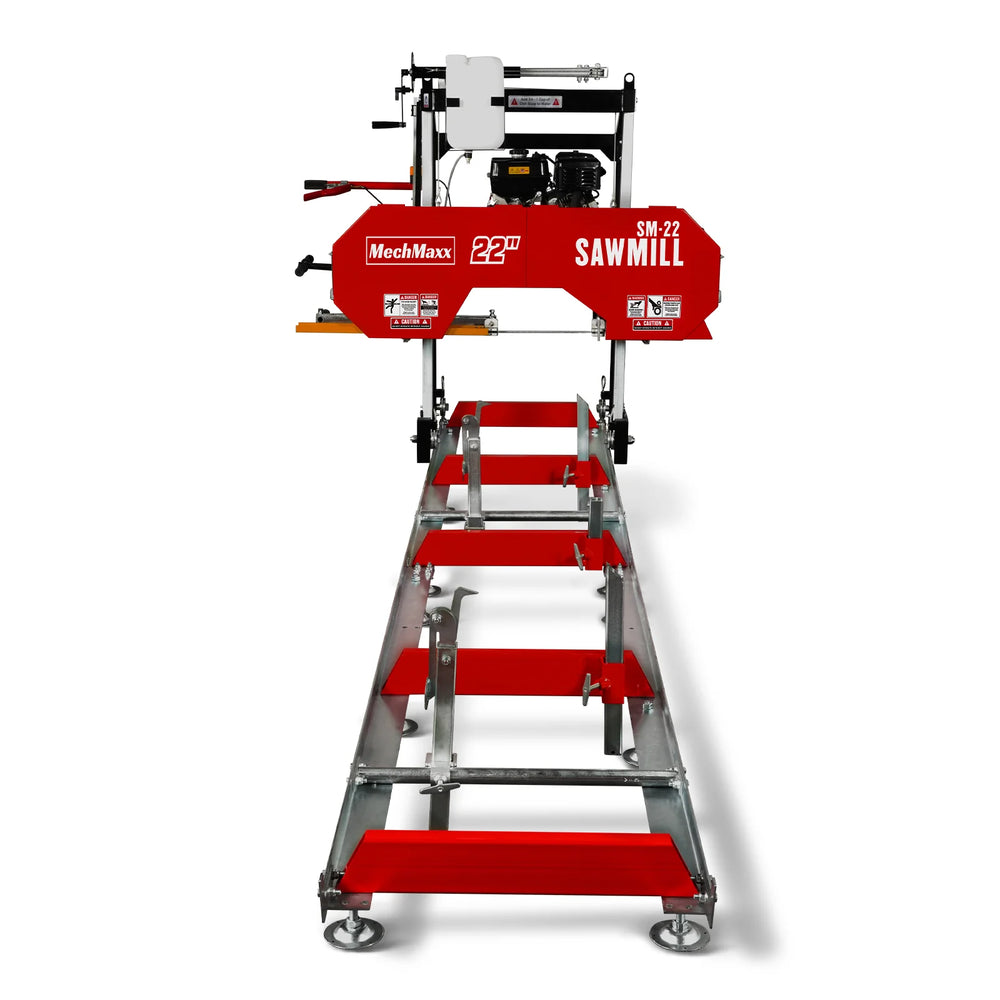

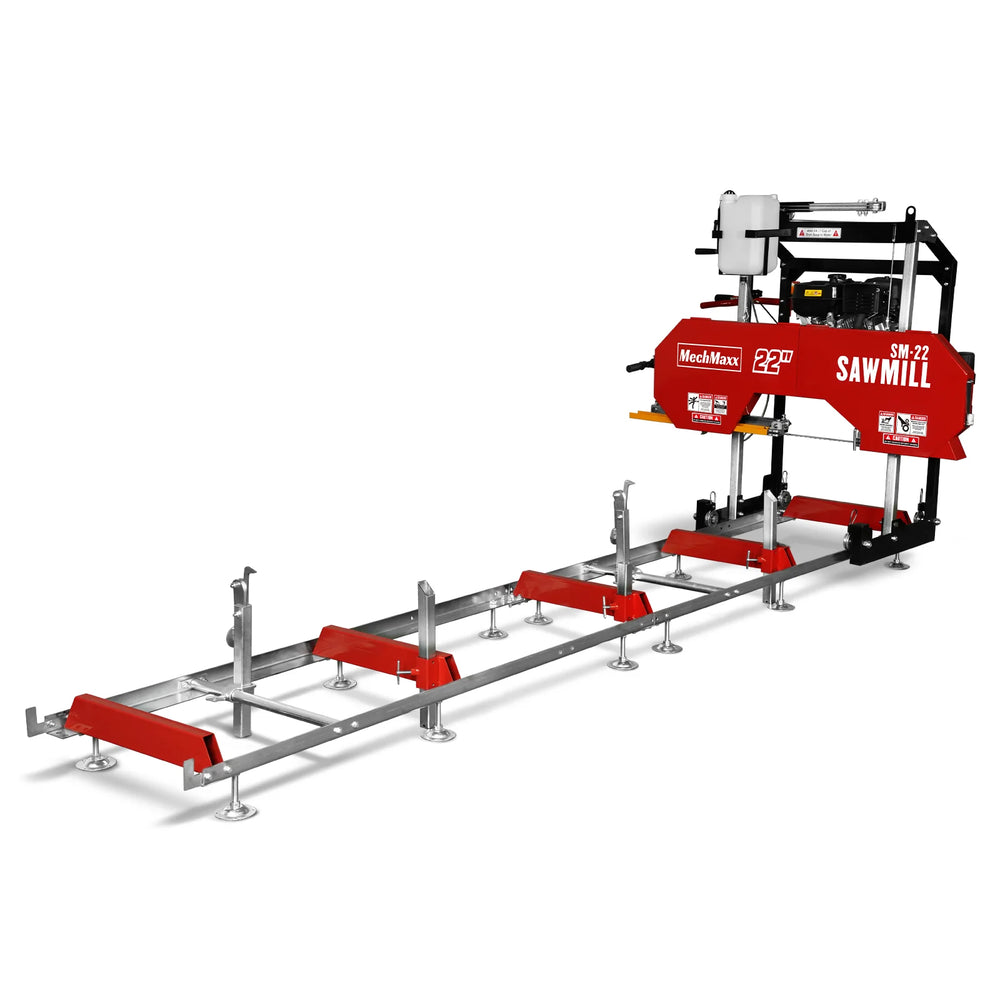

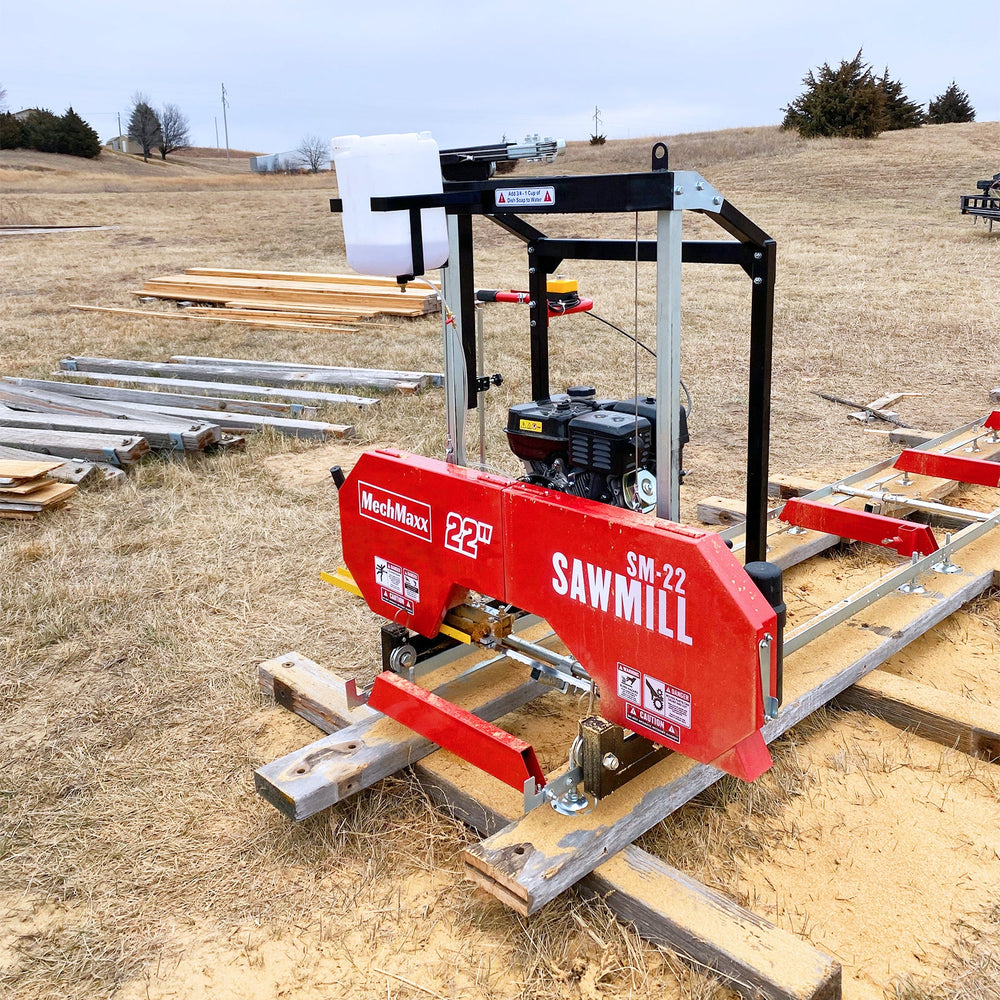

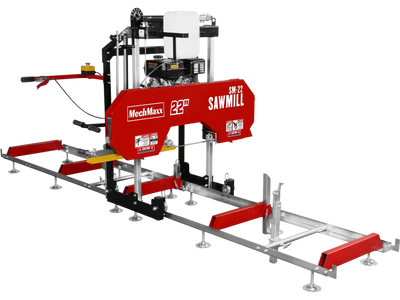

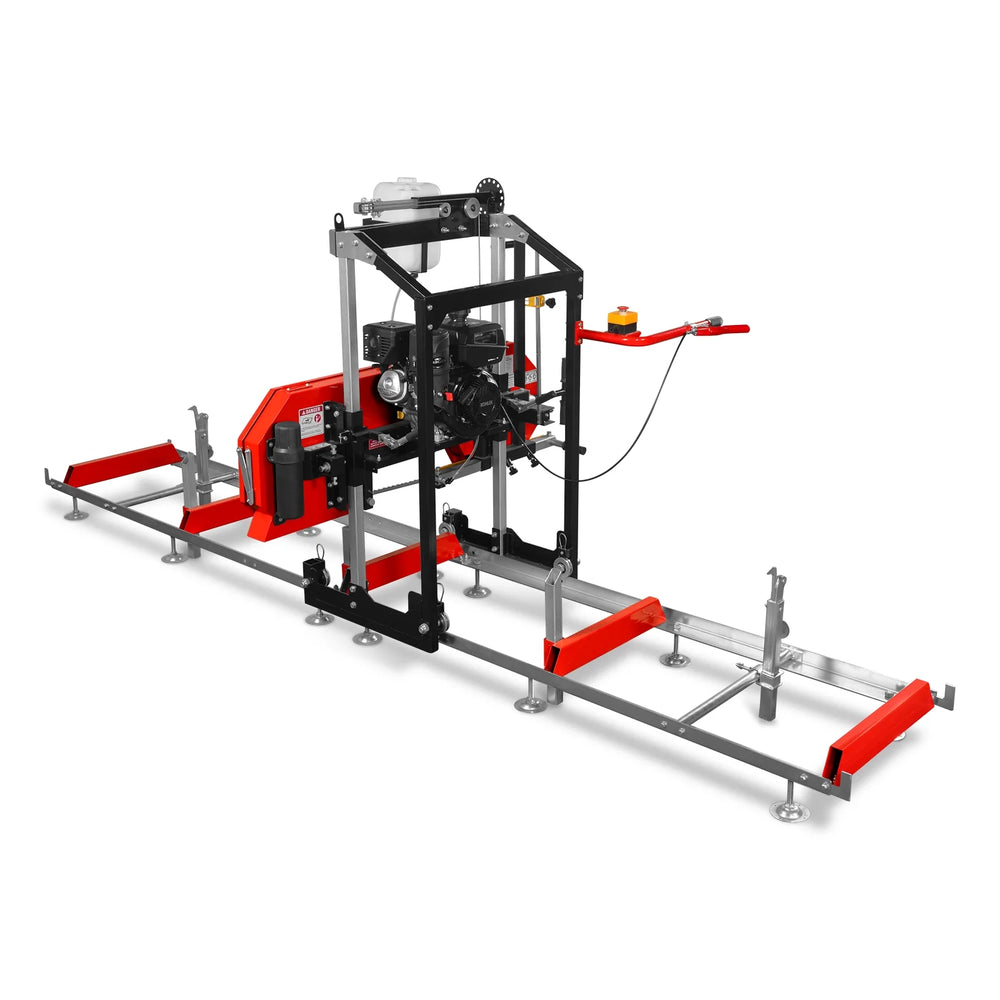

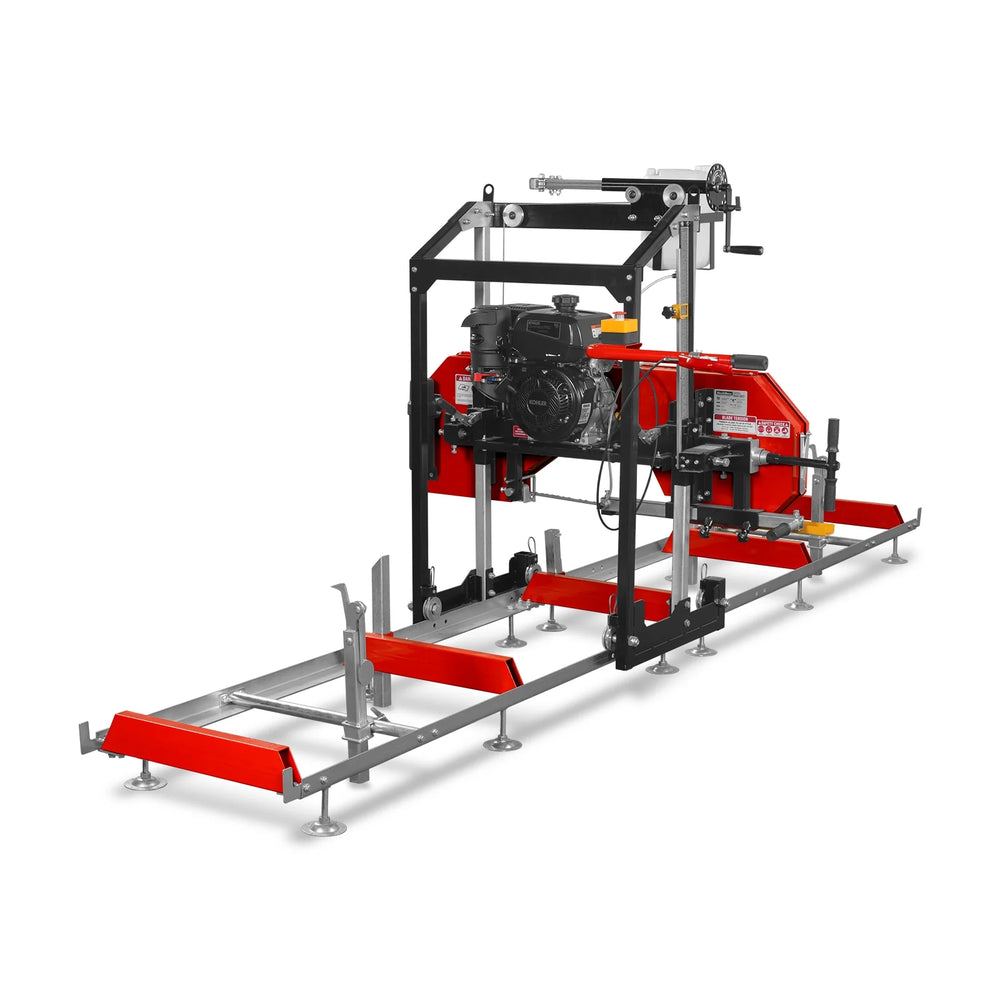

MechMaxx SM22 Sawmill Portable 22" Kohler 9.5 HP 277cc Gasoline Engine 18" Board Width 13' Track Length New
Manufacturer: MechMaxx
SKU: 150169K4
QTY
or
(888) 999-1522
C
$3,351.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
$276.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$349.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$407.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
MechMaxx SM22 Sawmill Portable 22" Kohler 9.5 HP 277cc Gasoline Engine 18" Board Width 13' Track Length New
Product Overview
- Fully capable of cutting large 22" logs and planks up to 6" wide in 1/2 the time compared to a regular chainsaw.
- It comes equipped with a reliable, high-performing KOHLER engine that can be used over an extended period of time.
- The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
- Can withstand heavy workloads for long hours, even in remote areas.
- The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
- You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

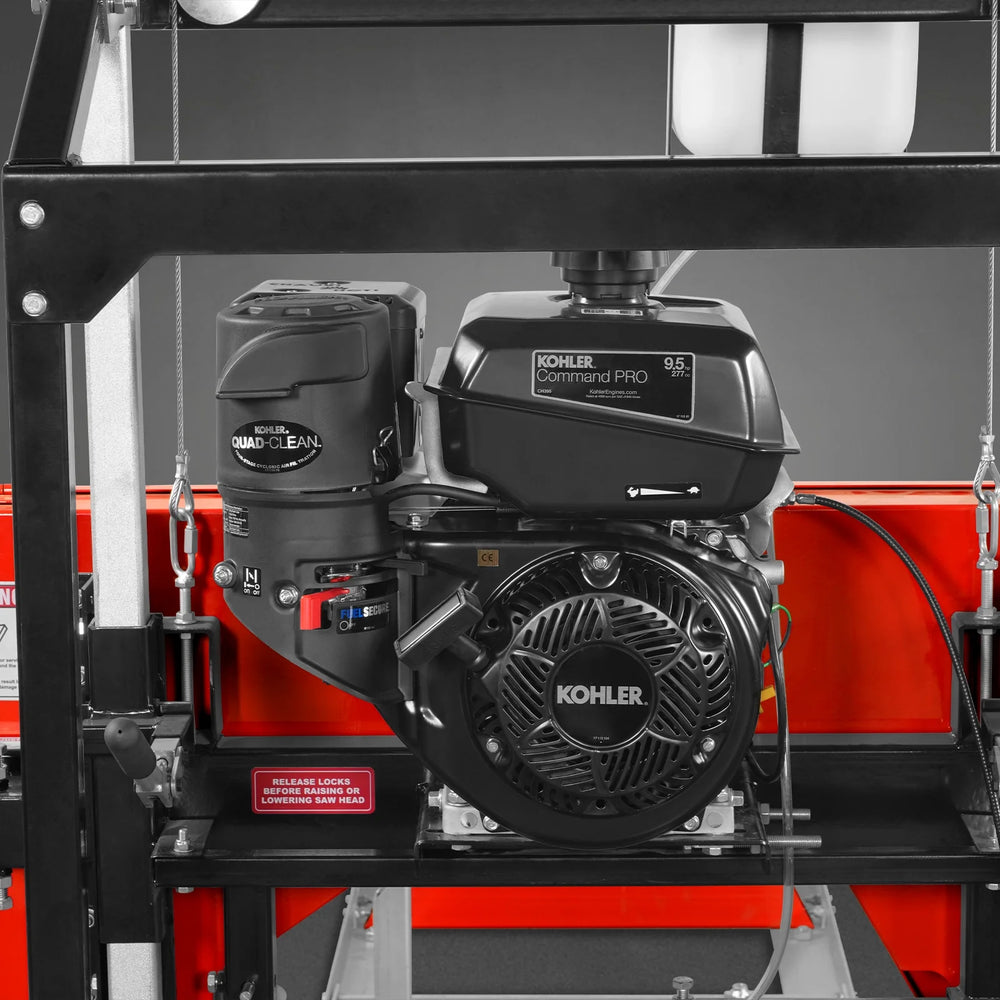

- Engine: This sawmill is equipped with a 9.5hp 277cc KOHLER engine, which has excellent performance, reliable quality, and can be used for a long time.
- Adjustable Cutting Thickness: The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.
- Maximum Log Diameter: This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 22”.
- Emergency Stop Button: There is an emergency stop button on the top of the handle, which can stop the machine at any time in an emergency.
- Maximum Cutting Width: According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 18’’.
- Throttle Handle: You can control the cutting speed by pushing this handle, which reduces the number of required steps and speeds up your woodcutting process; making it more efficient.
- Saw Blade: The saw blade is made out of carbonized steel, with dimensions of 127*1.3*0.04’’, and a rotational speed reaching as high as 787’’ per second. This will ensure a smooth and stable cutting process while also reducing the amount of wood ships.

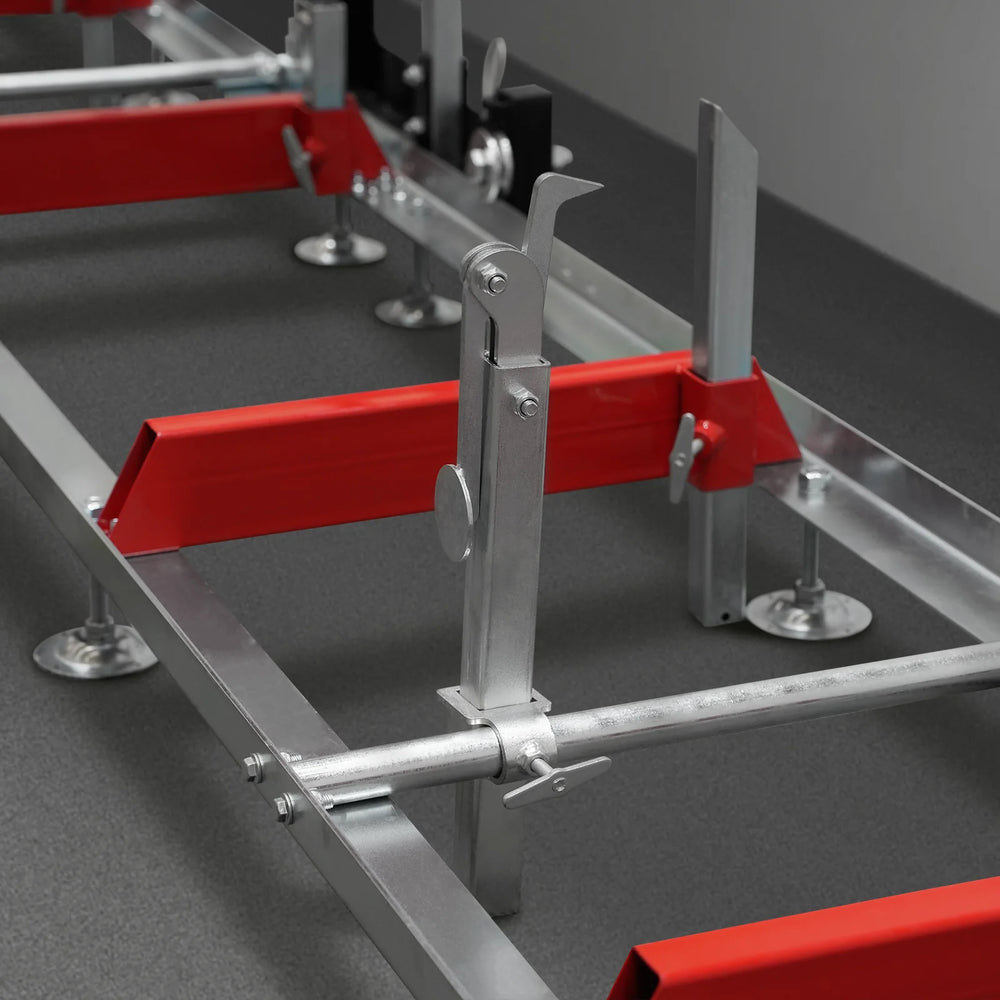

- Spiral Log Clamp: The track features easy-to-use spiral log clamps to hold logs securely while milling.
- Cutting Length: It comes with a 157'' standard log track with a cut length of 125'', and you can purchase a 78” extension track at MechMaxx according to your needs.
Specifications
| Engine | KOHLER |
| Lubricant Tank Size | 2.6 gal |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Track Load-Bearing | 2 ton |
| Engine Displacement | 277 cc |
| Track Width | 2 ft 2 in |
| Horsepower | 9.5 HP |
| Track Length | 13 ft |
| Start | Recoil |
| Track Extension Length | 6.4 ft |
| Log Diameter | 22 in |
| Leveling Feet | 12 |
| Max Live Edge Width | 18 in |
| Log Rests | 2 Long and 2 Short Rests |
| Standard Cutting Length | 10.4 ft |
| Log Clamps | 2 x Quick Lock |
| Max Board Thickness | 6 in |
| Track Bunks | 1.6 x 3.9 in |
| Blade Engagement System | Centrifugal Clutch |
| 4 Post Head Design | Yes |
| Cast Iron Bandwheel Diameter | 16.5 in |
| Finish | Powder Coat Paint Galvanized Steel |
| Blade Wheel Engagement | Belt Drive |
| Sawmill Warranty | 2 Years |
| Blade Guide | By Block |
| Blade Tension | By Adjustable Lever |
| Package Method | Wood |
| Blade Size | 127 x 1.3 in |
| Packing Size | 87 x 19 x 32 in |
| Blade Pitch | 7/8 in |
| Weight (N.W./G.W.) | 509/600 lbs |
| Blade Lubrication | Water Lube - Manual Valve |
