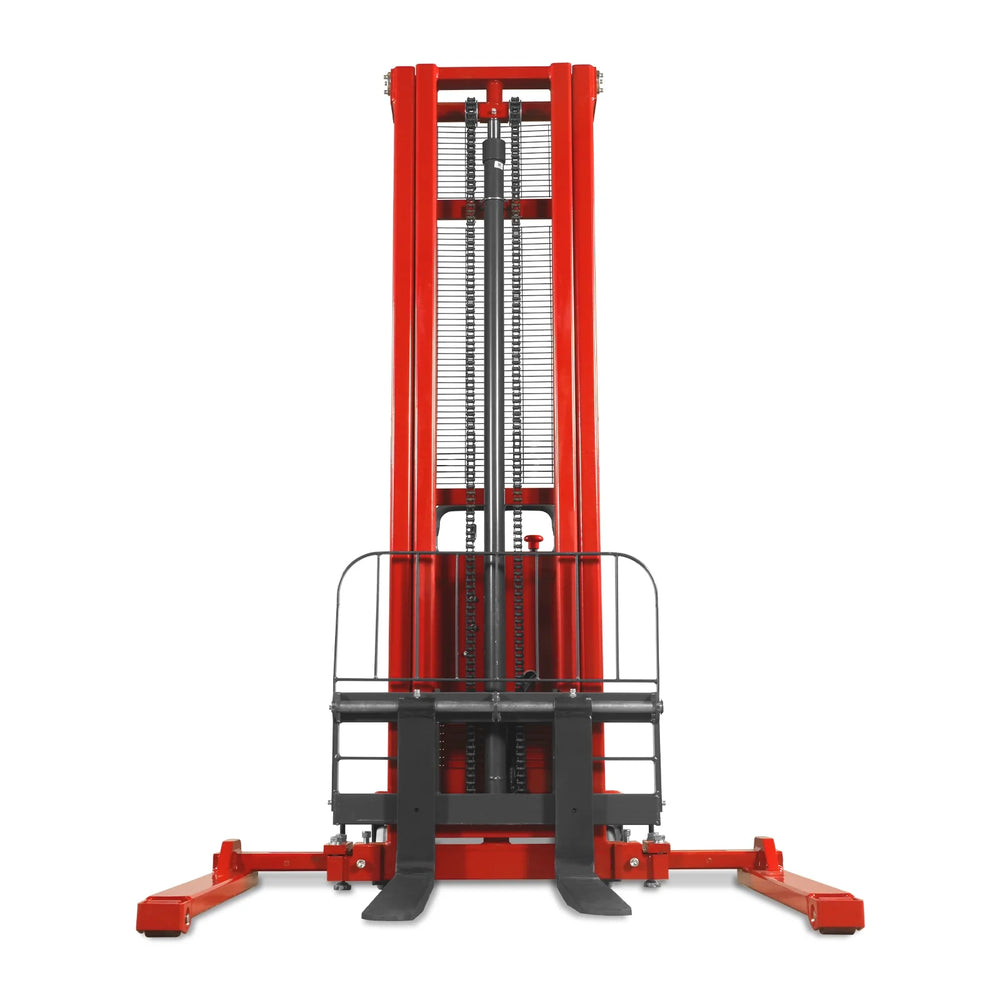

MechMaxx S33-138S Stacker 3300 lbs Semi-Electric Straddle 138" Lift Adjustable Legs Forks New
Product Overview

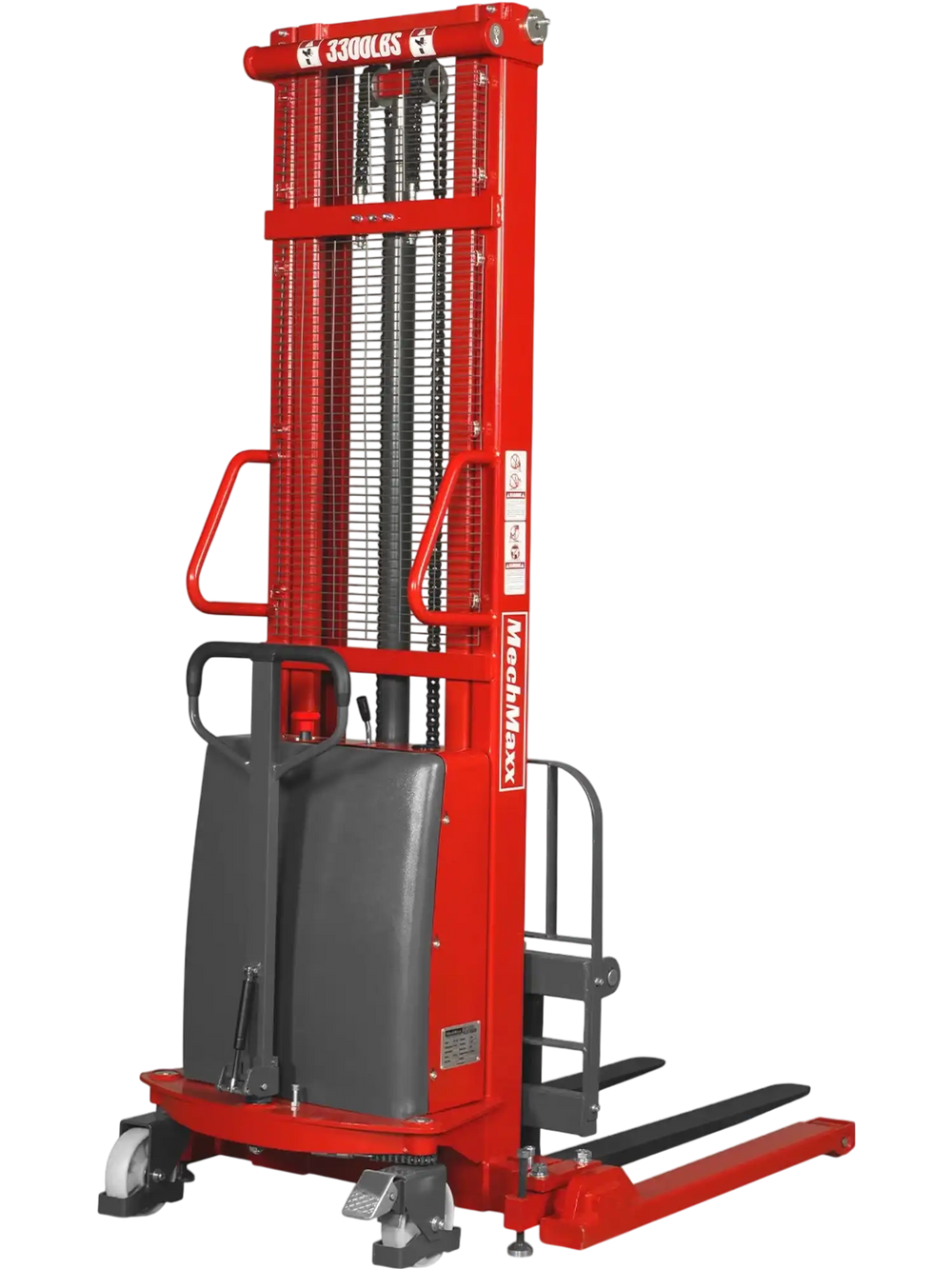

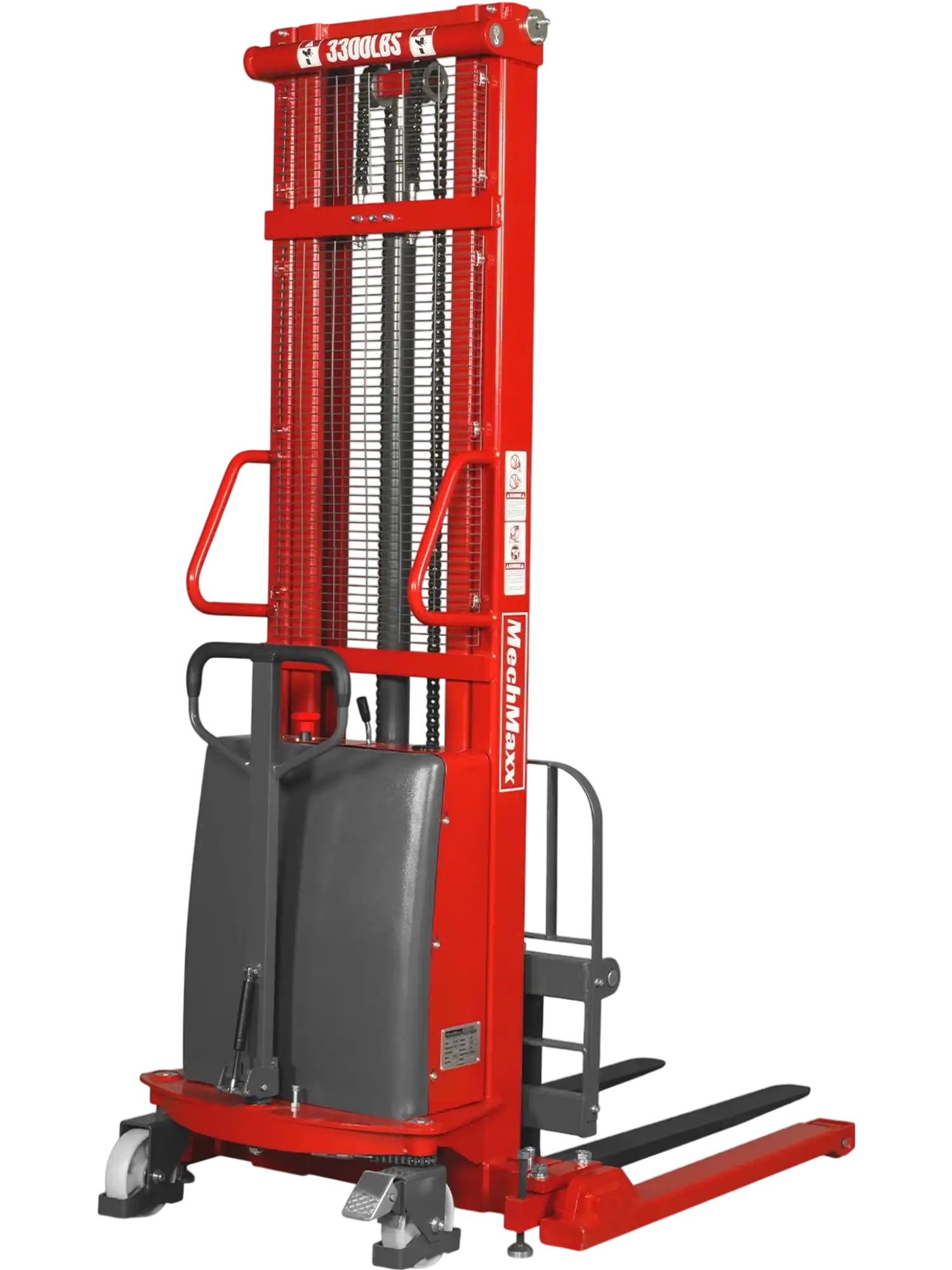

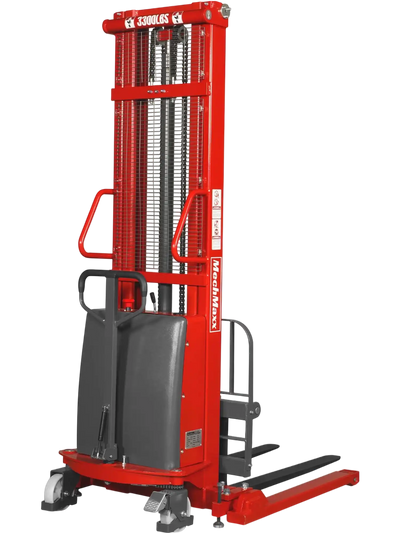

The MechMaxx S33 Series semi-electric straddle stacker features a rugged steel frame with electric lifting via dash-mounted controls. Adjustable forks and straddle legs accommodate a variety of pallet widths. Powered by a 12V/120Ah maintenance-free AGM battery with 12V/15A built-in charger, gauge, and on/off switch, it delivers long-lasting performance and effortless recharging. Ideal for loading docks, trucks, stockrooms, manufacturing floors, and warehouses, the S33 Series provides a reliable, efficient solution for light- to medium-duty lifting tasks.
- 12V/120Ah maintenance-free AGM battery for extended runtime.
- Built-in 12V/15A charger for on-board convenience.
- 3300 lbs load capacity with 138" maximum lift height.

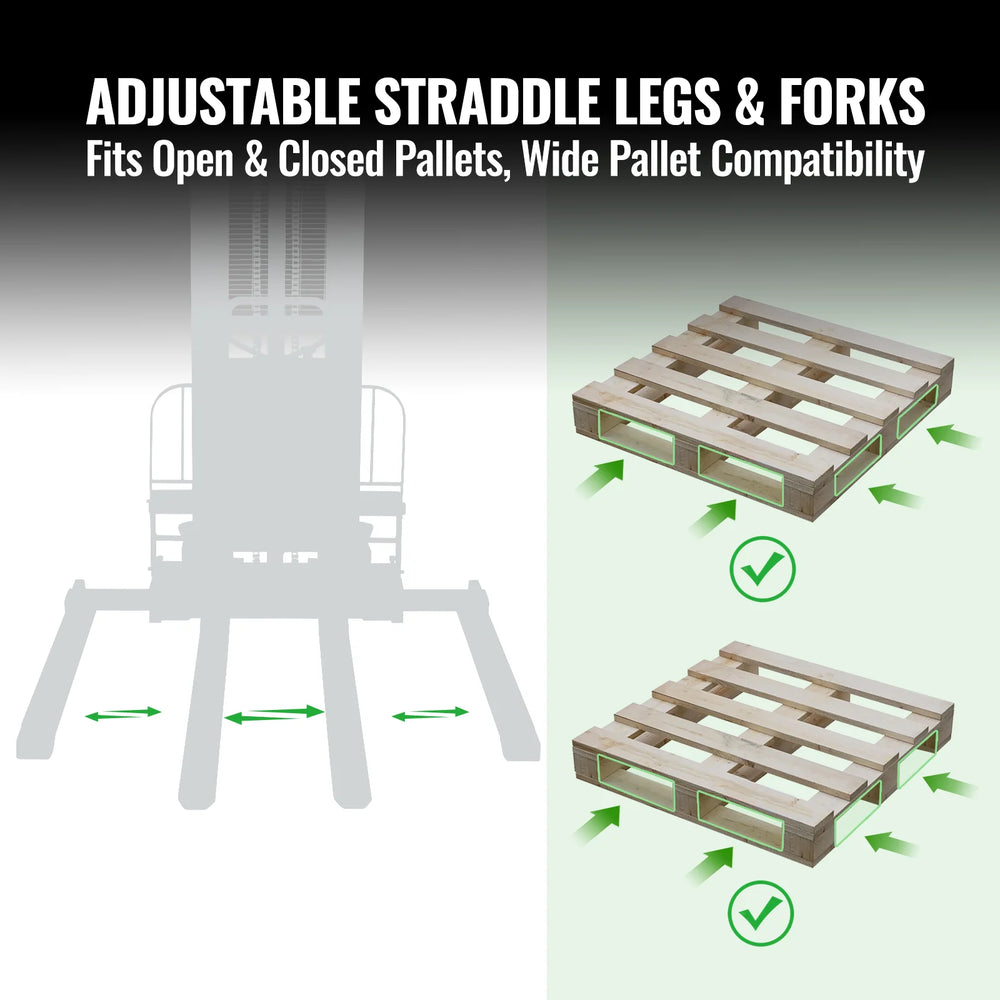

- Adjustable forks (8.3" – 33.5") allow flexible handling of various load sizes.

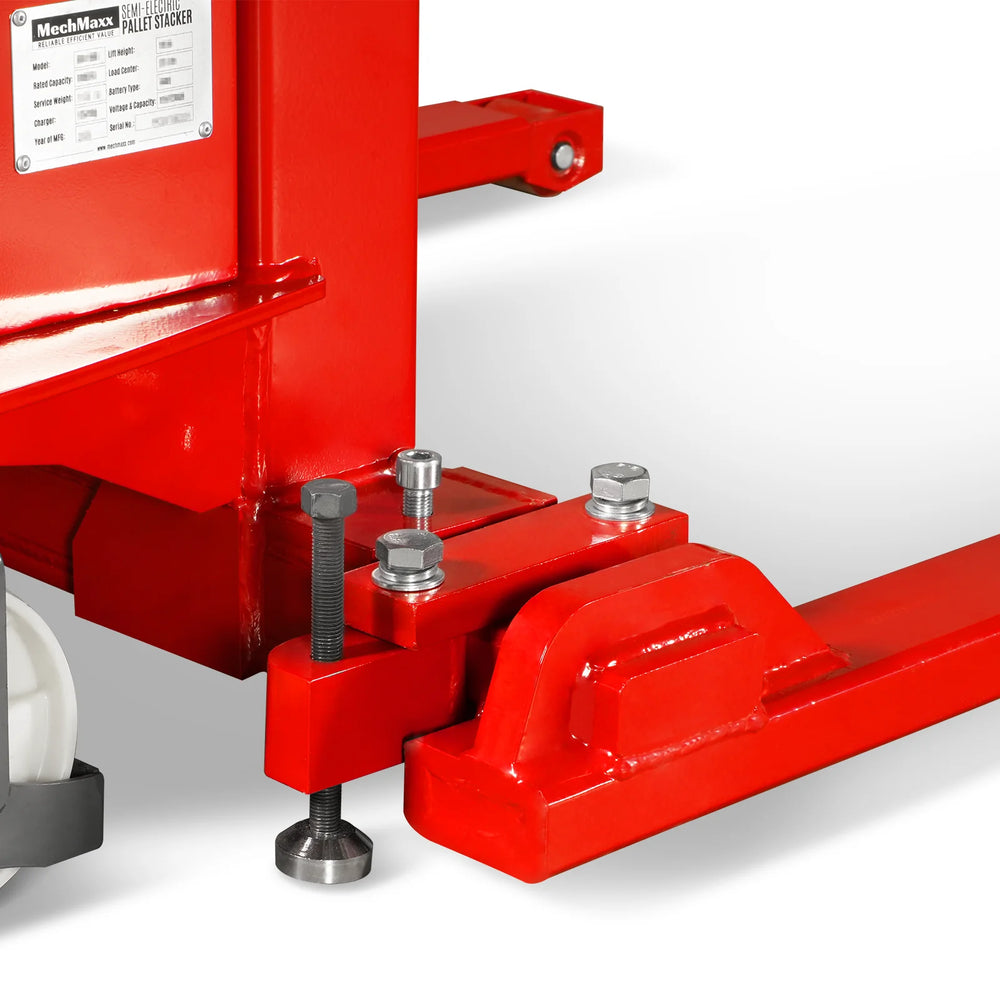

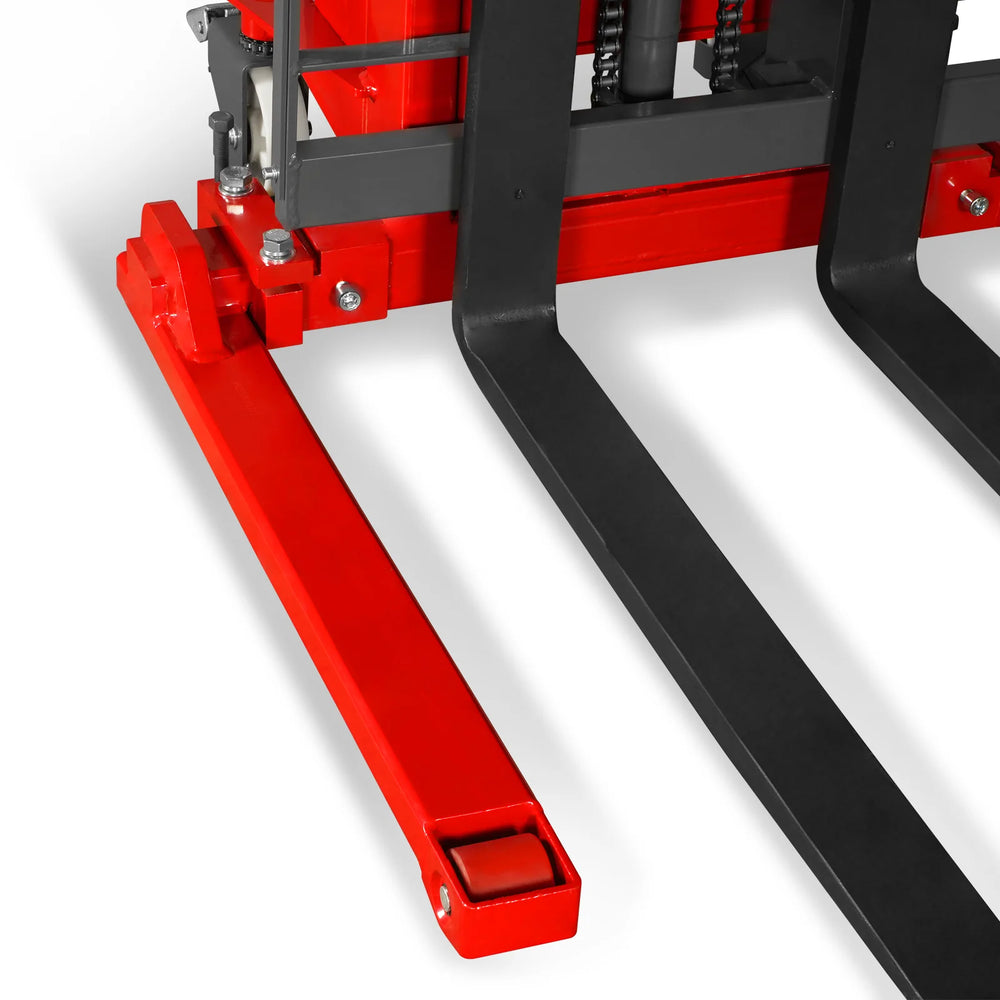

- Adjustable straddle legs (35.4" – 51.2" I.D.) for different pallet widths.
- 53.2" turning radius ideal for narrow aisles.
- Manually propelled, with a powerful 1.6 kW lift motor for efficient operation.
- Ergonomic handle designed for operating with either hand. Gas spring support absorbs shock.

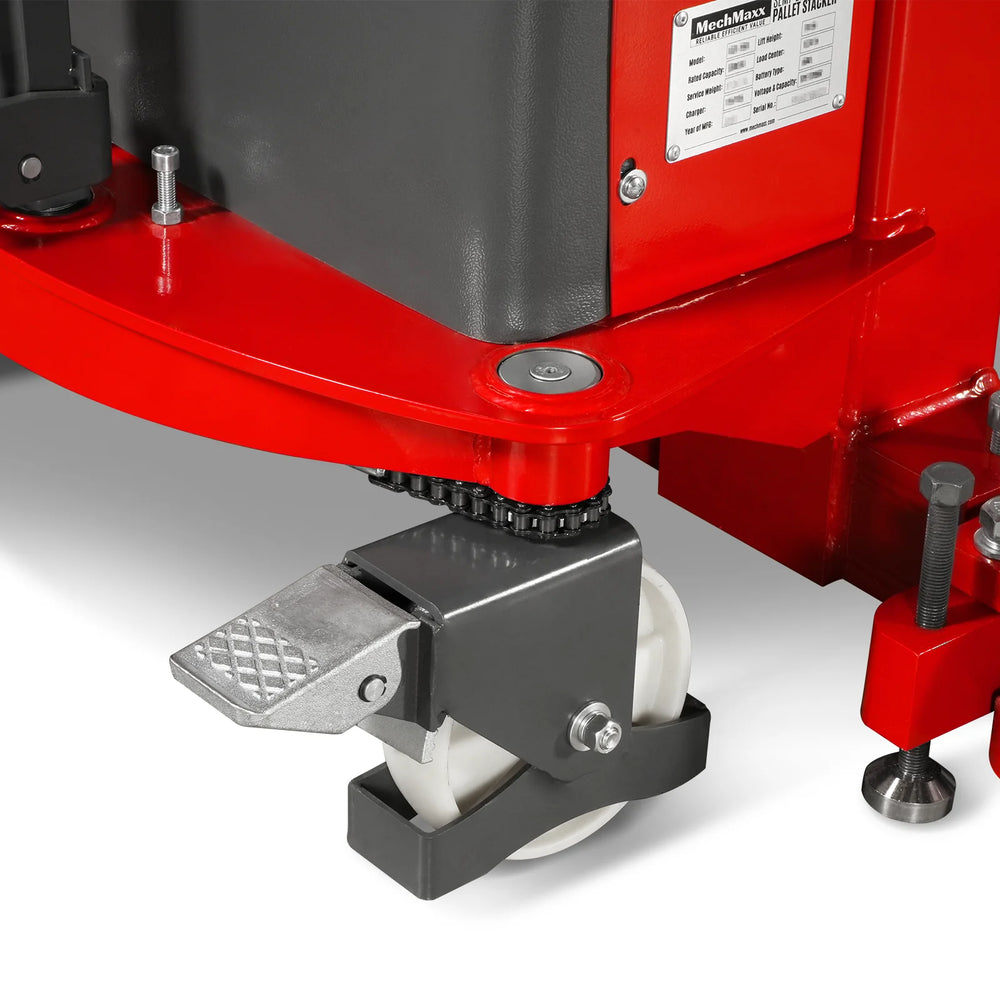

- Foot-pedal parking brake for instant stops.
- Load backrest prevents goods from falling backward for improved safety.

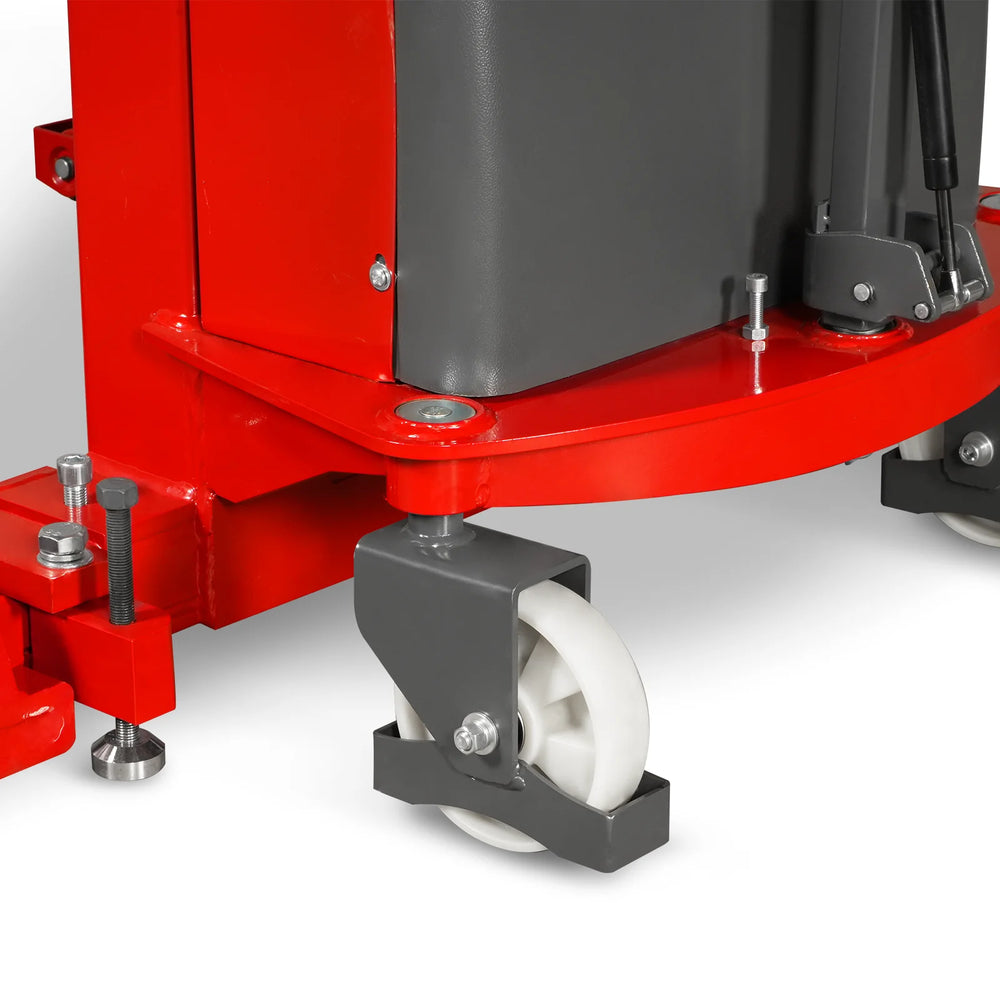

- Equipped with polyurethane drive and load wheels, leave no scratches on the floor.
- Explosion-proof valve prevents accidental load descent for enhanced safety.
IMPORTANT – Battery Charging & Maintenance - Always read the product manual and review all safety labels before operation.
- Fully charge the battery promptly after each use.
- Never overcharge or deeply discharge the battery.
- Charge the battery at least once a month, even when the truck is not in use.
-
Store in a cool, dry place away from direct heat sources.
Proper battery maintenance extends battery life and ensures safe operation.
Note! - The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer

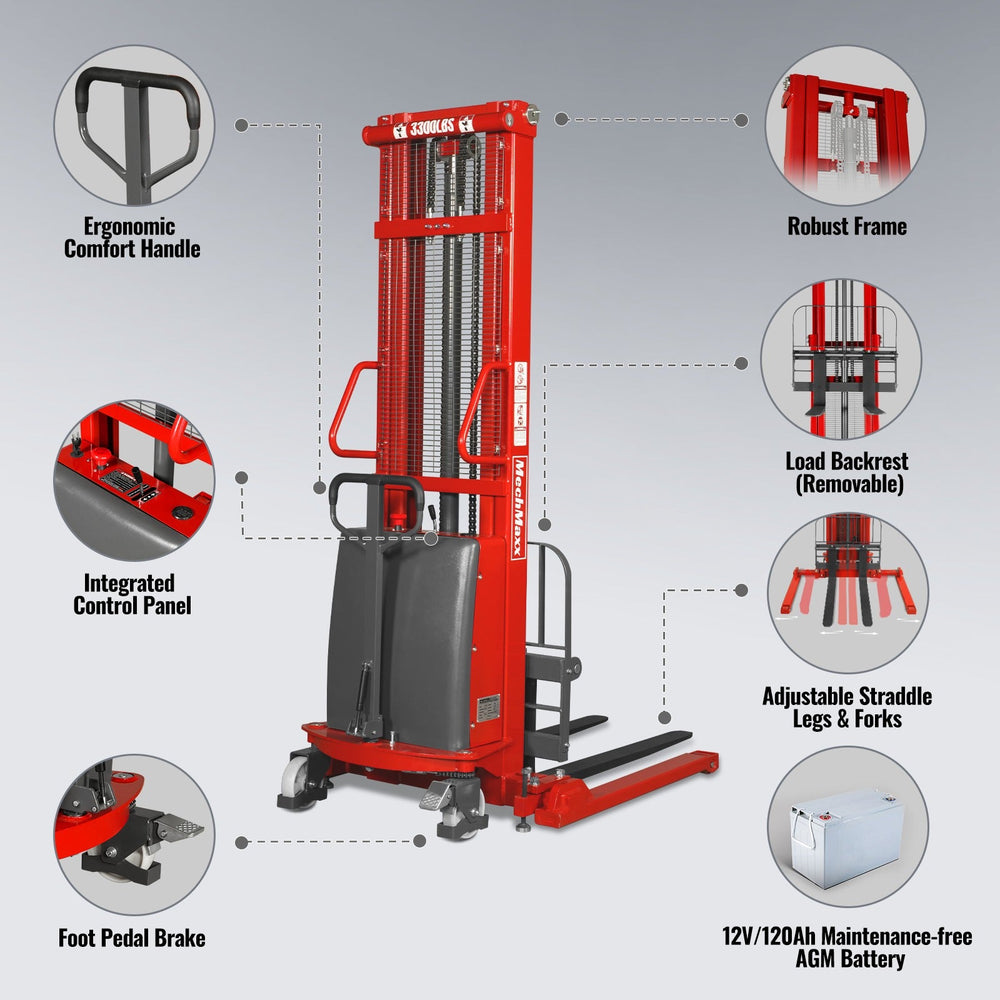

Features
- Maintenance-free AGM Battery: Equipped with a built-in 12V/120Ah sealed AGM battery that delivers consistent, maintenance-free power for frequent and demanding lifting operations.

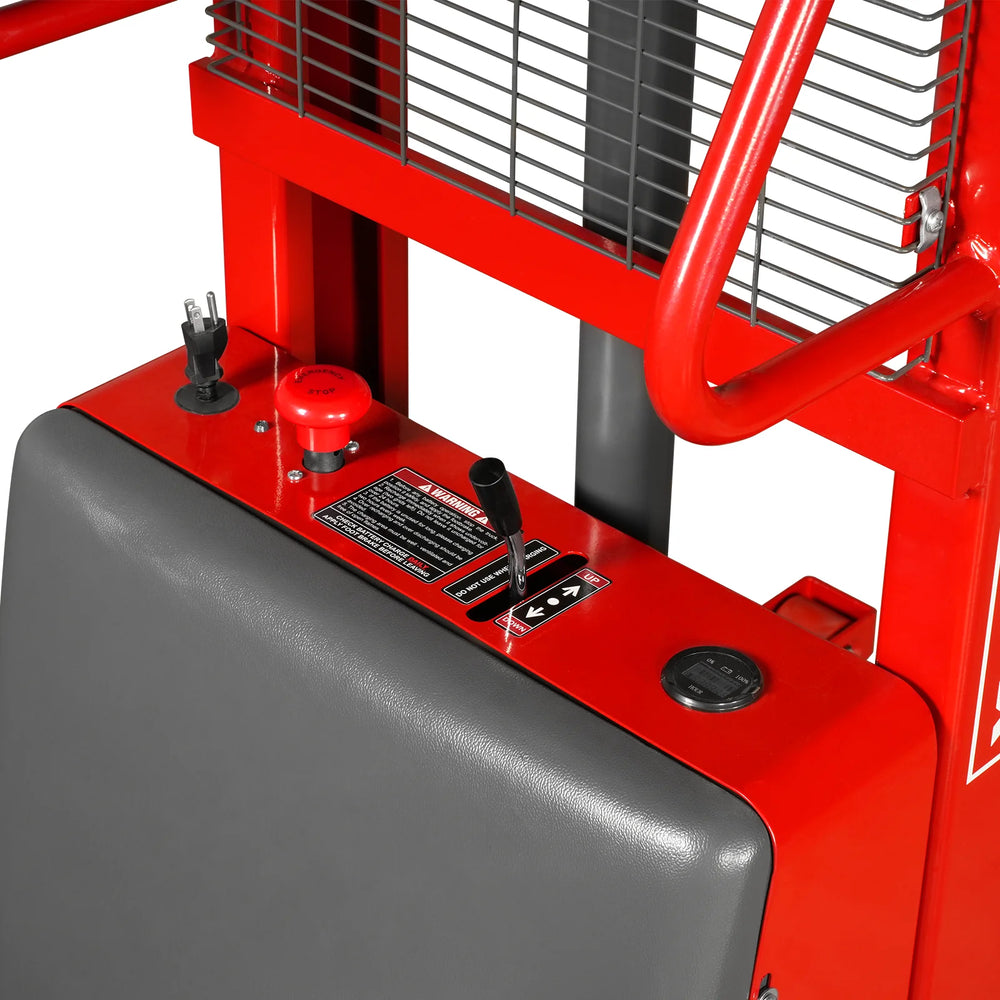

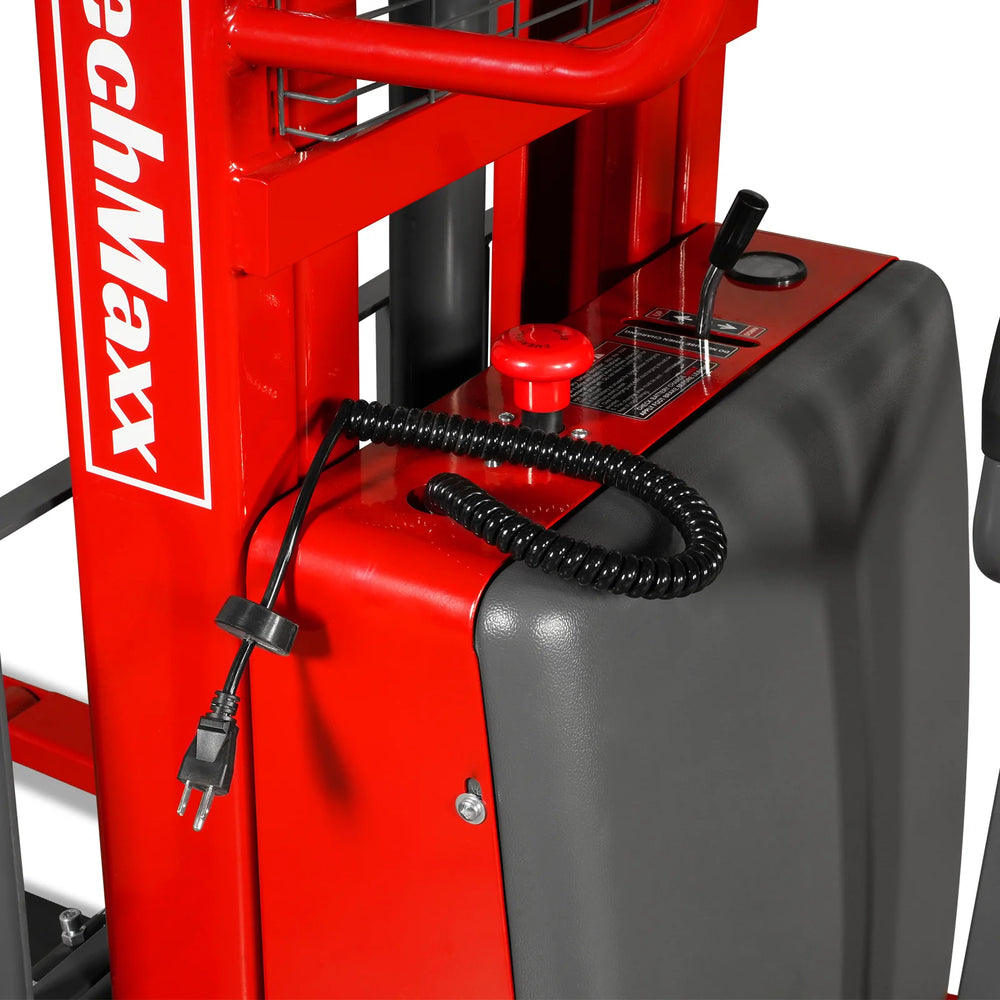

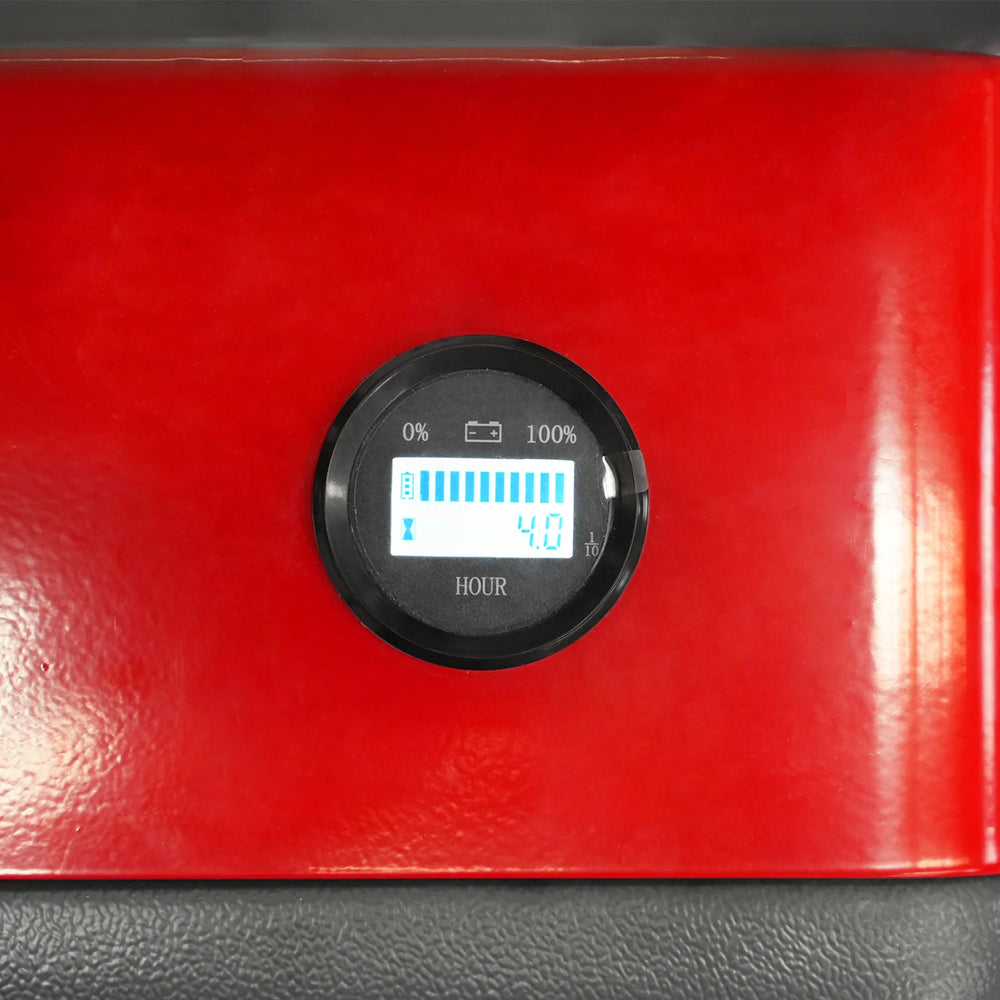

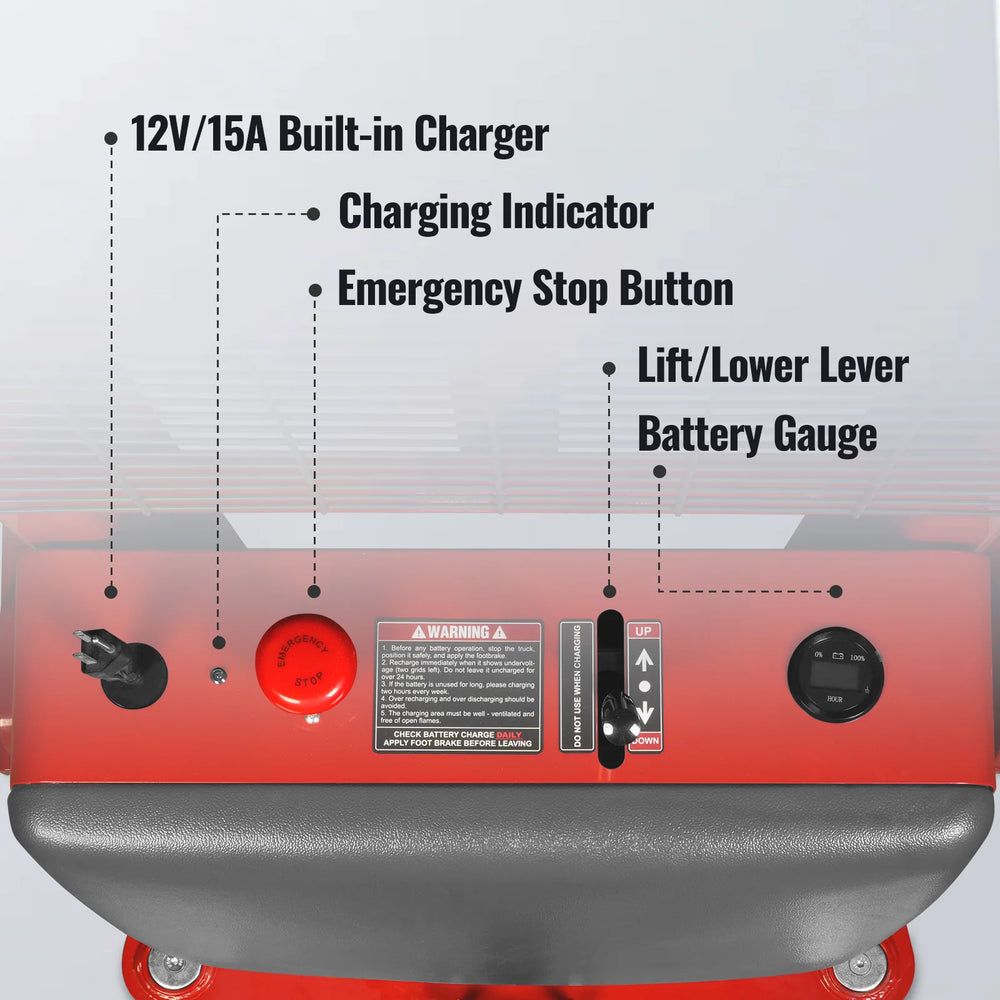

- Built-in Charger & Battery Guage: Built-in 12V/15A charger enables stable and convenient on-board charging. Equipped with a battery gauge and hour meter to clearly display remaining power and usage time for efficient operation planning.

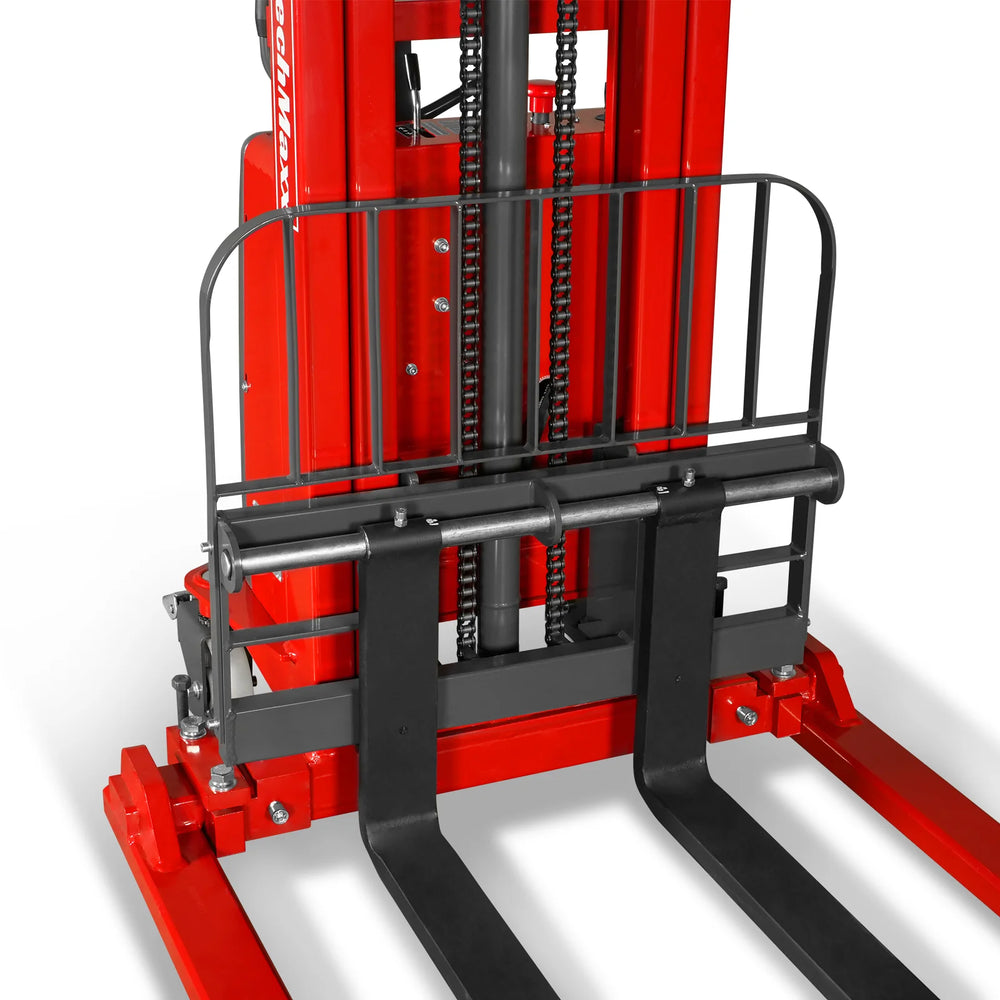

- Removable Load Backrest: Load backrest prevents goods from falling backward for improved safety. Removable backrest offers added flexibility—enhancing visibility and maneuverability when not needed.
- Ergonomic Handle & Gas Spring Support: Ergonomic handle allows comfortable one-hand operation from either side. Integrated gas spring support absorbs shocks smoothly, reducing operator fatigue and enhancing control during lifting and maneuvering tasks.

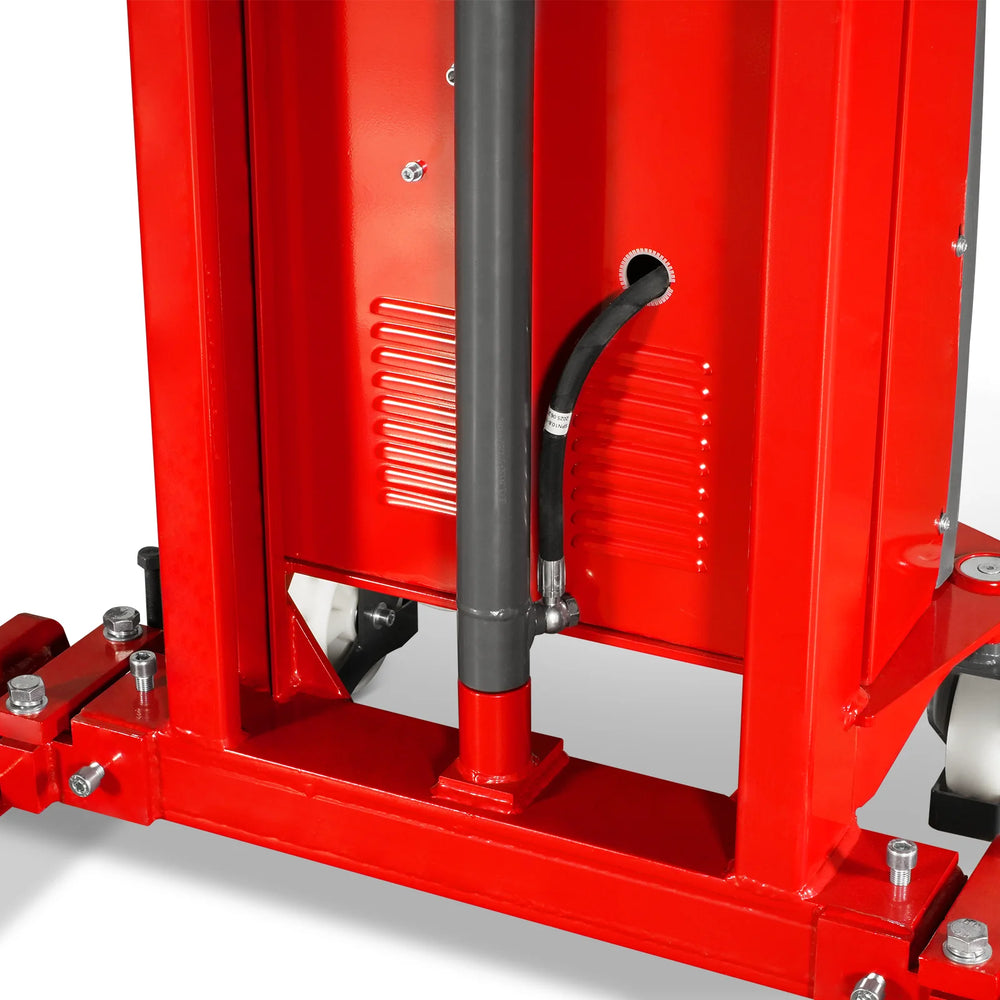

- Robust Frame Design: Double-frame design with reinforced stiffening bars enhances structural integrity. Constructed from premium steel, ensuring stable lifting performance, improved load balance, and extended service life under heavy-duty operation.
- Explosion-proof Valve: Equipped with an explosion-proof valve to prevent sudden lowering of the forks in case of hydraulic failure, ensuring operator and load safety.

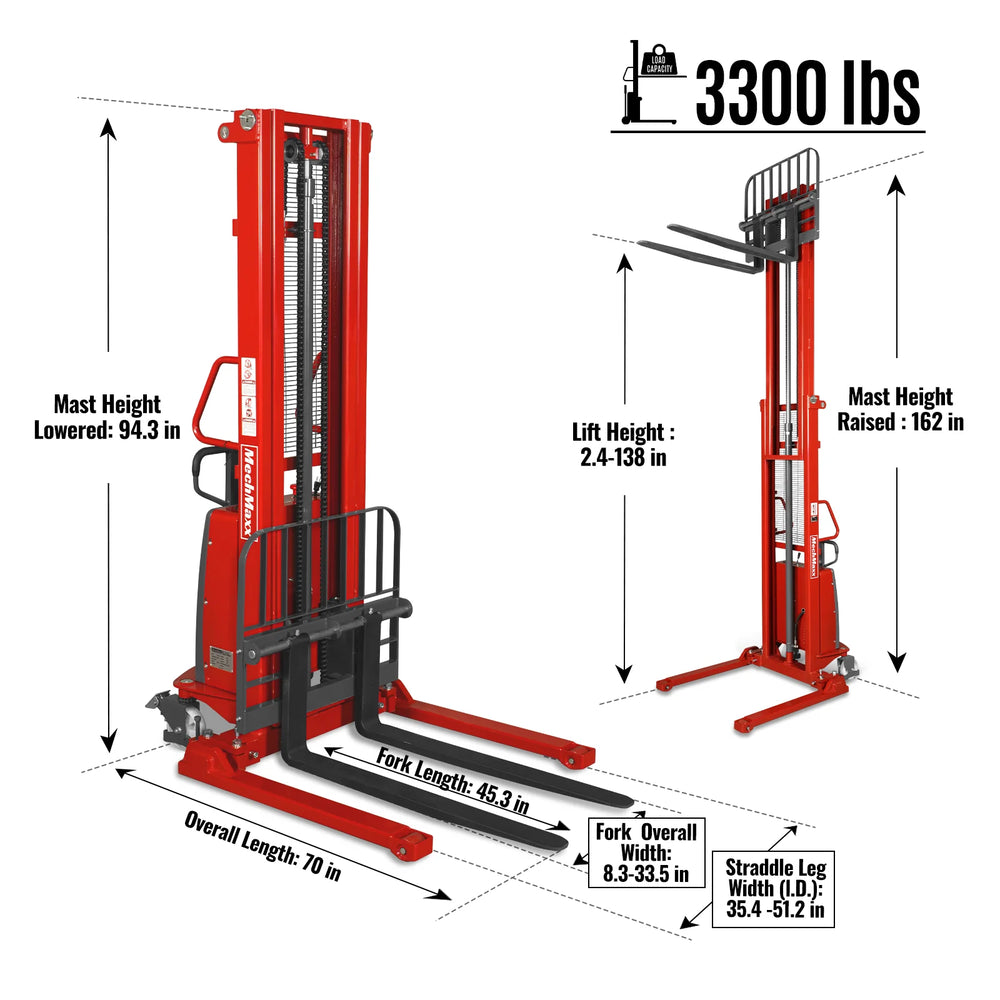

Specifications
| Load Capacity | 3300 lbs |
| Fork Overall Width | 8.3 - 33.5 in |
| Operator Position | Walkie |
| Fork Size (TxWxL) | 1.4 x 4 x 45.3 in |
| Tire Type | Polyurethane |
| Turing Radius | 53.2 in |
| Overall Length | 70 in |
| Lifting Speed (laden/unladen) | 15/28.2 fpm |
| Max Lift Height | 138 in |
| Lowering Speed (laden/unladen) | 21.3/19.1 fpm |
| Min Lift Height | 2.4 in |
| Service Brake | Foot Pedal |
| Mast Height (raised) | 162 in |
| Battery | 12V/120Ah Maintenance-free AGM Battery |
| Mast Height (lowered) | 94.3 in |
| Charger | 12V/15A Built-in |
| Straddle Leg Width (I.D.) | 35.4 - 51.2 in |
| Lift Motor | 1.6 kW |
| Straddle Leg Width (O.D.) | 43.3 - 59 in |
| Packing Size (LxWxH) | 39 x 37 x 97 in |
| Load Center | 23.6 in |
| Weight (N.W/G.W.) | 1180/1334 lbs |
Warranty
This item comes with a factory warranty.
