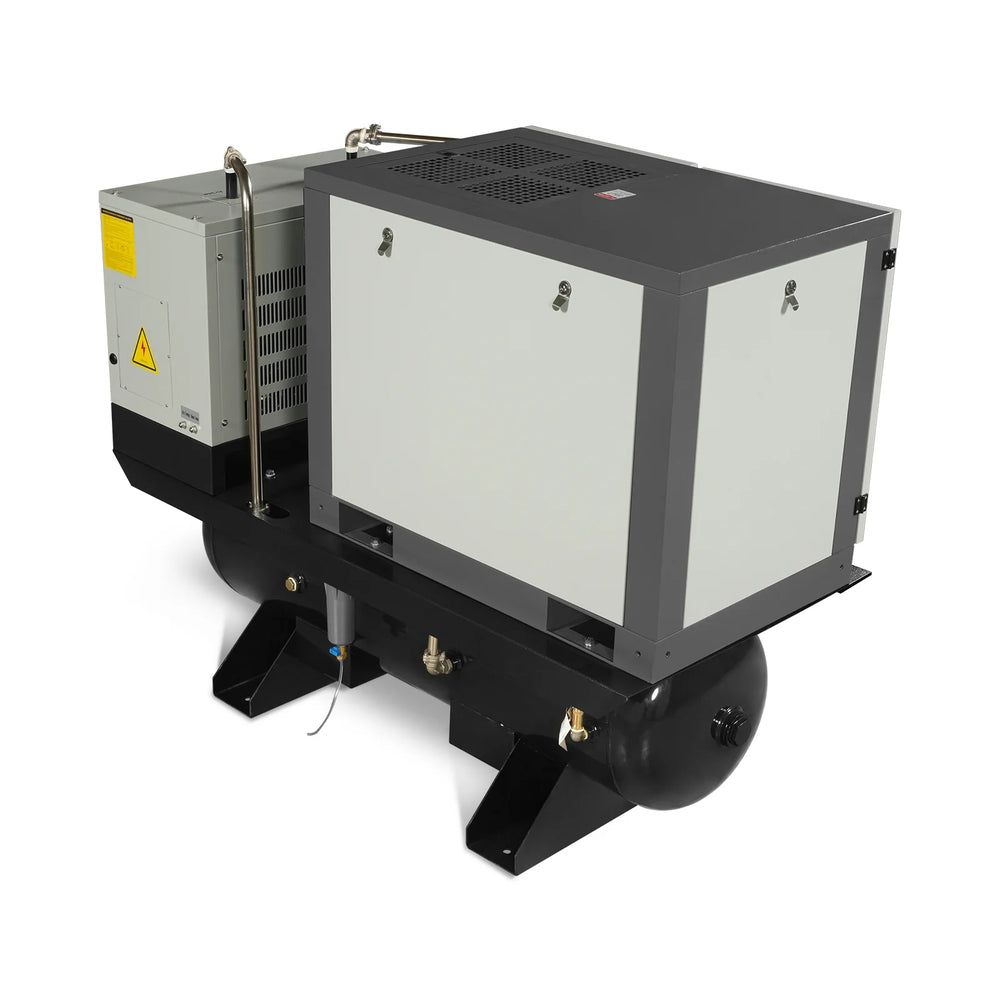

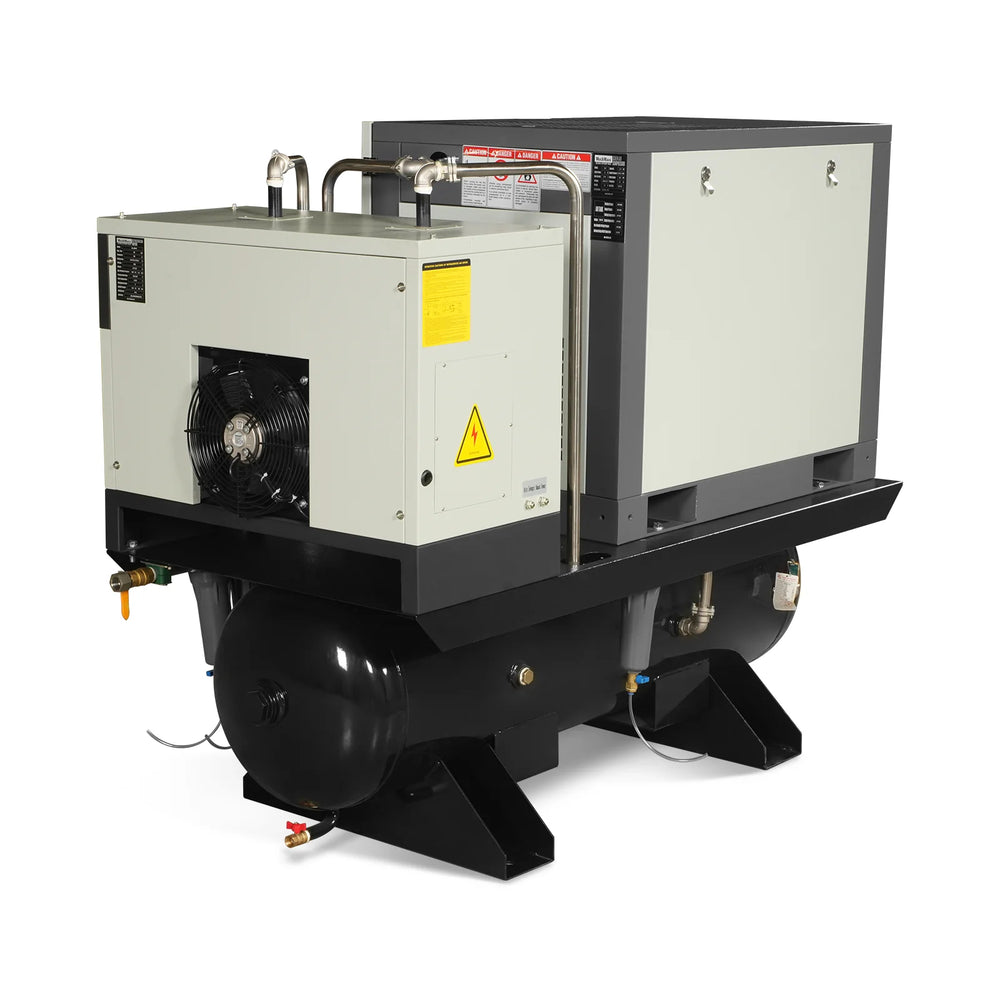

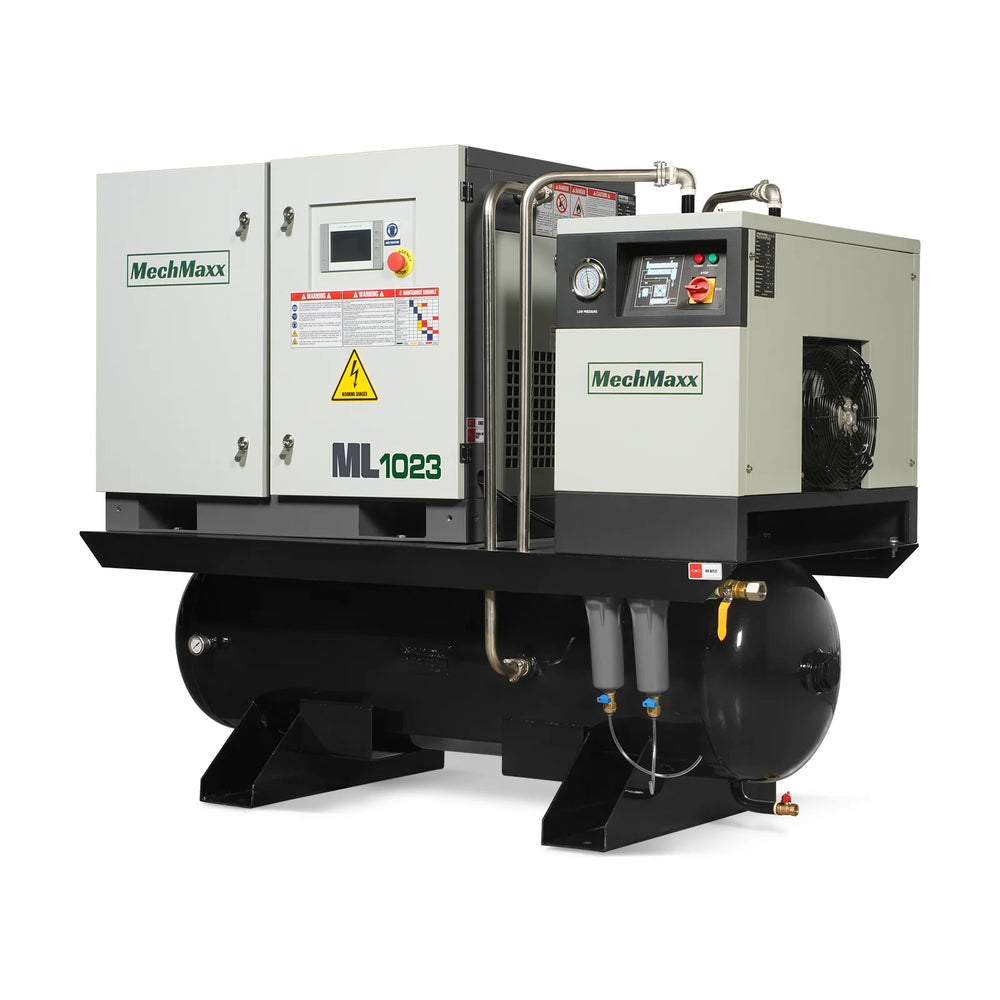

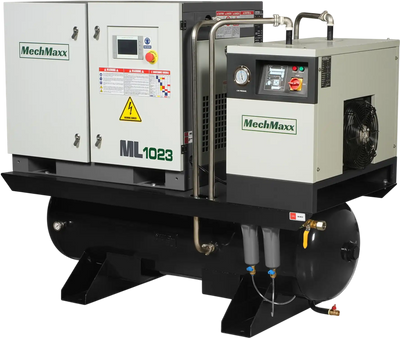

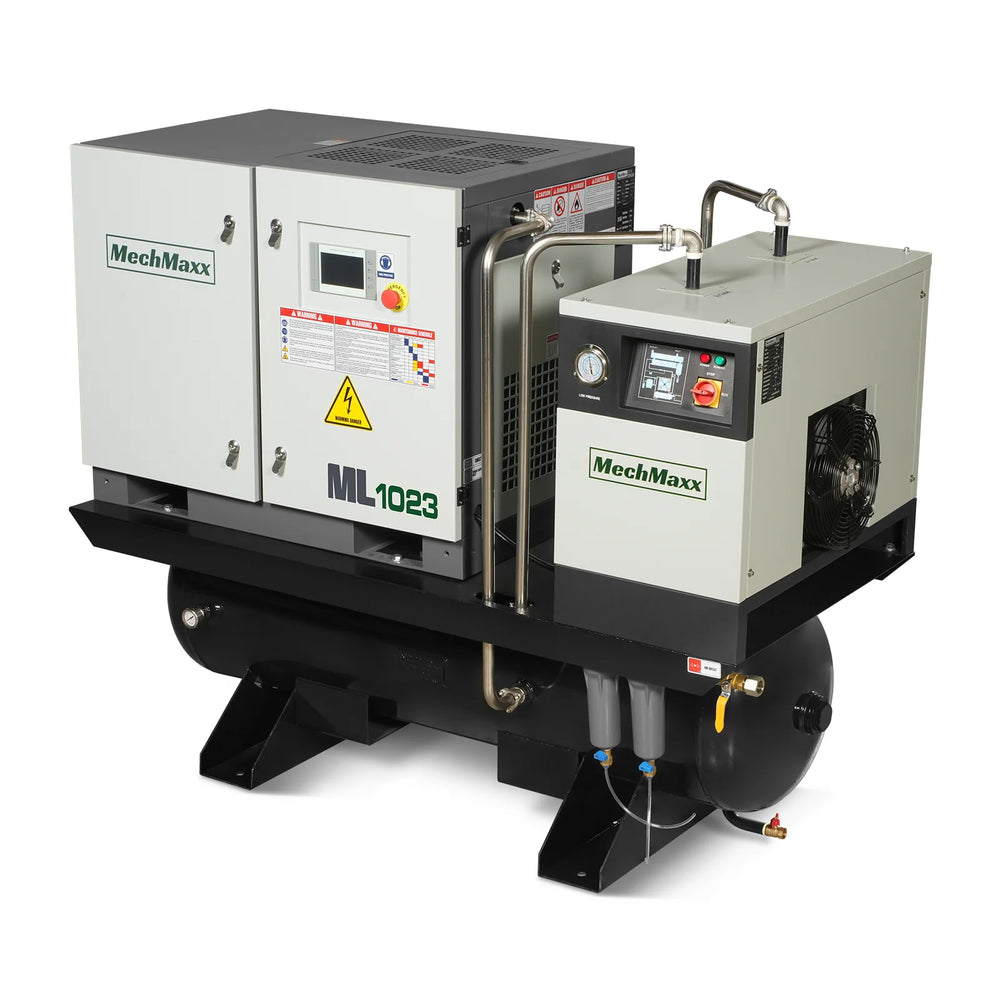

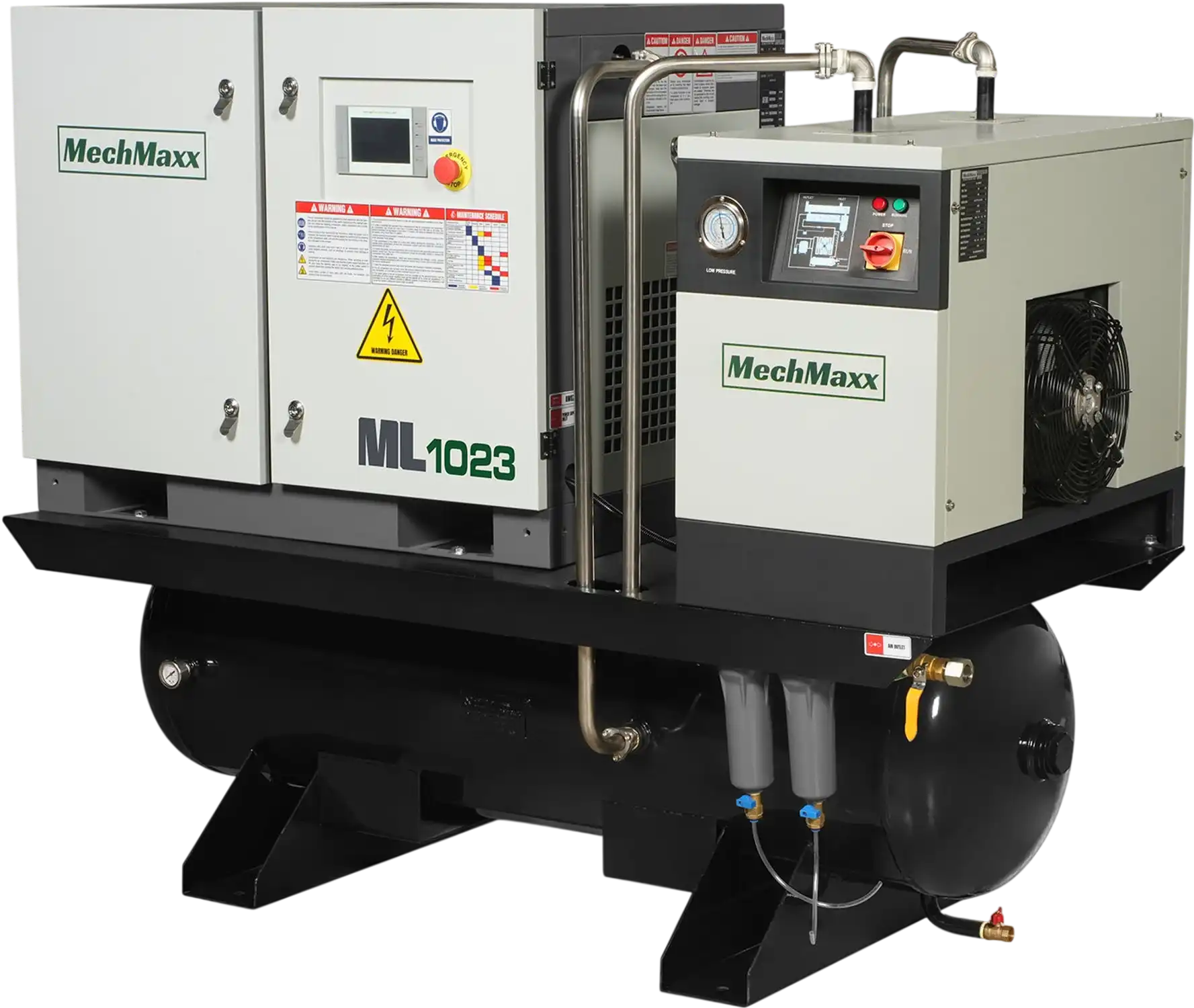

MechMaxx ML10 Air Compressor 10HP Rotary Screw with Dryer 66-Gal ASME Tank 32 CFM 116 PSI 230V 3-Phase Industrial Grade New
Manufacturer: MechMaxx
SKU: 300009
QTY
or
(888) 999-1522
C
$9,617.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
$655.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$757.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$873.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

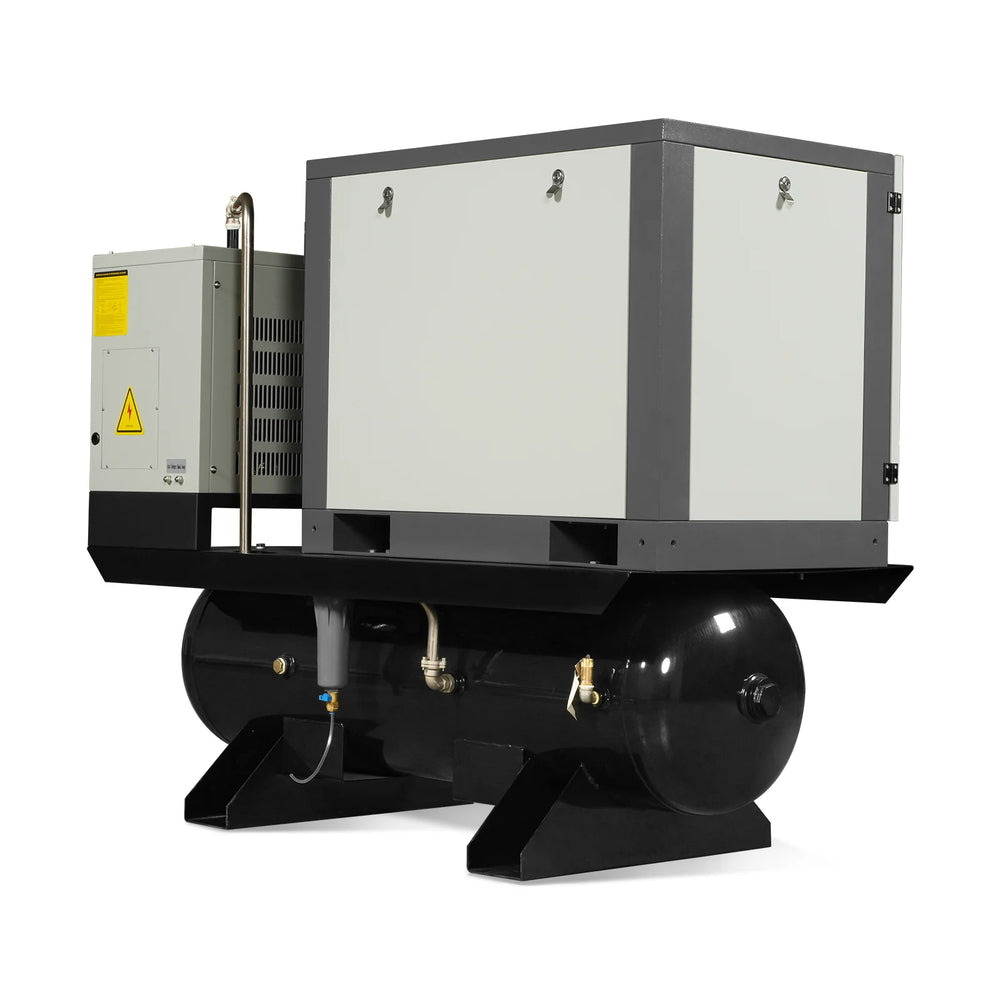

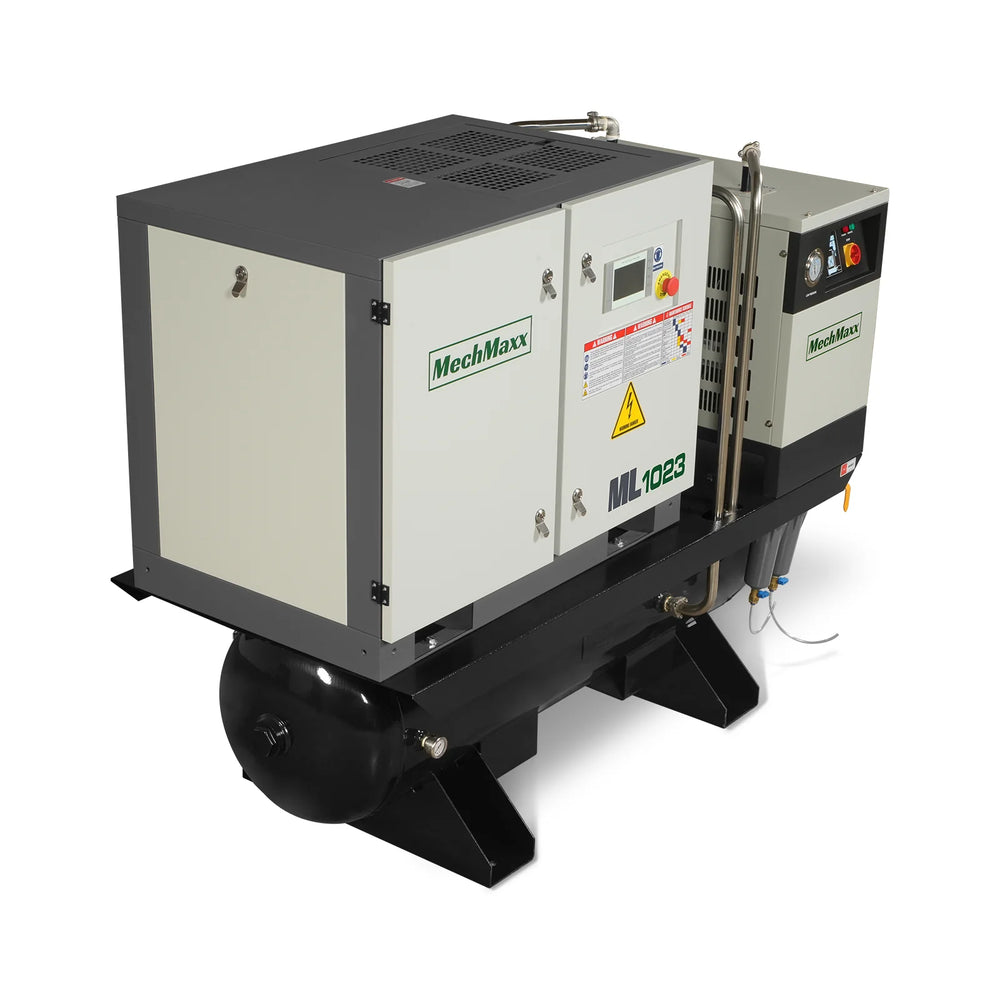

MechMaxx ML10 Air Compressor 10HP Rotary Screw with Dryer 66-Gal ASME Tank 32 CFM 116 PSI 230V 3-Phase Industrial Grade New
Product Overview

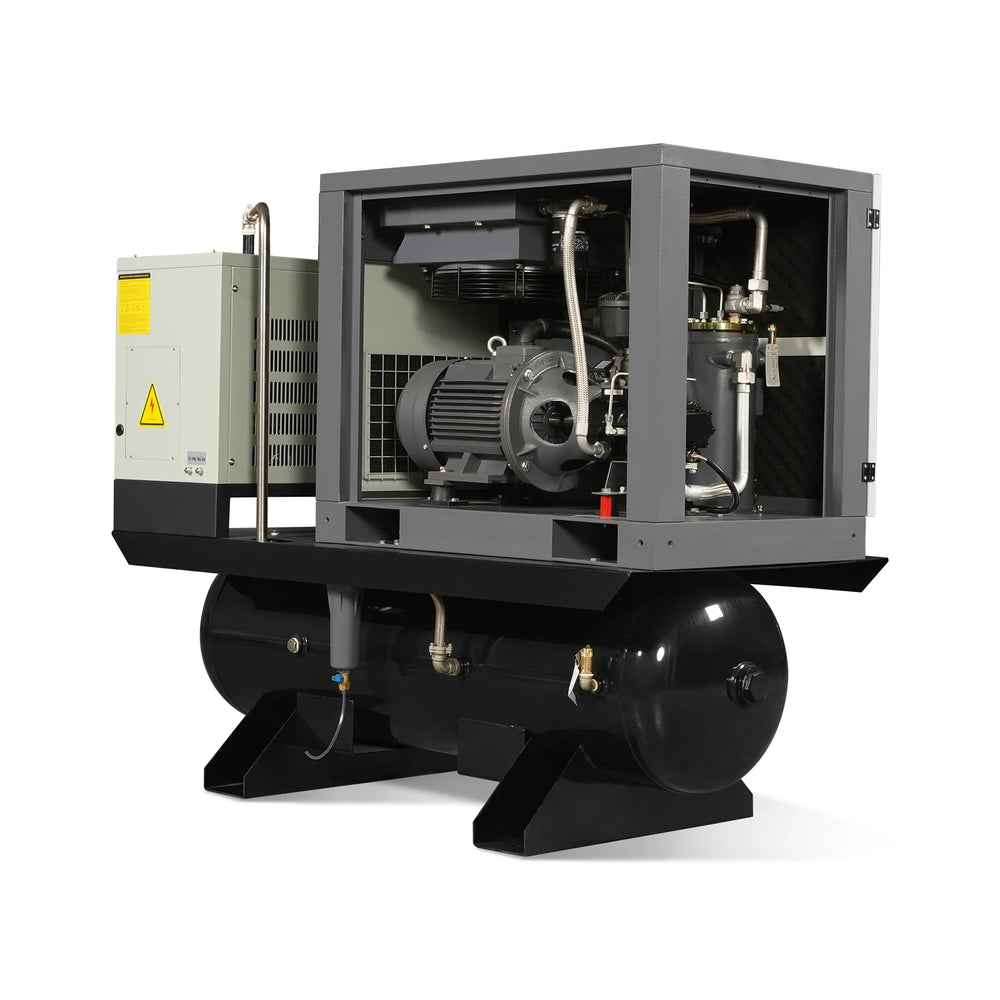

- High-Performance Motor. Equipped with a high-performance motor featuring IP54 protection, a fully enclosed dust-proof design, and Class F insulation, combined with SKF heavy-duty bearings. It delivers high starting torque, excellent heat resistance, and a long service life.
- Premium Airend Design. Built with a high-quality airend manufactured by an advanced producer. Precision machining controls tolerances within microns, ensuring outstanding reliability and extended service life.
- Efficient Oil-Gas Separation System. The highly efficient oil-gas separation system includes a specially designed separator tank, a high-performance separation element, and an oil return device, ensuring the discharged compressed air maintains an oil content of less than 3 ppm.

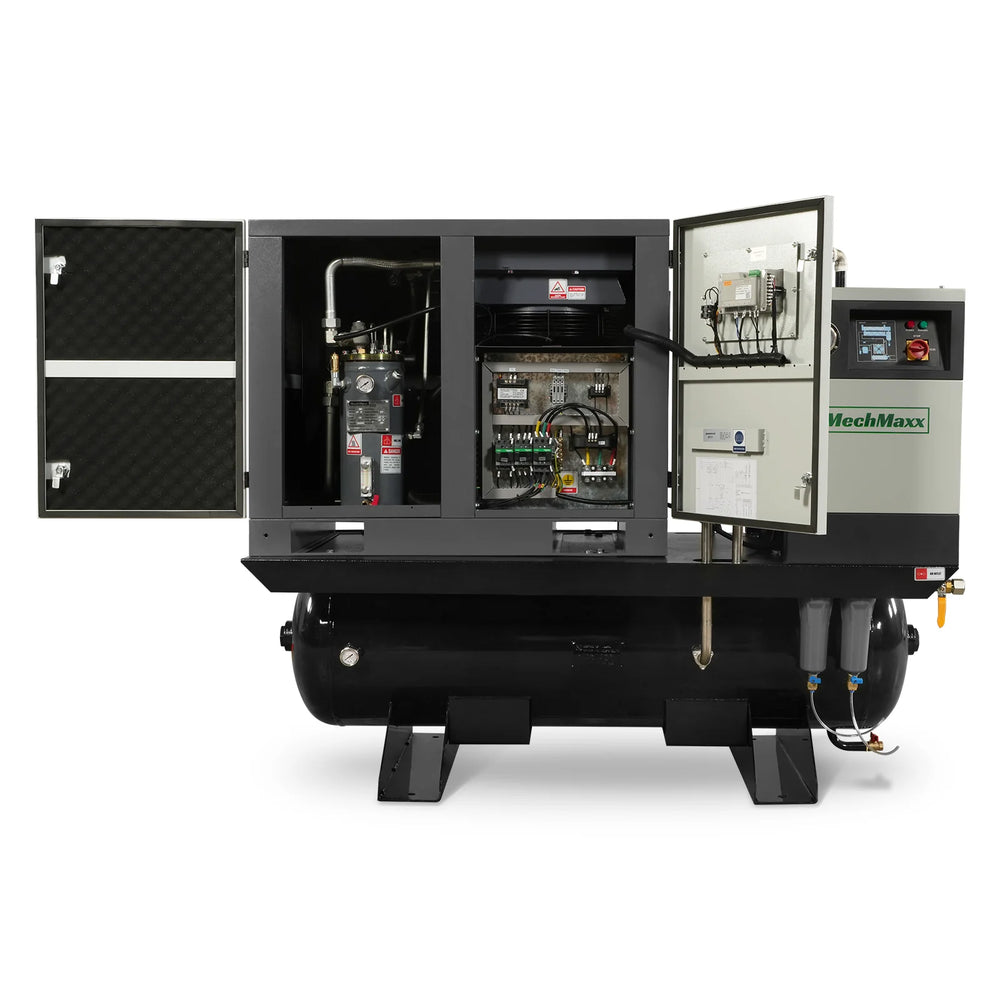

- Intelligent Control System. The intelligent control system enables fully automatic operation and provides fast on-site fault diagnostics during operation, maximizing reliability and extending the compressor’s service life.
-
Energy-Saving EPC Control with Automatic Load/Unload Regulation. Featuring an EPC intelligent control system with fully automatic load/unload regulation, the compressor operates according to real-time air demand. When no compressed air is required, the unit automatically shuts down to eliminate waste, reduce energy consumption, and significantly lower operating costs.
Note:
Before first use, please open the rear panel and remove the transportation shockproof bolts.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- PLC Controller: Monitors maintenance, temperature readings,,pressure settings,oil level, filtration & hours ,also monitors remote start / stop.

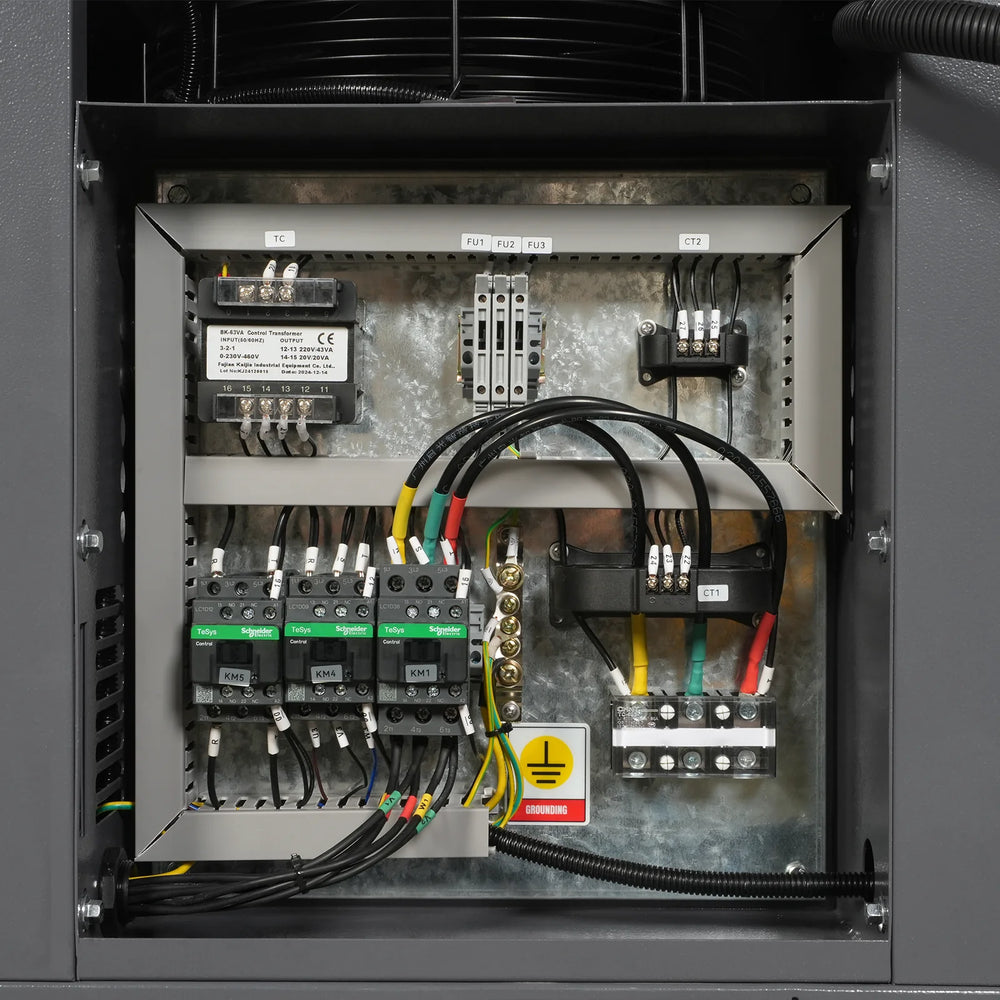

- Safe And Reliable Electrical Components: Adoption of Schneider brand electrical components.

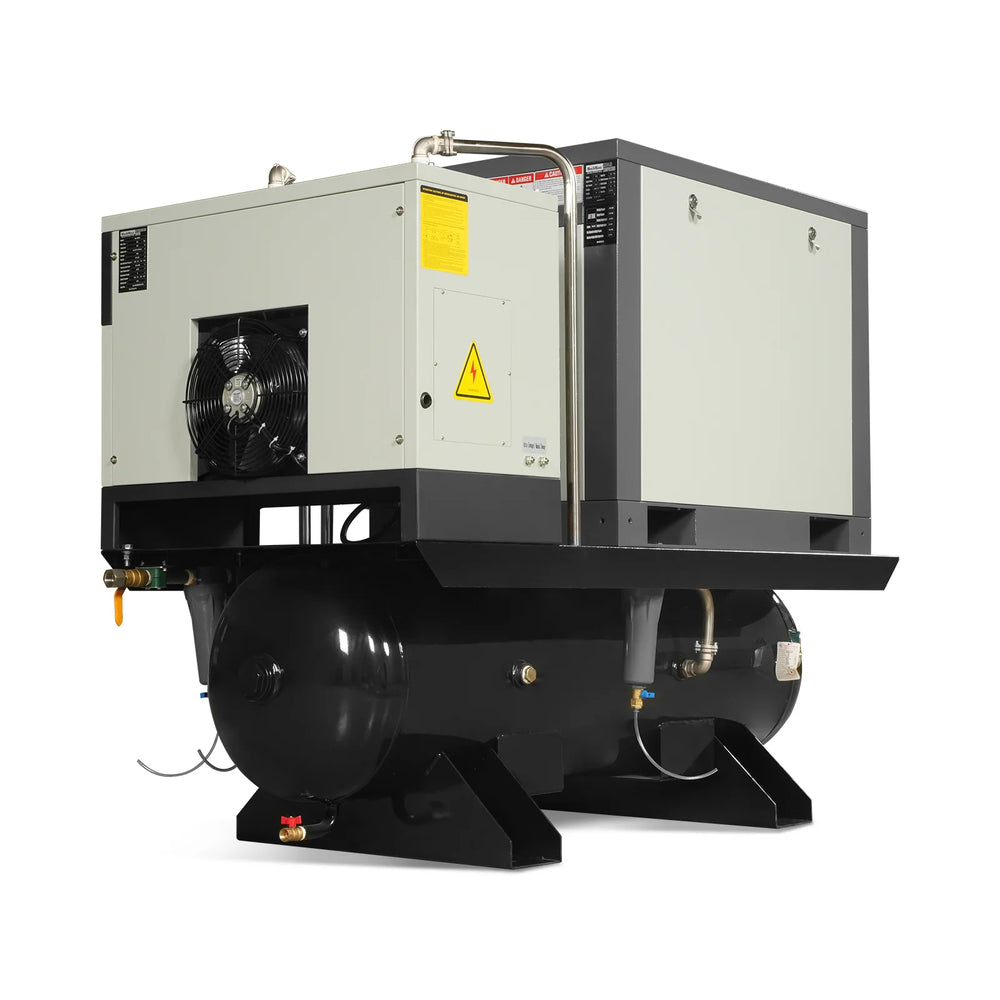

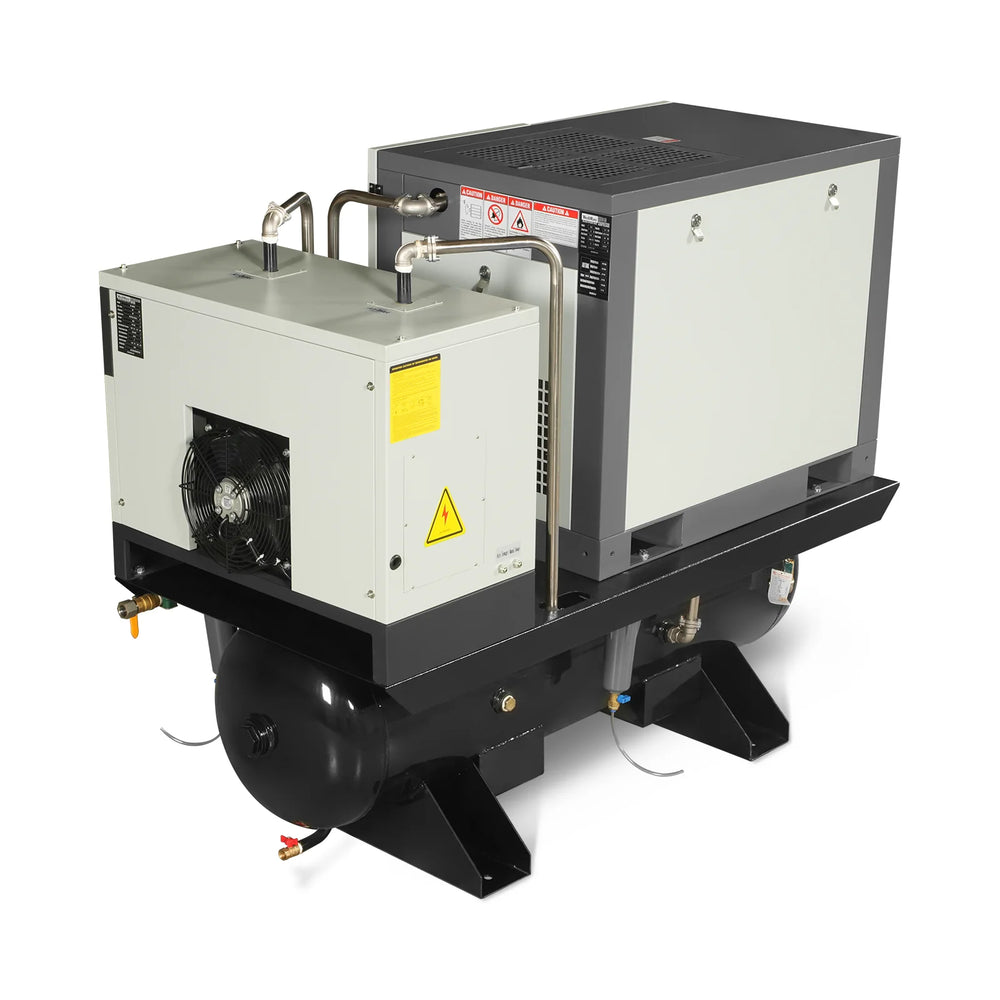

- Top And Right Side Vent Heat Dissipation: Please leave enough space on the top and right side of the machine for heat dissipation and exhaust.
- Easy Replacement Air Filter: Large ash capacity, low initial pressure drop, reduce compressor energy consumption.It can remove the particles over 3microns and ensure the compressor unit to operate stably in harsh environment.
- Easy Replacement High Precision Oil Filter: With multi-layer filter material, the high precision oil filter can ensure high filtration accuracy and unfailingly filter out impurities in lubricating oil, highly resistant to damage and able to operate reliably at high temperatures.
- Easy Replacement Oil-air Separator Filter: Professional filter material with enlarged area, high precision filtration.Three stage separation system can remove lubricants and deliver high quality air, protecting downstream equipment.Optimized air-oil separation structure, very low pressure drop, reduce power consumption.

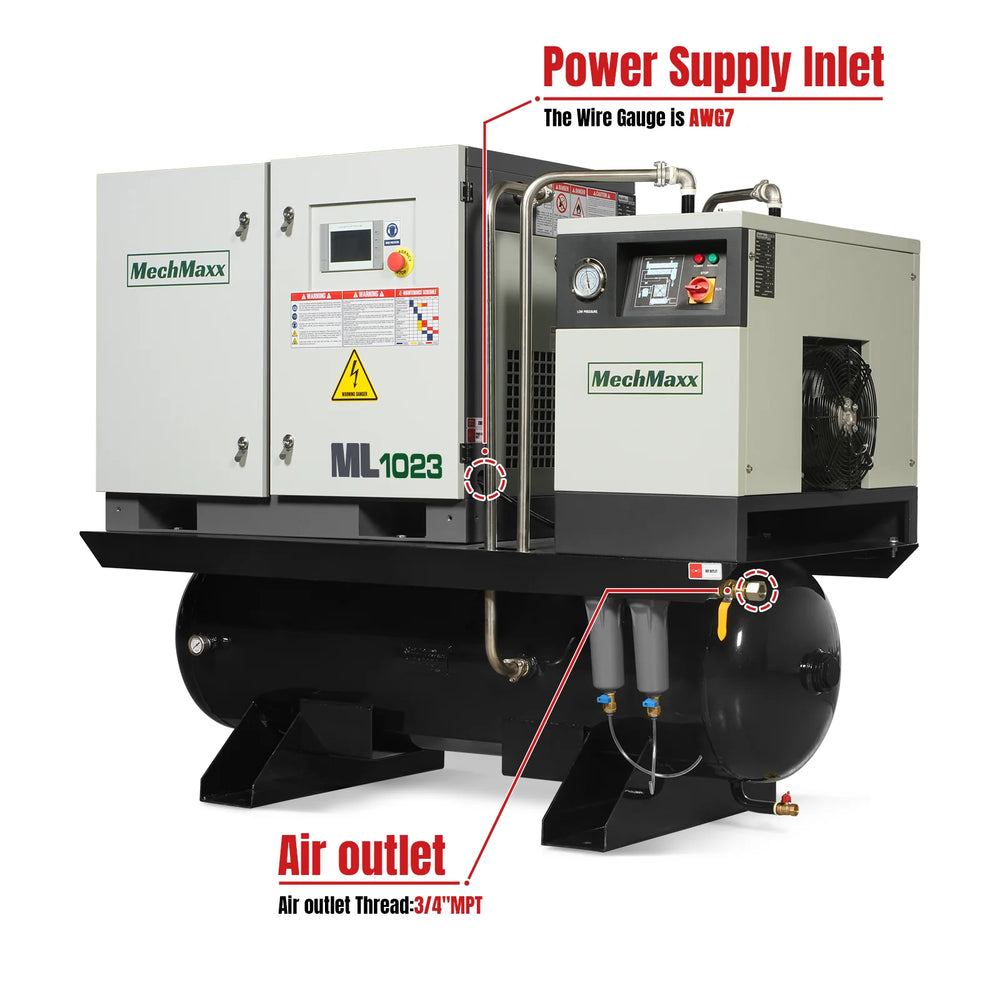

- Standard Threads And Wires Gauge: Wire Gauge:AWG7Air Outlet Thread:3/4’’NPTVoltage:230V 3PH 60HZ
- Strip Oil Label: Clear indication of oil level.
- Maintenance Schedule Reminders: Please refer to the maintenance schedule for maintenance.
Specifications

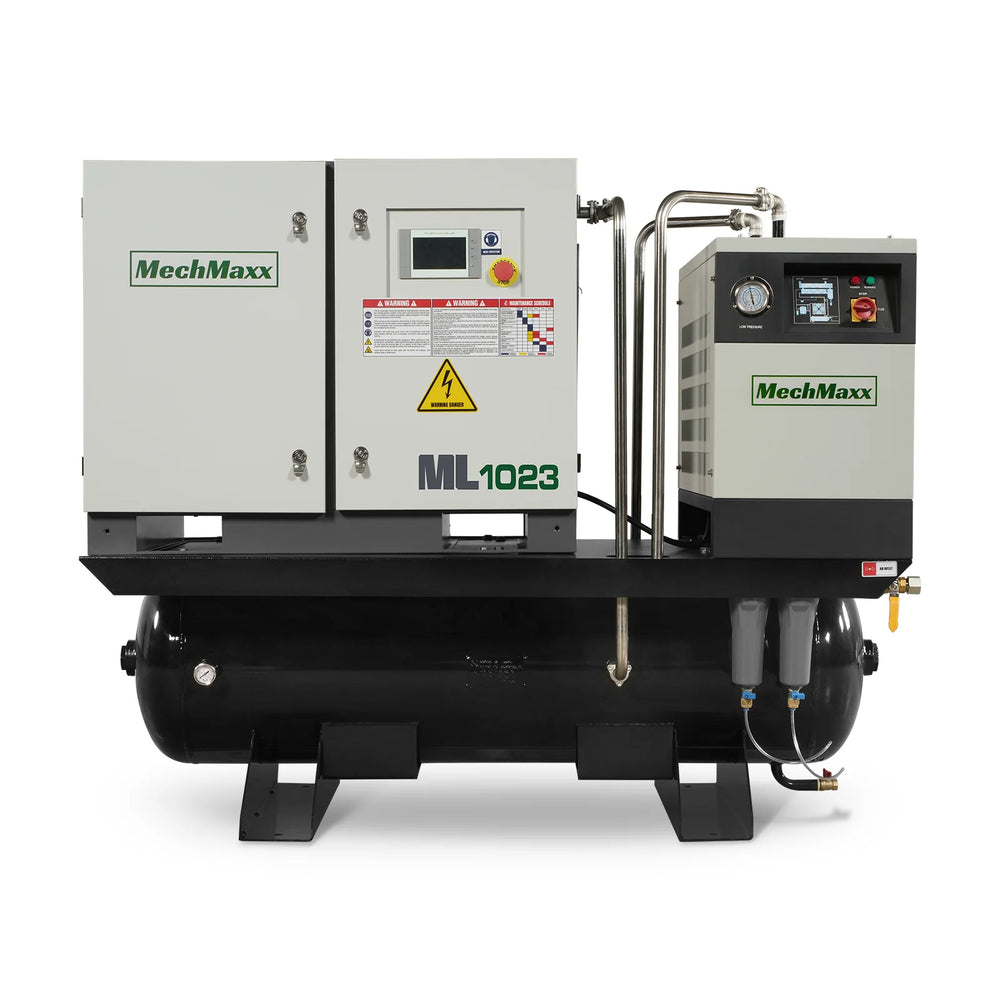

| Model | ML1023 |
| Voltage | 230V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 32.8CFM |
| Wire Gauge | AWG7 |
| Air Outlet Thread | 3/4" NPT |
| Oil Tank Capacity | 1.05Gal (4L) |
| Rated Power | 10HP |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 65dba |
| Motor Speed | 3500RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Pump Drive | Belt Drive |
| Working Pressure | ≤145PSI/1.0MPa |
| Design Pressure | 145PSI/1.0MPa |
| Max Allowable Working Pressure | 145PSI/1.0MPa |
| Working Temprerature | ≤302℉/150℃ |
| Design Temprerature | 302℉/150℃ |
| Maximum Design Metal Temperature | 17.6℉/-8℃ |
| Volume | 66GAL/250L |
| Air Dryer Capacity Flow | 50CFM |
| Machine Size | :67.5" x 31.5" x 54" |
| Packing Size | :68.9" x 34.6" x 61" |
| N.W.:/ G.W. | :935 lb/1056 lb |
Warranty
This item comes with a factory warranty.
