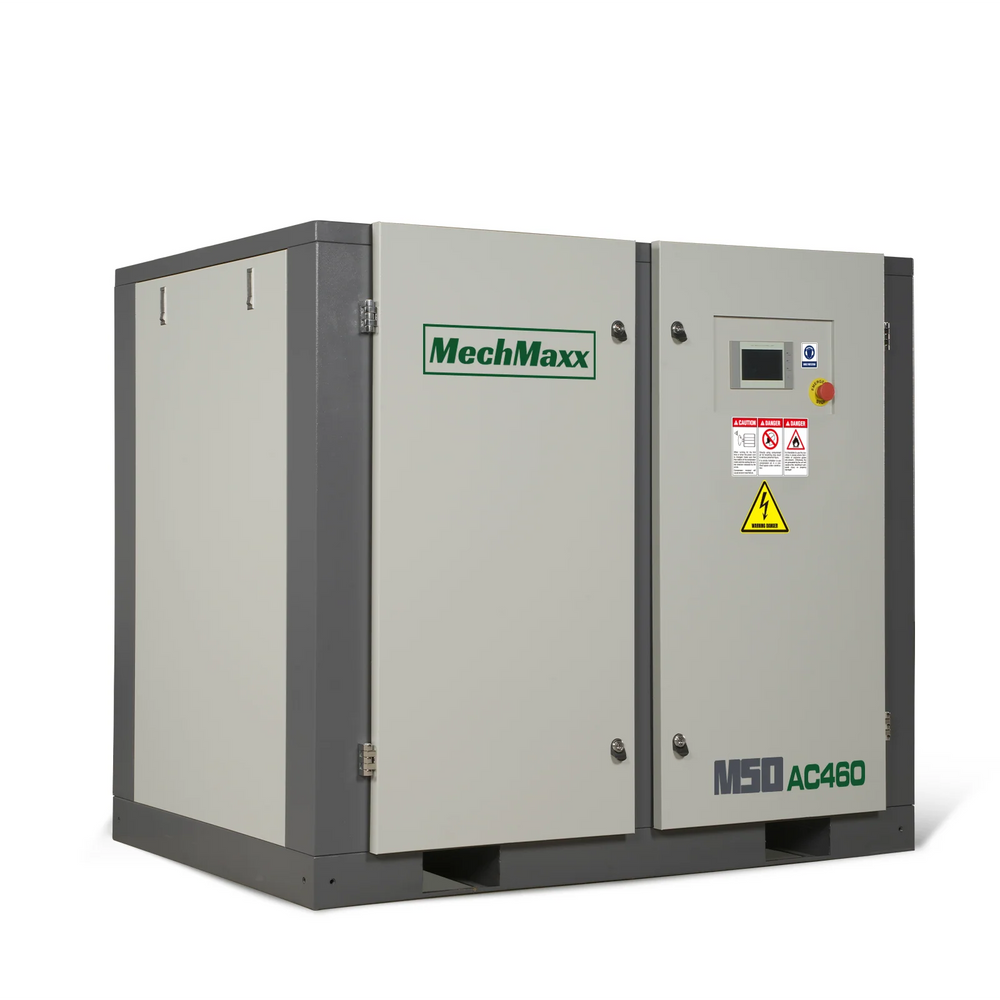

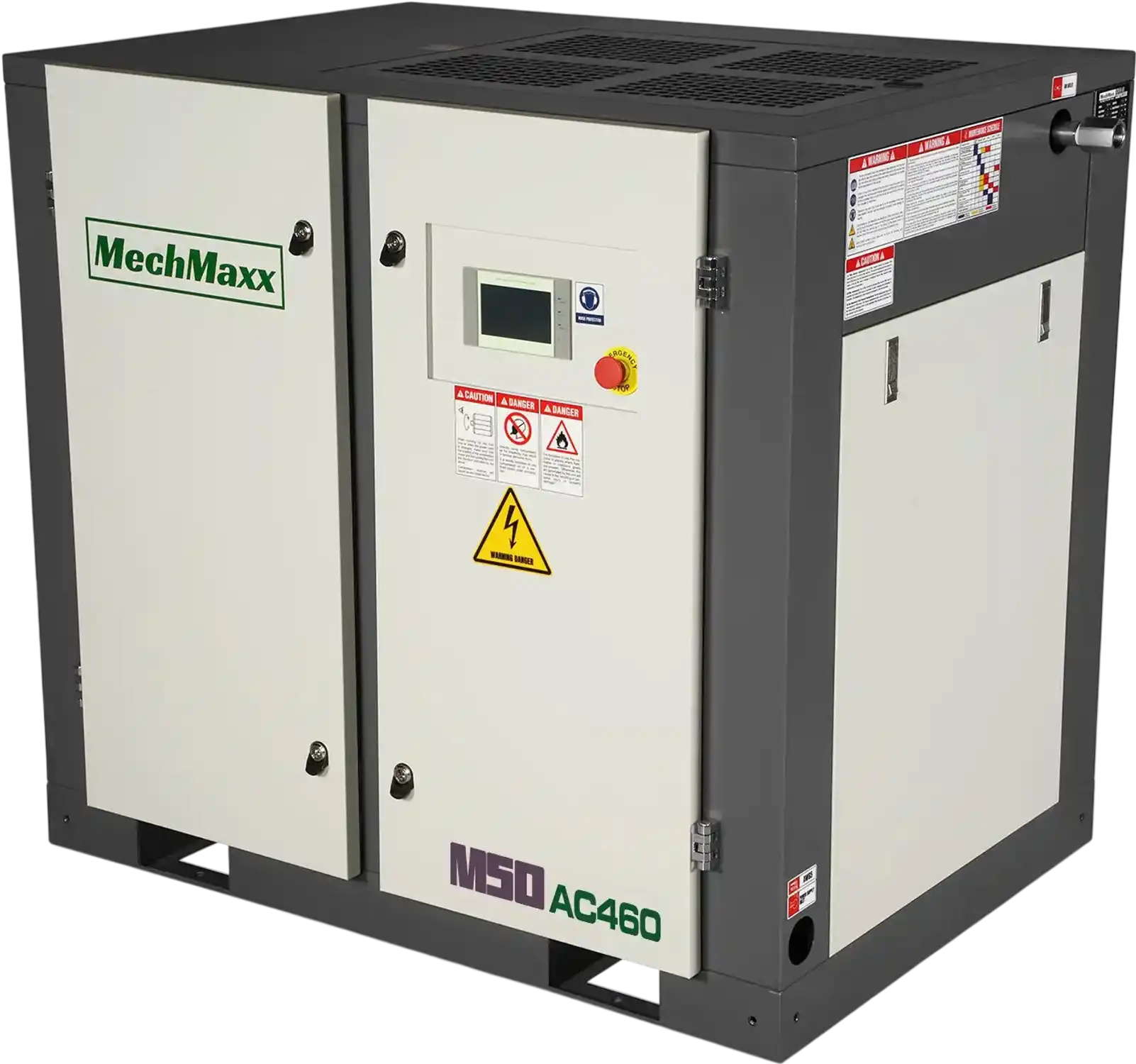

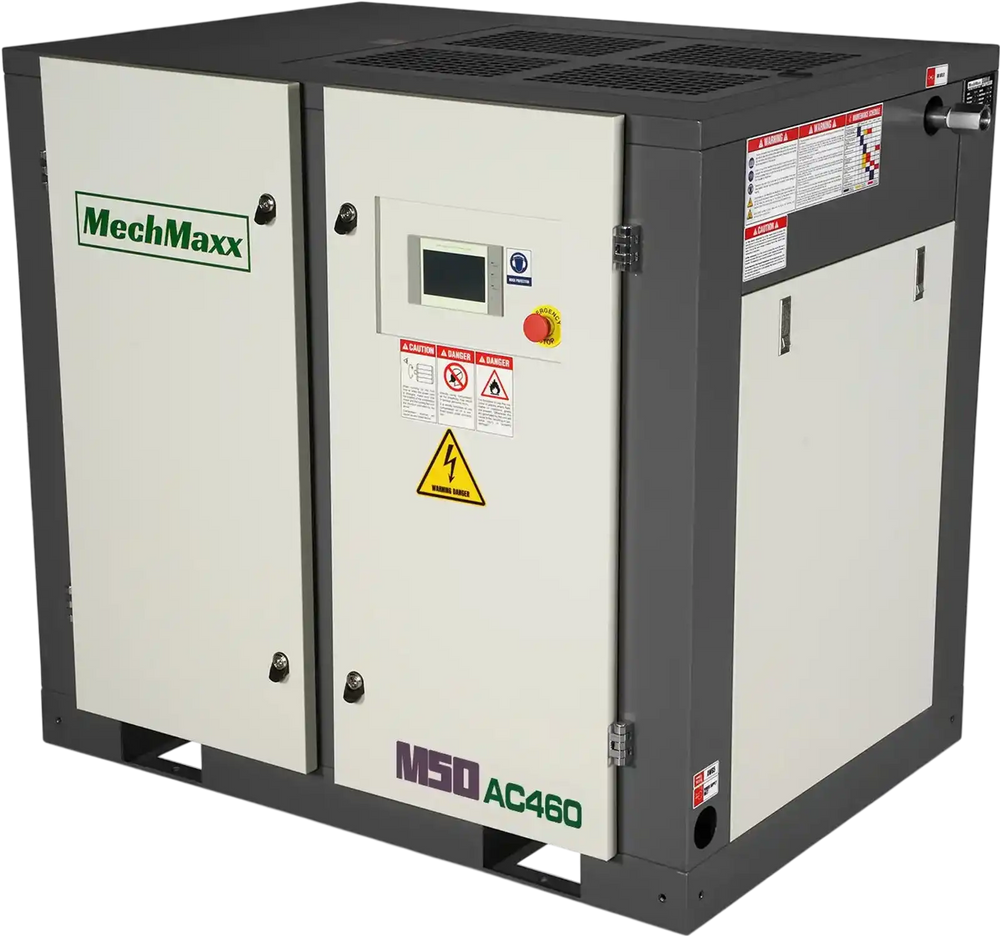

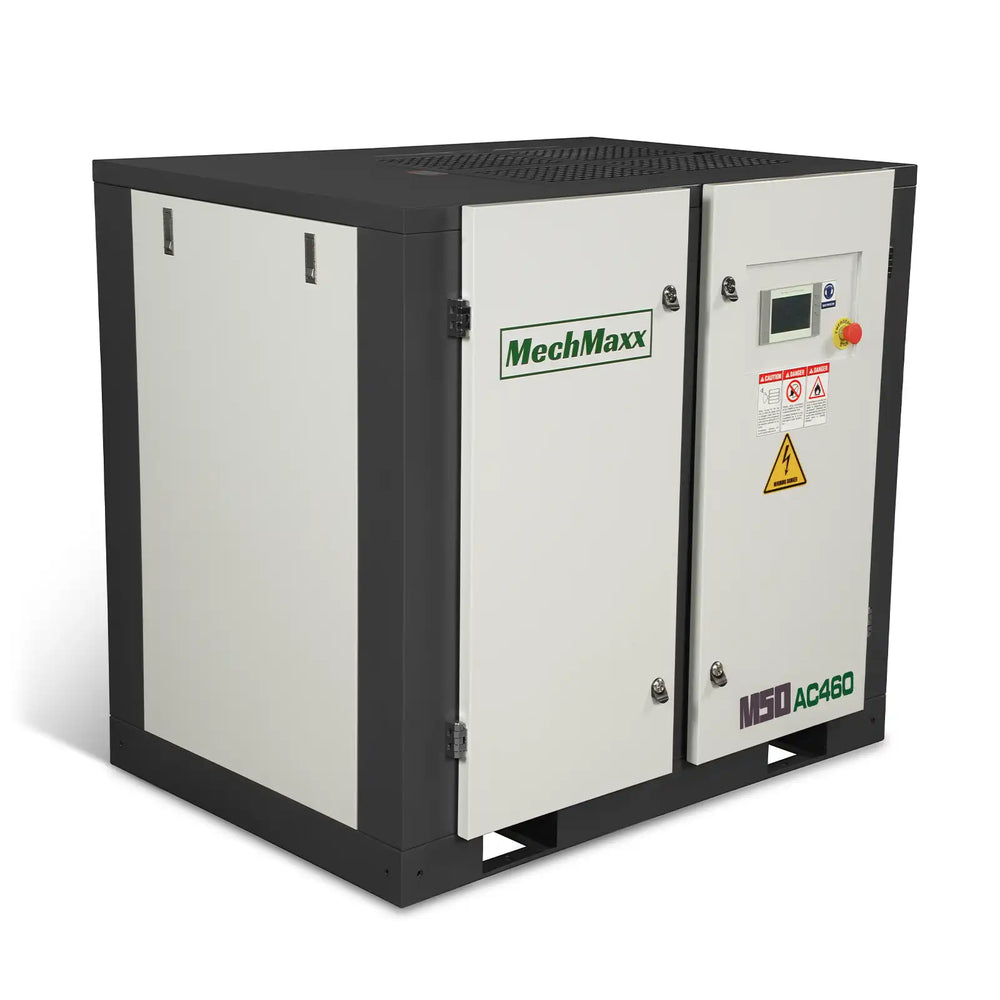

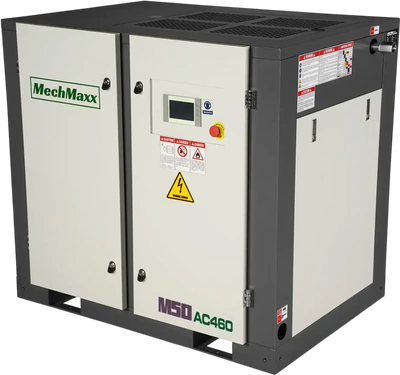

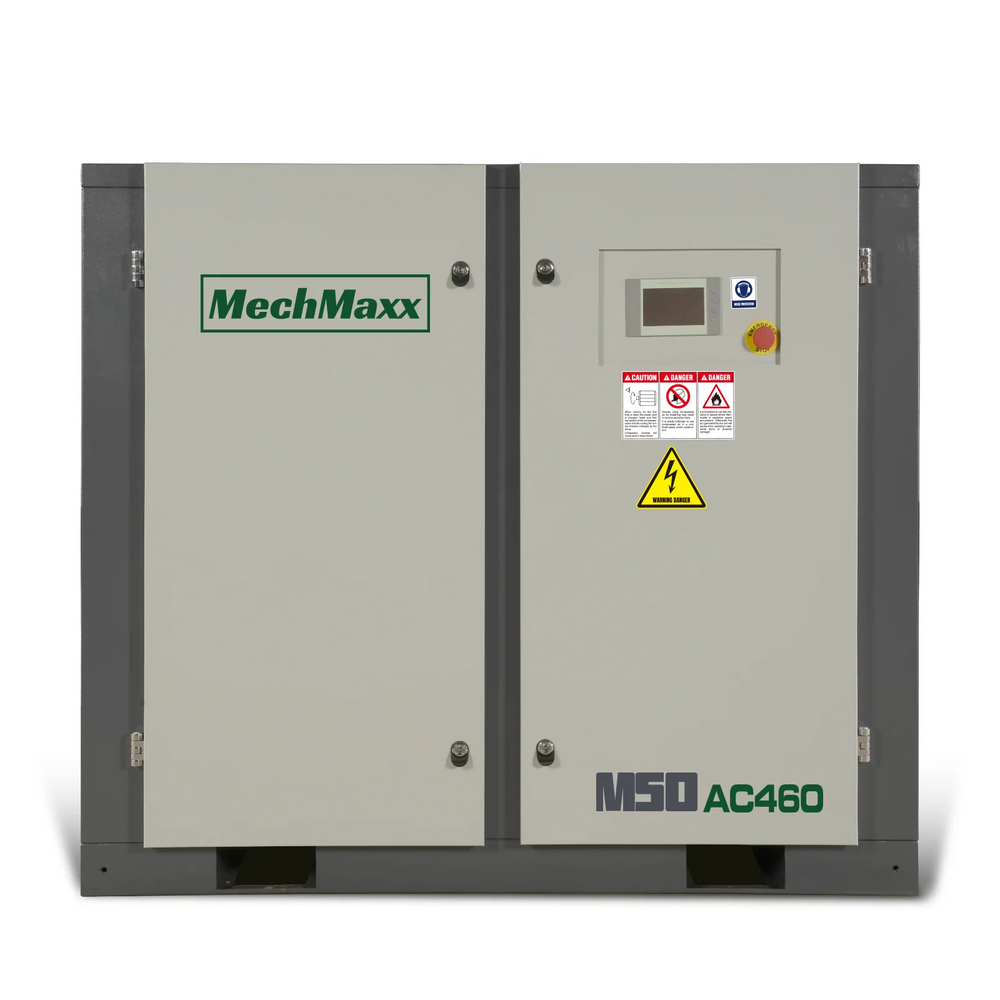

MechMaxx M50AC460 Air Compressor 50HP Rotary Screw 220 CFM 116 PSI 460V 3-Phase Industrial-Grade New
Product Overview

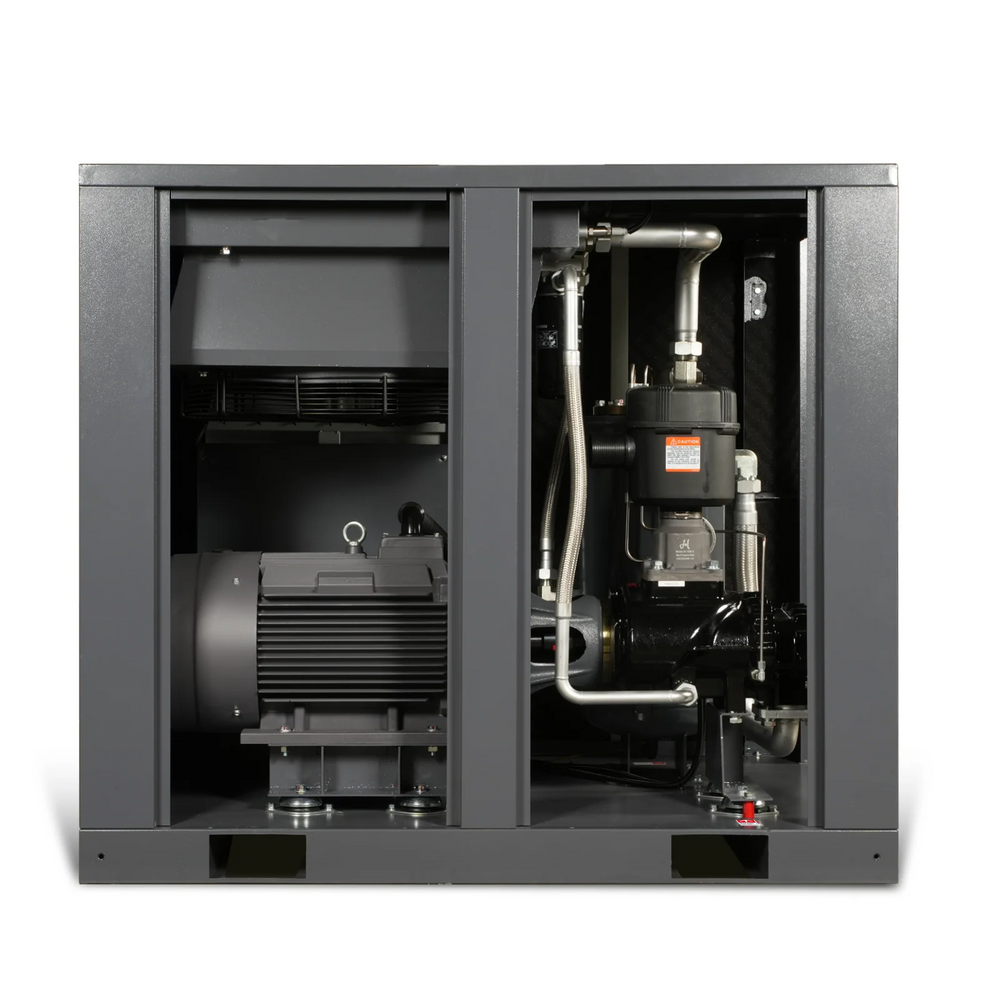

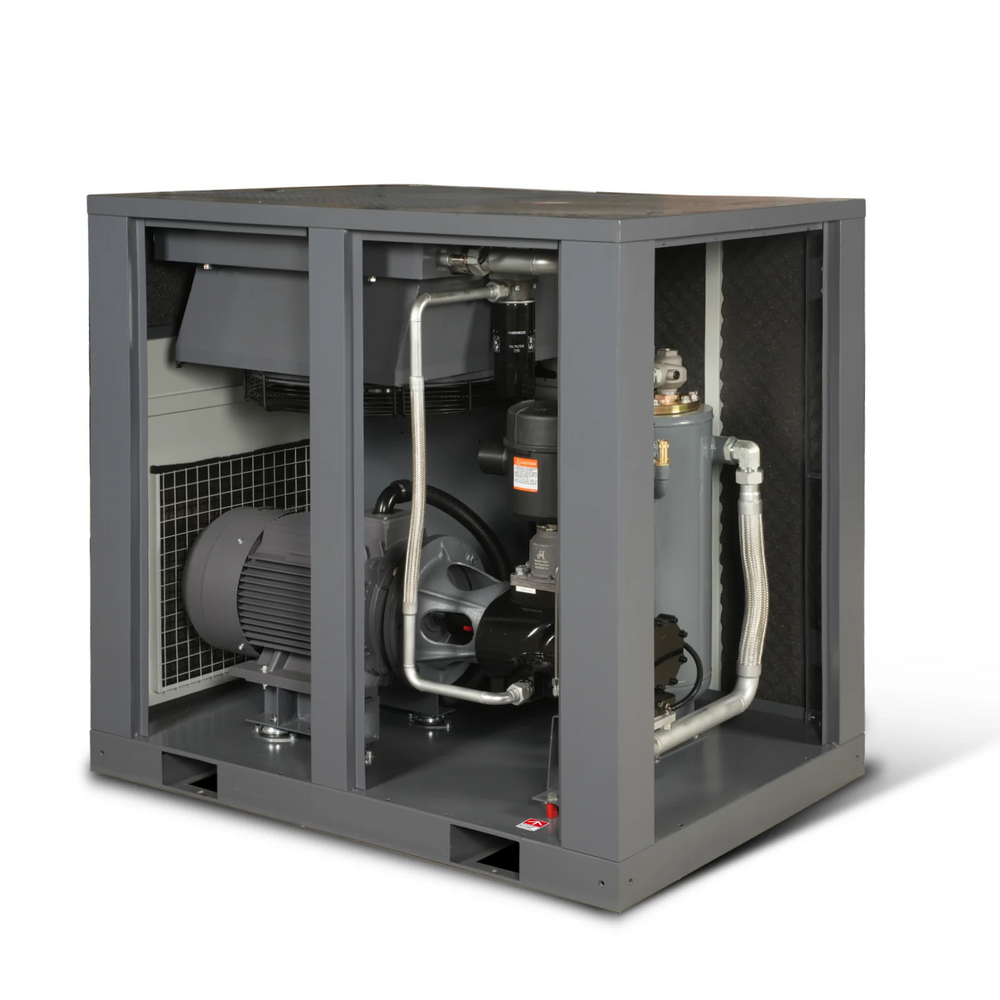

- High-Performance Motor. Equipped with a high-performance motor featuring IP54 protection, a fully enclosed dust-proof design, and Class F insulation, combined with SKF heavy-duty bearings. It delivers high starting torque, excellent heat resistance, and a long service life.
- Premium Airend Design. Built with a high-quality airend manufactured by an advanced producer. Precision machining controls tolerances within microns, ensuring outstanding reliability and extended service life.

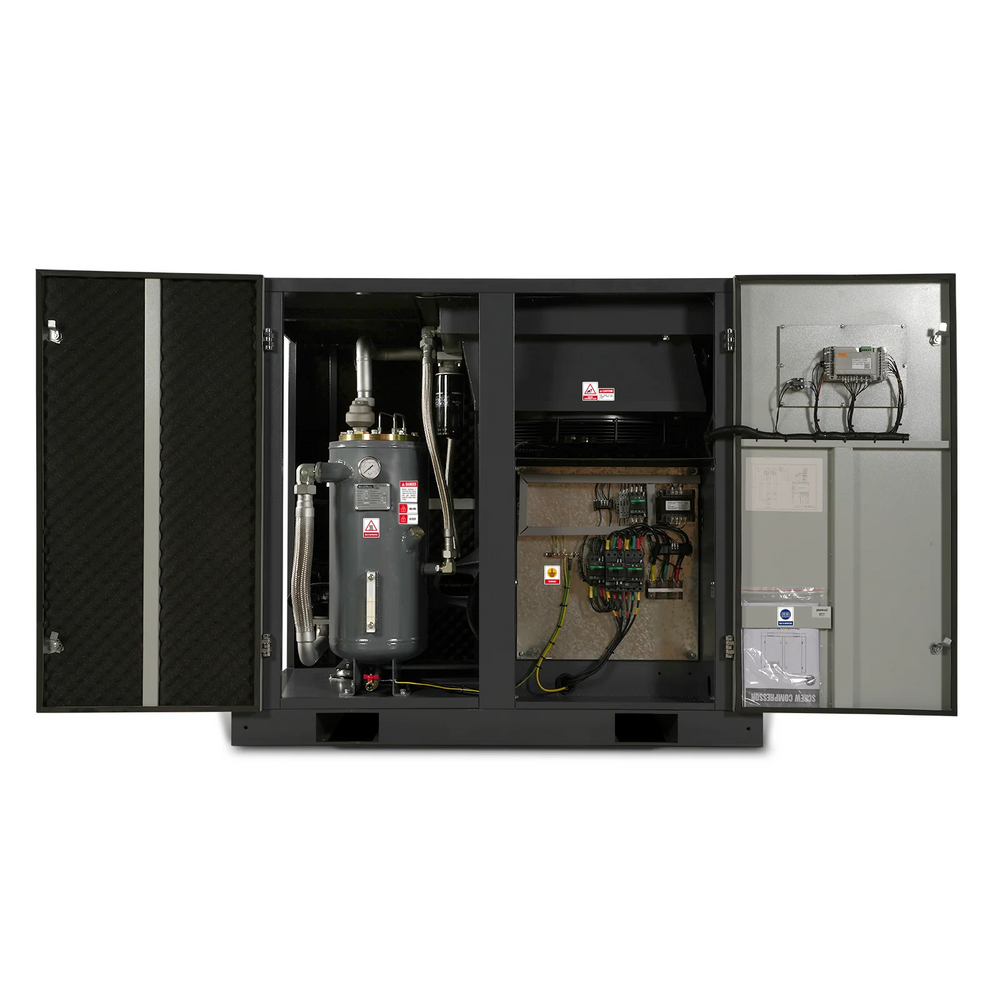

- Efficient Oil-Gas Separation System. The highly efficient oil-gas separation system includes a specially designed separator tank, a high-performance separation element, and an oil return device, ensuring the discharged compressed air maintains an oil content of less than 3 ppm.
- Intelligent Control System. The intelligent control system enables fully automatic operation and provides fast on-site fault diagnostics during operation, maximizing reliability and extending the compressor’s service life.
-
Energy-Saving EPC Control with Automatic Load/Unload Regulation. Featuring an EPC intelligent control system with fully automatic load/unload regulation, the compressor operates according to real-time air demand. When no compressed air is required, the unit automatically shuts down to eliminate waste, reduce energy consumption, and significantly lower operating costs.
Note:
Before first use, please open the rear panel and remove the transportation shockproof bolts.
This unit must be used with air storage tank(s).
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- PLC Controller With Touch Screen: Monitors maintenance, temperature readings,,pressure settings,oil level, filtration & hours ,also monitors remote start / stop.
- Electrical Components: Adoption of Schneider brand electrical components.

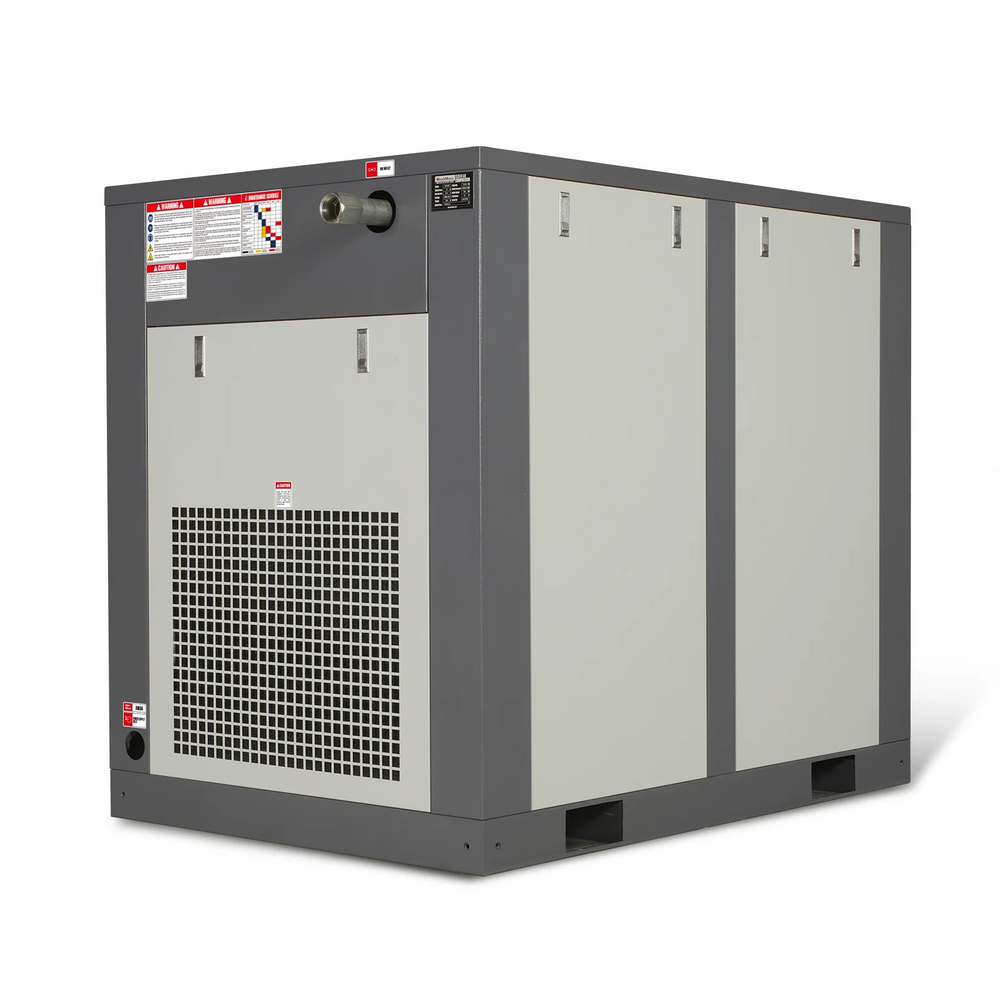

- Top Vent Heat Dissipation: The equipment can fit in small spaces against a wall or corner.
- Easy Replacement Air Filter: Large ash capacity, low initial pressure drop, reduce compressor energy consumption; it can remove the particles over 3microns and ensure the compressor unit to operate stably in harsh environment.
- Easy Replacement High Precision Oil Filter: With multi-layer filter material, the high precision oil filter can ensure high filtration accuracy and unfailingly filter out impurities in lubricating oil, highly resistant to damage and able to operate reliably at high temperatures.
- Easy Replacement Oil-air Separator Filter: Professional filter material with enlarged area, high precision filtration.Three stage separation system can remove lubricants and deliver high quality air, protecting downstream equipment.Optimized air-oil separation structure, very low pressure drop, reduce power consumption.
- Standard Threads And Wires Gauge: Wire Gauge:AWG5Air Outlet Thread:1 1/2’’NPTVoltage:460V 3PH 60HZ
- Strip Oil Label: Clear indication of oil level.
- Maintenance Schedule Reminders: Please refer to the maintenance schedule for maintenance.
Specifications
| Voltage | 460V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 220CFM |
| Wire Gauge | AWG3 |
| Air Outlet Thread | 1-1/2“NPT |
| Oil Tank Capacity | 6.6Gal (25L) |
| Maximum Current | 66.8A |
| Rated Power | 50HP |
| Starting Method | Star-Delta (Wye-Delta) Start |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 65dba |
| Motor Speed | 3540RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Pump Drive | Belt Drive |
| Standard Adaptor | 1-1/2" NPT |
| Machine Size | :59" x 43" x 51.2" |
| Packing Size | :60.6" x 44" x 57.5" |
| N.W.:/ G.W. | :1366 lbs/1485 lbs |
Warranty
This item comes with a factory warranty.
