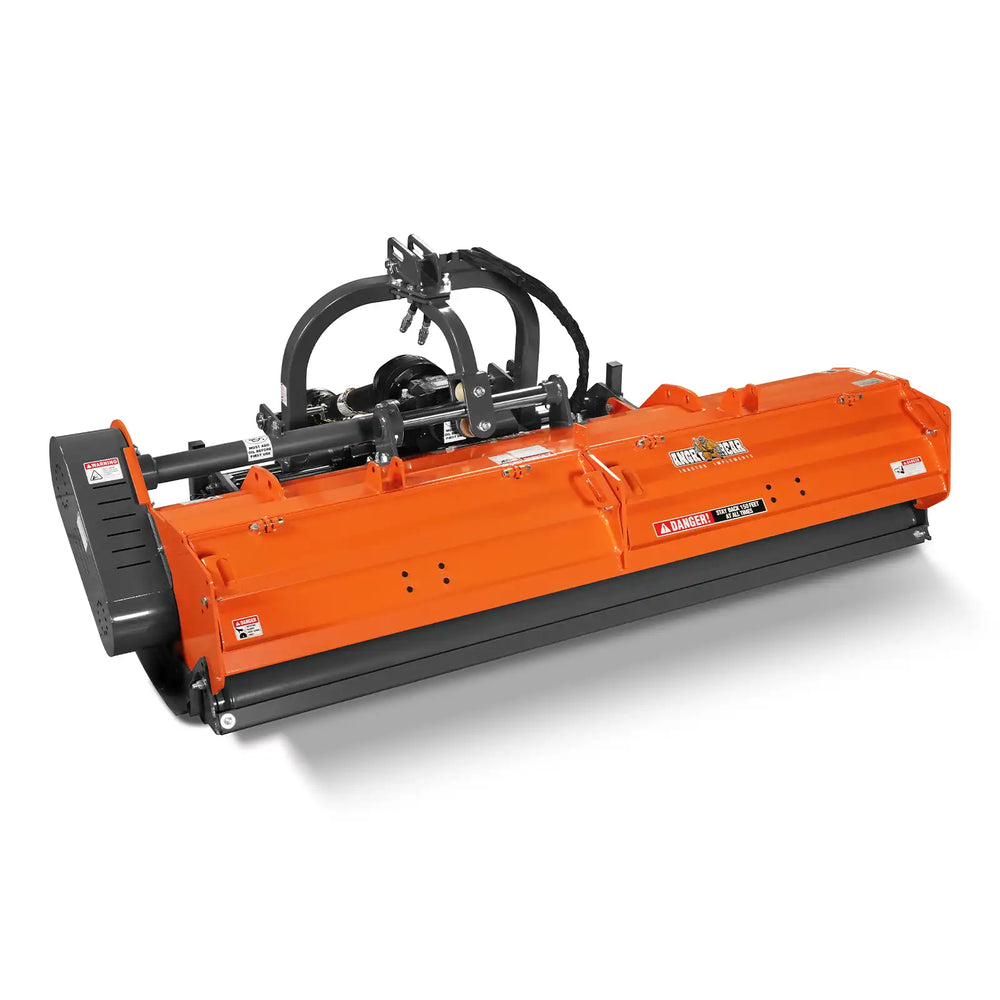

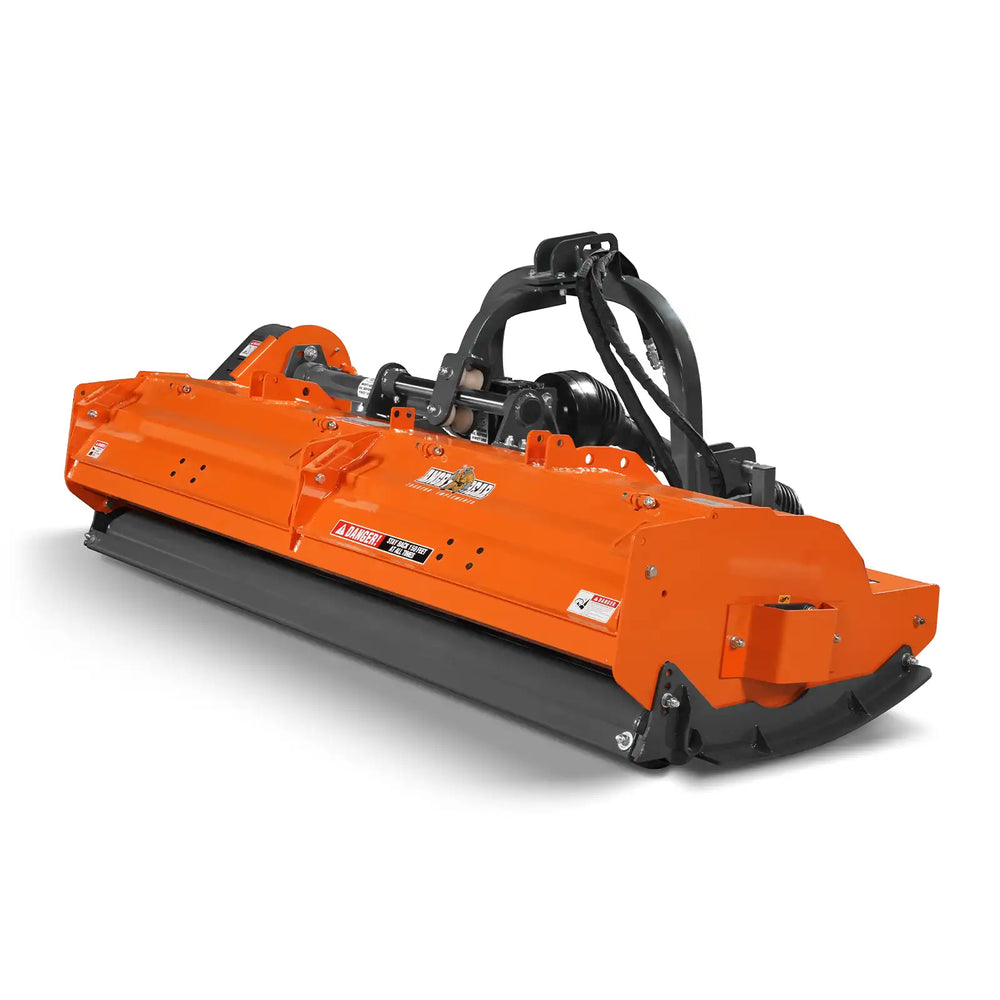

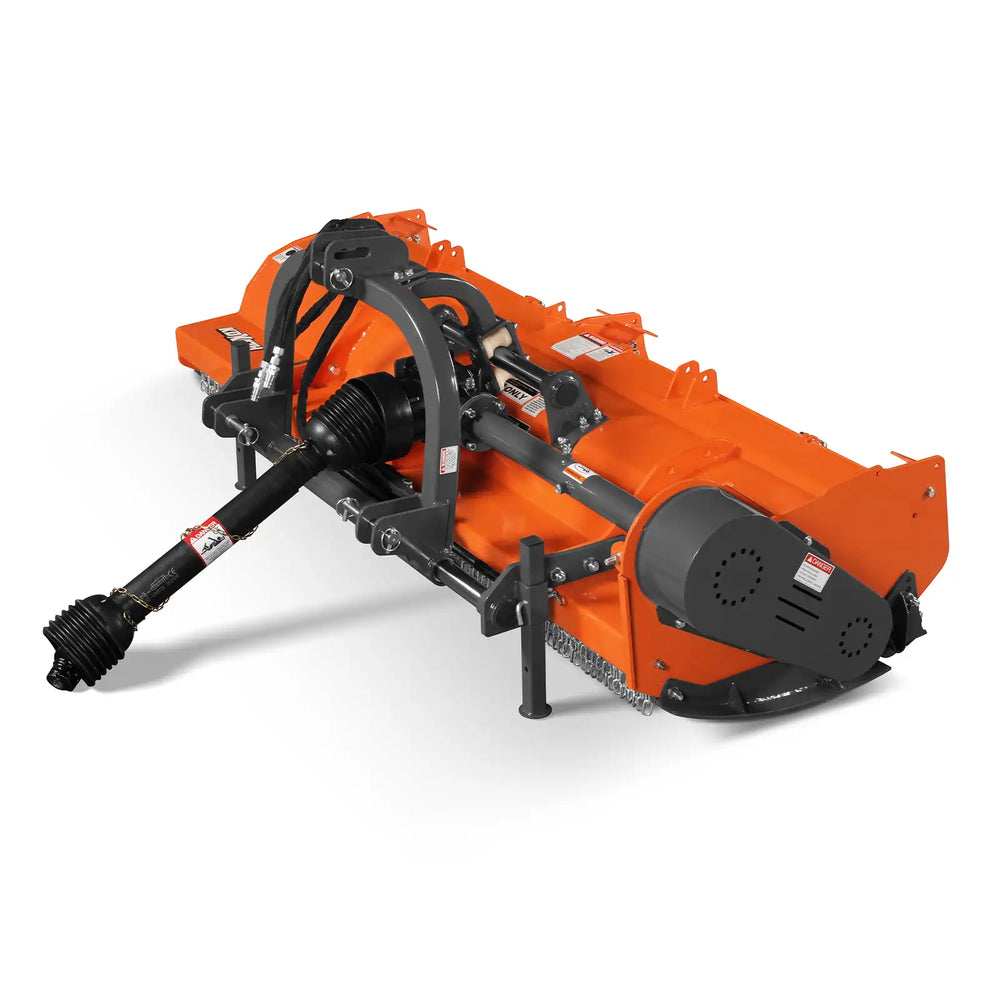

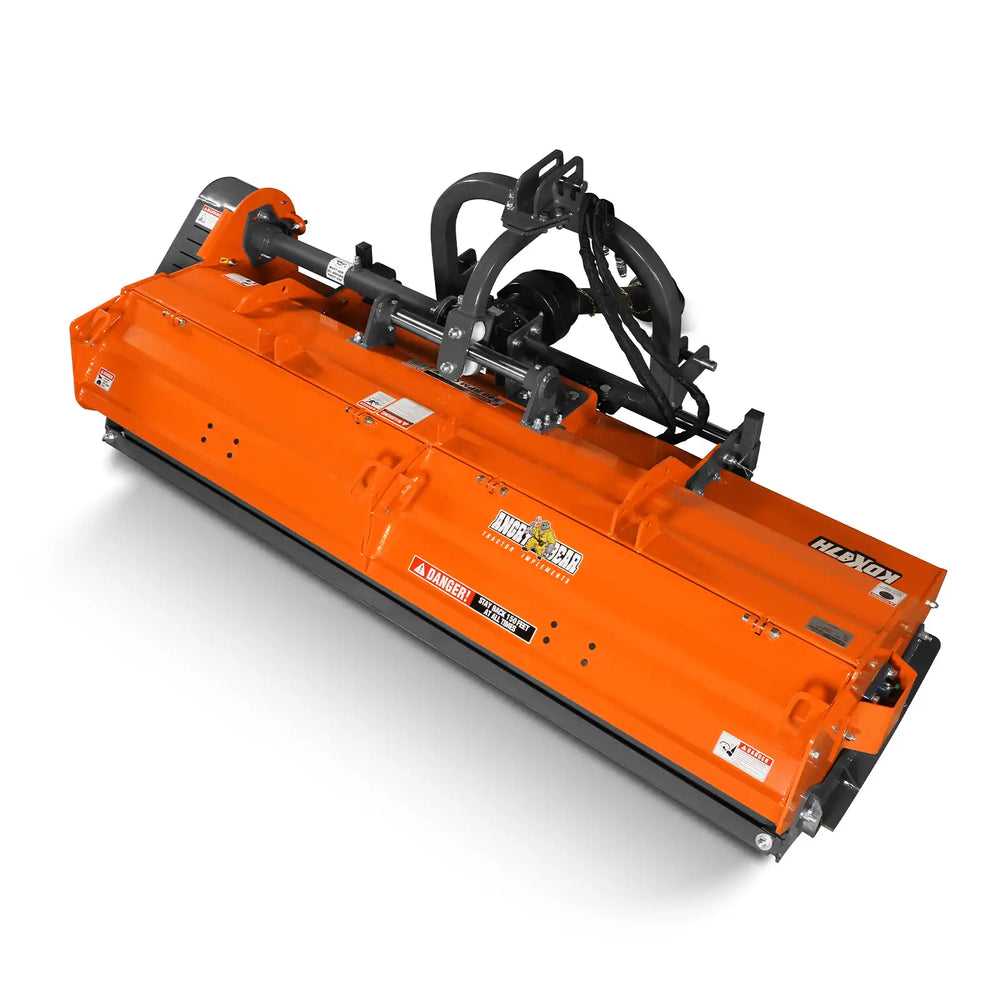

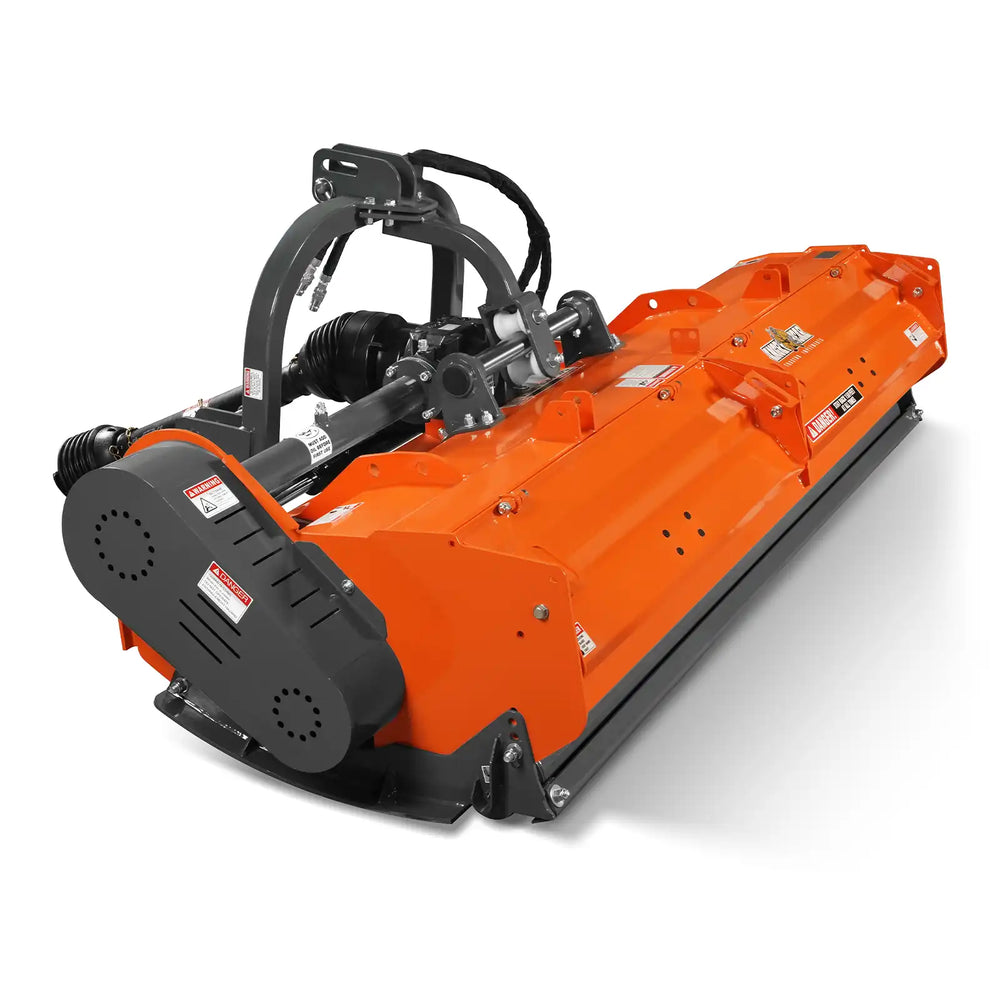

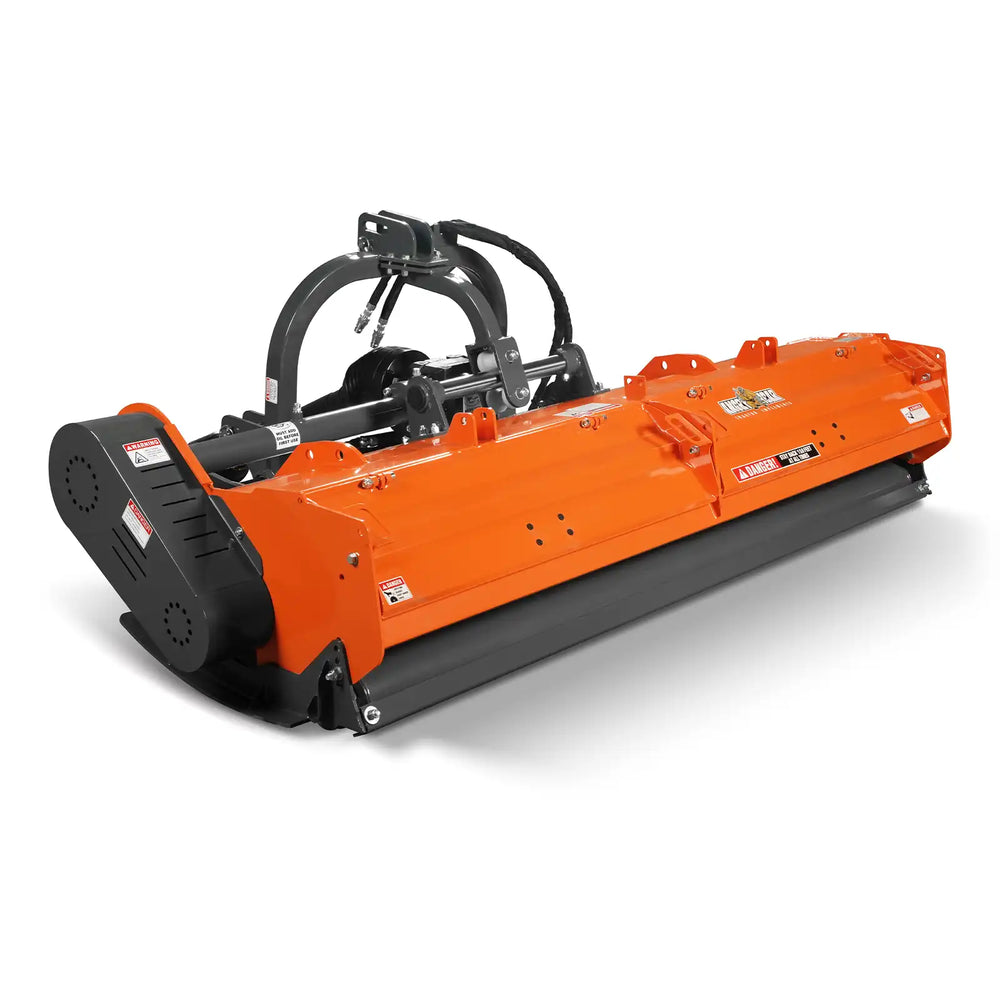

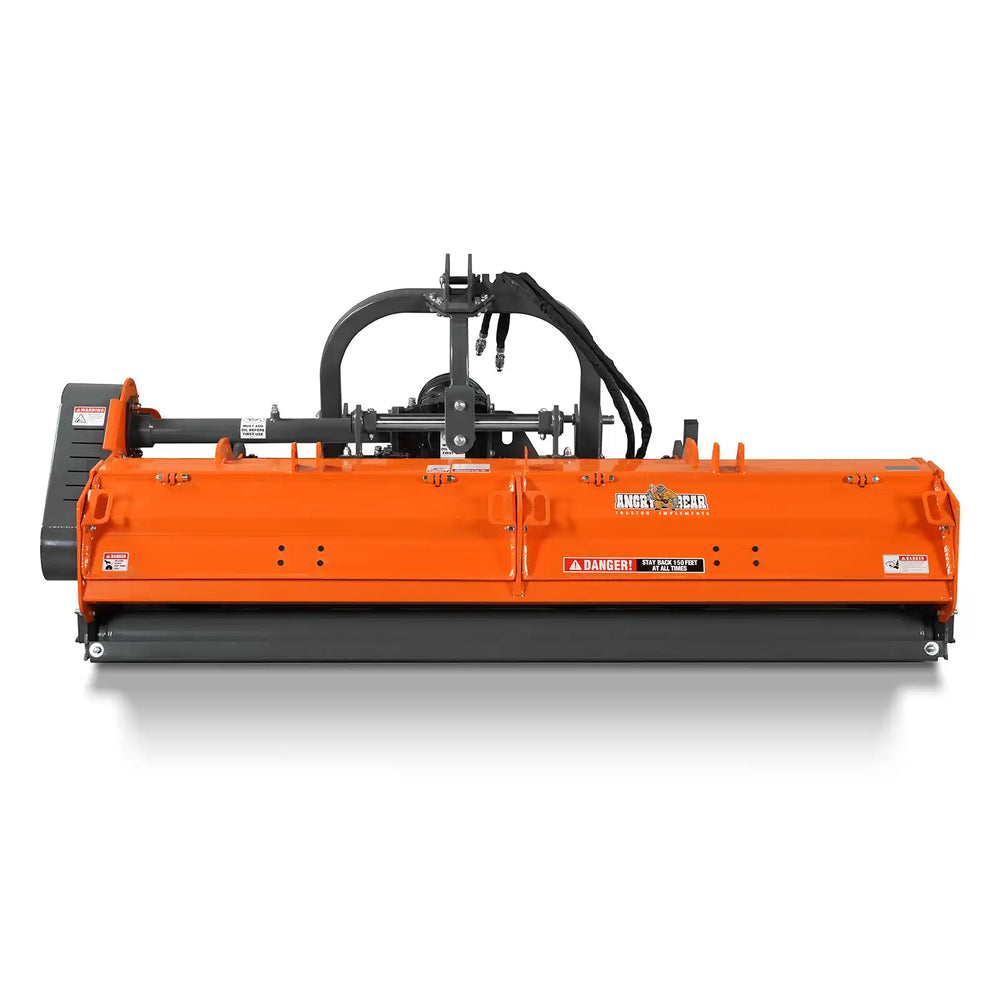

MechMaxx KDK 87H Flail Mower 87" Heavy Duty PTO Hydraulic Side Shift 3 Point 50-90 HP New
Default Title
QTY
Product successfully added to your wishlist.
View wishlist
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$6,703.00
$6,703.00
0
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Thank you! We will notify you when this product is back in stock.
Something went wrong, please try again later.
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Product Overview
- Featuring a Heavy-Duty 1.375" z6 PTO Shaft Spline and the standard 540 RPM PTO speed, this flail mower guarantees maximum universal compatibility for a reliable, plug-and-play connection to the majority of tractors, ensuring efficient and reliable power transmission even in the toughest mowing conditions.
- The integrated spring-loaded automatic belt tensioner constantly maintains optimal tension, dramatically boosting mowing efficiency while reducing wear to prolong the machine's lifespan and lower maintenance costs.
- With an extra-wide 87-inch cutting width, you can cover large areas quickly and efficiently, making it the perfect choice for major agricultural fields and roadside maintenance projects.
- The unit features a robust 3-point linkage that ensures a solid, secure, and wobble-free attachment to your tractor, delivering superior stability during high-speed or challenging operations.
- Height-adjustable side skids allow for precise cutting height control, effectively preventing ground damage and ensuring smooth, stable performance across rough and uneven terrain.
Note!
- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- 87-Inch High-Efficiency Mower: This mower features a 87-inch working width and is suitable for 50–85 HP tractors. Equipped with a CAT 2 three-point hitch, it can be easily attached and provides stable operation across various working conditions, enhancing both efficiency and ease of use.
- Flexible side offset design: Connects to the tractor via hydraulic hoses, with hydraulic side-to-side control allowing horizontal movement up to 13.4 inches. Adjustable cutting direction enables easy trimming of distant overgrown areas.
- CMR Gearbox: High-quality CMR bearings from Italy efficiently transmit power to all key components of the machine, ensuring smooth and reliable operation, reducing wear, and enhancing both lifespan and efficiency.
- Outside Rotor Bearing: Externally mounted bearings allow easy maintenance and repairs. High-quality Swedish SKF shaft bearings handle high loads, run quietly and coolly, ensuring reliable performance.

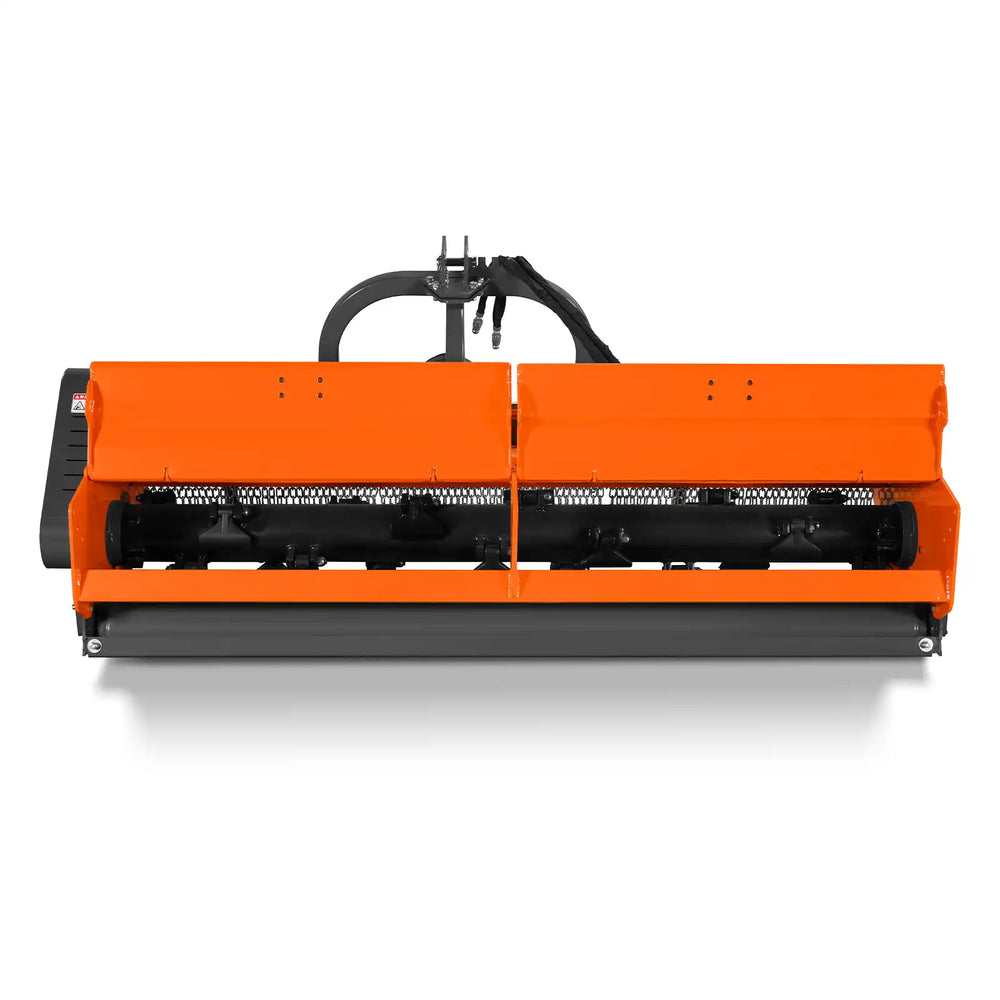

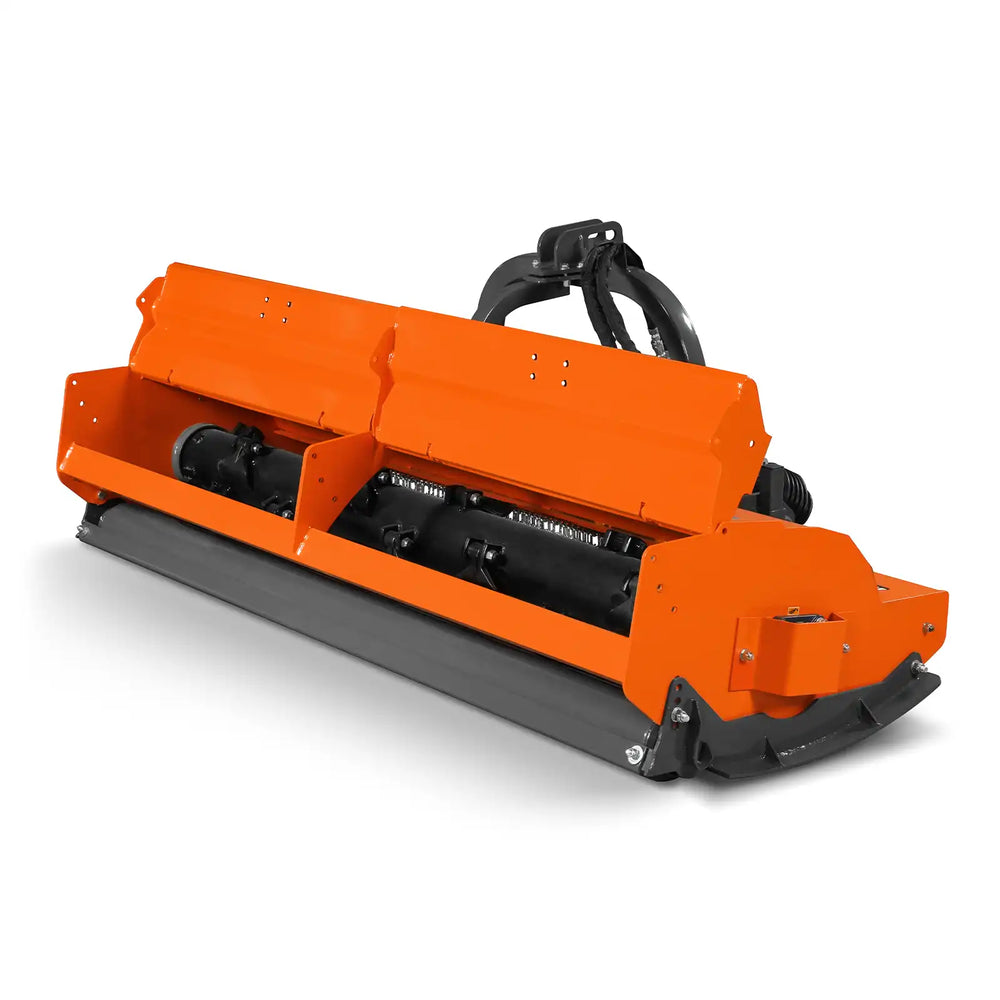

- Openable Back Cover: Features an openable rear cover for easy blade replacement and blockage clearing. Thickened shaft improves mowing efficiency for smoother operation.
- Adjustable Height Roller Bar: The adjustable height roller bar allows you to raise or lower the cutting height to your desired level, and features a self-cleaning scraper to enhance cutting performance.
Specifications
| Power Required | 50-90 hp |
| Drive Type | Gearbox with belt |
| Minimum Power | 50 hp |
| Number of Belts | 5 |
| Working Width | 87 in |
| Belt Type | AV 17*1245 |
| Overall Width | 96 in |
| Drive Blet Tensioner | Yes, bolts tightened |
| Variable Cutting Height | 0-3 in |
| Deck Material | 0.2 in |
| Horicontal Etending Distance | 13 in |
| Side Plate Material | 0.3 in |
| With Rear Open Door | 2 pcs rear open door |
| PTO Shaft RPM | 540 rpm |
| Blade Number | 20 |
| Driveline Shaft Length | 39-50 in |
| Blade Type | Hammer |
| Spline End: PTO Shaft Spline | 1.375" z6 |
| Blade Weight | 2.7 lbs |
| 3-Point Hitch | CAT 2 |
| Blade Material | Cast steel |
| Tractor Mount | Three-point hitch |
| Rotor Bearing | SKF Bearing |
| Gearbox 0il Type | 85W/90 |
| Rotor Diameter | 6 in |
| Dimensions (L x W x H) | 96x46x37 in |
| Rotor Swing Diameter | 16 in |
| Packing Size | 97x38x28 in |
| Rotor Thickness | 0.3 in |
| Finsh | Durable Powder Coated finish |
| Rotor Shaft Speed | 2082 rpm |
| Blade Speed | 31.5 mph |
| Net Weight | 1221 lbs |
| Rotor Rotation | Clockwise |
| Gross Weight | 1389 lbs |
Warranty
This item comes with a 1 year factory warranty.
