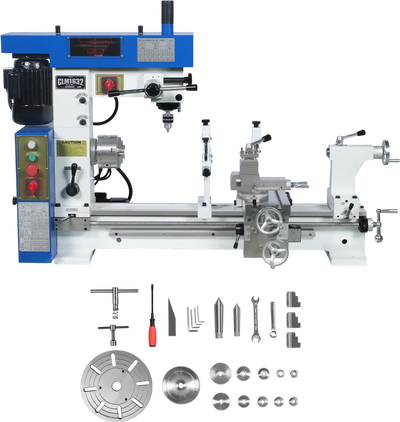

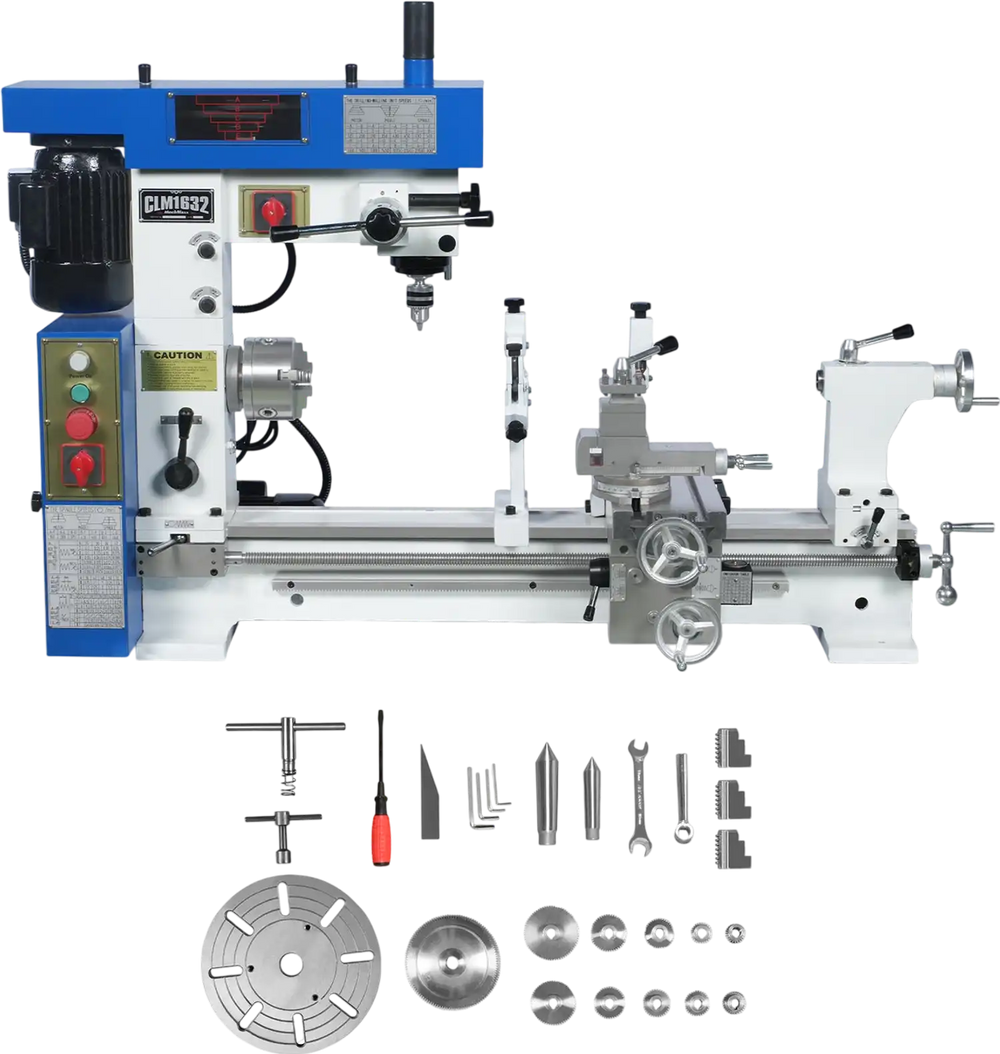

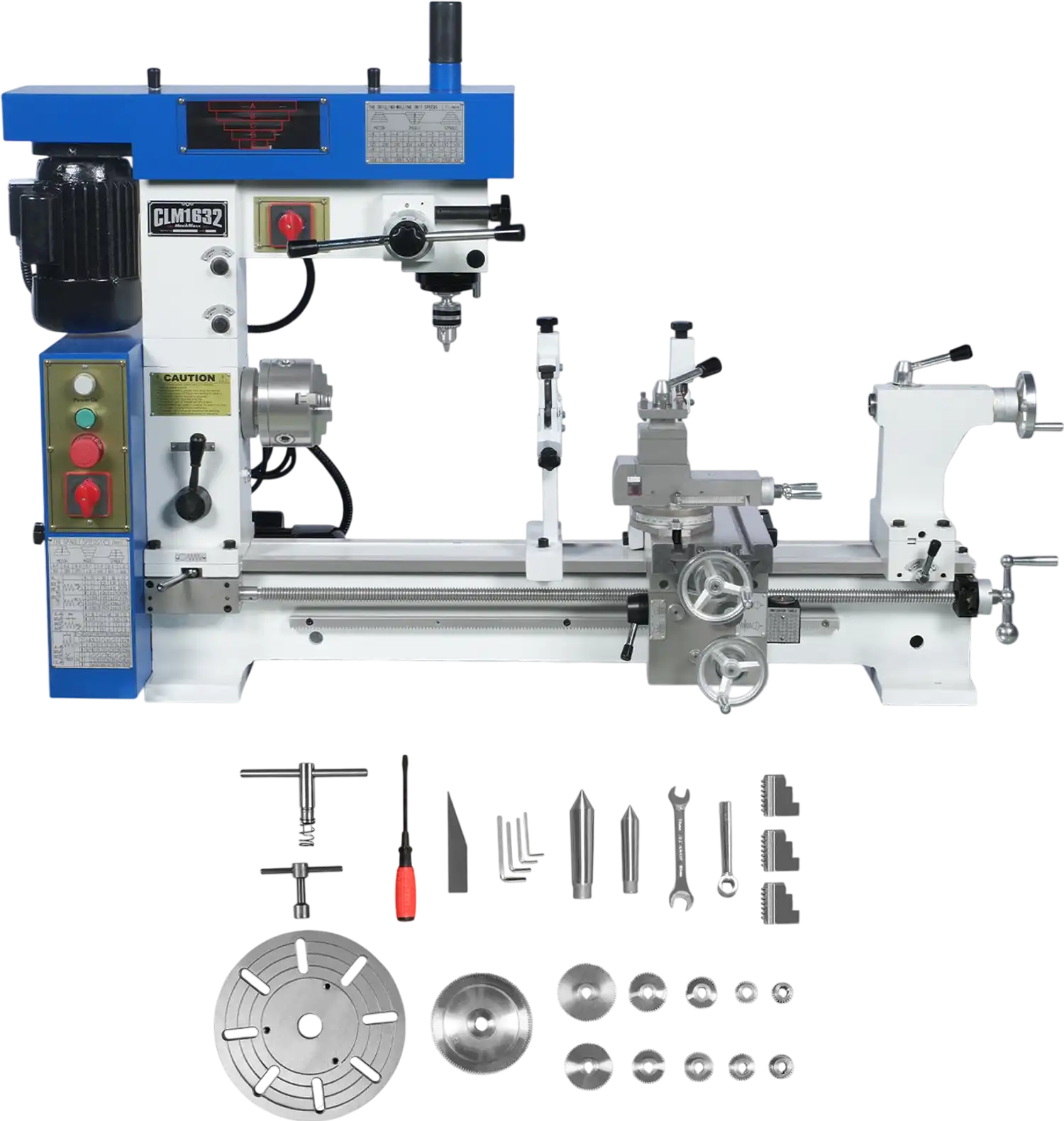

MechMaxx HQ800 Combination Lathe Milling Machine 1 HP 16x32" Multi-Function Metal Lathe Drilling Milling Machine Head New
Manufacturer: MechMaxx
SKU: 500105
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$5,735.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
MechMaxx HQ800 Combination Lathe Milling Machine 1 HP 16x32" Multi-Function Metal Lathe Drilling Milling Machine Head New
Product Overview
- Powerful Motor: The 1PH (750W) motor provides ample power for efficient turning operations.
- Swing Over Bed: The lathe features a 16-8/15" (420mm) swing, allowing you to work with larger workpieces.
- Swing Over Cross Slide: The machine offers a 11-1/2" (120mm) swing over the cross slide, providing more clearance for your workpieces.
- Threading Capacity: Capable of cutting 4-120 TPI in inches and 0.2-6mm in metric, providing flexibility for various threading applications.
- Spindle Bore: With an 1-1/10" (28mm) spindle bore, it allows for a wide range of tool bits and workpieces.
- Carriage Travel: The 29-1/8" (740mm) carriage travel ensures flexibility for larger workpieces, making it suitable for long and intricate turning operations.
- Spindle Speed Range: The lathe's 7-speed spindle operates from 160 to 1360 RPM, allowing for precise control over the turning speed for various materials.
- Powerful Milling Head: The 1PH (750W) motor powers the mill head, delivering reliable performance for drilling and milling tasks.
- Speed Range: With a 16-step spindle speed range from 120 RPM to 3000 RPM, the machine is adaptable to a variety of milling operations, ensuring high efficiency for various materials.
- Drill and Milling Capacities:
- Drill Capacity: Capable of drilling up to 7/8" (22mm).
- End Milling Capacity: Provides up to 1-1/8" (28mm) for end milling.
- Face Milling Capacity: The machine can handle up to 3-5/32" (80mm) for face milling, making it ideal for high-precision milling jobs

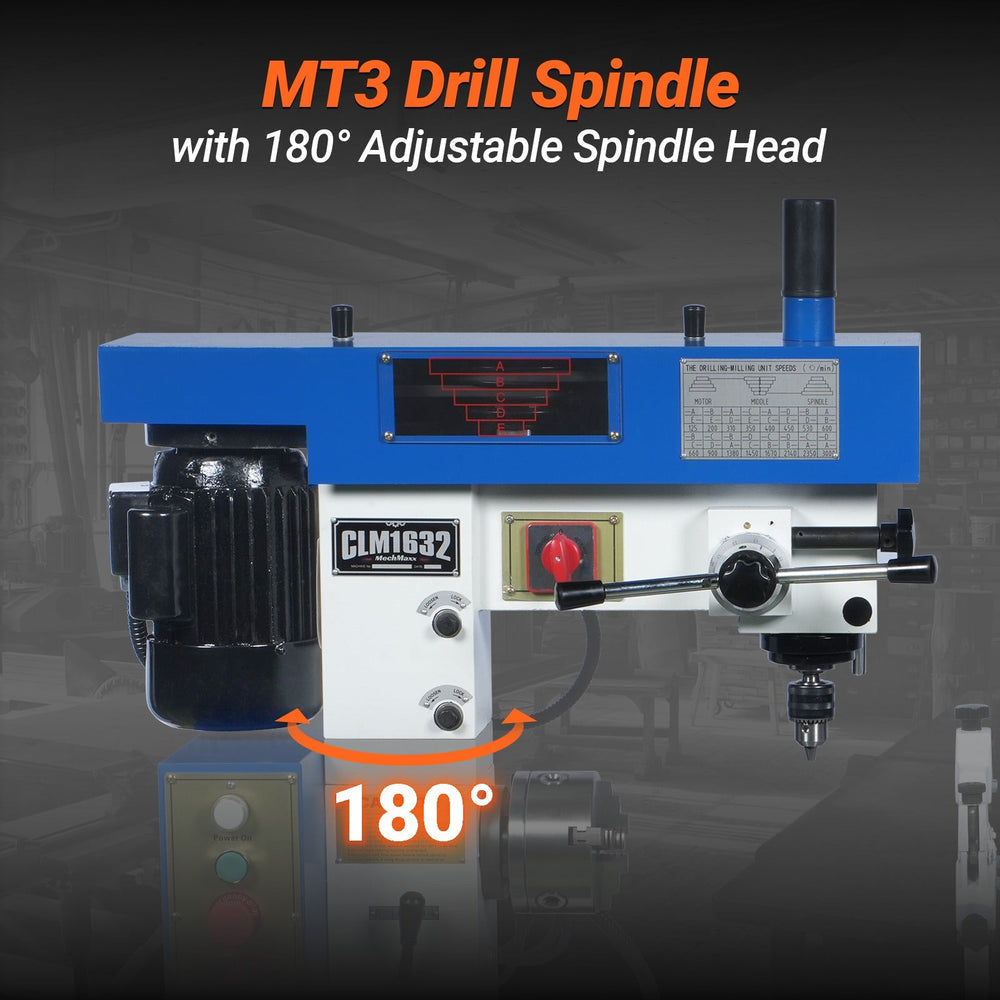

- Vertical and Horizontal Milling: Features 360° swiveling headstock with 0° head tilt, providing the flexibility for complex milling tasks in multiple orientations
- Spindle Travel: The 4-5/16" (110mm) spindle travel offers great depth for different drilling and milling tasks.
- Headstock Height: The 3-1/8" (79.4mm) headstock height provides sufficient clearance for various workpieces.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- Dual Motor System for Lathe and Mill with Independent Power: This machine features TWO 1 HP motors—one dedicated to lathe operations and the other to milling tasks. While the systems are independent, they allow for quick switching between lathe and mill functions, ensuring reliable performance and optimized power delivery for each task. This design enhances efficiency and provides versatility without the risk of simultaneous operation.

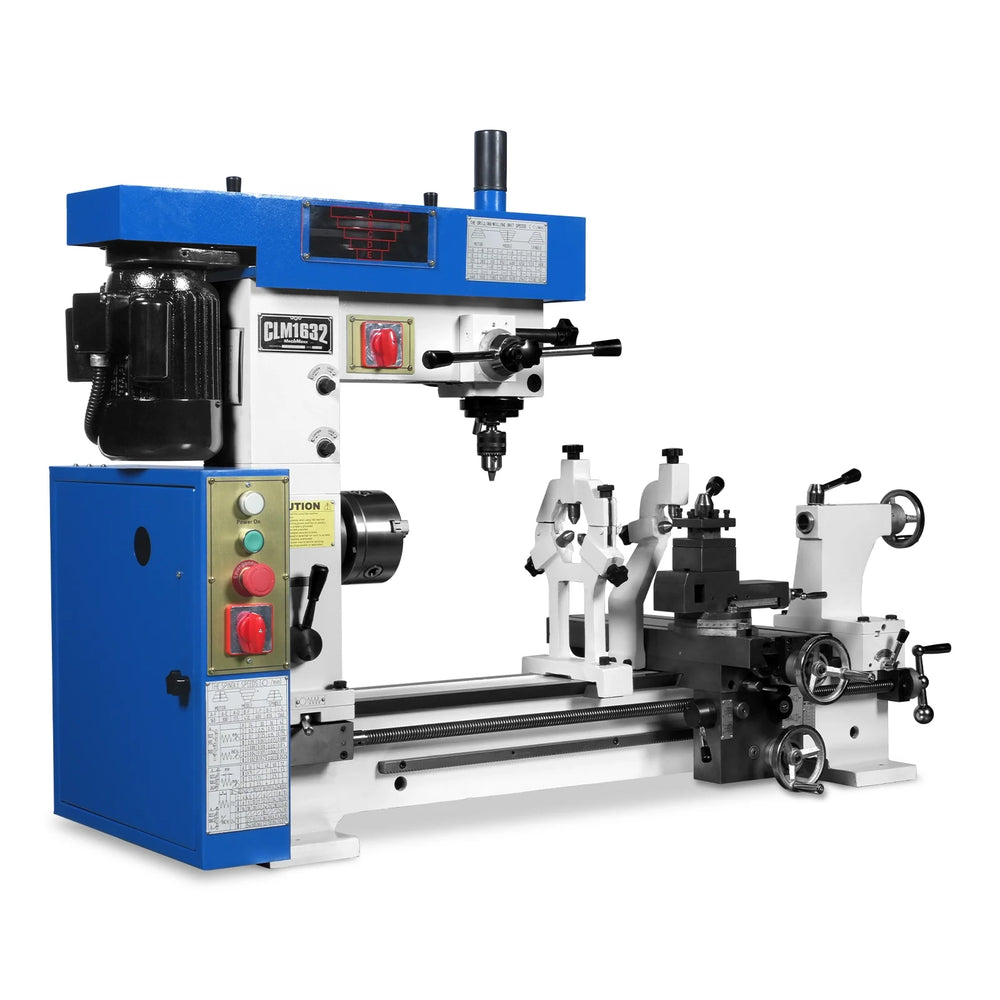

- 3-in-1 Versatility: Turning, Drilling & Milling: Save space without sacrificing capability. This multi-functional lathe integrates turning, drilling, and milling operations into a single compact machine—ideal for small workshops, DIY users, and repair jobs. Perfect for precision metalworking in tight spaces.

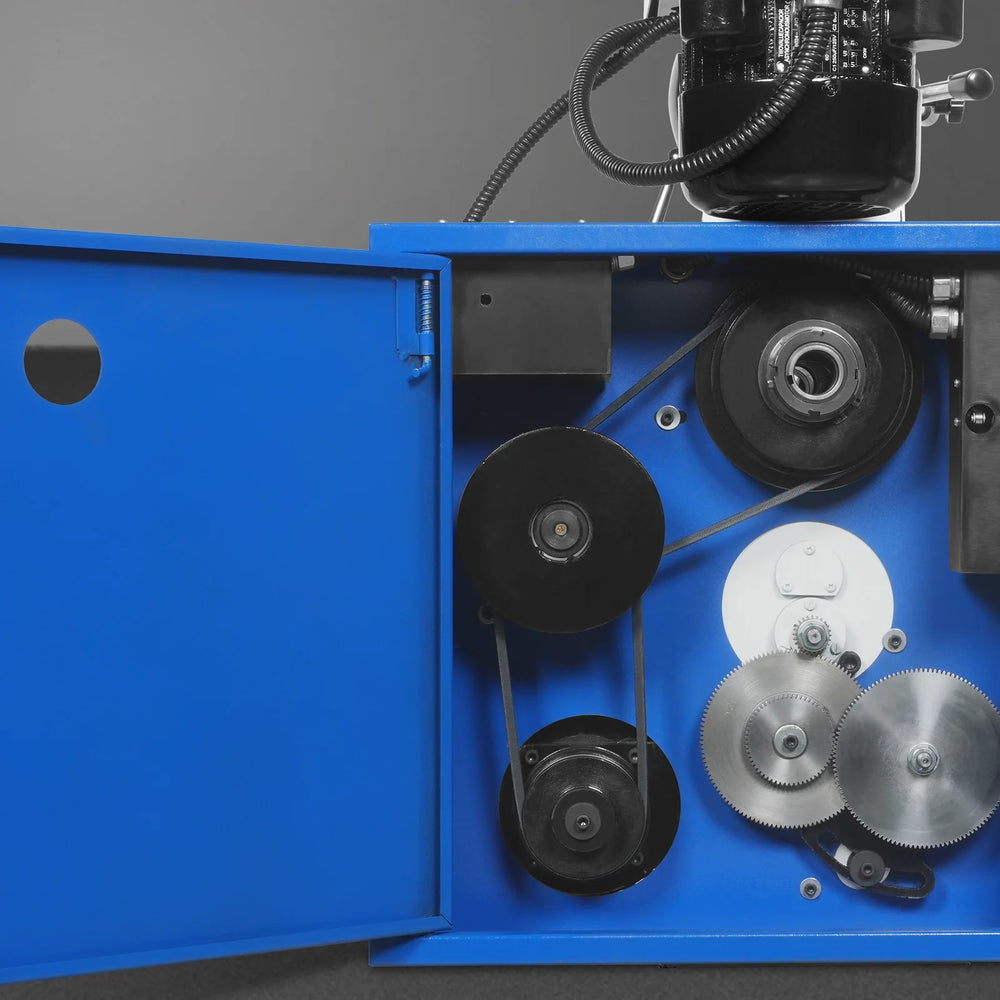

- Multi-Speed Belt Drive for Versatile Milling: This belt-driven system provides 14 spindle speed settings—from 117 to 1300 RPM—via easy pulley adjustments. The vibration-free, low-noise design ensures smooth transitions across drilling and milling tasks, giving you full control over cutting speed and torque for various materials.
- Effortless Precision with Automatic Feed Control: Experience smooth, hands-free operation with automatic longitudinal and cross feeds. This feature ensures consistent cuts, reduces operator fatigue, and enhances machining efficiency—ideal for repetitive tasks and precision work.
- Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

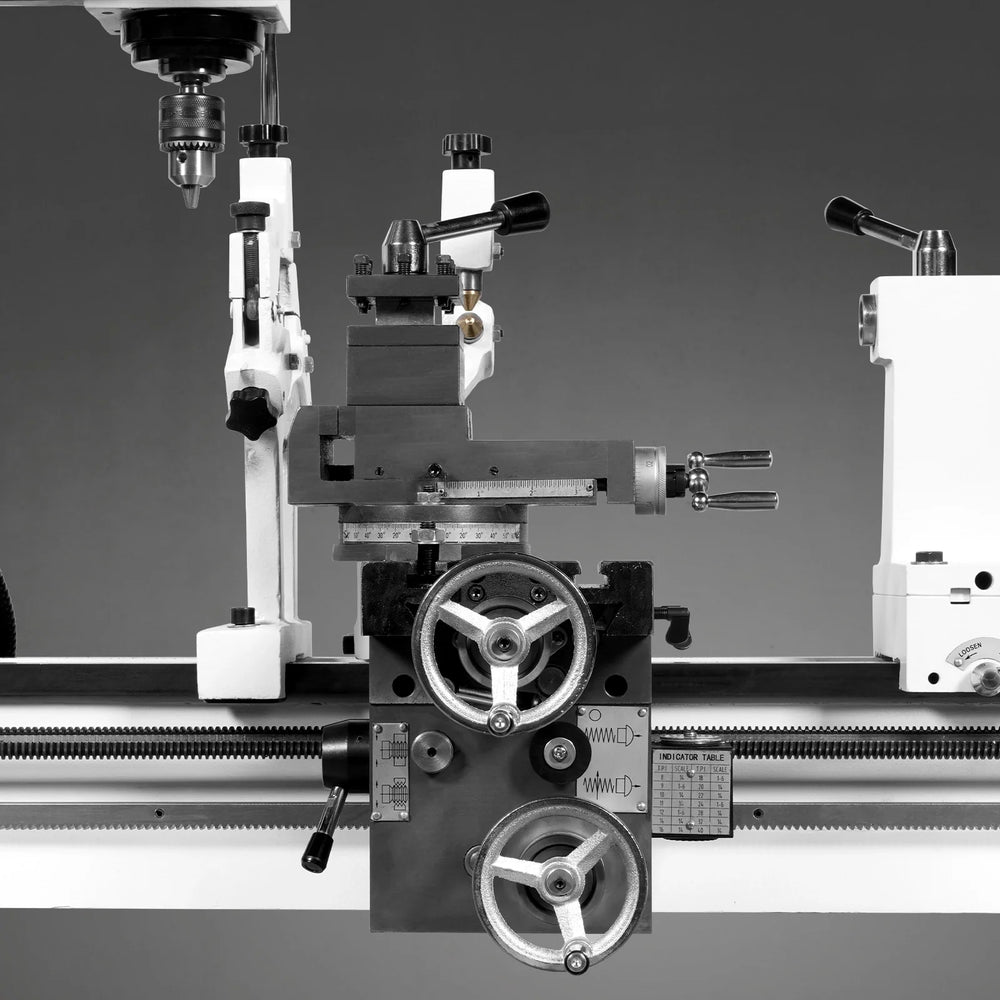

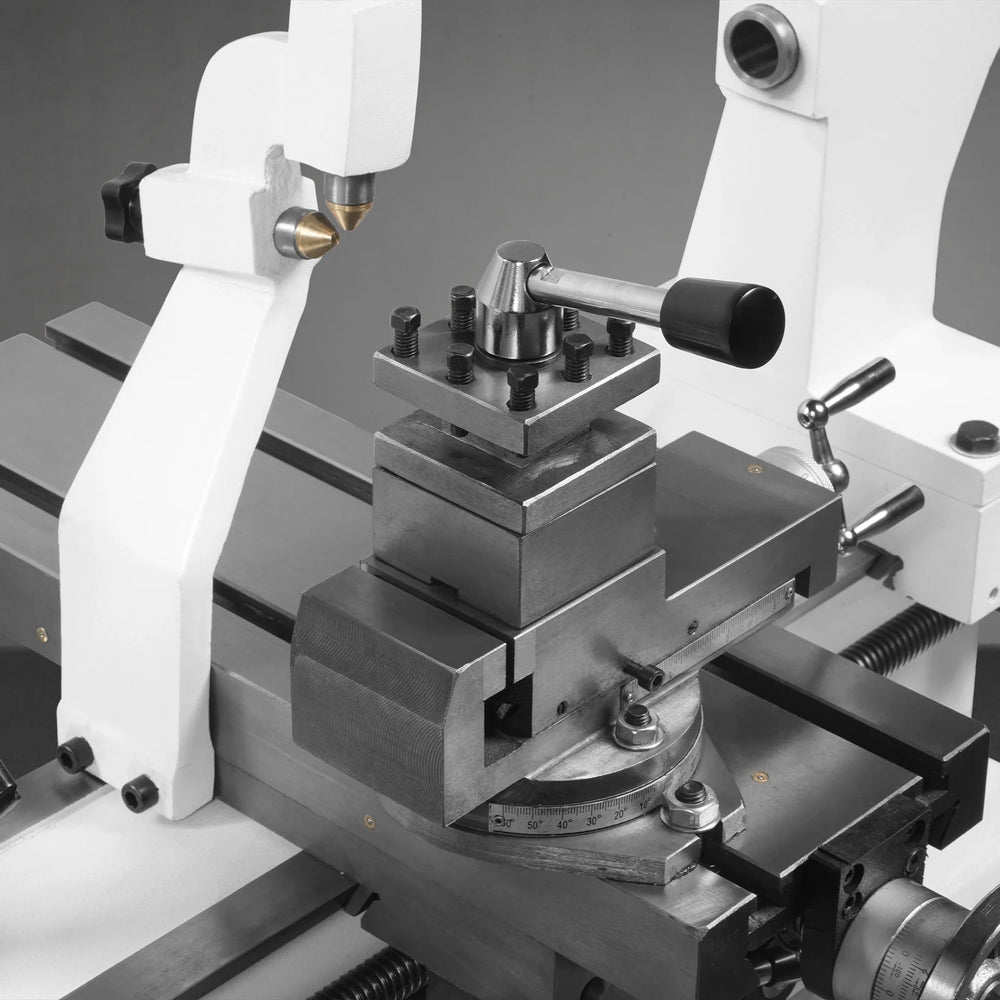

- Smooth Travel, Stable Cutting: Built for precision and control, the cross and compound slides ensure smooth tool movement and firm support during every cut. Whether you're facing, turning, or tapering, this rigid assembly provides the accuracy you need for professional-quality results in your garage or workshop.

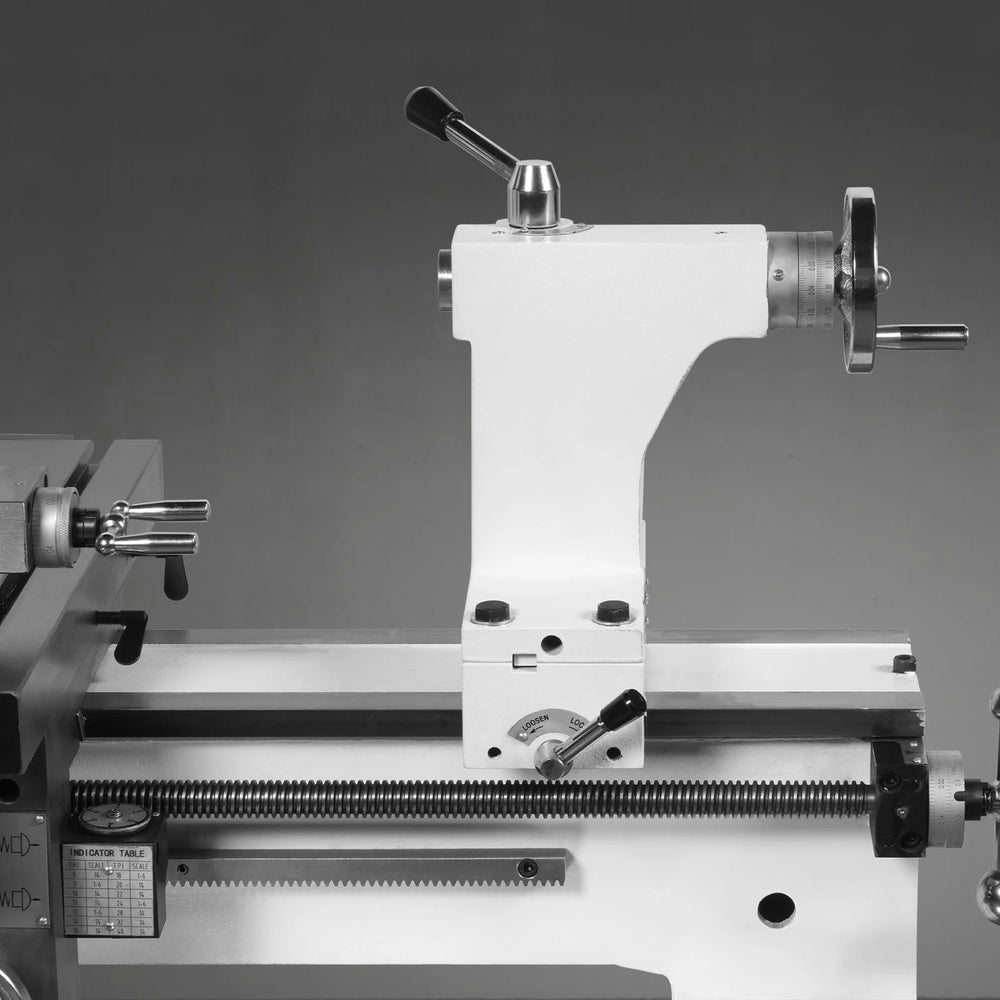

- Precision Tailstock with Fast-Action Lock: Designed for accuracy and convenience, the tailstock features 2-3/4inch quill travel and an MT3 taper—perfect for drilling, centering, and support tasks. The quick-locking lever allows rapid repositioning without tools, boosting productivity and ensuring consistent alignment during turning operations.

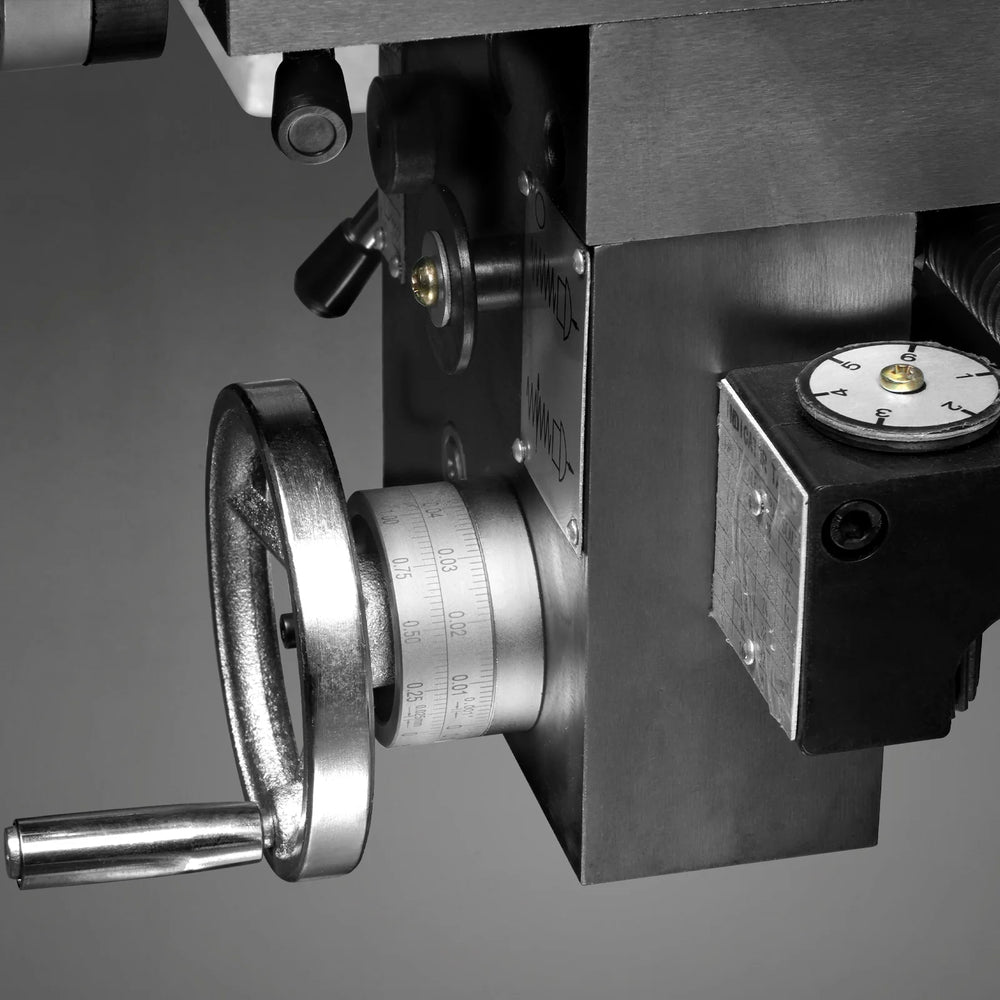

- Clear Dials for Precise Manual Control: Every handwheel features engraved graduations for fine depth adjustment during turning, drilling, or milling. Whether you're threading or facing, precise dial feedback lets you make accurate cuts with confidence—perfect for hobbyists and professionals alike.

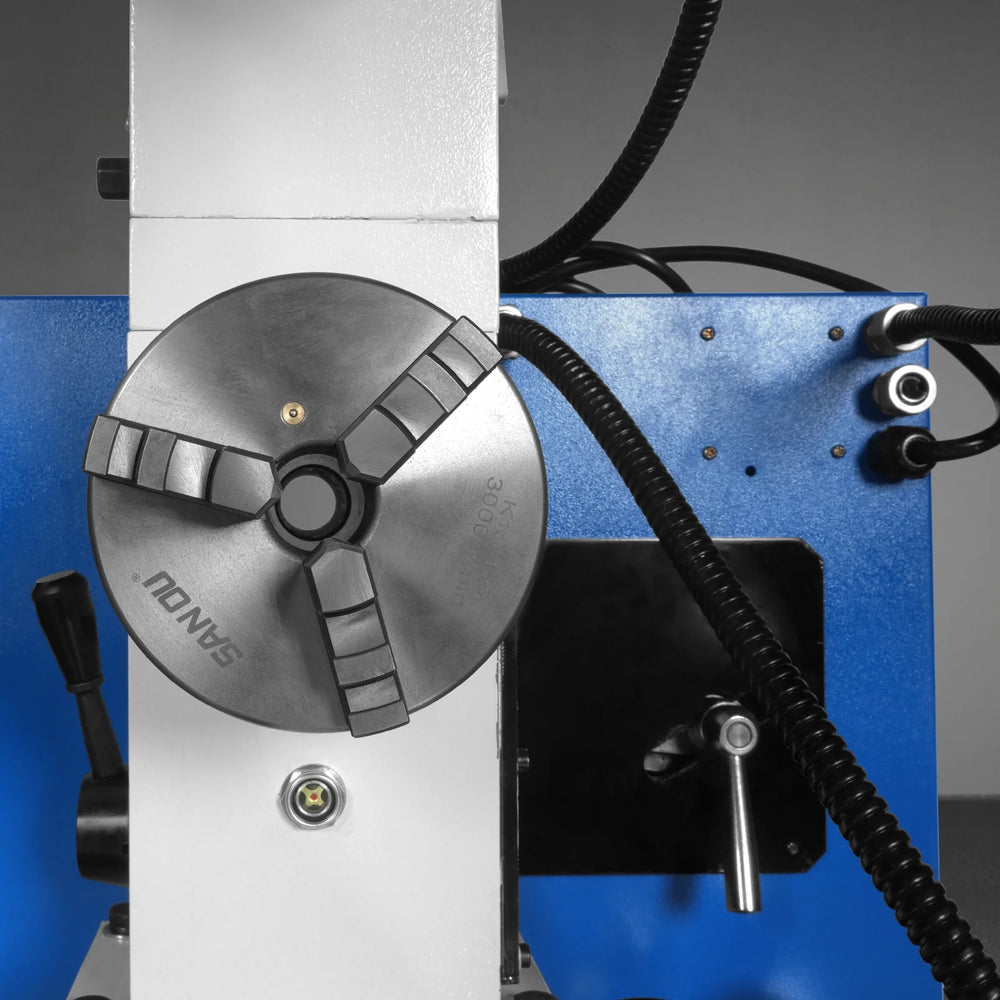

- 1-1/10'' Spindle Bore and MT4 Spindle Taper: This lathe is equipped with a 5" chuck, providing a strong, secure grip for a wide range of workpieces. The MT4 spindle taper ensures a tight, stable fit for precise turning operations, while the 1-1/10'' spindle bore allows you to work with longer materials, enabling continuous operations without limitation.
Specifications
| Motor Power (Lathe) | 1PH(750W), Single-Phase, 110V, 60HZ |
| Swing Over Bed | 16-8/15''(420mm) |
| Swing Over Cross Slide | 11-1/2"(120mm) |
| Distance Between Centers | 31-1/2''(800mm) |
| Bed Width | 5-5/16''(135mm) |
| Spindle Bore | 1-1/10''(28mm) |
| Spindle Mount | Flange mount |
| Spindle Type | Integrated Spindle |
| DIA of the chuck | 5''(125mm) |
| Spindle Taper | MT4 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 2-3/4''(70mm) |
| Carriage Travel | 29-1/8''(740mm) |
| Carriage Leadscrew Diameter | 25/32"(20mm) |
| Cross Slide Travel | 7-7/8''(200mm) |
| Compound Slide Travel | 3''(76.2mm) |

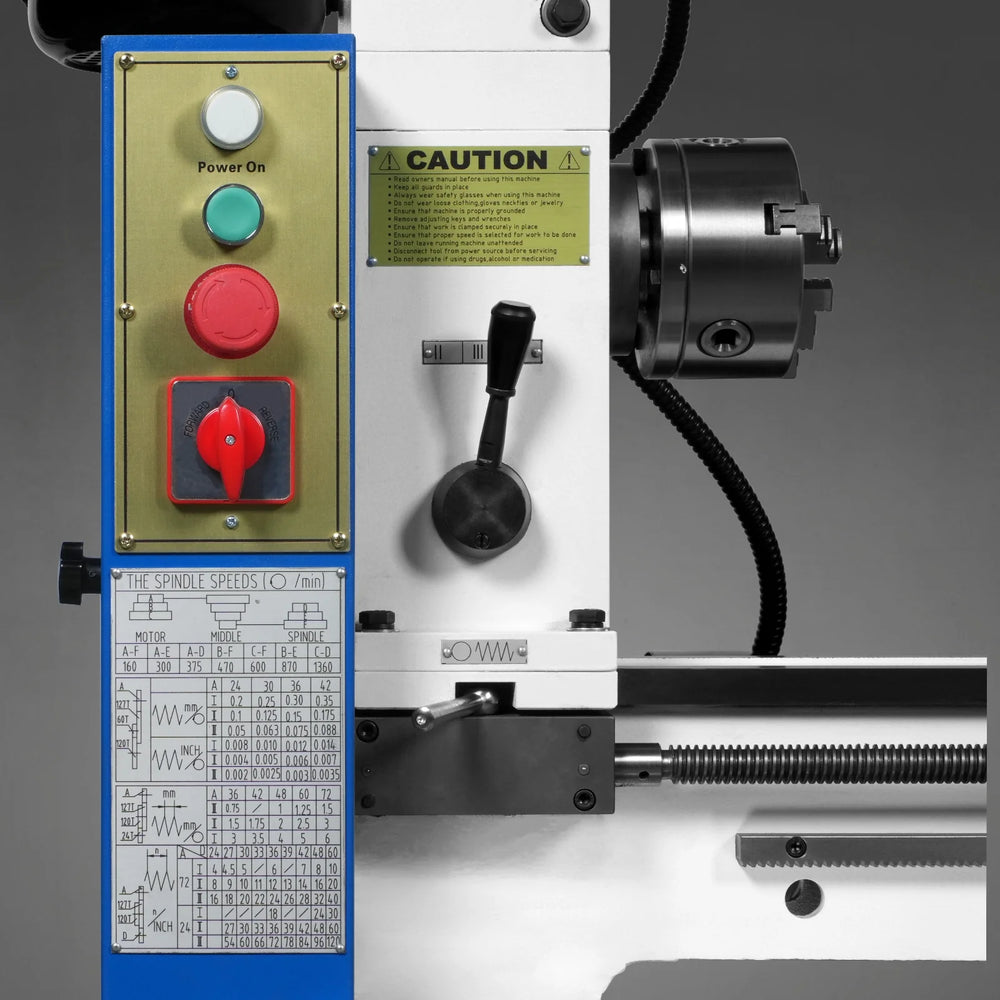

| Spindle Speed Range | 160-1360RPM |
| Number of Speed Ranges | 7 |
| Longitudinal Feed Rate | 0.002''-0.014'' |
| Transverse Feed Rate | 0.002''-0.014'' |
| Leadscrew Size & Pitch | 20mm 6TPI |
| Threading Capacity – Inch | 4-120TPI |
| Threading Capacity – Metric | 0.2-6mm |
| Thread Dial Indicator | YES |
| Maximum Tool Bit Size | 1/2''x1/2''(12x12mm) |
| Motor Power (Mill Head) | 1PH(750W) |
| Mill Taper | MT3 |

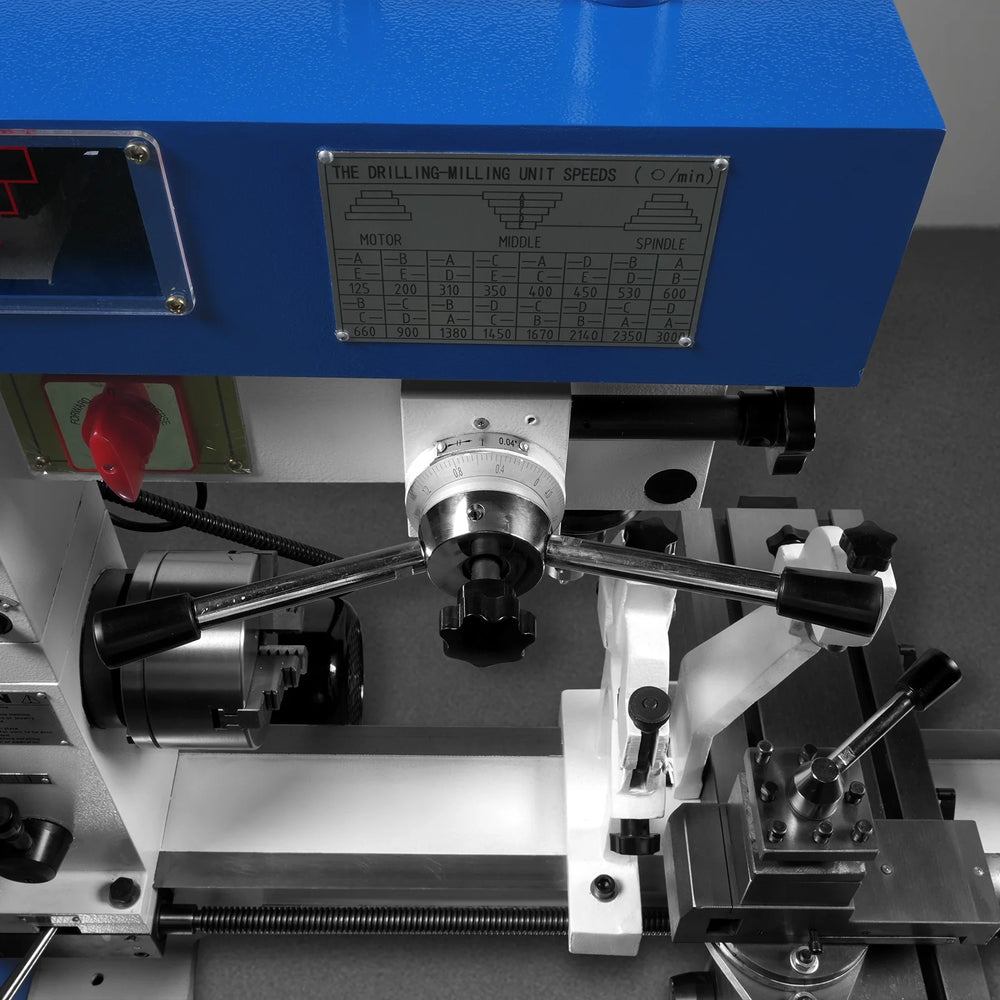

| Spindle Speed Range | 120, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350, 3000 RPM |
| Number of Speed Steps | 16 |
| Spindle Travel | 4-5/16"(110mm) |
| Drawbar Thread Size | 3/8''(9.52mm) |
| Drawbar Length | 13''(330mm) |
| Drawbar Thread Pitch | 16TPI |
| Drill Capacity | 7/8''(22mm) |
| End Milling Capacity | 1-1/8"(28mm) |
| Face Milling Capacity | 3-5/32''(80mm) |
| Vertical Travel (Z-Axis) | / |
| Distance: Spindle to Table | 14-1/2''(370mm) |
| Distance: Spindle to Center Line | 6-1/8''(156mm) |
| Headstock Height | 3-1/8''(79.4mm) |
| Head Tilt Angle | 0° |
| Swivel angle of the headstock | 360° |
| Drive Type | Belt-driven AC Motor |
| Overall Dimensions | 57''x23''x45''(1440x580x1140mm) |
| N.W/G.W | 595/653lbs(270/296kg) |
Warranty
This item comes with a factory warranty.
