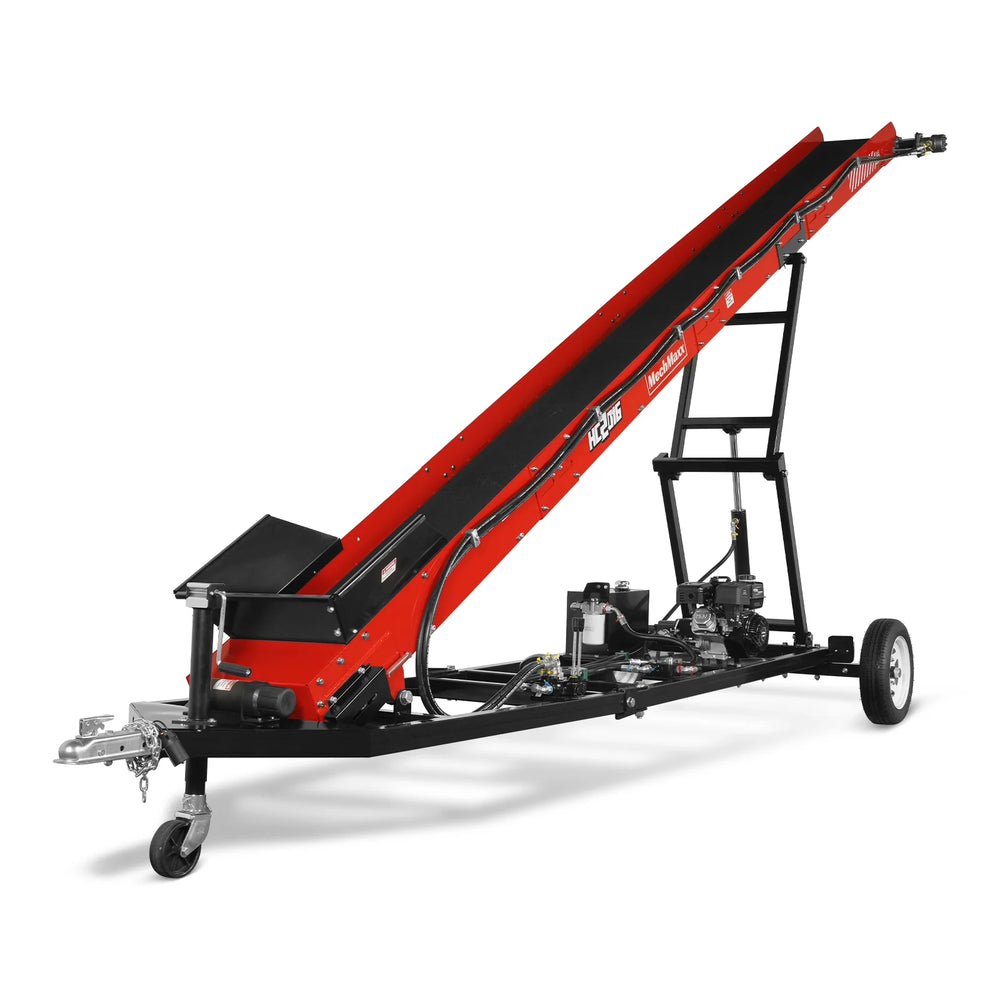

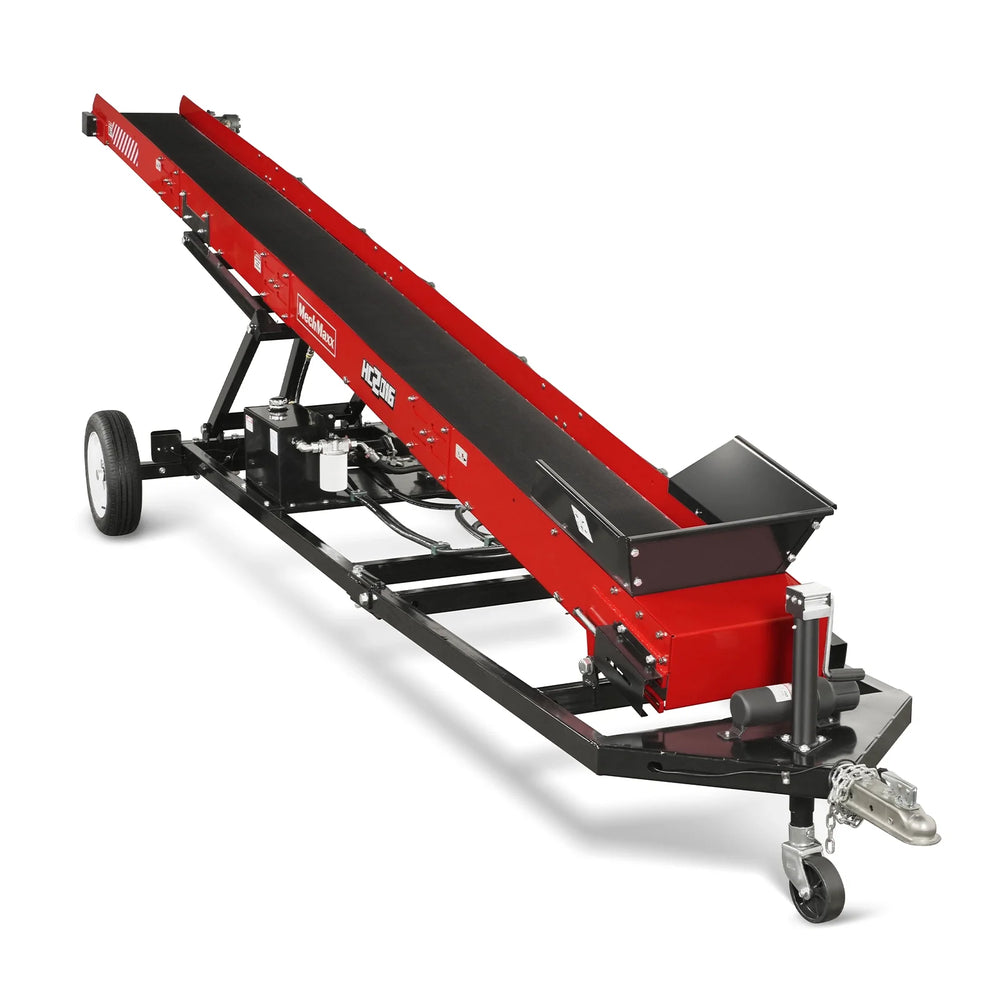

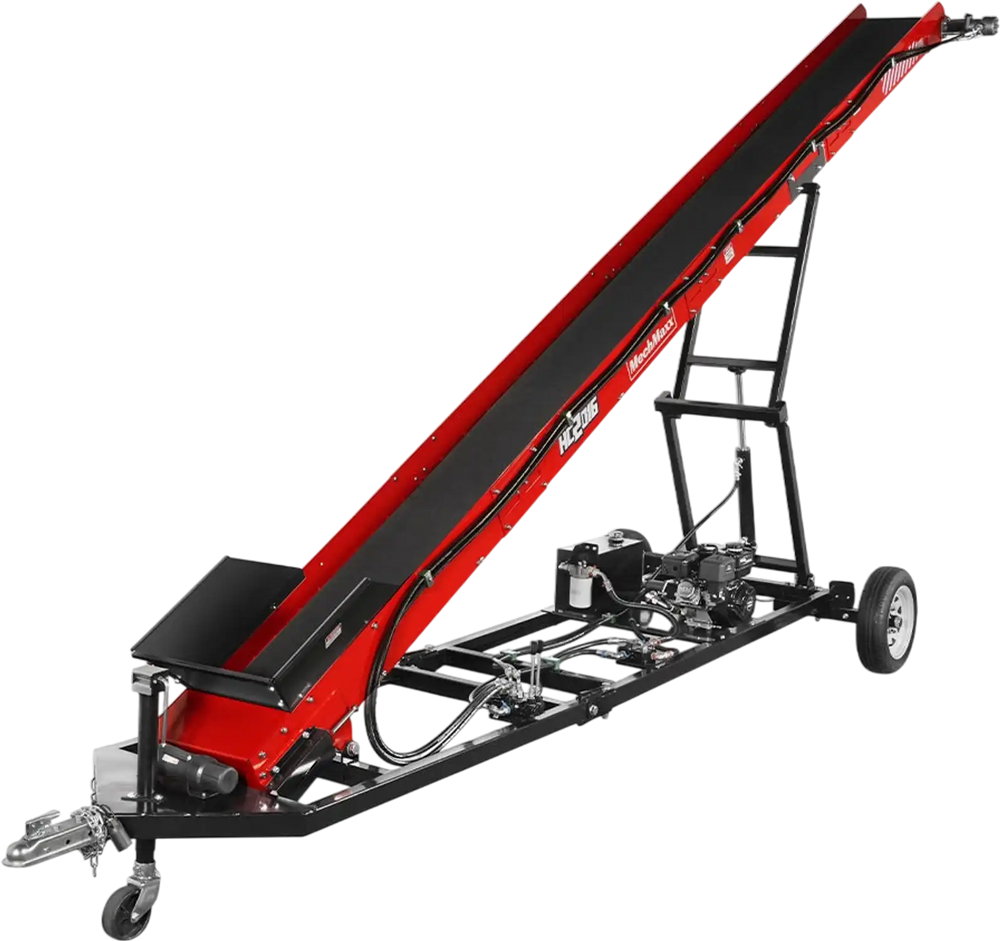

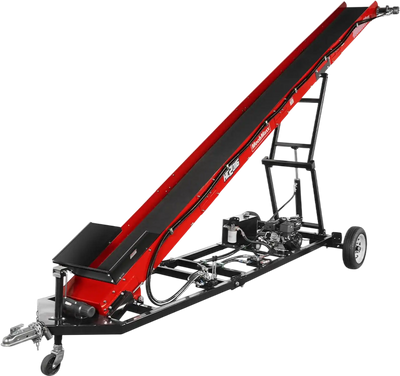

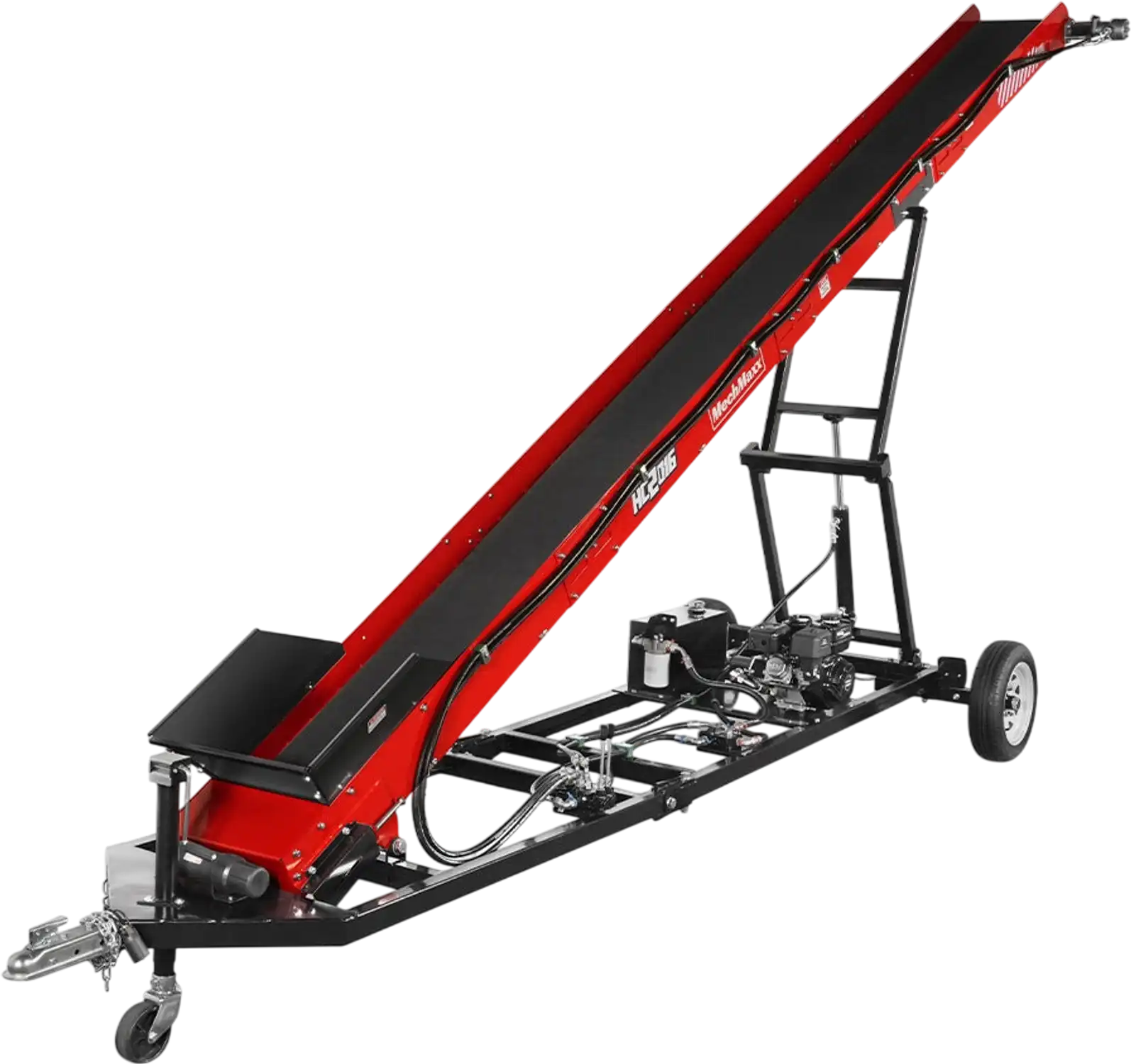

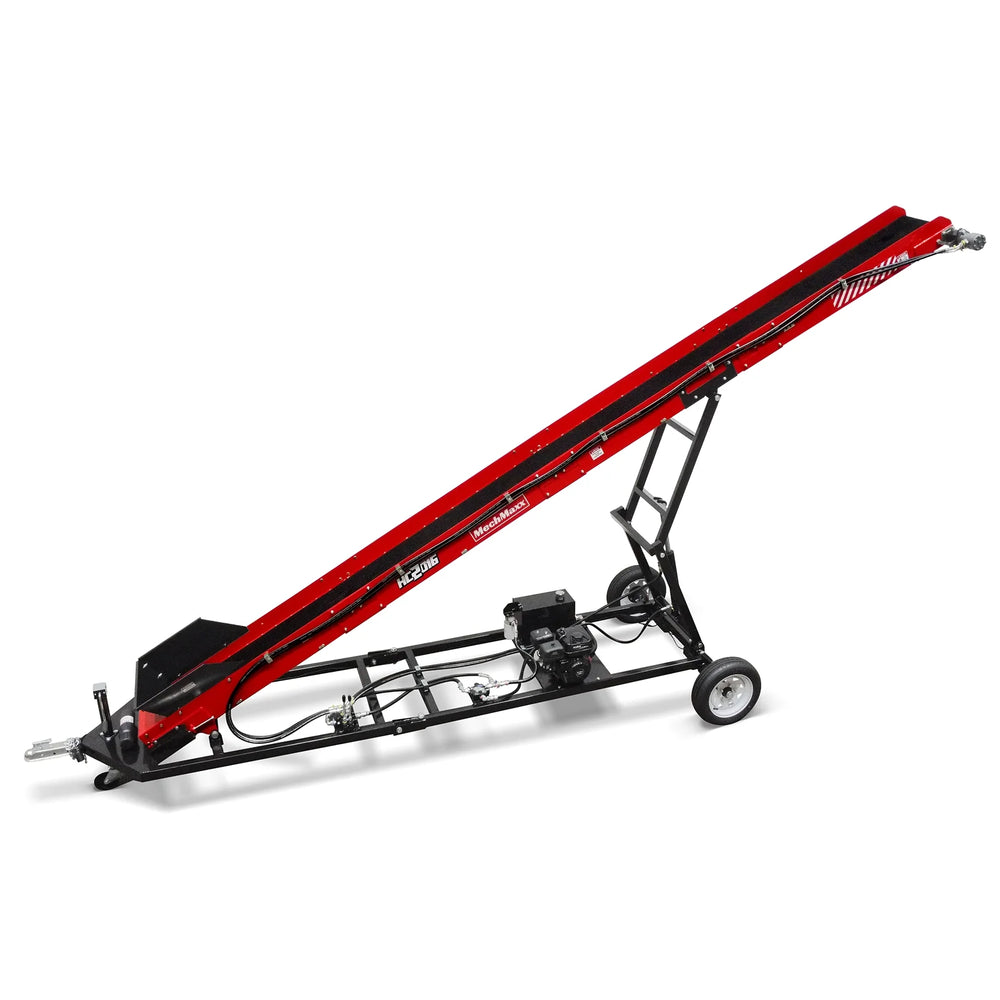

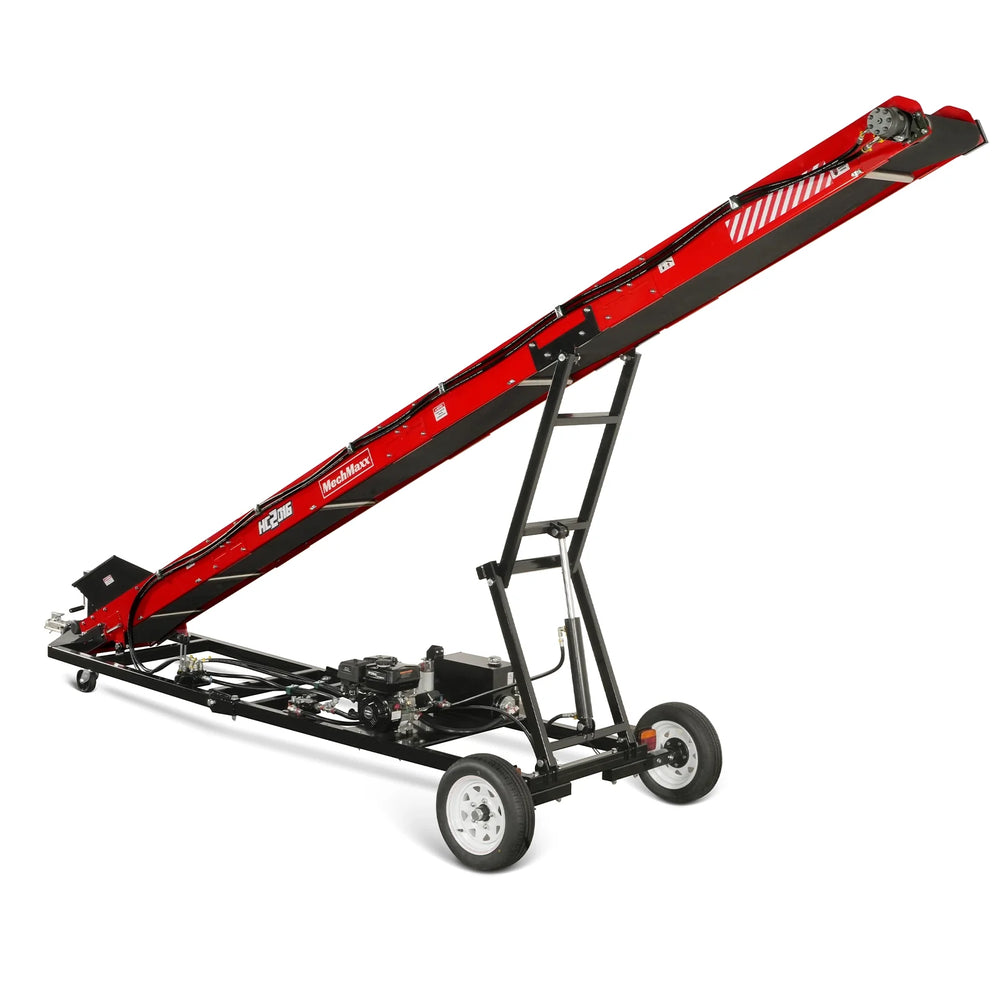

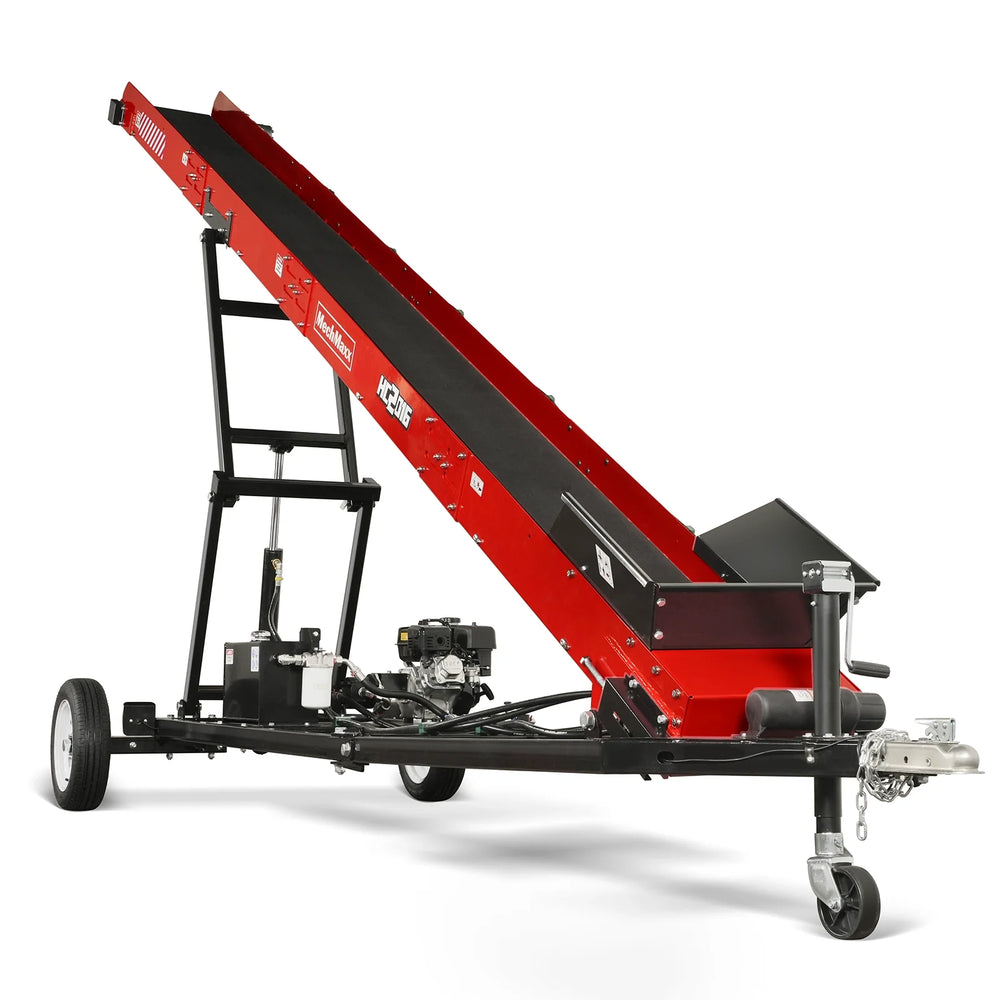

MechMaxx HC2016 Firewood Conveyor 7HP 212cc Gas Powered 124" Lift Height 236" Length 16" Width New
Product Overview
- This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
- This wood conveyor equipped with a 7HP gasoline-powered hydraulic driven system operates with high efficiency and powerful performance. The belt speed is variable by changing the engine speed.
- With an adjustable reach up to 124 inches, this conveyor's speed, efficiency, reliability, and safety are unmatched in the conveying industry.
- Our top priority is the safety of our customers. Our portable concrete conveyor systems can make your job easier for a variety of applications including ready-mix concrete, steel fiber, ice, batching, and more.
- Height at lowest point: 5 ft
Maximum conveyor load: 264.5 lbs - Height at highest point: 10.5 ft
Maximum conveyor load: 132 lbs - To ensure safety, when transporting lightweight timber, please ensure that the maximum height does not exceed 8 feet.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

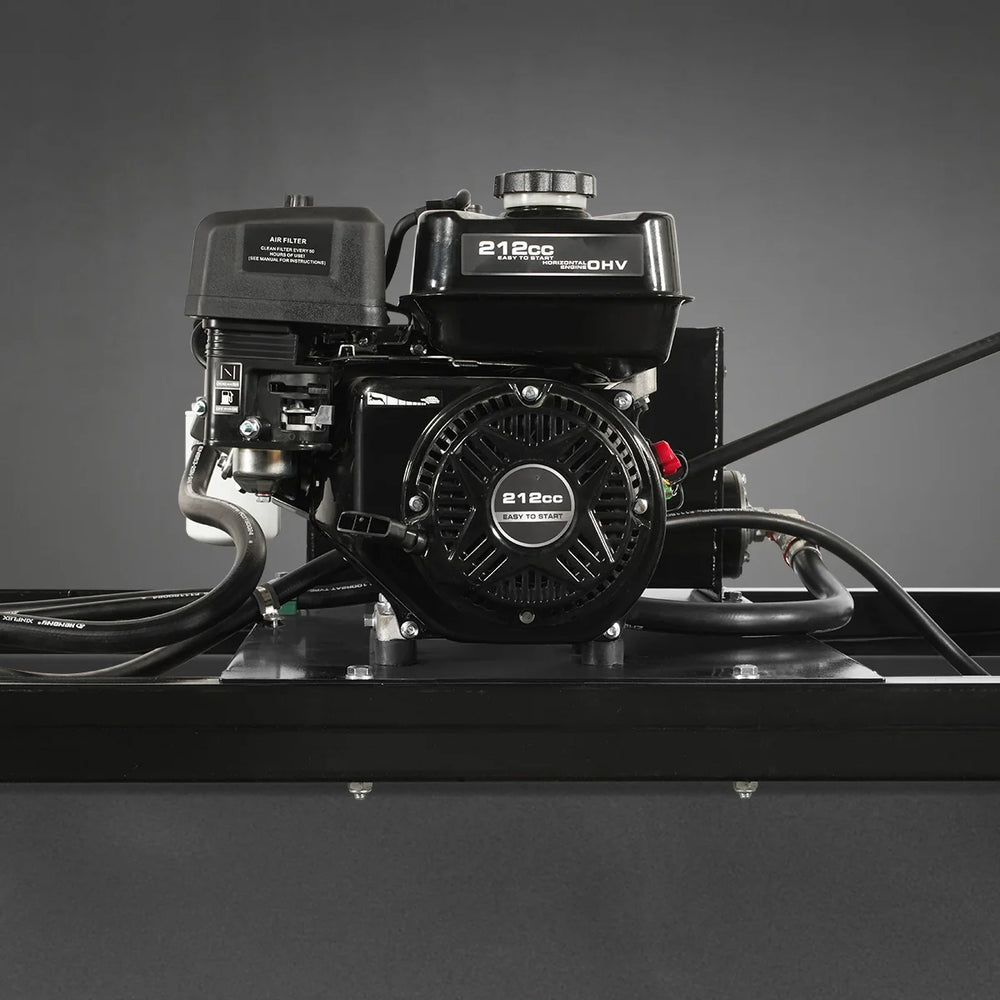

- Engine: HC2016 is powered by a DUCAR DH212 7hp gasoline engine, so you can run the conveyor anywhere, from the woods to the neighborhood.

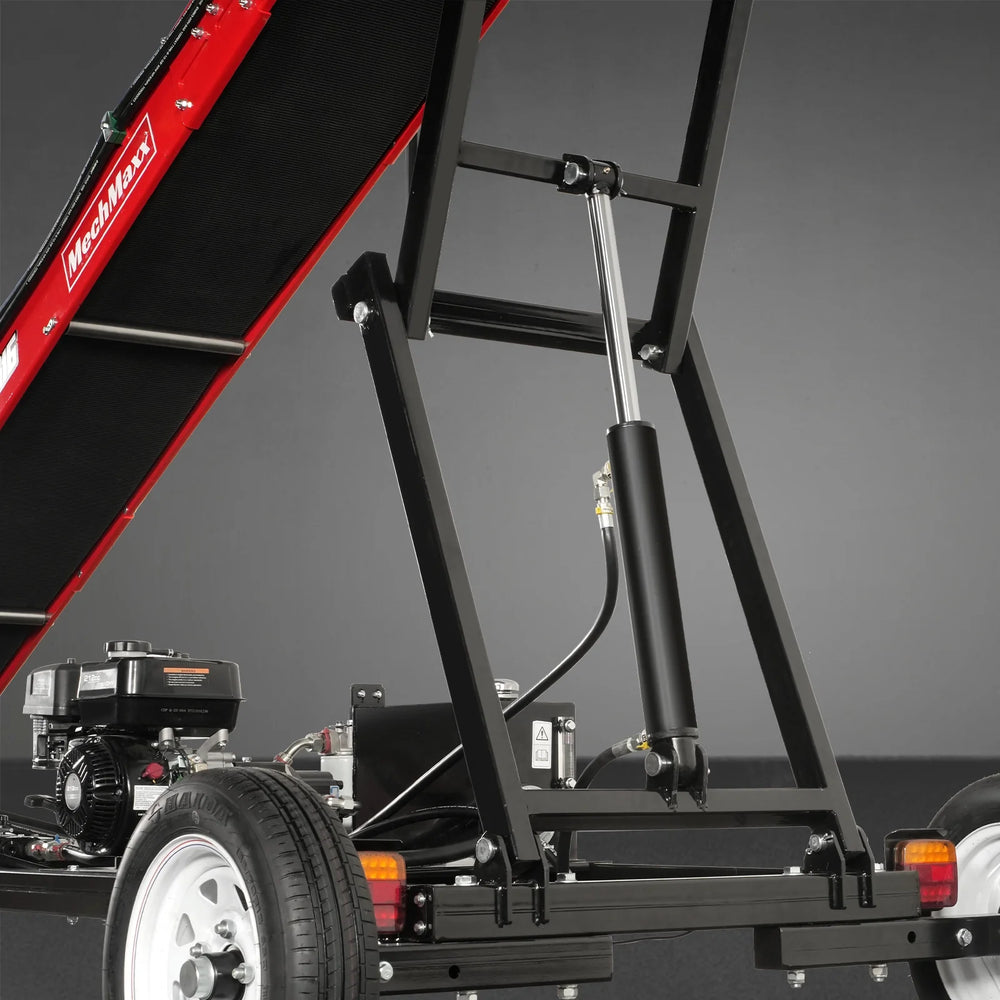

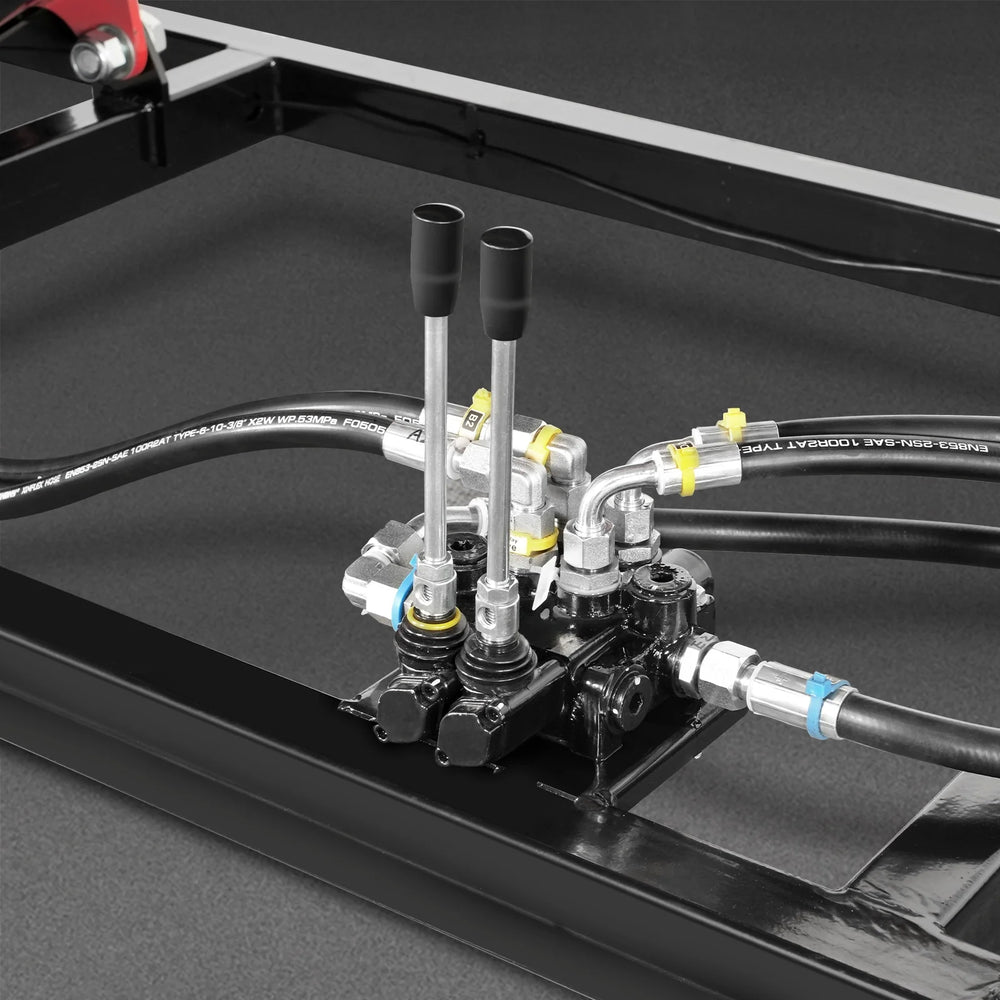

- Hydraulic Lift Cylinder Controlled: The height of the HC2016 can be easily adjusted using our hydraulic lift cylinder. Connected to a tandem center spool, the hydraulic lift cylinder is controlled by the operator and can be adjusted multiple times to suit the needs of any project.

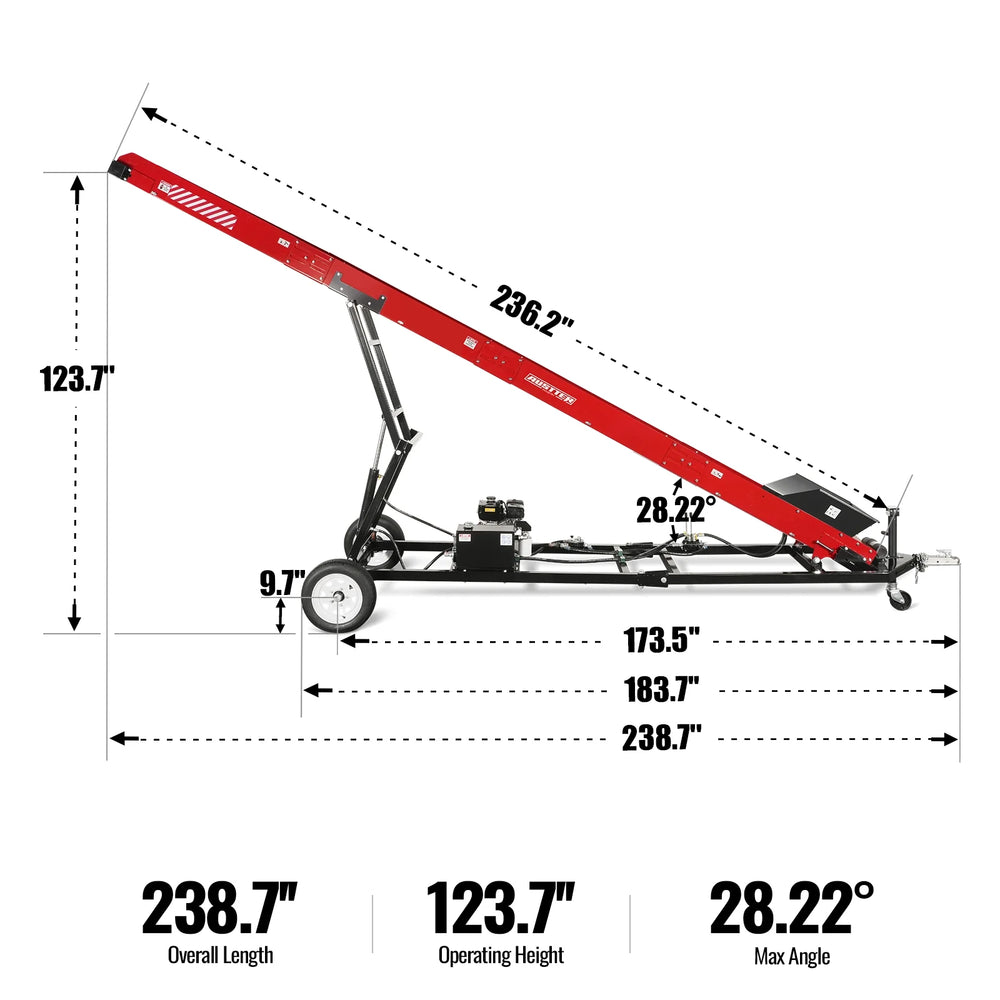

- Adjustable Height: The maximum hydraulic height adjustment angle is 28.22 degrees, and the height can be locked between 60’’ and 124’’ depending on your application. The height can be locked at a maximum height and can be operated at different heights depending on your application.

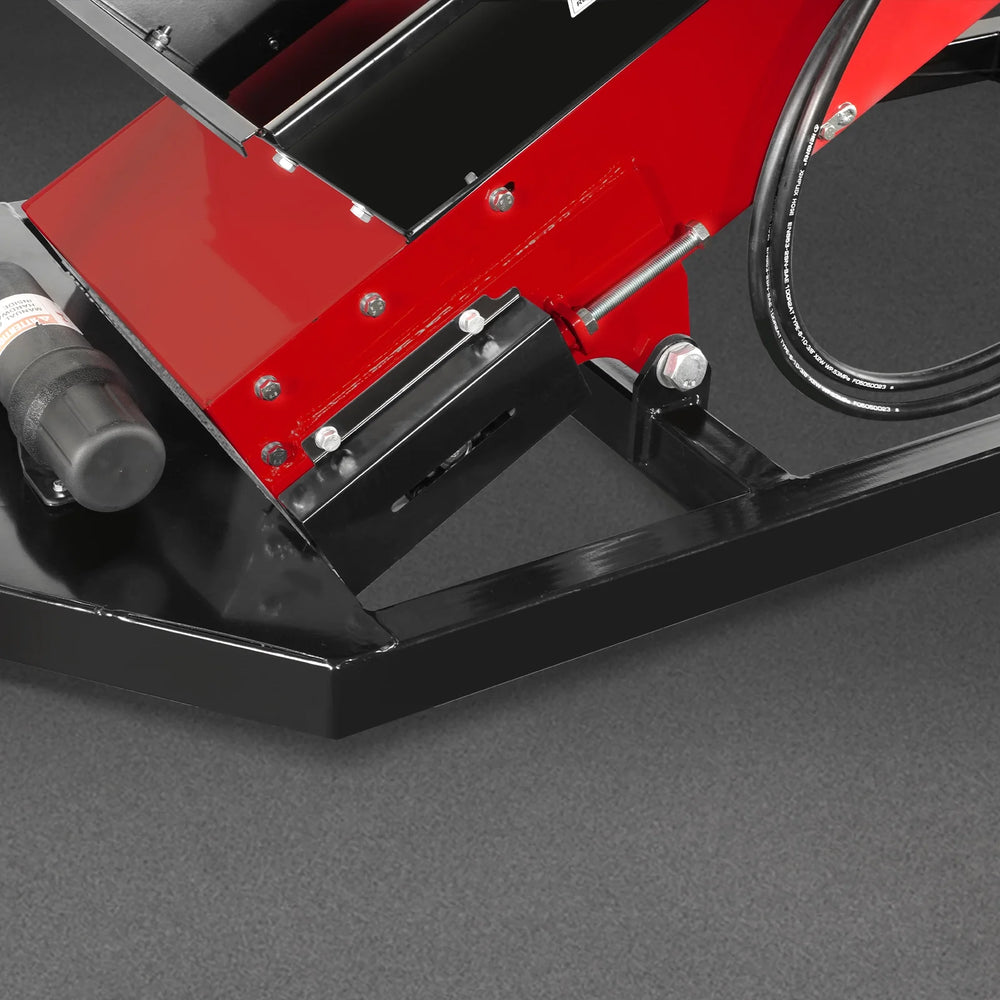

- Modular Hopper: The modular hopper on the conveyor makes log loading simple, as it is shaped like a funnel and can be filled directly with the loader bucket. The hopper is bolted on for easy removal and upgrading.

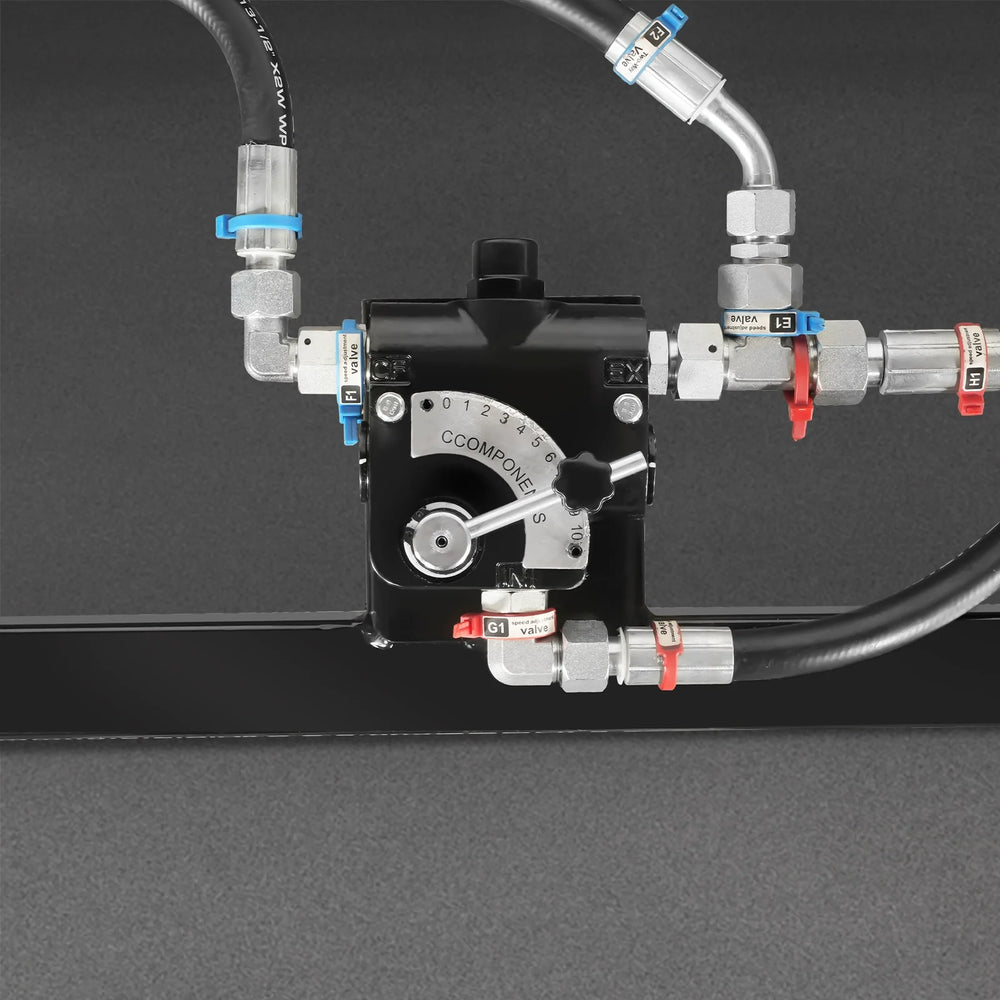

- Hydraulic Motor and Speed Adjustment Valve: The speed regulating valve can adjust the running speed of the belt according to actual conditions. The speed indication is 0-9, 0 is the slowest and 9 is the fastest.
- Trailer Hitch and Jockey Wheel: A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel adopts a single wheel design with a wheel diameter of 6 inches and the height can be adjusted during operation.

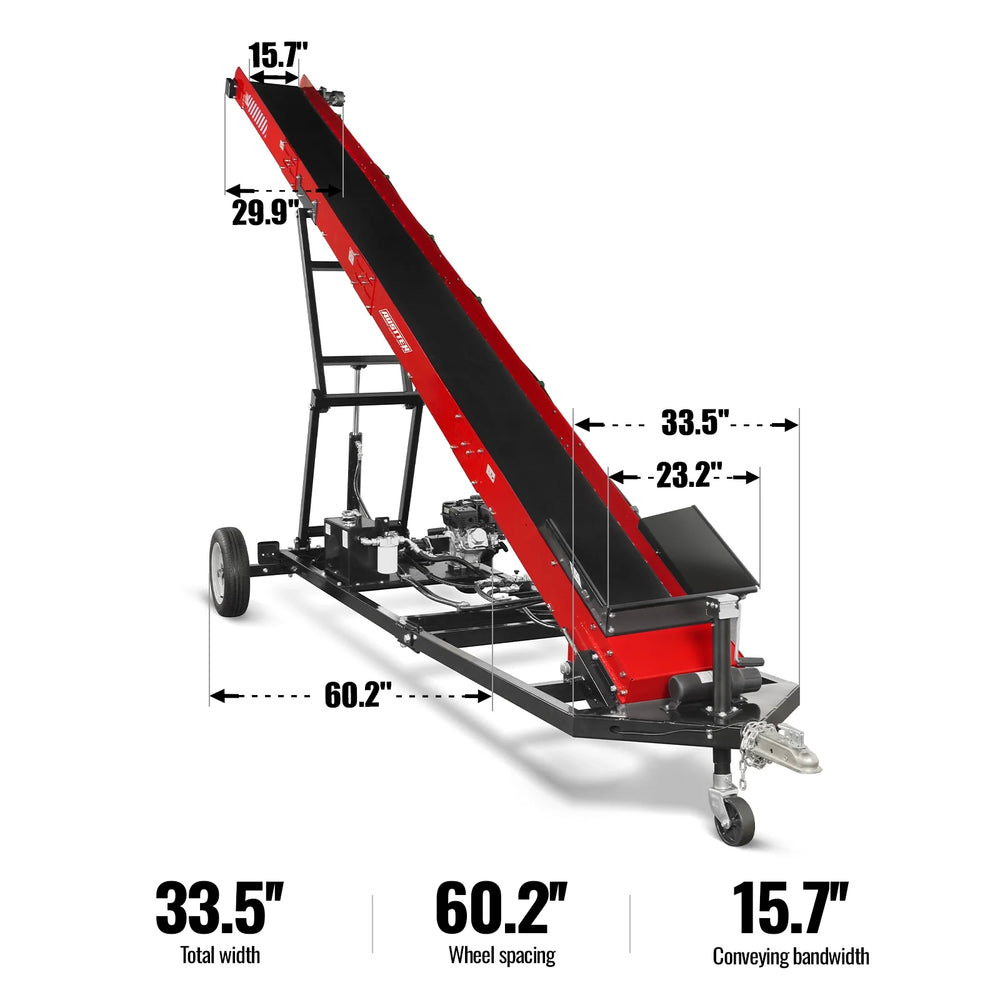

Specifications
| Engine Power | DUCAR DH212 7hp |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Conveyor Belt length | 236 in |
| Conveyor Belt Wide | 16 in |
| Max Discharge Height | 124 in |
| Min Discharge Height | 60 in |
| Drive System | Hydraulic |
| Hydraulic Pump | 5.7 GPM Single Stage Pump |
| Hydraulic Fluid Type | AW-46 |

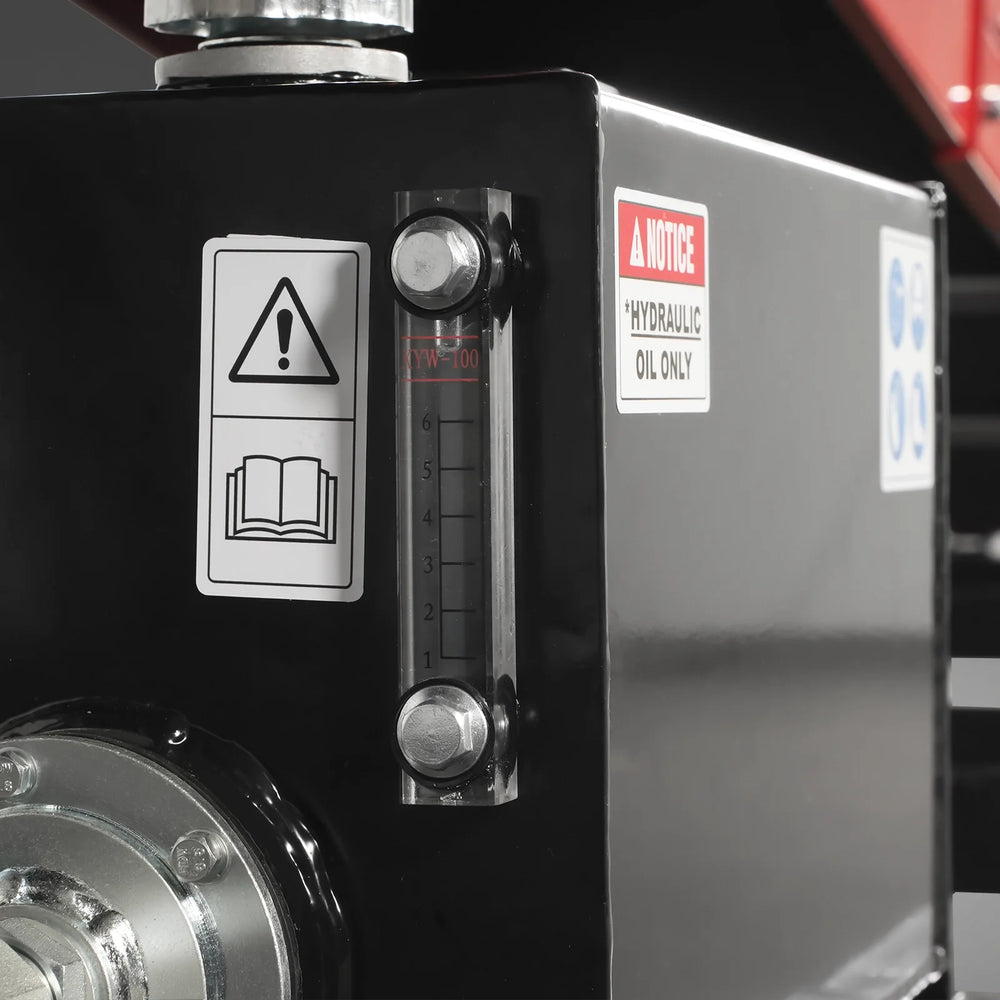

| Hydraulic Tank Capacity | 4.2 gal |

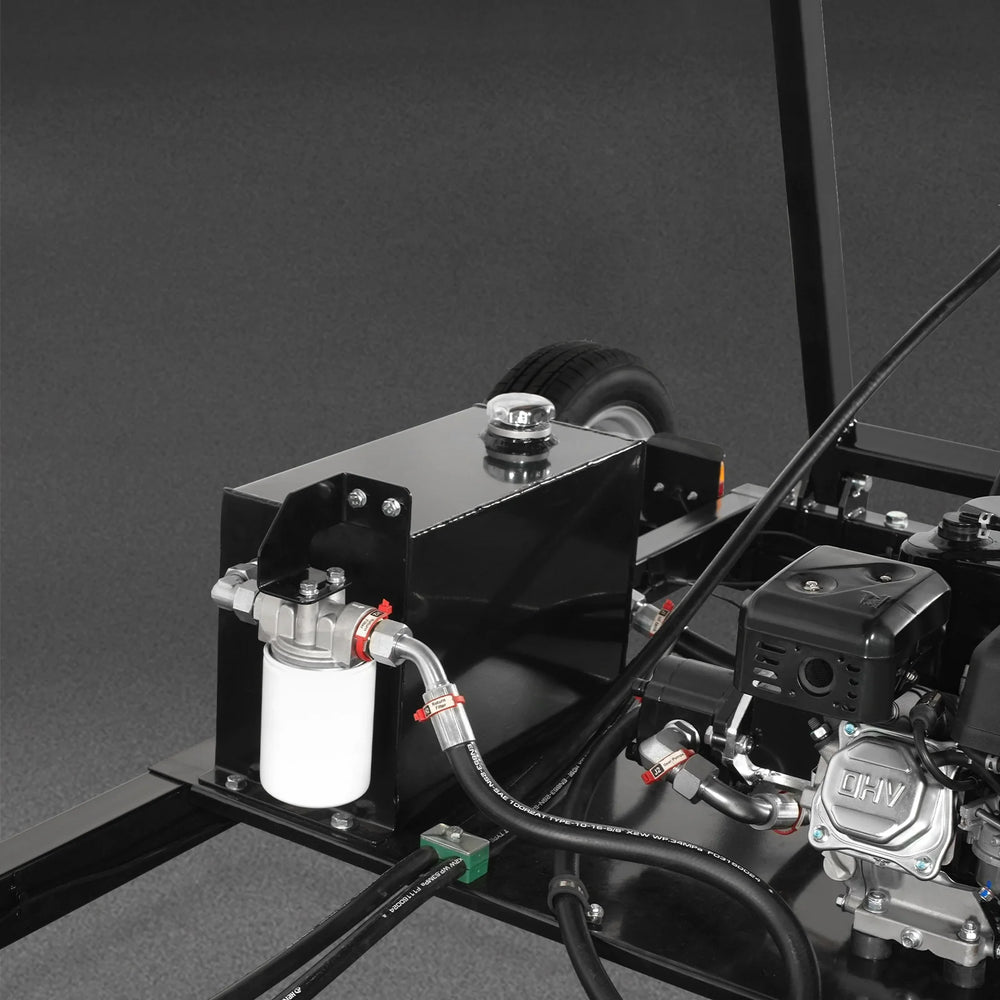

| Hydraulic Oil Filter Fineness | 10 micron |
| Towing | Tow Bar with 2 in Coupler |
| Maximum Towing Speed | 45 MPH |
| Tires Rims | 13 in |
| Tires | 19 in Radial (O. D.) |
| Overall Dimensions (LxWxH) | 261x60x63 in |
| Finish | Powder Coating |
| Package Method | Plywood Case |
| Packing Size (LxWxH) | 90x38x33 in |
| Weight (N.W./G.W.) | 992/1124 lbs |
Warranty
This item comes with a 1 year factory warranty.
