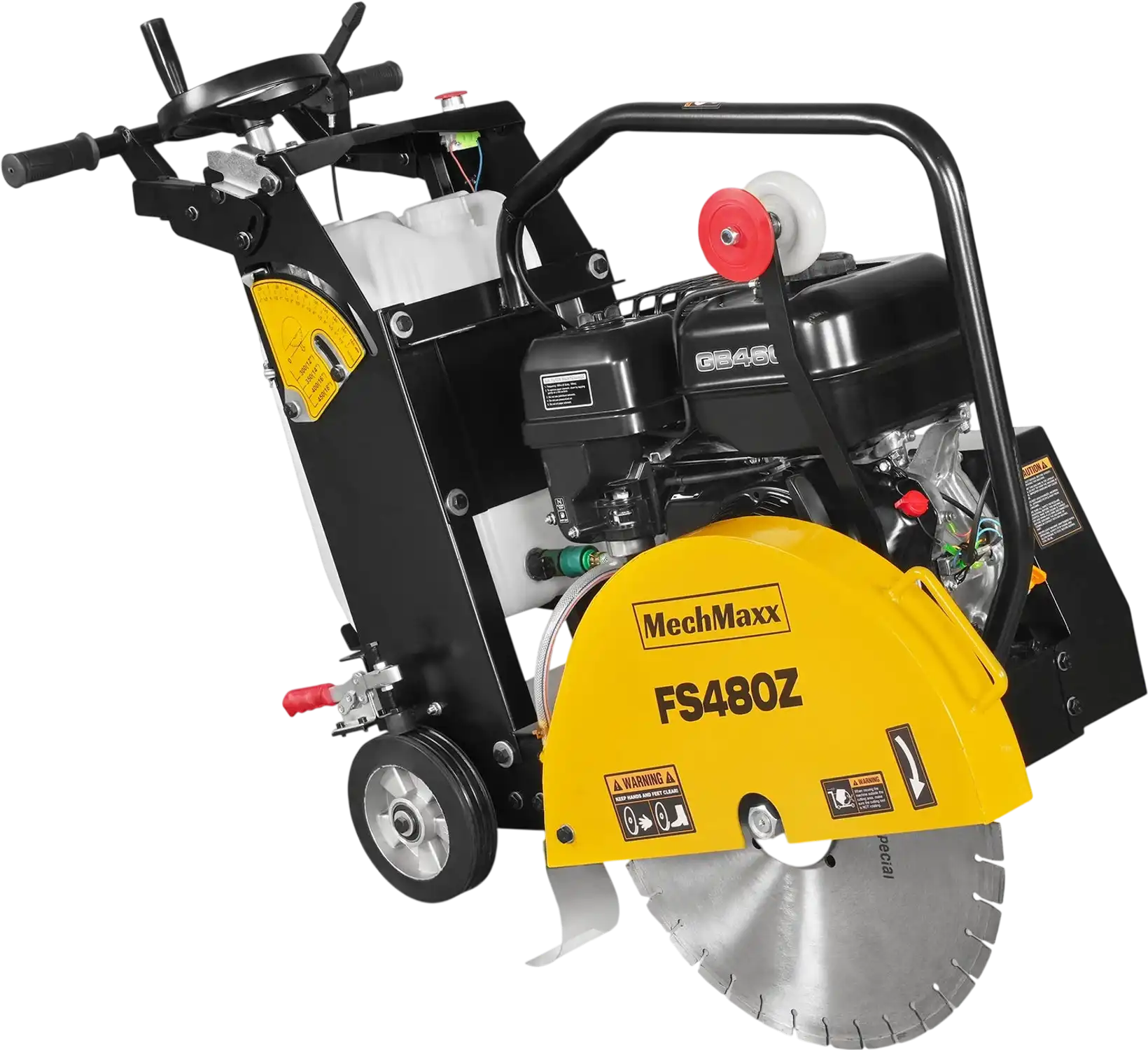

MechMaxx FS480Z Concrete Floor Saw 15 HP Walk-Behind 20" Blade 7" Cutting Depth New
Product Overview

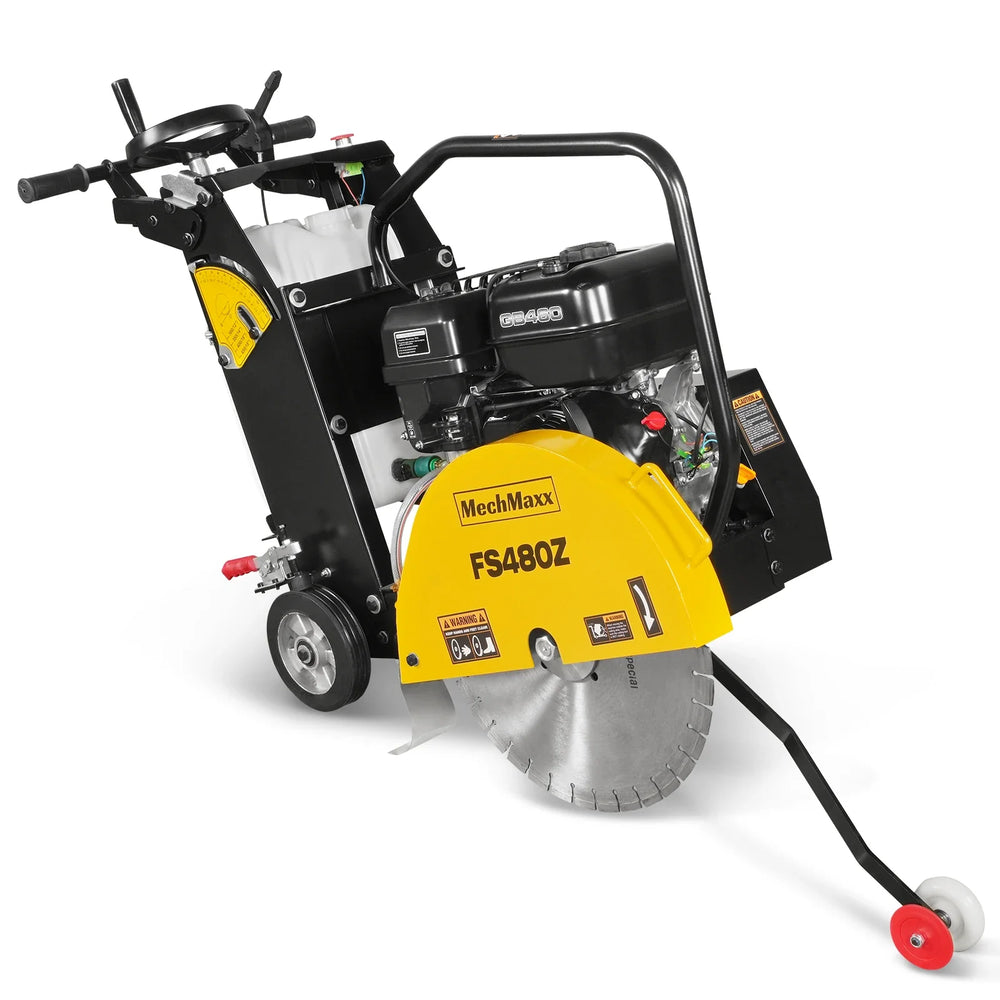

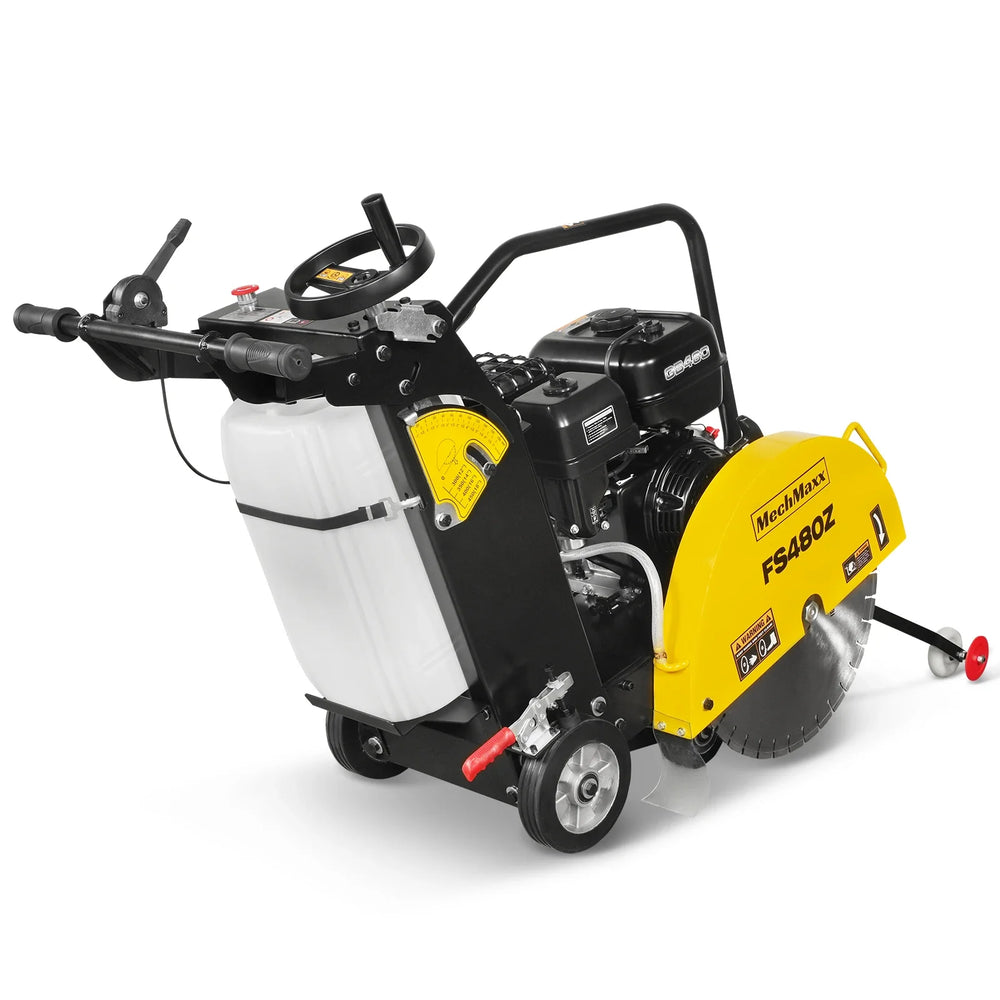

The MechMaxx FS480Z Walk-Behind Concrete Floor Saw is designed for accurate cutting in concrete, asphalt, pavement, and expansion joint applications. Powered by a Zonsen GB460B engine, it supports a 20 in blade and delivers up to 7 in cutting depth for deeper cutting work. A large built-in water tank, adjustable handle, operator control console, mechanical wheel lock, rugged frame, and lifting hook help improve cutting control, wet-cutting support, stability, durability, and jobsite handling.
- Reliable Zonsen GB460B Engine: Powered by a Zonsen GB460B 15 HP engine, this walk-behind concrete floor saw provides reliable power for concrete, asphalt, pavement, and joint-cutting applications.
- 20 in Blade Capacity and 7 in Cutting Depth: The FS480Z supports a 20 in blade and delivers up to 7 in cutting depth for deeper floor, pavement, repair, and expansion joint cutting.

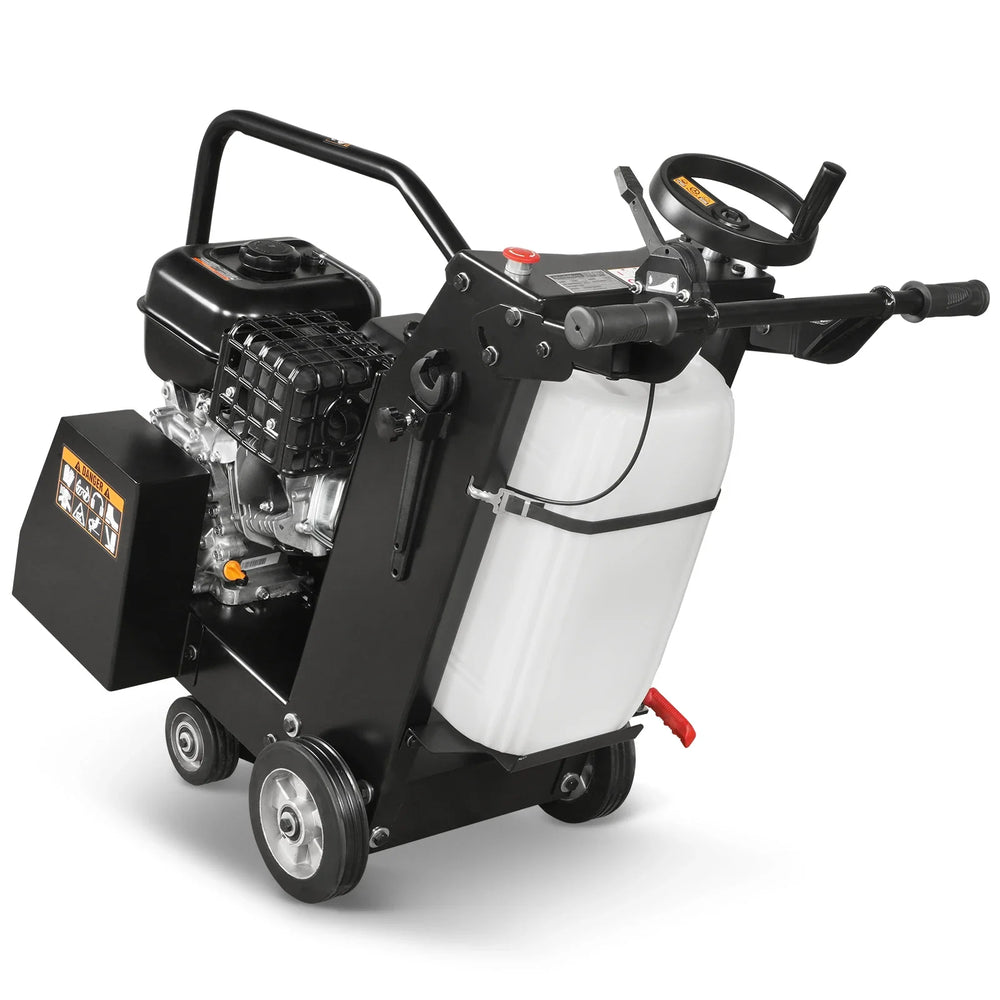

- Built-In Water Tank for Wet Cutting Support: The 7.9-gallon water tank supplies water to the blade area to help cool the blade and reduce dust during wet cutting operation.

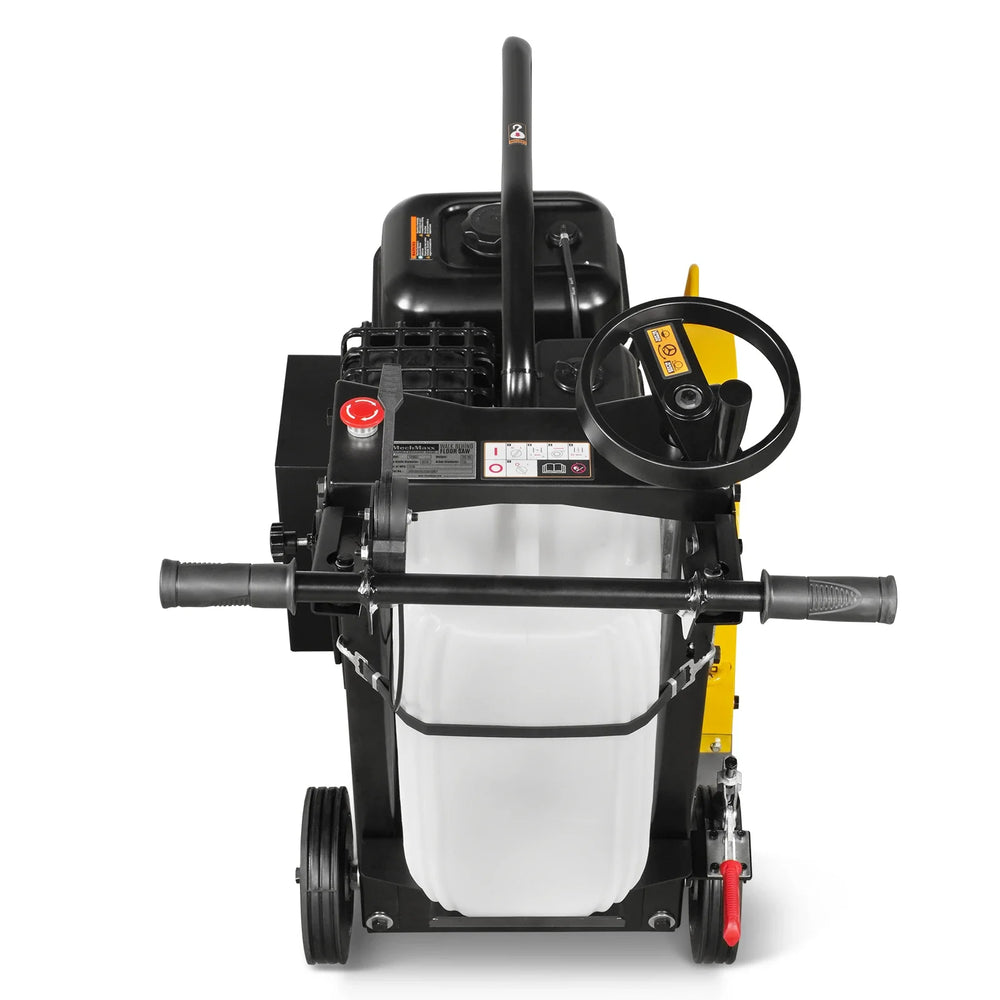

- Adjustable Handle and Operator Control: The adjustable handle with rubber grips helps improve operator comfort, while the integrated control console supports easier operation and more controlled cutting.

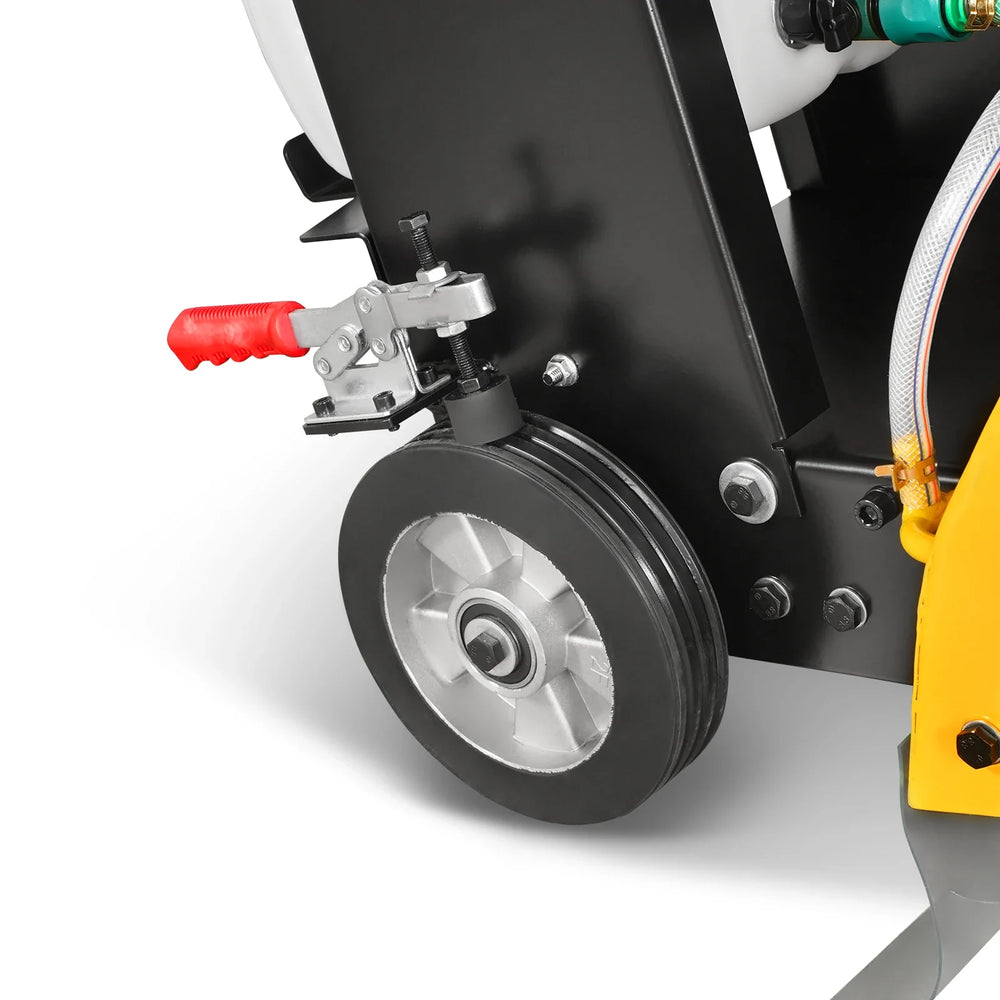

- Mechanical Wheel Lock for Added Stability: The mechanical wheel lock helps hold the saw in place during setup, positioning, and transport.
- Rugged Frame and Lifting Hook: The durable frame helps protect key components, while the lifting hook makes loading, unloading, and jobsite handling easier.
NOTE!
- This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
- Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

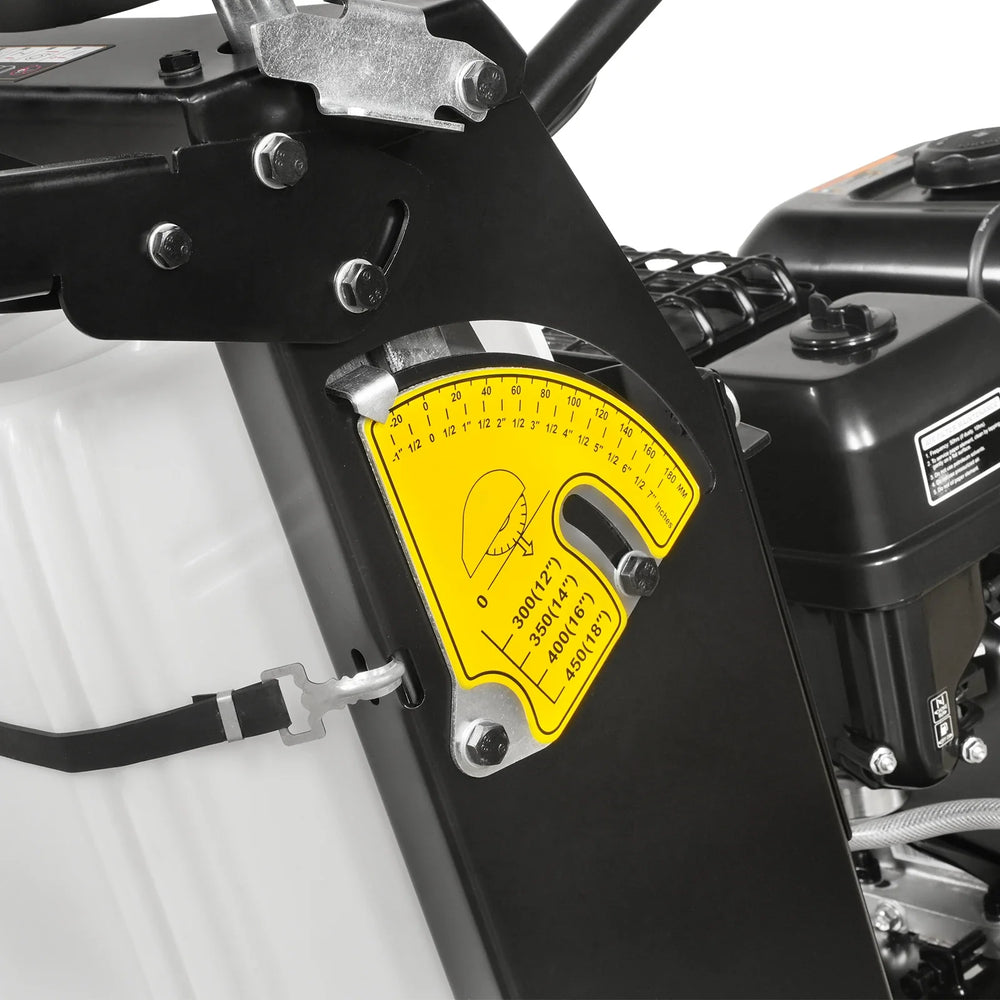

- 20" Blade Capacity Max 7" Cutting Depth: Compatible with 20" cutting blades for efficient concrete and asphalt cutting performance. Cuts up to 7" deep for expansion joints, road repair, and concrete cutting applications.
- Brake System: Equipped with a brake system for improved operation safety and machine control.
- Adjustable Handle With Vibration Dampening: The handle position can be easily adjusted using locking set screws for improved operator comfort. Integrated rubber grips help absorb vibration and reduce fatigue during extended operation.
- Built-In Water Tank: 7.9-gallon water tank helps reduce dust and cool the blade during wet cutting.

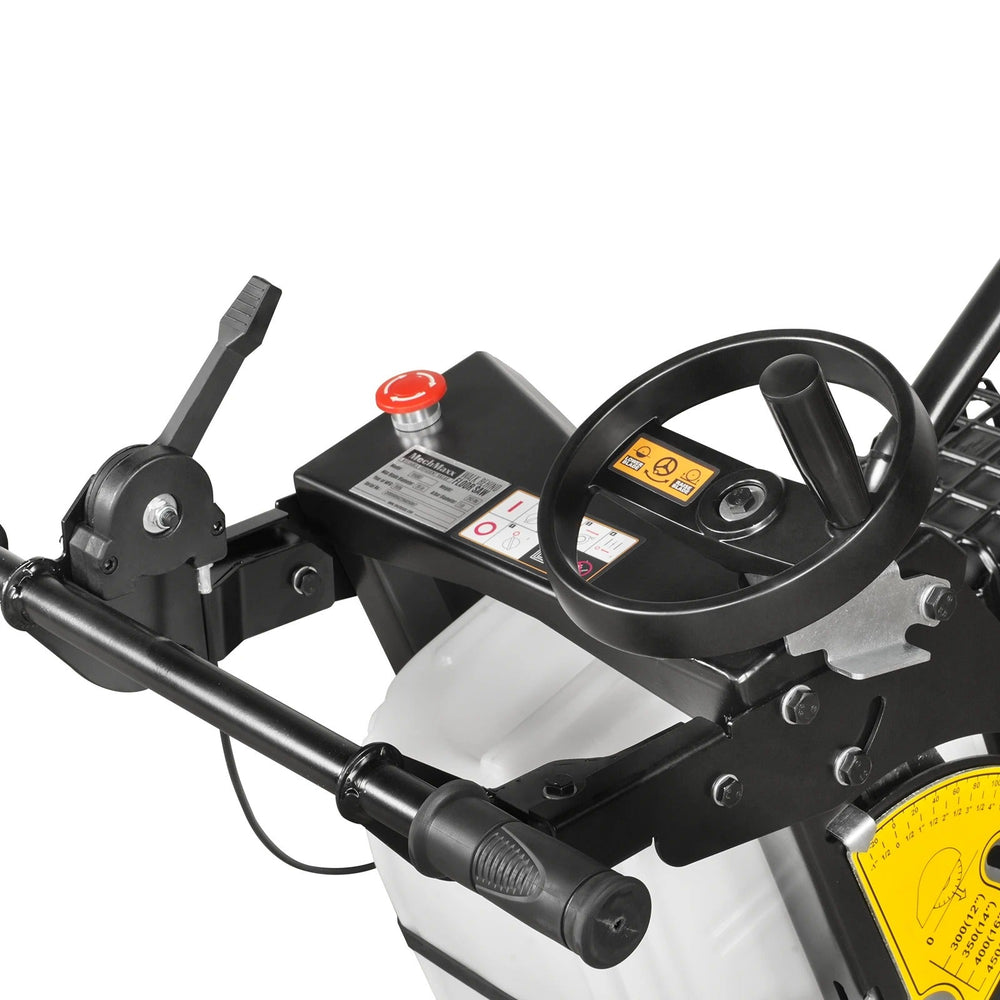

- Professional Operator Console Design: Equipped with an integrated operator workstation for easier and more efficient operation.
- Easy Transport Design: Features Lifting Handles for easier transportation, loading, unloading, and jobsite mobility.
Specifications
| Engine | Zonsen GB460B |
| Engine Type | Single-Cylinder, 4-Stroke, Air-Cooled, OHV Gasoline Engine |
| Engine Displacement | 459 cc |
| Horsepower | 15.0 HP (11kW) @ 3600 RPM |
| Start System | Recoil |
| Fuel Tank Capacity | 6.3 US qt (6 L) |
| Engine Oil Capacity | 1.16 US qt (1.1 L) |
| Blade Diameter | 20 in |
| Max Cutting Depth | 7 in |
| Arbor Diameter | 1 in |
| Water Tank Capacity | 7.9 US gal |
| Overall Dimension (LxWxH) | 44 x 20 x 37 in |
| Packing Size (LxWxH) | 45 x 27 x 42 in |
| Weight (N.W / G.W.) | 254/318 lbs |
Warranty
This item comes with a factory warranty.
