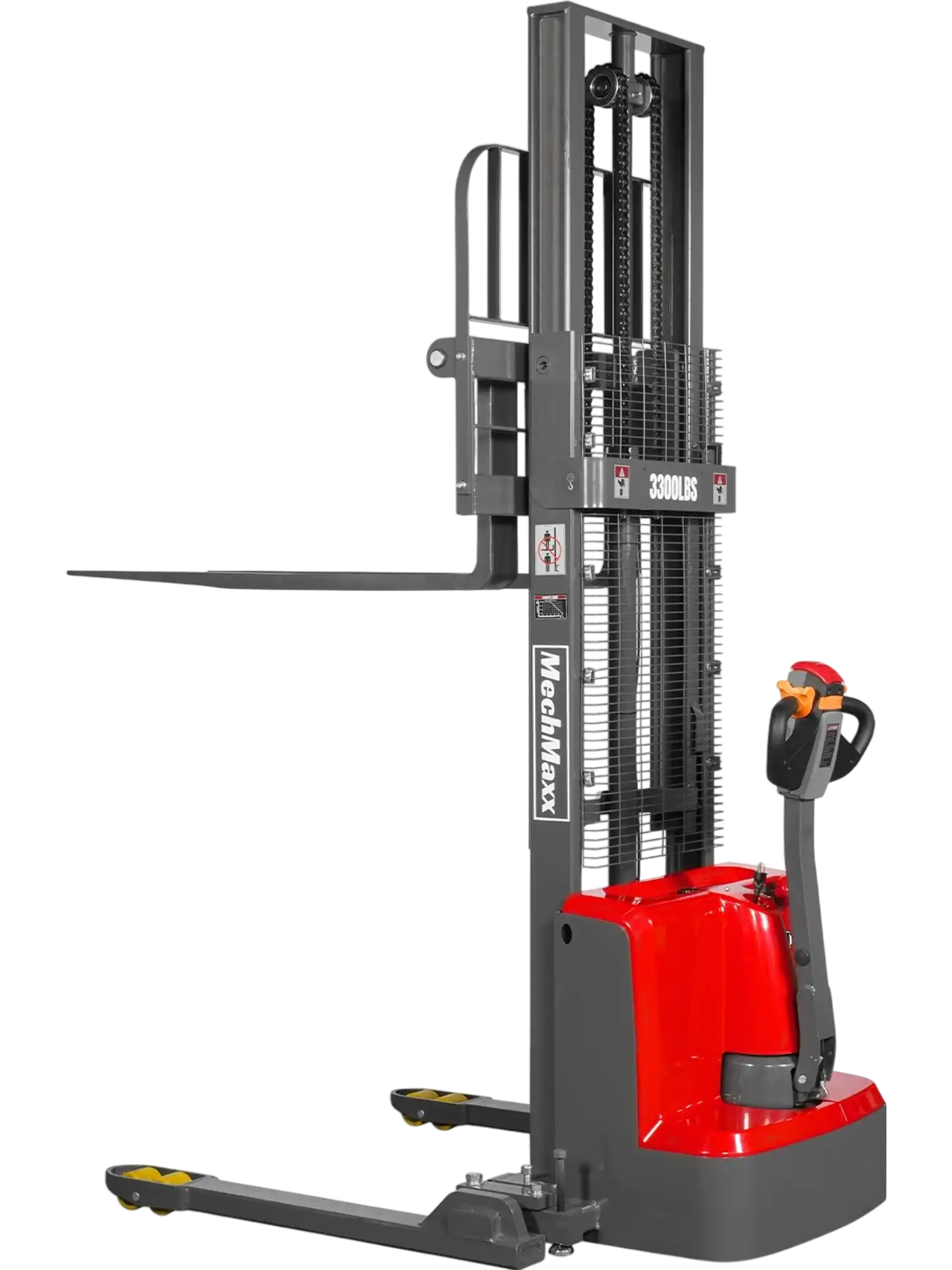

MechMaxx F33-98SLA Stacker 3300 lbs Electric Straddle 98" Lift Adjustable Legs Forks New
Product Overview

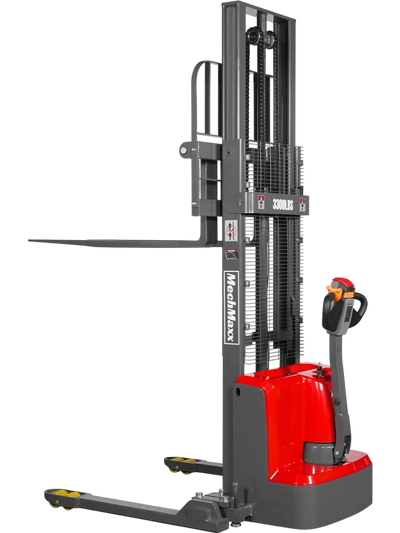

The MechMaxx F33 Series electric straddle stacker delivers efficient, reliable handling with up to 3,300 lb capacity. Its smooth, fast operation and low-maintenance design navigate narrow aisles with ease, while adjustable forks and straddle legs fit a range of pallet widths.Powered by a 24V/100Ah maintenance-free AGM battery with 24V/10A built-in charger, gauge, and on/off switch, it delivers long-lasting performance and effortless recharging.Ergonomic controls and solid load stability make the F33 ideal for warehouses, distribution centers, and industrial environments.
- The American Curtis Travel Controller offers accurate, high-efficiency and stable control performance.
- 24V/100Ah maintenance-free AGM battery for extended runtime.
- Built-in 24V/10A charger for on-board convenience and fast charging.
- 3300 lbs capacity with 98" maximum lift height.
- Adjustable forks (8.3" – 33.5") allow flexible handling of various load sizes.

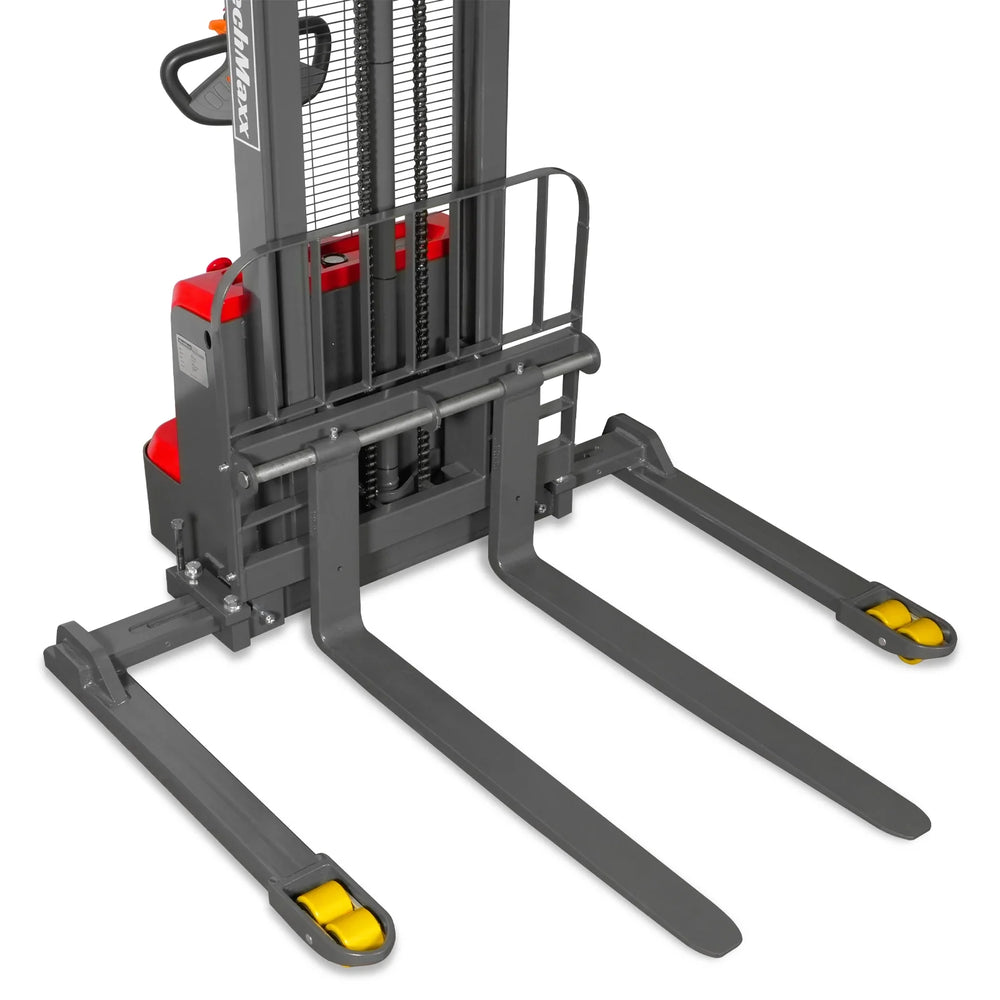

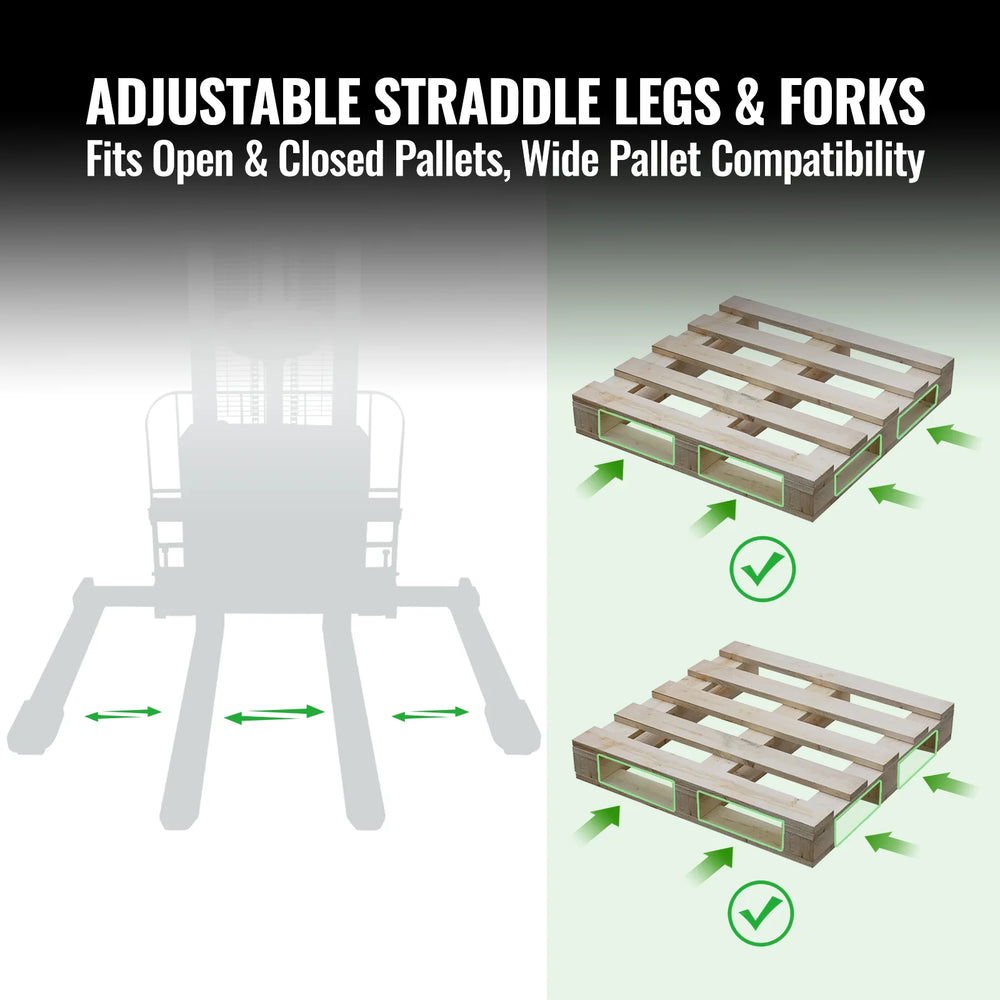

- Adjustable straddle legs (35.4" – 51.2" I.D.) for different pallet widths.
- 2.5 laden and 2.6 unladen mph driving speed.

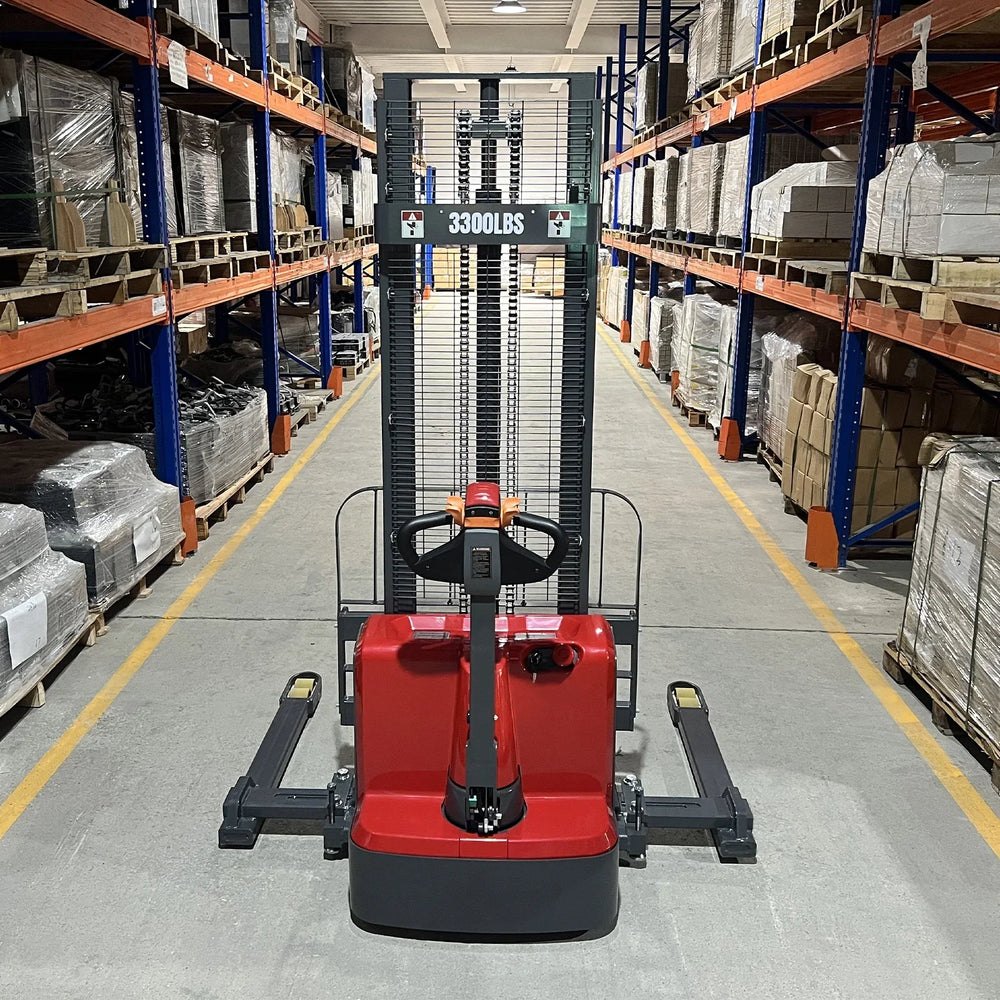

- 53" turning radius with turtle mode ideal for narrow aisles.
- Fully electric operation for forward and reverse travel as well as lifting work.
- Powerful 2.2 kW motor for efficient lifting.

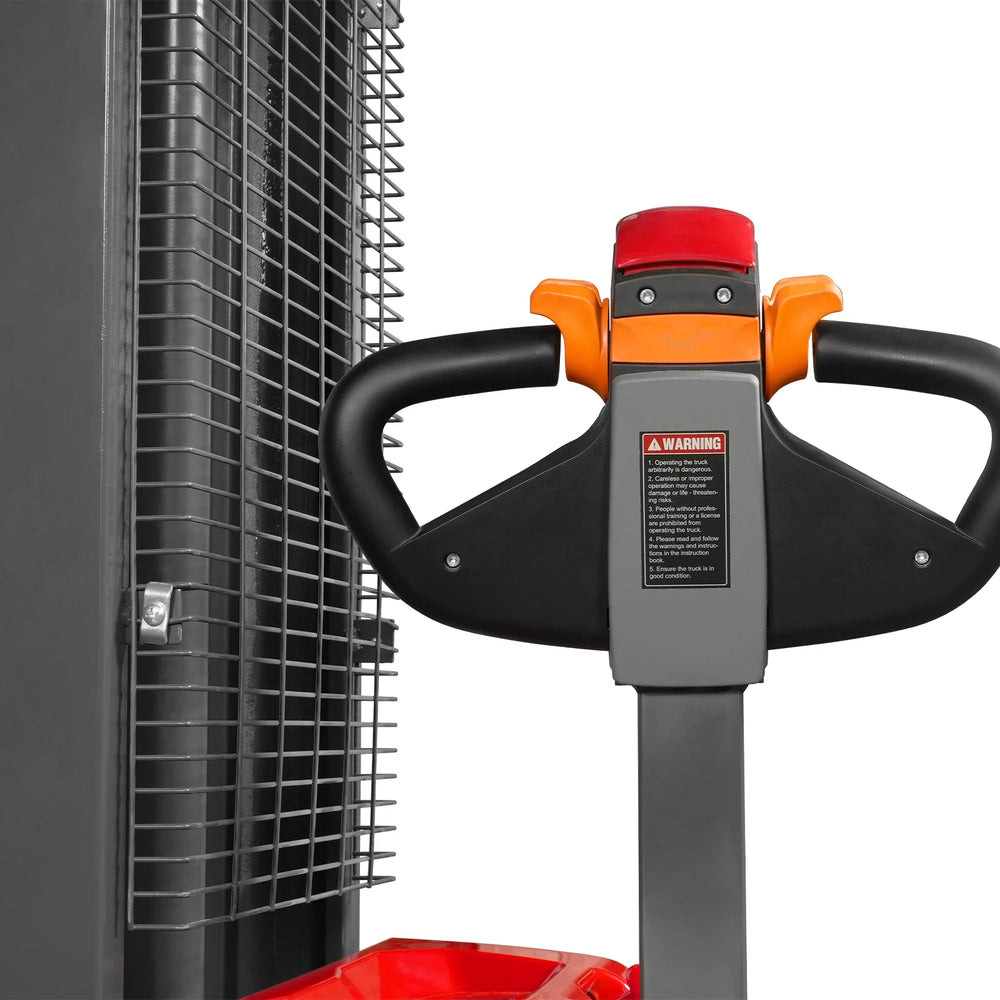

- Ergonomic handle designed for operating with either hand. Gas spring support absorbs shock.
- Load backrest prevents goods from falling backward for improved safety.
- Equipped with polyurethane drive and load wheels, leave no scratches on the floor.
- Equipped with an emergency reverse button, electromagnetic brake, automatic safety release system, electronic lift limit switch, explosion-proof valve, and mesh guard, the vehicle offers comprehensive protection to ensure operator safety at all times.
IMPORTANT – Battery Charging & Maintenance - Always read the product manual and review all safety labels before operation.
- Fully charge the battery promptly after each use.
- Never overcharge or deeply discharge the battery.
- Charge the battery at least once a month, even when the truck is not in use.
-
Store in a cool, dry place away from direct heat sources.
Proper battery maintenance extends battery life and ensures safe operation.
Note! - The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer

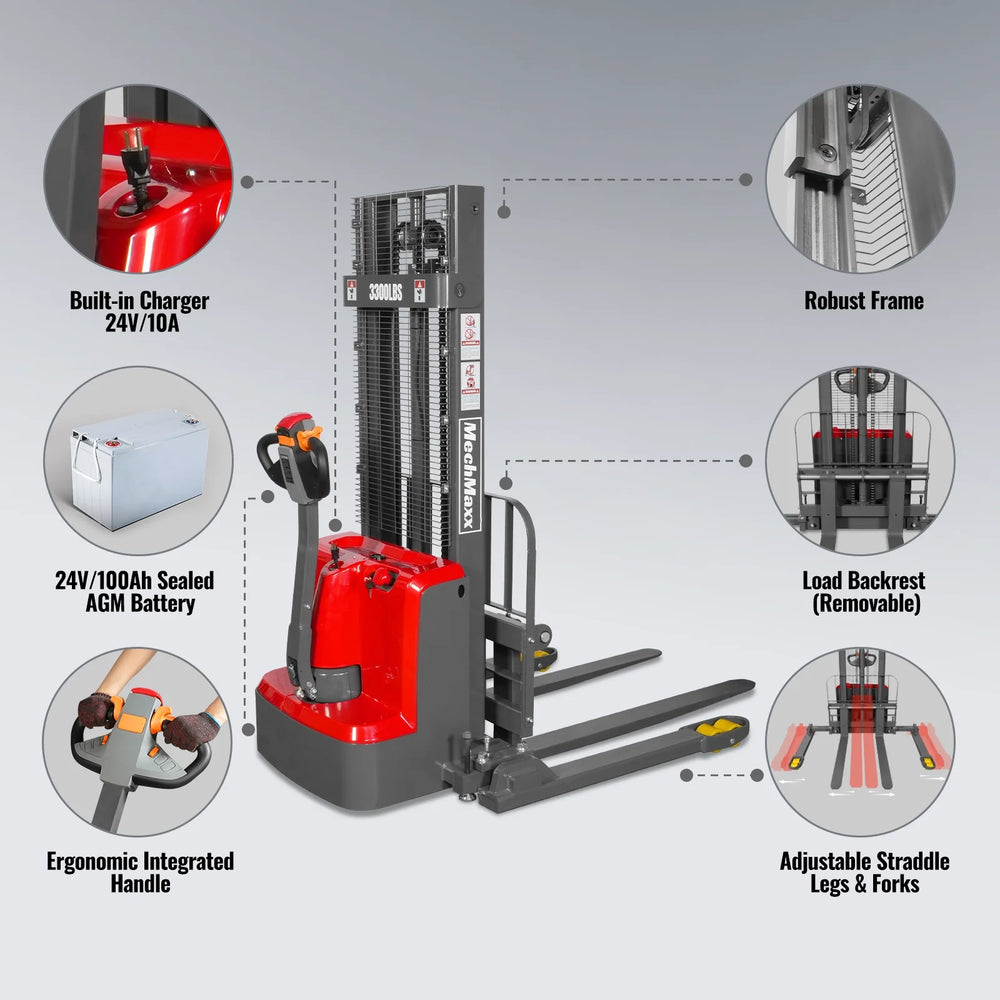

Features
- American Curtis Travel Controller: Industry-proven precision and reliability. Delivers smooth acceleration, responsive control, and high energy efficiency, ensuring consistent performance and durability in demanding applications.
- Maintenance-free AGM Battery: Equipped with a built-in 24V/100Ah sealed AGM battery that delivers consistent, maintenance-free power for frequent and demanding lifting operations.

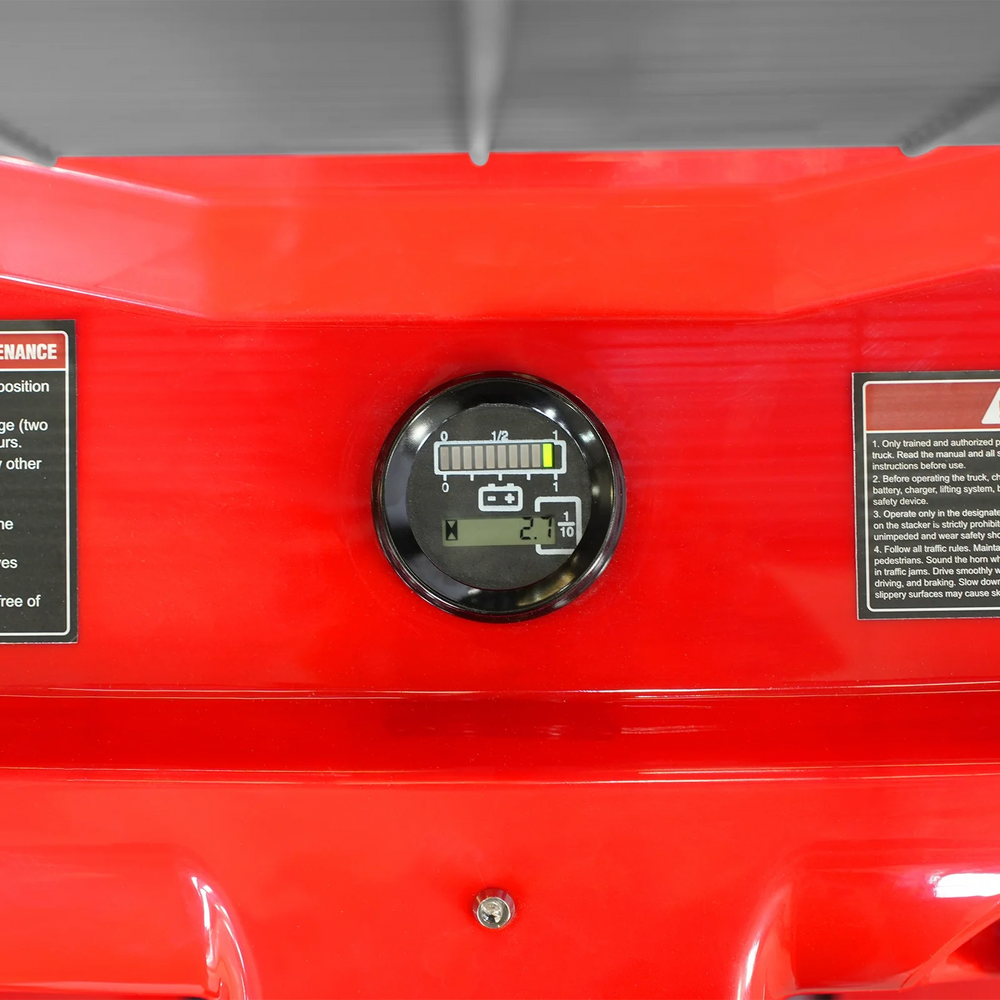

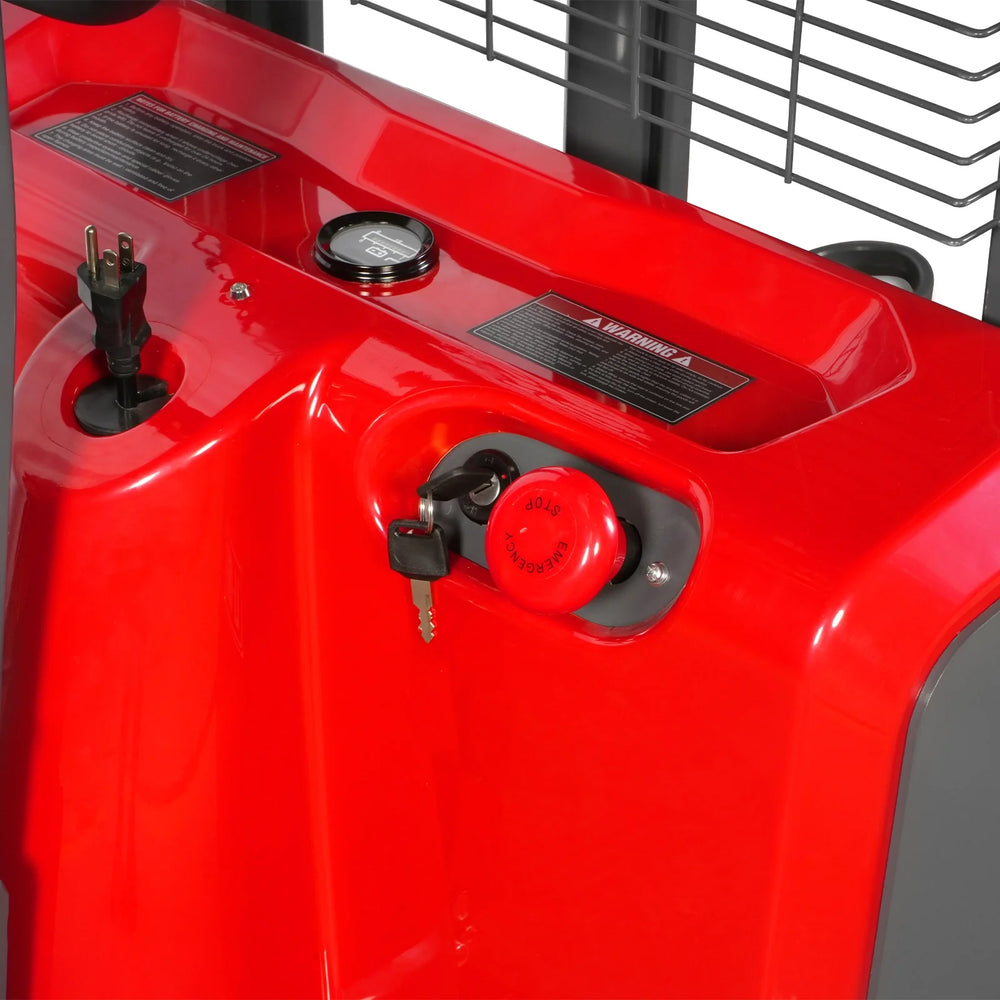

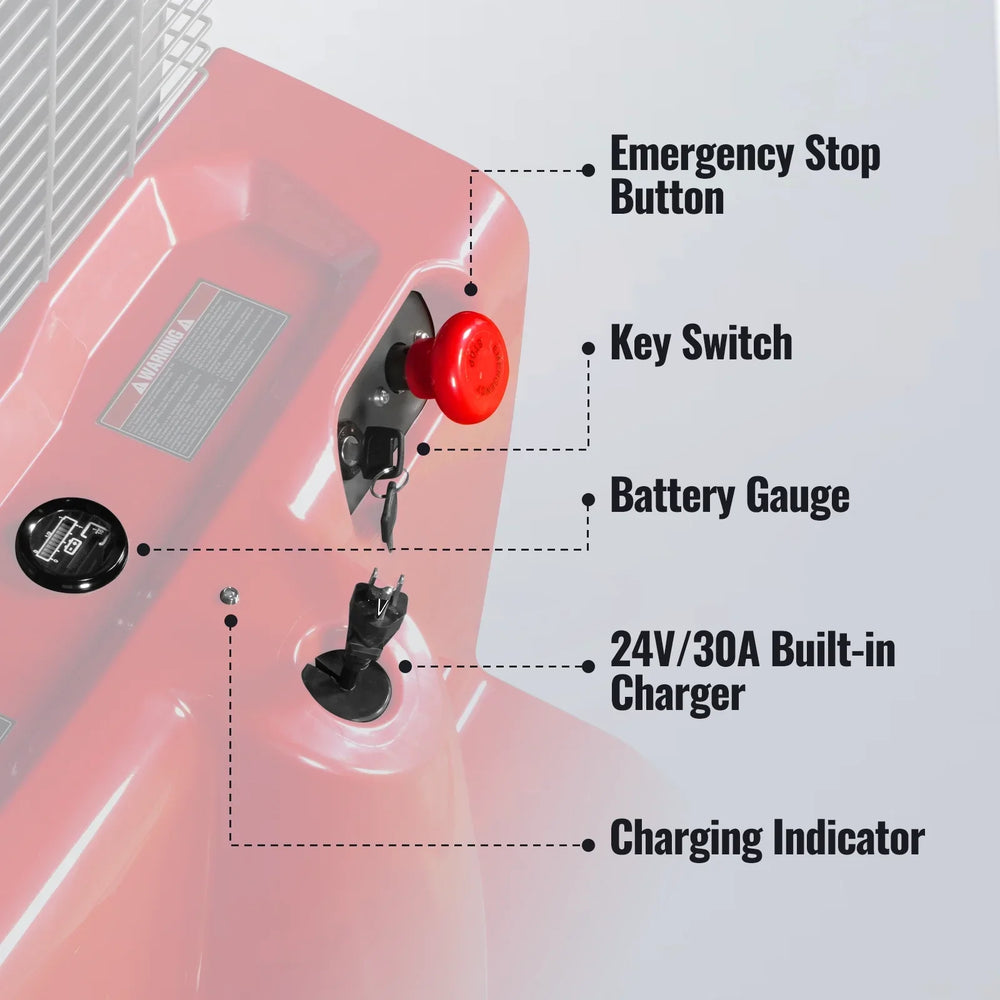

- Built-in Charger & Battery Guage: Built-in 24V/30A charger enables fast and convenient on-board charging. Equipped with a battery gauge and hour meter to clearly display remaining power and usage time for efficient operation planning.

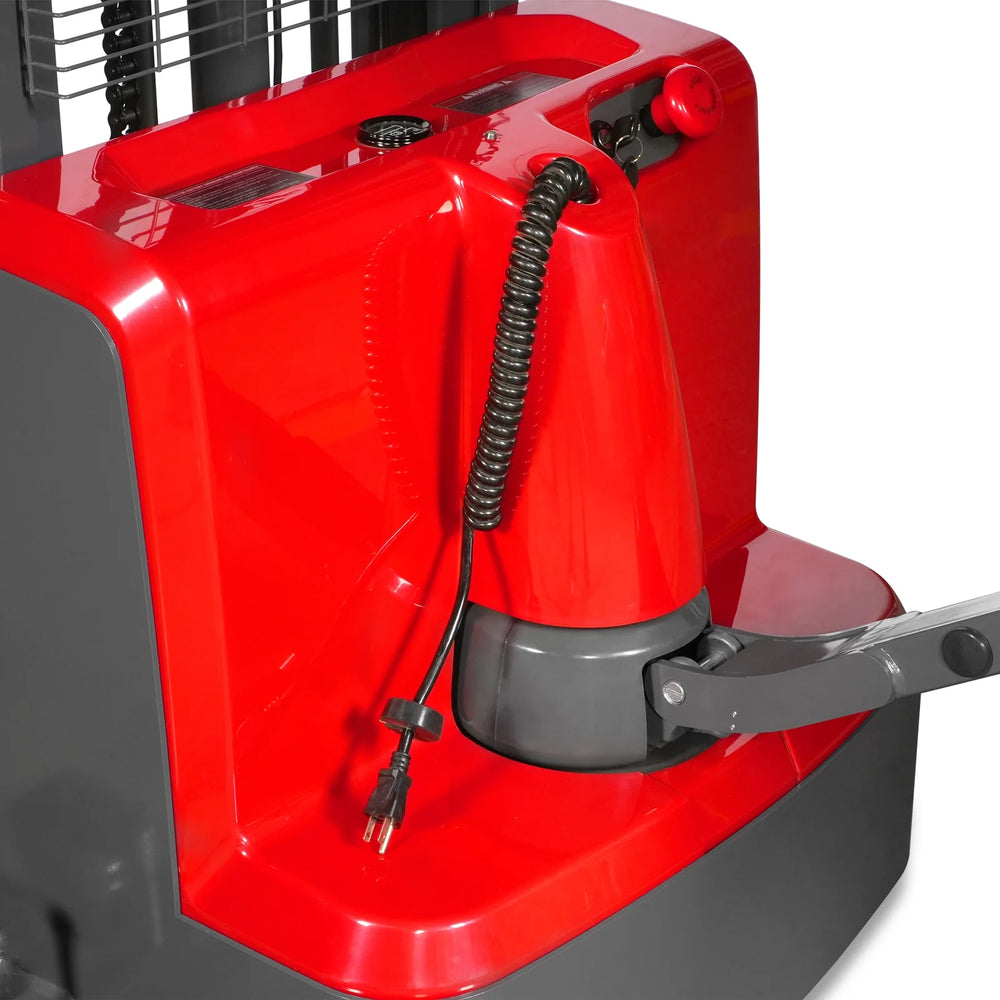

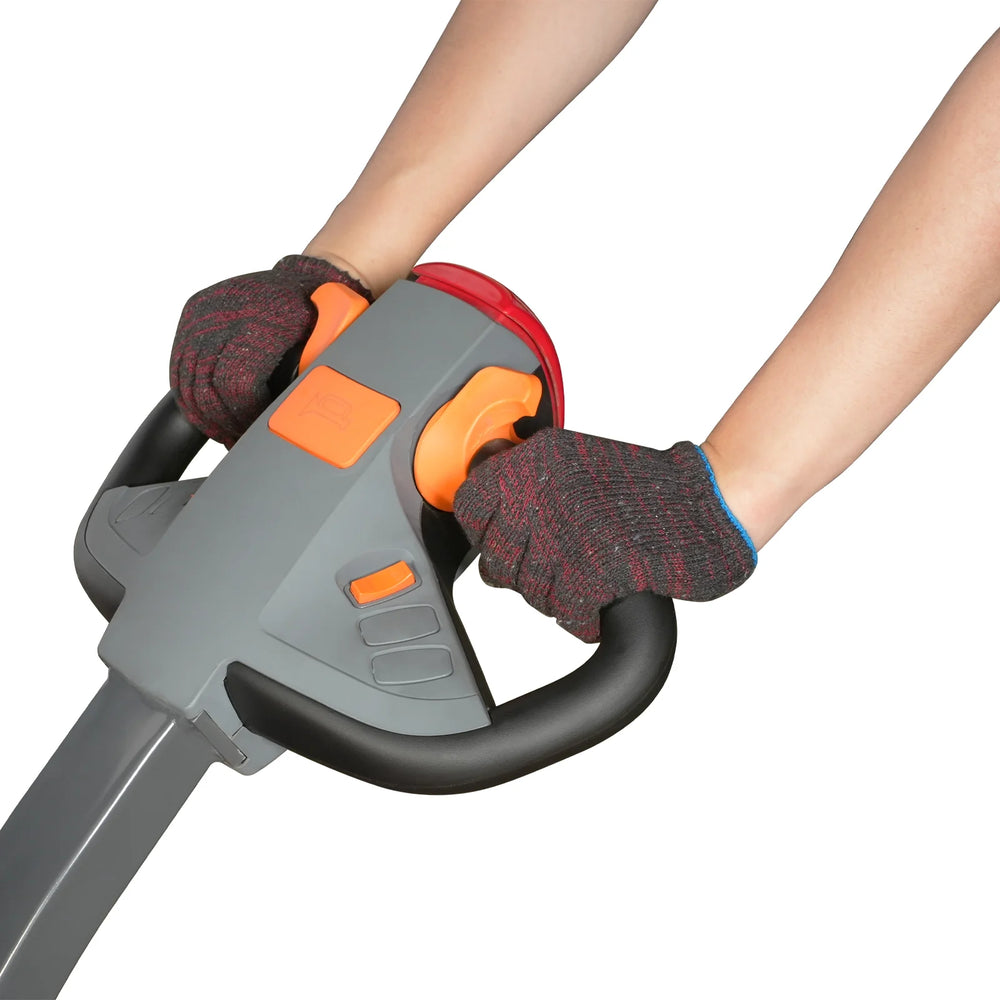

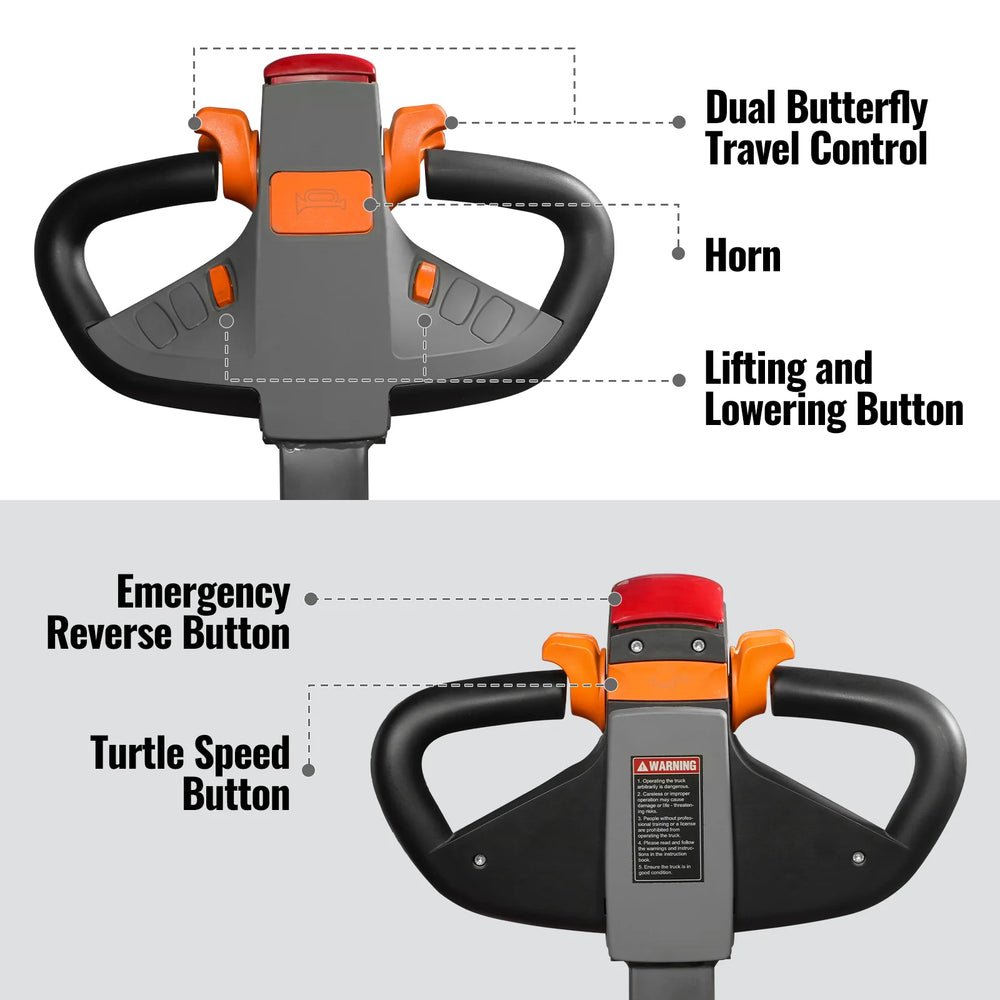

- Ergonomic Integrated Handle: Ergonomic integrated handle includes dual butterfly travel control, electric lifting and lowering buttons, turtle-speed button, horn, and emergency-reverse button. This intuitive, comfort-focused design gives you easy, immediate access to all essential functions for efficient operation.
- Gas Spring Support Design: Integrated gas spring support absorbs shocks smoothly, reducing vibration and protecting internal components while minimizing operator fatigue and improving control during lifting and maneuvering.
- Removable Load Backrest: Load backrest prevents goods from falling backward for improved safety. Removable backrest offers added flexibility—enhancing visibility and maneuverability when not needed.
- Robust Frame Design: Double-frame design with reinforced stiffening bars enhances structural integrity. Constructed from premium steel, ensuring stable lifting performance, improved load balance, and extended service life under heavy-duty operation.
- Explosion-proof Valve: Equipped with an explosion-proof valve to prevent sudden lowering of the forks in case of hydraulic failure, ensuring operator and load safety.
- Lift Limit Switch: Electronic Lift Limit Switch – Protects both load and machine. Automatically stops lifting at maximum height to prevent hydraulic strain, mast damage, and load instability, ensuring safer and more reliable operation.

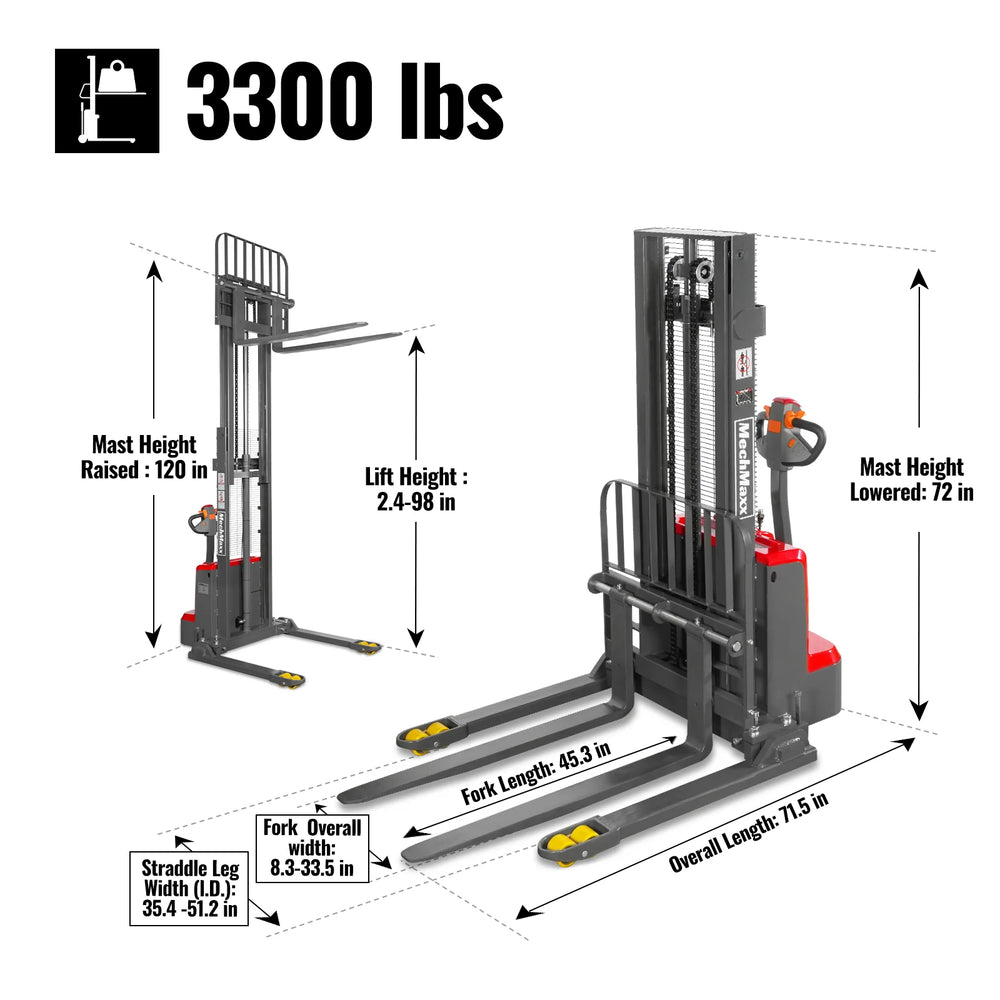

Specifications
| Load Capacity | 3300 lbs |
| Turing Radius | 53 in |
| Operator Position | Walkie |
| Lifting Speed (laden/unladen) | 18.1/26.8 fpm |
| Tire Type | Polyurethane |
| Lowering Speed (laden/unladen) | 22/19.3 fpm |
| Overall Length | 71.5 in |
| Driving Speed (laden/unladen) | 2.5/2.6 mph |
| Max Lift Height | 98 in |
| Max Gradeability (laden/unladen) | 3/8% |
| Min Lift Height | 2.4 in |
| Service Brake | electromagnetic |
| Mast Height (raised) | 120 in |
| Battery | 24V/100Ah Maintenance-free AGM Battery |
| Mast Height (lowered) | 72 in |
| Charger | 24V/10A Built-in |
| Straddle Leg Width (I.D.) | 35.4 - 51.2 in |
| Controller Brand | Curtis |
| Straddle Leg Width (O.D.) | 43.3 - 59 in |
| Drive Motor | 0.75 kW DC |
| Load Center | 23.6 in |
| Lift Motor | 2.2 kW |
| Fork Overall Width | 8.3 - 33.5 in |
| Packing Size (LxWxH) | 43 x 37 x 77 in |
| Fork Size (TxWxL) | 1.4 x 4 x 45.3 in |
| Weight (N.W/G.W.) | 1355/1510 lbs |
Warranty
This item comes with a factory warranty.
