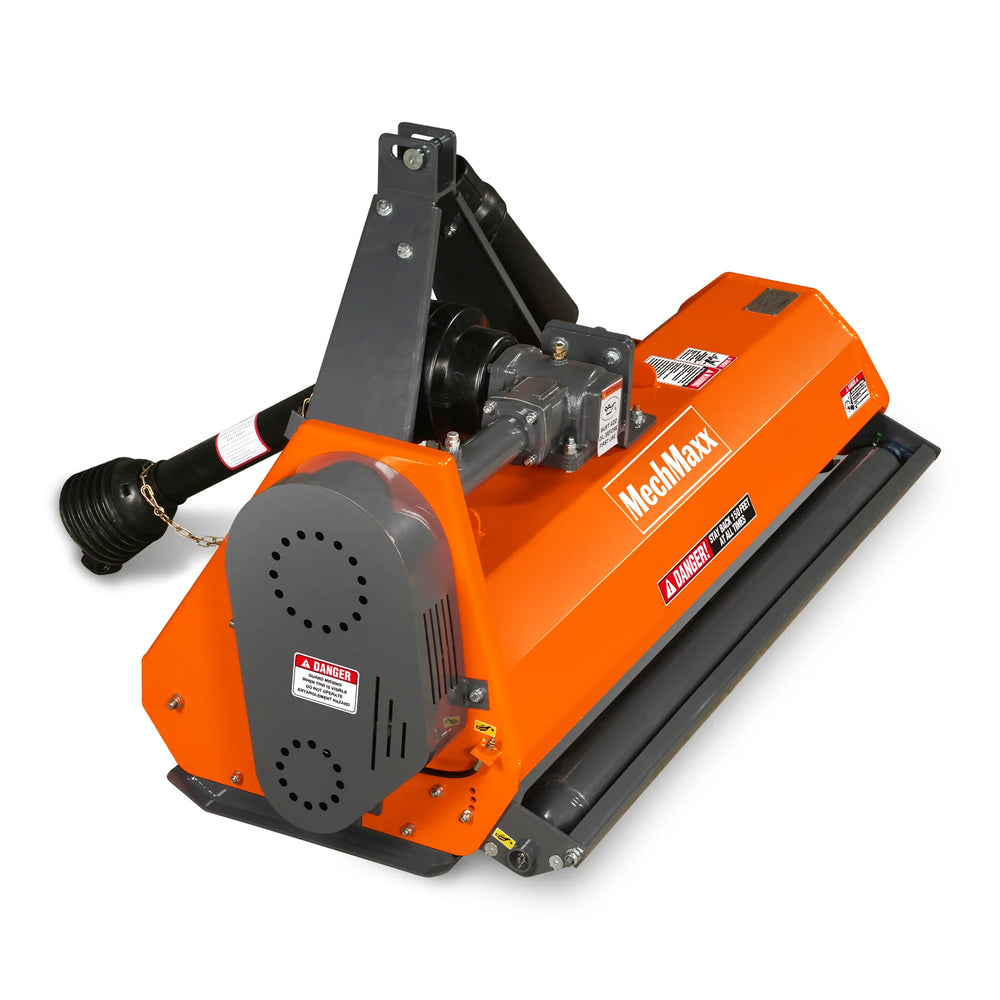

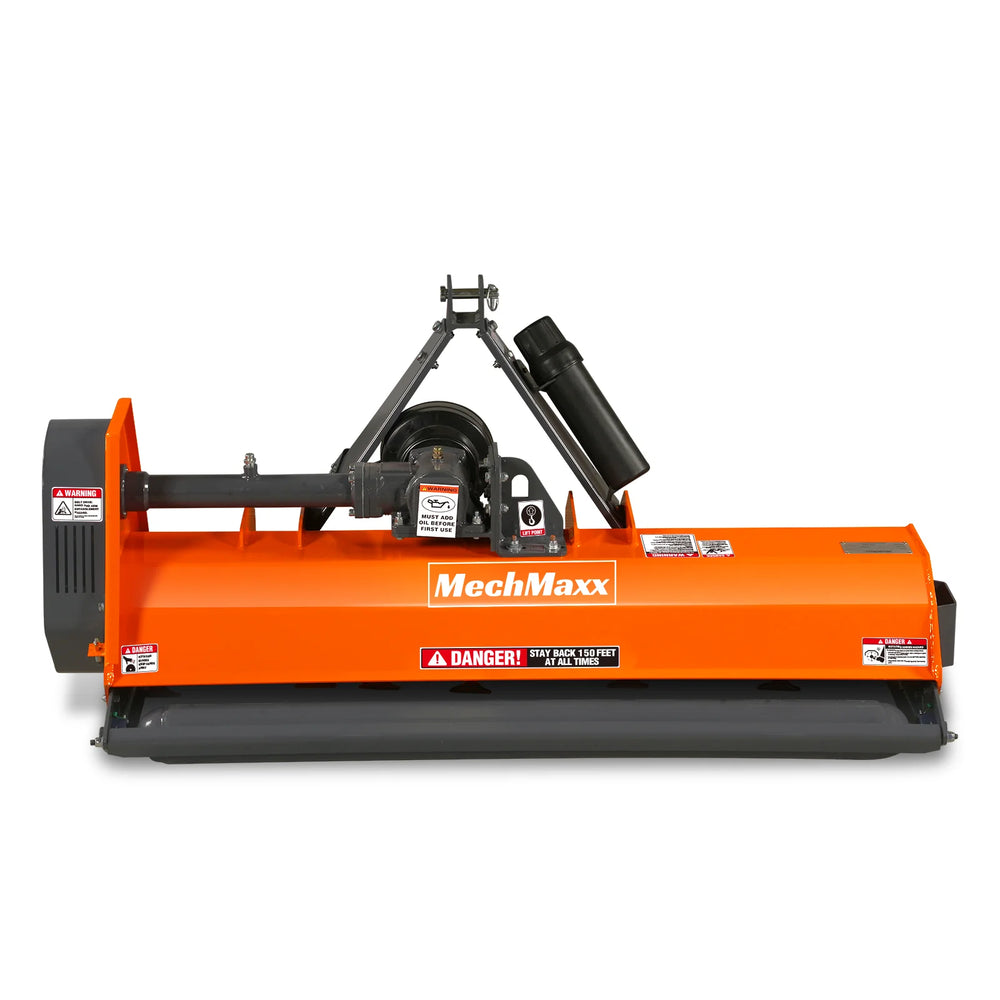

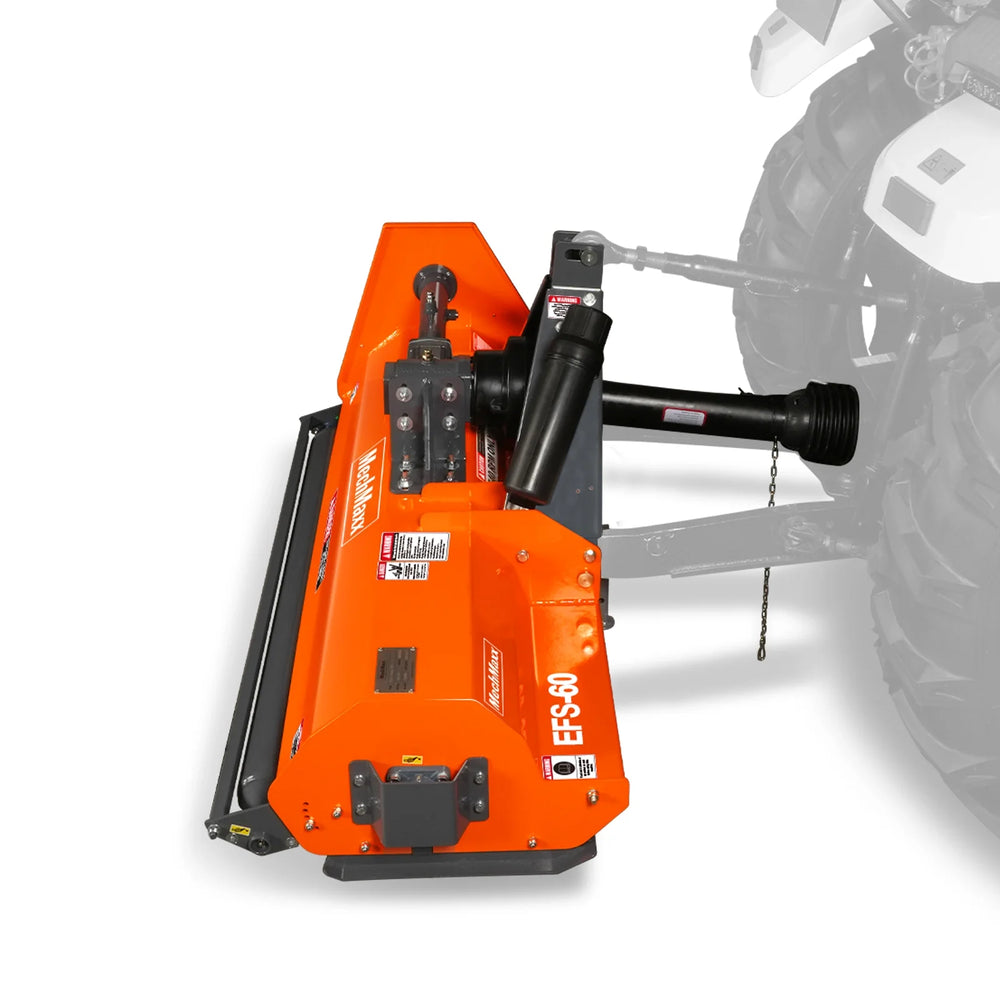

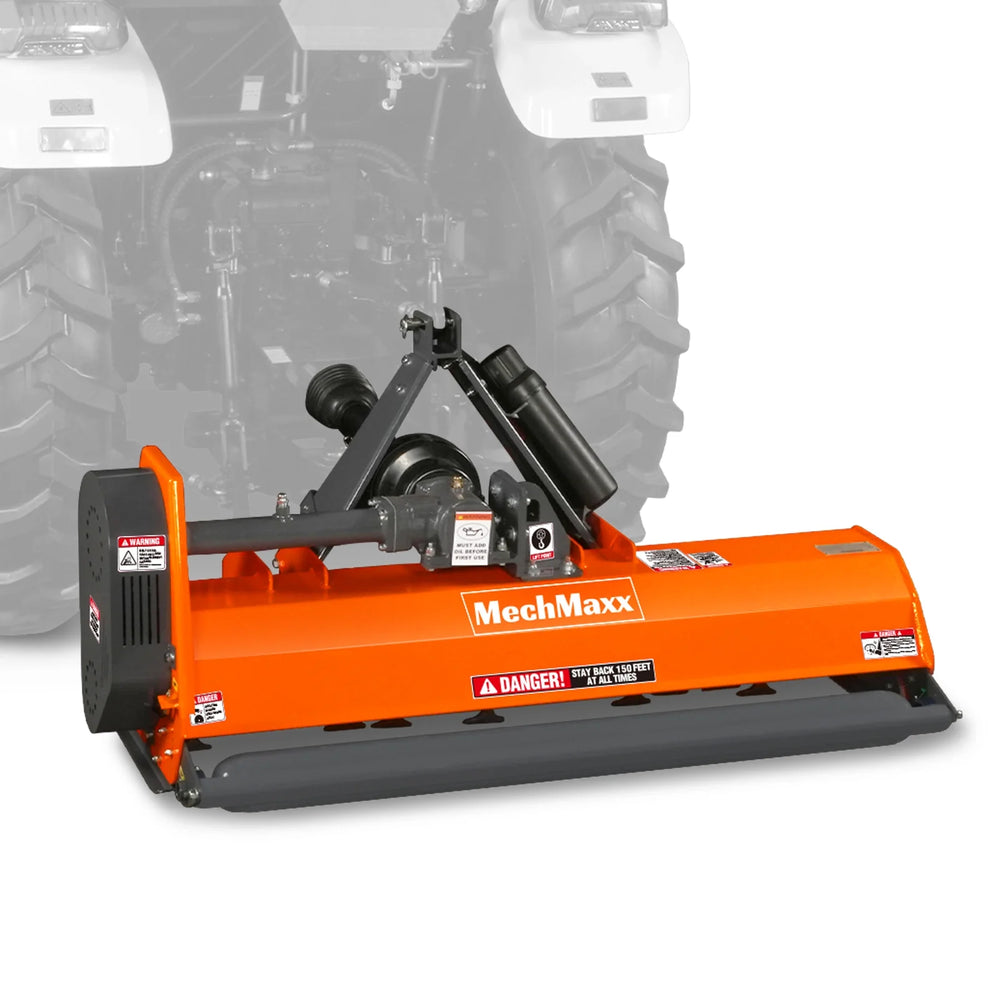

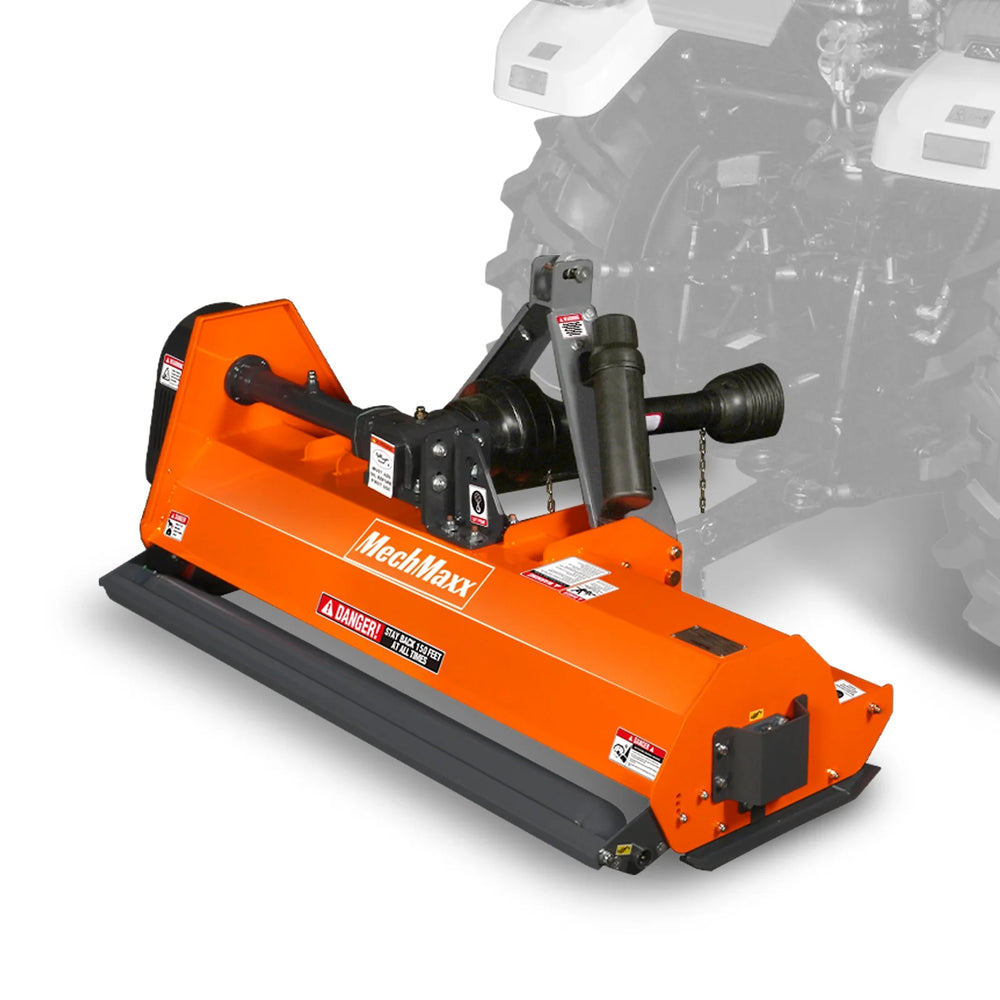

MechMaxx EFS 60 Flail Mower 60" Light-Duty 3 Point PTO Driven 15-35HP New
Manufacturer: MechMaxx
SKU: 150135
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$2,768.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
MechMaxx EFS 60 Flail Mower 60" Light-Duty 3 Point PTO Driven 15-35HP New
Product Overview
- This mower will save time and economically cut plants in larger areas.
- The attachment has a flail hammer to help the mower push through dense debris.
- The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
- Offset category 1, 3 point knot.
- It is recommended for 15-35HP tractors.

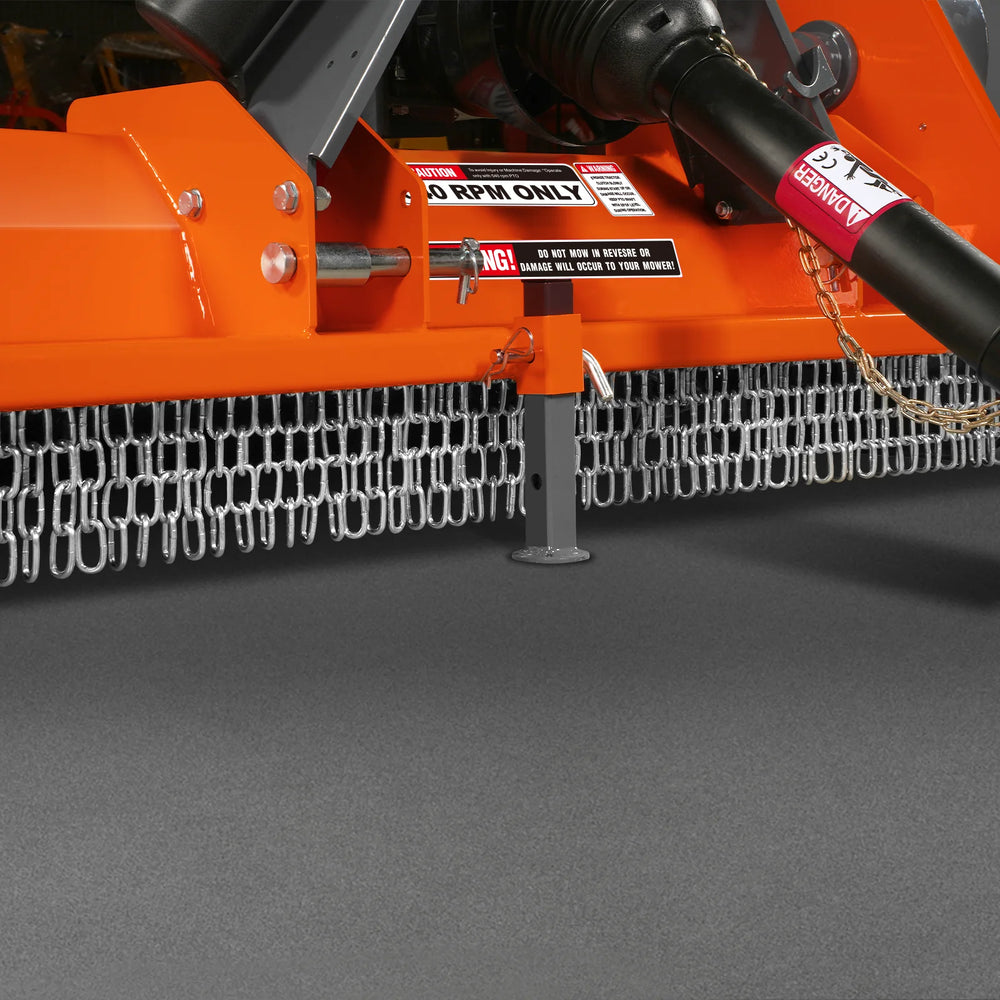

- Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

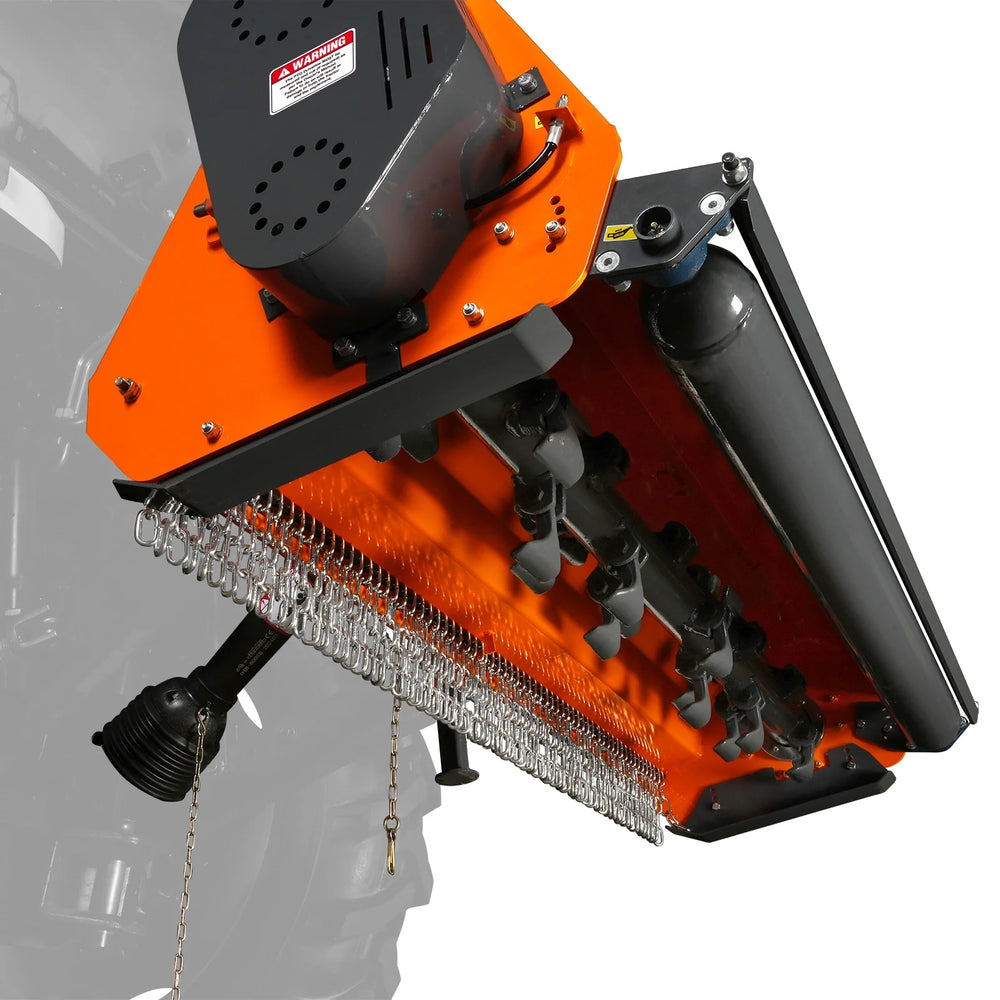

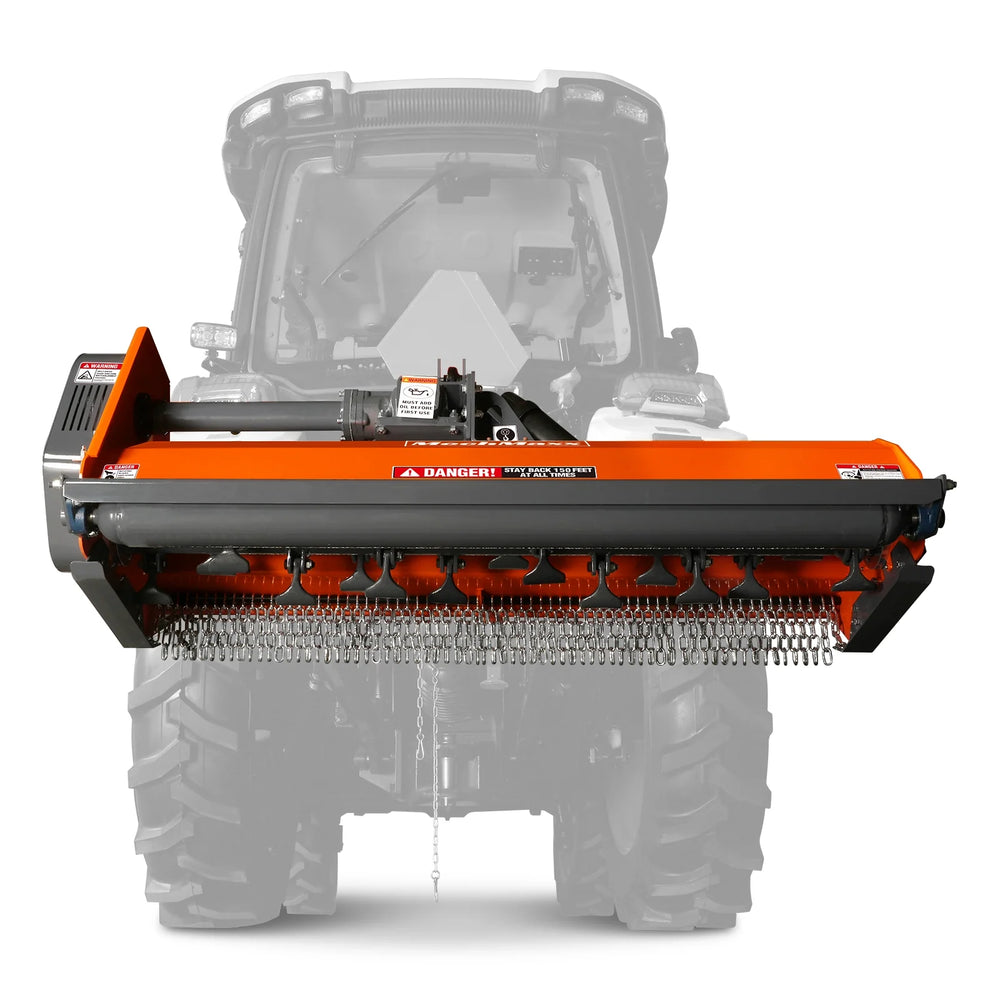

- Hammers: 24 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.
- PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-31’’ with shear bolt ; 31’’-43’’
- Max Cutting Diameter: This EFS mower has its 60’’ working width and the ability to mulch up to 0.75’’ diameter material.

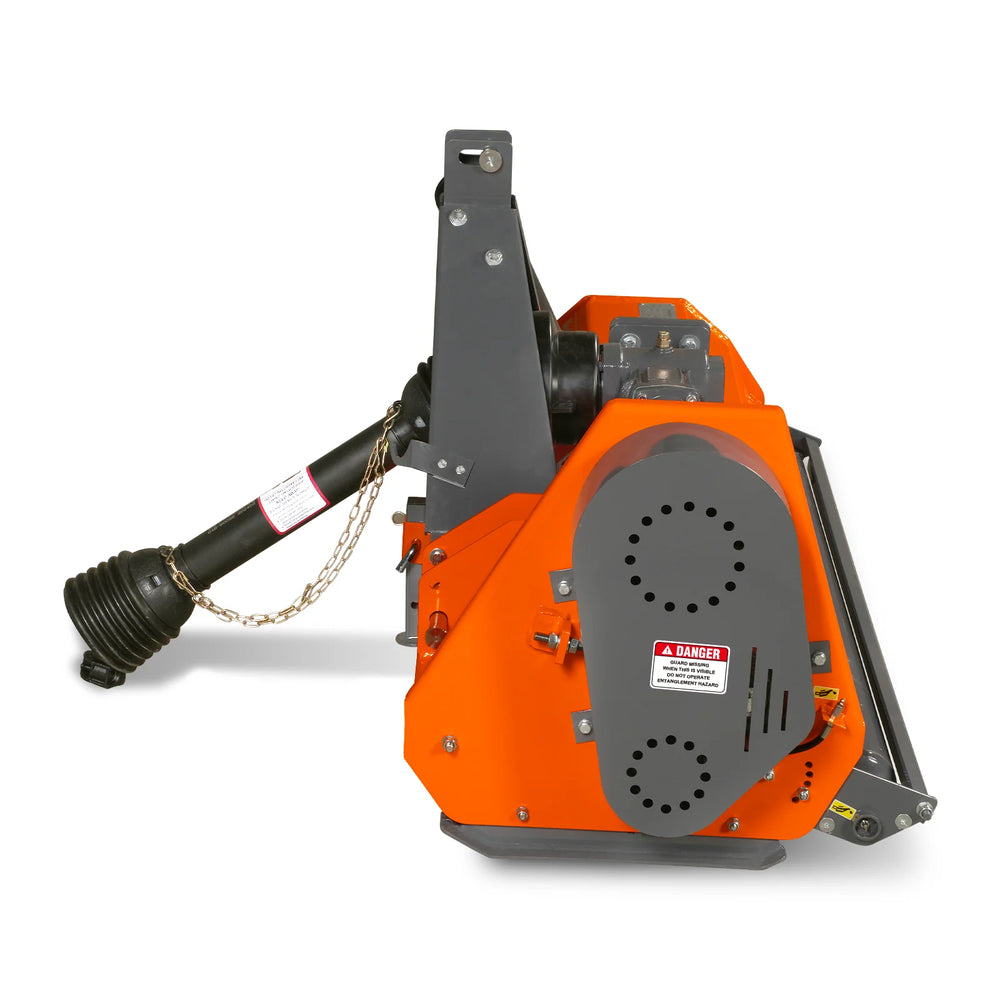

- Belt Tensioner: The belt tensioner ensures the drive belt is properly tensioned which is crucial for efficient power transfer from the engine to the flail shaft and, in turn, the cutting blades. This prevents belt slippage, reduces wear on the belt and pulleys, and ensures consistent cutting performance.
- Outside Rotor Bearing: The bearings of the EFS mower are external, which is convenient for user maintenance and later repairs. The high-quality bearings of shaft bearings are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.
- Rotor Shaft: The 2958 rpm rotor shaft speed ensures the flails have enough velocity to lift and chop the material, preventing bogging down and resulting in a cleaner cut, can lead to a more efficient and effective cut.
Specifications
| Engine Power Required | 15-35HP |
| Drive Type | Belt drive |
| Working Width | 60in |
| Number of Belts | 3 |
| Overall Width | 65in |
| Belt Size | V Belt 13 X 1041 |
| Blade Ground Clearance | 0.6in-1.8in |
| Drive Belt Tensioner | Yes |
| Max. Cutting Diameter | Depends On The Type Of Grass |
| Deck Thickness | 0.16in |
| Number Of Blades | 24 |
| Side Plate Thickness | 0.24in |
| Blade Type | Hammer |
| PTO Shaft RPM | 540 RPM |
| Size Of Blades | 3.5 x 3 x 1.6in |
| Driveline Shaft Length | T5-LF-31 with shear bolt; 31- 43in |
| Blade Weight | 0.8lbs |
| Spline End | 1.375in z6 |
| Blade （Tines）Material | Cast Steel |
| Tractor Mount | Reversible |
| Rotor Bearing | SKF bearing |

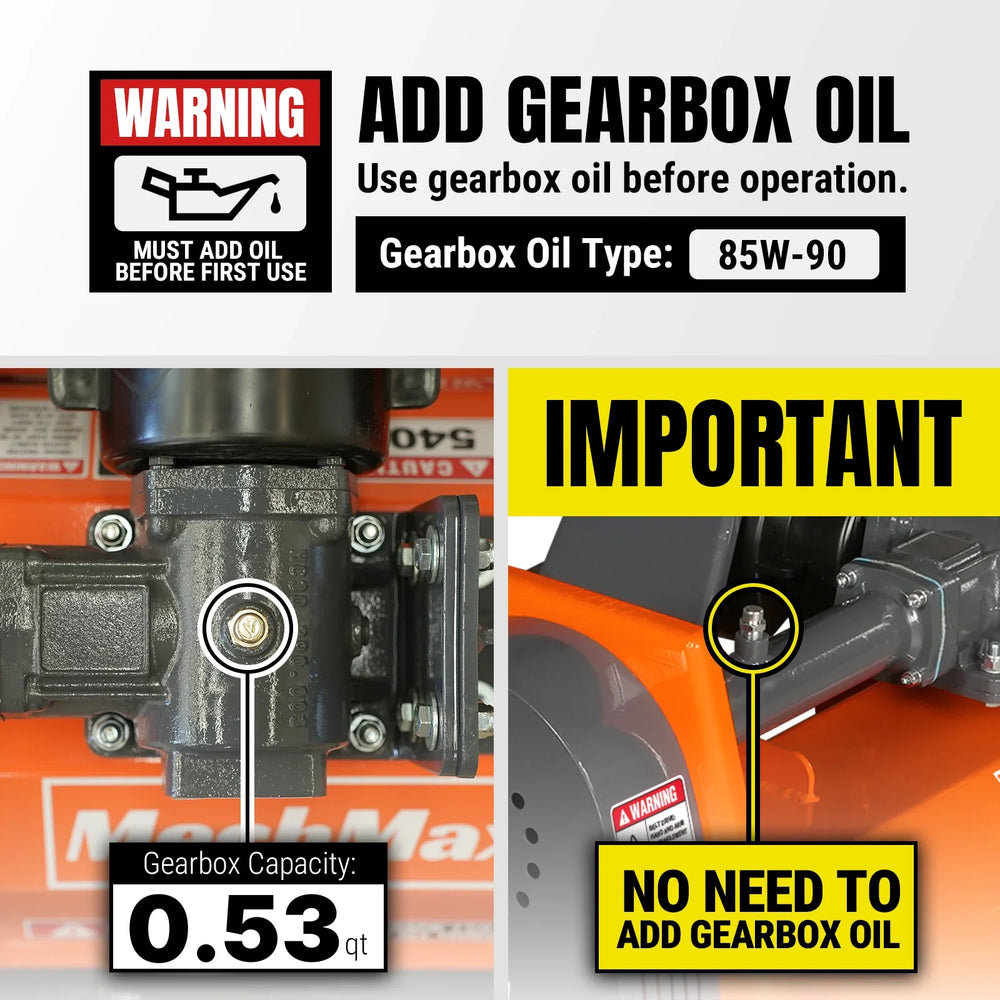

| Gearbox Oil Type | 85W-90 |
| Rotor Diameter | 3in |
| Dimensions (L x W x H) | 65 x 30 x 28in |
| Rotor Swing Diameter | 11in |
| Finish | Powder Coat Paint Galvanized Steel |
| Rotor Thickness | 0.3in |
| Rotor Shaft Speed | 2958 rpm |
| Weight (N.W./G.W.) | 406/503 lbs |
| Blade Speed | 142 ft/s |
Warranty
This item comes with a 1 year factory warranty.
