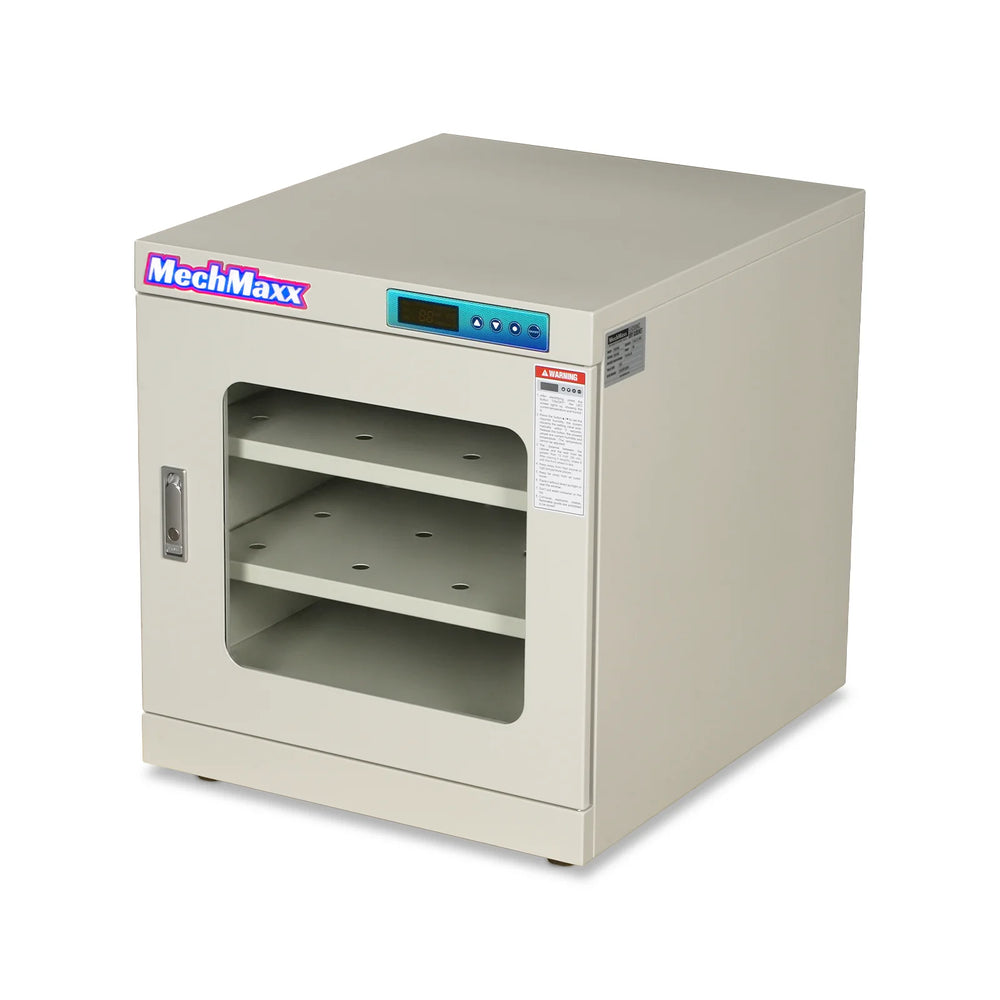

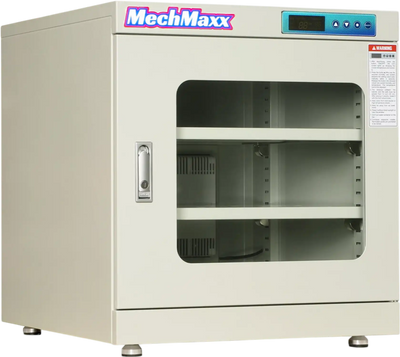

MechMaxx EDC210AW Desiccator Cabinet 210L ESD Electronic Dry Cabinet 20-60% RH Low Humidity Storage White New
Product Overview
Electronic dry cabinets are essential storage solutions designed to protect moisture-sensitive components and devices from the harmful effects of humidity. They are crucial for preserving the integrity and reliability of items such as semiconductors, optical lenses, PCB assemblies, and laboratory chemicals. By maintaining low humidity levels, dry cabinets prevent moisture-induced issues like microcracking, popcorning, delamination, and oxidation, ensuring the longevity and performance of sensitive materials.
- Low Humidity Control: Maintains humidity levels between 20-60% RH to protect moisture-sensitive components. Utilizes advanced, self-regenerating desiccants, eliminating the need for nitrogen or compressed air.
- Modular & Flexible Design: Customizable with easily replaceable modules, including dehumidifiers, shelves, controller, and power unit. Add additional modules as your needs grow, providing a future-proof solution.
- Robust Structure: Built with durable materials like powder-coated steel and tempered glass for long-lasting performance. Designed to withstand frequent access without compromising the storage environment.
- Anti-Static Protection: ESD-safe features include anti-static coatings (body and shelves) and 1 MΩ ground wire, protecting electronic components from electrostatic discharge.
- Intelligent Digital Control: The intelligent microcomputer control system precisely regulates humidity and monitors temperature in real time. Equipped with a high-precision Honeywell humidity sensor, it ensures stable and reliable dehumidification
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- High-precision Honeywell Sensor: The device uses high-precision Honeywell sensor made in the USA, with humidity accuracy of ±3% RH, annual drift of +0.3%, and temperature accuracy of ±1%, offering high precision and stability.

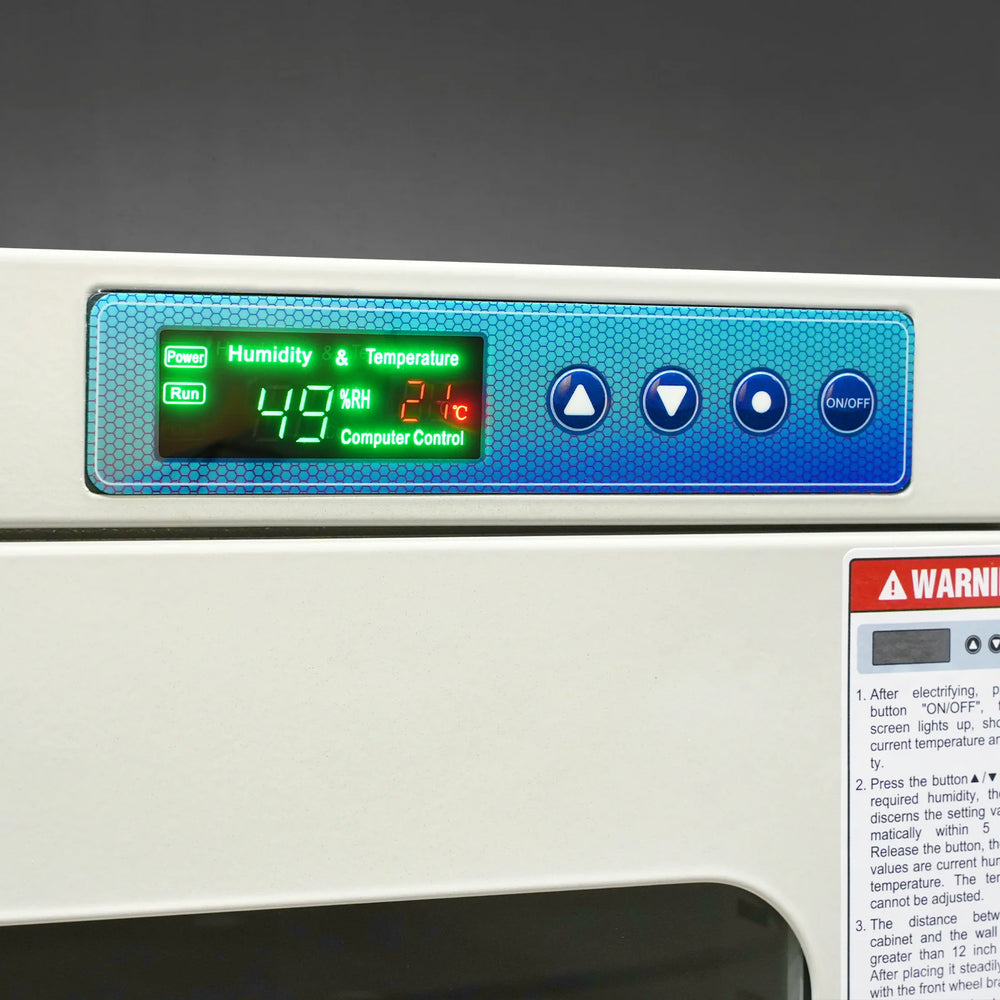

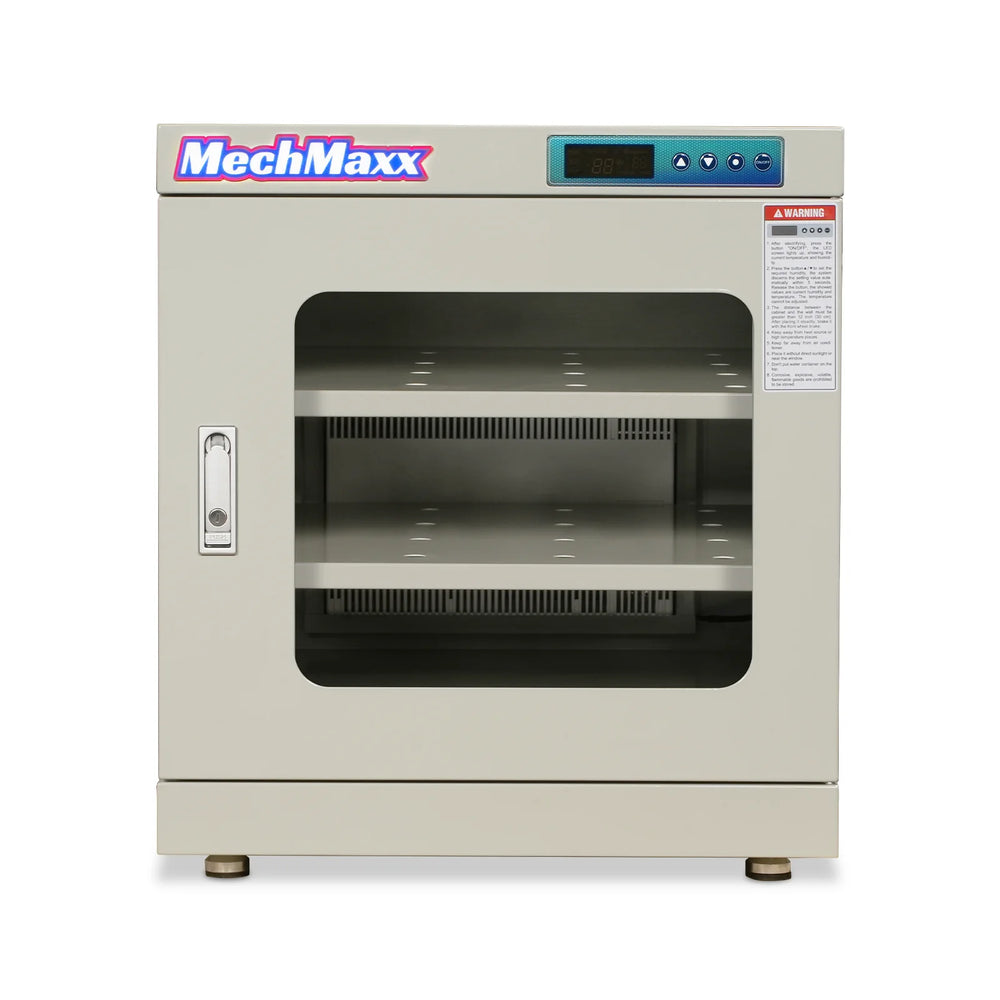

- LED Display Control Panel: The LED panel displays status indicators for easy troubleshooting. With automatic memory, no reset is needed after a power outage. The cabinet can be set to maintain any humidity level between 1% and 10%.

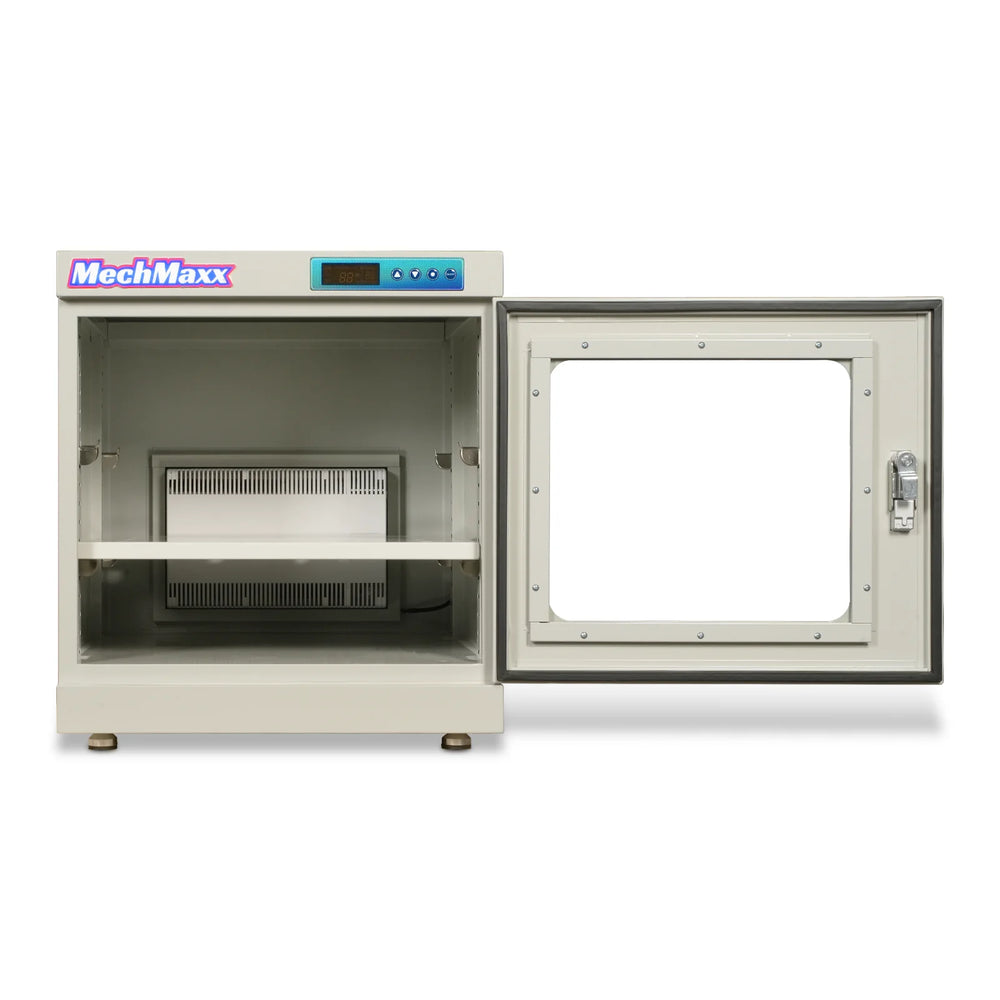

- Reliable Dehumidifier: This reliable dehumidifier operates silently, with a modular design for easy maintenance and upgrades. The unit’s housing is made of durable PPS material and A-class flame-retardant materials, with a temperature tolerance of over 300°C. The self-regenerating desiccant maintains ultra-low humidity with minimal energy consumption, reducing the need for human intervention.
- ESD Safe Design: All cabinets are equipped with ESD safety features, include anti-static coatings (body and shelves) and 1 MΩ ground wire, protecting electronic components from electrostatic discharge.

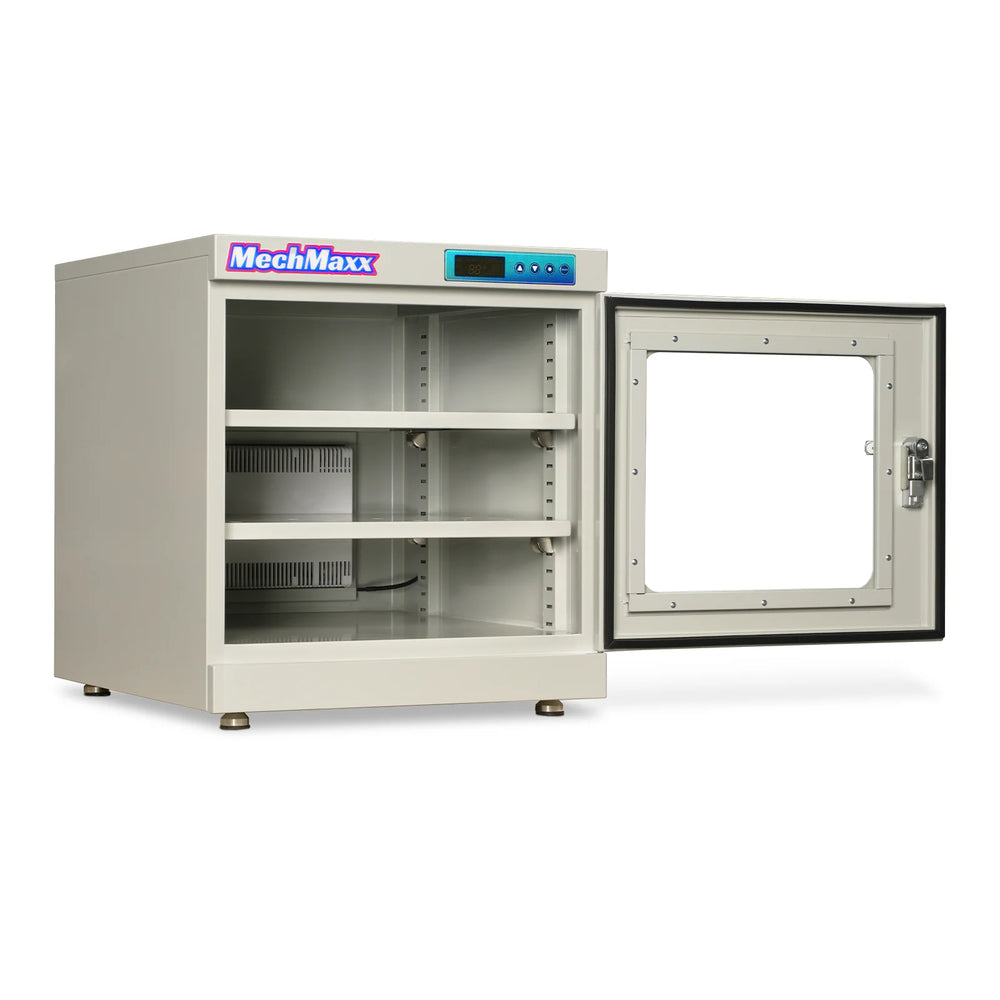

- Specially Designed Robust Structure: The entire cabinet is constructed from high-grade 1-1.2mm steel with a specially designed structure for excellent airtightness. The door features a 5mm explosion-proof tempered glass window and an integrated flat handle with anti-theft protection.

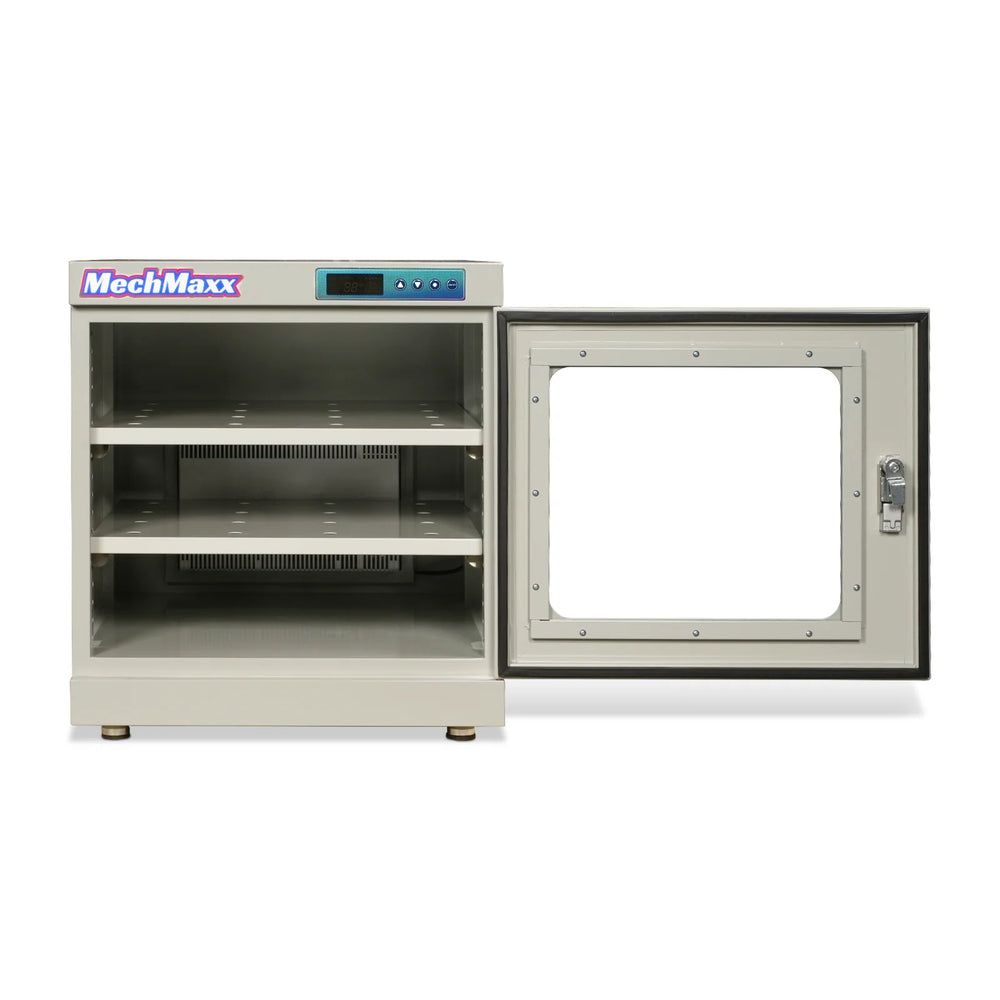

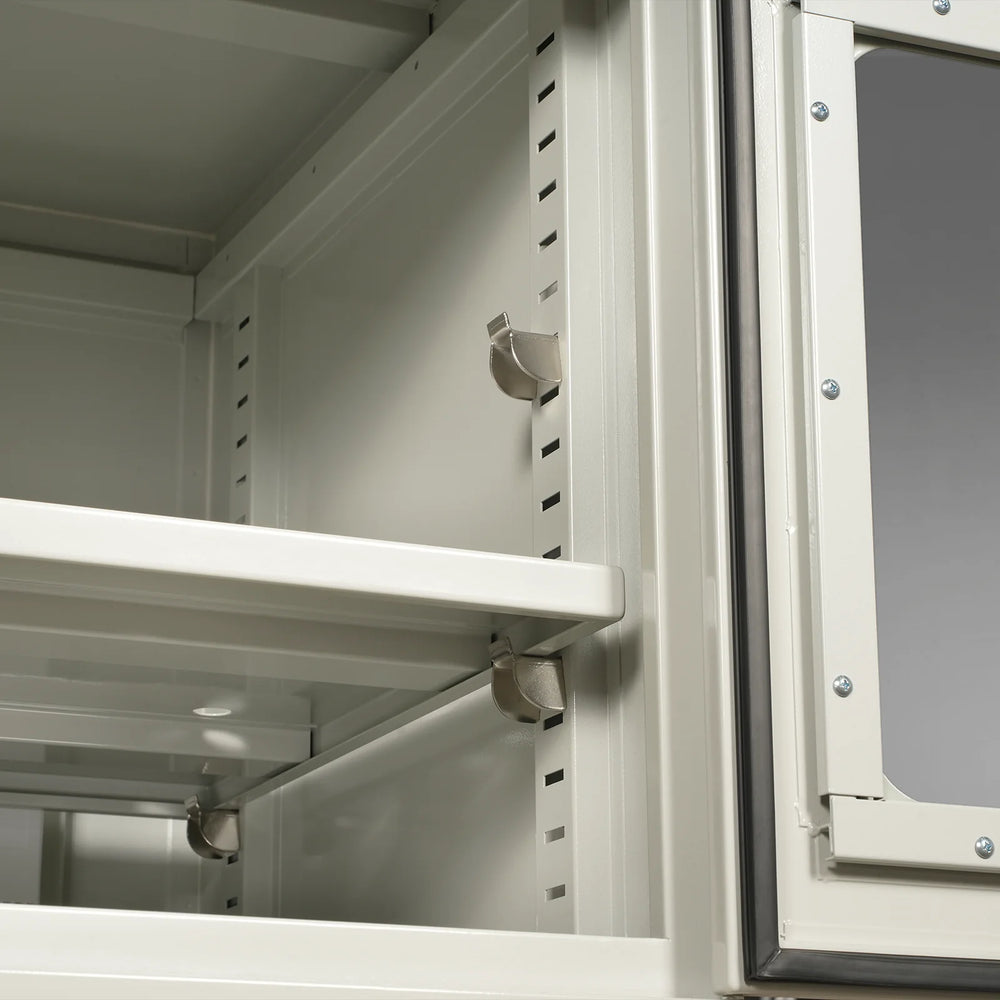

- Adjustable Shelves: The distance between shelves is adjustable, allowing you to add or remove shelves as needed. With a perforated design for optimal air circulation. The uniform load capacity of each shelf can reach up to 66 pounds.
Specifications
| Humidity Range | 20-60% RH |
| Humidity and Temperature Accuracy | ±3% RH, ±1℃ |
| Voltage | 110V 60Hz |
| Power | 11W |
| Capacity | 7.4 cu. ft. (210L) |

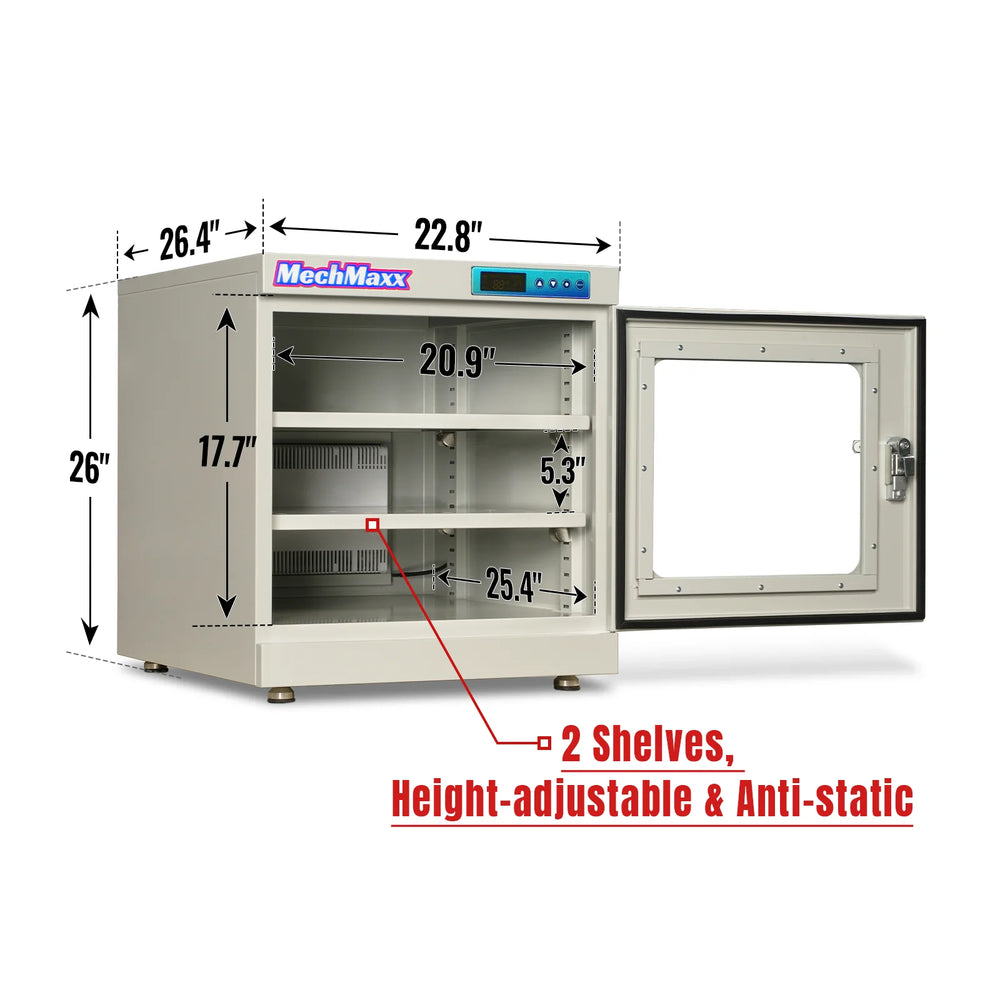

| External Size (LxWxH) | 22.8 x 26.4 x 26 in |
| Internal Size (LxWxH) | 20.9 x 25.4 x 17.7 in |
| Structure | 1-1.2 mm High-grade Steel with ESD Coating |
| Dehumidifiers | 1 Dehumidifier, Modular Design |
| Shelves | 2 Shelves, Height-adjustable & Anti-static |
| Doors | 1 Doors with 5 mm Tempered Glass Windows and Compression Handles |
| Casters | N/A |
| ESD Protection | 106~109 Ω (Surface Resistance) |
| Grounding Wire | 1MΩ. |
| Packing Size (LxWxH) | 28 x 31 x 33 in |
| Weight (N.W/G.W.) | 93/146 lbs |
Warranty
This item comes with a factory warranty.
