MechMaxx D50HTFL Mini Dumper 1100 lbs Capacity Electric Start 10HP 302cc Gas Engine Tracked Hydraulic Tipping Lifting Front Shovel New
Product Overview

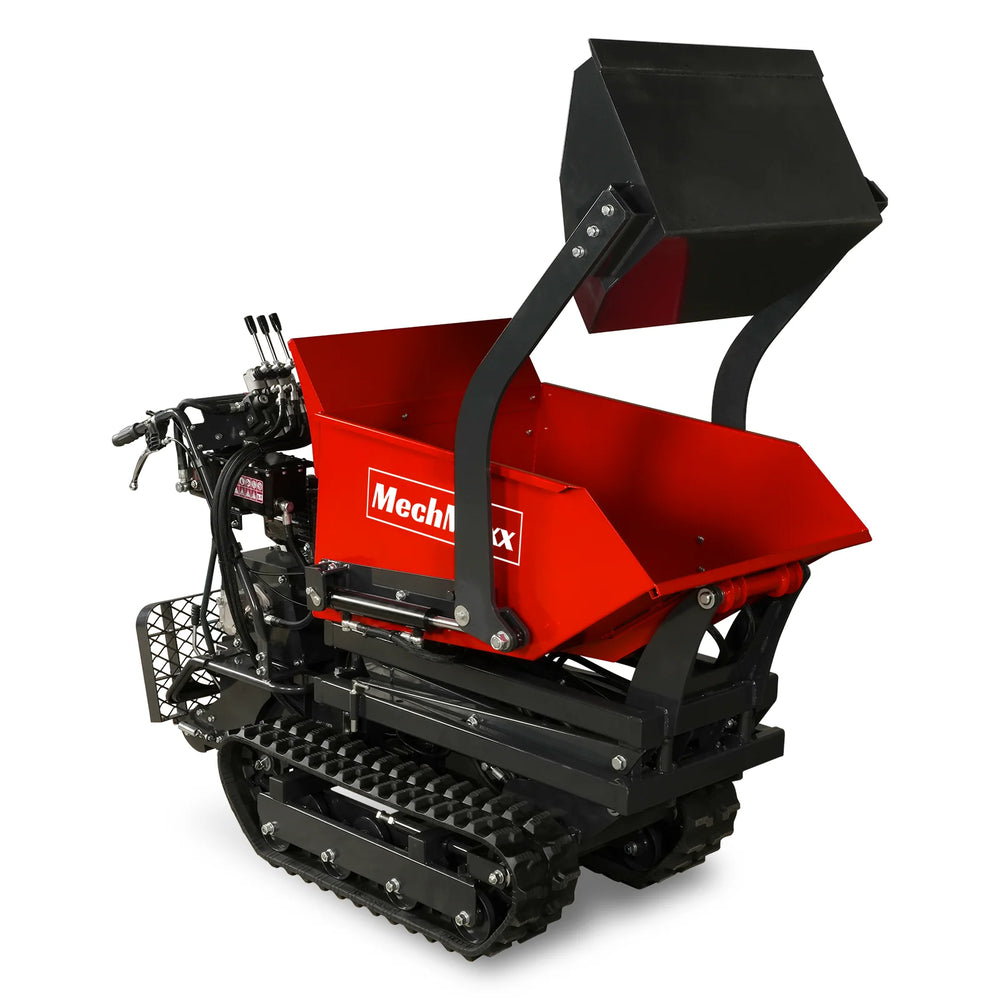

MechMaxx Hydraulic Tracked Dumper
Built with heavy-duty steel and a powerful hydraulic system, this dumper delivers strong lifting and dumping performance. The self-loading shovel and high-tipping bucket make material handling easy and efficient. Compact yet powerful, it runs on a 10HP engine with 6 forward and 2 reverse gears—ideal for tight, tough worksites.
- UNIQUE DESIGN: This tracked dumper is equipped with 6 forward and 2 reverse transmission, which offers an advantage over friction driven designs used on similar machines.

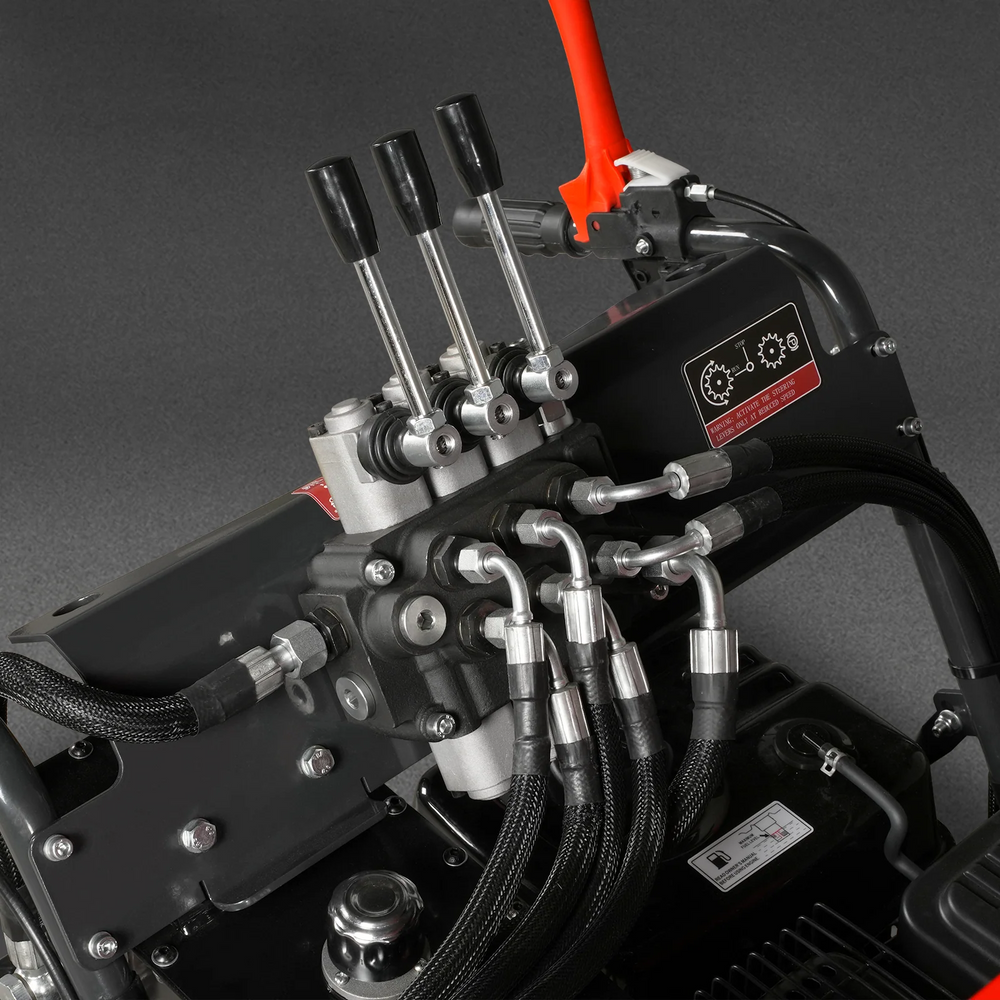

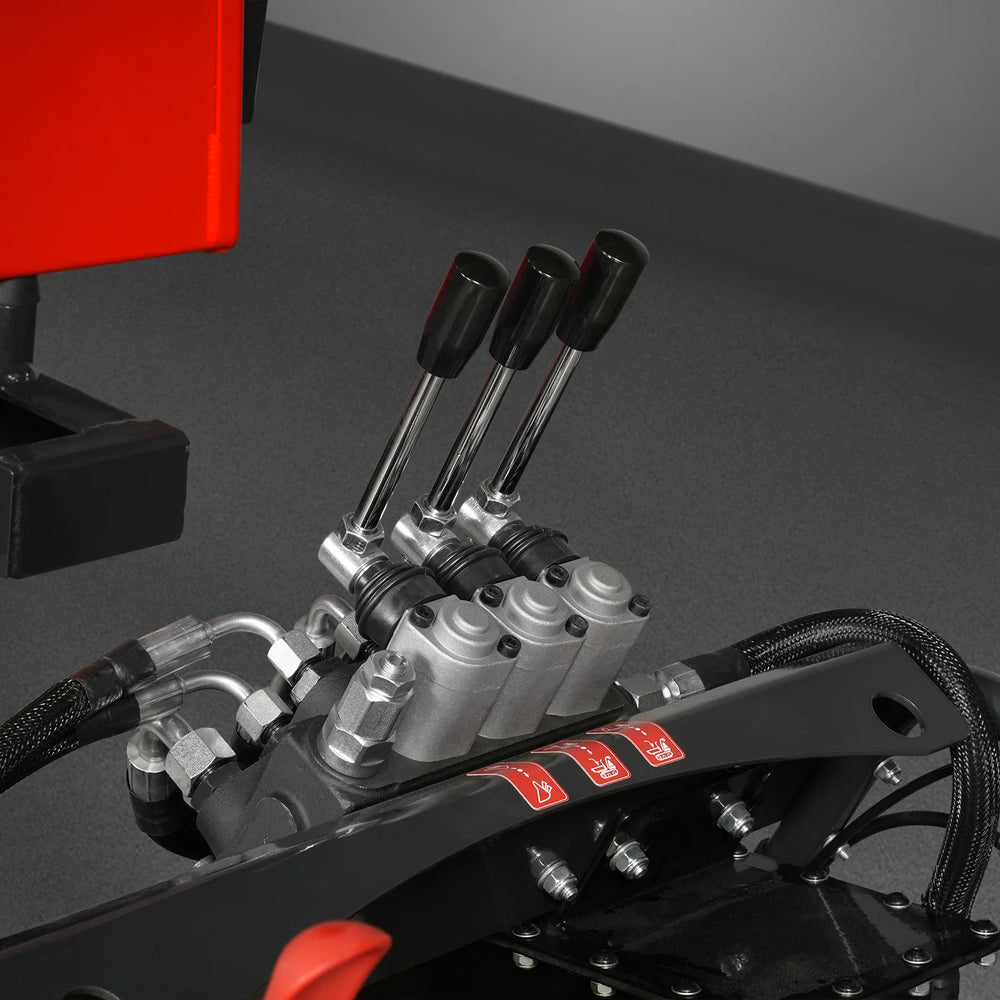

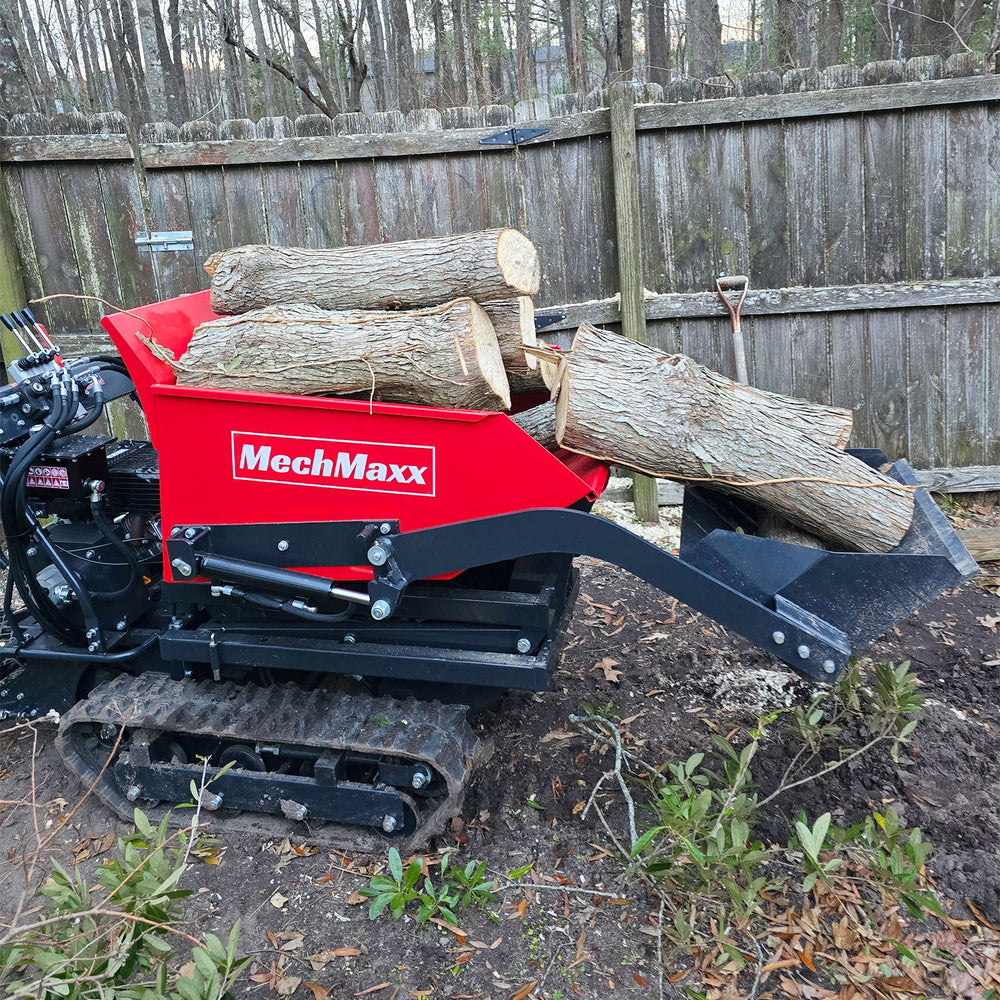

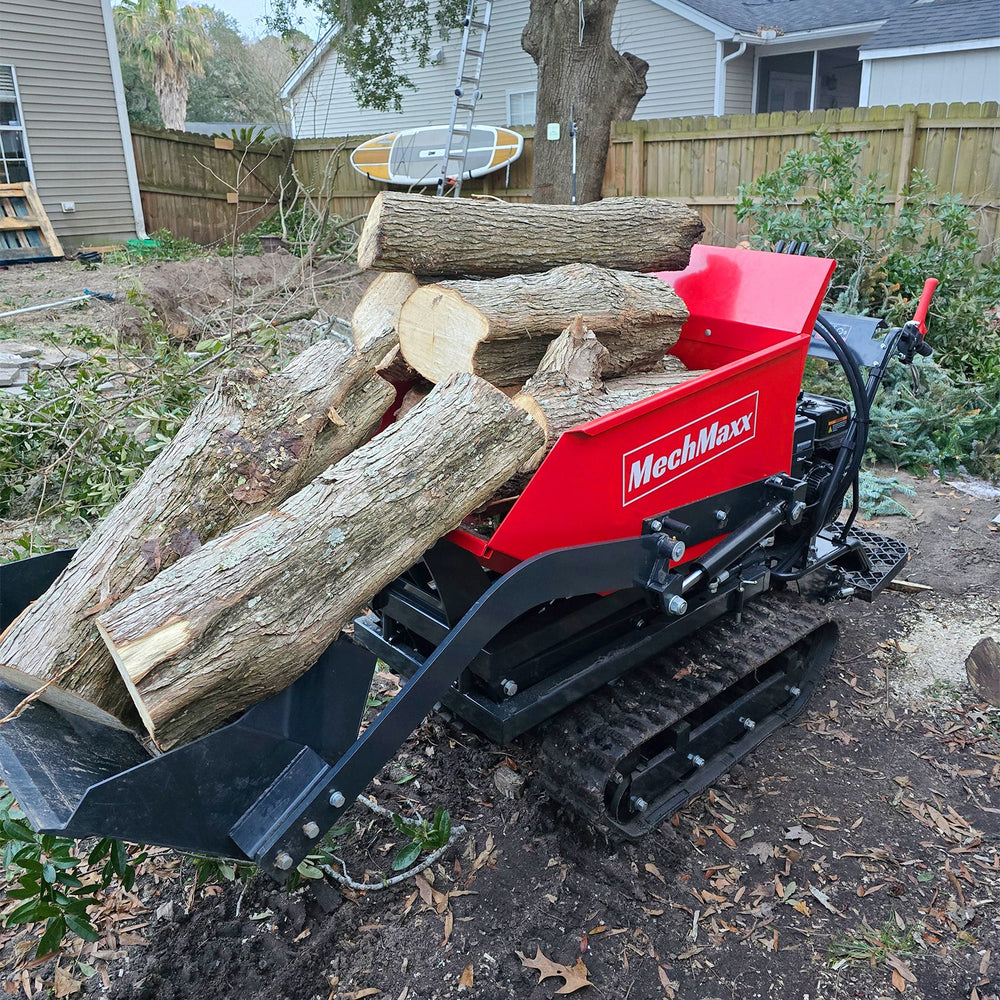

- EASY OPERATION: Hydraulic self-loading and high-tipping function. Stand-alone loading without the need for another machine transport materials from worksites efficiently, saving money and time.

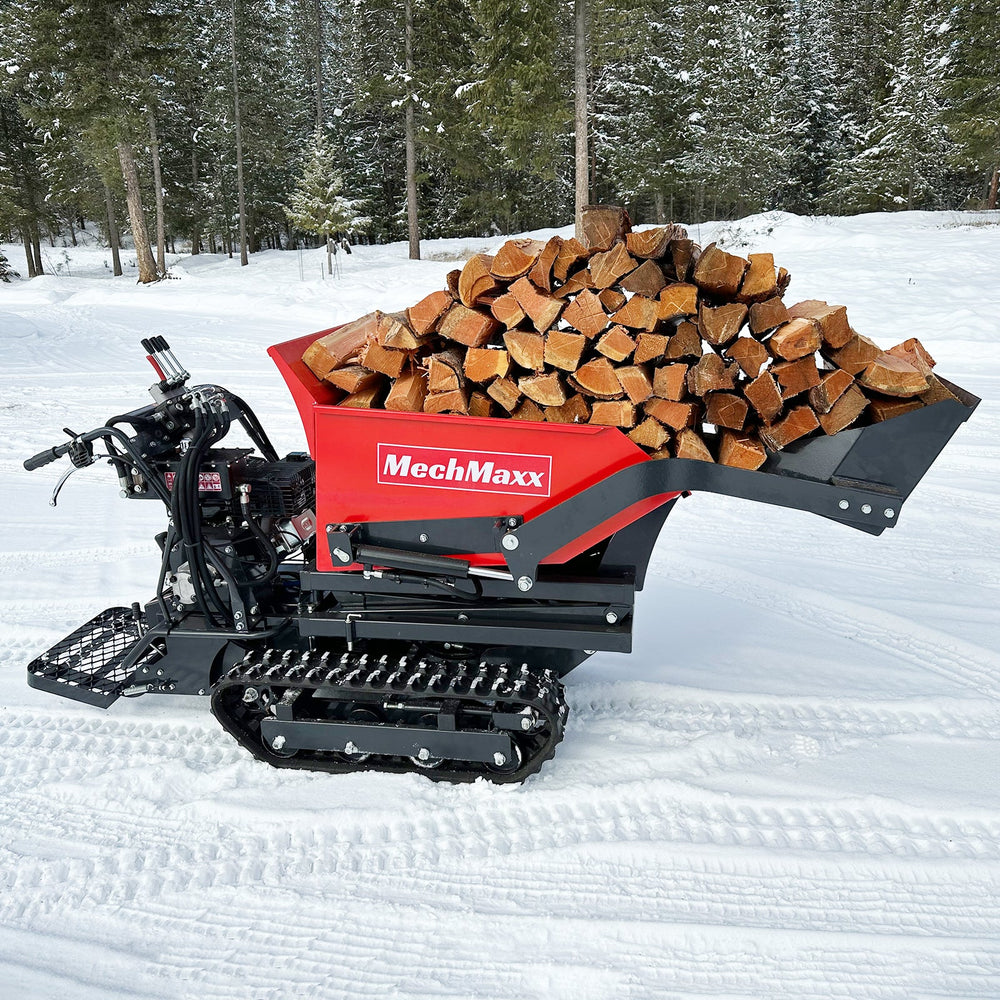

- BEST APPLICATION: The robust steel bucket has a large 1100 lbs & 10 cu.ft. capacity for transportation of a wide variety of materials. The track drive and about 4.3" ground clearance makes this dumper suitable for smooth, slippery or muddy terrain.
- COMPACTNESS: The narrow design helps you to navigate through hard-to-reach spaces. And there is a smart turning circle as well, for maximum maneuverability in tight spaces.
- POWERFUL: 10 HP, 302cc, Single Cylinder, 4 Stroke, Air-Cooled, OHV, ELECTRIC START gas engine.
- Gasoline/Petrol: Clean, fresh, unleaded gasoline
- Engine Oil: 10W-30
- Hydraulic Oil: AW 46 Hydraulic Oil
NOTE!
- This machine doesn't come with oil and fuel in the engine. Before starting the engine, fill the engine with oil and fuel. Read the engine manual.
- This machine doesn't come with hydraulic oil. Please make sure to fill it with hydraulic oil before use.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

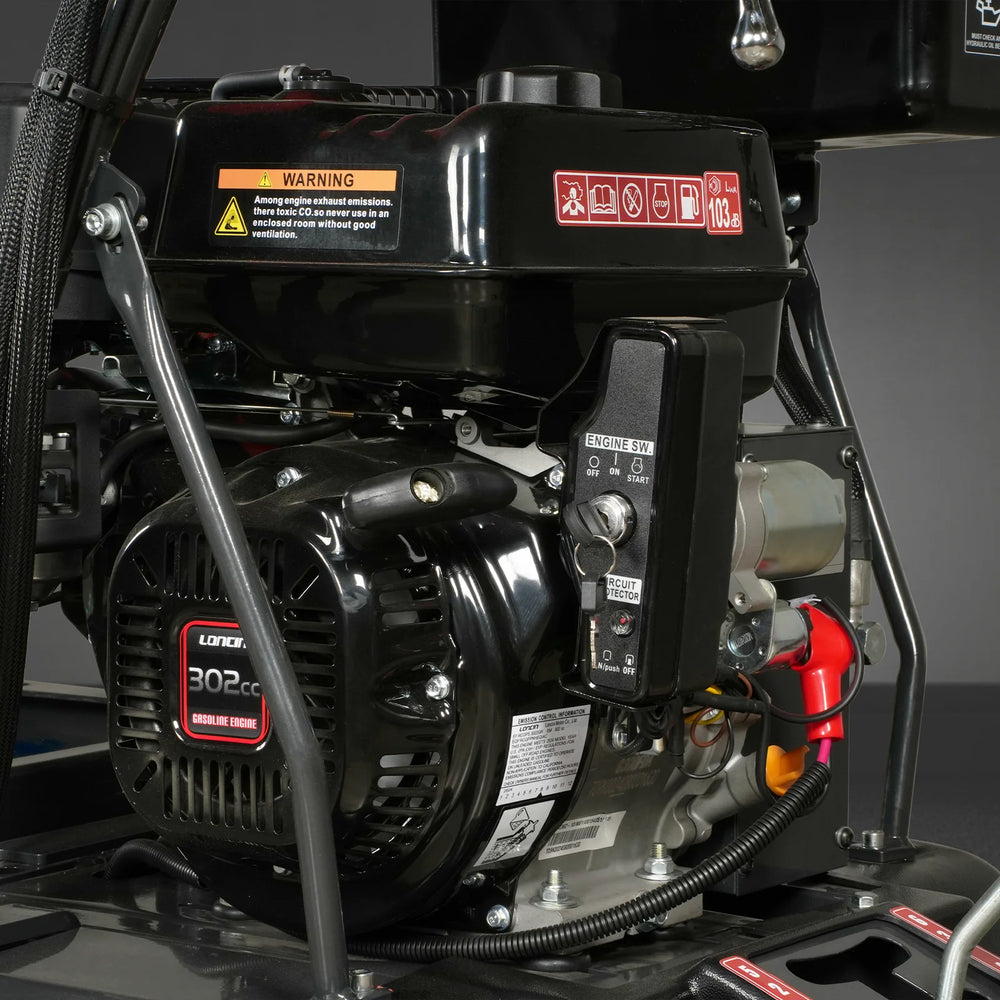

- ELECTRIC START Gasline Engine: This machine is equipped with a 10 HP, 302cc, Single Cylinder, 4 Stroke, Air-Cooled, OHV, ELECTRIC START gas engine, which provides ample power for the machine.
- Large Capacity: It has a large capacity of 1100 lbs & 10 cu.ft. for transportation of a wide variety of materials. The large capacity can improve work efficiency and meet different handling needs.

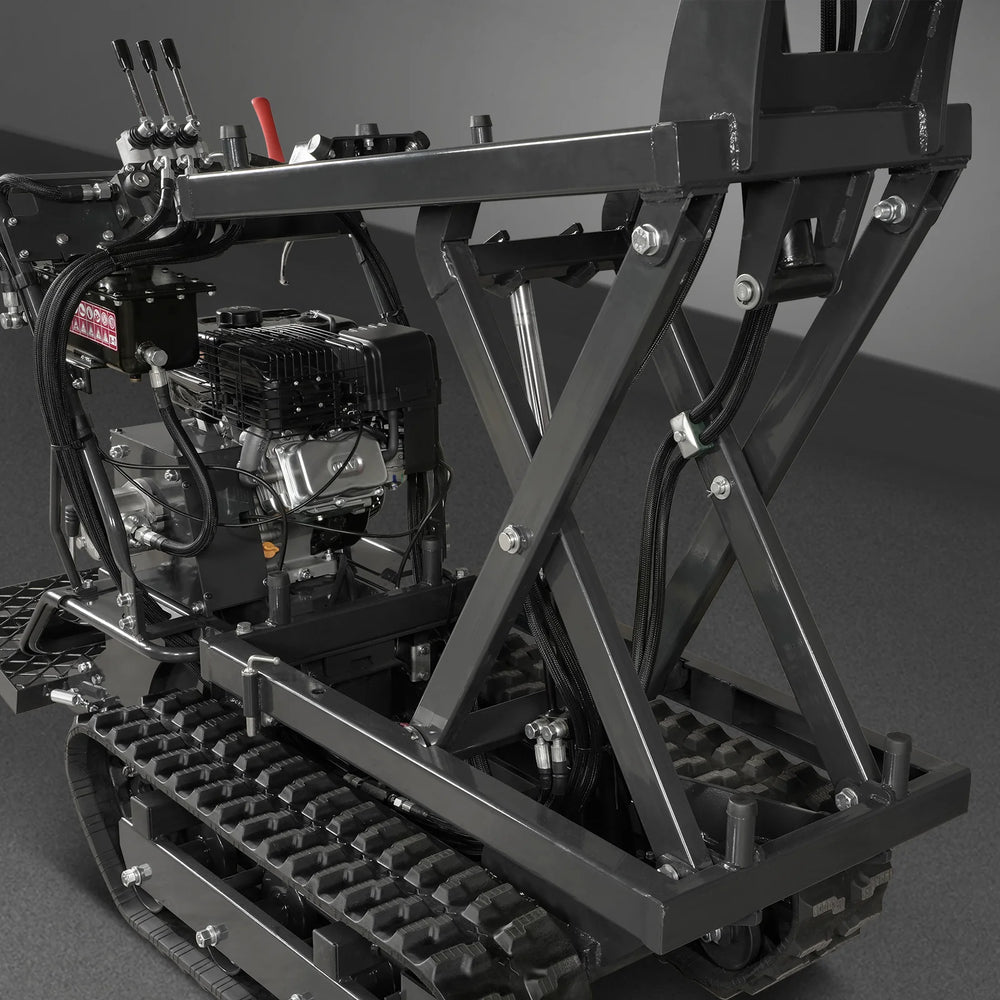

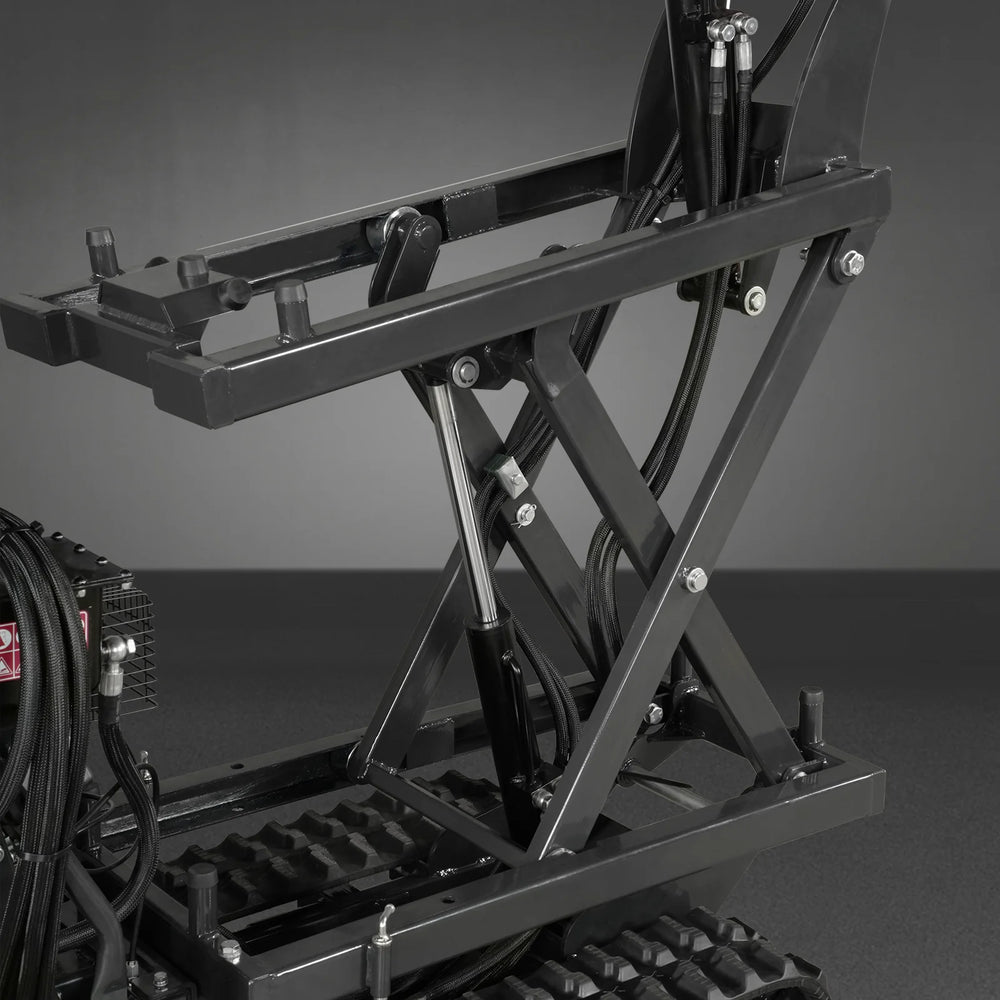

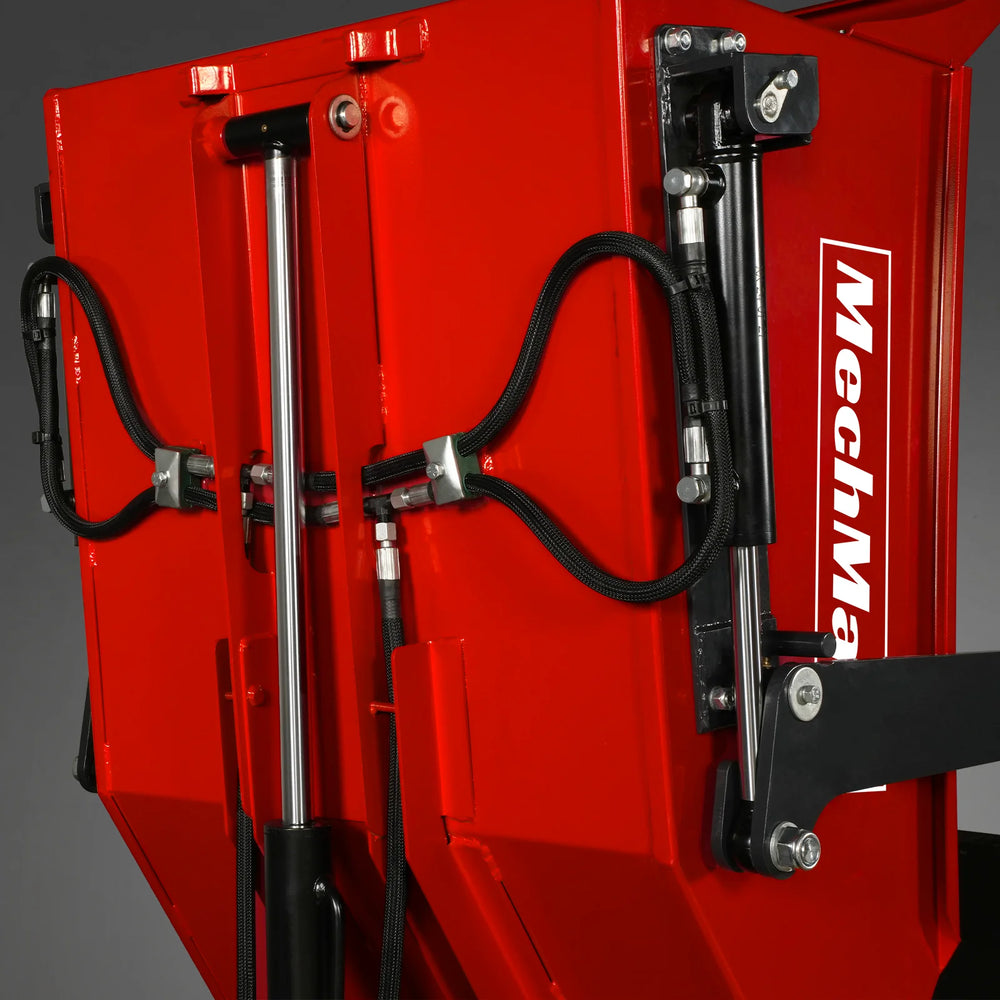

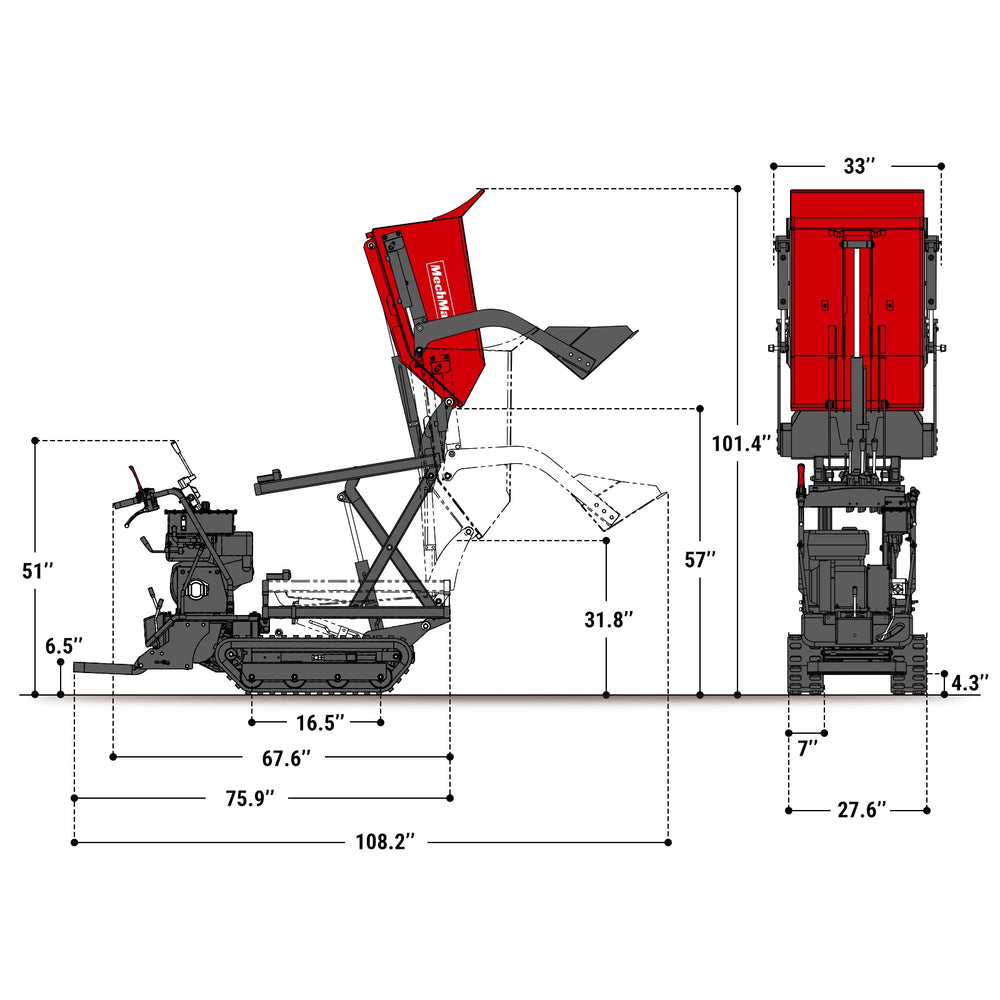

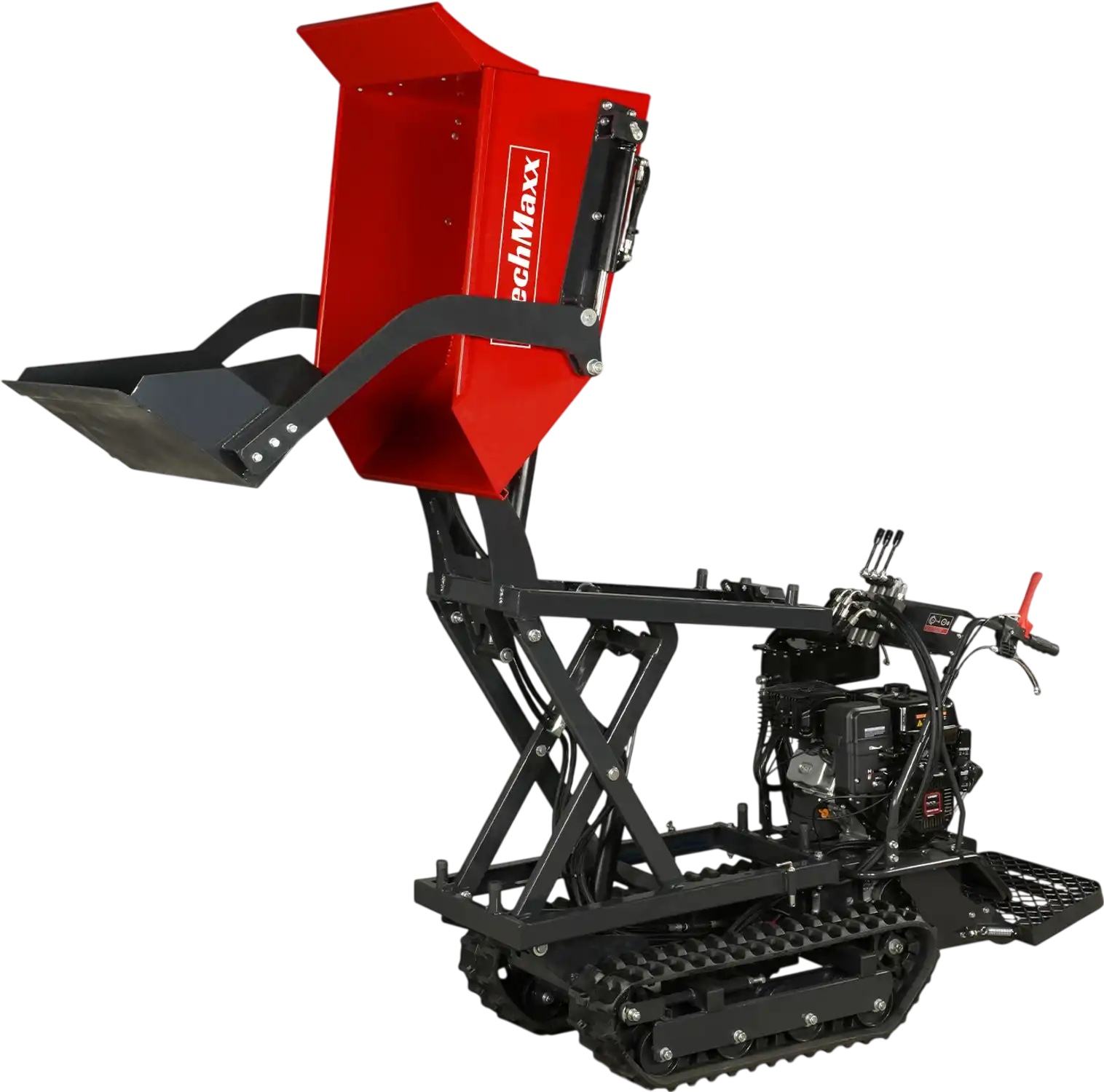

- Lift Height: The hydraulically controlled hopper can be raised and lowered, saving manpower. The maximum lifting height is 57'', and the highest point of the hopper dumping can reach 101.4'', which can meet the dumping in different situations.
- Transmission: This machine is equipped with 6 forward and 2 reverse transmission, which offers an advantage over friction driven designs used on similar machines. It can meet different speed requirements.
- Small Dimension, High Manoeuvrability: Max machine width is 33'', which narrow design helps you to navigate through hard-to-reach spaces. The track drive and about 4.3'' ground clearance makes this dumper suitable for smooth, slippery or muddy terrain.
- Speed Adjustment: This machine has high and low speed adjustment. The forward speed is 0-4.47 mph and the reverse speed is 0-1.49 mph, which can be adjusted according to the user's needs.
Specifications
| Engine | LONCIN G300FD Gasoline Engine |
|---|---|
| Bucket Capacity | 10 cu.ft. |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Shovel Capacity | 1.8 cu.ft. 550lbs |
| Engine Displacement | 302 cc |
| Overall Width | 33 in |
| Horsepower | 10 HP |
| Max. Dumping Height | 57 in |
| Start | Electric Start (battery included) |
| Bucket Size | 37.8 x 28 x 18.1 in |
| Fuel Tank Capacity | 1.59 gal (6L) |
| Track Width | 7 in |
| Engine Oil Capacity | 0.25 gal (0.95L) |
| Ground Clearance | 4.3 in |
| Hydraulic Oil Capacity | 0.79 gal (3L) |
| Working Pressure | 16 Mpa |
|---|---|
| Transmission | Transaxle 6 Forward / 2 Reverse Speed |
| Track Roller | 8 Pcs |
| Forward Speed | 0-4.47 mph |
| Track Size | 180W x 60P x 38L |
| Reverse Speed | 0-1.49 mph |
| Package Method | Iron Frame |
| Max. Gradeability | 30% |
| Packing Size | 75.5 x 30 x 51 in |
| Loading Capacity | 1100 lbs |
| Weight (N.W / G.W.) | 930 / 1012 lbs |
Warranty
This item comes with a 1 year factory warranty.
