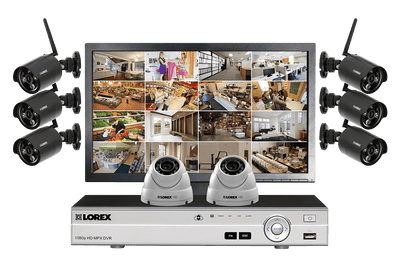

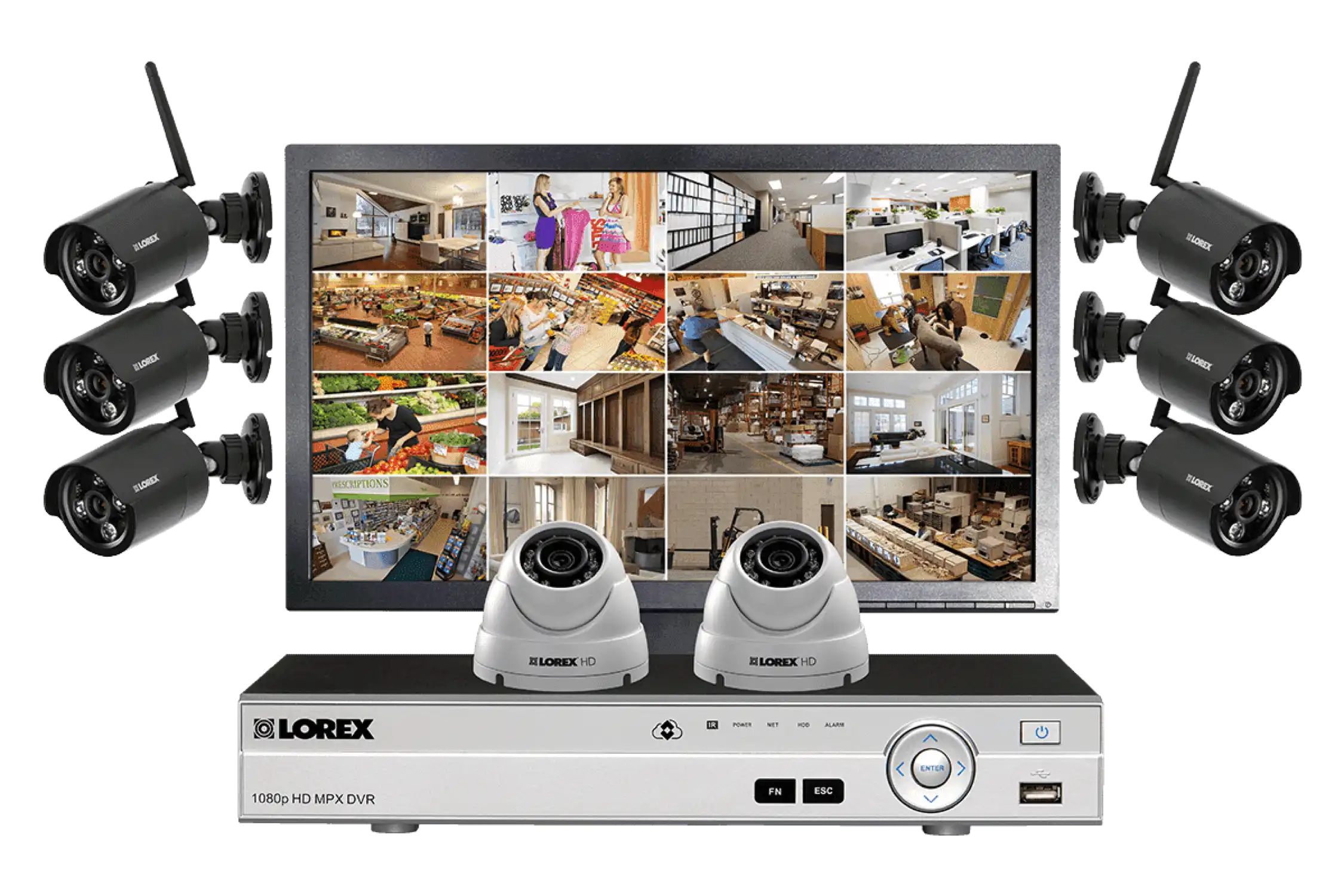

LW1662MDW HD 6 Wireless Cameras 2 Wired Cameras 16 Channel DVR and Monitor Indoor/Outdoor Surveillance Security System New

	Brand new in box & manufacturer direct
	2 year factory warranty
	Remote monitoring using the Flir app
	All original accessories included
	Authorized Lorex dealer
	Ships same or next business day

What's in the box:

• 16 channel DVR
• VGA Wireless Bullet Cameras (6)
• HD Bullet Cameras (2)
• Wireless Receivers (6)
• Power Adapters (8)
• Network Cable
• HDMI Cable
• DVR Power Adapter
• Mouse
• Remote
• 3 TB security Hard drive
• Manuals
• LED Monitor

Features:

DV7163

16 channel, analog HD 1080p security DVR:

• True high definition 1080p recording on all cameras¹
• 24/7 security-grade hard drive
• Continuous, scheduled and motion recording
• PTZ cameras supported, remote control through App¹
• H.264 video compression²
• HDMI cable included for simple connection to HD TVs³
• Accurate time stamps with NTP & daylight savings time
• Click and drag digital zoom in live view and playback
• 2 video outputs (HDMI & VGA) to connect multiple monitors
• Instant USB backup of live video from selected camera
• Automatic firmware upgrade
• 3-Step remote view with FLIR Cloud⁴
• PC and Mac compatible⁵
• Instant mobile viewing on smartphones and tablets⁵
• Advanced apps with live viewing, playback, video recording, and snap shot
• Mobile push notifications of motion events and email alerts
• Dual streaming to conserve bandwidth

Each DV7163 Includes:

1 × DVR

1 × HDMI Cable

1 × Remote Control

1 × Power adapter

1 × Mouse

1 × Ethernet Cable

Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

LW2297B

Wireless security camera with night vision features:

• Real-Time (up to 30fps) wireless video with MPEG-4 compression @ 640x480 (VGA) resolution¹
• Extended bandwidth delivers smooth high frame rate video¹
• SignalGuard Technology continuously monitors the wireless signal and automatically reconnects upon detecting low signal strength
• Next generation adaptive Frequency Hopping Spread Spectrum (FHSS) technology greatly reduces signal interference
• Auto-mechanical infrared camera filter achieves accurate color reproduction in varying lighting conditions
• 2 channel receiver for separate wireless video channels to your DVR minimizes cable clutter (only applicable to models: LW2232PK2B / LW22PK2B)
• Long Range night vision range up to 135ft (41m) / 90ft (27m)²
• Simple installation. No video cable required³
• Weatherproof camera and power connectors for outdoor or indoor installation⁴
• Easily connects to any surveillance DVR (BNC)
• High gain antennas provide up to 165ft (50m) indoor / 500ft (152m) outdoor wireless range⁵
• Vandal resistant camera design with cable pass-through mounting brackets

LEV2712B

Weatherproof 1080p High Definition IR Dome Security Camera:

• True HD 1080p Image Sensor¹
• Crystal clear video with outstanding detail, day or night
• Infrared cut filter ensures accurate color representation
• Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness²
• Close up recognition in the dark with SmartIR
• ClearNight imaging for superior low light performance, improving recording efficiency
• Extreme temperature performance (-22°F ~ 140°F / -30° ~ 60°C)
• Weatherproof for outdoor & indoor installation (IP66 Rated)³
• Wide angle 90° field of view
• Residential and business friendly compact design
• 3-axis design for wall / ceiling mounting

L24LE10B

Surveillance Monitor Features:

• Display: 23.6" viewable image with 16:9 aspect ratio
• Resolution: Max 1080P (1920 x 1080)
• Color resolution: approx. 16.7 million
• Response time: 5ms
• Contrast Ratio (DCR): 20,000,000:1
• Power Source: Universal 100~240VAC,50/60HZ
• Power Consumption: 23 W
• Unit Dimensions: 22.3" (W) x 15.6" (H) x 7.5" (D) / 561.3mm (W) x 399.6mm (H) x 199.3mm (D)
• Weight (NET): 8.15lbs / 3.7kg
