Lorex LN10802-84W 4 Camera 8 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Manufacturer: Lorex by Flir
SKU: LN10802-84W
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$765.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Lorex LN10802-84W 4 Camera 8 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Product Overview
 |
 Brand new in box & manufacturer direct |
|
 1 year factory warranty |
|
 Remote monitoring using the Flir app |
|
 All original accessories included |
|
 Authorized Lorex dealer |
|
 Ships same or next business day |

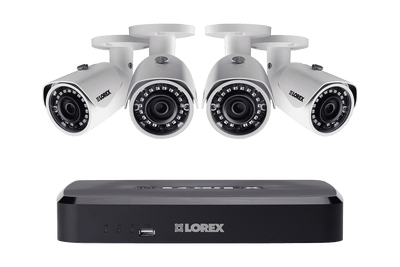

What's in the box:
- 8 channel 2K HD network video recorder
- HD Security Cameras (4)
- 60ft Cat5e Extension Cable (4)
- Network Cable
- HDMI Cable
- DVR Power Adapter
- Mouse
- Manuals
Â
Features:
8CHANNELSHD NVR supports up to 8 cameras |
4CAMERAS4 × 4MP HD bullet cameras |
130FTNIGHT VISIONMaximum night vision |
2TBHARD DRIVEMaximum capacity 1 x 4TB hard drive |
LNR1182
8 channel HD 2K security NVR
- High definition 2K recording
- Real-time recording at 25/30fps per channel1
- 8 built-in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
- Automatically detects compatible IP cameras in the network2
- Expand your system with a network PoE switch, sold separately3
- 24/7 security-grade hard drive4
- Continuous, scheduled and motion recording
- Simultaneous playback and live view on the same screen
- Selectable area digital zoom in live view and playback
- Accurate time stamps with NTP & daylight savings time
- H.264 video compression4
- Instant USB backup of live video from selected camera
- 2 video outputs (HDMI & VGA) to connect multiple monitors
- HDMI cable included for simple connection to HD TVs
- Keep up to date with automatic firmware upgrades5
- 3-step remote view with FLIR Cloudâ„¢6
- PC and Mac compatible7
- Free iOS® and Android™ compatible apps with live viewing, playback, video recording, and snap shot7
- Dedicated iPad app with multi-channel live viewing and playback7
- Push notifications of motion events
- Instant email alerts with snap shot attachment
- Dual streaming to conserve bandwidth
LNB3163B
3MP HD IP security camera features:
- High definition 3MP image sensor delivers 50% more detail than 1080p1
- Infrared cut filter ensures accurate color representation
- Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
- Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
- ClearNight imaging for improved low light performance and improved recording efficiency
- 75° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
- 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
- Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Single-screw bracket adjustment for faster installation
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)3
Specifications:
| Image Sensor | 1/3" 3MP |
| Video Format | NTSC / PAL |
| Effective Pixels | H: 2304 × V: 1536 |
| Resolution | 3MP (2048×1536) @ 25fps |
| Scan System | Progressive |
| S/N Ratio | ≥56dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 (1/4) ~ 1/100,000s |
| Min. Illumination | 0.7 lux without IR, 0.4 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 2.8mm F2.0 / Fixed |
| Field of View (Horizontal) | 75° |
| Termination | RJ45 Ethernet / 12V DC Power Barrel (optional) |
| IR LED Type | 850nm |
| Night Vision Range | 130ft (40m) / 90ft (27m) |
| Color Night Visionâ„¢ | Yes |
| Power Requirement | PoE (Power over Ethernet) Class 3 / 12V DC |
| Power Consumption | Max. 285mA / 3.4W |
| Operating Temp. Range | -22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.9lbs / 0.4kg |
| Operating System | Linux (embedded) |
| Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |
| Number of Channels | 8/16/32 Channels |
| Video IN | 8ch: 8 PoE, 16/32ch: 16 PoE |
| Video OUT | No |
| VGA OUT | Yes |
| HDMI | Yes |
| Audio IN | 1 Line IN (RCA) for service only |
| Audio OUT | 1 Line OUT (RCA) for service only |
| USB Port | 1 at the back, 1 at the front |
| Alarm IN | 4 Alarm IN |
| Alarm OUT | 2 Alarm OUT |
| Video Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| PTZ control | Lorex IP PTZ cameras only |
| Display | 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36 |
| Live Display Speed | 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL |
| OSD | ON/OFF |
| System Navigation | USB Mouse, IR Remote Control, Front Panel Buttons |
| Motion Area Setting | Fixed Grid (22×18) |
| Sensitivity Levels | 100 |
| Firmware Upgrade | Automatic over the Internet & via USB device and network |
| User Authority | By user group |
| Time Synchronization | Automatic time sync by NTP server |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Resolution | Up to 4K (3840×2160), 1080p (1920×1080) |
| Record Rate | 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 Levels |
| Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel |
| Pre Recording | Max. 4 Secs |
| Post Recording | Max. 5 Minutes |
| Reliability | Watch-Dog, auto-recovery after power failure |
| Covert Video | Yes |
| Playback Channel | 1CH/4CH@4K, 8CH@4MP, 16CH@2MP |
| Playback Speed | Variable Max 16x |
| Playback Players | Backup Player |
| Search | By Time & Event |
| Log Search | Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss |
| Audio Play | Yes (audio camera required) |
| Storage | Up to 2 HDDs (SATA) |
| Maximum Capacity | Up to 2×6TB (12TB Max) |
| Backup Media | USB Flash Drive & HDD |
| Backup File Format | DAV or ASF File |
| Cloud Connection | FLIR Secureâ„¢ |
| Supported Operating Systems | Windowsâ„¢ / Mac OS X |
| Remote Software | Client Software (PC & Mac) |
| Email Notification | Text with snapshot |
| Instant Smart Phone & Tablet | Android™, iPad®, iPhone® |
| DDNS | Free Lorex DDNS |
| System Configuration | Full setup configuration over network |
| Ports | Programmable by User |
| Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
| Network Interface | 10/100/1000-Base-TX, RJ-45 |
| Network Bit Rate | 320Mbps total, 48~8192kbps per camera |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60Hz |
| Total PoE Power Output | 130W (Max 25W per Camera) |
| Unit Dimensions (W × D × H) | 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm |
| Unit Weight | 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |
As a Lorex authorized dealer, this product comes with a 1 year factory warranty.
Extends factory warranty to 2 total years
