Lorex HDIP1688DW 16 Camera 16 Channel Weatherproof 2K Resolution Surveillance Security System New
Product Overview
 |
Brand new in box & manufacturer direct |
|
1 year factory warranty |
|
Remote monitoring using the Flir app |
|
All original accessories included |
|
Authorized Lorex dealer |
|
Ships same or next business day |

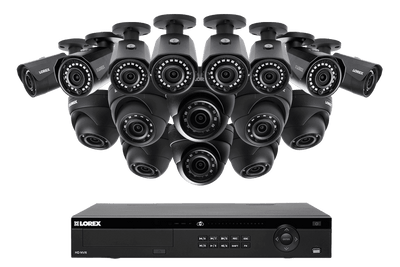

What's in the box:
- 16 channel 2K network video recorder
- 2K Dome Cameras (8)
- 2K Bullet Cameras (8)
- 100ft Cat5e Extension Cable (16)
- 3TB Security Hard drive
- Power Cable
- HDMI Cable
- Ethernet Cable
- Remote
- Mouse
- Manuals
Features:
NR9163
16 channel, 4K ultra HD network video recorder:
- Real-time recording up to 8MP on all channels - 4× the detail of 1080p
- Supports industry-leading 4K recording 1
- 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
- RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
- FLIR Secure™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™) 2
- PC and Mac compatible - FLIR Cloud™ video management software gives you complete control over your security system from anywhere 2
- 24/7 security-grade pre-installed hard drive 3
- Expandable high capacity storage up to 12TB (2×6TB HDD)
- Automatically detects compatible IP cameras in the network 4
- 4K video output - view multiple HD channels at once in full resolution on a 4K TV
- H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing 3
- Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive 5
- Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
- Click-and-drag digital zoom in live view and playback
- Convenient front panel button controls
- Accurate time stamps with NTP & daylight savings time
- Instant backup of live video to a USB flash drive
- Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date 6
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Multi-streaming to conserve bandwidth
- Continuous, scheduled, and motion recording
- Dual video outputs (HDMI and VGA) to connect multiple monitors
- HDMI cable included for simple connection to HD amp; 4K TVs
| Operating System | Linux (embedded) |
| Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |
| Number of Channels | 8/16/32 Channels |
| Video IN | 8ch: 8 PoE, 16/32ch: 16 PoE |
| Video OUT | No |
| VGA OUT | Yes |
| HDMI | Yes |
| Audio IN | 1 Line IN (RCA) for service only |
| Audio OUT | 1 Line OUT (RCA) for service only |
| USB Port | 1 at the back, 1 at the front |
| Alarm IN | 4 Alarm IN |
| Alarm OUT | 2 Alarm OUT |
| Video Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| PTZ control | Lorex IP PTZ cameras only |
| Display | 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36 |
| Live Display Speed | 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL |
| OSD | ON/OFF |
| System Navigation | USB Mouse, IR Remote Control, Front Panel Buttons |
| Motion Area Setting | Fixed Grid (22×18) |
| Sensitivity Levels | 100 |
| Firmware Upgrade | Automatic over the Internet & via USB device and network |
| User Authority | By user group |
| Time Synchronization | Automatic time sync by NTP server |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Resolution | Up to 4K (3840×2160), 1080p (1920×1080) |
| Record Rate | 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 Levels |
| Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel |
| Pre Recording | Max. 4 Secs |
| Post Recording | Max. 5 Minutes |
| Reliability | Watch-Dog, auto-recovery after power failure |
| Covert Video | Yes |
| Playback Channel | 1CH/4CH@4K, 8CH@4MP, 16CH@2MP |
| Playback Speed | Variable Max 16x |
| Playback Players | Backup Player |
| Search | By Time & Event |
| Log Search | Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss |
| Audio Play | Yes (audio camera required) |
| Storage | Up to 2 HDDs (SATA) |
| Maximum Capacity | Up to 2×6TB (12TB Max) |
| Backup Media | USB Flash Drive & HDD |
| Backup File Format | DAV or ASF File |
| Cloud Connection | FLIR Secure™ |
| Supported Operating Systems | Windows™ / Mac OS X |
| Remote Software | Client Software (PC & Mac) |
| Email Notification | Text with snapshot |
| Instant Smart Phone & Tablet | Android™, iPad®, iPhone® |
| DDNS | Free Lorex DDNS |
| System Configuration | Full setup configuration over network |
| Ports | Programmable by User |
| Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
| Network Interface | 10/100/1000-Base-TX, RJ-45 |
| Network Bit Rate | 320Mbps total, 48~8192kbps per camera |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60Hz |
| Total PoE Power Output | 130W (Max 25W per Camera) |
| Unit Dimensions (W × D × H) | 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm |
| Unit Weight | 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |
LNB4421
Weatherproof 2K 4mp HD Night Vision IP Security Camera Features:
- High definition 4mp image sensor delivers double the detail of 1080p1
- 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
- Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
- IR night vision range up to 150ft (40m) in ambient lighting and 90ft (27m) in total darkness3
- ClearNight imaging for improved low light performance and improved recording efficiency
- H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
- True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Intelligent compression saves recording space by optimizing video performance based on available bandwidth
- Wide angle 90° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single Cat5e cable with Power over Ethernet (PoE)
- 100ft (30m) Ethernet cable included for camera video and power
- Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Single-screw bracket adjustment for faster installation
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)5
Specifications:
| Image Sensor | 1/3" 4MP |
| Video Format | NTSC / PAL |
| Compression | H.265/H.264 |
| Effective Pixels | H: 2688 × V: 1520 |
| Resolution | 4MP (2688×1520) @ 20fps |
| Scan System | Progressive |
| Sync System | Internal |
| S/N Ratio | ≥46dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 ~ 1/100,000 seconds |
| Min. Illumination | 0.38 lux without IR, 0.28 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 2.8mm F2.0 / Fixed |
| Field of View (Horizontal) | 90° |
| Termination | RJ45 Ethernet / 12V DC Power |
| IR LED Type | 850nm |
| Night Vision Range | 150ft (45m) / 90ft (27m) |
| Color Night Vision™ | Yes |
| Power Requirement | PoE (Power over Ethernet) Class 0 / 12V DC |
| Power Consumption | Max. 265mA / 3.2W |
| Operating Temp. Range | -22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.9lbs / 0.4kg |
LNE4422
Weatherproof 2K 4mp HD Night Vision IP Dome Security Camera Features:
- High definition 4mp image sensor delivers double the detail of 1080p1
- 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
- Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
- IR night vision range up to 150ft (40m) in ambient lighting and 90ft (27m) in total darkness3
- ClearNight imaging for improved low light performance and improved recording efficiency
- H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
- True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Intelligent compression saves recording space by optimizing video performance based on available bandwidth
- Wide angle 90° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single Cat5e cable with Power over Ethernet (PoE)
- 100ft (30m) Ethernet cable included for camera video and power
- Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Single-screw bracket adjustment for faster installation
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)5
| Image Sensor | 1/3" 4MP |
| Video Format | NTSC / PAL |
| Compression | H.265/H.264 |
| Effective Pixels | H: 2688 × V: 1520 |
| Resolution | 4MP (2688×1520) @ 20fps |
| Scan System | Progressive |
| Sync System | Internal |
| S/N Ratio | ≥46dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 (1/4) ~ 1/100,000s |
| Min. Illumination | 0.38 lux without IR, 0.28 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 2.8mm F2.0 / Fixed |
| Field of View (Horizontal) | 90° |
| Termination | RJ45 Ethernet / 12V DC Power |
| IR LED Type | 850nm |
| Night Vision Range | 150ft (45m) / 100ft (30m) |
| Color Night Vision™ | Yes |
| Power Requirement | PoE (Power over Ethernet) / 12V DC |
| Power Consumption | Max. 250mA / 3.0W |
| Operating Temp. Range | -22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.65lbs / 0.30kg |
As a Lorex authorized dealer, this product comes with a 1 year factory warranty.
Extends factory warranty to 2 total years
