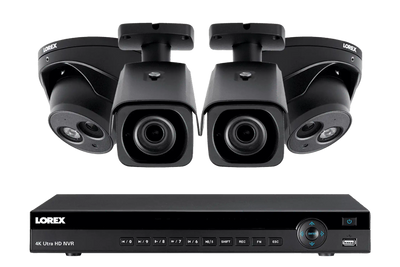

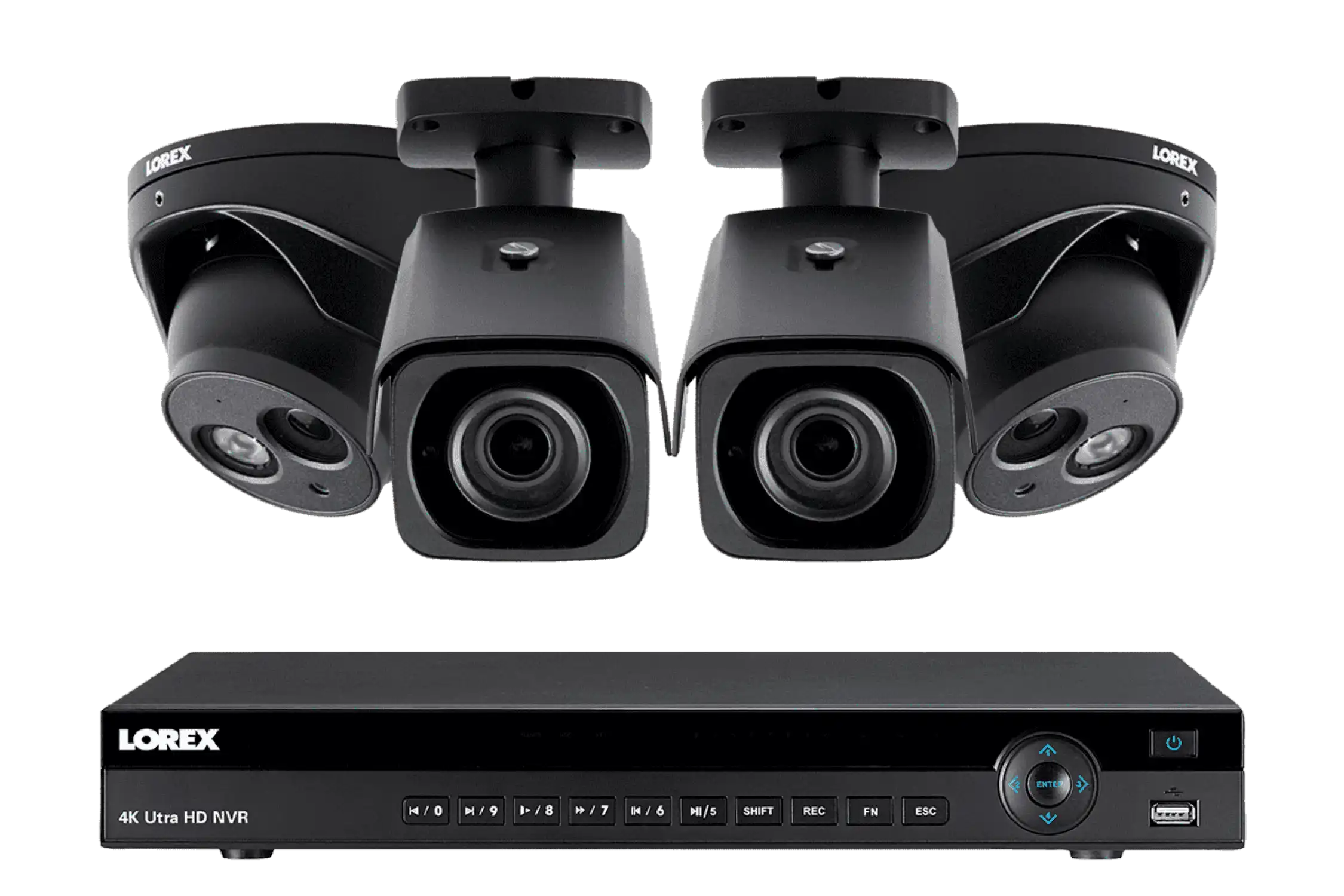

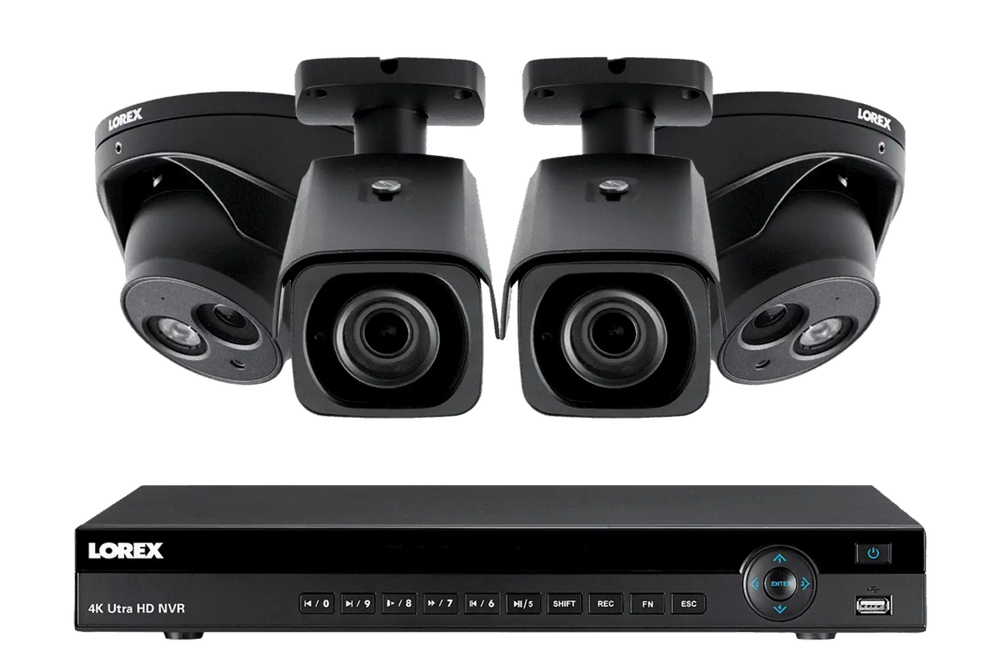

Lorex 4KHDIP822NV 4 Camera 8 Channel Indoor/Outdoor 4K Ultra HD IP Security Surveillance System New
Manufacturer: Lorex by Flir
SKU: 4KHDIP822NV
![Share](https://cdn.shopify.com/s/files/1/1163/1976/files/share.png?v=1607693925)
Share
![Lorex 4KHDIP822NV 4 Camera 8 Channel Indoor/Outdoor 4K Ultra HD IP Security Surveillance System New](http://factorypure.ca/cdn/shop/products/4K-Ultra-HD-IP-Nocturnal-Camera-System-4KHDIP822NV-L1.png?v=1559779772)
Manufacturer: Lorex by Flir
SKU: 4KHDIP822NV
Share
Default Title
QTY
(888) 999-1522
C
$1,625.00
$1,625.00
0
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Share
![]() |
Brand new in box & manufacturer direct |
![]() |
2 year factory warranty |
![]() |
Remote monitoring using the Flir app |
![]() |
All original accessories included |
![]() |
Authorized Lorex dealer |
![]() |
Ships same or next business day |
Operating System | Linux (embedded) |
Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |
Number of Channels | 8/16/32 Channels |
Video IN | 8ch: 8 PoE, 16/32ch: 16 PoE |
Video OUT | No |
VGA OUT | Yes |
HDMI | Yes |
Audio IN | 1 Line IN (RCA) for service only |
Audio OUT | 1 Line OUT (RCA) for service only |
USB Port | 1 at the back, 1 at the front |
Alarm IN | 4 Alarm IN |
Alarm OUT | 2 Alarm OUT |
Video Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
PTZ control | Lorex IP PTZ cameras only |
Display | 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36 |
Live Display Speed | 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL |
OSD | ON/OFF |
System Navigation | USB Mouse, IR Remote Control, Front Panel Buttons |
Motion Area Setting | Fixed Grid (22×18) |
Sensitivity Levels | 100 |
Firmware Upgrade | Automatic over the Internet & via USB device and network |
User Authority | By user group |
Time Synchronization | Automatic time sync by NTP server |
Video Compression | H.264 / H.265 |
Audio Compression | G.711 |
Resolution | Up to 4K (3840×2160), 1080p (1920×1080) |
Record Rate | 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP |
Recording Resolution Setting | Per camera for different resolutions |
Recording Quality Control | 6 Levels |
Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel |
Pre Recording | Max. 4 Secs |
Post Recording | Max. 5 Minutes |
Reliability | Watch-Dog, auto-recovery after power failure |
Covert Video | Yes |
Playback Channel | 1CH/4CH@4K, 8CH@4MP, 16CH@2MP |
Playback Speed | Variable Max 16x |
Playback Players | Backup Player |
Search | By Time & Event |
Log Search | Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss |
Audio Play | Yes (audio camera required) |
Storage | Up to 2 HDDs (SATA) |
Maximum Capacity | Up to 2×6TB (12TB Max) |
Backup Media | USB Flash Drive & HDD |
Backup File Format | DAV or ASF File |
Cloud Connection | FLIR Secure™ |
Supported Operating Systems | Windows™ / Mac OS X |
Remote Software | Client Software (PC & Mac) |
Email Notification | Text with snapshot |
Instant Smart Phone & Tablet | Android™, iPad®, iPhone® |
DDNS | Free Lorex DDNS |
System Configuration | Full setup configuration over network |
Ports | Programmable by User |
Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
Network Interface | 10/100/1000-Base-TX, RJ-45 |
Network Bit Rate | 320Mbps total, 48~8192kbps per camera |
Power Consumption | Approx. 15W (no HDD included) |
Supply Voltage | 100VAC-240VAC, 50/60Hz |
Total PoE Power Output | 130W (Max 25W per Camera) |
Unit Dimensions (W × D × H) | 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm |
Unit Weight | 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg |
Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
Humidity | 10 ~ 90% RH |
Effective pixel area | 3840(H)x2160 (V) | IR LED quantity | 4pcs |
IR LED viewing angle | 2× 45°, 2 × 100° | Camera FOV (H / V / D) | H:102°~39°; V:55°~22° D:125°~42° |
Imaging Device | 4K, 1/2.5 Inch | Effective Pixels | 3840(H)x2160 (V) |
Imager Type | CMOS | Image Readout | Progressive Scan |
Day/Night | Auto(ICR)/Color/B/W | Field of View (H) | H:102°~39° |
IR Illumination | 76m | Video Output | RJ45 |
Electronic Shutter Range | 1/3(4)~1/100000s | Lens Type | Motorized |
Lens Mount | Board-in Type | Iris Type | Fixed |
Focal Length | 2.8-12mm | Aperture | F1.8~2.88 |
Video Compression | H.265 / H.264 / MJPEG | Aspect Ratio | 16 : 9 |
Frame rates (Maximum) | 4K @ 15fps / 2K @ 30fps | Dynamic Range | Up to 90dB |
Optical Zoom | 4× | Digital Zoom | 16x |
Camera Body Material | Aluminum Alloy | Power Input | 12V DC |
Power over Ethernet | PoE (802.3af) | Power Consumption (Max) | 7.8 W |
Storage Temperature | -30°C~+60°C | Operating Humidity | Less then 95% RH |
Operating Temperature | -30°C~+60°C | Cold Start Temperature | -30°C |
Effective pixel area | 3840(H)x2160 (V) | IR LED quantity | 1pcs |
IR LED viewing angle | 1 × 100° | Camera FOV (H / V / D) | H:113°; V:65° D:125° |
Imaging Device | 4K, 1/2.5 Inch | Effective Pixels | 3840(H)x2160 (V) |
Imager Type | CMOS | Image Readout | Progressive Scan |
Day/Night | Auto(ICR)/Color/B/W | Field of View (H) | H:113° |
IR Illumination | 60m | Video Output | RJ45 |
Electronic Shutter Range | 1/3(4)~1/100000s | Lens Type | Fixed |
Lens Mount | Board-in Type | Iris Type | Fixed |
Focal Length | 2.8mm | Aperture | F1.6 |
Video Compression | H.265 / H.264 / MJPEG | Aspect Ratio | 16 : 9 |
Frame rates (Maximum) | 4K @ 15fps / 2K @ 30fps | Dynamic Range | N/A |
Noise Reduction | 3D | Digital Zoom | 16x |
Camera Body Material | Aluminum Alloy | Power Input | 12V DC |
Power over Ethernet | PoE(802.3af)(class 0) | Power Consumption (Max) | 5W |
Storage Temperature | -30°C~+60°C | Operating Humidity | Less then 95% RH |
Operating Temperature | -30°C~+60°C | Cold Start Temperature | -30°C |
See the details and hear the sounds with your two Nocturnal dome security cameras.* Audio monitoring will open up a whole new layer of security coverage. It will provide you with more information (such as voices) and expand your coverage beyond the camera's field of view.
Nocturnal security cameras deliver clean, accurate video with exceptional clarity and sharpness thanks to their 3D-DNR (Digital Noise Reduction) technology. This feature filters out digital noise from the video, eliminating graininess, as well as any noise caused by motion.
The incredibly sophisticated Sony Exmor R™ image sensor within your cameras uses back illuminated pixel technology for exceptional low-light performance. It also shields the video from noise / grain as it coverts the video signal from analog to digital.
An Active Mechanical Lens Filter (otherwise known as an IR Cut Filter) prevents UV and infrared light rays from entering the lens during the day. This ensures that these types of lights won't cause any discolorations or distortions of the video. The filter will then automatically disengage at night, allowing the infrared light into the lens.
Nocturnal cameras can record 4K resolution video at 15 FPS (frames-per-second). They are also capable of recording at a real-time 30 FPS rate in 2K resolution. Ultimately, recording 30 frames-per-second will provide you with exceptionally smooth on-screen movement, and grant you with more frames to choose from when cycling through footage.
Differing lighting conditions within the same scene (such as an indoor camera that can see outdoors) is not an issue for your Nocturnal security cameras. They use an HDR (High Dynamic Range) feature that uses the differencebetween the brightest point and the darkest point of the video to automatically adjust the picture's brightness. This results in optimized, highly-detailed security video in all sections of the frame.
Consolidate your entire security system into your handheld device or desktop computer simply by connecting your NR900 NVR to our hassle-free FLIR Secure™ app. Eliminate complicated network setups and avoid port-forwarding issues. FLIR Secure organizes your security system (along with other FLIR Secure compatible cameras or systems) with a simple 3-step installation process. Just download the app for your smartphone, tablet, or computer, scan the QR code on your NVR and start accessing your entire security system via your mobile device or computer. App features include cloud storage, RapidRecap® videos, privacy mode (a first for DVR security systems), and custom mobile notifications for motion events.
