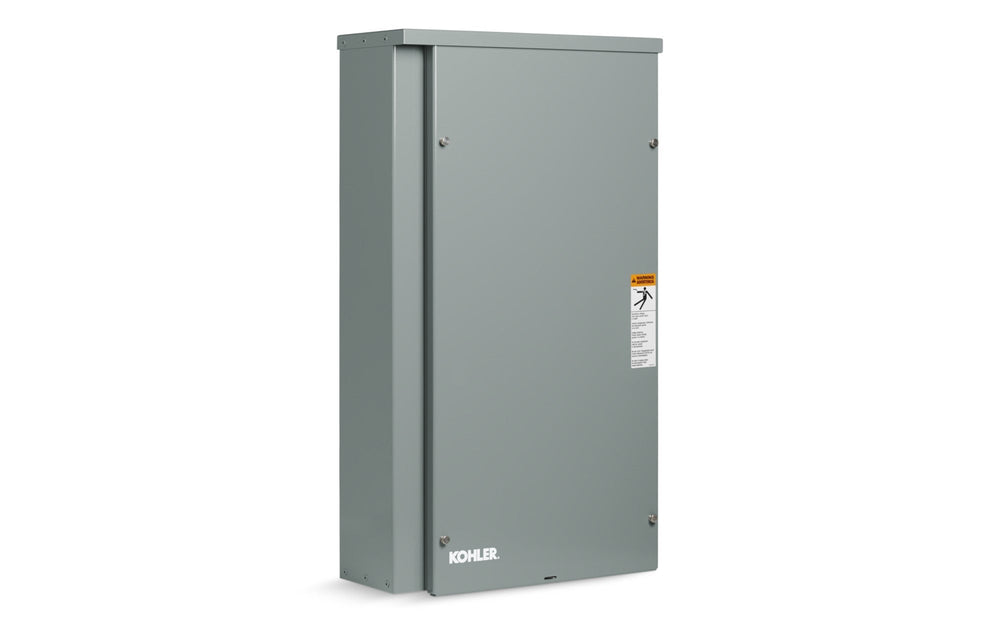

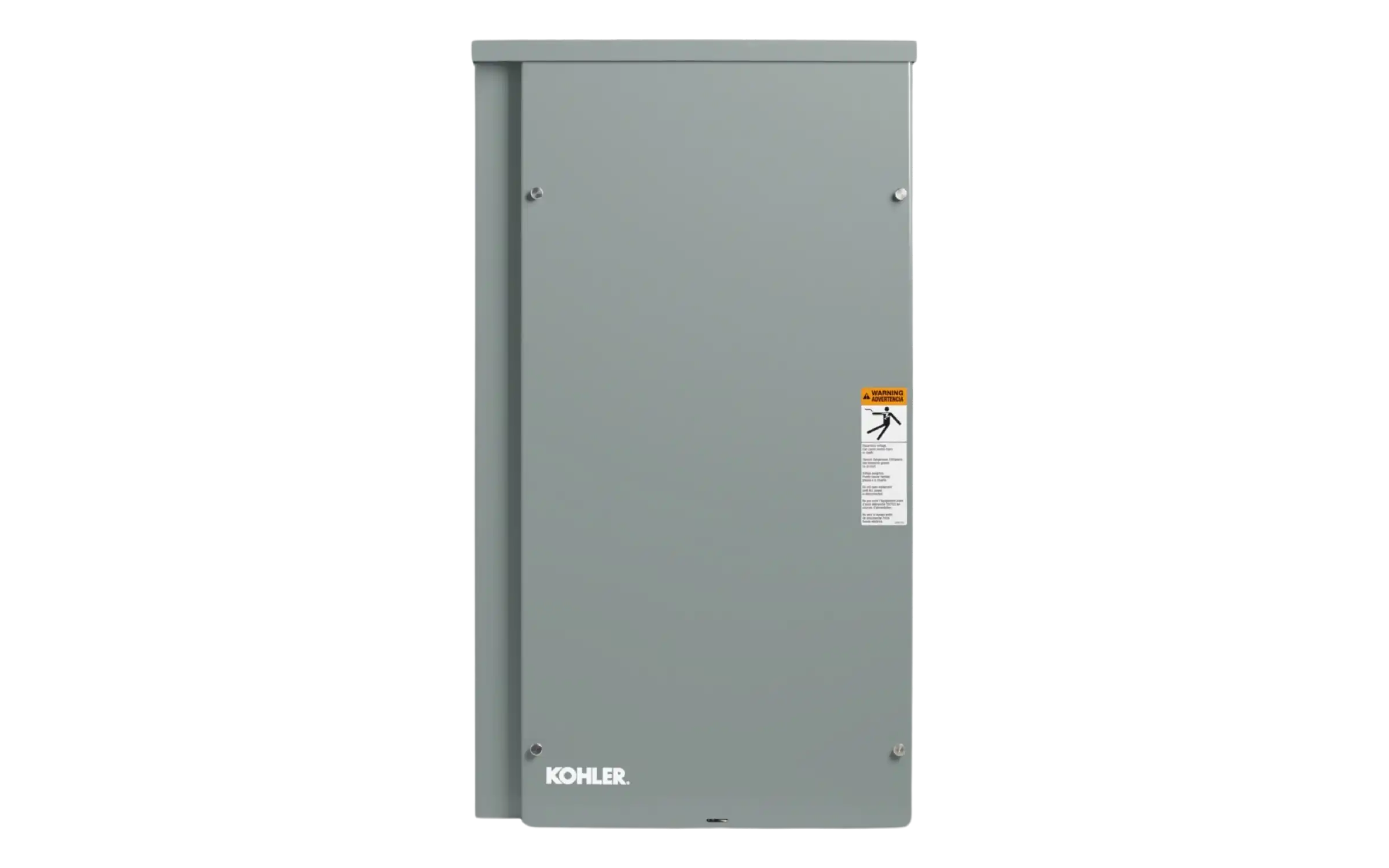

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
Product Overview
It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Designed for use only with KOHLER generators equipped with RDC2 or DC2 controls
- Installs indoors or outdoors
- Available in service-entrance models
- Includes RXT single phase combined interface/load management board
- Optional external LED display or optional external LED display with load management
- Corrosion-resistant aluminum enclosure
- 200-amp models available
- Volts: 240 V (single-phase)
- Poles: 2 (single-phase)
Specifications
| Position indicating LEDs | Optional |
|---|---|
| Source available indicating LEDs | Optional |
| Accessory board with audible alarm, input and output connections, 2-week exercise option, and 10 minute load control delay option | No |
| External alarm module available for remote status indication and remote generator set start/stop | No |
| Common / fault relay | No |
| All-in-one main distribution panel and ATS | No |
| Weight | 26 lbs. (12 kg) |
| Dimensions | 734 mm x 416 mm x 175 mm (28.9 in. x 16.4 in. x 6.9 in.) |
| Country of Origin | US |
| Model | RXT-JFNC-200ASEQS5 |
| Amps | 200 |
| Phase | Single Phase |
| Voltage @ 60 Hz | 240 |
| Frequency | 60 Hz |
| Wires | 3 |
| Poles | 2 |
|---|---|
| Transfer Switch Type | Service Entrance |
| Load Center | w/o Load Center |
| Generator Compatibility | All single-phase KOHLER Generators with RDC2 or DC2 controllers |
| Load shedding | Includes Load Shedding Capability |
| Load Control Time Delay | Yes |
| Enclosure Material | Aluminum |
| Enclosure Type | Indoor or Outdoor |
| Certifications/Listings | UL Listed |
| Controller | RDC2/DC2 |
Package Contents
200 Amp Outdoor Automatic Transfer Switch (Service Disconnect)
User's manual
Warranty
This item comes with a five year warranty.
