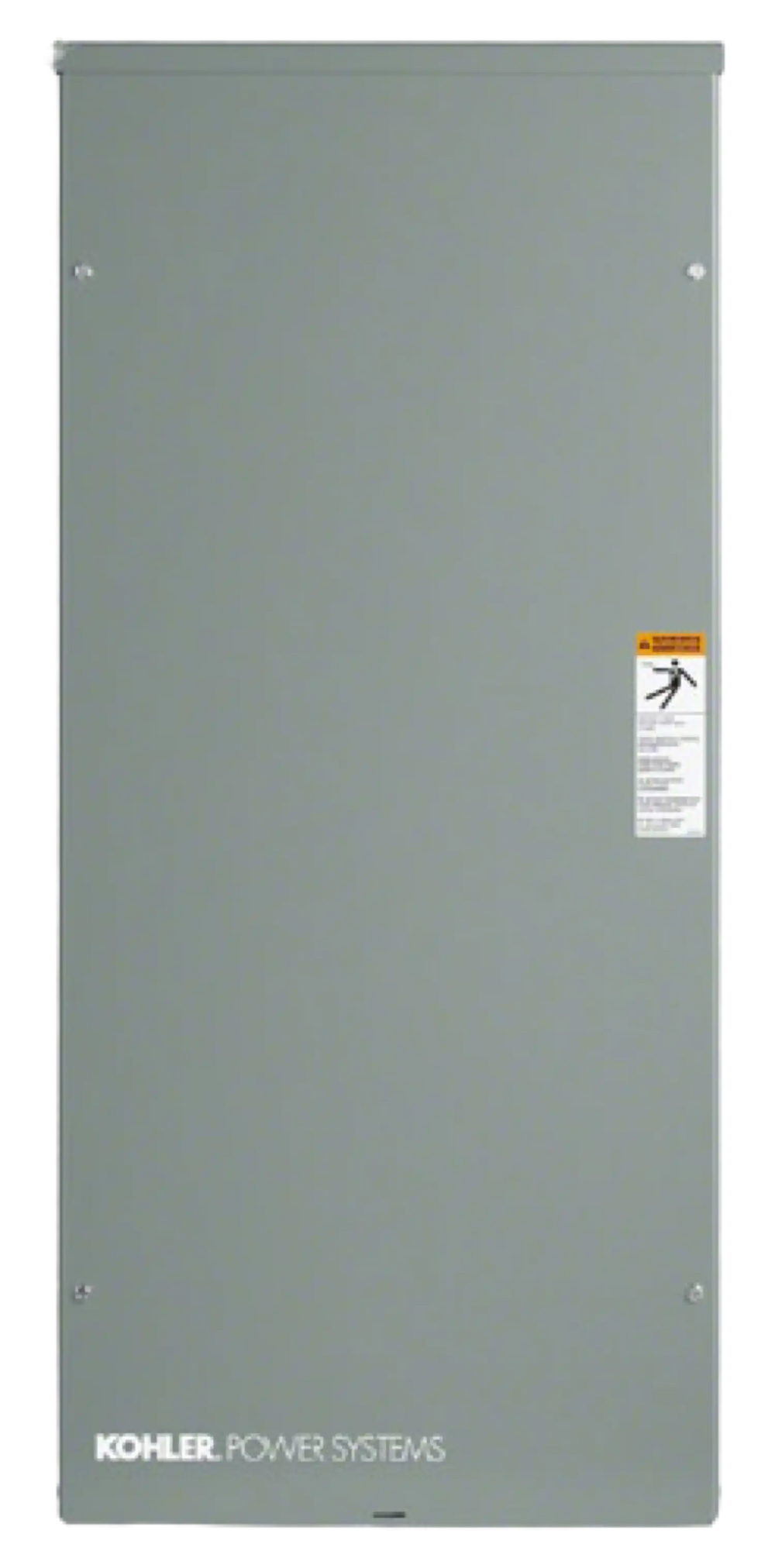

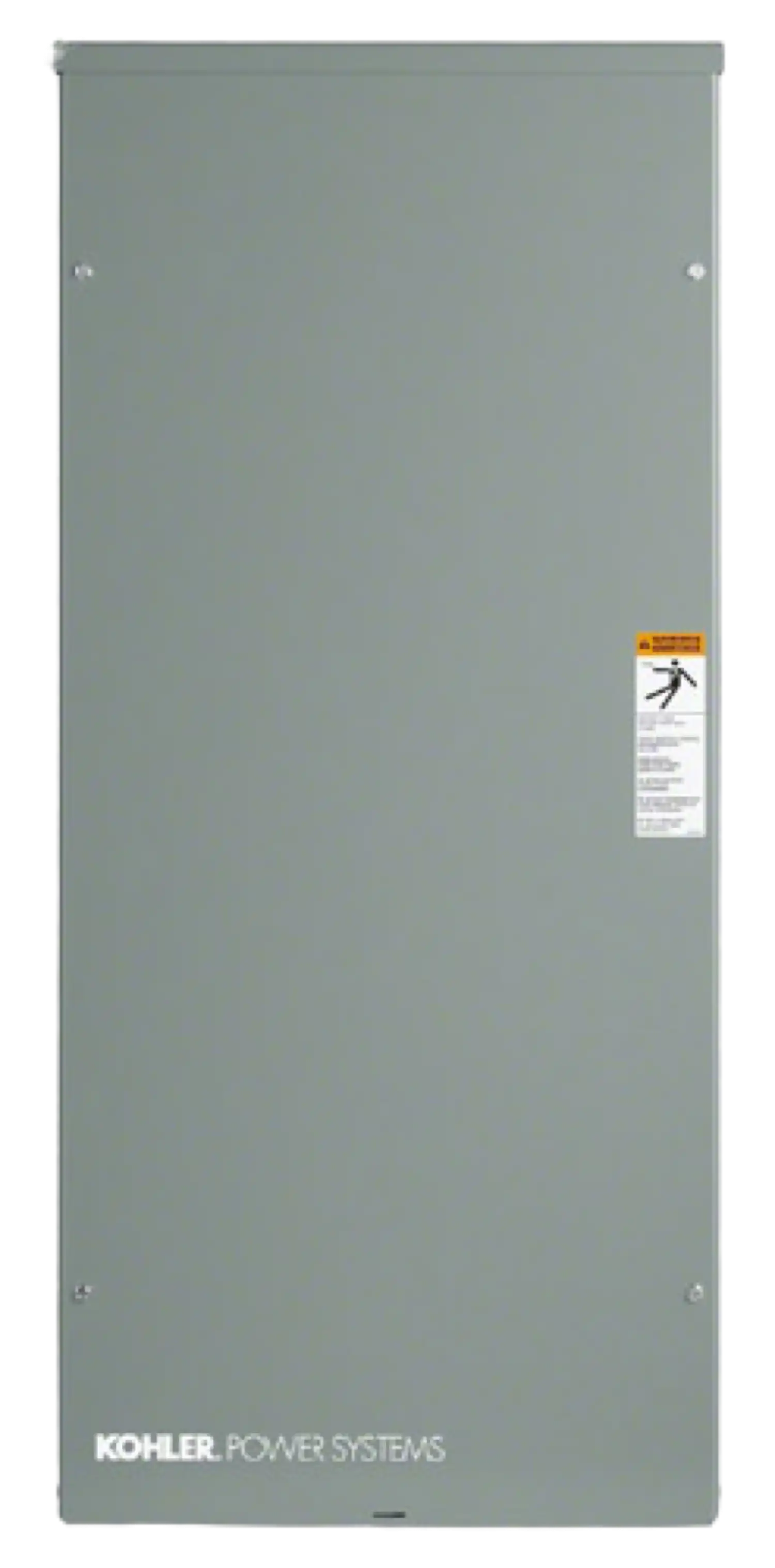

Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
Manufacturer: Kohler
SKU: RDT-CFNC-200ASEQS4
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$2,100.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
CURRENT SPECIAL - ADD TO CART TO SEE LOWER PRICE
Ships same or next day
Exceptional Customer Service
Authorized Dealer
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
Product Overview
It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Service Entrance Rated w/ a Square D type QOM circuit breaker
- UL listed
- Two-pole, single-phase, open-transition transfer switch
- Double throw inherently interlocked design
- Solid Neutral
- 220/240 VAC, 50/60 Hz (jumper)
- Contractor manually operable for maintenance purposes
- NEMA 3R (outdoor) enclosure
- User-friendly interface and easy-to-find international symbols
- LED indication of system faults
- Test button (with or without load)
- Exercise set button
- Single-phase voltage sensing on both sources
- Line-to-line frequency sensing
- Fixed time delays
- 5-year limited warranty
Specifications
| Product Category | Generator Transfer Switches |
|---|---|
| Weight | 26 Pounds |
| Consumer Warranty | 5 Years |
| Product Depth | 6.4 Inches |
| Product Width | 18.6 Inches |
| Product Height | 33.8 Inches |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 200 Amps |
| Transfer Switch Amperage | 200-Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Service Disconnect |
|---|---|
| ATS Poles | 2 Poles |
| Max Utility Input | 200 Amps |
| Max Generator Input | 200 Amps |
| UL Listed | Yes |
Package Contents
200 Amp Outdoor Automatic Transfer Switch (Service Disconnect)
User's manual
Warranty
This item comes with a five year warranty.
