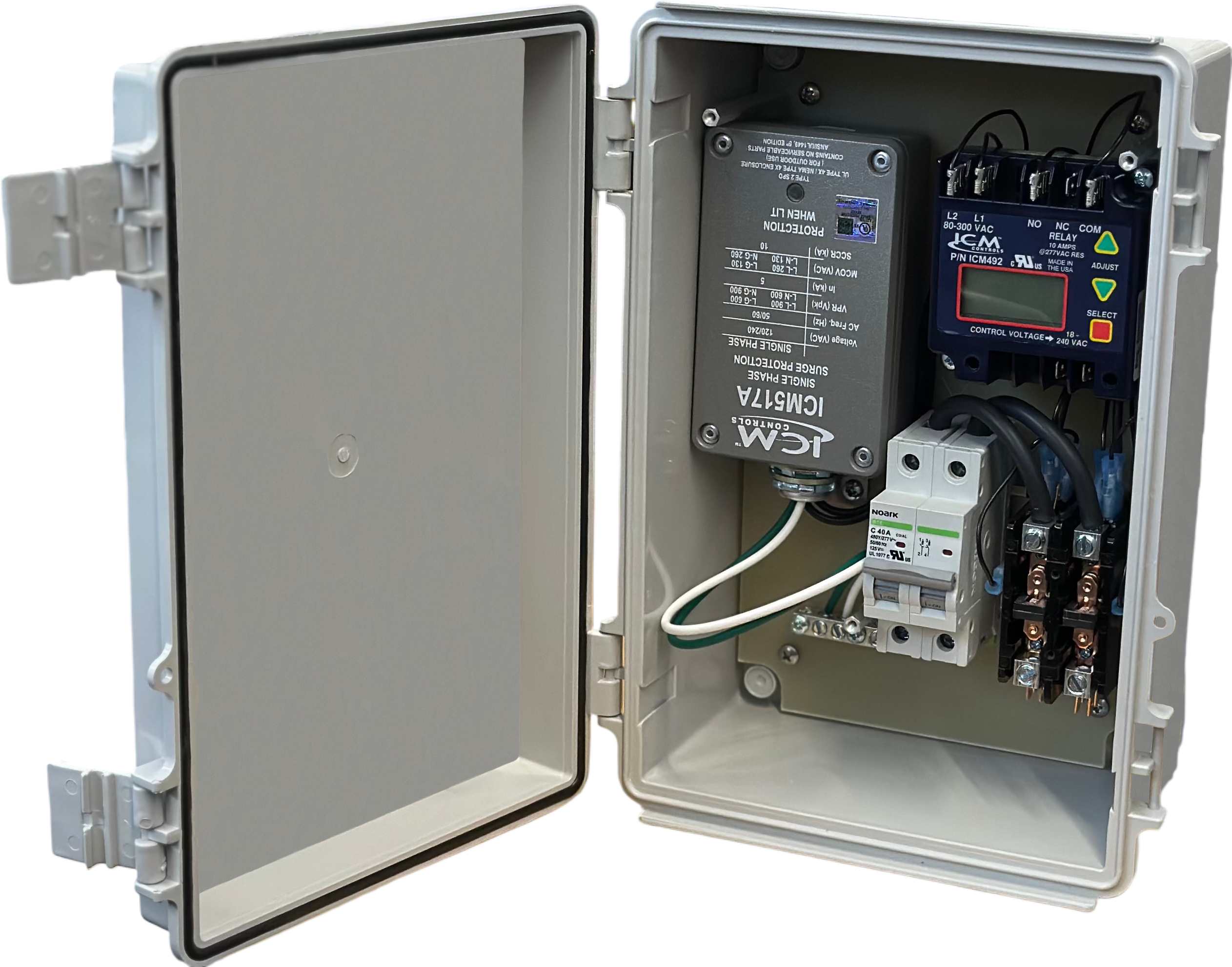

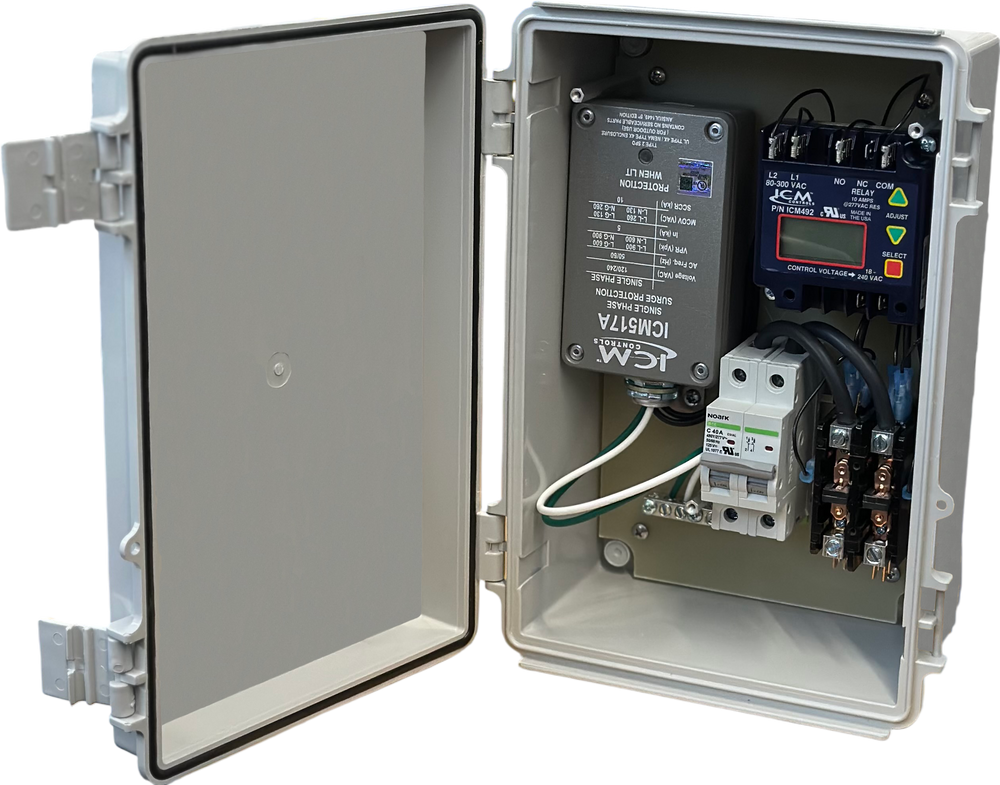

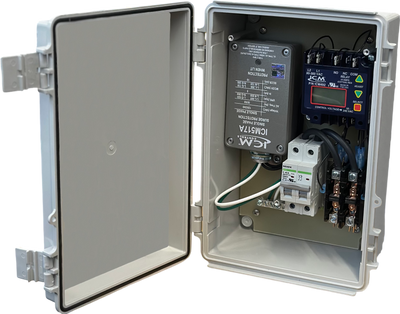

ICM Controls Sentry 3N1 Disconnect with Internal Voltage Monitoring and Surge Protection New
Manufacturer: ICM Controls
SKU: SENTRY-3N1
QTY
or
(888) 999-1522
C
$565.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
ICM Controls Sentry 3N1 Disconnect with Internal Voltage Monitoring and Surge Protection New
Product Overview
The Sentry 3N1 combines the benefits of a ICM517A single phase surge protective device, and an ICM492 single phase voltage monitor while incorporating a disconnect breaker into one easy to install solution. It provides techs and homeowners a convenient way to break the power, protect against power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial single phase 240 VAC HVAC/R equipment.
Brand new in box
Limited lifetime product warranty
Ships from TX
Authorized ICM Controls dealer
Features
- All components are pre-wired for 240 volts
- Modular design with field replaceable components
- Field programmable Voltage Monitor
- 5-fault memory for Voltage Monitor
- Easy-view backlit, LCD digital display on Voltage Monitor
- Protects against over and under voltage, and rapid short cycling
- Separate 40amp Contactor, fully disconnects from the service
- 40amp internal breaker allows for easy switching of power on and off
- Superior TMOV technology provides safe and reliable surge protection
- Built to withstand the high impact of a major surge event
- Proudly Assembled in America
- NEMA type 4X Rating
- UL Listed: ICM517A – E347279
- UL Rated: ICM492 – E53944
Specifications
| Model | SENTRY-3N1 |
| Maximum Surge Current | 100,000 amps |
| Protection Modes | L-L, L-G |
| User Adjustable Settings | |
| Voltage Set Point | 95-280 VAC |
| Anti-Short Cycle Time Delay | 0-720 seconds |
| Over/Under Voltage Setting | 5-25% |
| Response Time | 0.1 - 10 seconds |
| Inputs | |
| Line Voltage | 240 VAC |
| Frequency | 50/60 Hz |
| Breaker | 40 amp at 240 VAC |
| Outputs | |
| Type | Contactor |
| 2-Pole Contact Ratings | 40A FLA, 240A LRA |
| Dimensions | 7.97" x 5.18" x 11.95" |
Package Contents
ICM Controls Sentry 3N1
Installation Manual
Warranty
This item comes with a limited lifetime product warranty.
