Product Overview

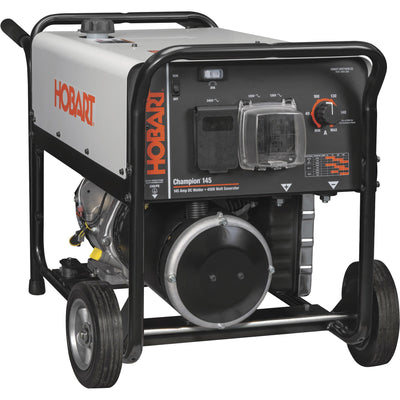

The Hobart 500563 Champion 145 Welder/Generator is for those who occasionally need and/or desire to weld. The stick welder offers an all-in-one solution for portable power and welding, up to 4,500 watts. for a quiet operation, the Hobart welder and generator has a large muffler. This 145A welder also features a 6.35 gal. Briggs & Stratton Intek engine for longer run times, so there is no need to take breaks and re-fill the tank.

vendor logo
divider
authorized dealer
checkmark

3 year limited factory warranty

checkmark

Includes all original accessories

checkmark

Brand new in box

checkmark

Ships directly from Hobart out of WI

checkmark

Authorized Hobart dealer

Features

  • Large muffler provides a quiet operation
  • The 6.25-gallon fuel-efficient Briggs & Stratton Intek engine allows for longer run times and prevents you from having to take breaks
  • Versatile receptacle package (with four 20A, 120 VAC GFCI receptacles and one 240 VAC (6-50R) receptacle with covers) allows you to obtain power with 120 or 240 V tools or appliances
  • 145 amp DC welder/generator allows you to weld DC stick electrodes up to 5/32 in. diameter
  • The lightweight, rugged, and portable stick welder comes with a running gear and roll-bar frame built for your added protection
  • Stick welder/generator offers an all-in-one solution for portable power and welding
  • Generator power: 4,500W (surge), 4,000W (continuous)

Specifications

Product Weight 207 lb.
Amperage Adjustments 40 - 145 amps.
Compatible Metals Stainless Steel, Steel
Cooling Type Air cooled
Country of Origin Made in USA
Decibel Rating 68 dB
Duty Cycle 130 A @ 30% Duty Cycle
Engine Brand Briggs & Stratton Intek engine
Engine Displacement 306
Engine RPM 3600
Frequency 4 KVA/KW, 120/240 V, 60 HZ
Fuel Type Gasoline
Full Load Fuel Consumption 0.75 gal./hr
Input Voltage 130 A at 25 V, 30% duty cycle
Intended Use Grade Residential
Maximum Electrode Size 5/32 in.
Maximum Material Thickness 12 in.
Maximum Welding Amperage 145 Amp
Minimum Amperage 40A
Minimum Electrode Size 0.09375 in.
Minimum Generator Power Required 4,500 W
Minimum Welding Amperage 40 Amps
Number of Circuits 3
Phase Single
Polarity DC
Power Cord Length 12 ft.
Product Length 31.25 in.
Product Height 24.75 in.
Product Width 20.625 in.
Response Time 15 seconds
Running Watts 4,000 watts

Package Contents

Welder/Generator

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year limited factory warranty.
