Grizzly T34744 Combination Lathe-Mill 10" x 30" Variable-Speed New
Product Overview

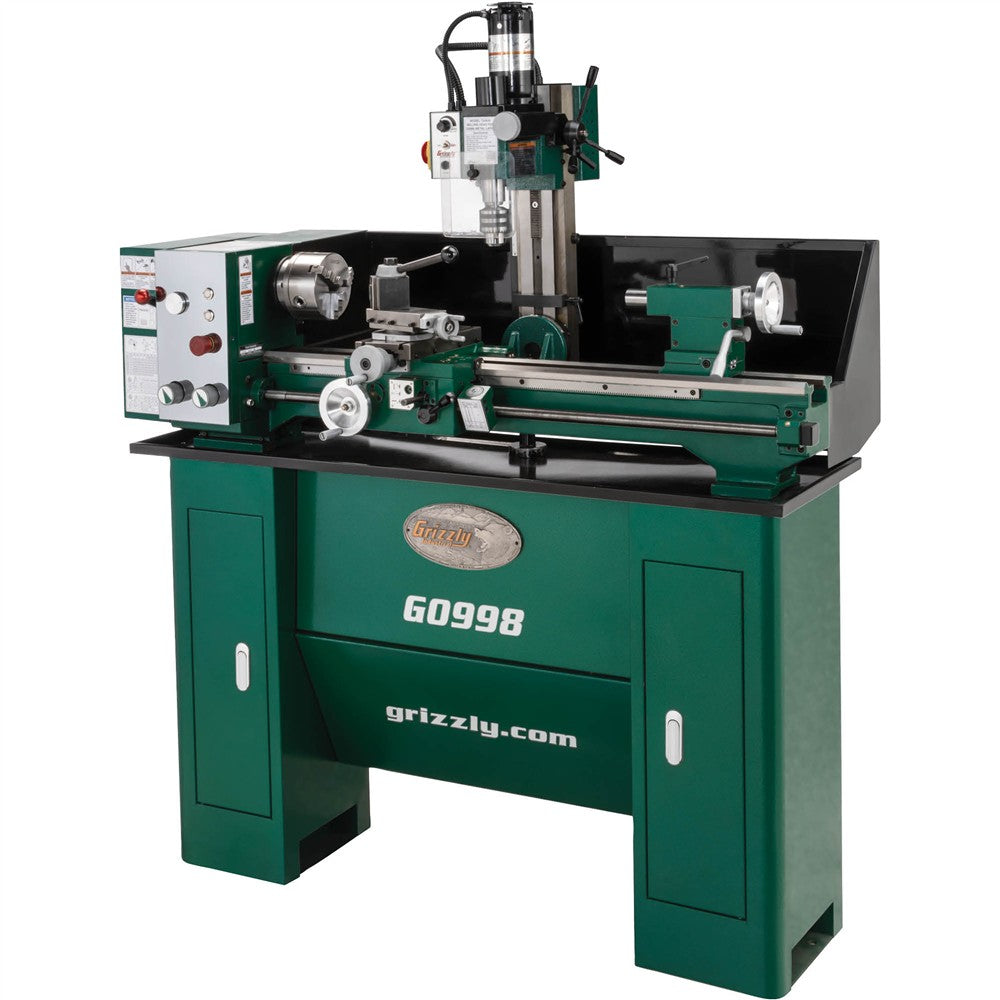

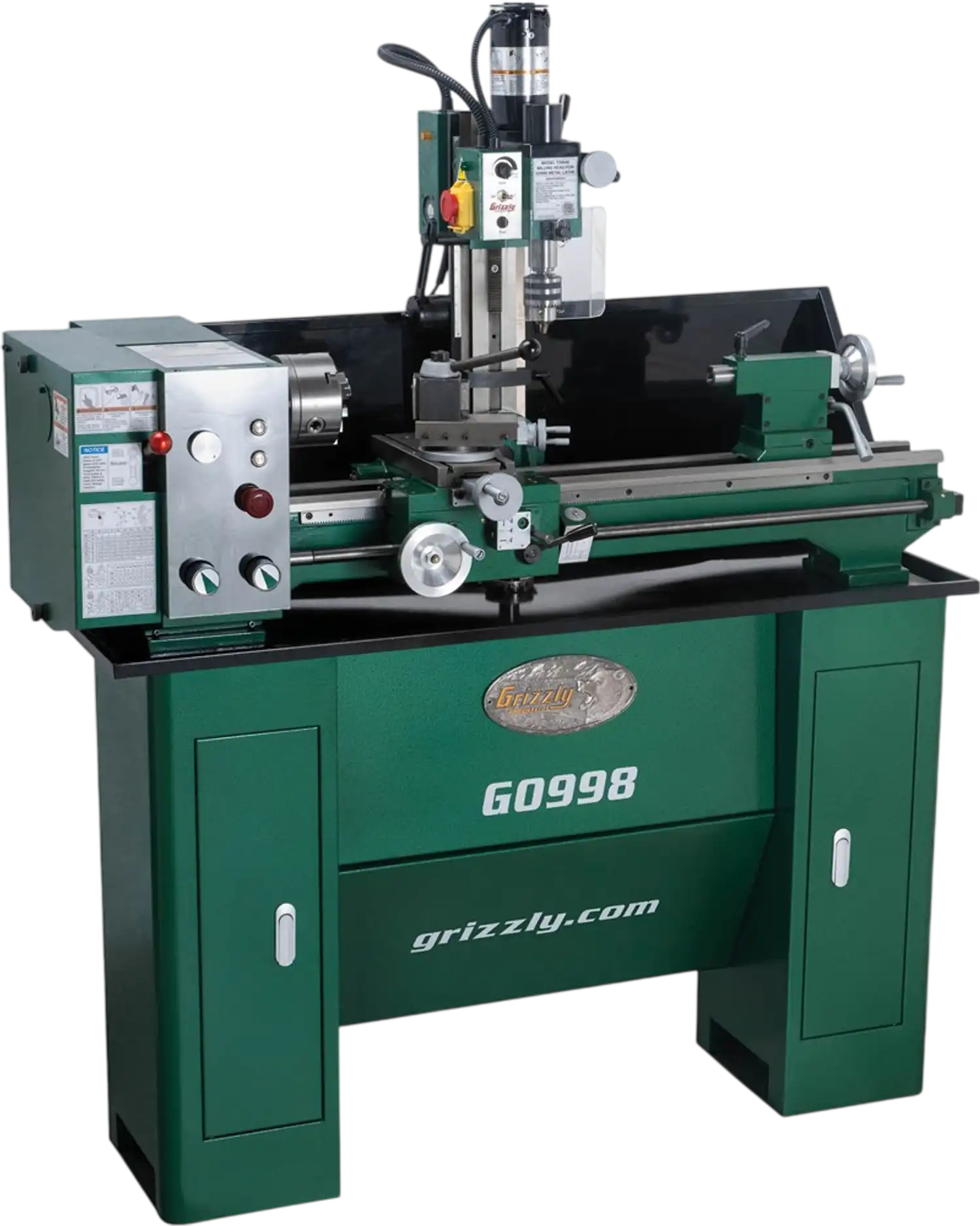

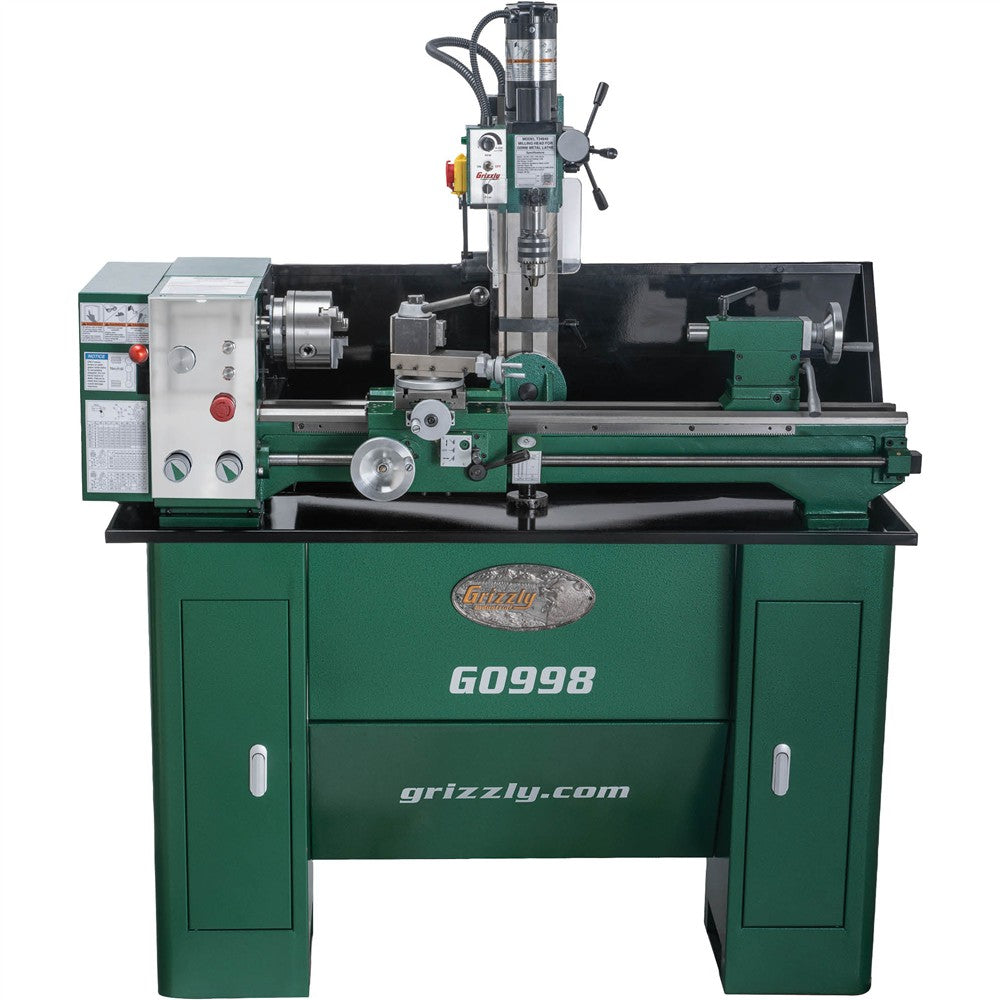

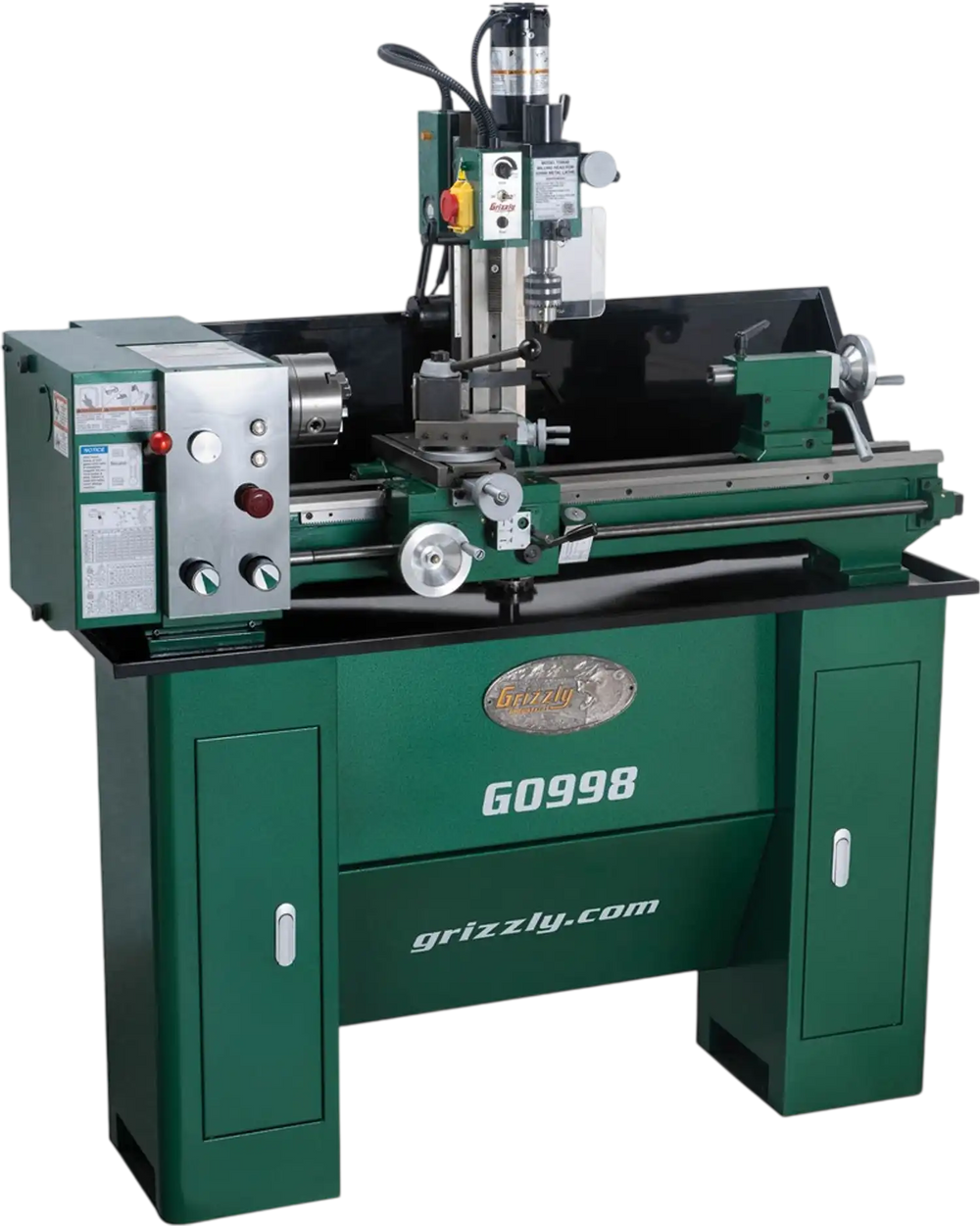

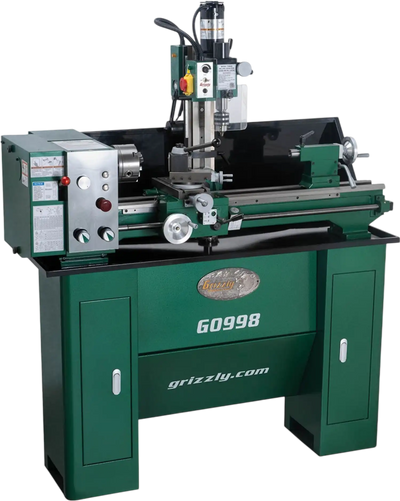

The Grizzly T34744 is a 10" x 30" combination lathe-mill designed to bring turning, facing, drilling, and milling into one space-saving machine. By combining a variable-speed metal lathe with a heavy-duty milling head, it gives small shops and home machinists the capability of two machines in a single workstation.
The lathe offers a 10" swing over bed, nearly 30" between centers, and variable speeds from 100 to 2200 RPM for a wide range of metalworking tasks. The milling head uses an R-8 spindle with variable-speed ranges for precision drilling, end milling, and face milling, while the tilting head allows angled cuts when needed.

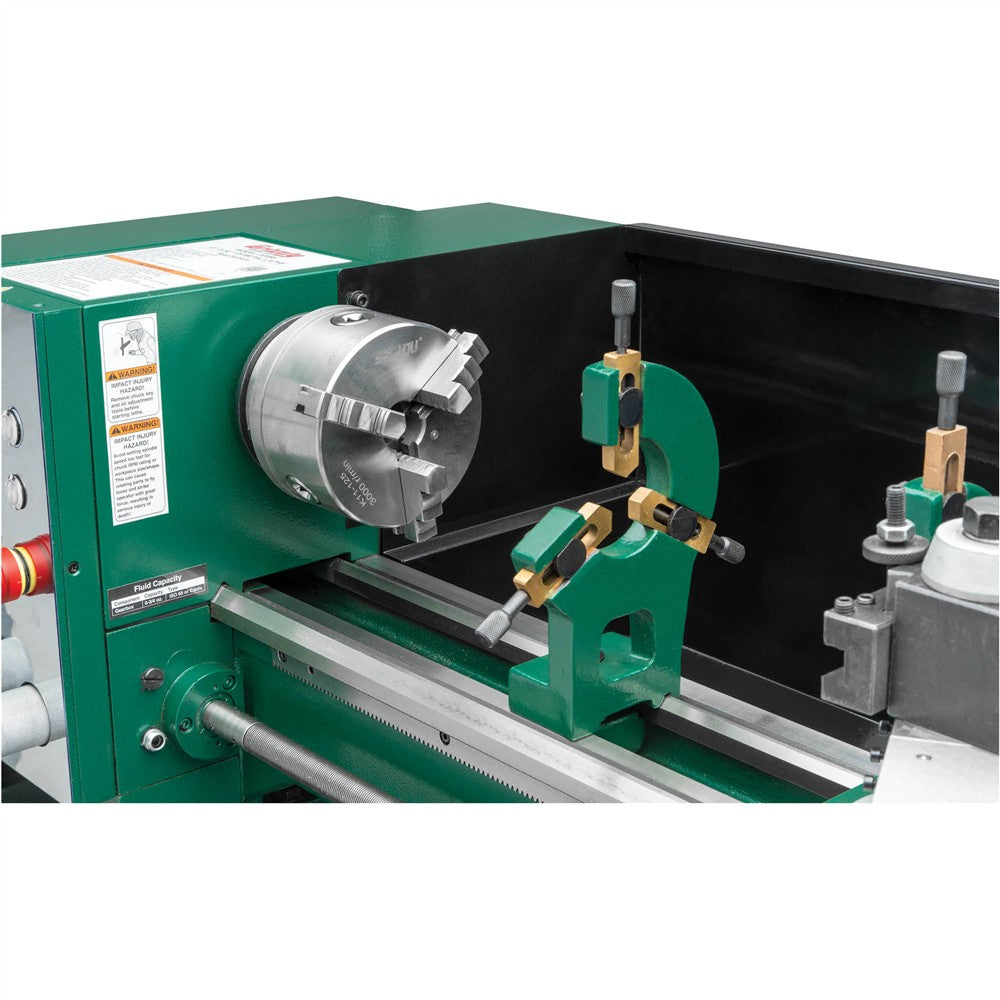

This machine is well suited for hobbyists, prototype work, repair jobs, and light fabrication where floor space matters as much as versatility. With included chucks, rests, faceplate, centers, and drill chuck, it provides a capable setup for users who want a compact, multi-function metalworking solution.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

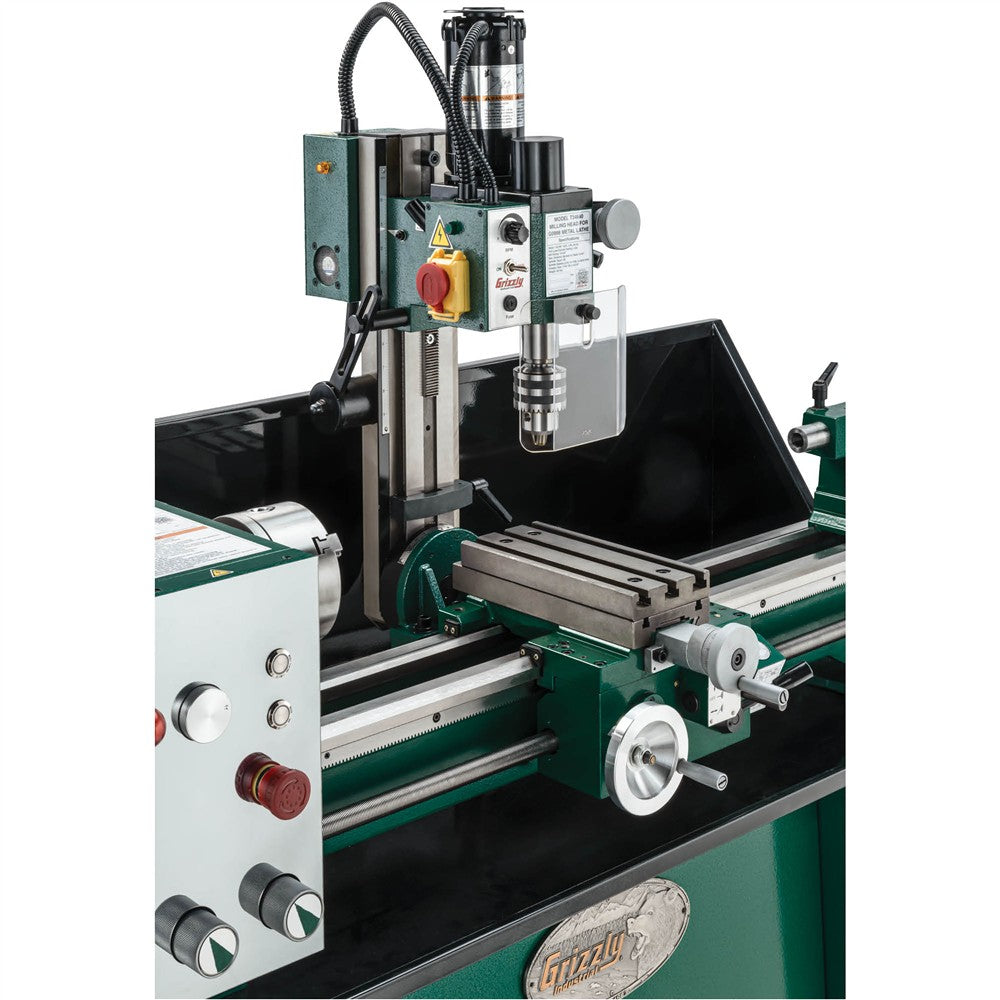

- Complete Lathe and Mill Combo: Pairs the proven 1-1/2 HP G0998 Metal Lathe with a robust 1/2 HP cast-iron milling head, turning a single workstation into a full-scale fabrication shop.

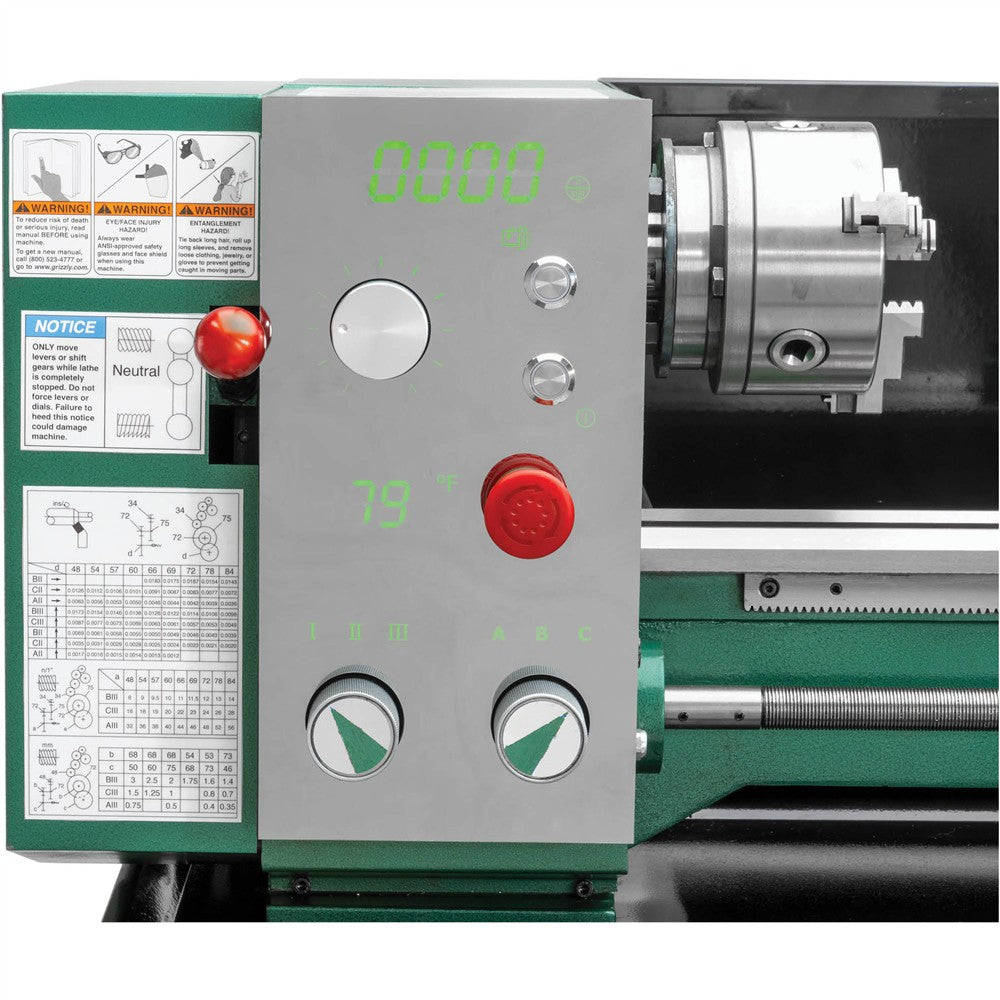

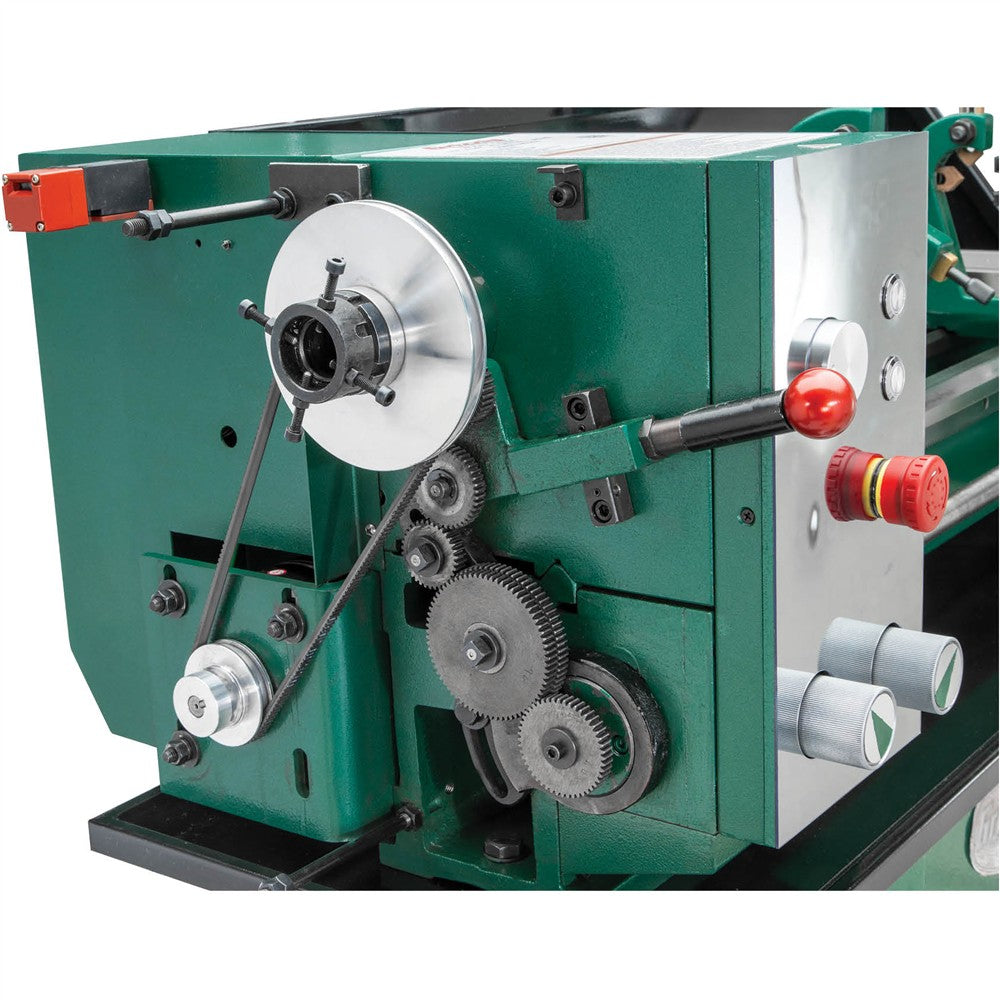

- Variable-Speed Lathe Performance: Features a mirror-finish digital display, powered cross slide and carriage, reversible spindle for threading, an outboard spindle spider for long shafts, and a 100-series quick-change tool post.

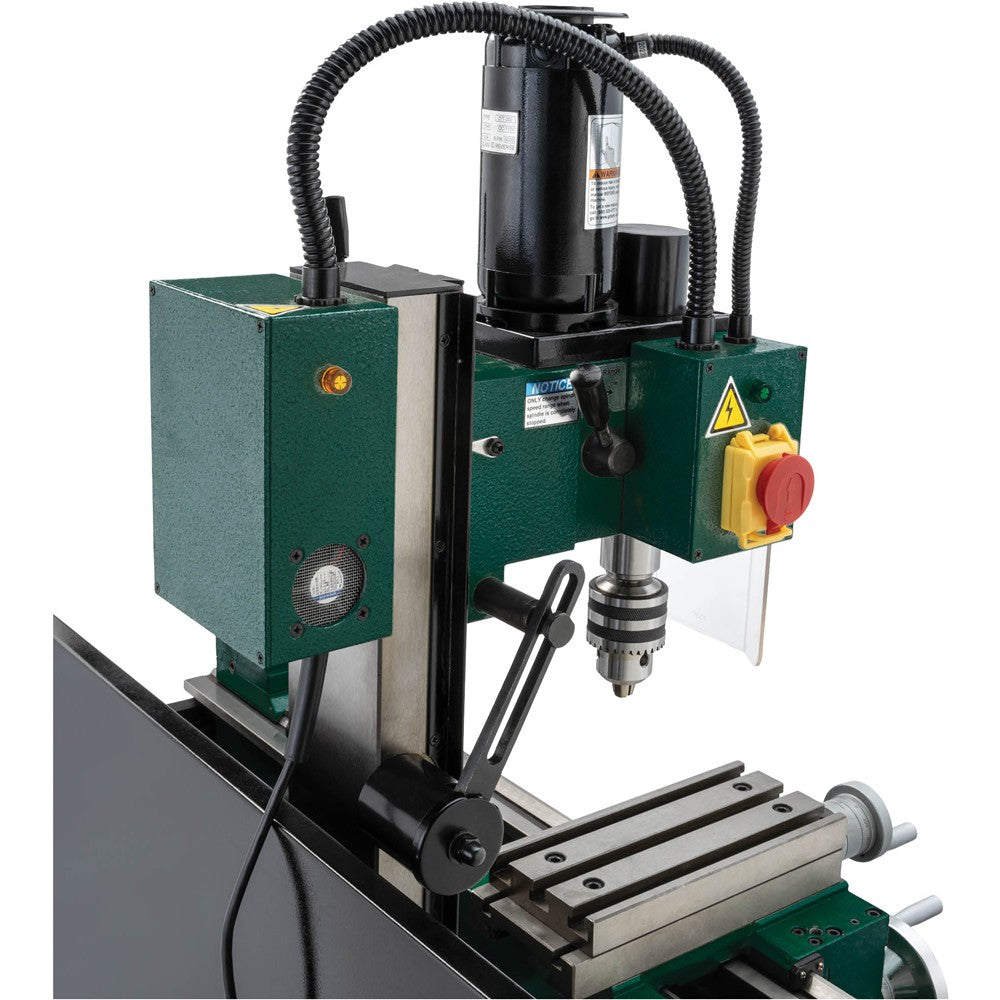

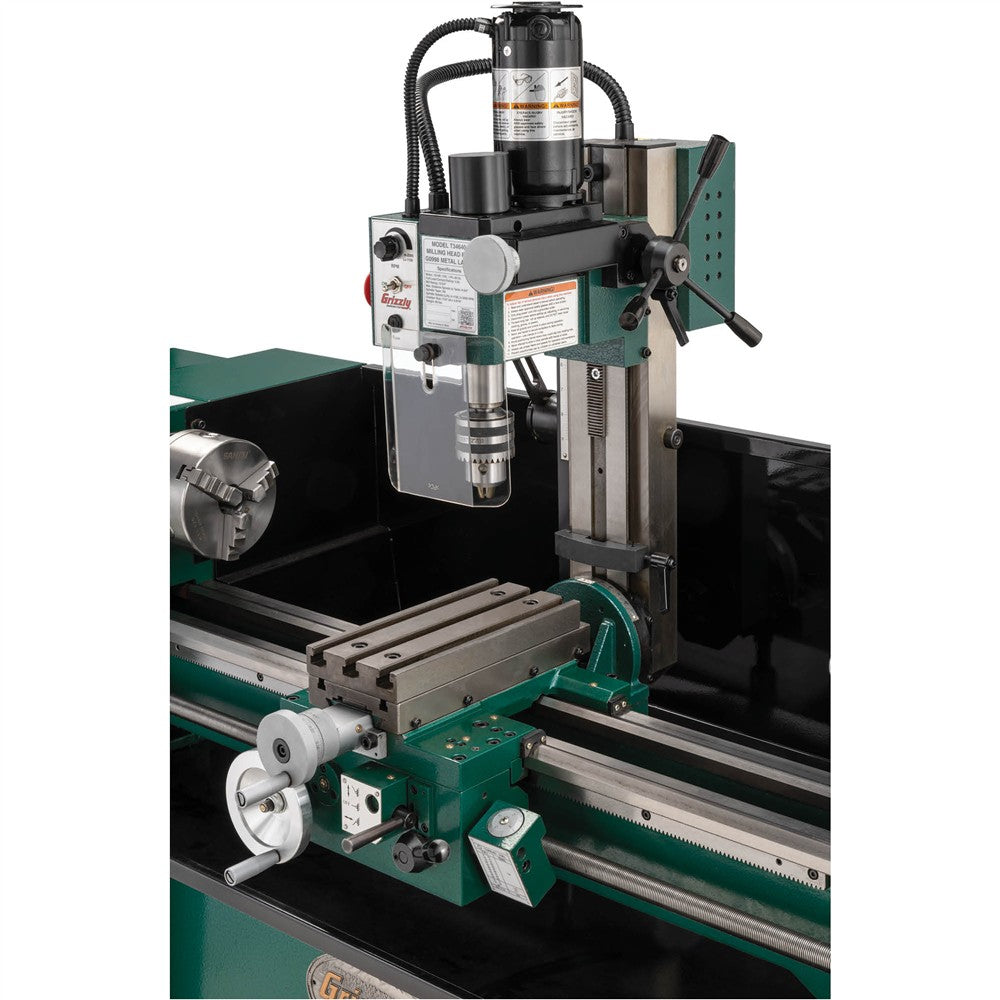

- Adaptable R-8 Milling Spindle: The gear-driven milling head utilizes an industry-standard R8 taper with two variable-speed ranges (0–1100 and 0–2500 RPM) to handle drilling and milling across different metals.

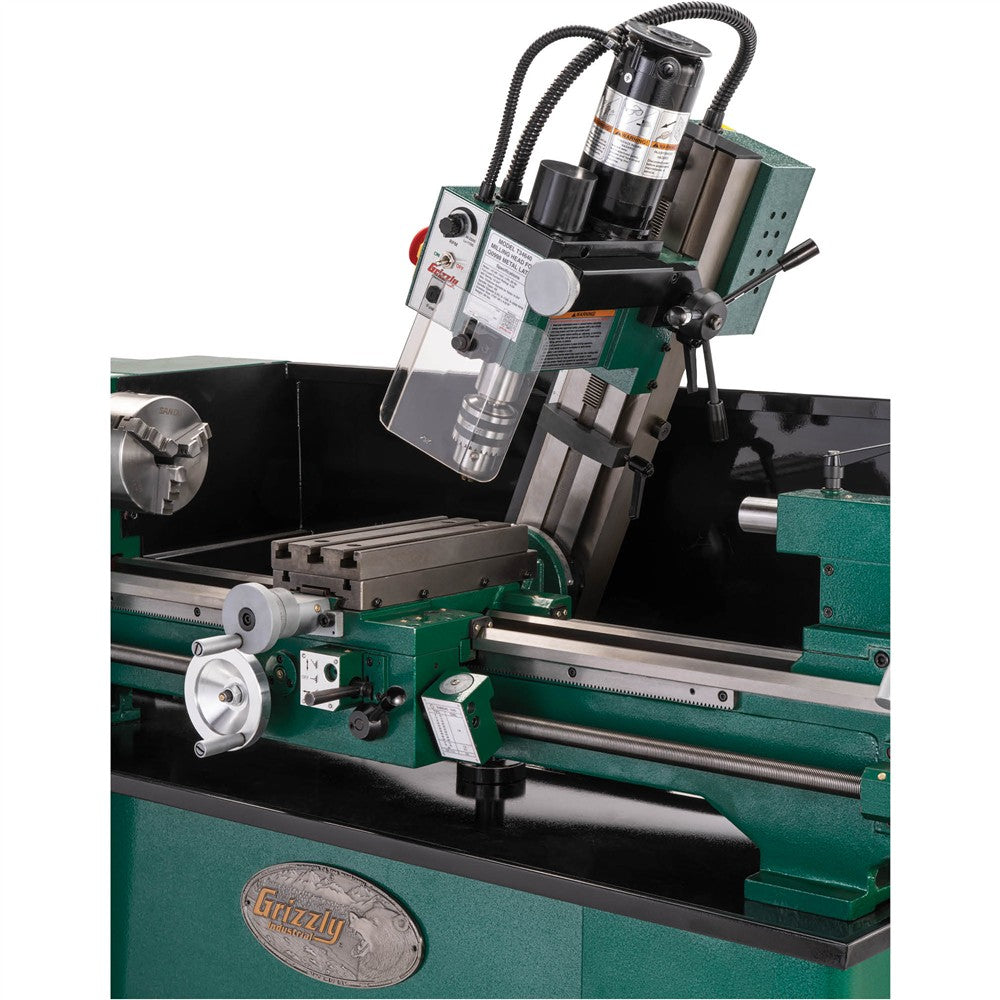

- Precise Mill Head Controls: Includes rapid downfeed levers for quick positioning and a micro downfeed knob for fine depth adjustments (0.06" per revolution), plus a head that tilts 45° left or right for angled cuts.

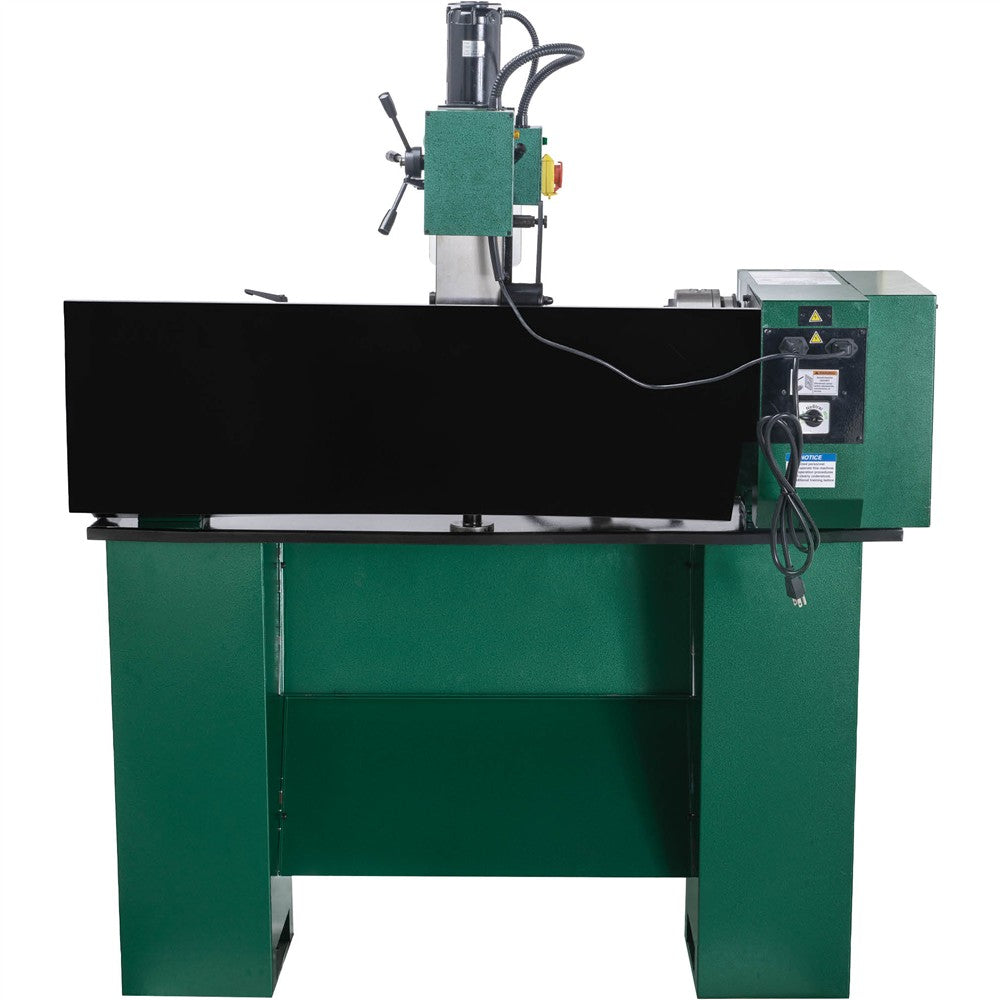

- Built-In Storage and Stand: Comes complete with a sturdy cabinet stand featuring built-in shelves, plus a full-length backsplash and chip tray to keep your workspace clean.
Specifications
| Lathe motor | 1-1/2 HP, 120V, single-phase, 10.6A |
| Mill motor | 1/2 HP, 110V, single-phase, 4.5A |
| Swing over bed | 10" |
| Swing over saddle | 9" |
| Swing over cross slide | 5-1/2" |
| Distance between centers | 29-1/2" |
| Lathe spindle bore | 1" |
| Lathe spindle taper | MT#4 |
| Lathe spindle length | 17" |
| Lathe speeds | Variable, 100–2200 RPM |

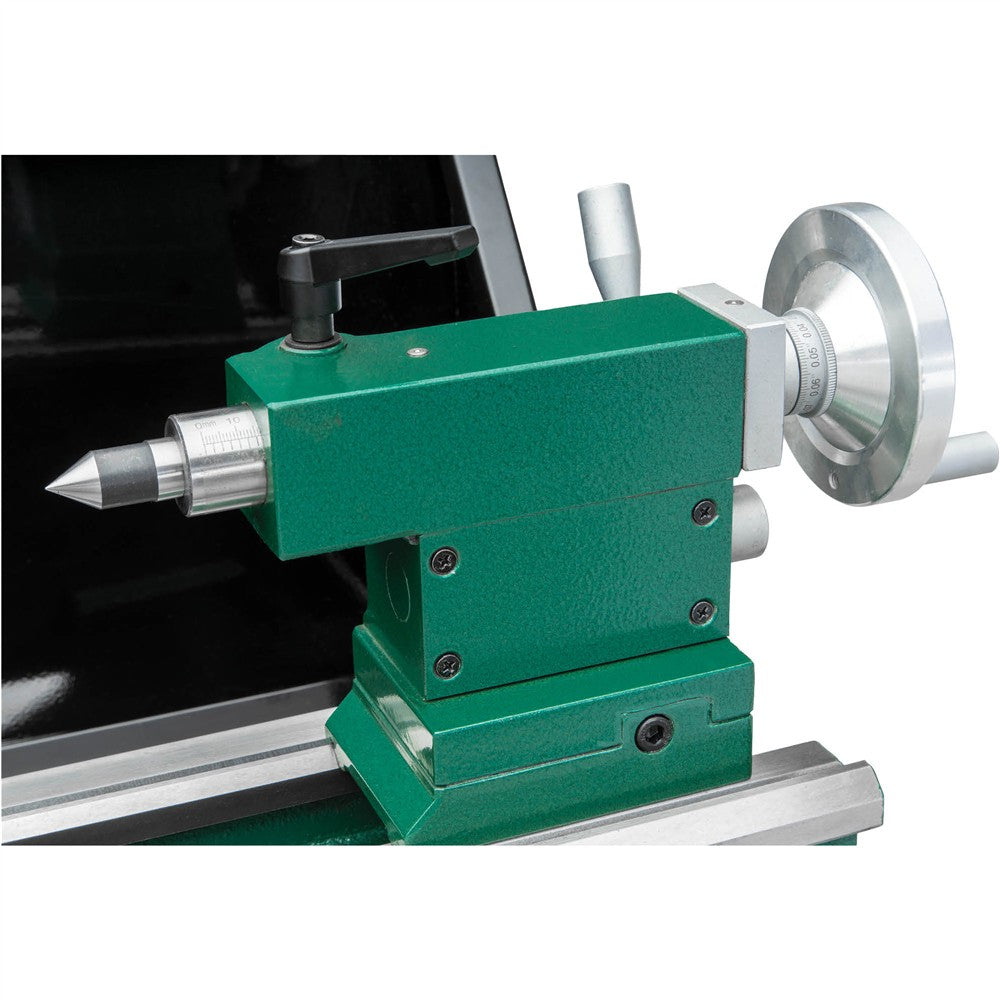

| Tailstock taper | MT#2 |
| Tailstock quill travel | 2-1/2" |
| Cross slide travel | 4-5/8" |
| Compound travel | 2-5/8" |
| Maximum tool bit size | 3/8" |
| Leadscrew | 3/4" x 16 TPI |
| Longitudinal feeds | (23) 0.0036 - 0.0183 in./rev. |
| Range of threads (inches, RH / LH) | 8–56 TPI |
| Range of threads (metric, RH / LH) | 0.35–3mm |
| Mill spindle taper | R-8 |
| Mill spindle travel | 7" |
| Mill speeds | Variable, 0–1100 and 0–2500 RPM |
| Mill swing | 12-3/4" |
| Spindle to worktable | 6-3/4" |
| Head tilt | 45° L/R |
| Maximum tool bit size | 1/2" |
| Drilling capacity | 1/2" mild steel |
| Mill table size | 9-3/8" x 4-5/16" |
| Mill T-slots | 3 @ 1-9/16" centers, 7/16" wide |
| End milling capacity | 1/2" |
| Face milling capacity | 1" |
| Footprint | 46-1/2" x 12" |
| Overall dimensions | 56-1/2" W x 24" D x 64" H |
| Approximate shipping weight | 577lbs. |
Warranty
This item comes with a 1 year factory warranty.
