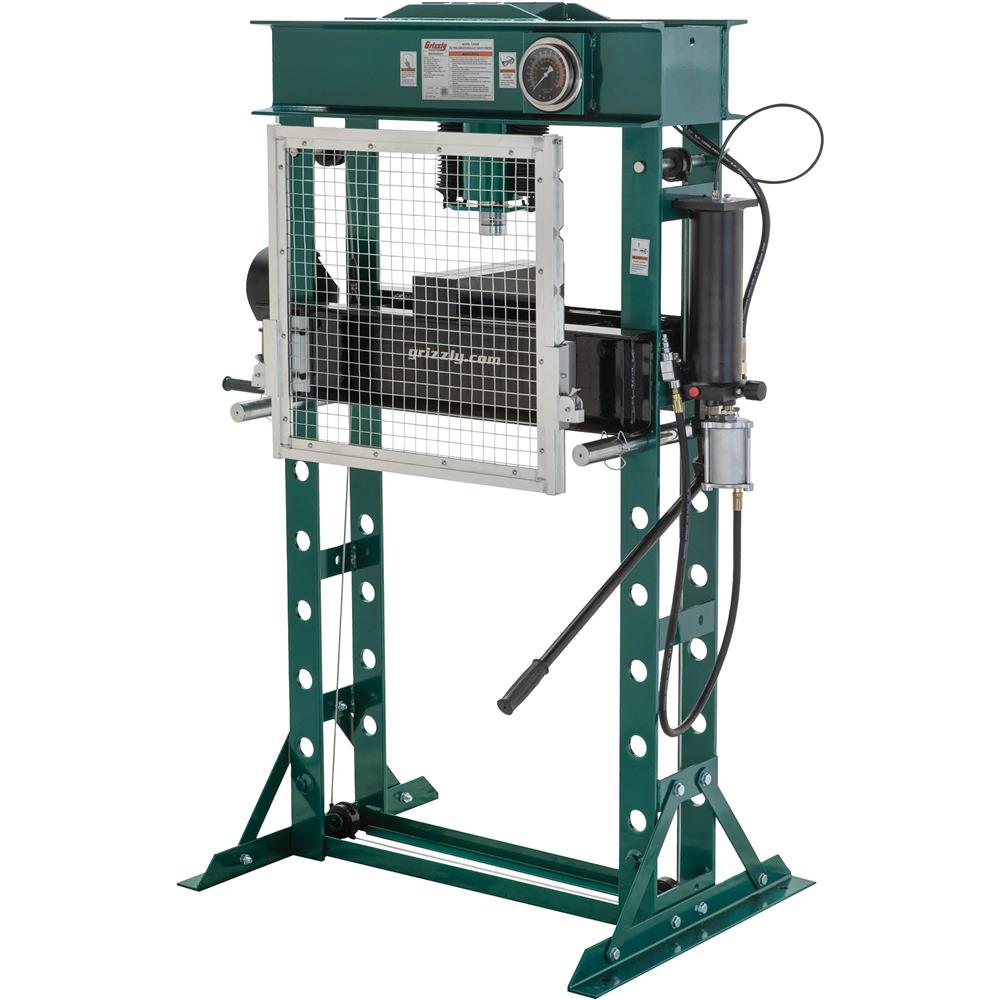

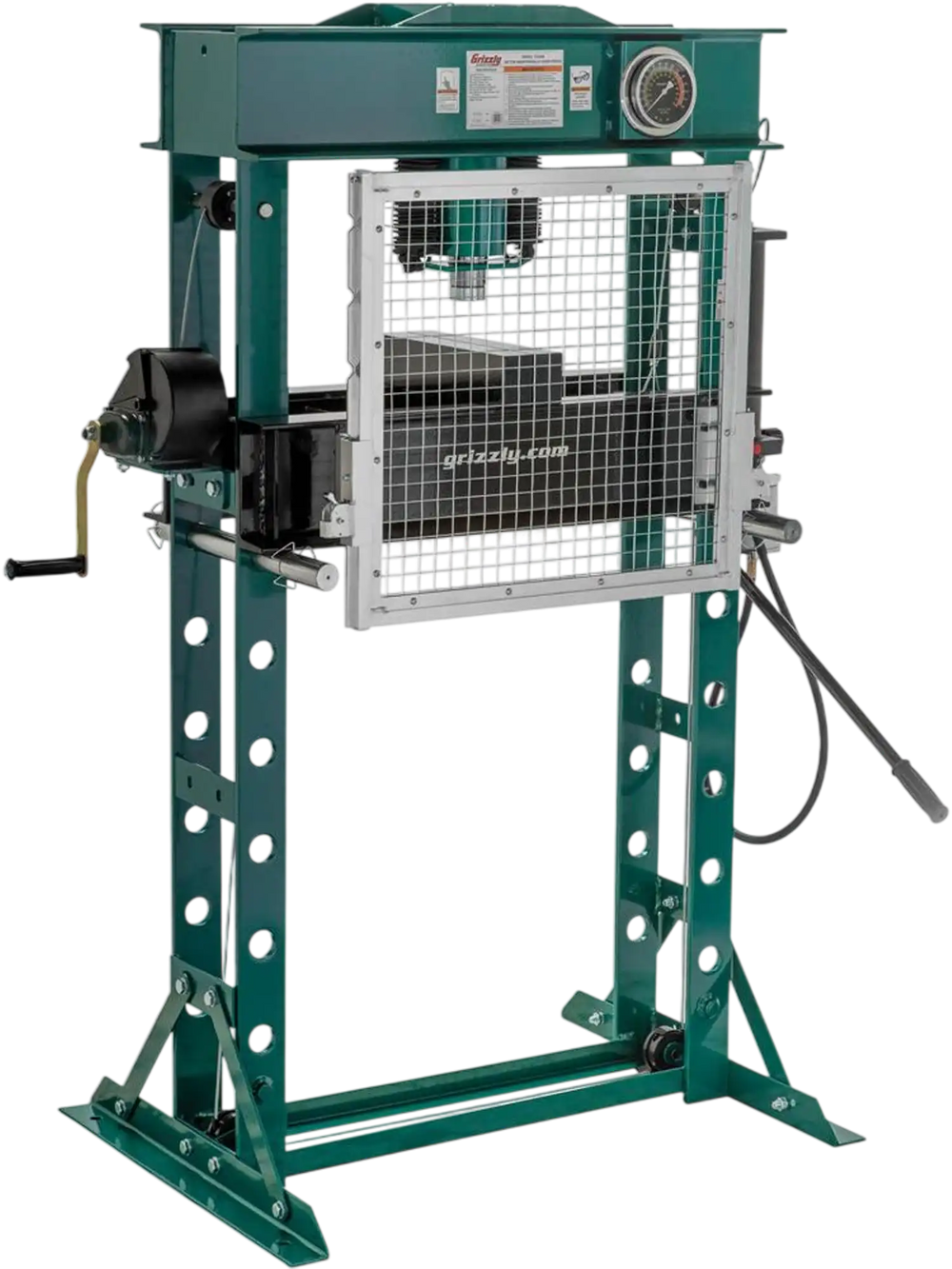

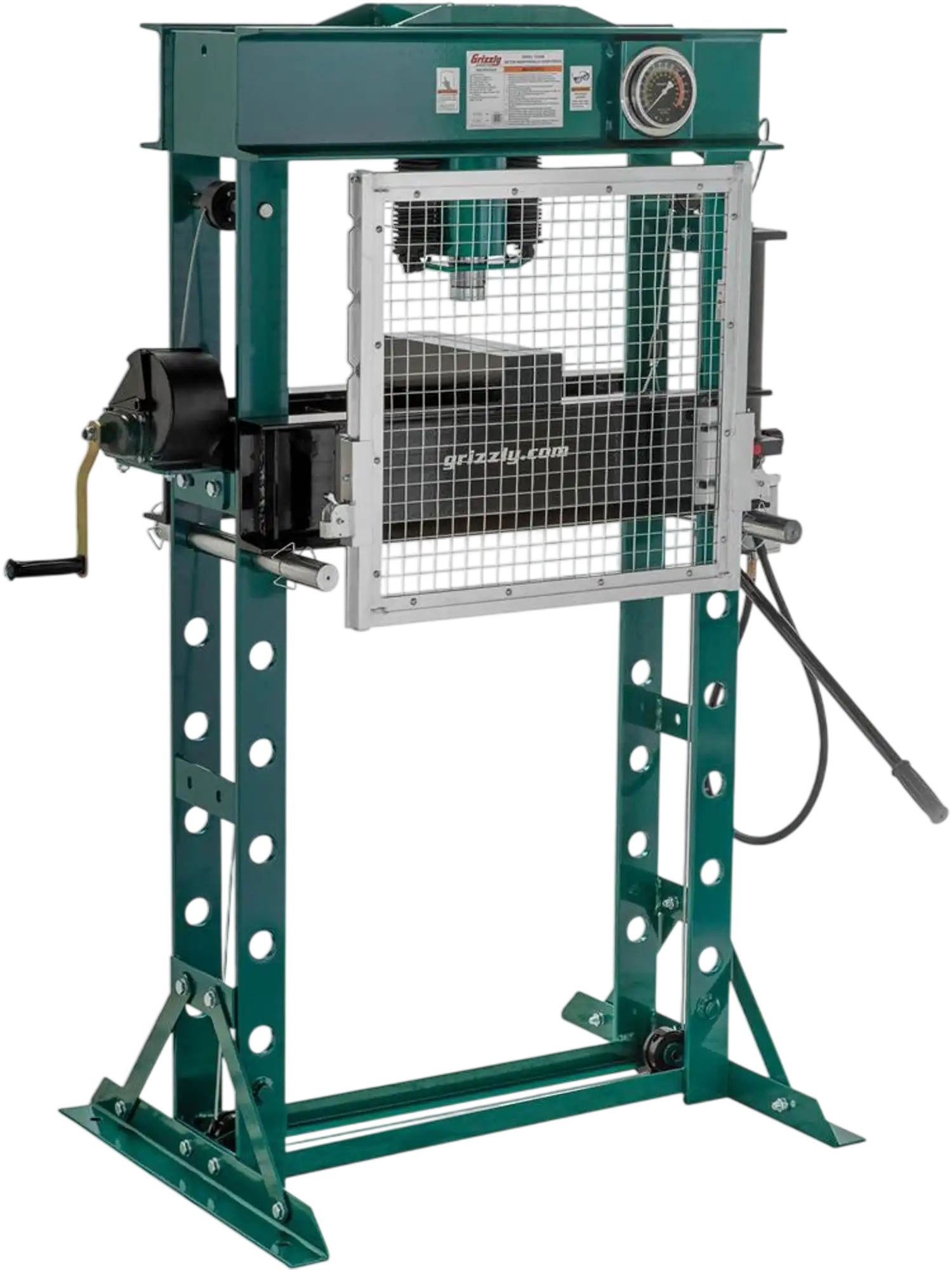

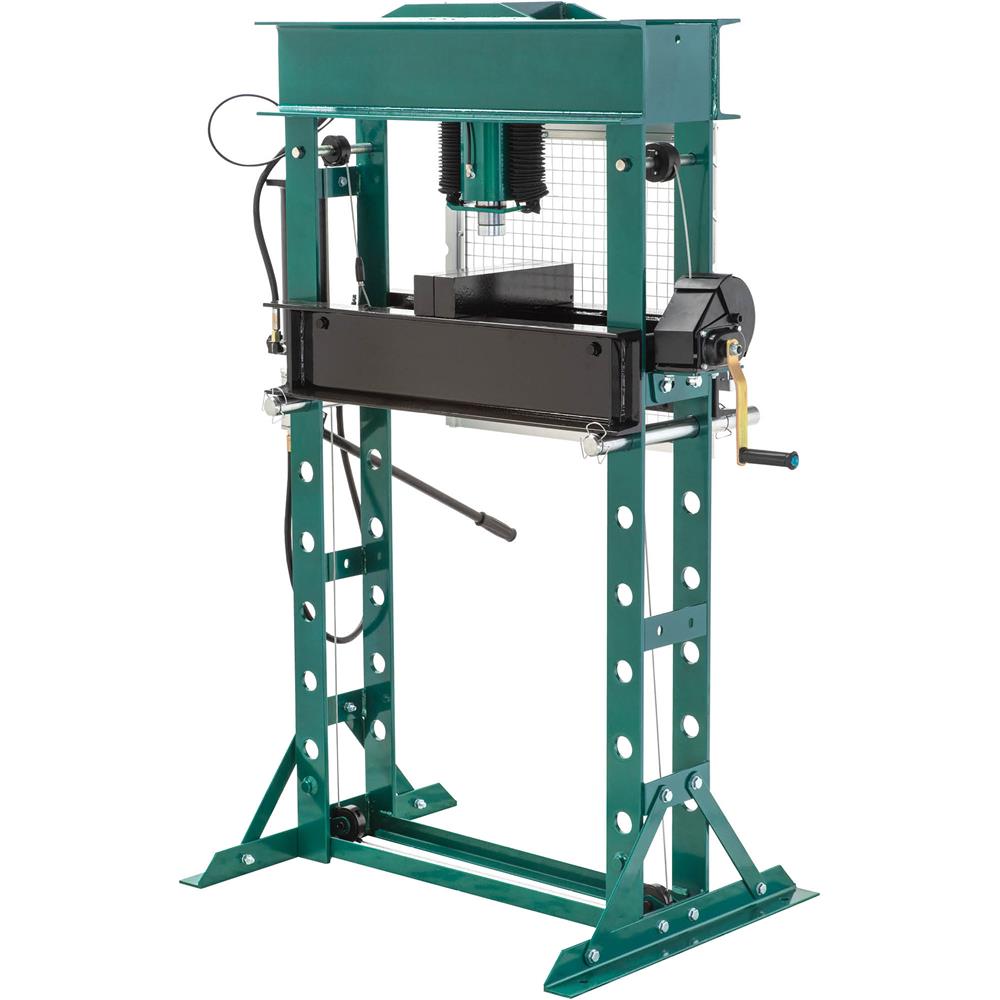

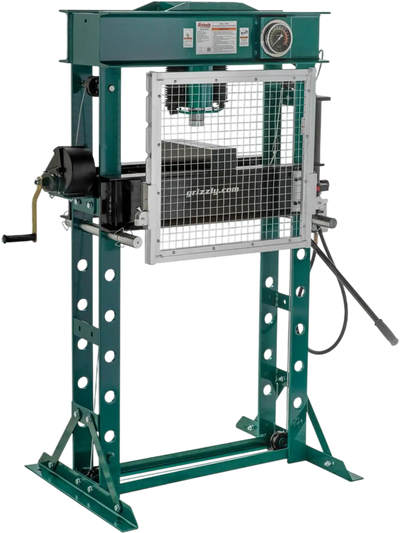

Grizzly T34349 Hydraulic Press 50-Ton Shop Press New
Product Overview
The Grizzly T34349 is a 50-ton hydraulic shop press built for heavy-duty fabrication, repair, and production work. With up to 100,000 lbs. of applied force, it is designed for pressing, bending, broaching keyways, punching, and other demanding metalworking tasks.
A welded steel H-frame, heavy-duty arbor plates, and welded pump cylinder provide the rigidity and durability needed for accurate, repeatable results. Pneumatic and hand-pump operation give you flexible control, while the liquid-filled force gauge helps monitor pressure for precision work.
An adjustable table with a winch and pulley system makes it easier to fit different workpiece sizes, and the spring-assist ram return helps speed up repetitive jobs. This press is a strong choice for metal fabrication shops, automotive repair facilities, manufacturing environments, and maintenance departments that need reliable high-force performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

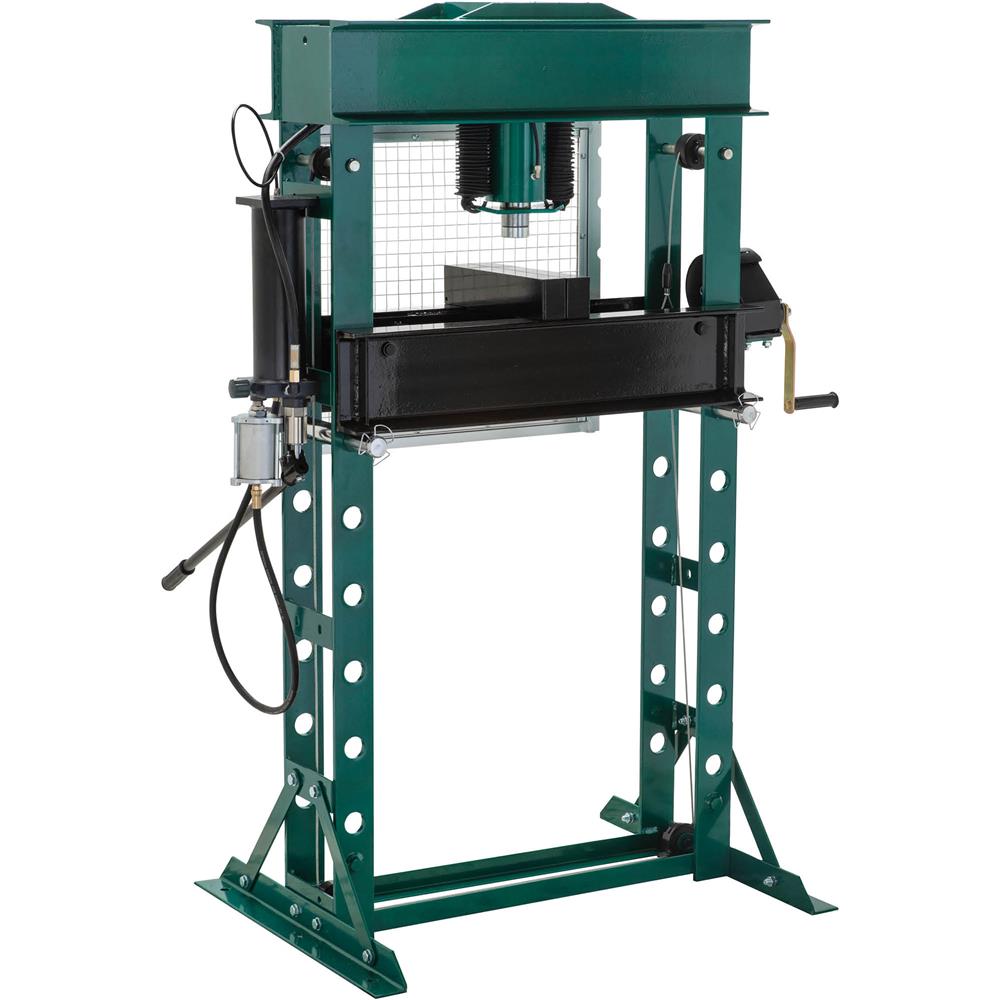

- H-Frame Design: The sturdy welded steel H-frame shape offers maximum support and ensures accuracy during every press operation.
- Two Heavy-Duty Arbor Plates: Created to withstand high-pressure applications, these steel plates can be used for multiple tasks.
- Welded Pump Cylinder: Welded construction ensures durability, minimizing wear and tear and providing reliable performance even with repeated use.

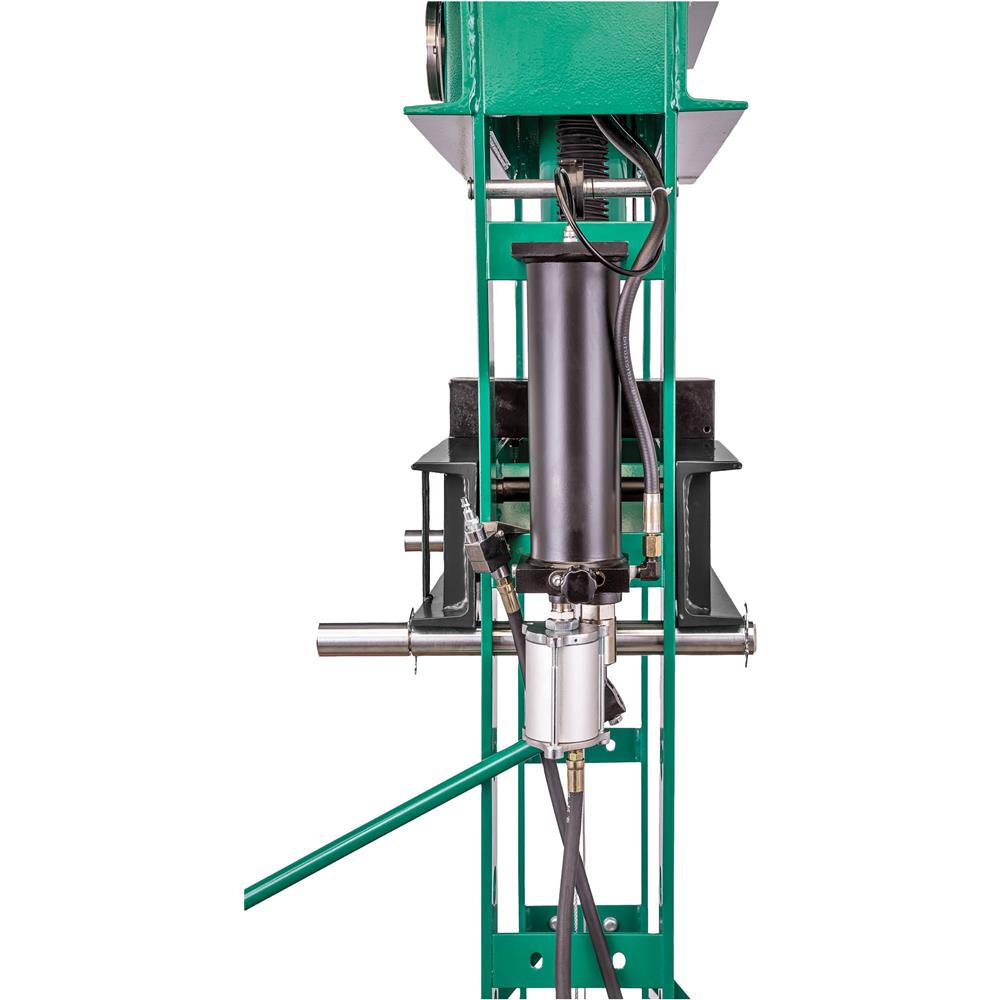

- Pneumatic and Hand-Pump Operation: Get direct control over the amount of force applied and a more regulated press cycle.
- Liquid-Filled Force Gauge: Provides highly accurate pressure readings even in harsh conditions.

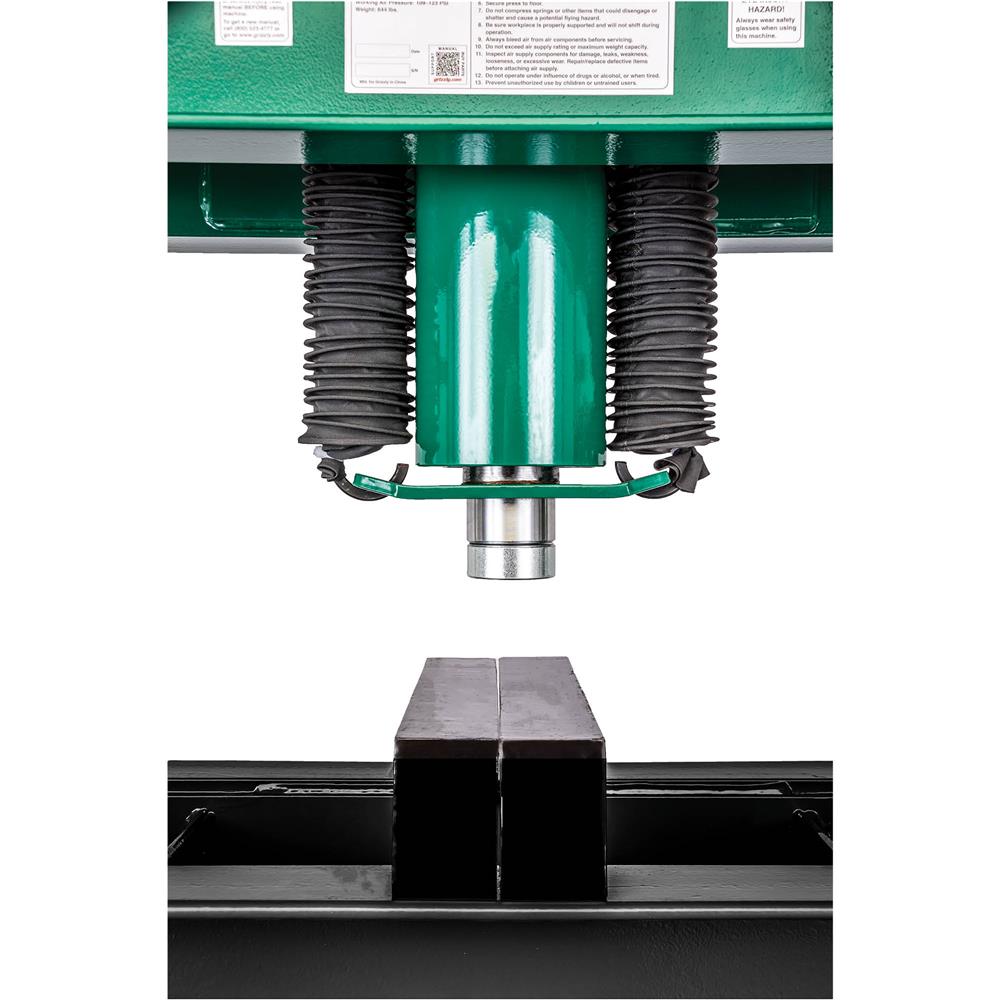

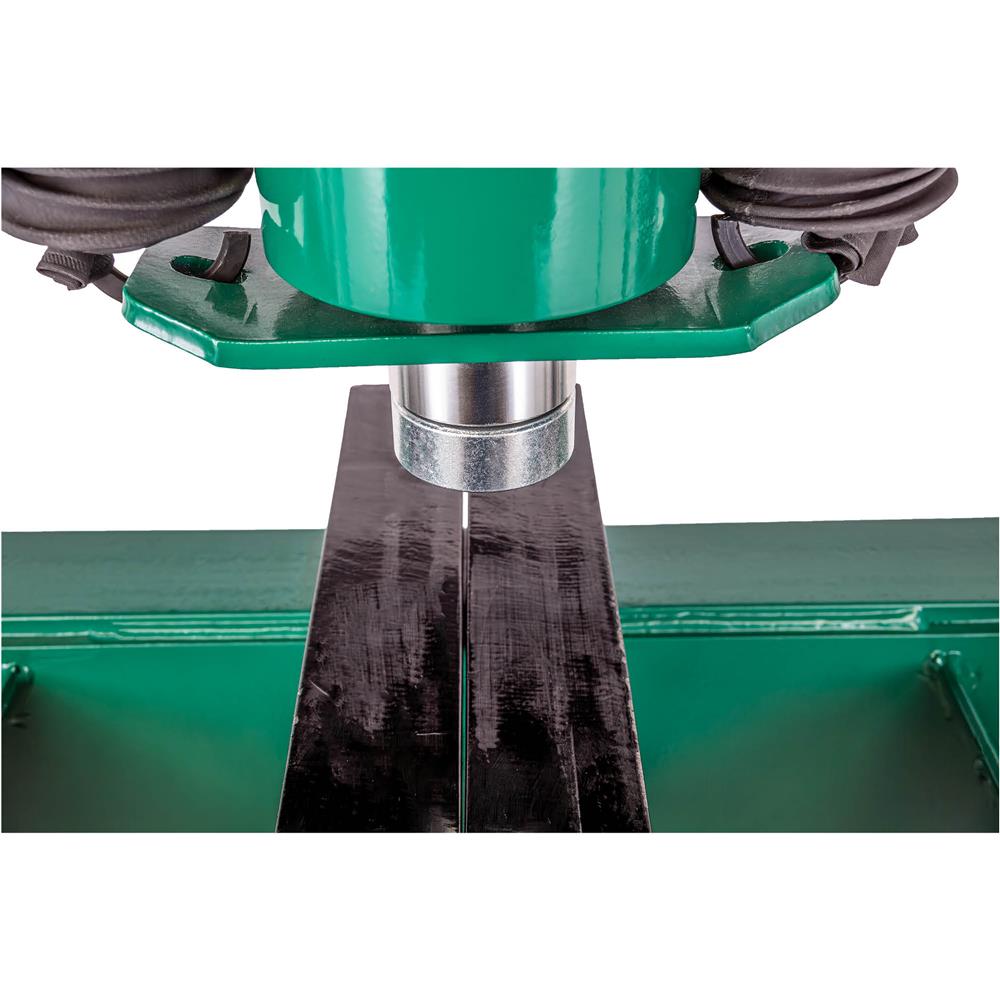

- Interchangeable Ram End: Easily switch between different ram ends as needed based on material type.
- Spring-Assist Ram Return: Automatically returns the ram to the starting point after each completed process.

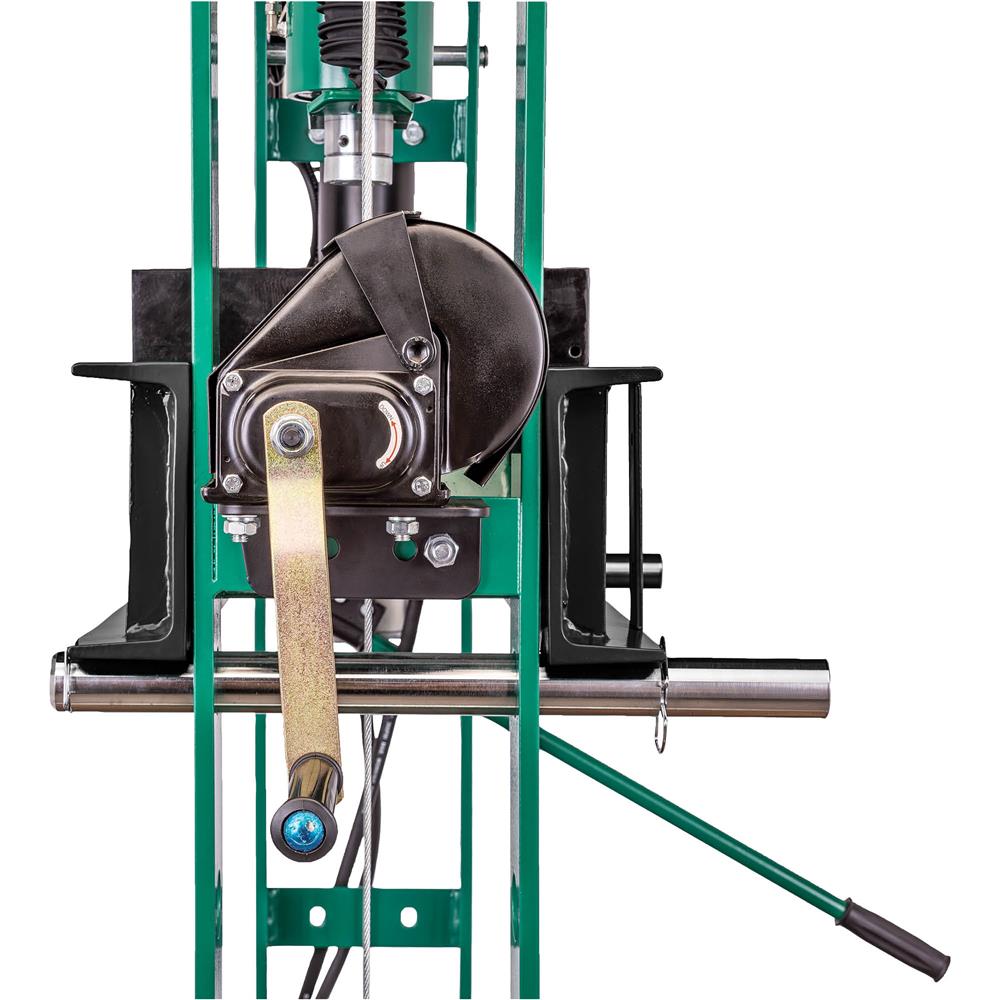

- Winch and Pulley System: Efficiently and safely raise and lower the worktable for precise adjustments.
- Adjustable Table Height: Modify the table height as needed based on workpiece size for the most effective ram travel and pressure.
- Safety Screen: A fully adjustable guard provides essential protection during high-force operations to prevent on-the-job injuries.
Specifications
| Ram max applied force | 100,000 lbs. (50 tons) |
| Ram maximum stroke | 7-1/2" |
| Ram piston diameter | 2.285" |
| Ram face diameter | 2" |
| Maximum distance to table | 33" |
| Minimum distance to table | 5-1/2" |
| Bed support pin diameter | 1-9/16" |
| Bed adjustment holes | 6 |
| Bed adjustment hole spacing | 5-1/2" on center |
| Hydraulic fluid type | Standard hydraulic jack oil |
| Footprint | 39-1/2" x 29-1/2" |
| Overall dimensions | 51" W x 41" D x 66" H |
| Approximate shipping weight | 698 lbs. |
Warranty
This item comes with a 1 year factory warranty.
