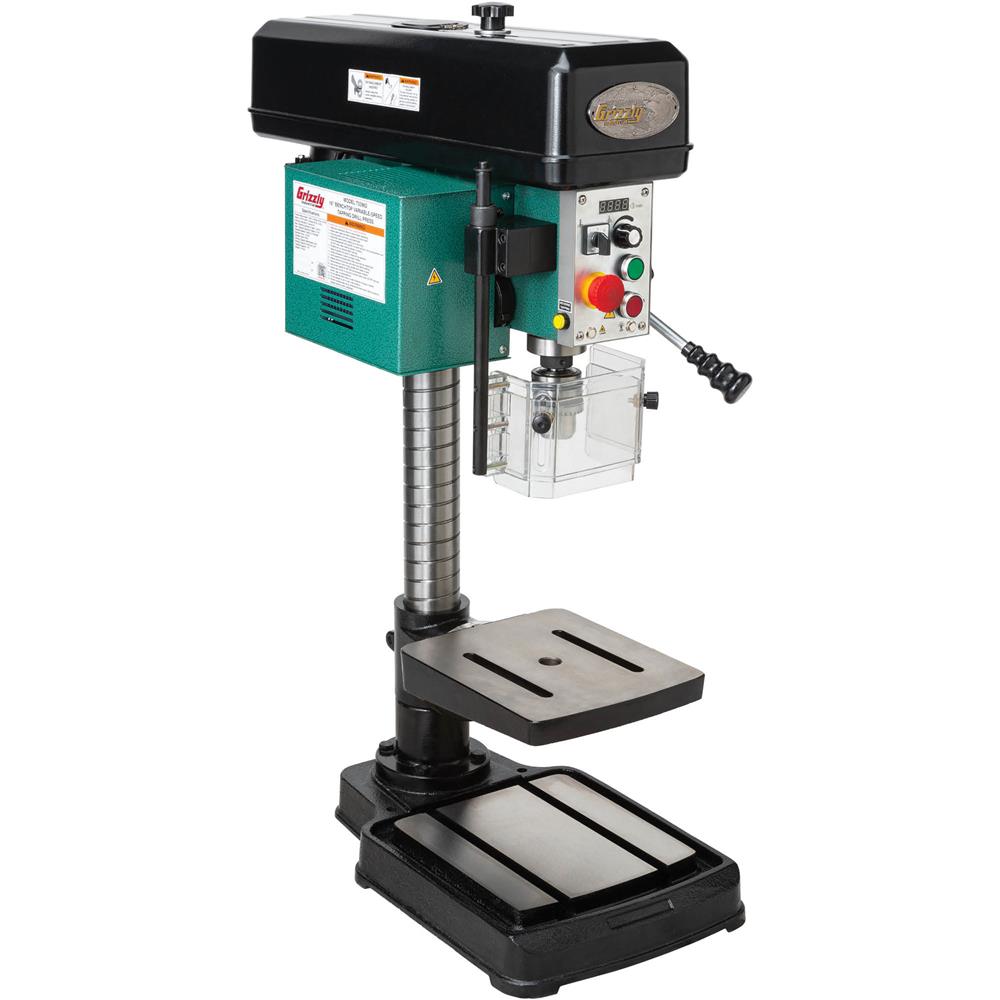

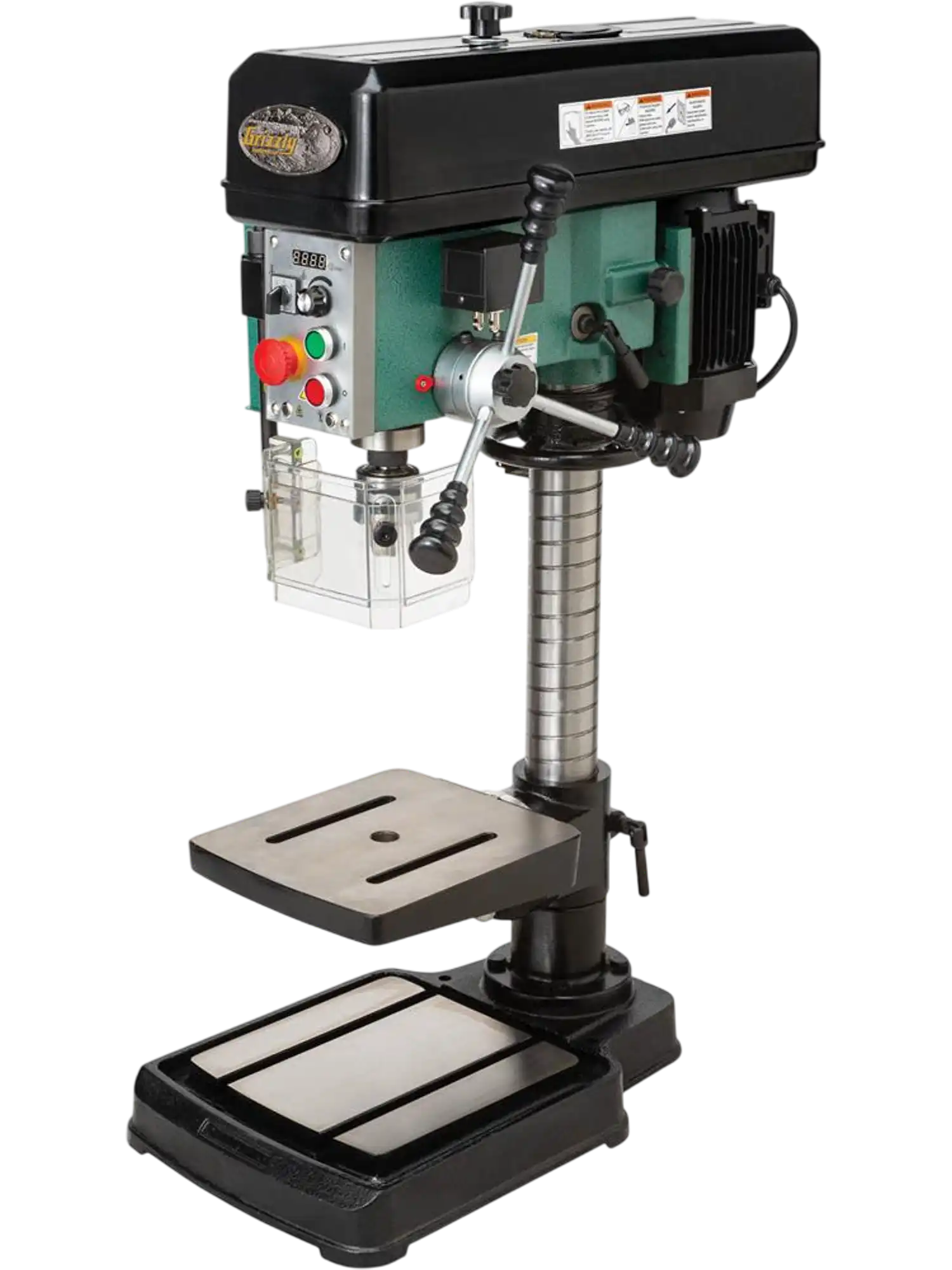

Grizzly T33962 Benchtop Variable-Speed Tapping Drill Press 16" New
Manufacturer: Grizzly
SKU: T33962
QTY
or
(888) 999-1522
C
$3,024.00
Exceptional Customer Service
Authorized Dealer
Grizzly T33962 Benchtop Variable-Speed Tapping Drill Press 16" New
Product Overview
The Grizzly T33962 is a 16-inch benchtop variable-speed tapping drill press designed for drilling and thread-cutting in one compact machine. Built for shops that need more than a standard drill press, it offers up to 1/2-inch tapping capacity and 9/16-inch drilling capacity in steel.
Its variable-speed spindle, two speed ranges, and digital readout make it easy to match speed to the job, while auto reverse and reversible spindle rotation help streamline tapping operations. A 360-degree swiveling table, adjustable headstock height, laser guide, and built-in LED work light support accurate positioning and clearer visibility during detailed work.
With a cast-iron base for stability and multiple built-in safety guards and switches, this machine is well suited for metalworking, fabrication, maintenance, and serious home or small professional workshops. It is a strong choice for users who want precise drilling performance with added tapping capability in a benchtop format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Two variable-speed spindle speed ranges
- Reversible spindle rotation
- Adjustable headstock height
- Adjustable Class II laser guide

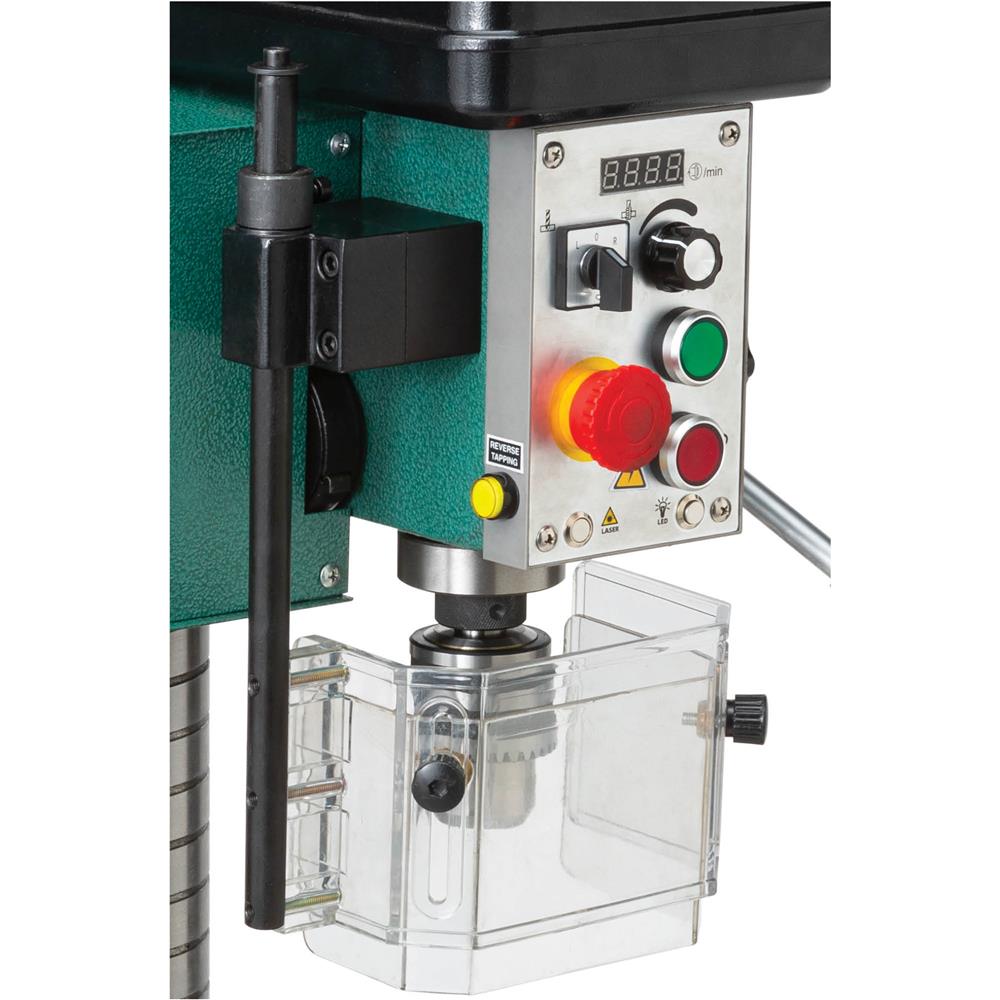

- Spindle speed digital readout
- Built-in LED work light
- Square chuck guard with micro switch
- Dial-type depth stop
- Clear chip guard
- Belt cover safety switch
Specifications
| Required power source | 120V, single-phase, min. 15A circuit |
|---|---|
| Motor | 3/4 HP, 120V |
| Swing | 16" |
| Spindle taper | MT#2 |
| Spindle speed | Variable, 50-600, 600-2100 RPM |
| Max. distance from spindle to table | 12-9/16" |
| Drill chuck | 5/8", JT3 keyed |
| Drilling capacity | 9/16" steel |
| Tapping capacity | 1/2" |
| Table size | 9-3/4" x 11-1/8" |
|---|---|
| Table tilt | 45° left/right |
| Table swivel around column | 360° |
| Footprint | 20-1/2" x 14" |
| Overall dimensions | 16" W x 28-1/2" D x 39-1/2" H |
| Approximate shipping weight | 204 lbs. |
Warranty
This item comes with a 1 year factory warranty.
