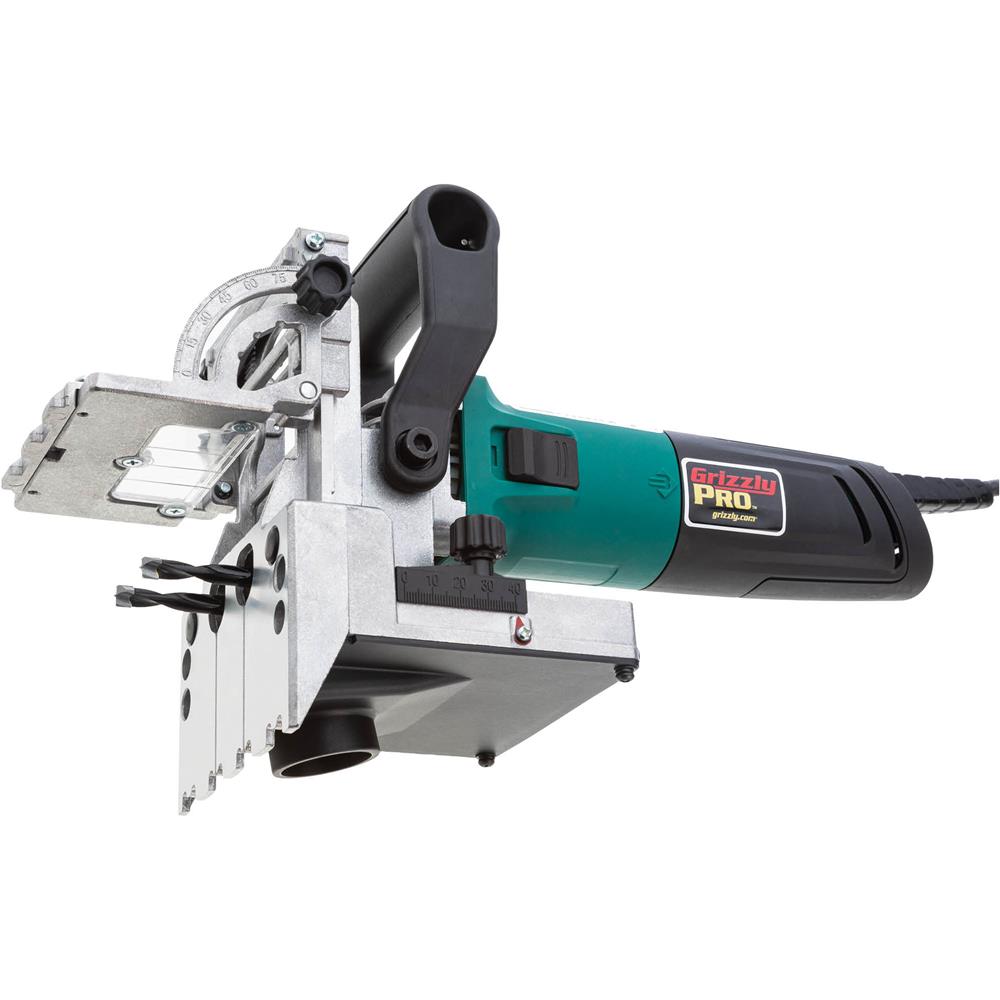

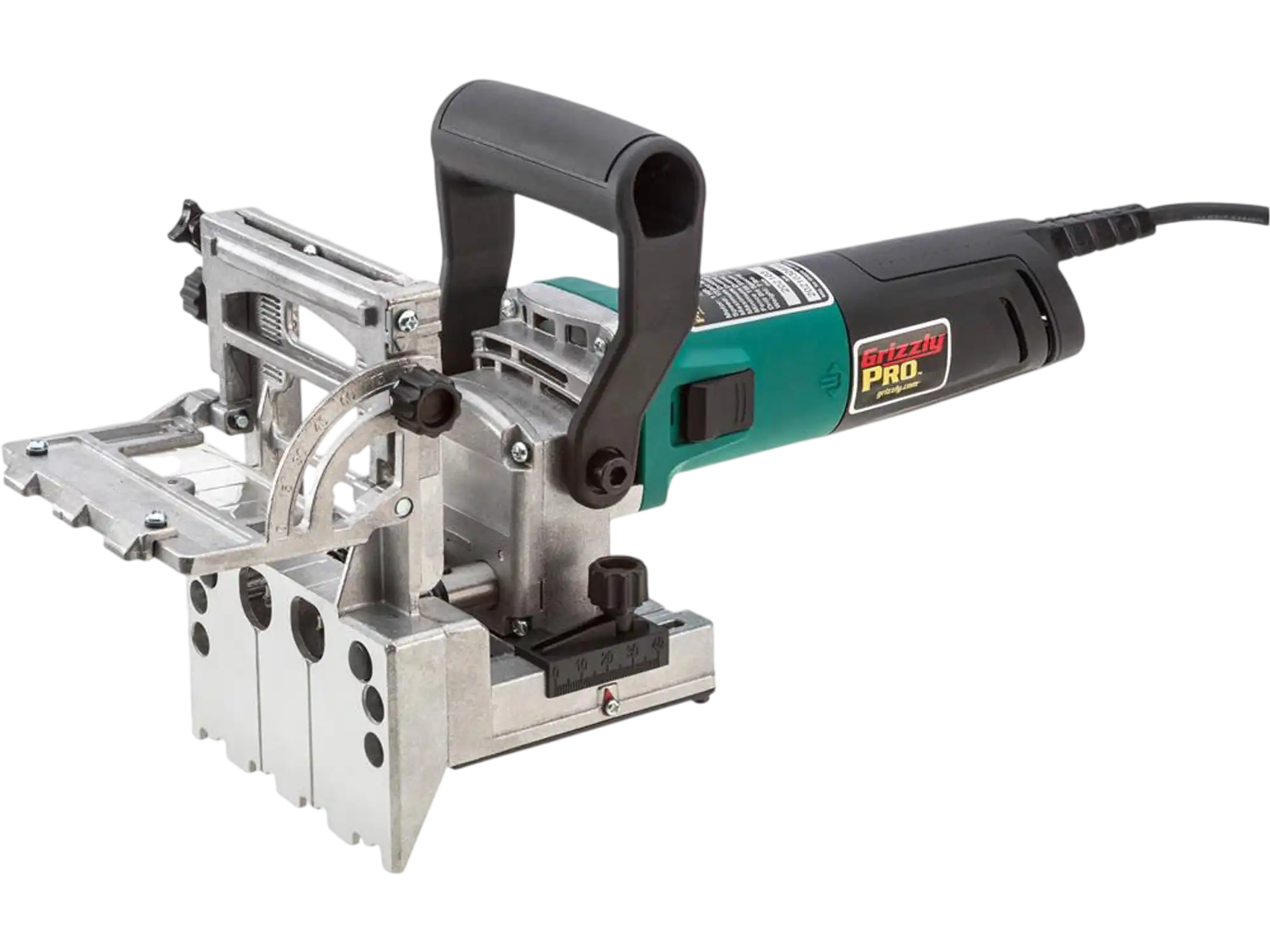

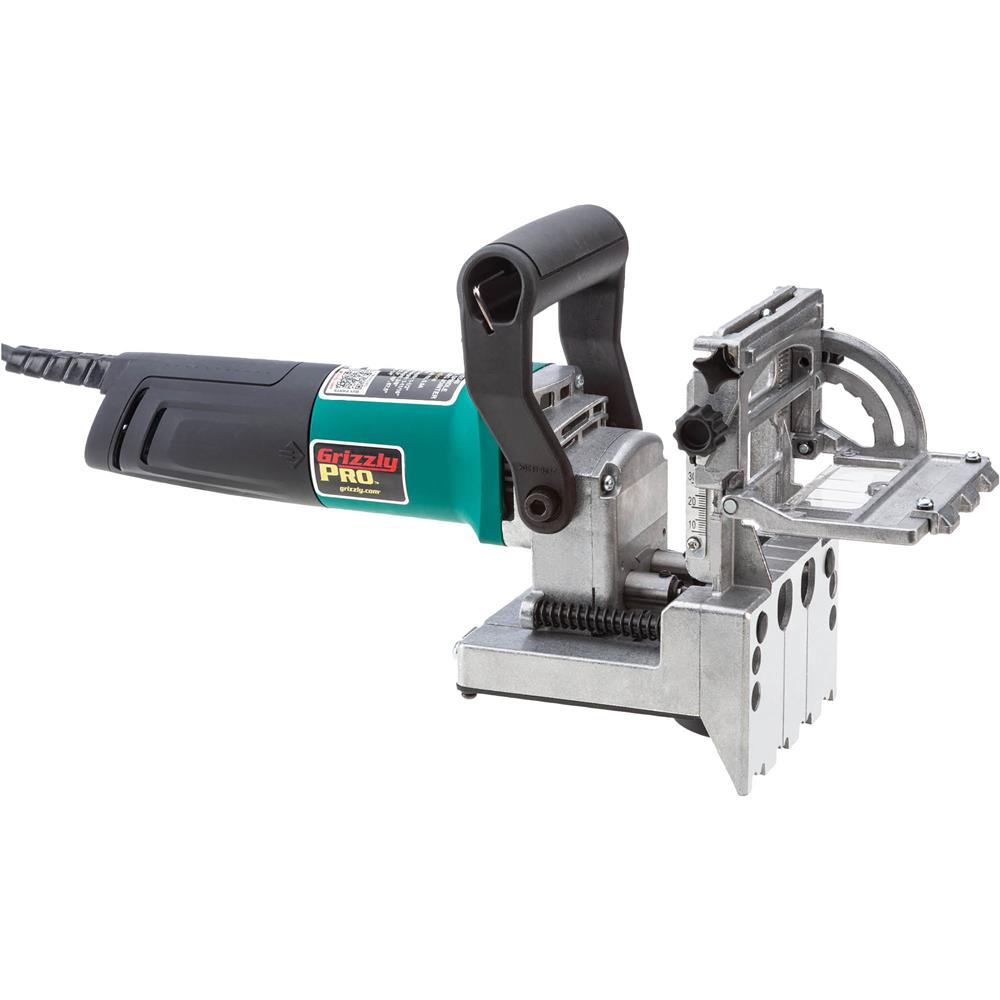

Grizzly T32540 Plate and Biscuit Joiner PRO Dual Spindle Doweling Joiner New
Product Overview
The Grizzly T32540 Plate and Biscuit Joiner PRO is a dual-spindle doweling joiner designed to create strong, accurate joints quickly. It drills two holes at once with 1-1/4-inch center-to-center spacing, making it a practical choice for assembling shelves, frames, cabinets, and furniture.
With a 1 HP motor, 17,000 RPM arbor speed, and support for 8–12mm bits, this tool is built for fast, repeatable joinery. Adjustable plunge depth up to 1-1/2 inches, a tilting fence from 0–90 degrees, and rack-and-pinion height adjustment help you match a wide range of workpieces and joint layouts.

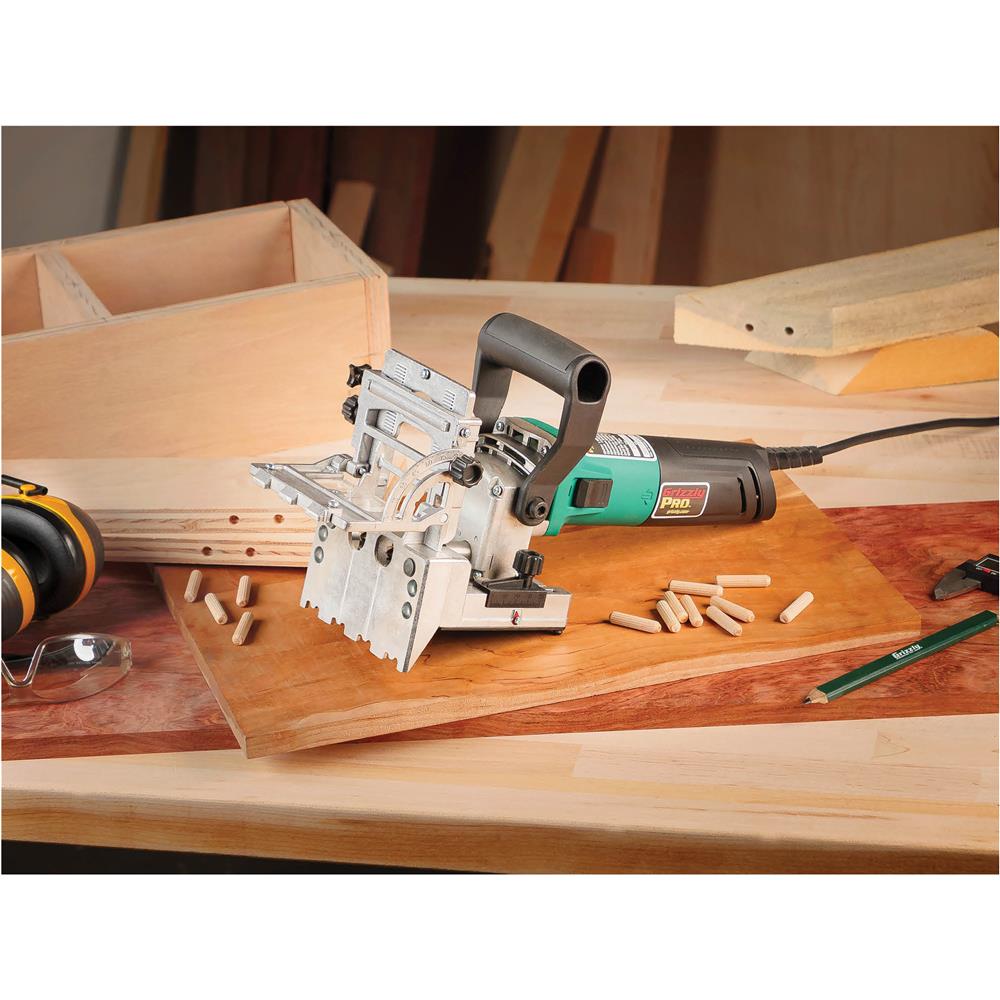

A clear viewing window improves alignment during drilling, while built-in dust extraction helps keep the work area cleaner. This joiner is well suited for woodworkers, cabinetmakers, and serious DIY users who want efficient, consistent dowel joinery with minimal setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Adjustable plunging depth up to 1-1/2"
- Clear fence viewing window for accurate drill bit placement
- Removable fence with drilling height adjustment of 3/8–1-11/16"
- Drilling angle of 0–90° with stops at 22.5°, 45°, and 67.5°
- Dust extraction below drill bits
- Rack-and-pinion height adjustment
- Safety switch
Specifications
| Motor | 1 HP, 120V, 5.9A |
| Arbor speed | 17,000 RPM |
| Supported drill bit sizes | 8–12mm |
| Maximum plunging depth | 1-1/2" |
| Height adjustment | 3/8"–1-11/16" |
| Bit spacing center to center | 1-1/4" |
| Fence tilt angles | 0–90° |
| Fence tilt stops | 22.5°, 45°, 67.5° |
Warranty
This item comes with a 1 year factory warranty.
