Grizzly T31638 Router Table Router Lift with 11-3/4" x 9-1/4" x 3/8" Mounting Plate New
Product Overview

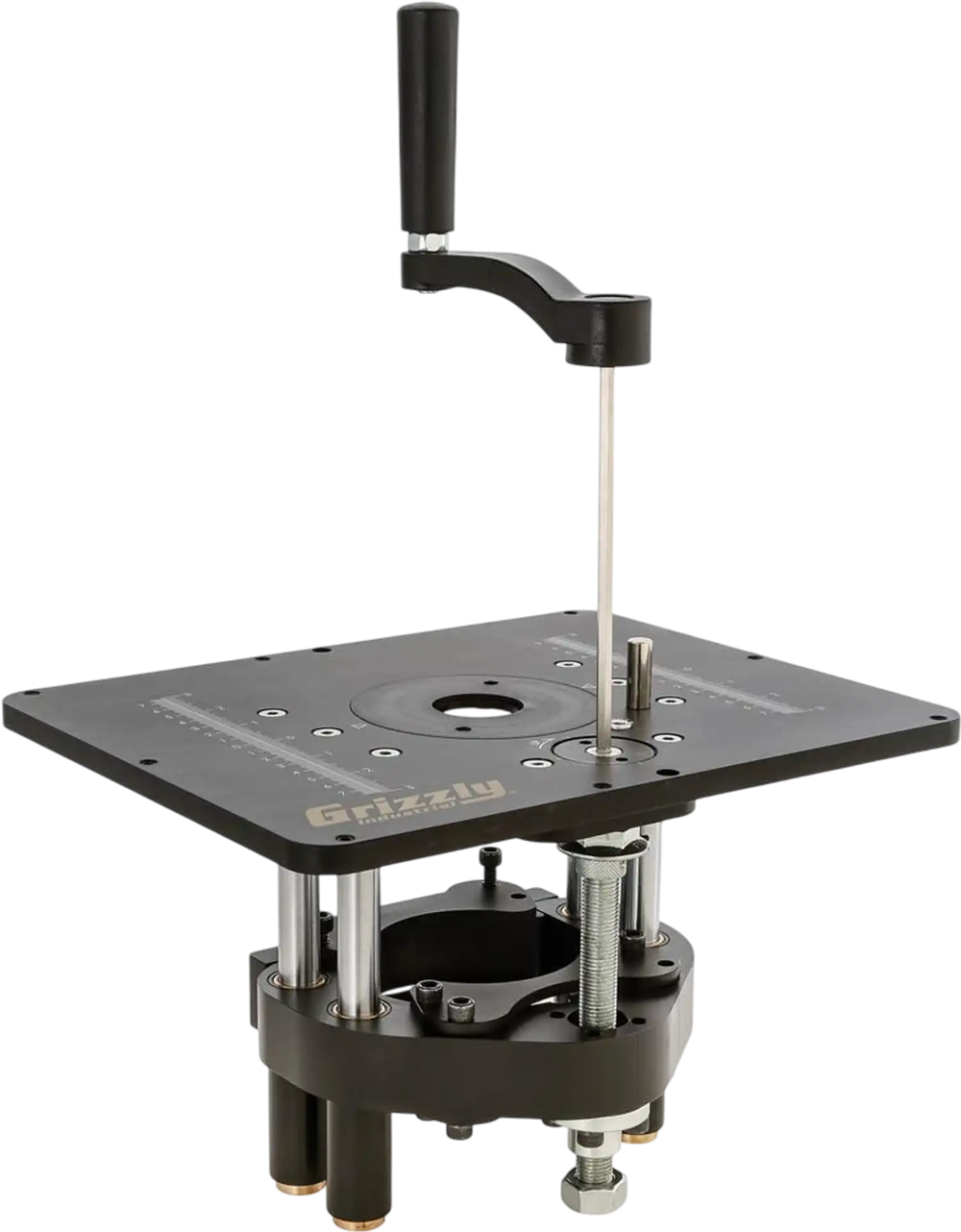

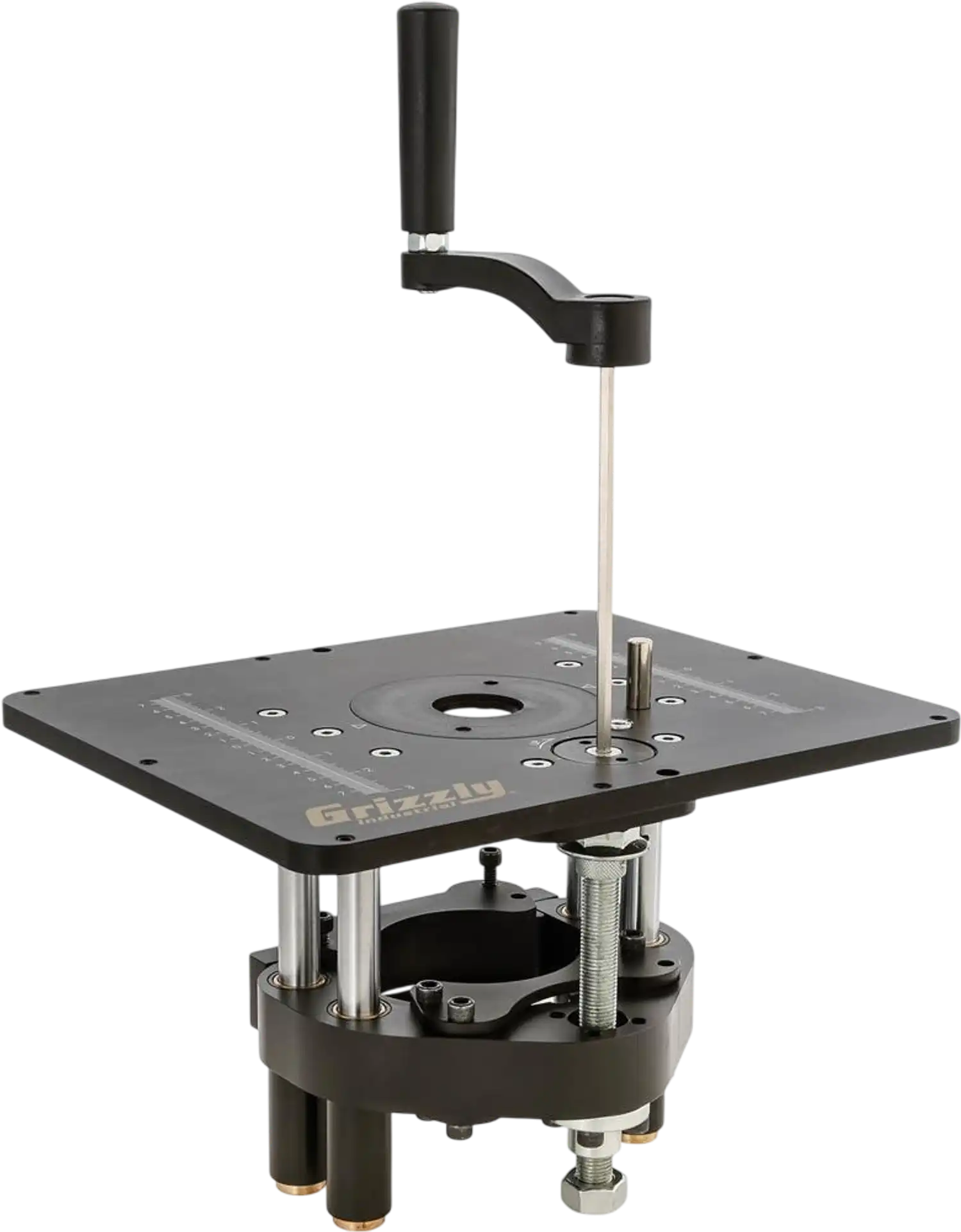

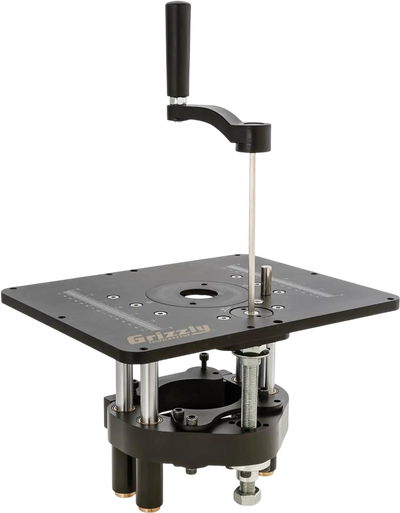

The Grizzly T31638 Router Lift is a precision-machined above-table adjustment system designed to improve the usability of compatible router tables. It includes an 11-3/4" x 9-1/4" x 3/8" mounting plate and allows fast router bit changes and accurate height adjustments without reaching below the table.

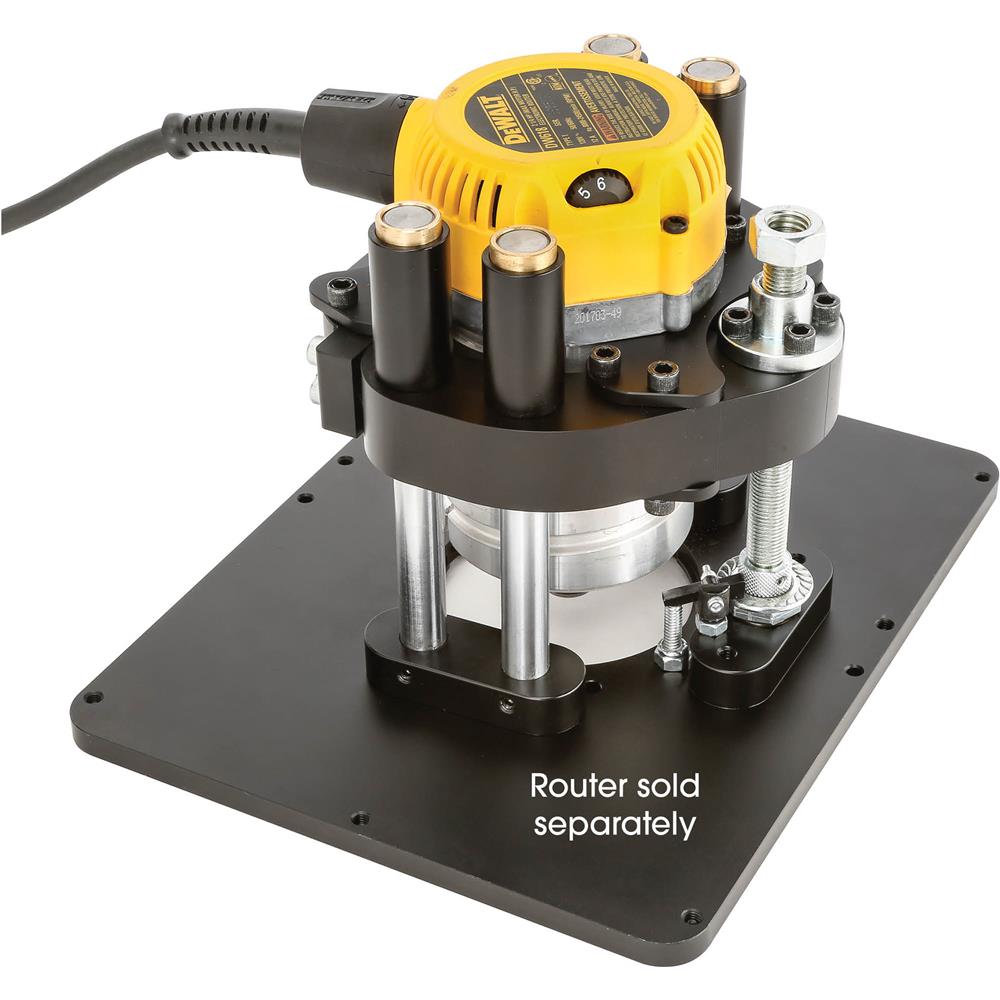

This manually operated lift uses a removable crank handle and graduated index ring for fine, repeatable control, with lift travel up to 2-3/4". It accepts router body diameters of 3.2", 3.5", or 4.2", and includes a 3-3/4" table insert with a 1-1/4" opening for added control around the bit.

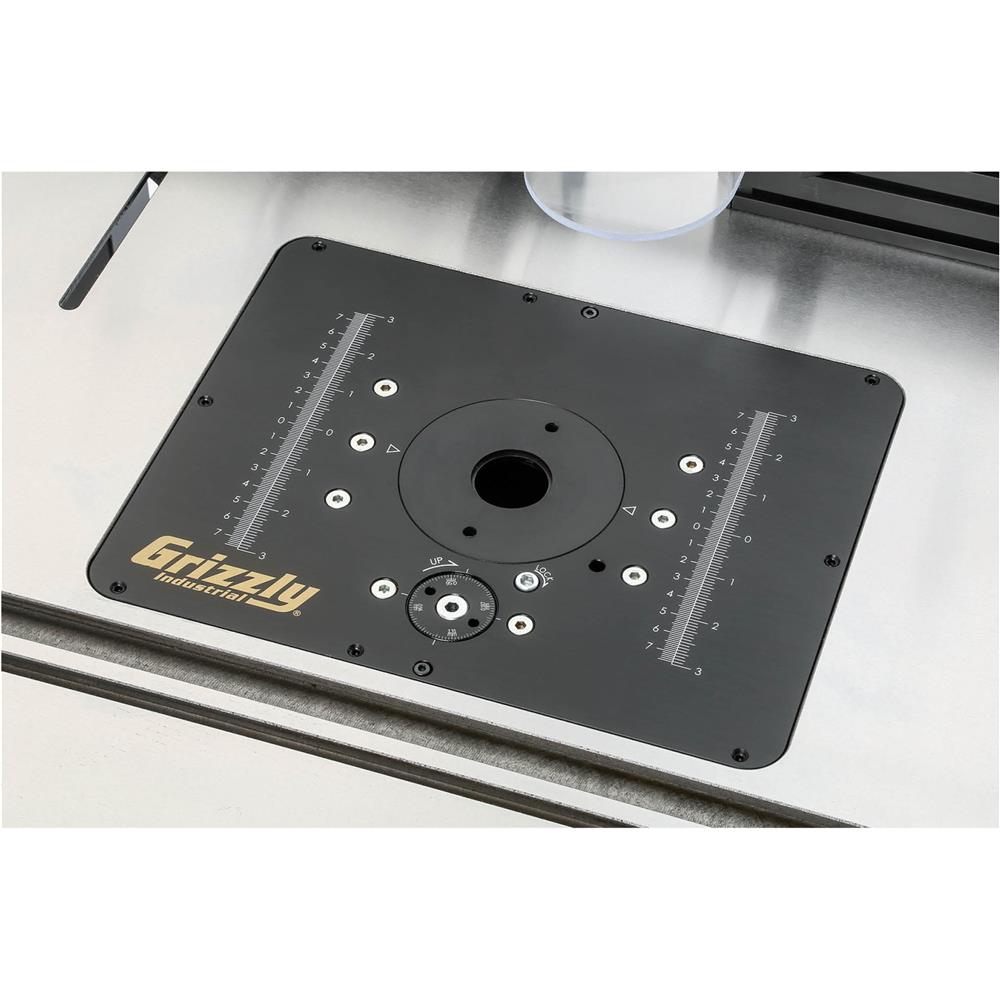

Ideal for woodworkers who want more precision and convenience from their router table setup, this lift fits compatible tables with an 11-3/4" x 9-1/4" opening and a 3/8" deep ledge. It is a strong choice for users upgrading select router tables or building a more capable custom routing station.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Precision-Machined Router Lift
- Inch/Millimeter Settings
- Index Ring for Fine Lift Adjustment of Router
Specifications
| Suitable routers for mounting | 3.2", 3.5", 4.2" |
| Plate size | 11-3/4" x 9-1/4" x 3/8" |
| Plate opening size | 3-3/4" |
| Table insert size | 3-3/4" |
| Table insert opening size | 1-1/4" |
| Router lift travel | 2-3/4" |
| Router lift index ring increment | 0.05" per full turn |
| Overall dimensions | 12" W x 9" D x 7-1/2" H |
| Approximate shipping weight | 14 lbs. |
Warranty
This item comes with a 1 year factory warranty.
