Grizzly T10718 Pan & Box Brake 50" 16-Gauge New
Product Overview

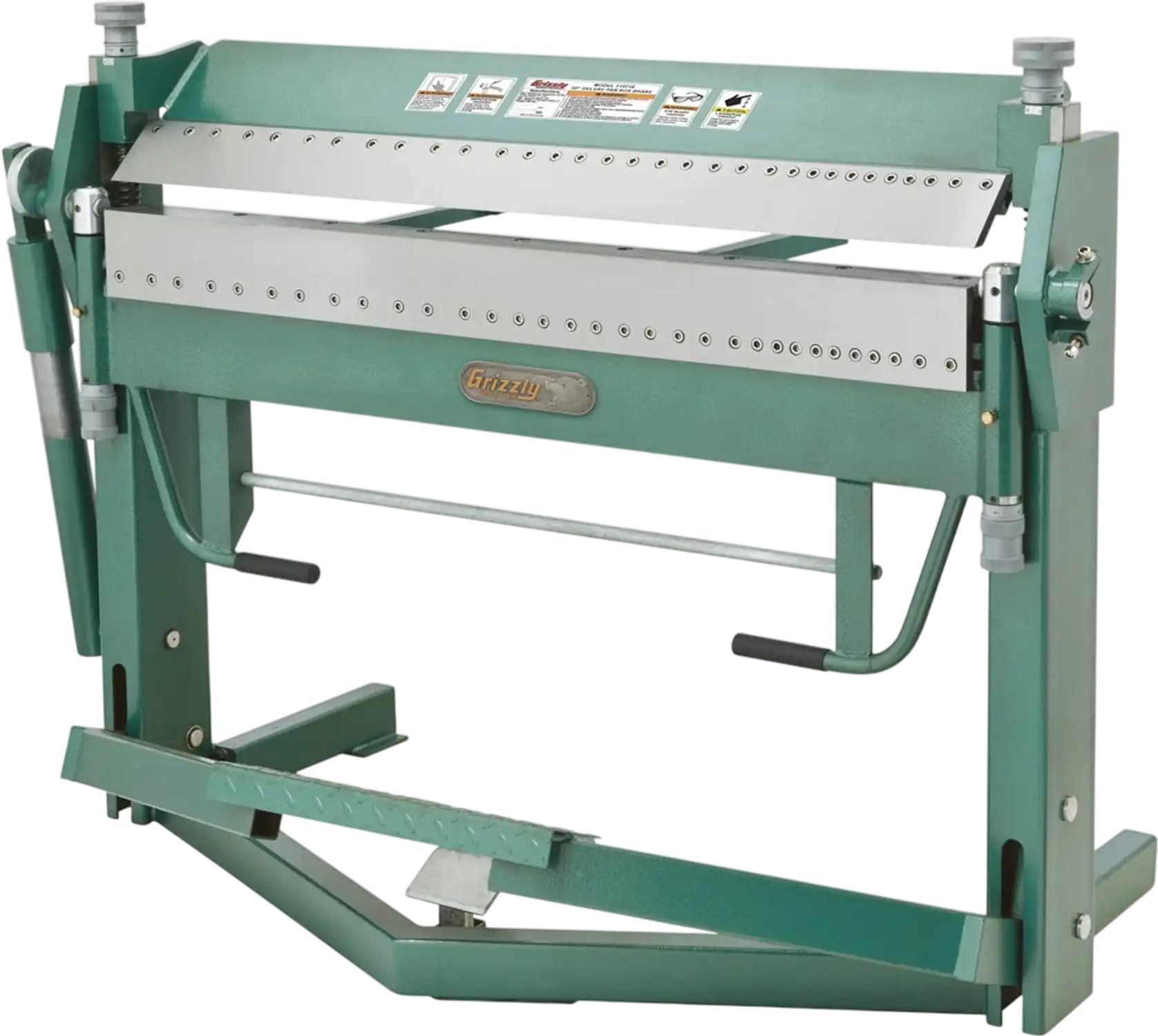

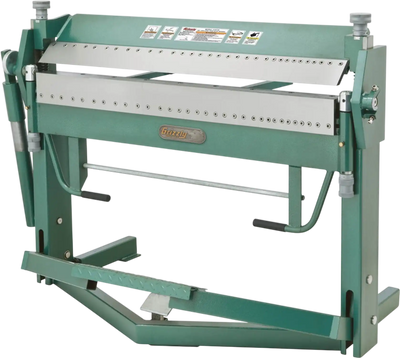

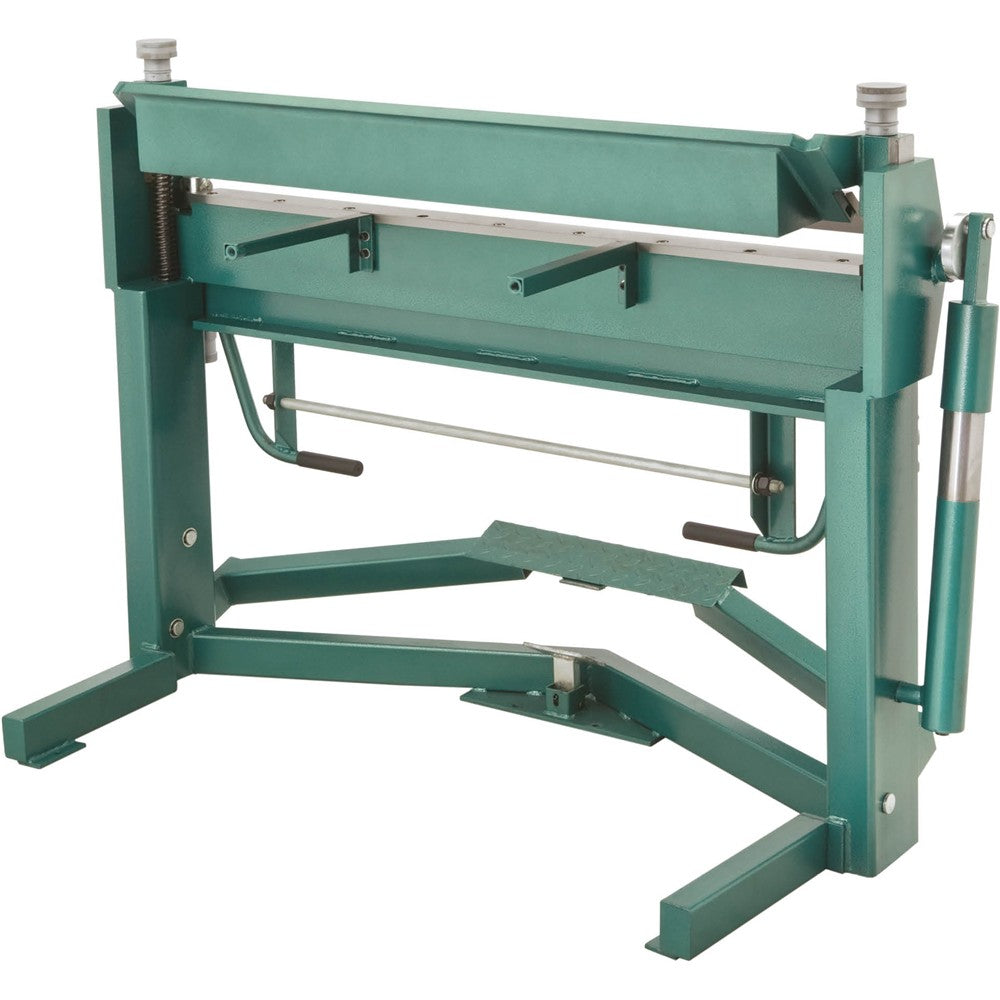

The Grizzly T10718 Pan & Box Brake is a heavy-duty sheet metal forming machine designed to make straight bends, boxes, pans, trays, and other flanged parts in material up to 16-gauge mild steel. With a 50-inch maximum working width and a bending range of 0° to 135°, it is built for shaping larger workpieces with consistent results.
Its adjustable clamping fingers and bending blocks can be arranged in different configurations to create 90° bends of varying widths while allowing previously formed sides to clear during box and pan work. Setback, clamping pressure, and the bending stop are all adjustable, making it easier to handle different materials and repeat the same bend angle across multiple parts.
This brake is a strong fit for fabrication shops, HVAC work, sign making, and architectural sheet metal applications. It is especially well suited for users who need flexibility for custom bends and formed sheet metal components in a shop environment.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Specifications
| Maximum working width | 50" |
| Maximum sheet metal thickness | 16-gauge mild steel at full width |
| Maximum height of pan/box sides | 2" |
| Minimum reverse bend | 5/8" |
| Brake range | 0–135° |
| Footprint | 63" x 35-1/2" |
| Overall dimensions | 63" W x 38" D x 44-3/4" H |
| Approximate shipping weight | 945 lbs. |
