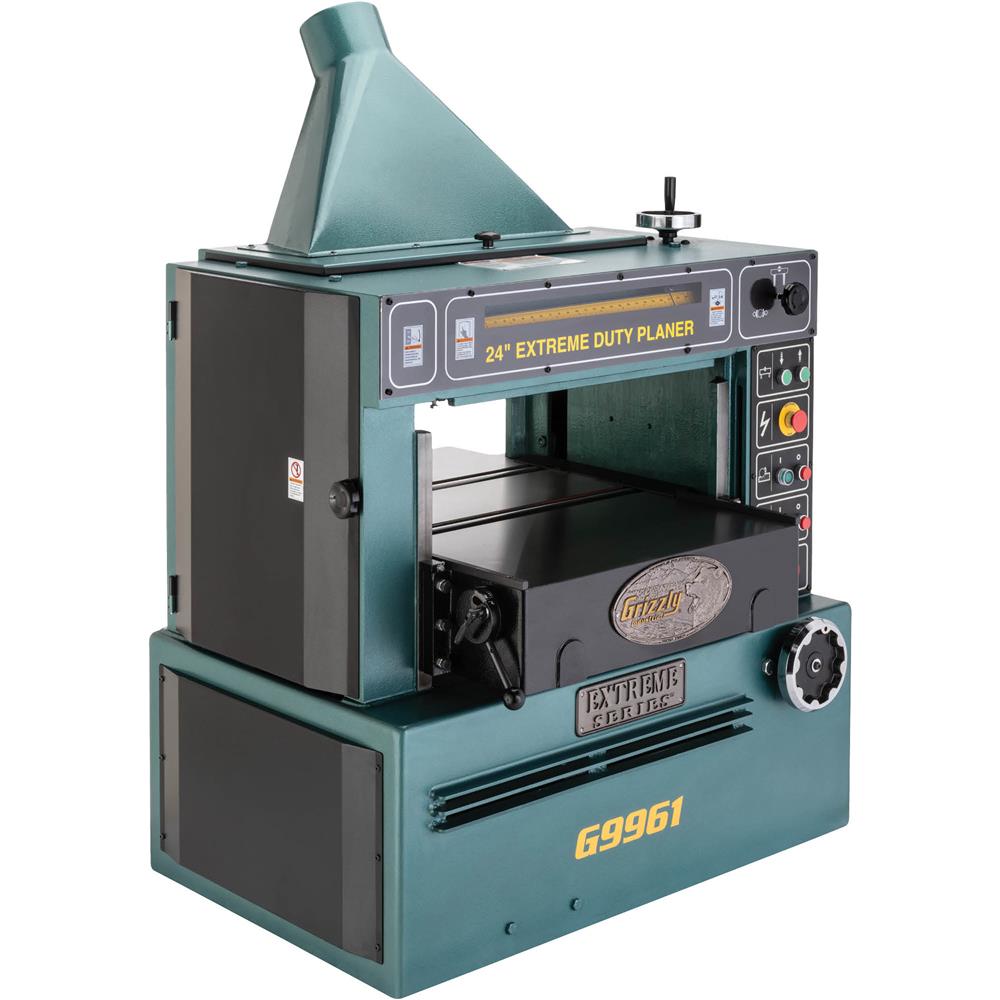

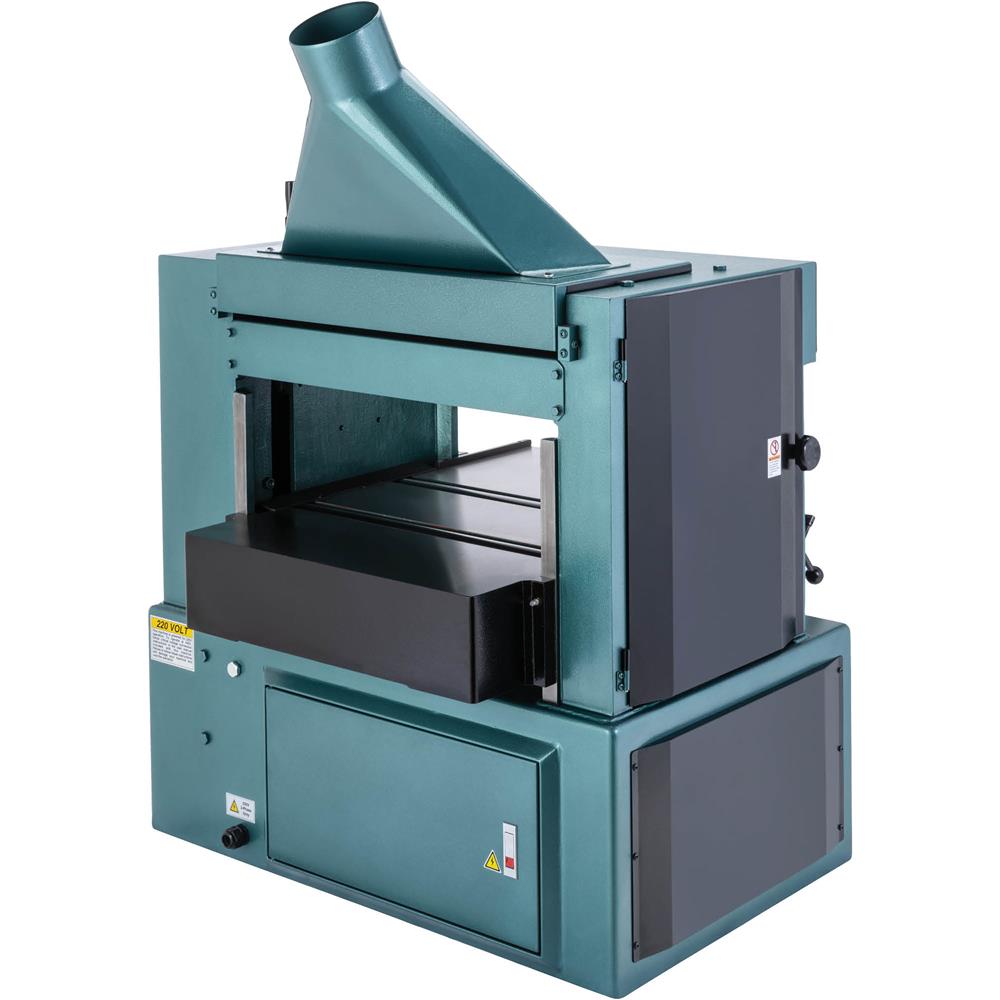

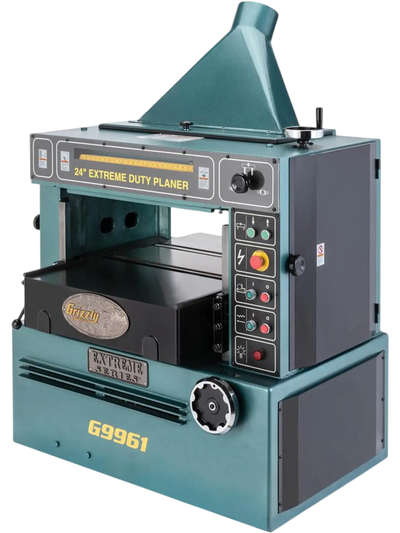

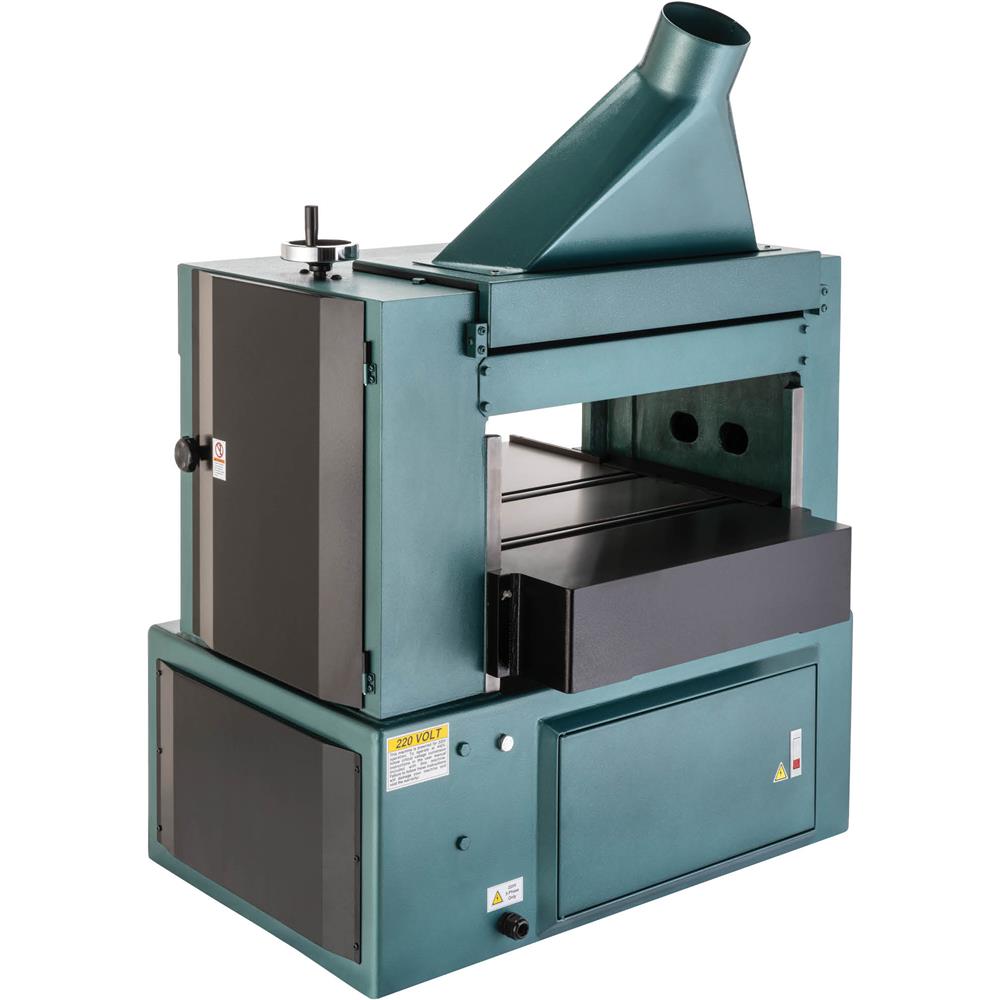

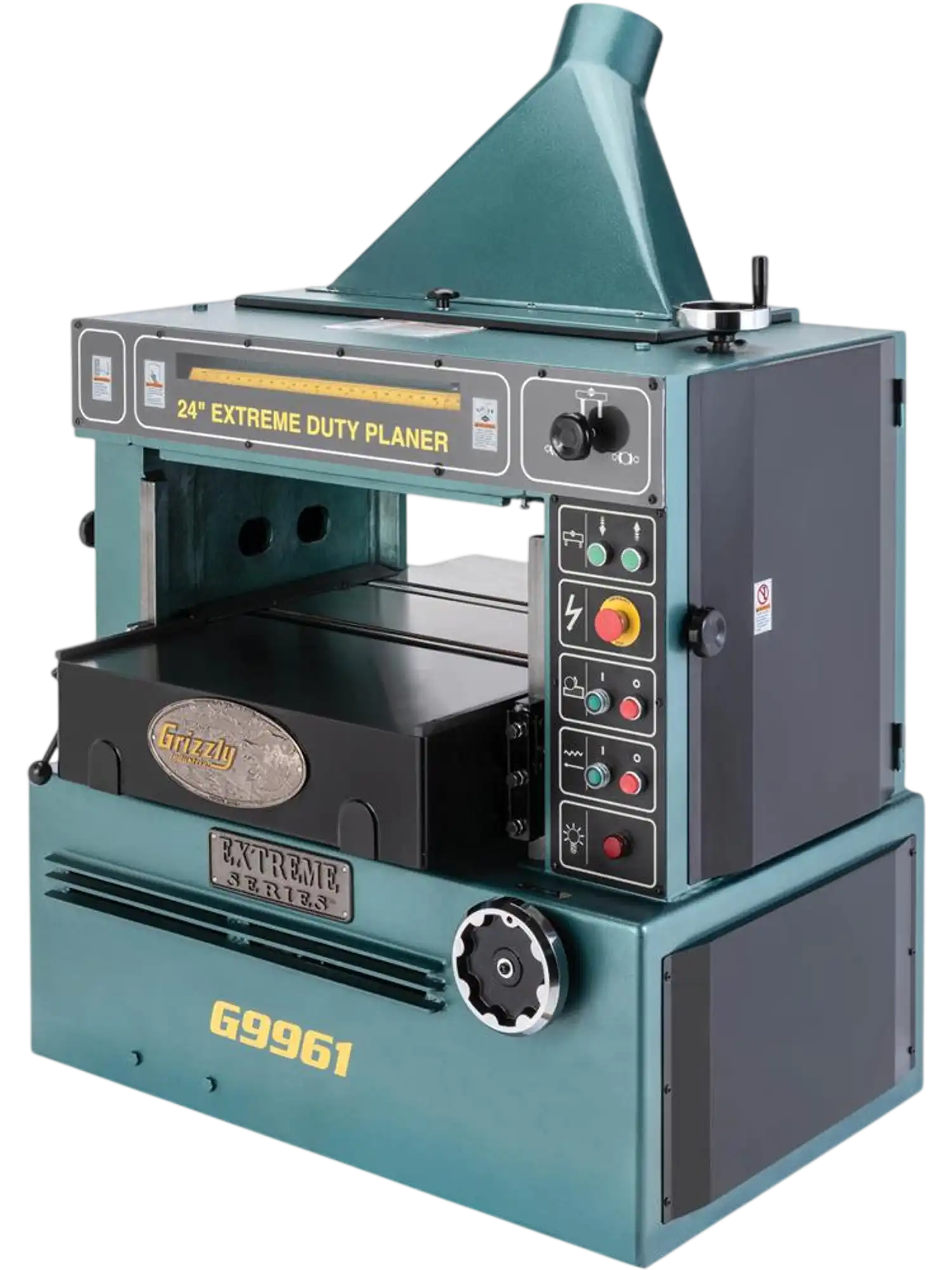

Grizzly G9961 Planer 24" 10 HP 3-Phase Industrial w/ Spiral Cutterhead New
Product Overview

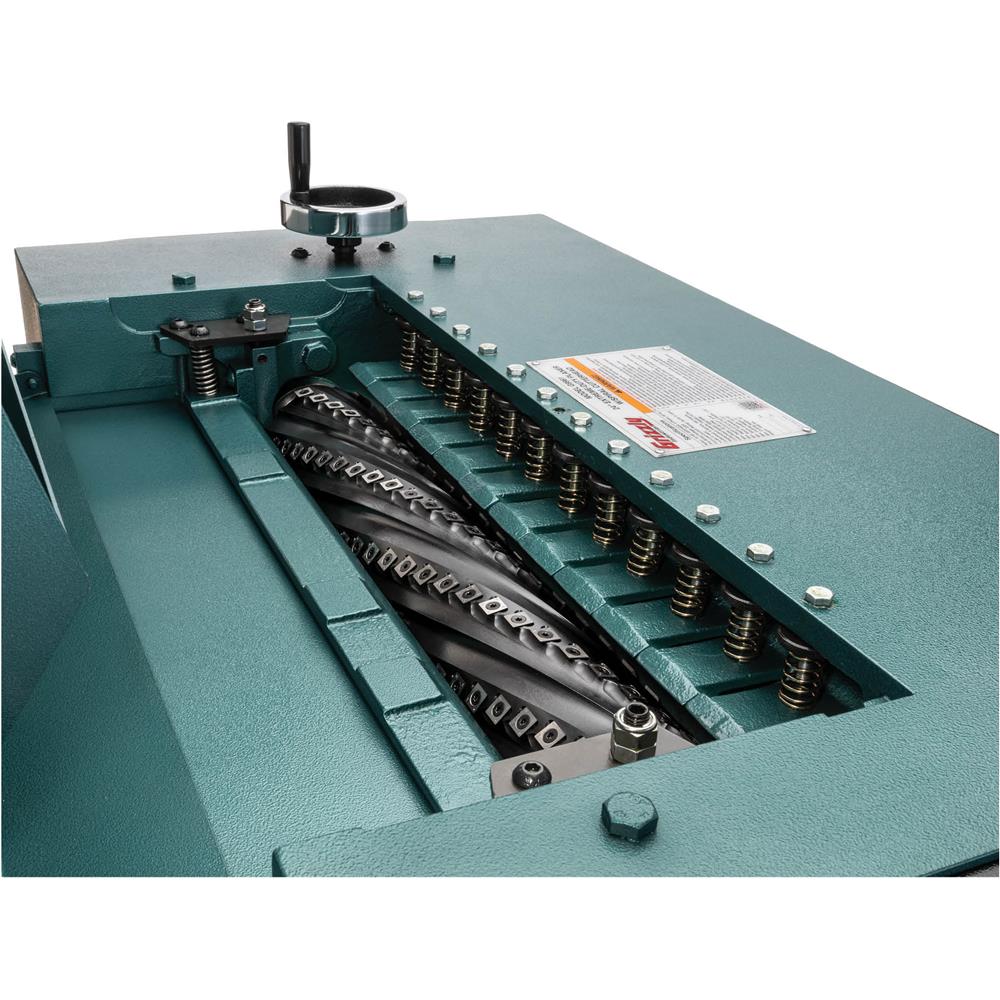

This 24-inch industrial planer is built for high-volume woodworking shops that need fast, consistent stock removal and a smooth finish on wide boards. Its 10 HP 3-phase motor and 6-row spiral cutterhead with 160 indexable carbide inserts are designed for demanding production work across a range of hardwoods and rough lumber.
Variable feed speeds from 20 to 40 feet per minute let operators balance finish quality and throughput, while the motorized table elevation and micro-adjust handwheel make thickness changes efficient and precise. A massive cast-iron table, adjustable power-driven bed rollers, and segmented feed components help maintain control and support when milling rough or uneven material.
With a maximum planing width of 24 inches and stock capacity up to 9 inches thick, this machine is a strong fit for cabinet shops, furniture makers, millwork operations, and other professional environments using 3-phase power. The built-in chip deflector and 5-inch dust port also help keep material moving cleanly through the machine during extended runs.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

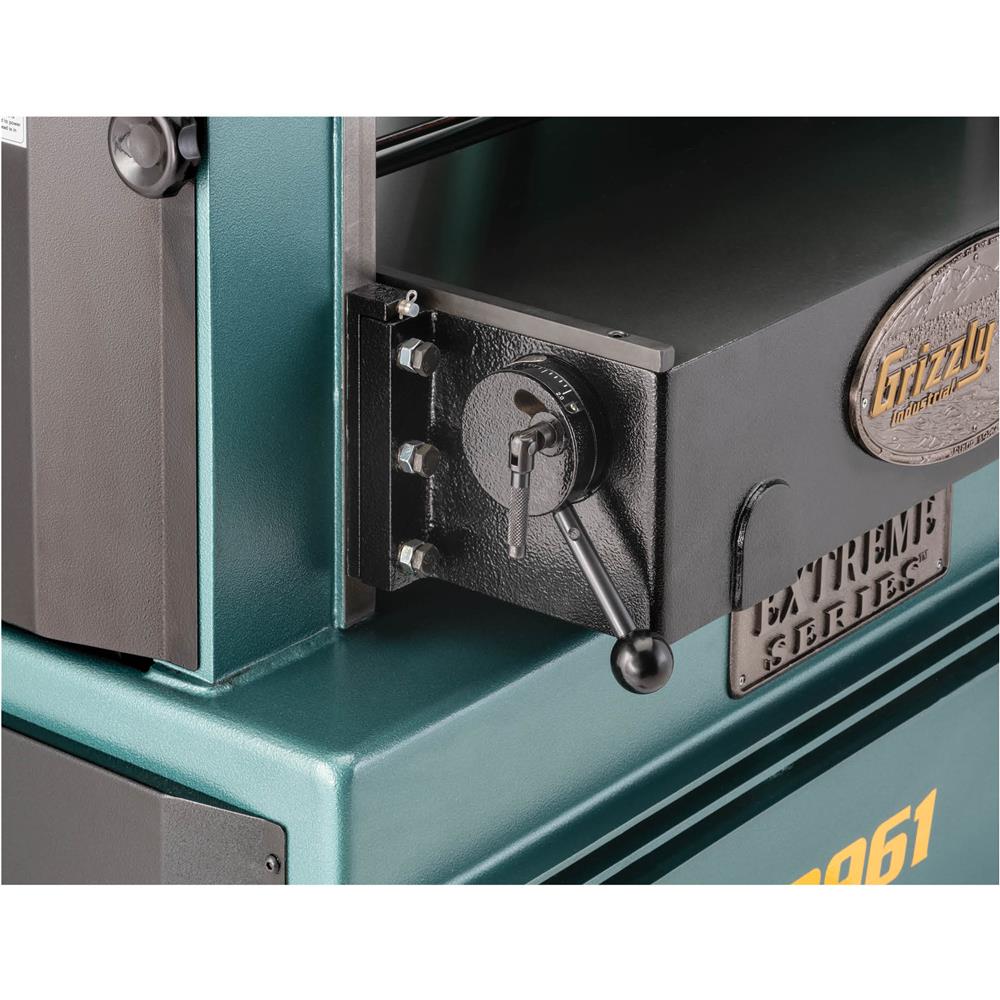

- Motorized table elevation with micro-adjust handwheel
- Variable-speed feed

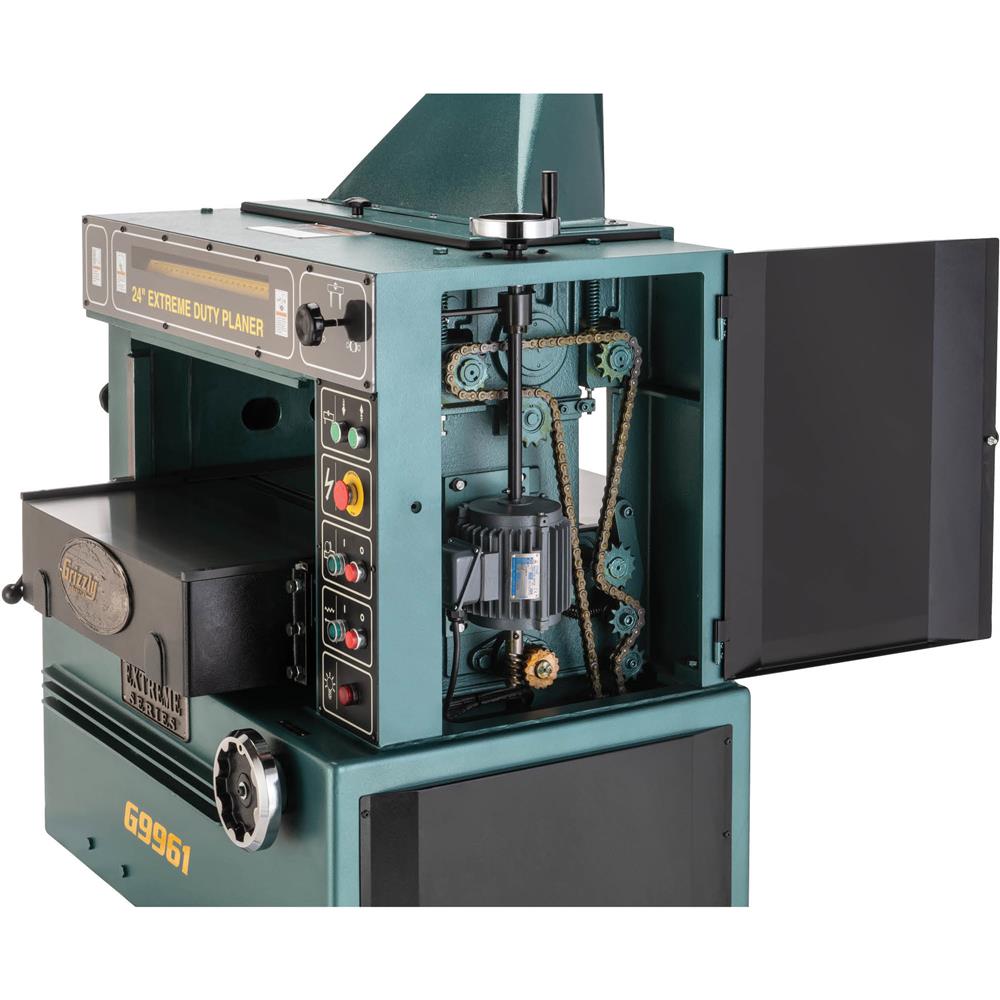

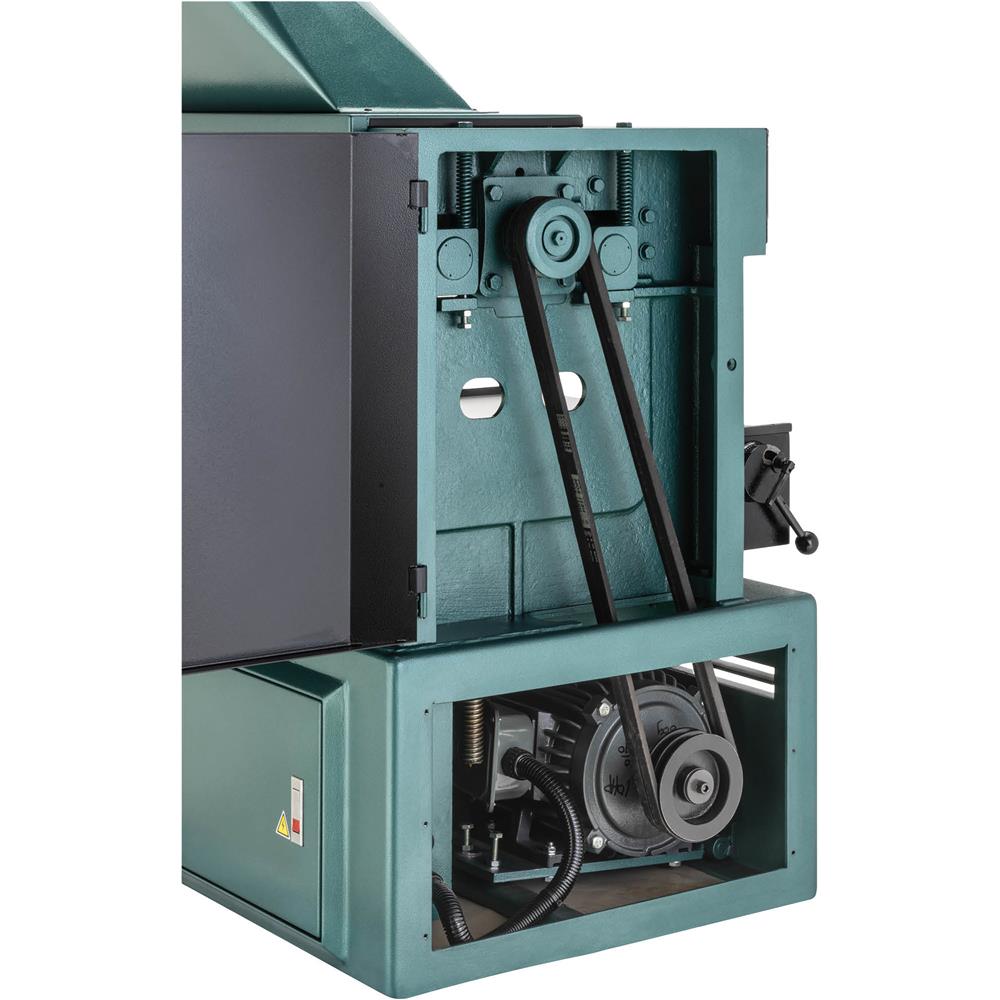

- Twin V-belt drive (cutterhead), chain drive (feed & elevation)
- Massive 6" thick precision-ground cast-iron table with bed rollers
- Segmented chip breaker and feed rollers

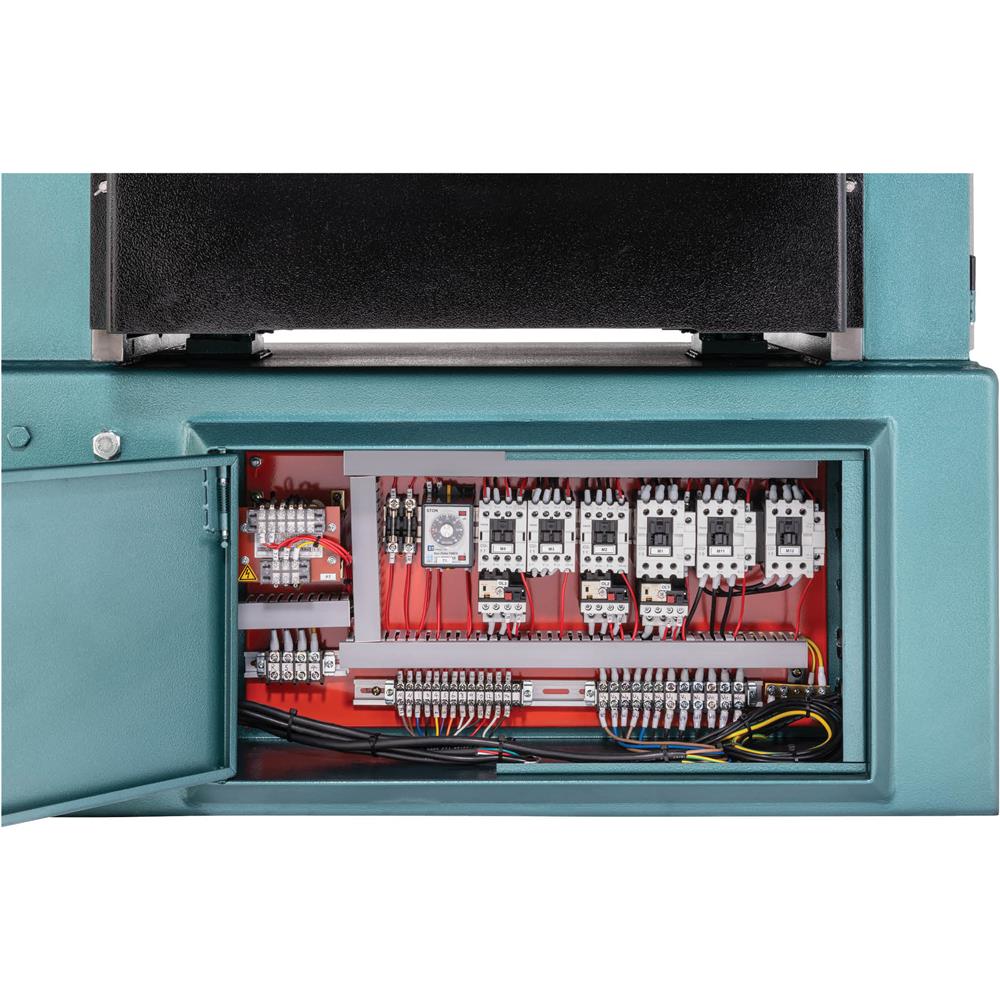

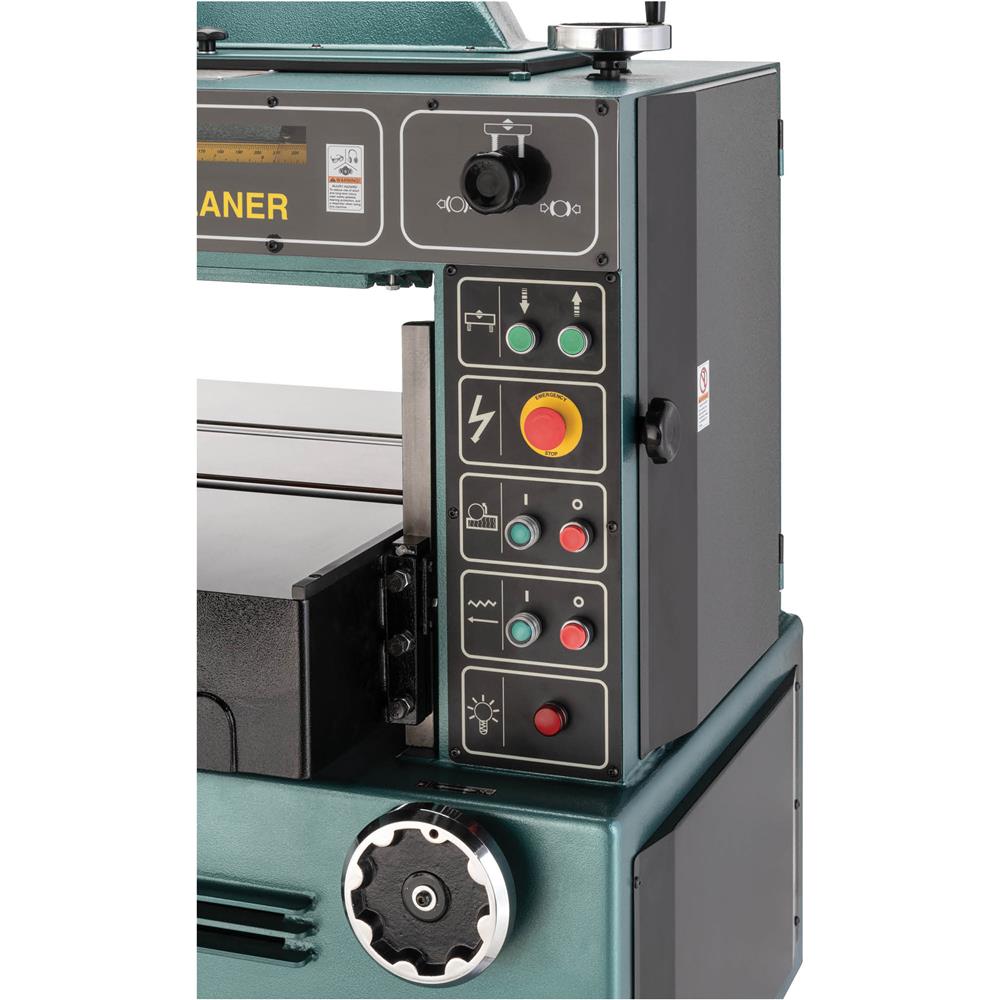

- Convenient control panel with magnetic switch protection
- Table height lock
- Inch and metric measuring scale
Specifications
| Cutterhead motor | 10 HP, 220V, 3-phase, 25A |
| Table elevation motor | 1/2 HP |
| Maximum stock width | 24" |
| Maximum stock thickness | 9" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 10-1/2" |
| Maximum cutting depth | 1/16" |
| Cutterhead diameter | 4-5/8" |
| Cutterhead type | 6-Row spiral with 160 inserts |
| Insert size, type | 14 x 14 x 2mm, indexable carbide |
| Cutterhead speed | 5000 RPM |
| Feed rate | Variable, 20–40 FPM |
| Table size | 24" x 35-1/2" |
| Dust port size | 5" |
| Footprint | 40-1/2" x 30" |
| Overall dimensions | 42-3/8" W x 36" D x 58" H |
| Approximate shipping weight | 1980 lbs. |
Warranty
This item comes with a 1 year factory warranty.
