Grizzly G9953ZX Jointer 16" x 99" Z Series Spiral Cutterhead New
Product Overview
The Grizzly G9953ZX is a heavy-duty 16" x 99" jointer built for shops that need wide cutting capacity, stable performance, and an exceptionally smooth finish. Its massive cast-iron construction helps reduce vibration, while the long precision-ground tables provide excellent support for flattening and straightening larger stock.

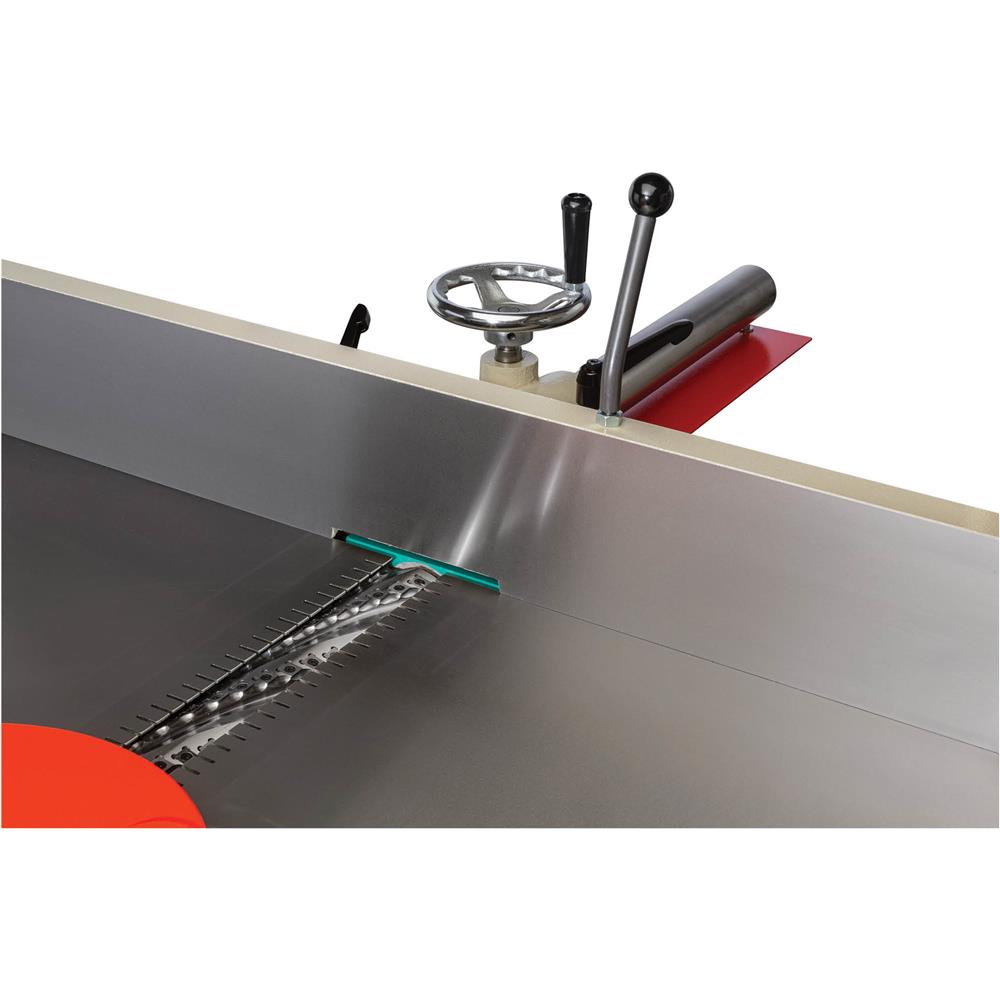

A 6-row spiral cutterhead with 120 indexable carbide inserts keeps a cutting edge in contact with the workpiece for quieter operation and cleaner results than traditional straight-knife designs. With a 5 HP single-phase motor, up to 5/16" depth of cut, and bevel jointing from 0° to 45°, it is well suited for demanding face-jointing and edge-jointing tasks.
Parallelogram table adjustment, a center-mounted fence with preset stops, and rack-and-pinion lateral fence movement make setup precise and efficient. This machine is ideal for professional woodworkers, cabinet shops, and serious production environments working with long, wide boards.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

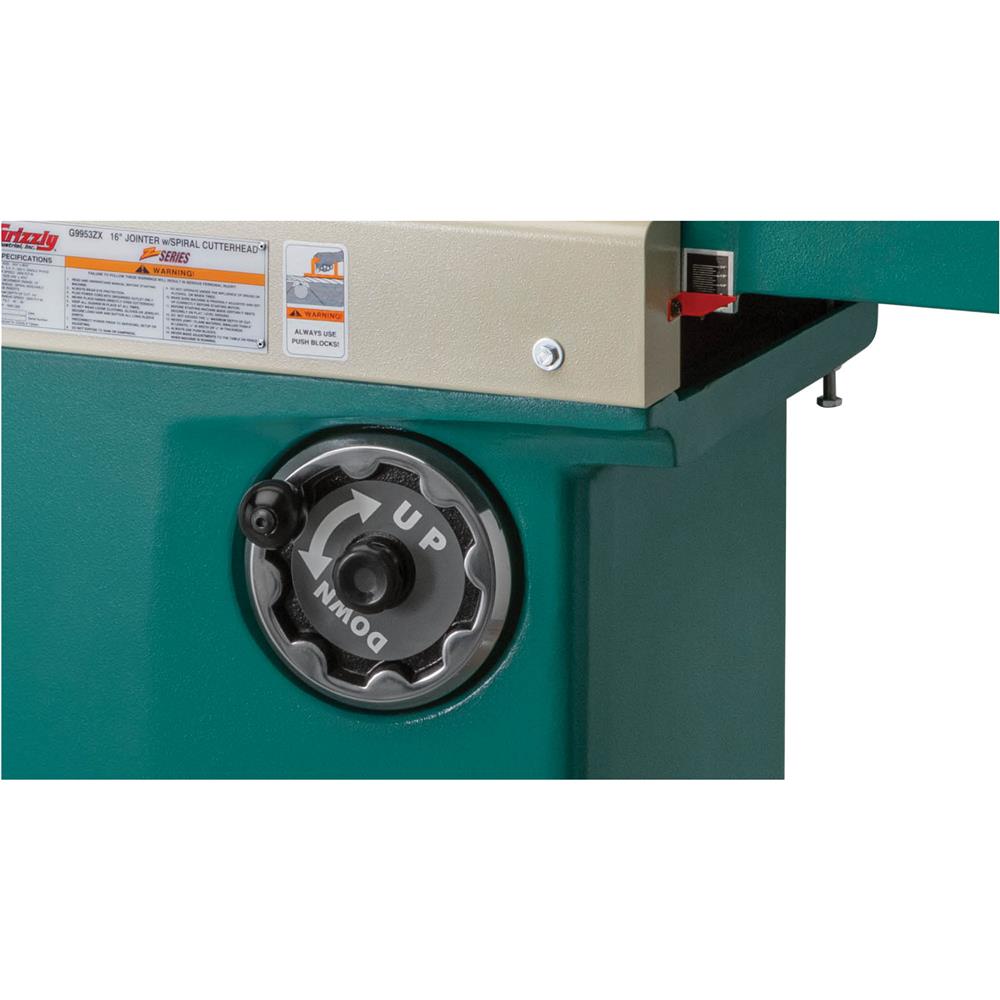

- Parallelogram tables with handwheel adjustment

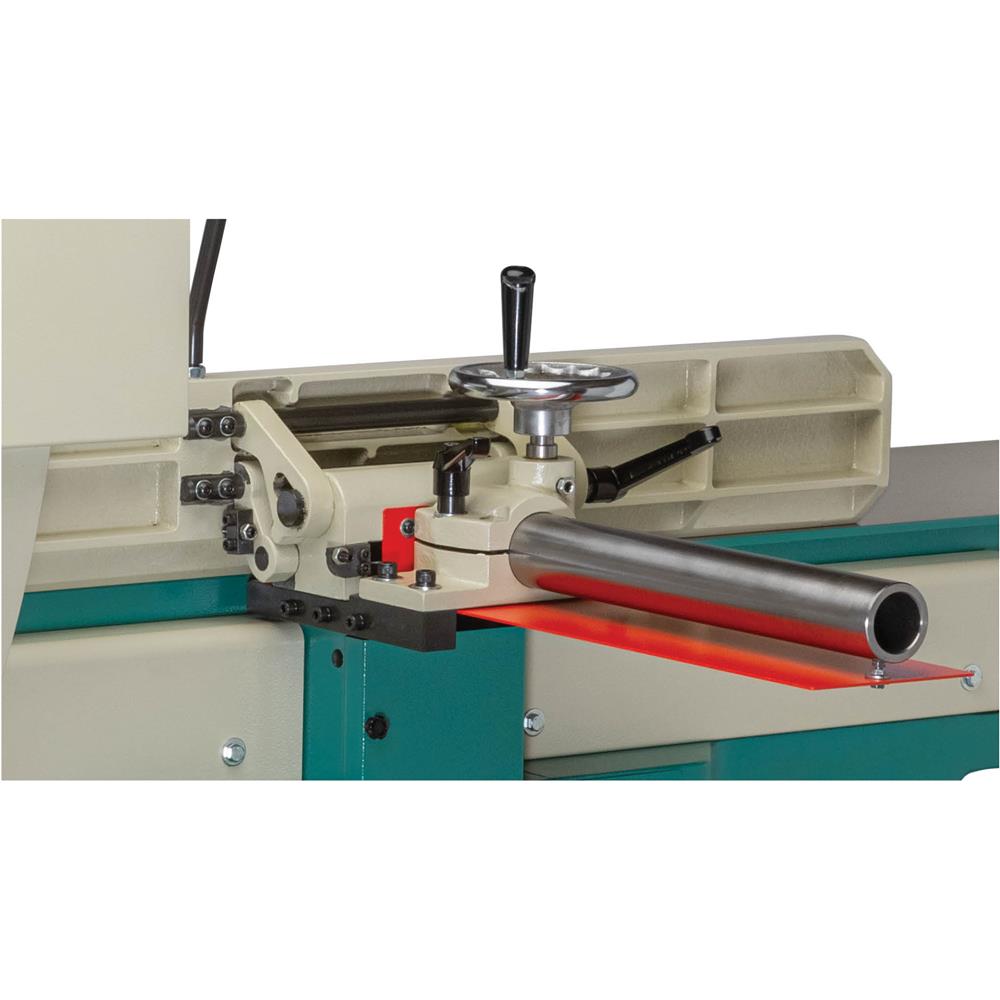

- Heavy-duty center-mounted fence with stops at 45°, 90°, and 135°
- Rack-and-pinion lateral fence adjustment
- Magnetic switch with thermal overload protection
- Solid cabinet stand with noise-damping system
- Pair of push blocks included
Specifications
| Motor | 5 HP, 220V, single-phase, 25A |
|---|---|
| Maximum width of cut | 16" |
| Maximum depth of cut | 5/16" |
| Minimum stock length | 18" |
| Minimum stock thickness | 1/2" |
| Cutterhead diameter | 4" |
| Cutterhead type | 6-Row spiral with 120 inserts |
| Insert size, type | 14 x 14 x 2mm, Indexable carbide |
| Cutterhead speed | 5000 RPM |
| Bevel jointing | 0-45° |
| Table size | 99-1/4" W x 16-1/4" D |
|---|---|
| Fence size | 43-1/4" L x 6-5/8" H |
| Dust port size | 4" |
| Footprint | 23" x 57" |
| Overall dimensions | 99-1/4" W x 45-1/2" D x 32" H |
| Approximate shipping weight | 1719 lbs. |
Warranty
This item comes with a 1 year factory warranty.
