Grizzly G9729 Combination Lathe-Mill 31" 3/4 HP Combo Lathe/Mill New
Product Overview

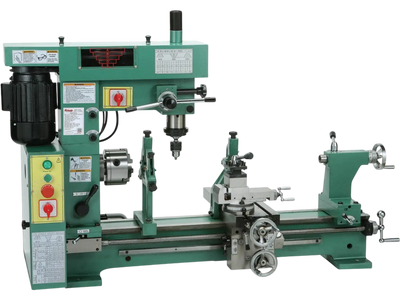

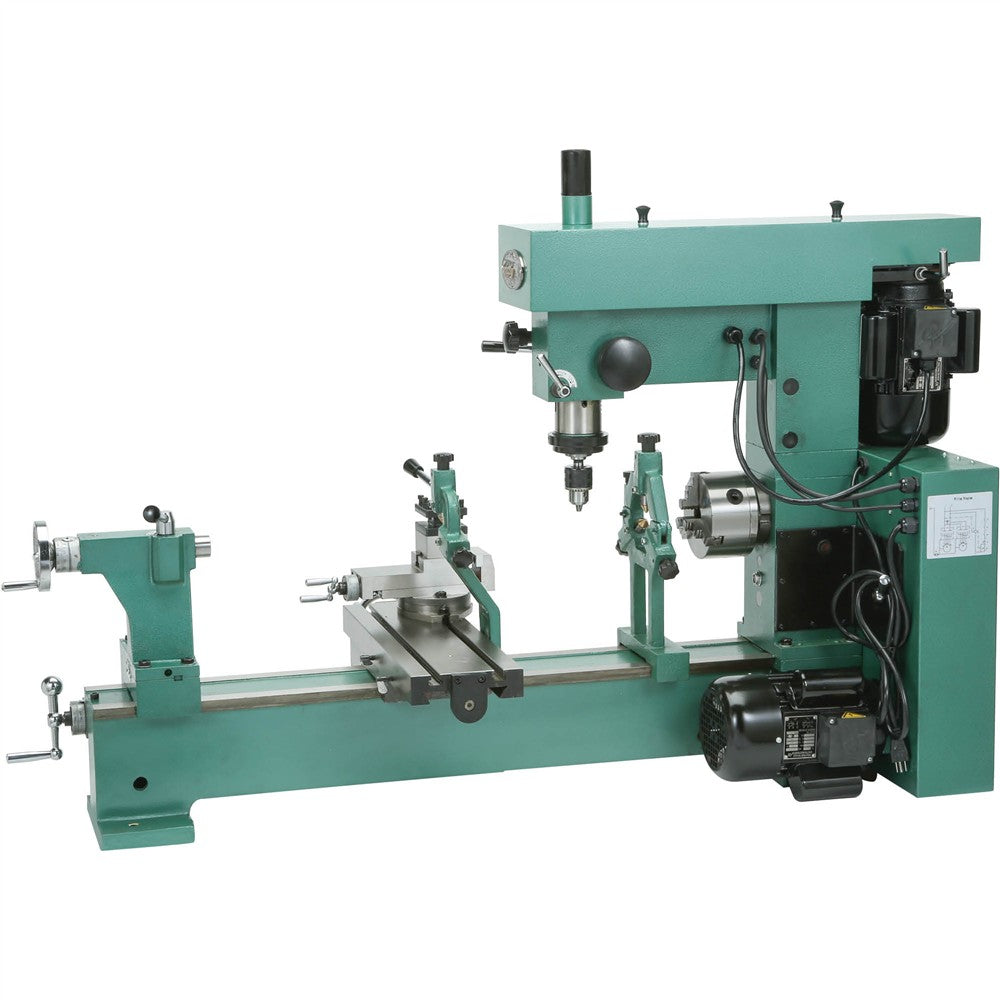

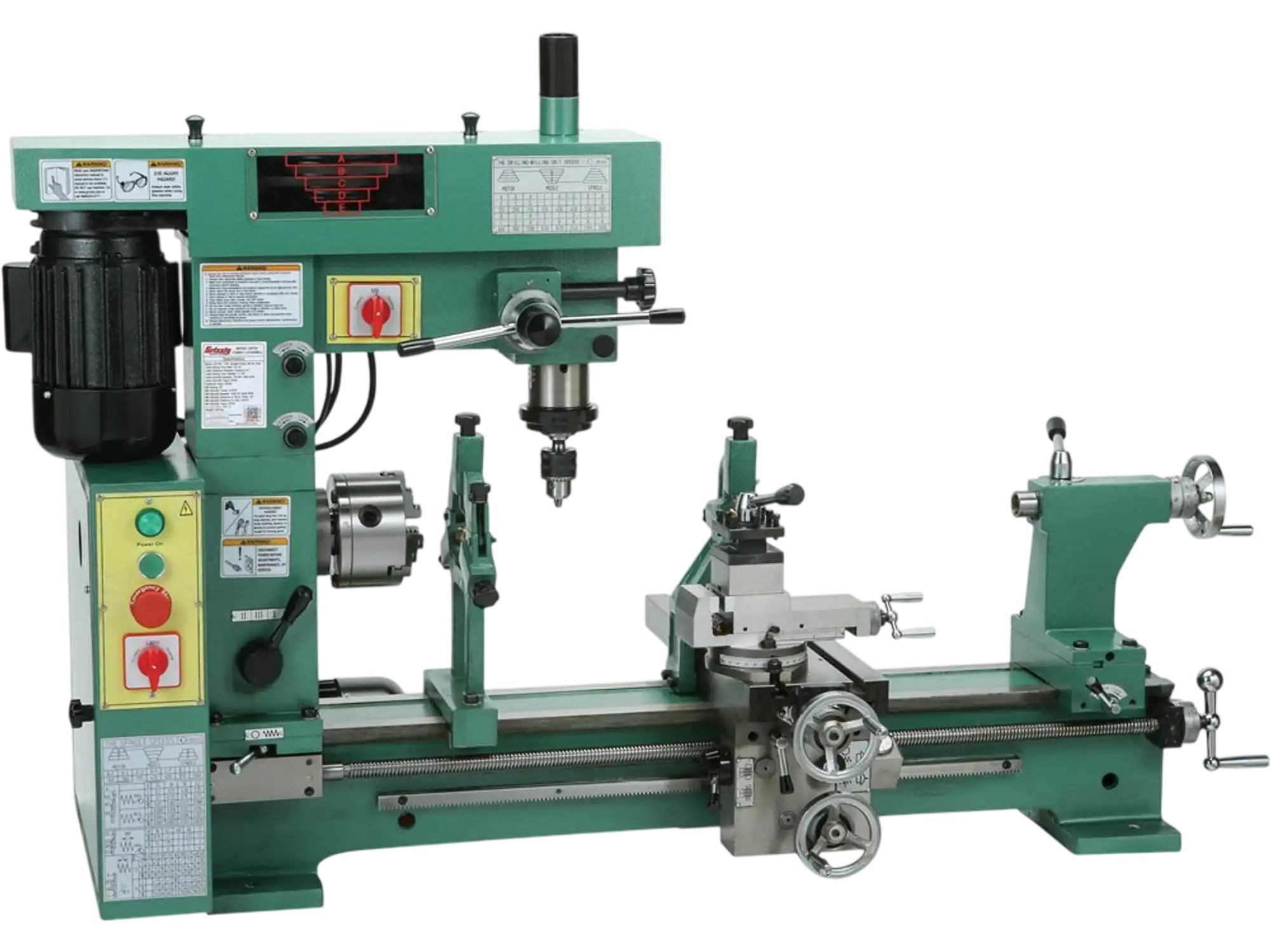

The Grizzly G9729 is a combination lathe and mill designed to handle turning, threading, drilling, and light milling in one space-saving machine. With 31 inches between centers, a 16-1/2 inch swing over the bed, and separate motors for lathe and mill functions, it offers the capacity and versatility needed for a wide range of shop projects.

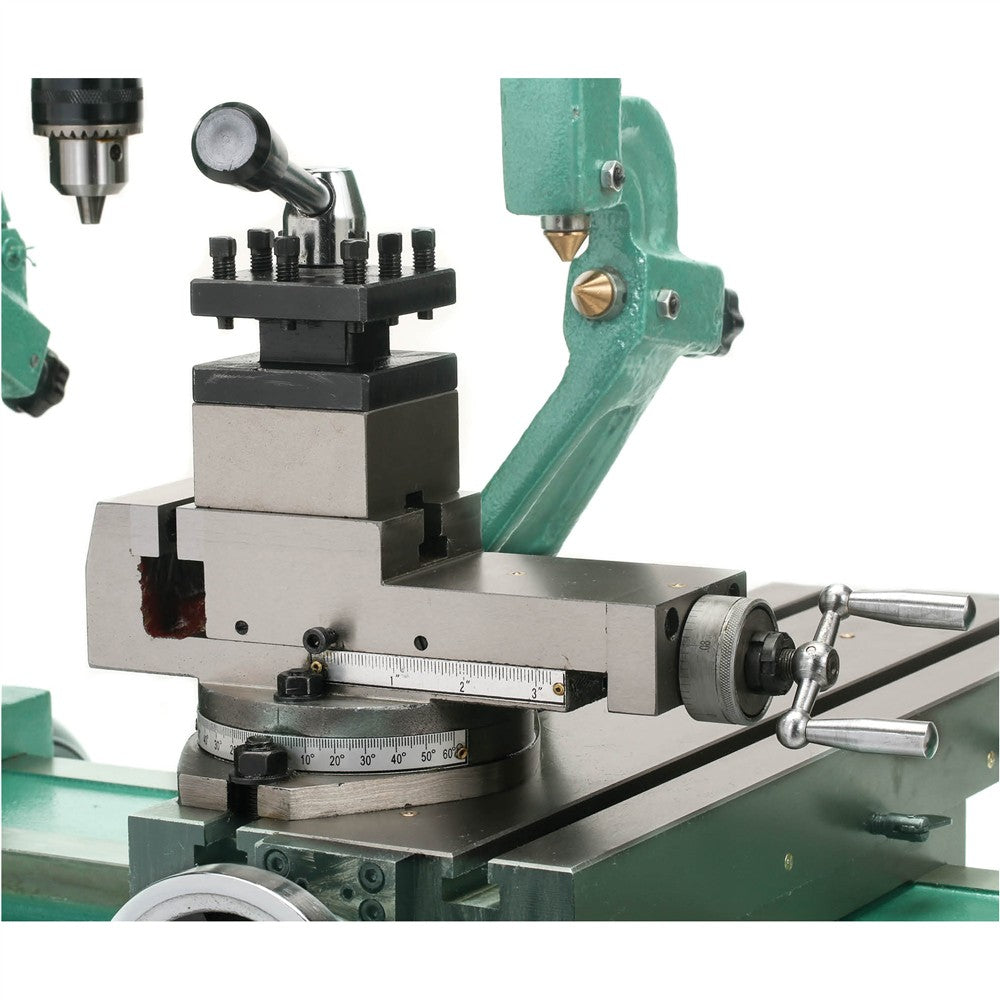

This machine cuts both inch and metric threads and includes power cross feed, power longitudinal feed, fine downfeed, and an adjustable mill/drill head for added control. Hardened and ground bedways, a 4-way turret tool post, T-slots in the cross slide, and a built-in milling table help support accurate, repeatable work.
Ideal for hobbyists, small fabrication shops, and maintenance workspaces, this combo unit is a practical choice for users who want multiple metalworking capabilities without dedicating room to separate machines. It is well suited for general-purpose machining, prototype work, and repair tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- T-slots in cross slide
- Carriage lock
- Power cross feed
- Power longitudinal feed
- Fine downfeed
- Hardened and ground bedways
- Two separate motors
- Built-in vise
- Adjustable mill/drill head
Specifications
| Motor | 3/4 HP, 110V, single-phase, 8.8A |
| Swing over bed | 16-1/2" |
| Swing over cross slide | 11-1/2" |
| Distance between centers | 31" |
| Spindle speeds | 7, 175–1425 RPM |
| Spindle bore | 1.107" |
| Spindle taper | MT #4 |
| Tailstock barrel taper | MT #3 |
| Tailstock travel | 2-1/2" |
| Cross slide travel | 7-1/2" |
| Compound travel | 3" |
| Longitudinal feeds | 24, 0.002–0.014 in/rev |
| Inch thread range | 44, 4–120 TPI |
| Metric thread range | 14, 0.75–6.0mm |
| Maximum tool bit size | 1/2" |
| Motor | 3/4 HP, 110V, single-phase, 8.8A |
| Swing | 22" |
| Distance from spindle to table | 12" |
| Distance from spindle to bed | 14-1/2" |
| Spindle speeds | 16, 120–3000 RPM |
| Spindle travel | 4-5/16" |
| Spindle taper | MT #3 |
| Table dimensions | 6-1/4" W x 18-3/4" L x 1-1/4" H |
| T-slots | two at 7/16", 3.54" (90mm) on center |
| Maximum tool bit size | 1/2" |
| Drilling capacity | 1/2" (steel) |
| Footprint | 50" x 19" |
| Dimensions | 58" W x 40-1/2" D x 40" H |
| Approximate shipping weight | 692 lbs. |
Warranty
This item comes with a 1 year factory warranty.
