Grizzly G9300 Rotary Table Yuasa Type 12" Horizontal Vertical New
Product Overview

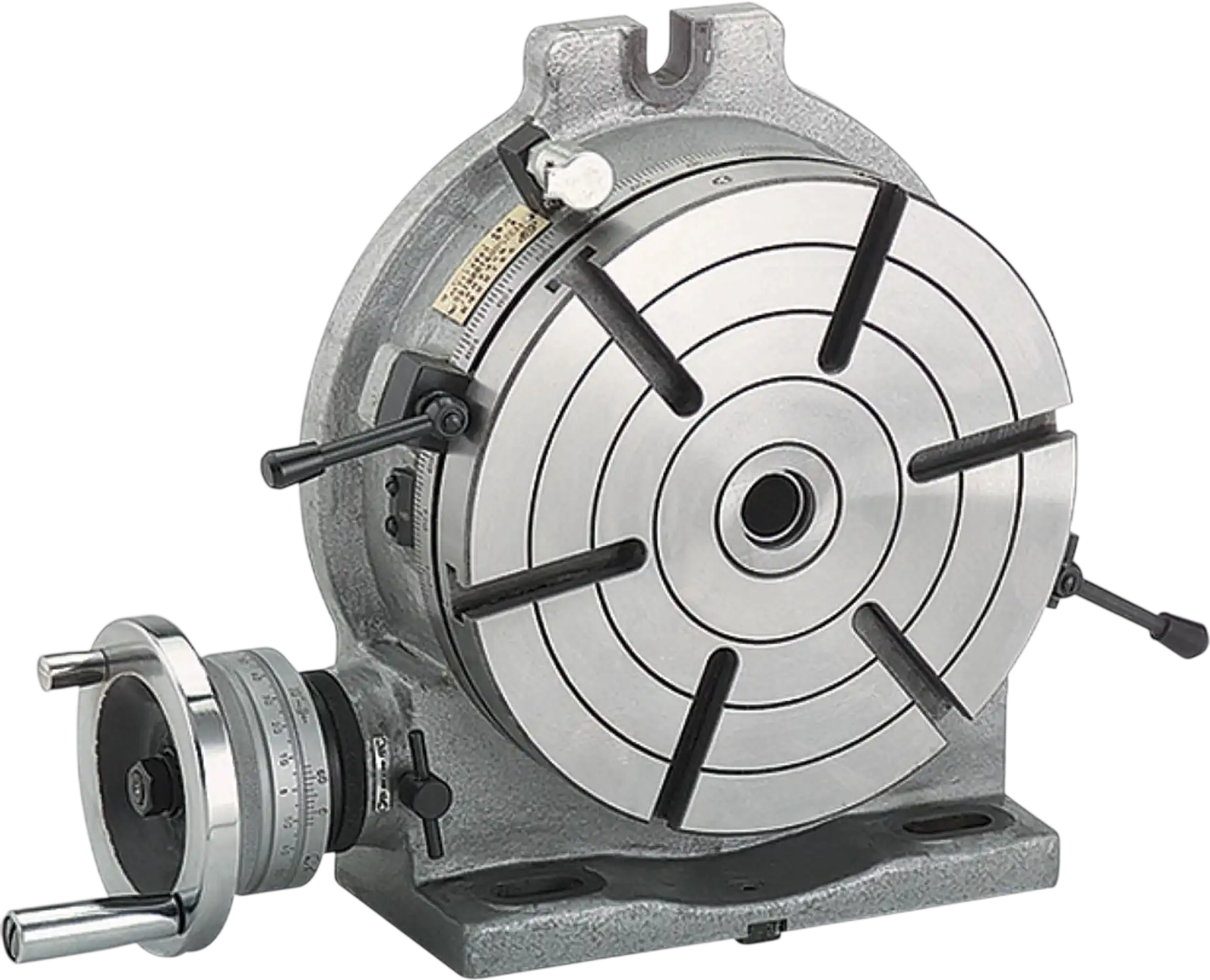

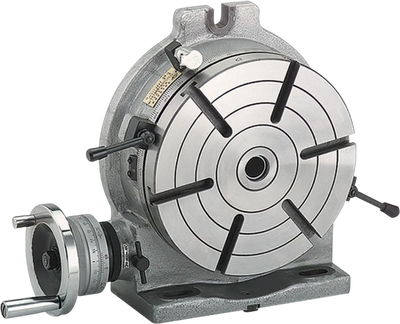

The Grizzly G9300 is a 12-inch Yuasa-type rotary table designed for precise drilling, milling, and cutting on exact intervals. It can be mounted in either the horizontal or vertical position, making it a versatile setup for machining circular patterns, arcs, eccentric features, and large-diameter holes.
Built for accuracy, this rotary table features a 10-second vernier scale for fine positioning, along with tight tolerances for flatness, concentricity, parallelism, and squareness. A low-profile design, positive dual-action table locks, oil-immersed gears, and adjustable satin chrome dials help provide smooth operation and easy reading during setup.
With a 12-inch table, six T-slots, and an MT #4 center hole, this model is well suited for machinists, toolrooms, and metalworking shops that need dependable rotary positioning for detailed work. Its horizontal/vertical flexibility makes it a practical choice for a wide range of milling and drilling applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Can be used in horizontal or vertical position
- 10 second vernier scale
- Positive dual action table locks
- Oil immersed gears
- Very low profile
- Satin chrome dials
Specifications
| Size | 12" |
| Total T-slots | 6 |
| T-Slot size | 0.545" |
| Center Hole | MT #4 |
| Clamping surface flatness (concave) | 0.0006" |
| Cylindrical center bore concentricity | 0.0008" |
| Taper center bore concentricity | 0.0008" |
| Surface to base parallelism | 0.0008" |
| Surface to angle face squareness | 0.0004" |
| Surface to center slot squareness | 0.0008" |
| Overall height (horizontal) | 4.750" |
| Height to center hole (vertical) | 8.250 |
| Approximate weight | 168 lbs. |
Warranty
This item comes with a 1 year factory warranty.
