Grizzly G8689Z Mill Drill 4" x 16" Mini Milling Machine New
Product Overview

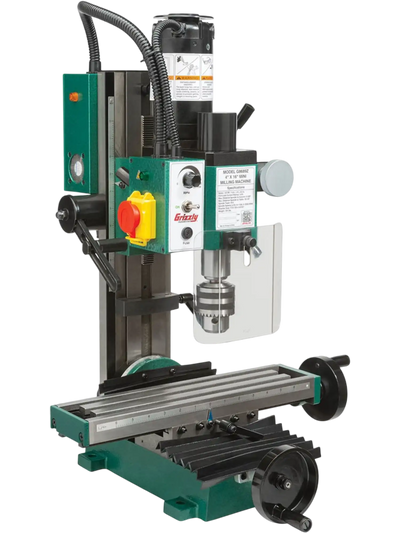

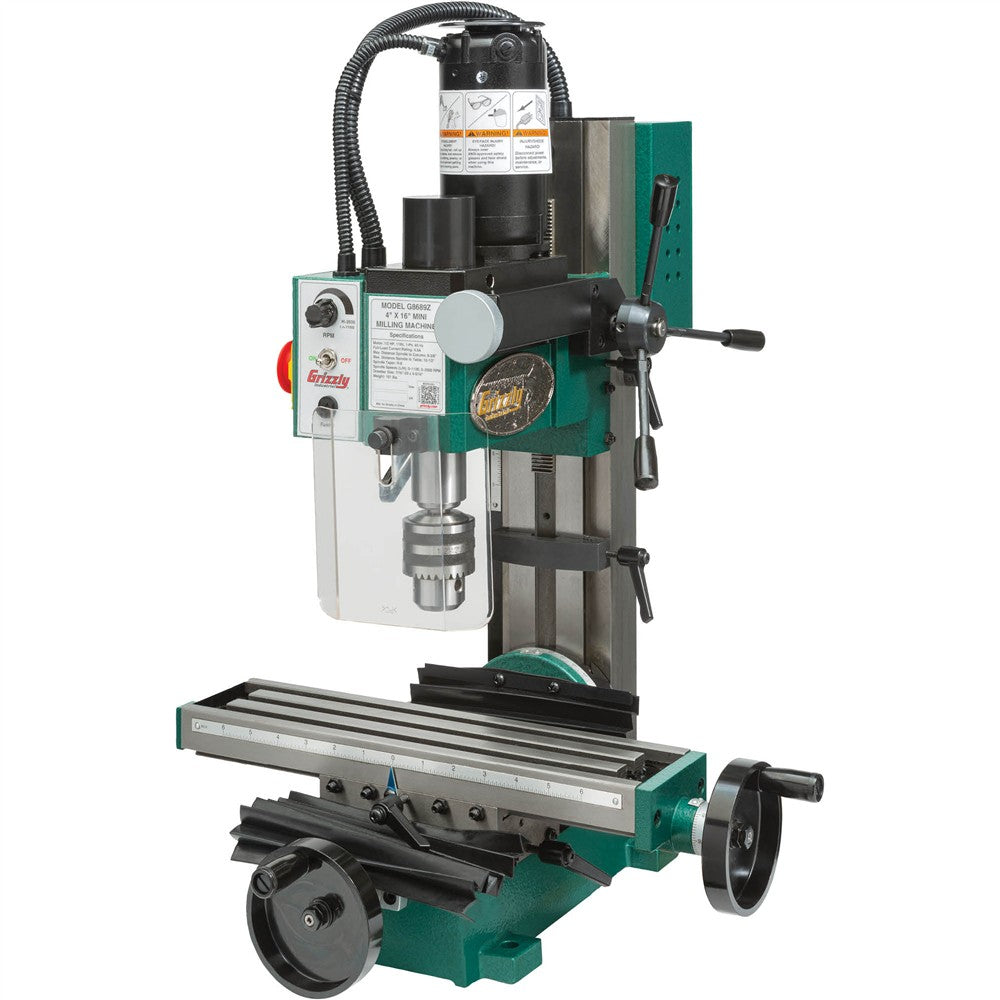

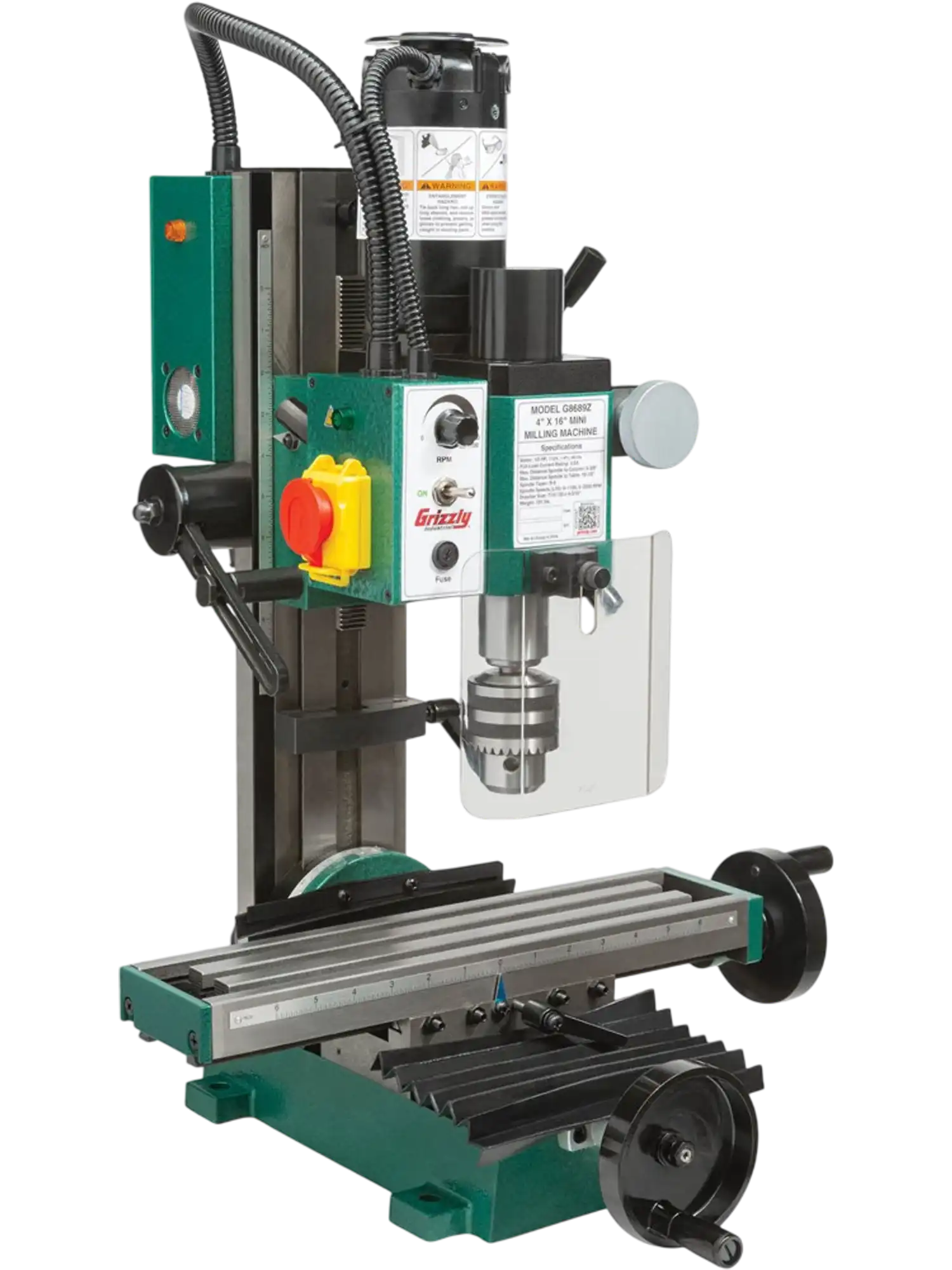

The Grizzly G8689Z is a compact 4" x 16" benchtop mini milling machine designed for drilling, end milling, and light face milling in a small workshop. With a 1/2 HP motor, R8 spindle, and variable-speed geared drive, it delivers the control and versatility needed for accurate metalworking projects.

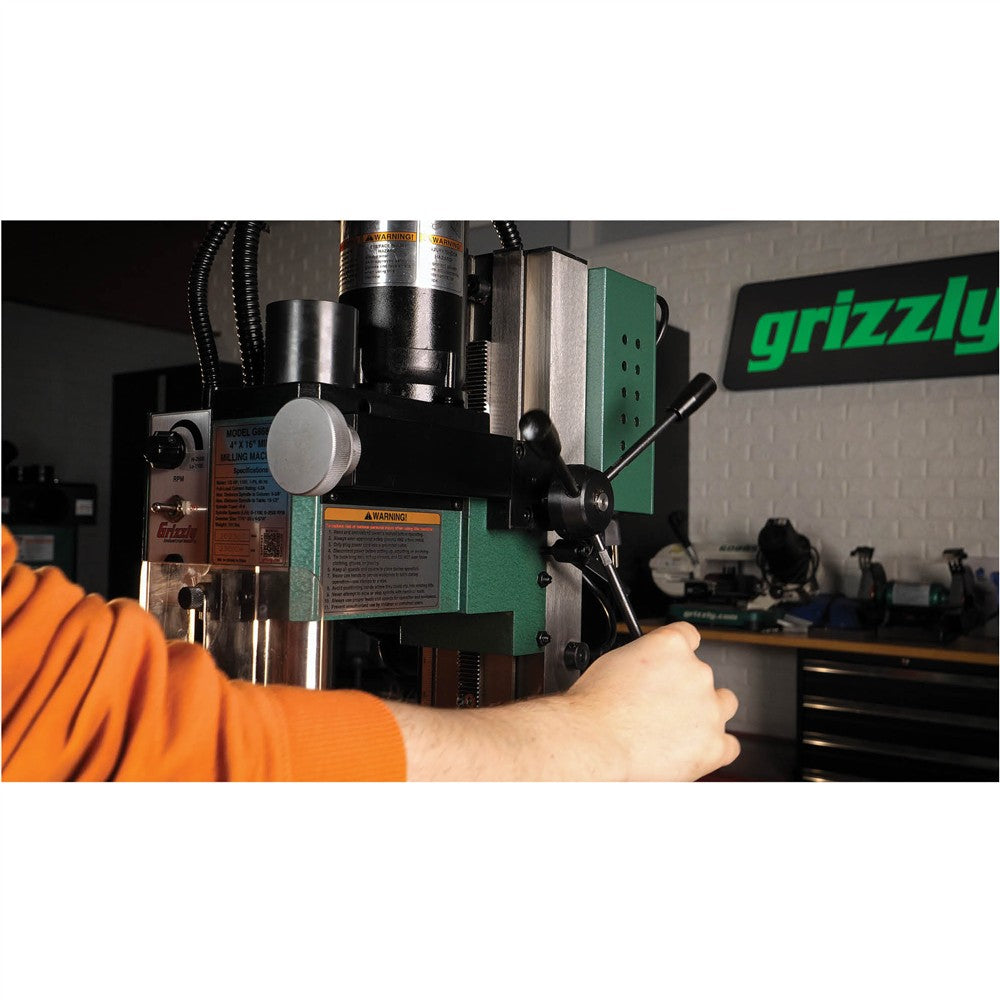

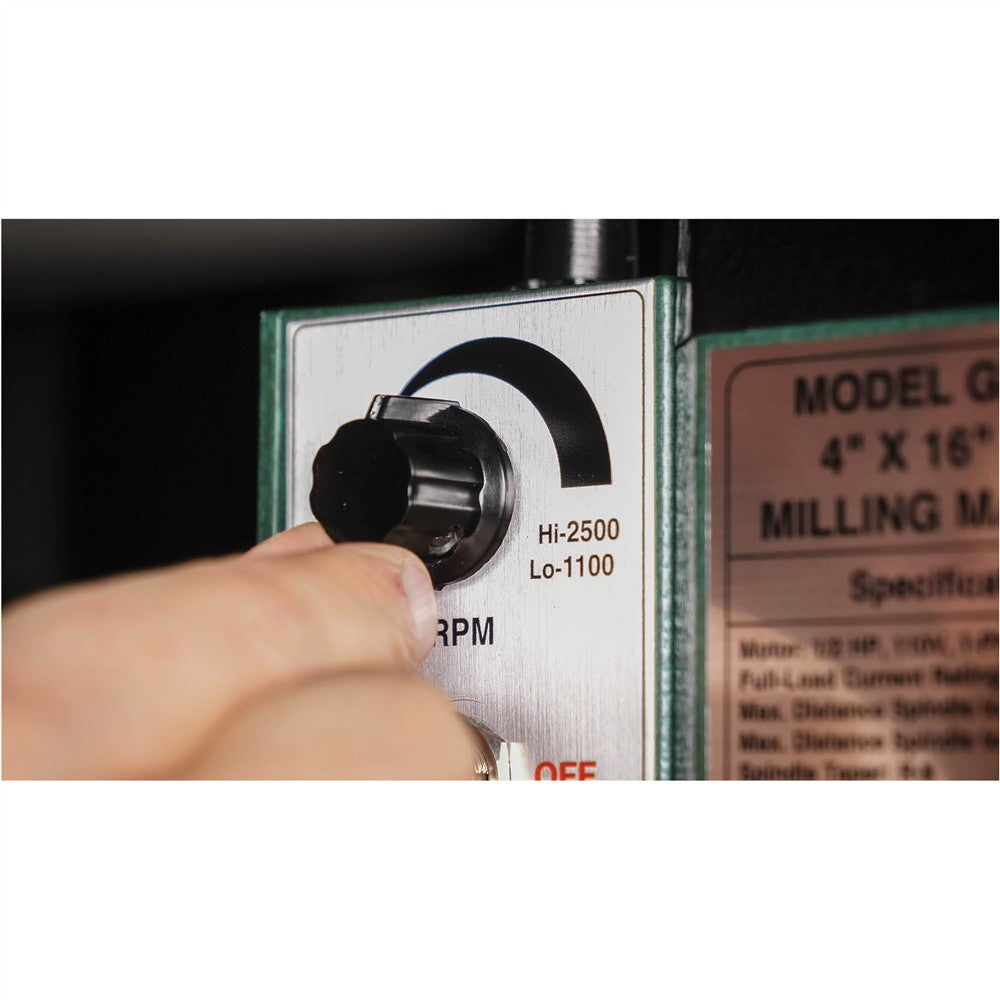

It features two speed ranges from 0 to 1100 RPM and 0 to 2500 RPM, along with fine-feed head control for precise adjustment down to 0.001". The headstock moves up and down the column, tilts 45 degrees left or right, and works with adjustable dovetail ways to provide solid, repeatable positioning.
This mini mill is a strong fit for home hobbyists, makers, and small shop users who need capable milling performance without giving up much bench space. Its 1/2" drilling capacity, 1/2" end milling capacity, and 1" face milling capacity make it well suited for small parts, prototypes, and general fabrication work.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- 1/2" drilling capacity in steel and cast iron

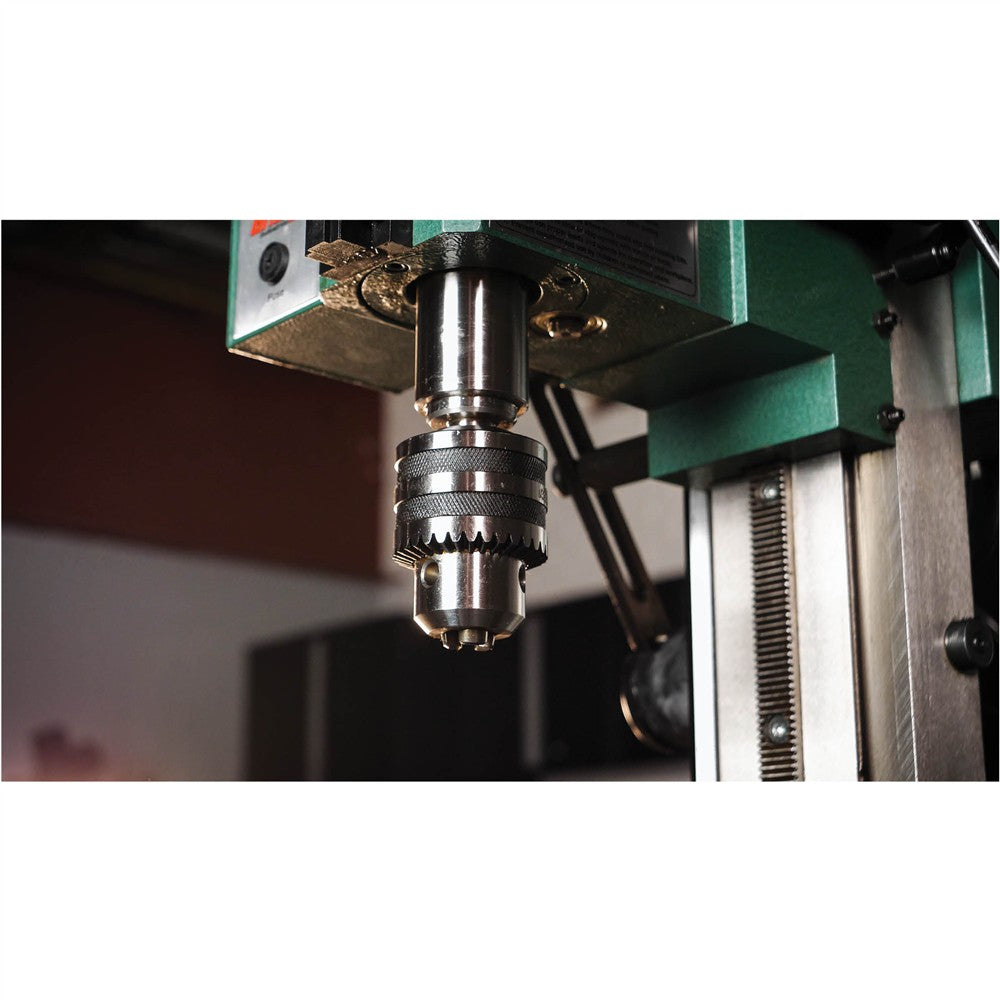

- Adaptable R8 spindle
- Two variable-speed spindle ranges on a geared drive

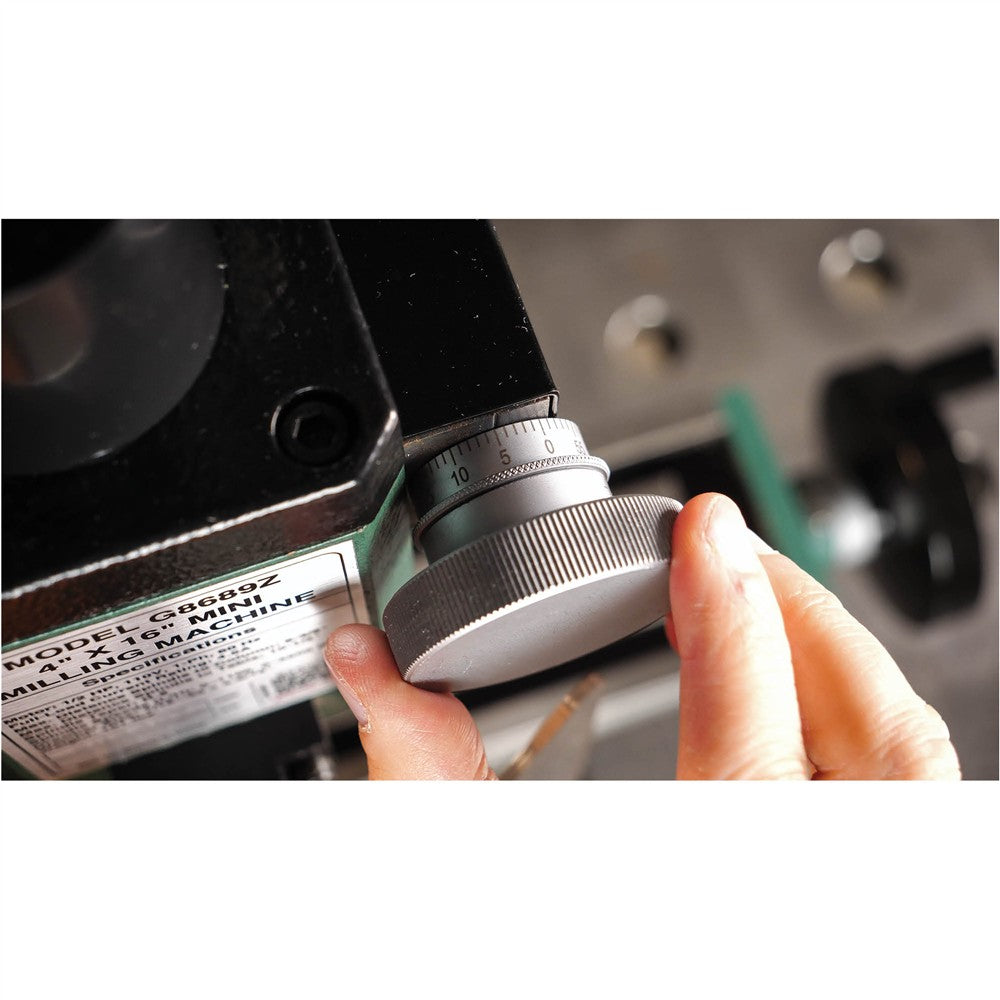

- Fine feed head control
- Zero-setting dials on handwheels w/0.001" graduations
- Adjustable dovetail ways on column

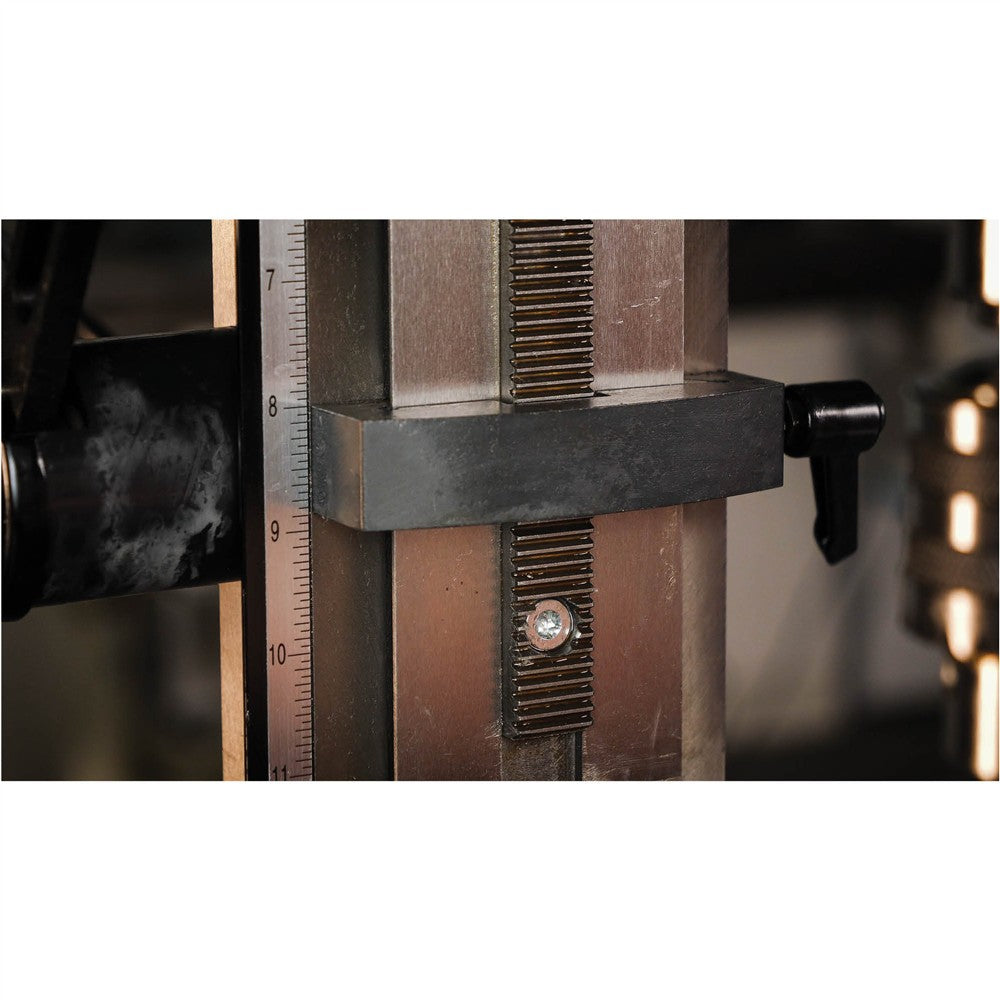

- Adjustable depth stop

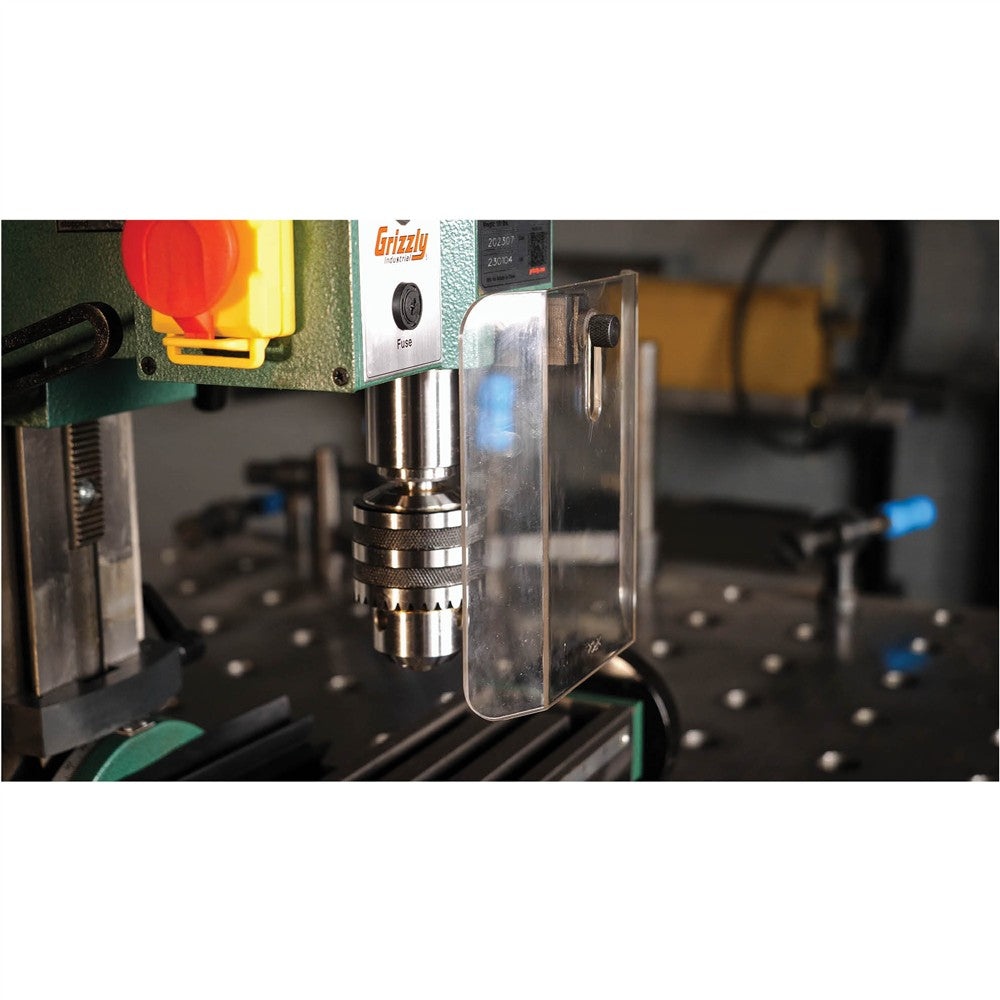

- Clear chip guard on spindle

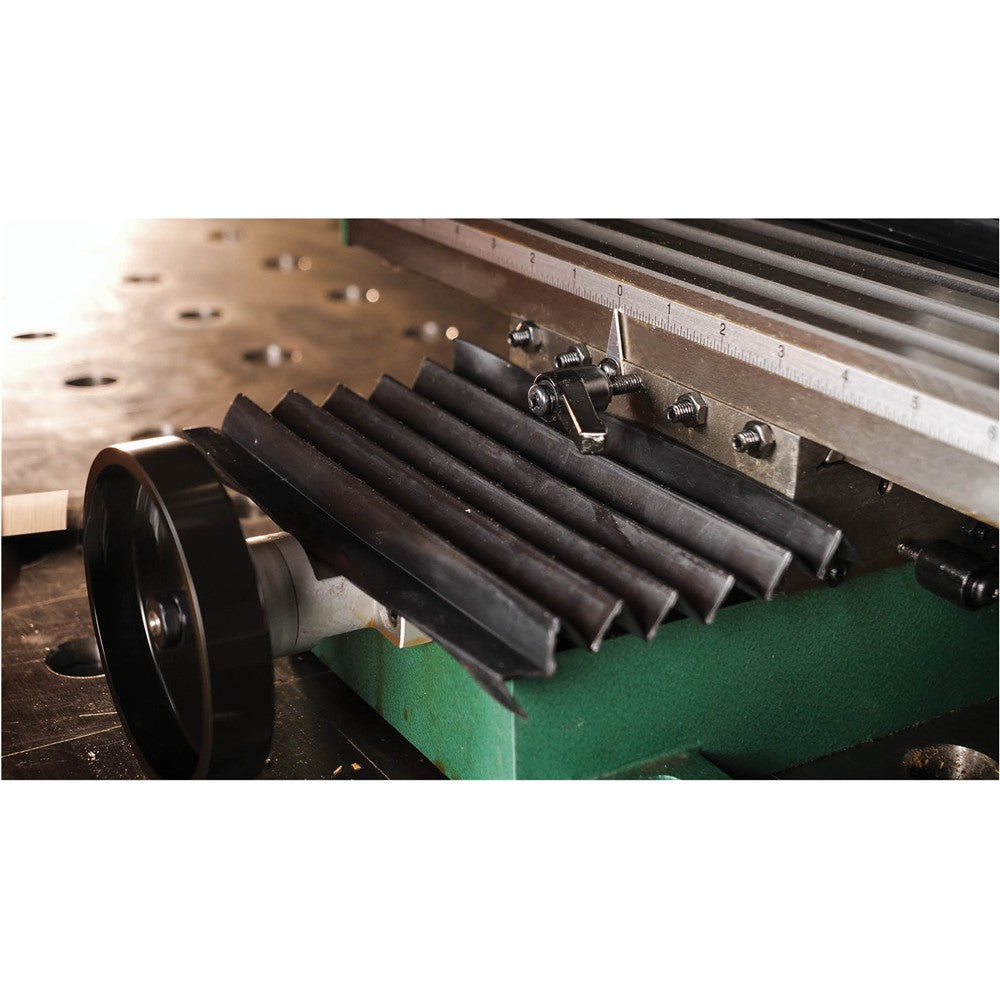

- Rubber chip guards on ways
Specifications
| Motor | 1/2 HP, 110V, single-phase, 4.5A |
| Spindle taper | R-8 |
| Spindle speeds | Variable, 0-1100 and 0–2500 RPM |
| Maximum distance spindle to table | 10-1/2" |
| Maximum distance spindle-to-column | 6-3/8" |
| Table size | 15-3/4" x 3-5/8" |
| T-slots | 3 @ 1-1/8" centers, 1/2" wide |
| Table travel (longitudinal) | 9-1/8" |
| Table travel (cross) | 4" |

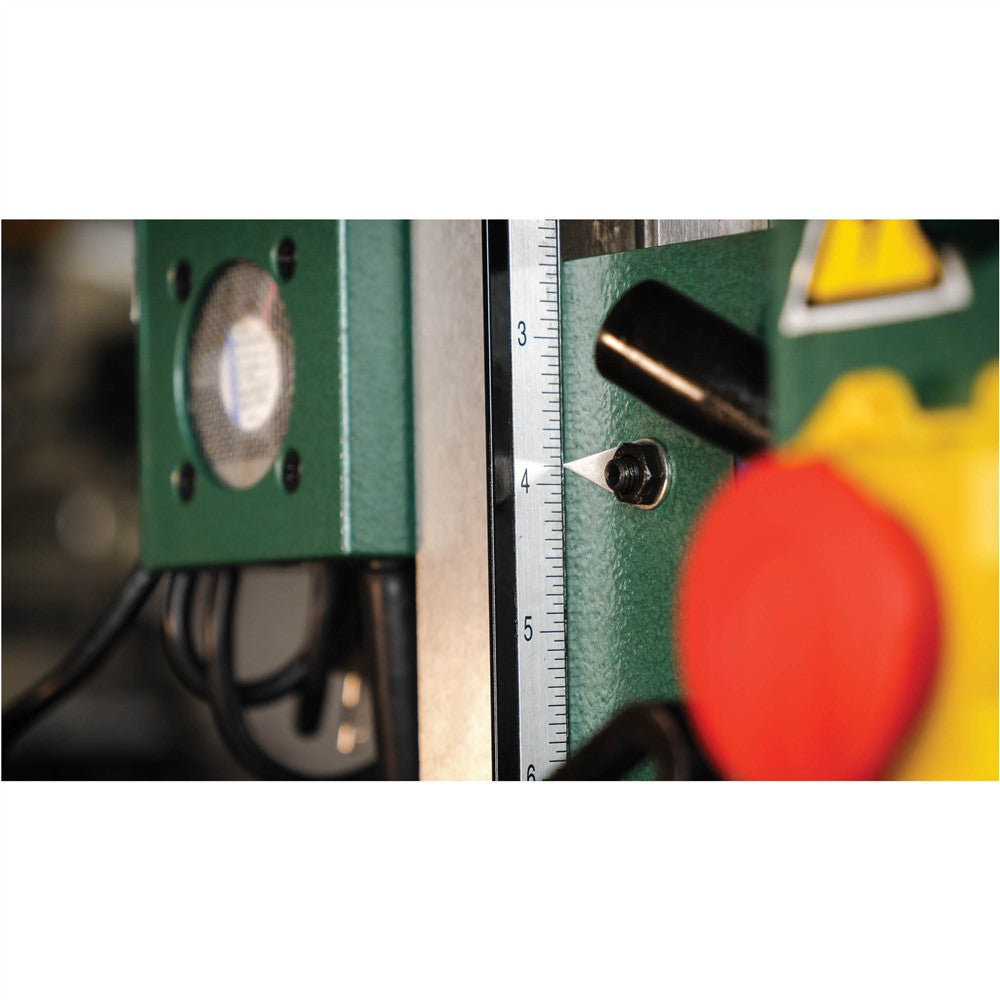

| Head travel | 9-1/2" |
| Column tilt | 45° L/R |
| Drilling capacity | 1/2" mild steel |
| End milling capacity | 1/2" |
| Face milling capacity | 1" |
| Overall size | 20" W x 20" D x 30" H |
| Approximate shipping weight | 135 lbs. |
Warranty
This item comes with a 1 year factory warranty.
