Grizzly G8688 Metal Lathe 7" x 12" Mini New
Product Overview

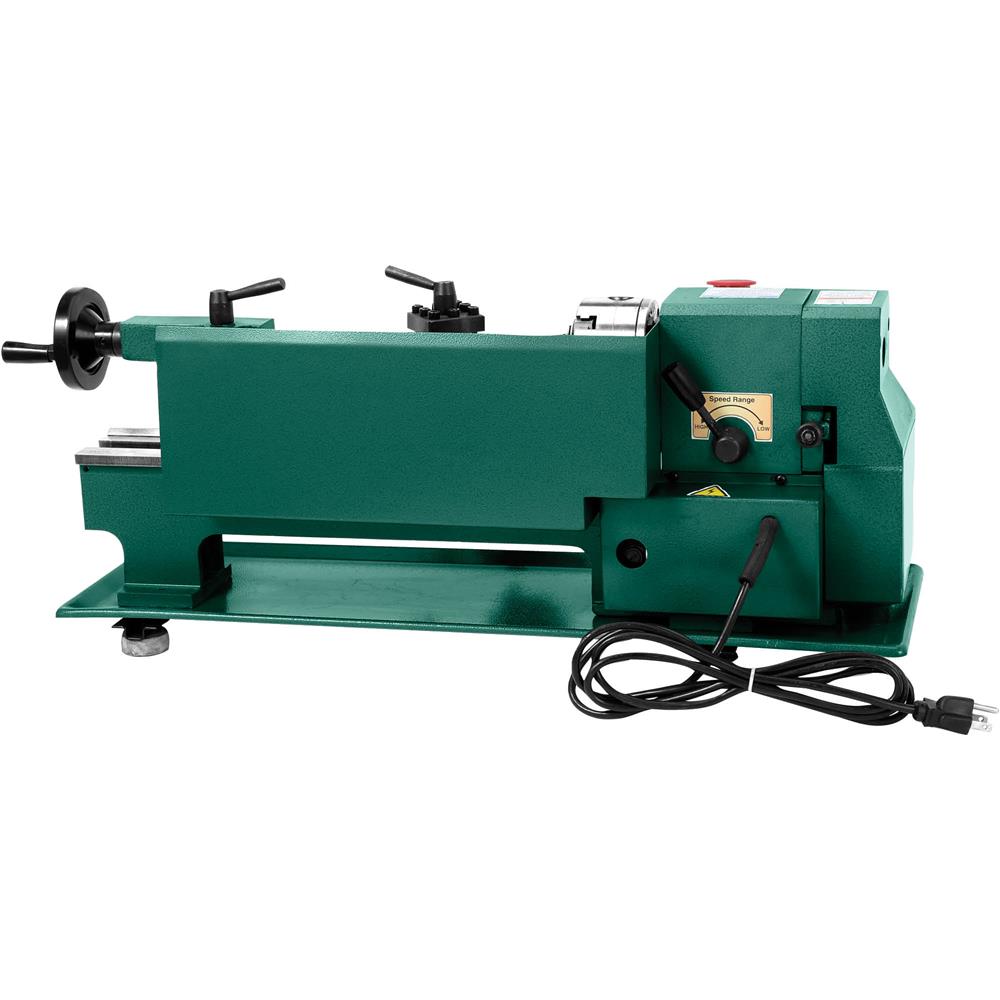

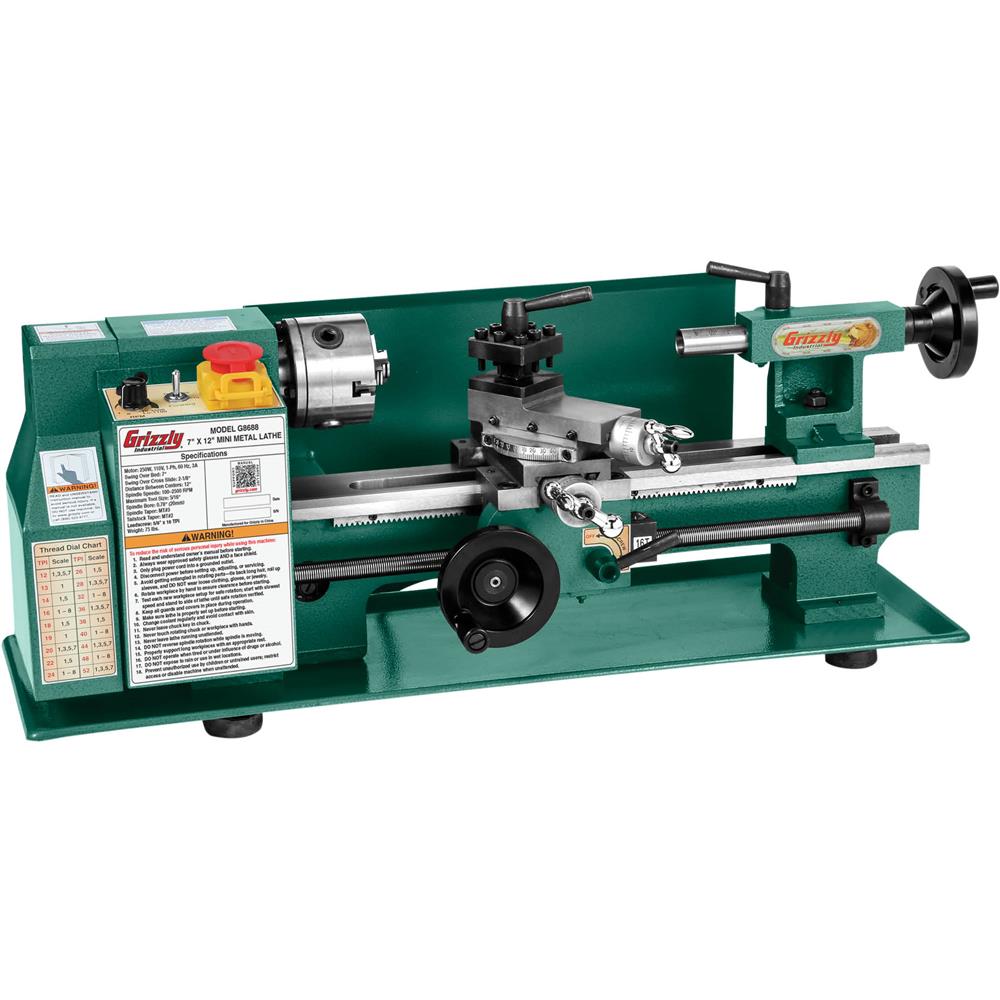

The Grizzly G8688 7" x 12" mini metal lathe is a compact benchtop machine designed for turning small metal parts with precision. It is a practical choice for hobbyists, model makers, and home machinists who want an affordable way to make bushings, spacers, threaded components, and other custom pieces.

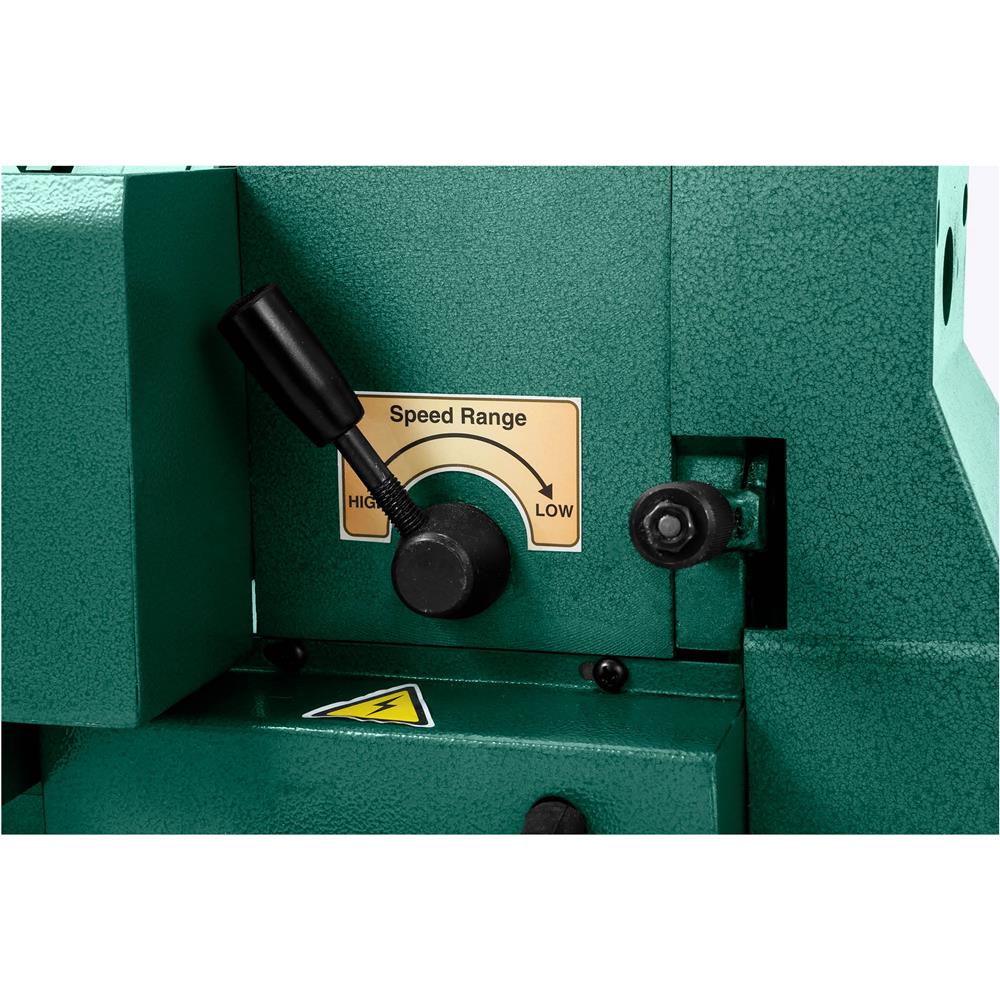

Powered by a 1/3 HP motor, this lathe features variable spindle speeds from 100 to 2500 RPM so you can match speed to the job. It can cut both right-hand and left-hand threads and includes useful capabilities often found on larger machines, such as inch and metric graduations, forward and reverse operation, and a reversible leadscrew.

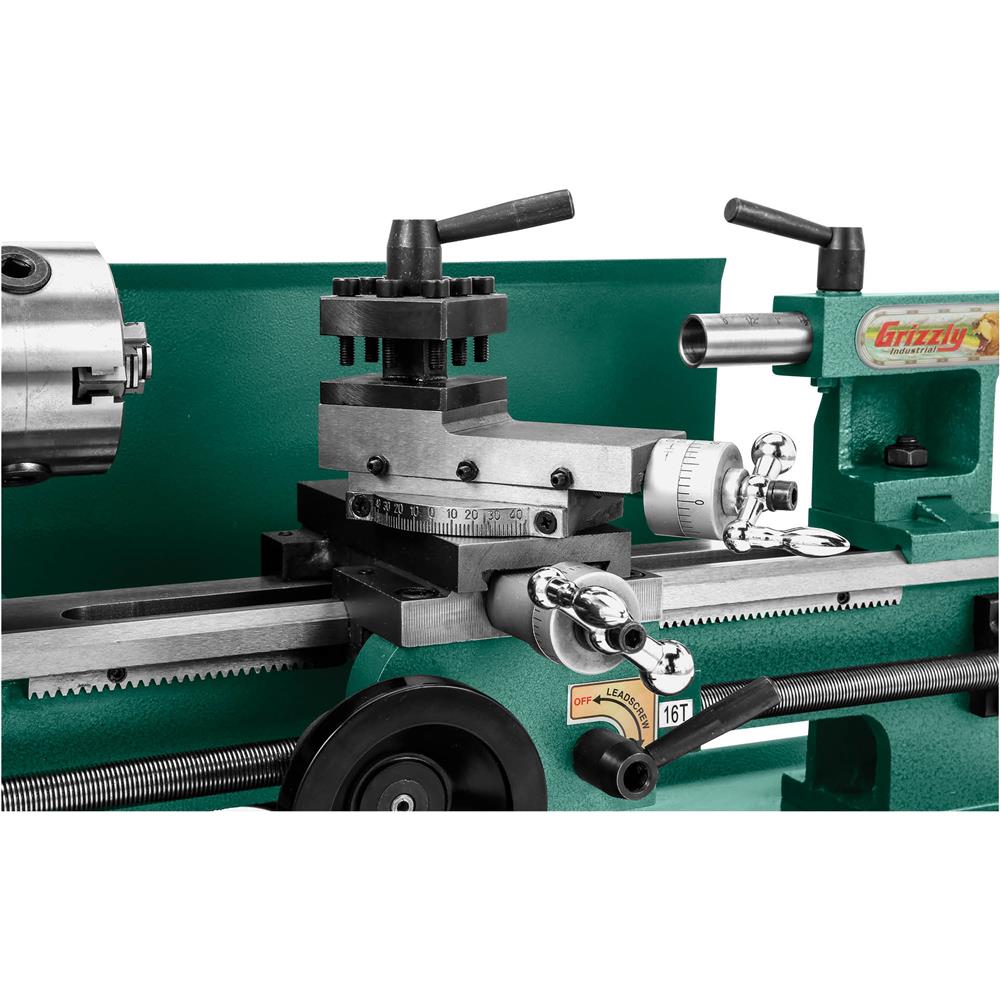

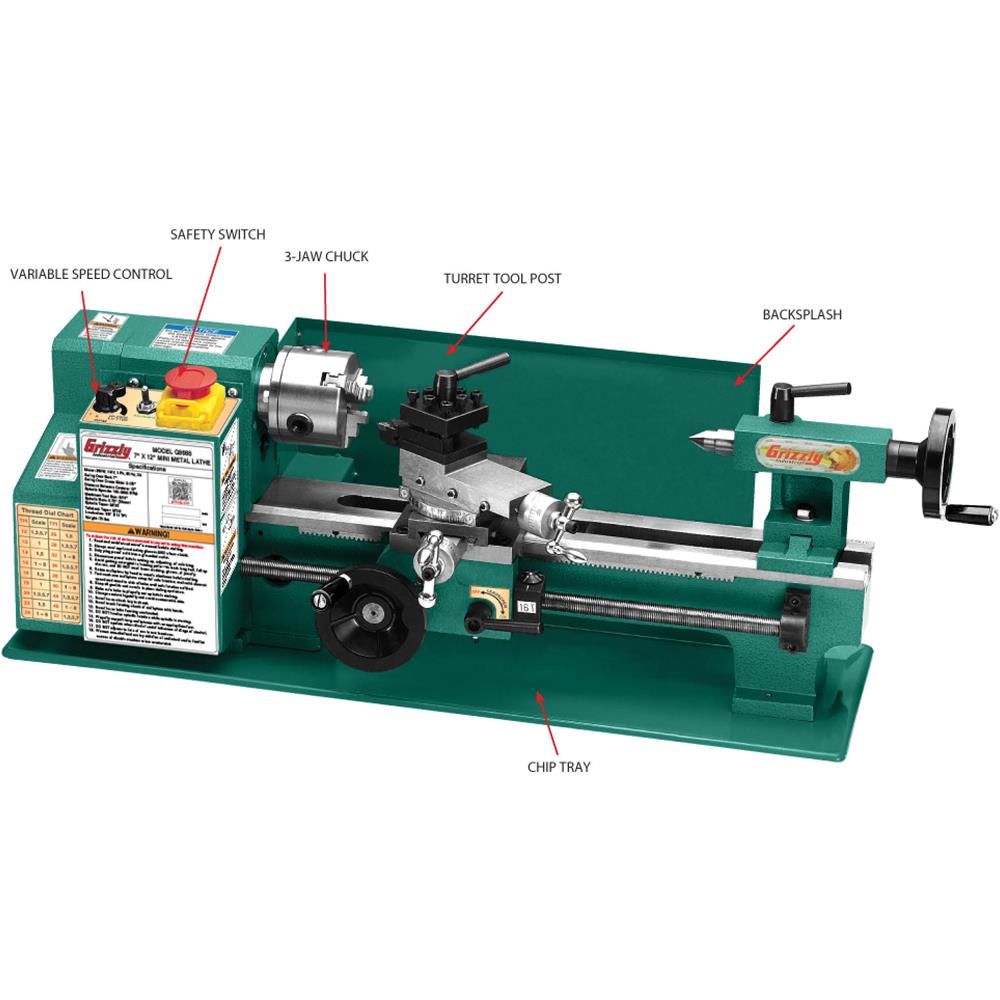

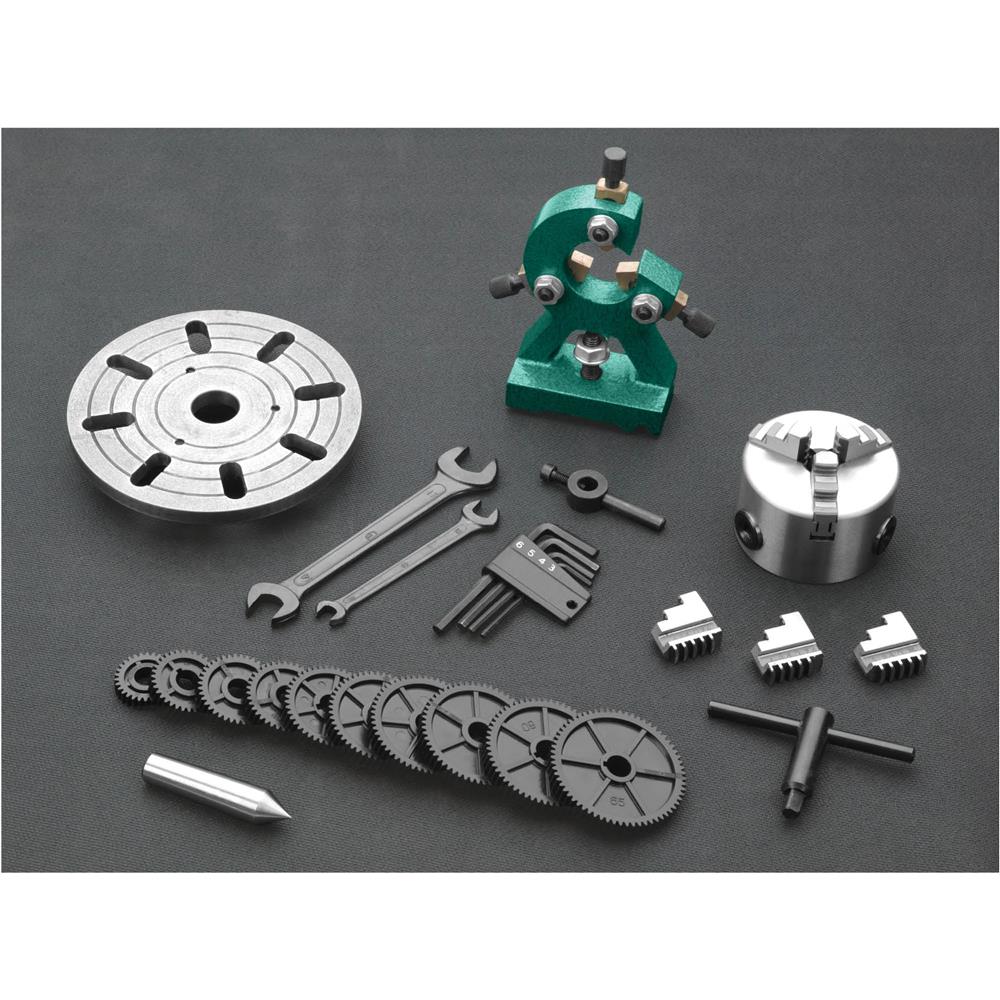

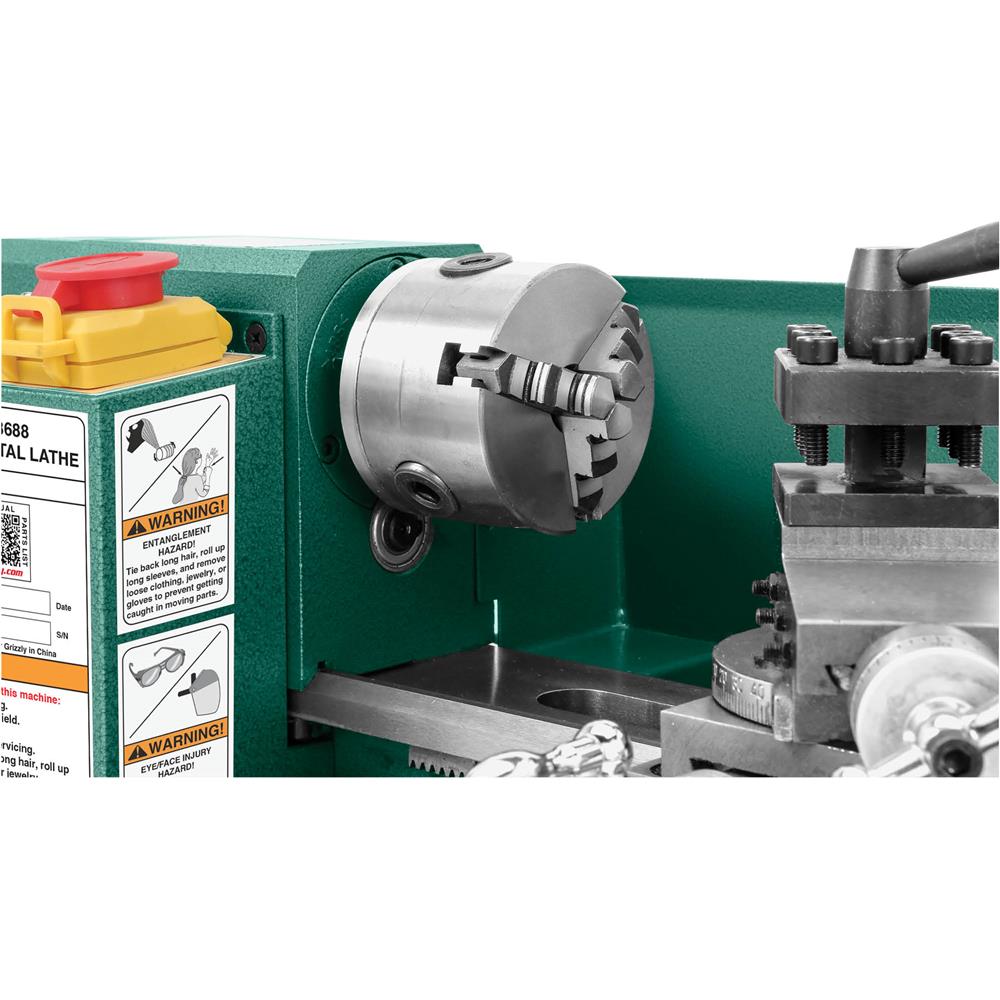

Its 7" swing, 12" distance between centers, and bench-friendly footprint make it well suited for small workshops where space matters. A 3" three-jaw chuck, turret tool post, chip tray, and splash guard help make it a convenient starter lathe for learning, tinkering, and light-duty machining projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable-speed spindle

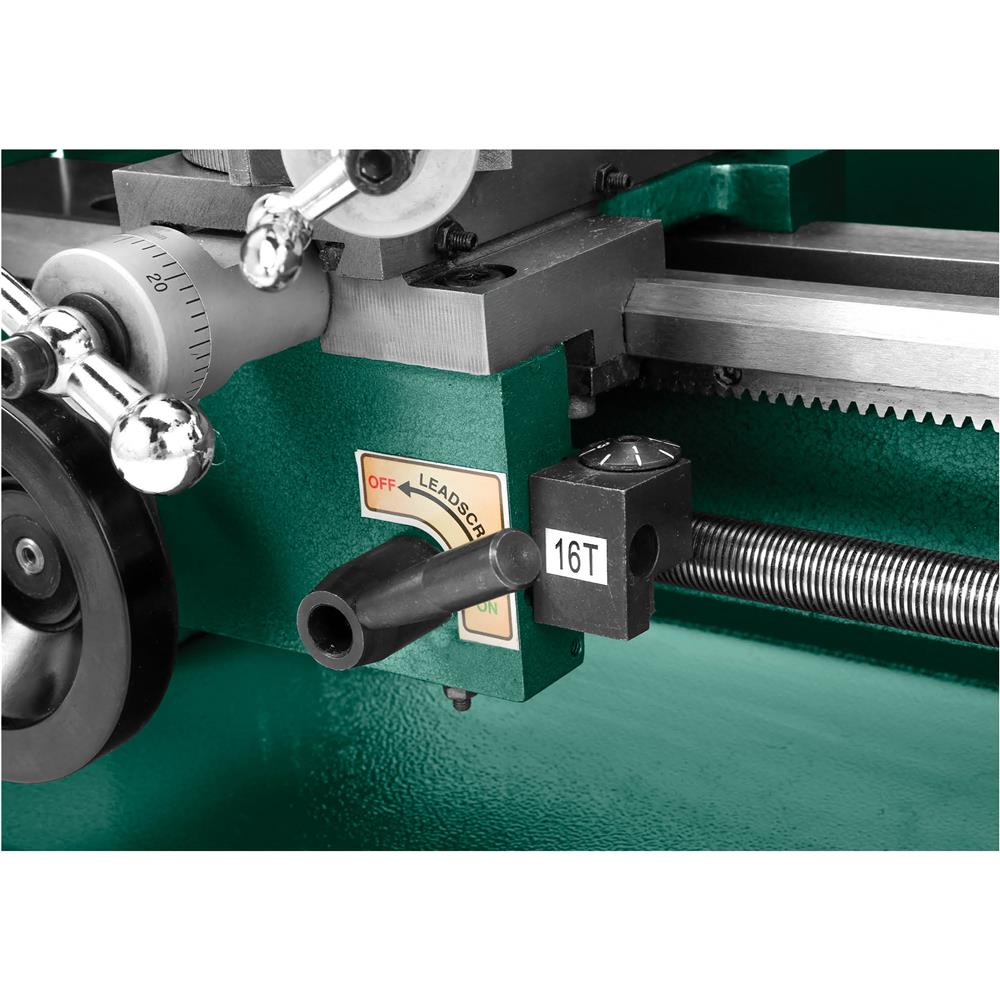

- 16-TPI reversible leadscrew
- Cuts RH and LH threads

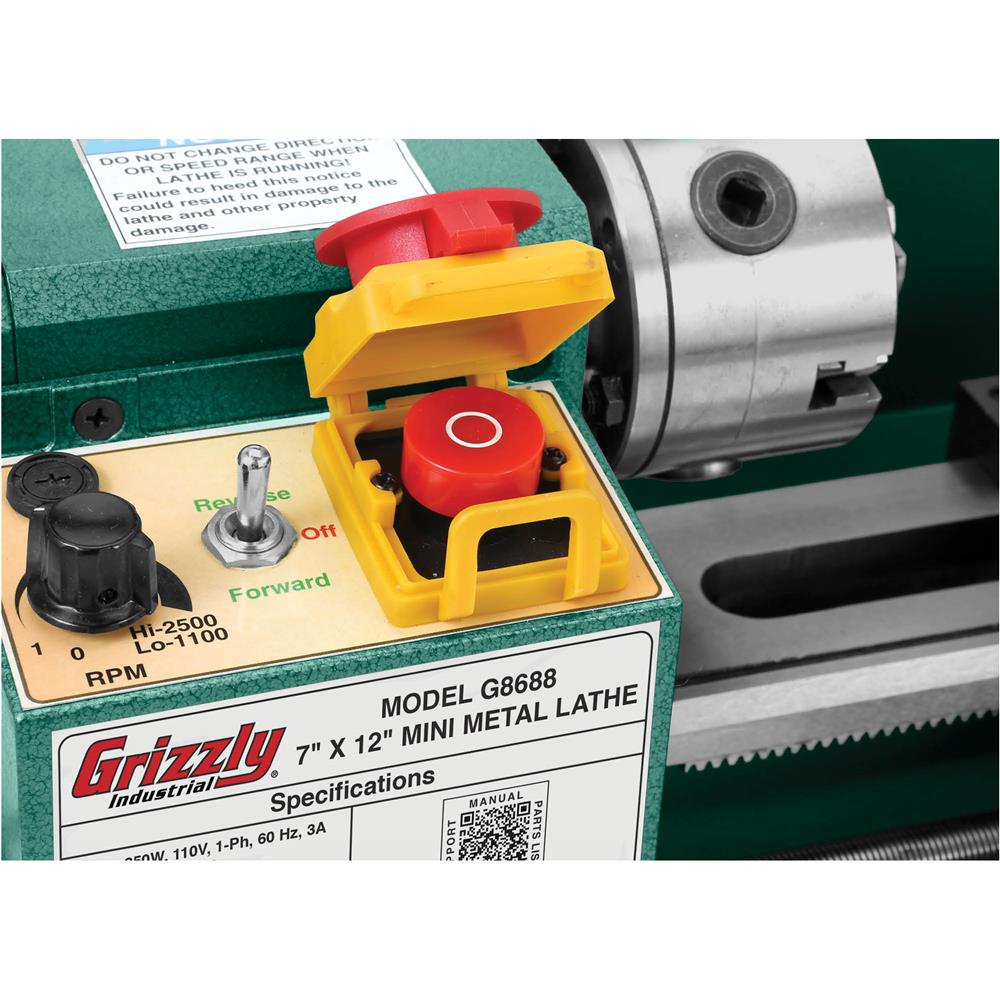

- Forward and reverse in all speeds
- Chip tray and backsplash
- Thread dial indicator
- Inch and metric handwheel graduations
Specifications
| Motor | 1/3 HP, 110V, single-phase 2.8A |
|---|---|
| Swing over bed | 7" |
| Swing over cross slide | 2-1/8" |
| Distance between centers | 12" |
| Bed width | 3-1/4" |
| Spindle bore | 0.78" (20mm) |
| Chuck bore | 0.645" |
| Spindle taper | MT#3 |
| Tailstock taper | MT#2 |

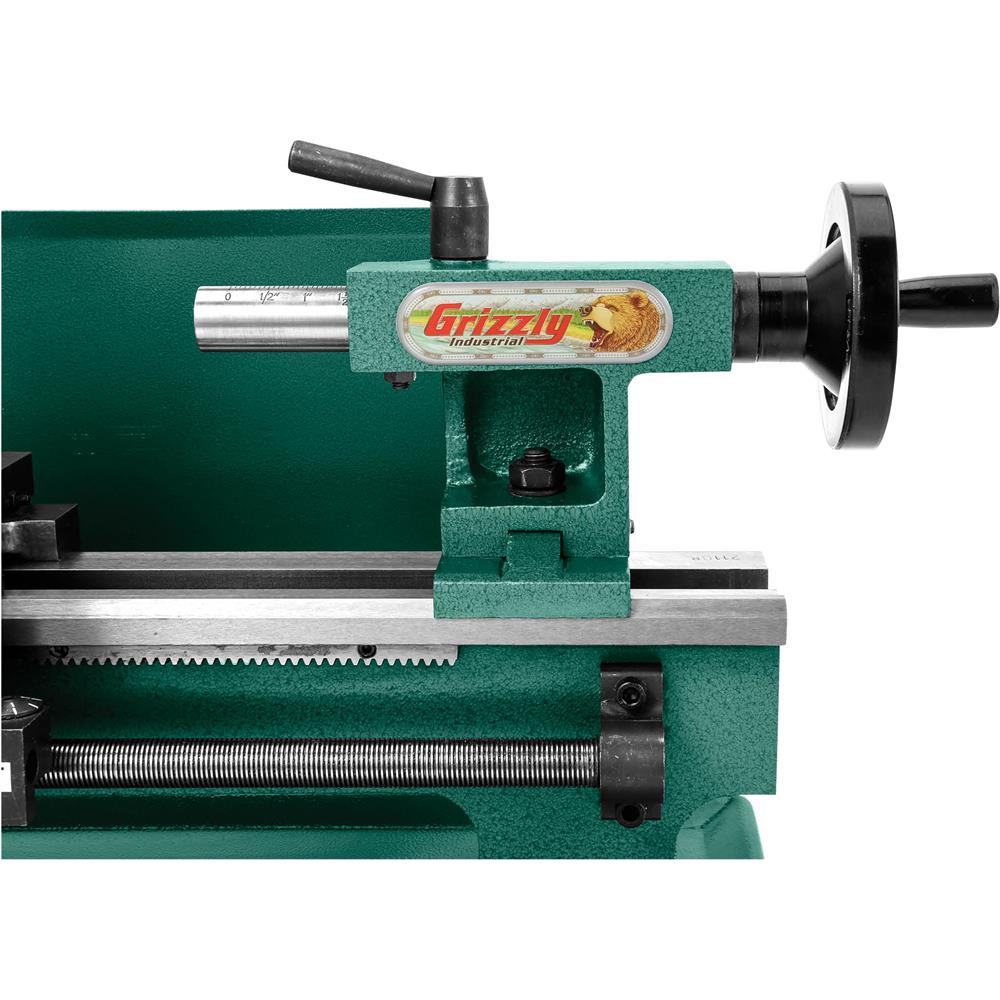

| Tailstock barrel travel | 2-1/2" |
| Cross slide travel | 2-3/4" |
|---|---|
| Compound travel | 2-3/4" |
| Spindle speed | Variable, 100-2500 RPM |
| Footprint | 27-3/4" x 8-3/4" |
| Overall dimensions | 27-3/4" W x 11-1/2" D x 12"H |
| Approximate shipping weight | 90 lbs. |
Warranty
This item comes with a 1 year factory warranty.
