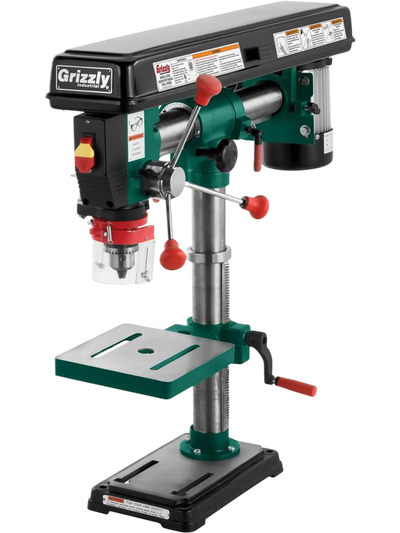

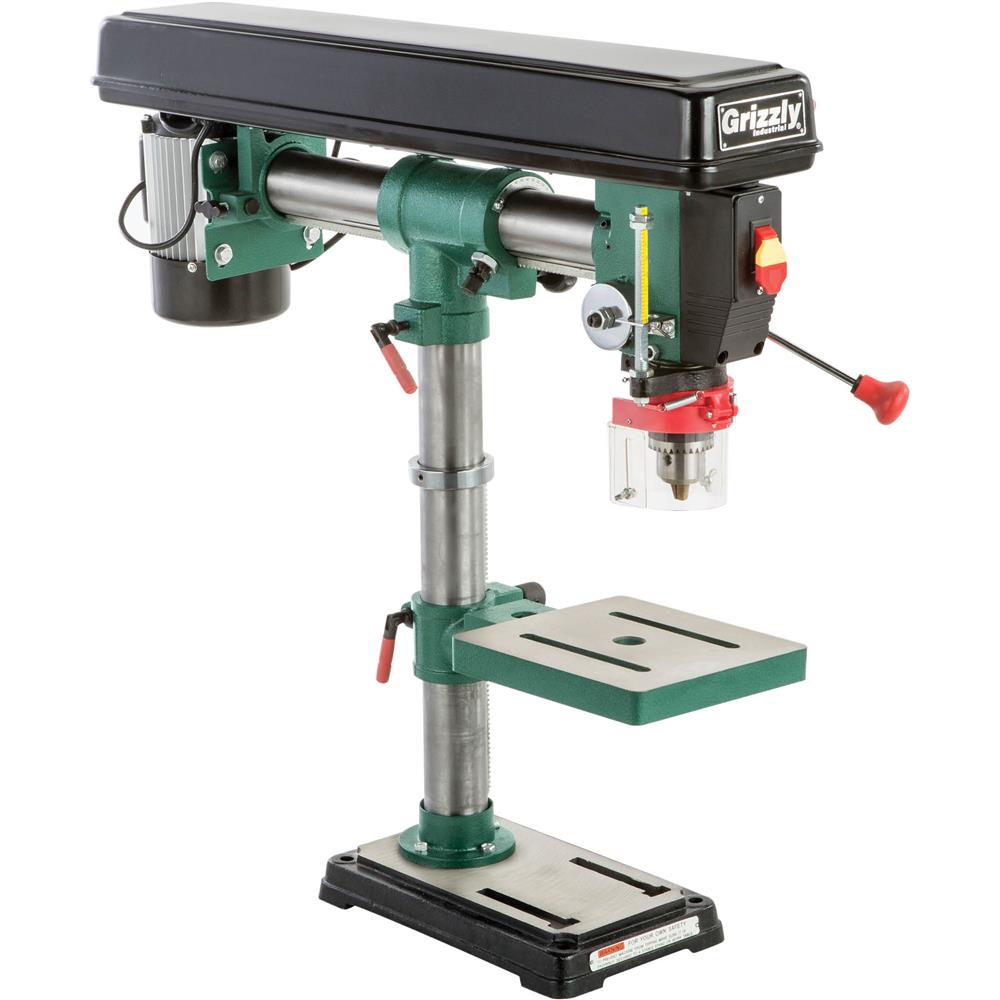

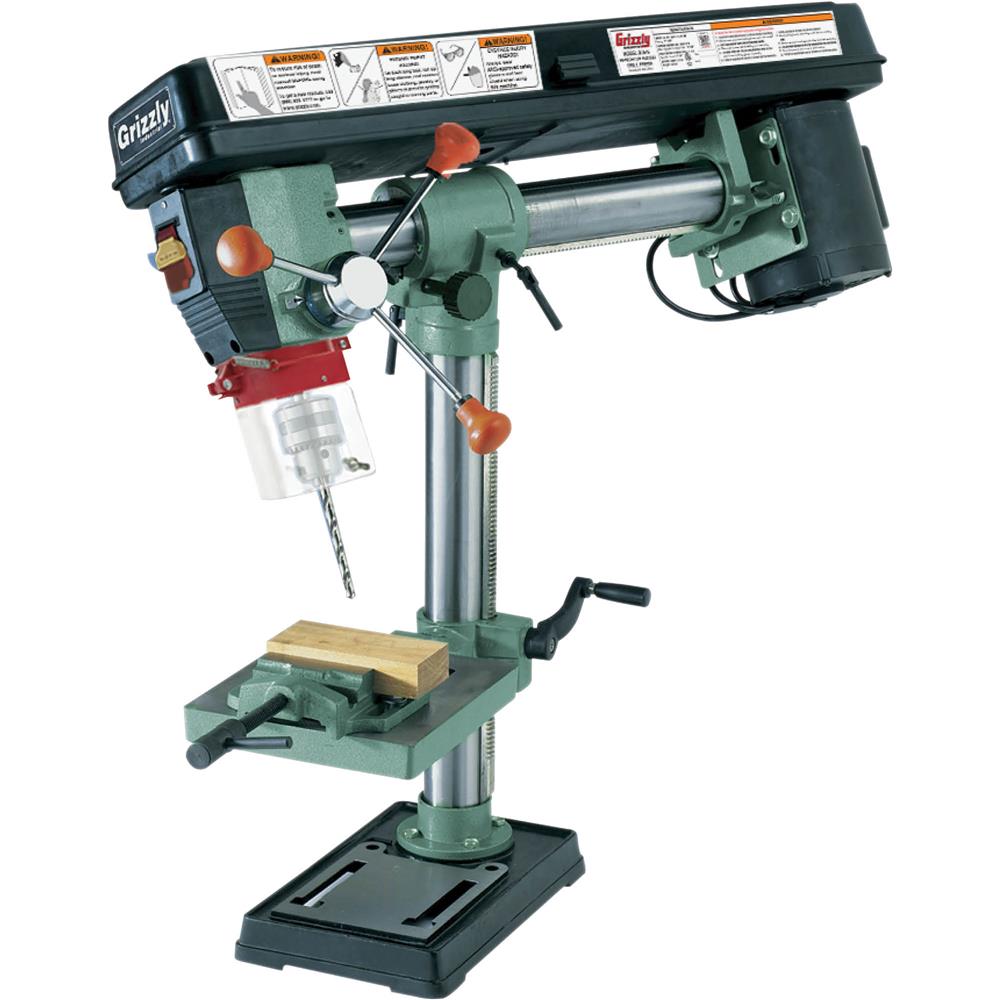

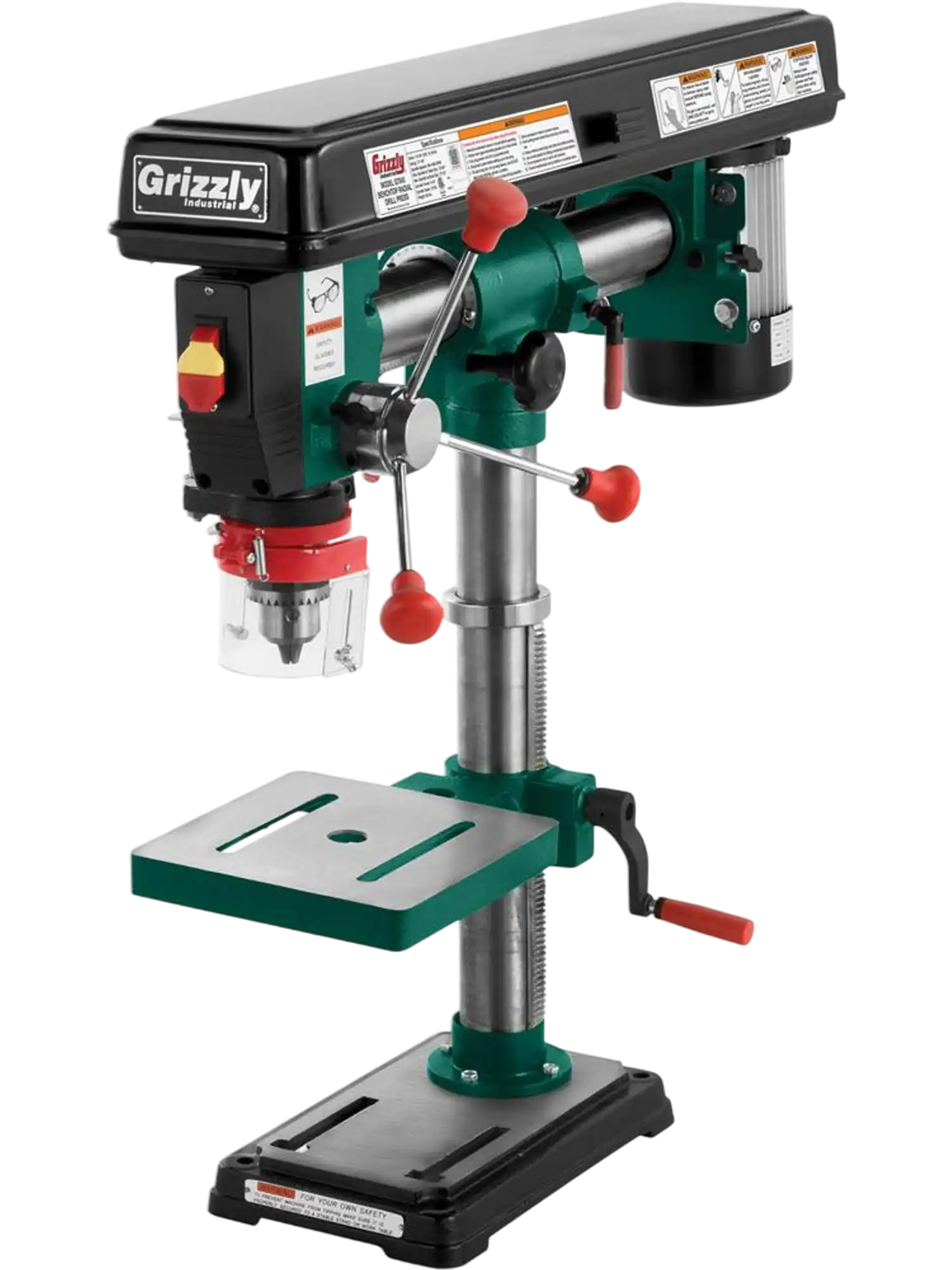

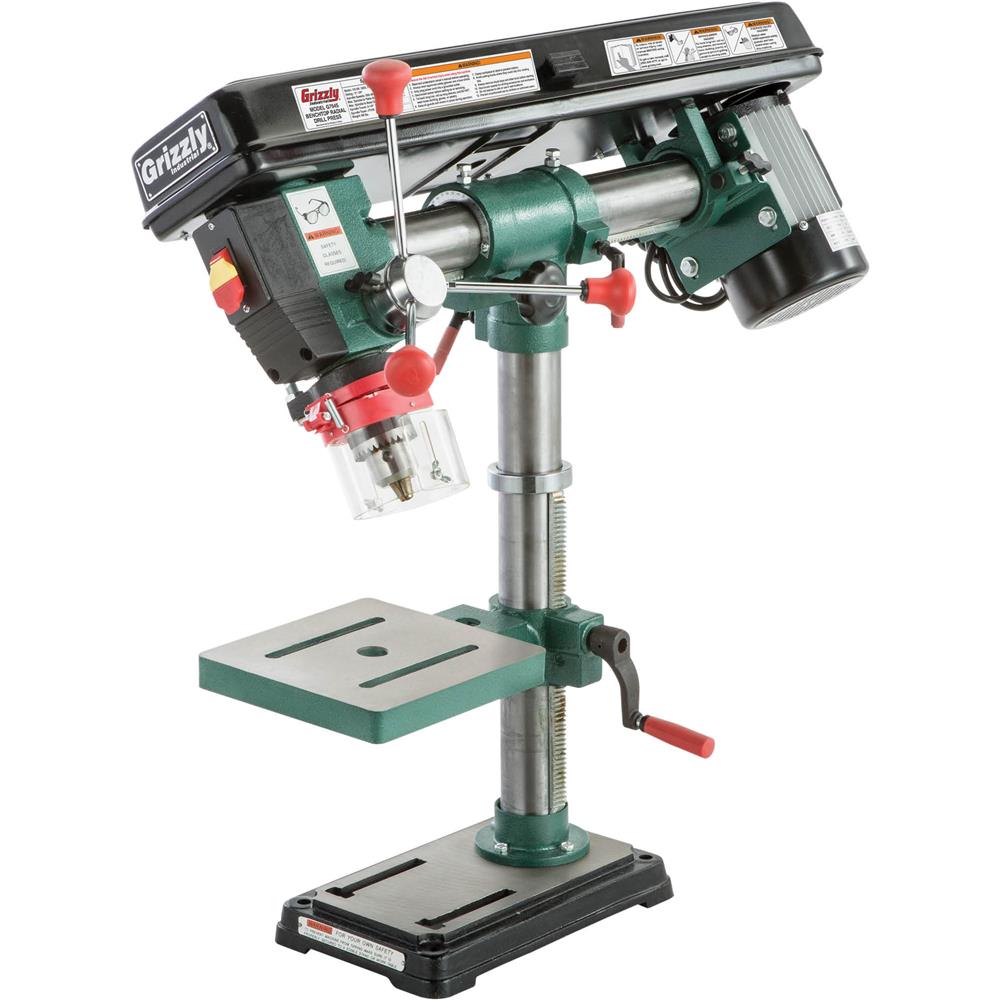

Grizzly G7945 Benchtop Radial Drill Press 34" New
Product Overview

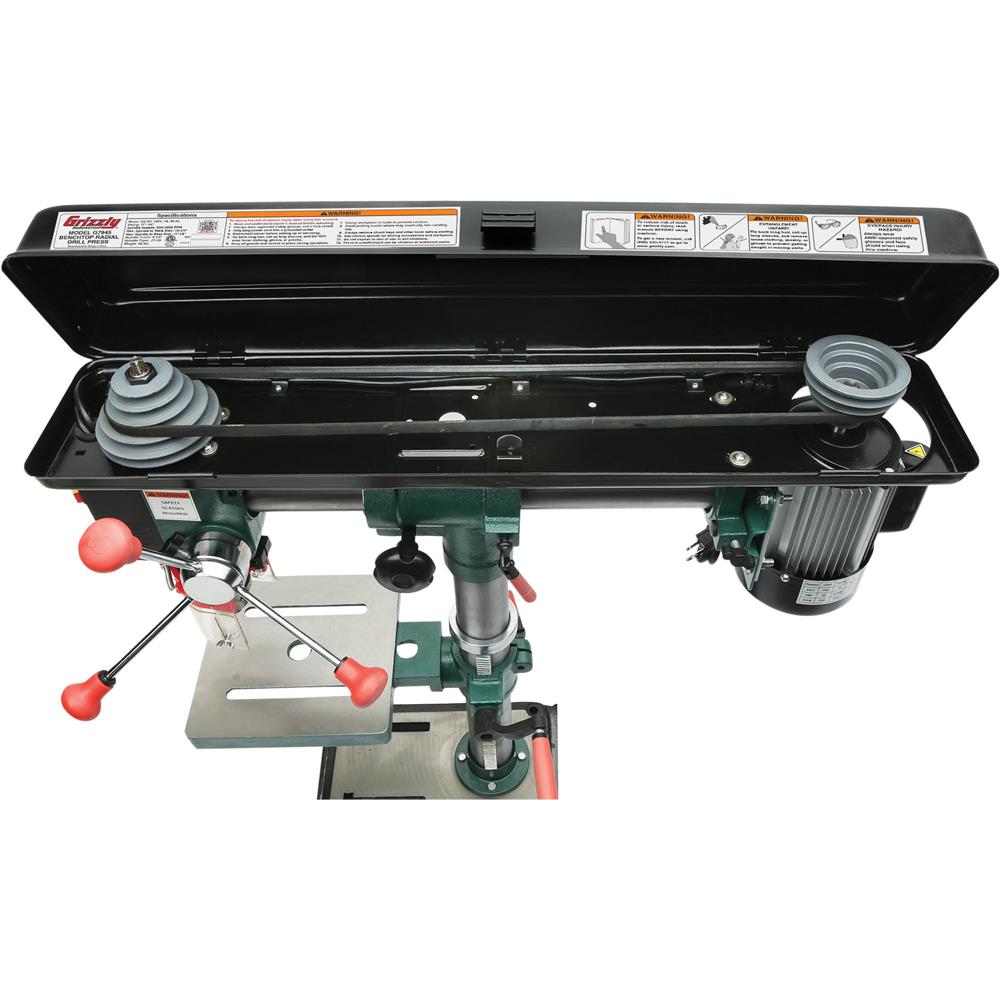

The Grizzly G7945 is a benchtop radial drill press built for precise drilling in wood, plastics, composites, fiberglass, and up to 1/2 inch mild steel. Its 1/2 HP motor drives five spindle speeds from 550 to 3000 RPM, giving you the flexibility to match speed to the material and task.

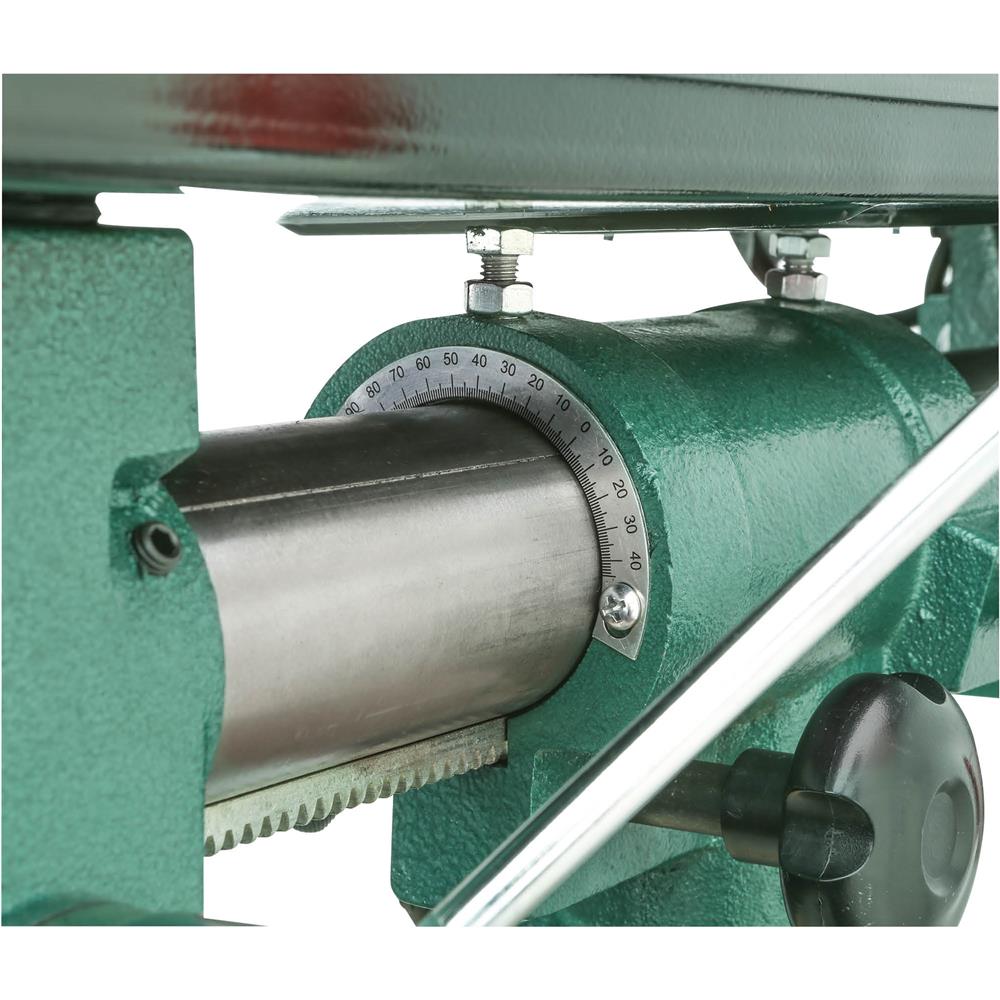

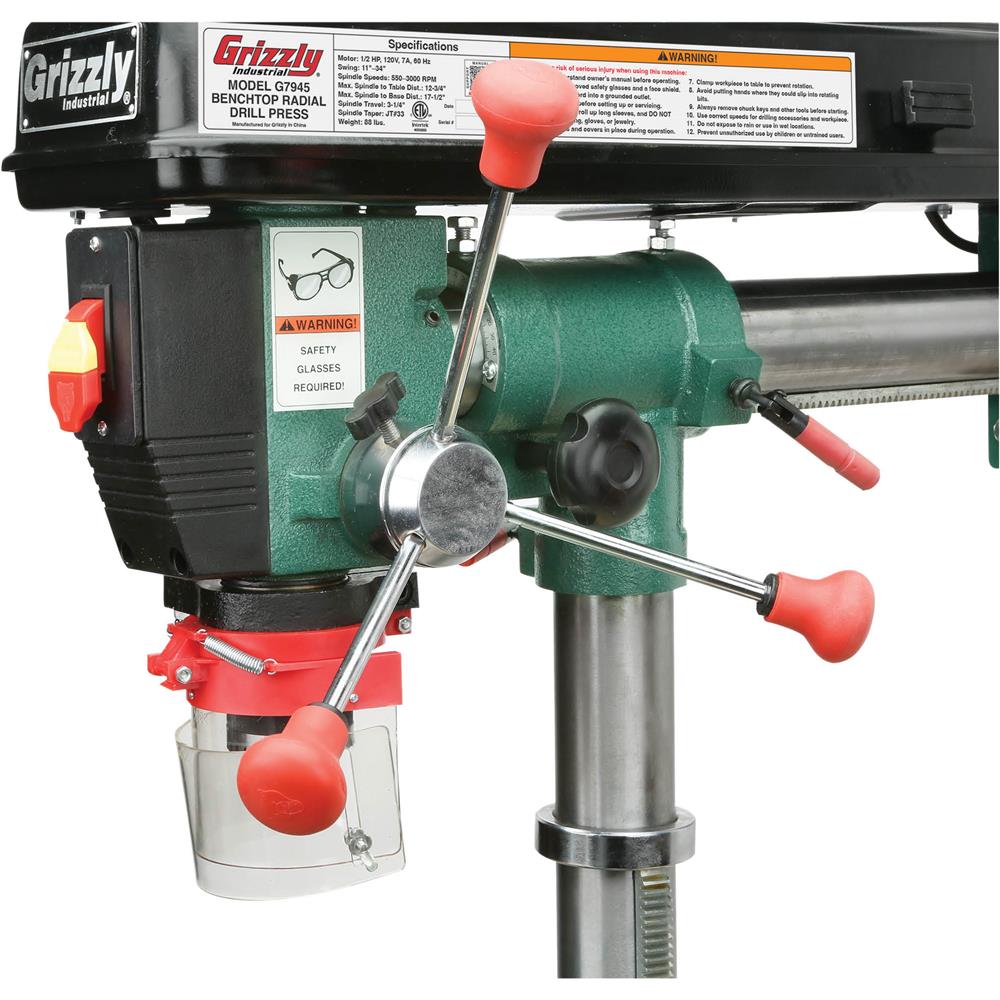

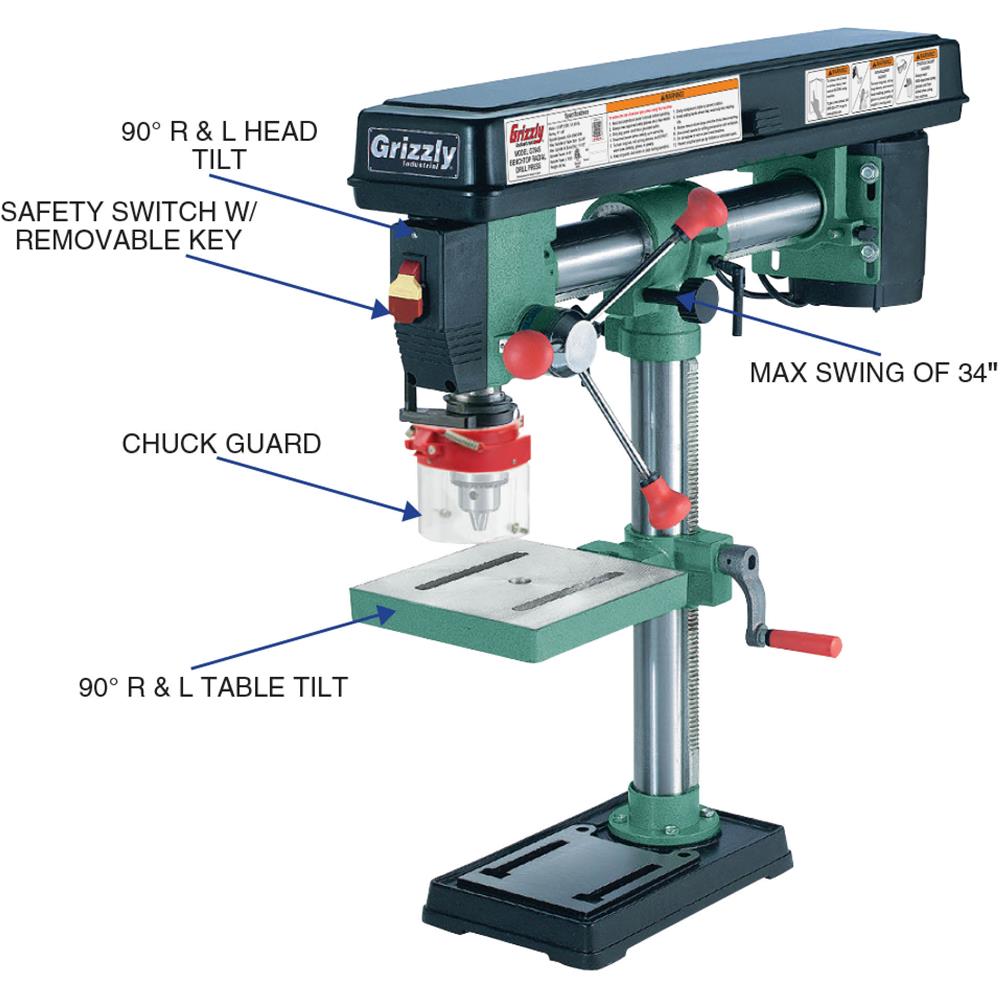

The radial design allows the headstock to tilt and slide for angle drilling and better positioning over larger or awkward workpieces. A precision-ground cast-iron table adds stability and can be raised, tilted, and rotated for a wide range of drilling setups, while the threaded depth stop helps deliver consistent, repeatable results.

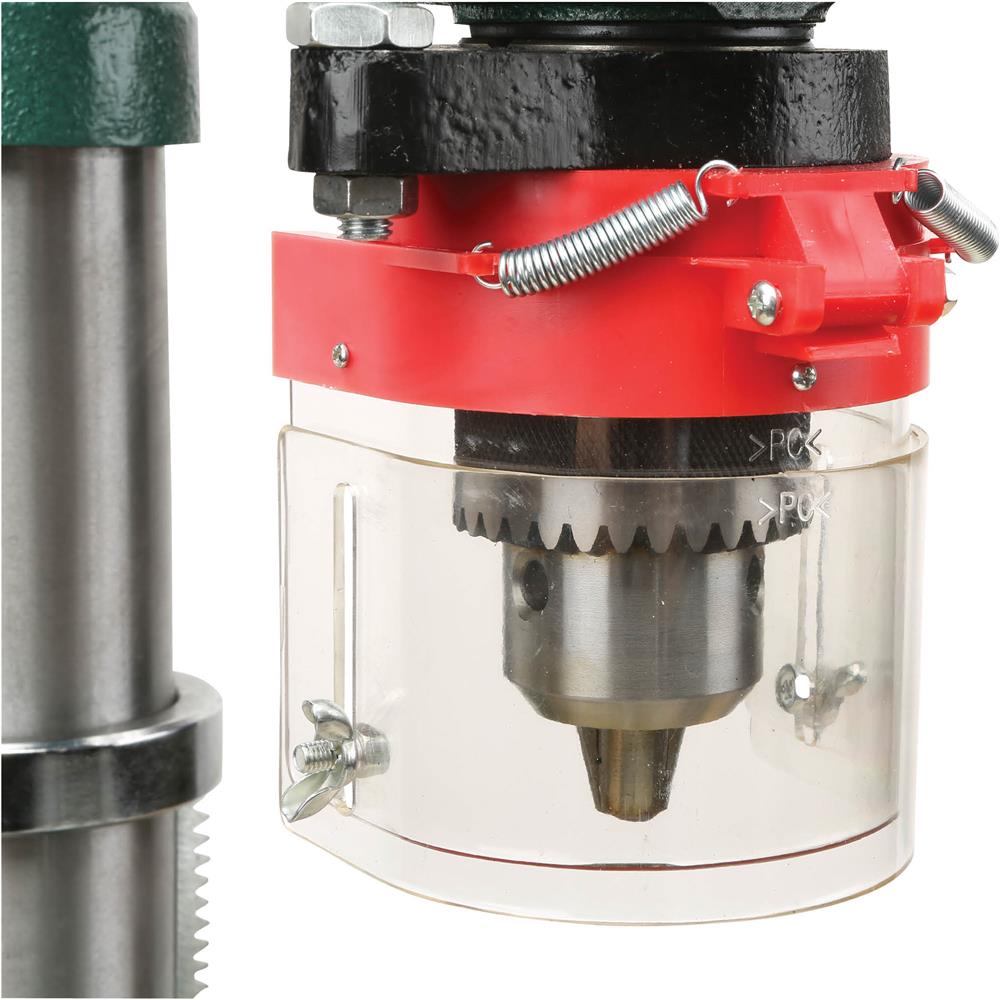

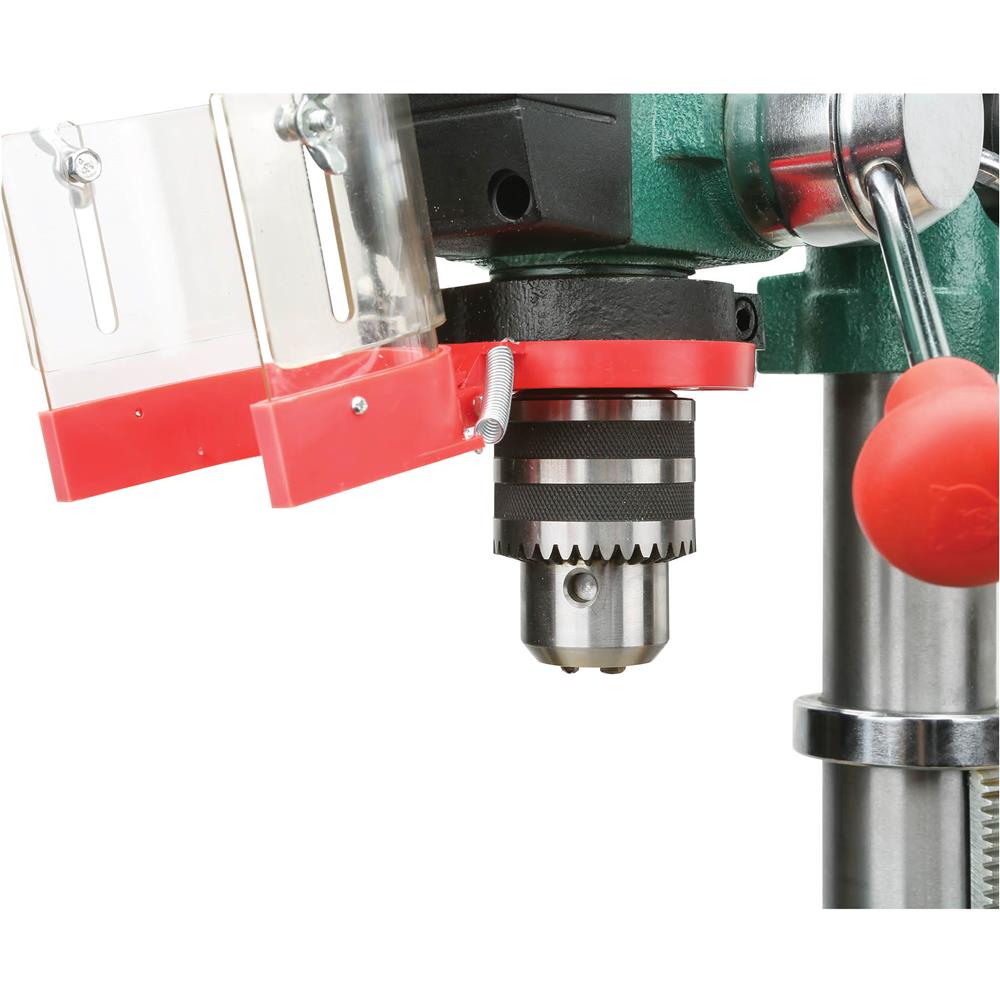

With a 34-inch swing, 3-1/4 inch spindle travel, and a keyed chuck that accepts bits from 1/16 inch to 5/8 inch, this model is a strong fit for serious DIY users, home workshops, and contractors who need compact drilling power with broad adjustability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Precision-ground cast-iron table

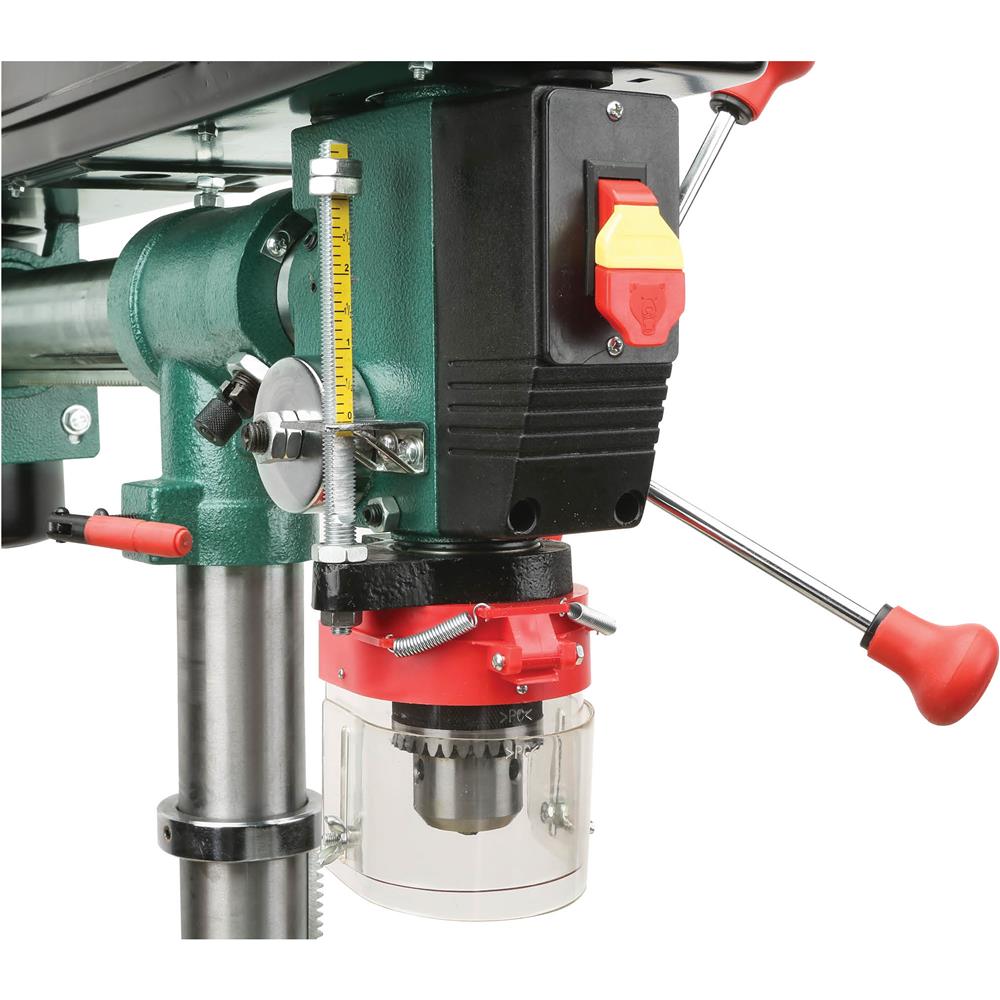

- Threaded depth stop
- Crank handle operated rack-and-pinion vertical table movement
- Table has lock levers
- Radial design allows angle drilling
- Cushioned grip quill handles
- 1-year limited warranty
Specifications
| Motor | 1/2 HP, single-phase, 120V, 4.7A |
| Max swing | 34" |
| Spindle taper | JT-33 |
| Spindle travel | 3-1/4" |

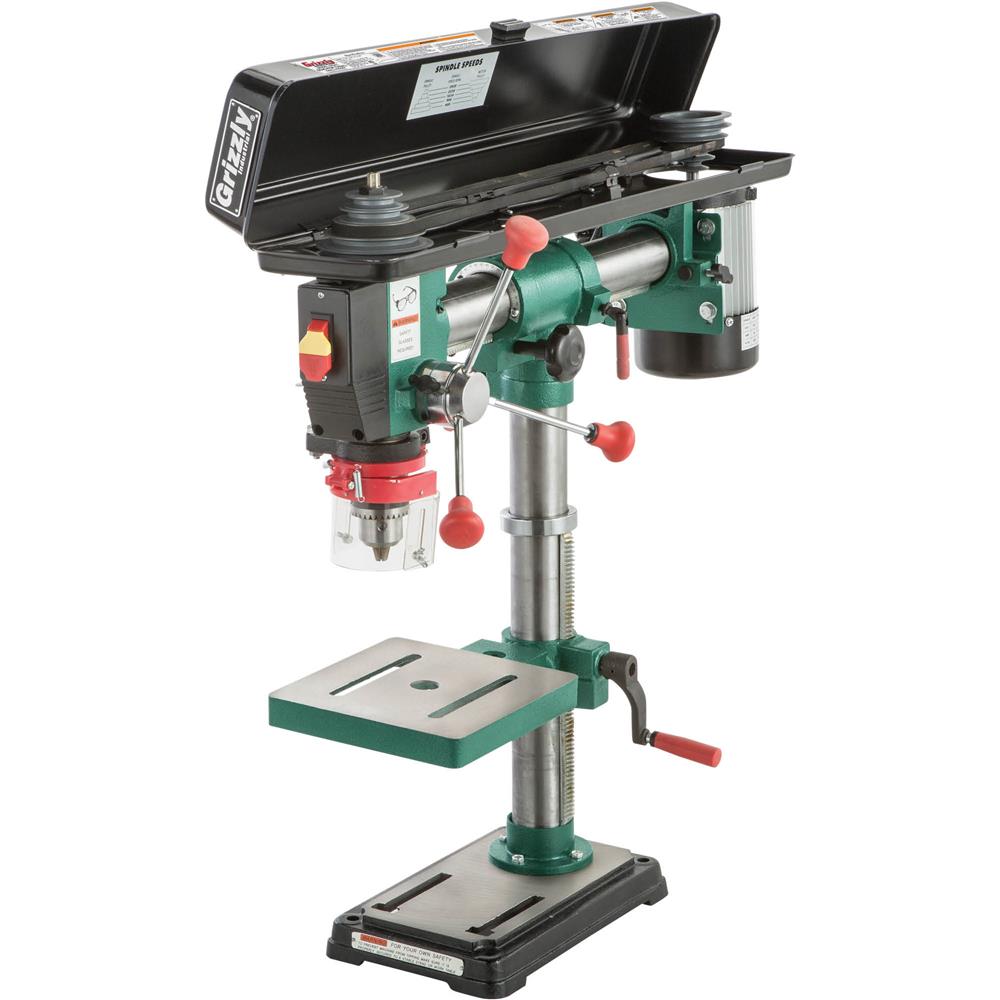

| Spindle speeds | 5, 550–3000 RPM |
| Drill chuck | 1/16"–5/8" |
| Drilling capacity | 1/2" mild steel |
| Maximum distance from spindle to table | 12-3/4" |
| Table size | 8-5/8" x 9" |
| Table swivel around center | 360° |
| Table swivel around column | 360° |
| Table tilt | 90° L/R |
| Table T-slot size | 5/8" |
| Head tilt | 45° left, 90° right |
| Head swivel | 360° |
| Column diameter | 2.36" |
| Footprint | 13-1/2" x 8-1/2" |
| Overall size | 11-1/2" W x 33-1/2" D x 31-1/2" H |
| Approximate shipping weight | 97 lbs. |
Warranty
This item comes with a 1 year factory warranty.
