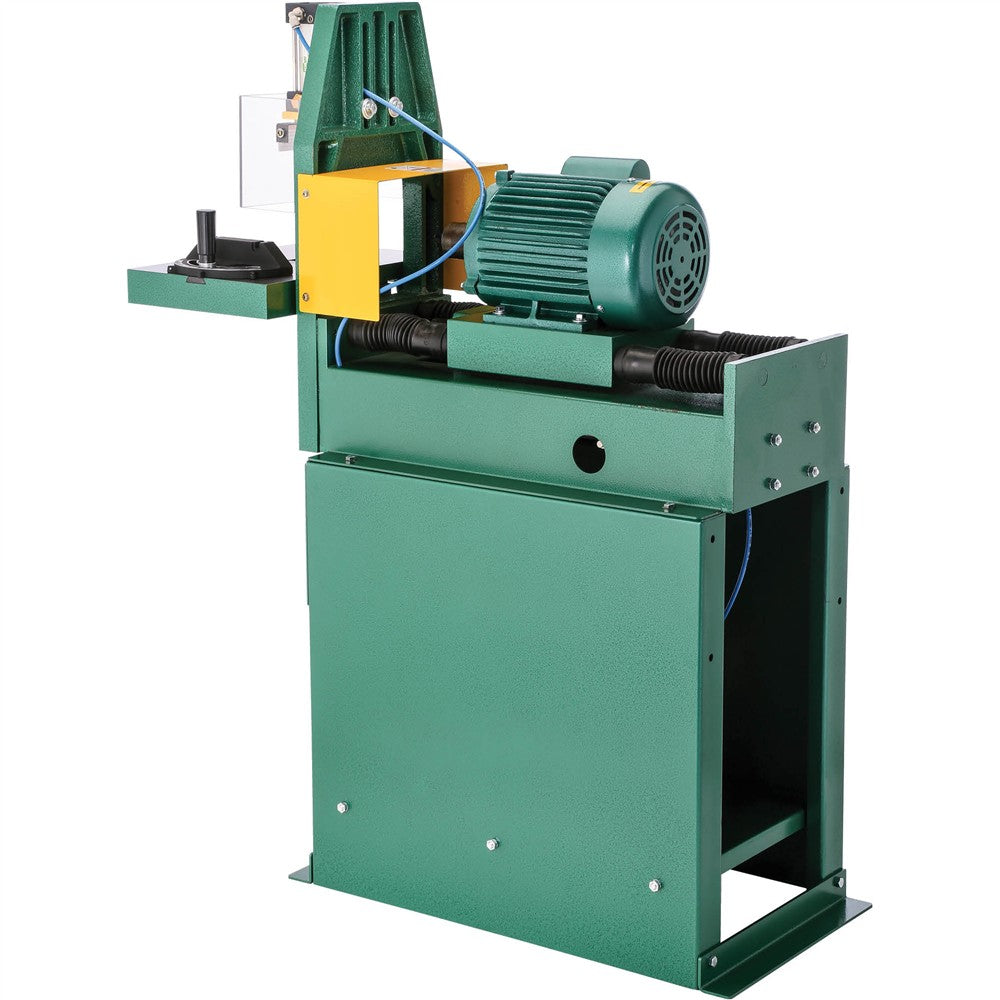

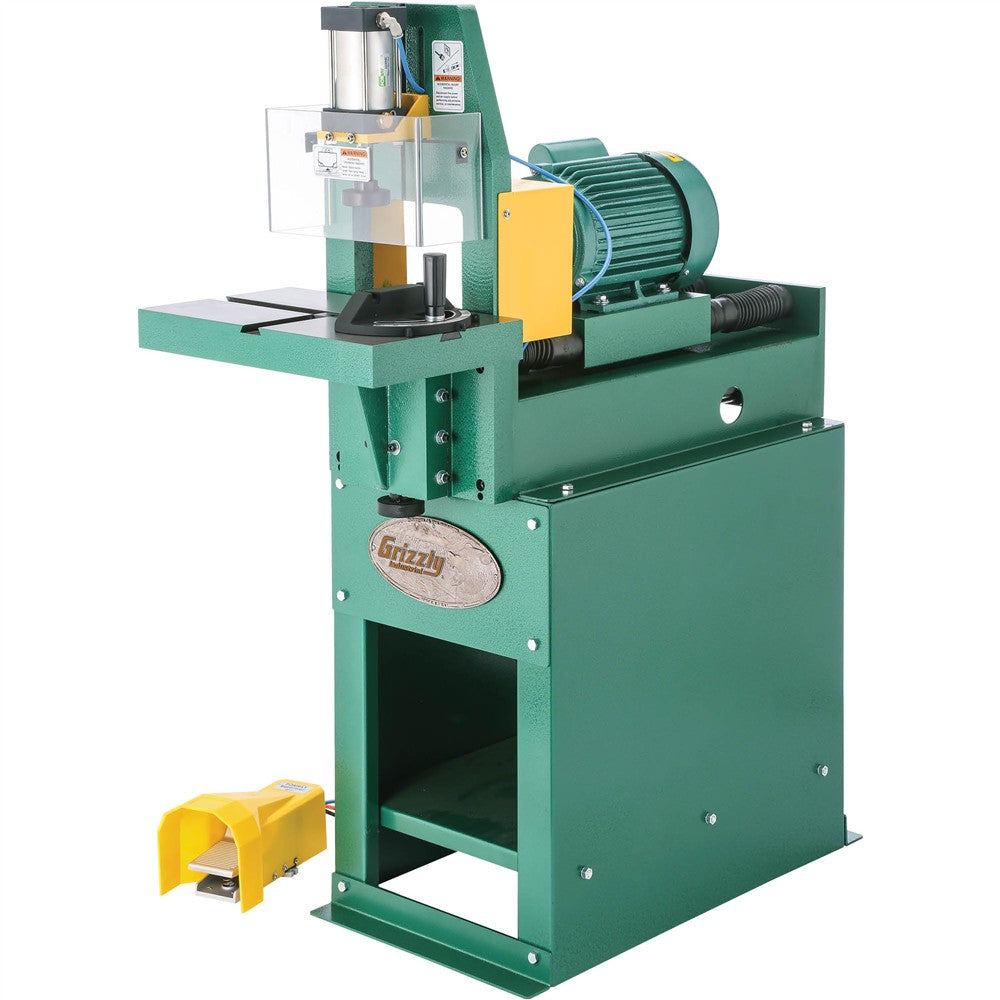

Grizzly G4185 Boring & Pocket Hole Machine Horizontal Boring Machine New
Product Overview
The Grizzly G4185 is a horizontal boring and pocket hole machine built for accurate, repeatable hole drilling in woodworking projects. It is designed to help shops and serious makers place holes precisely for joinery, hardware installation, and other tasks where alignment matters.

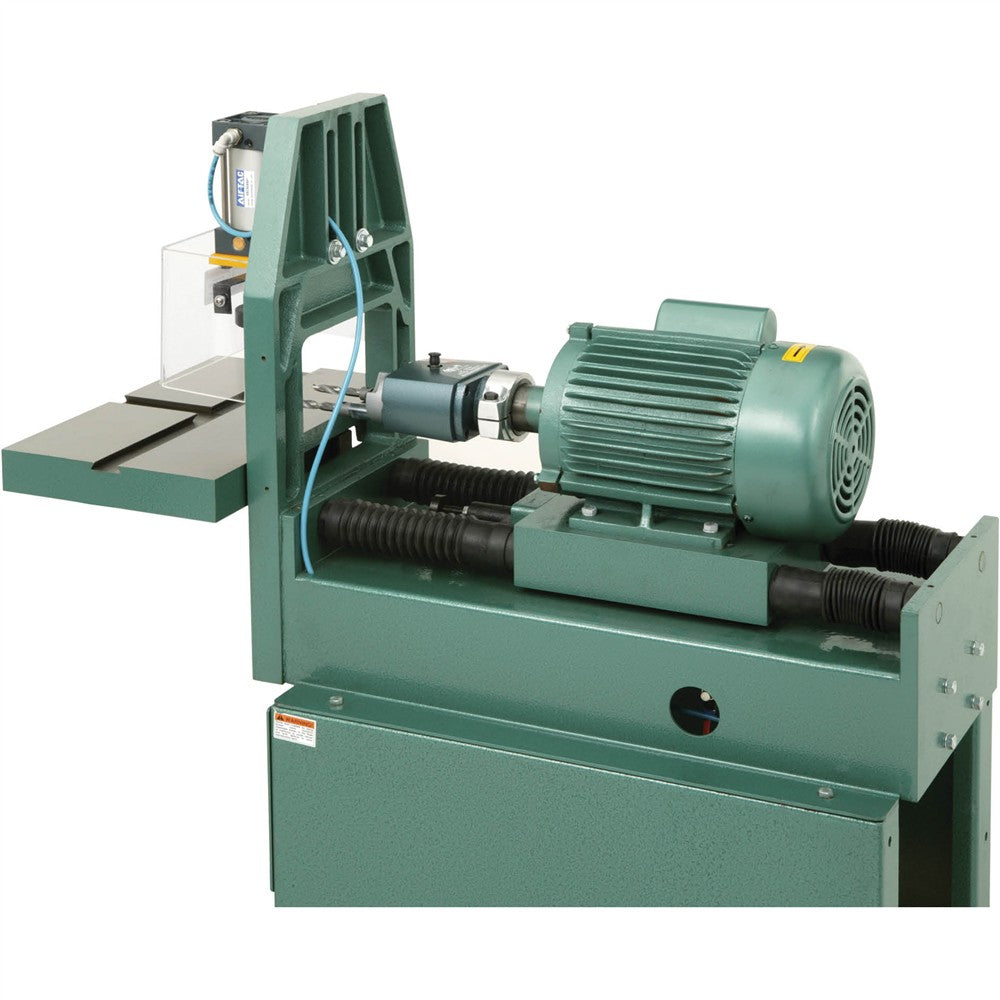

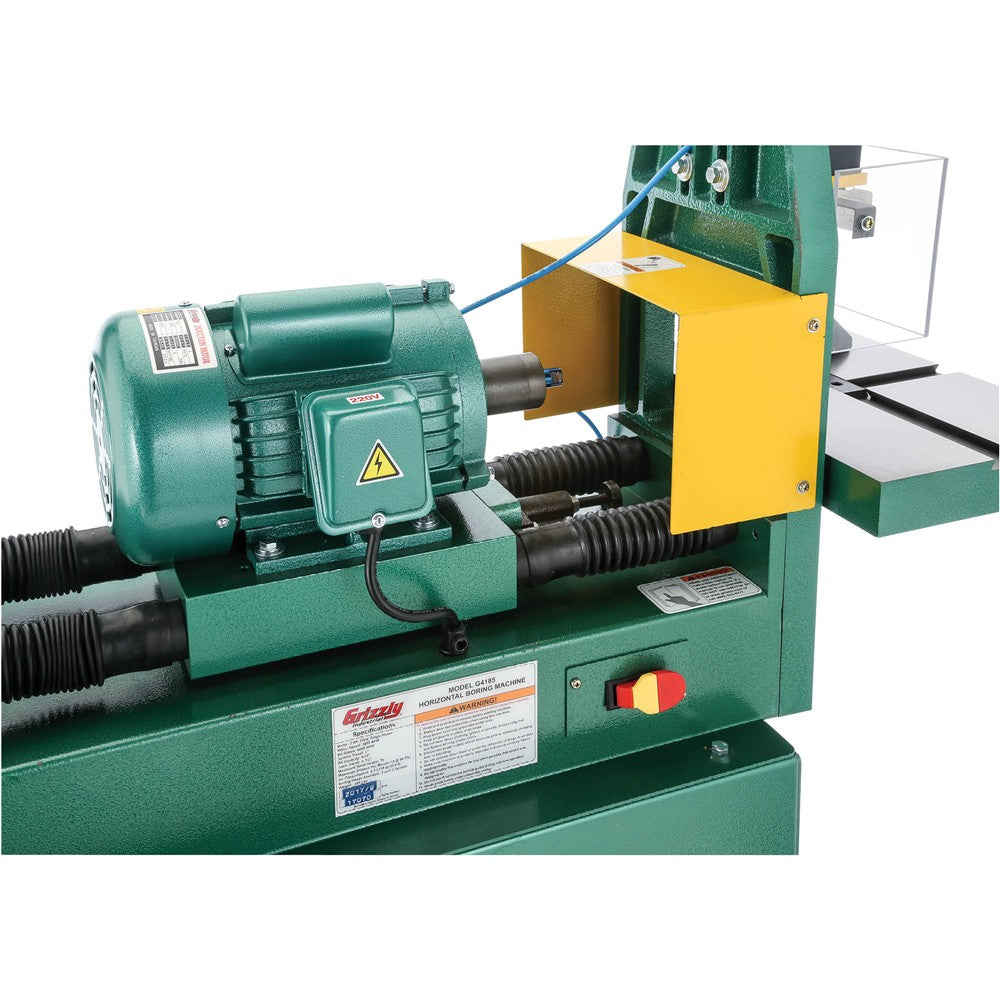

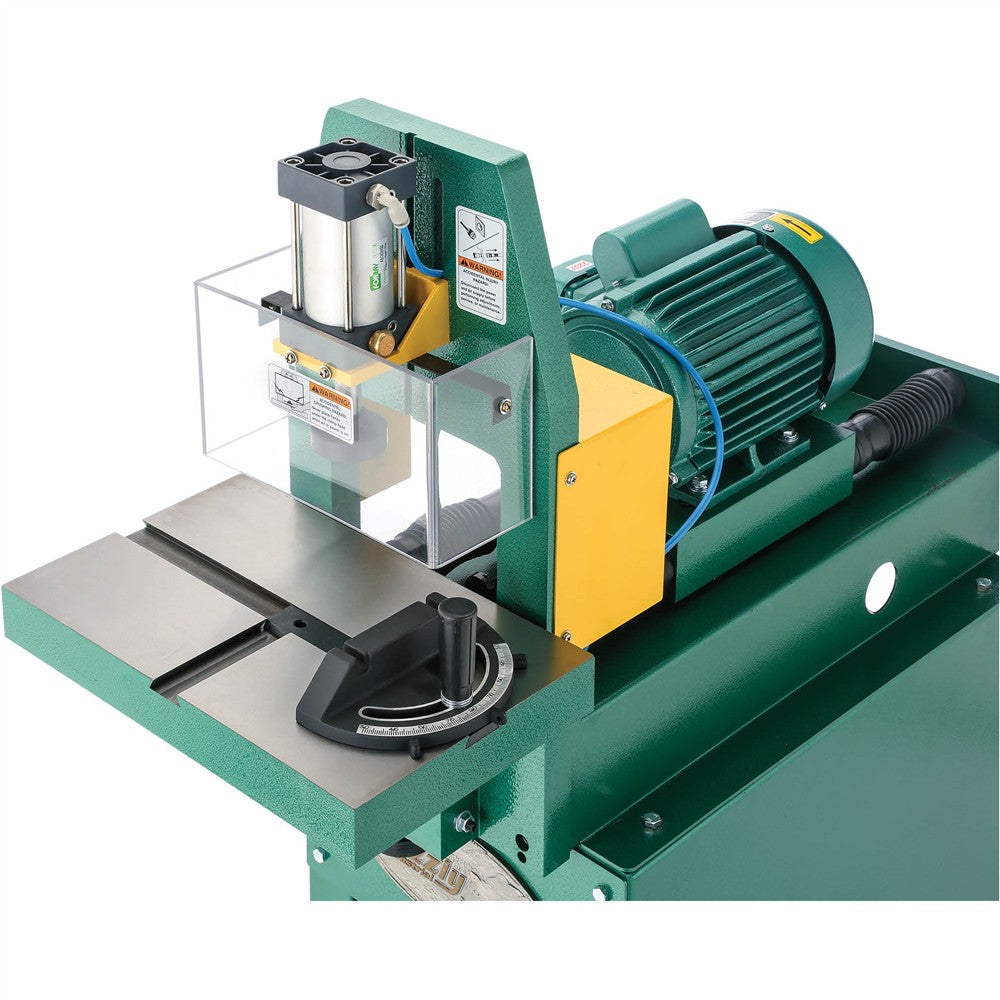

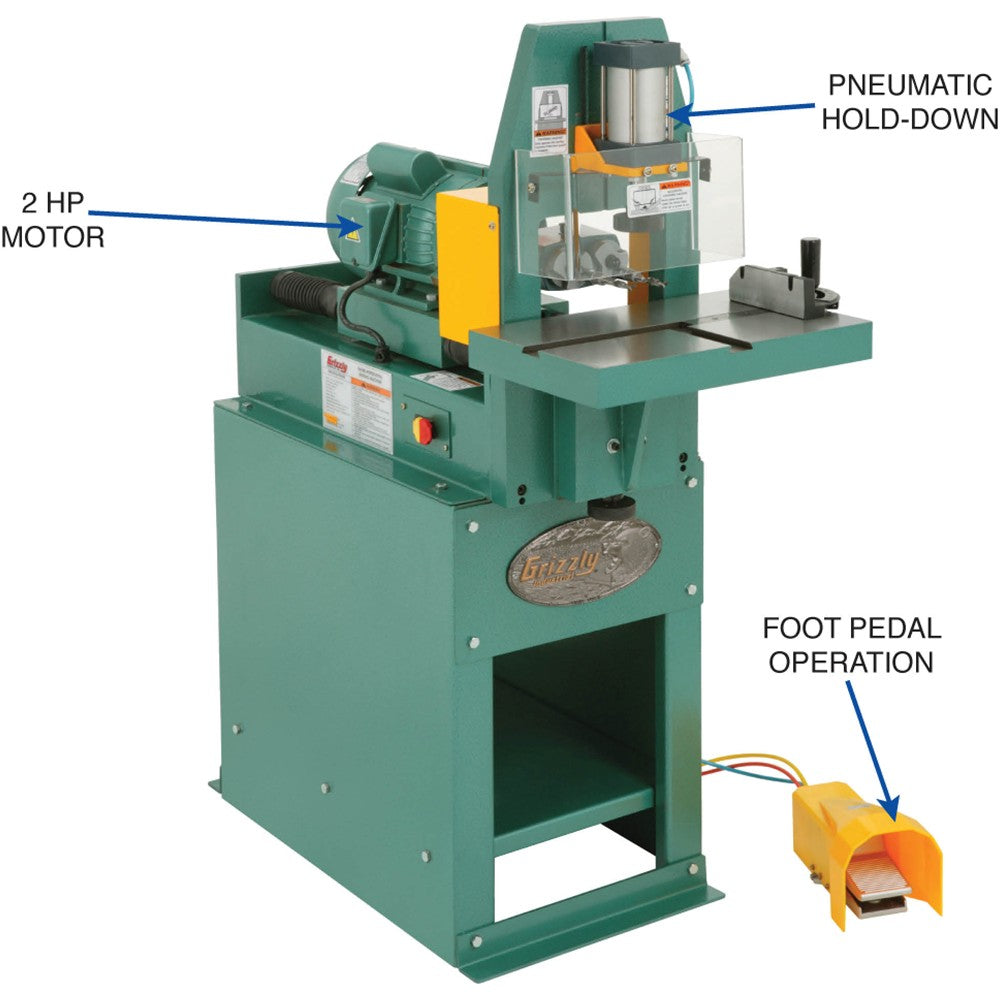

A 2 HP motor drives the spindle at 3450 RPM, while the pneumatic clamp holds material firmly in place with strong, consistent pressure. The precision-ground cast-iron table, dovetailed miter gauge slots, and foot pedal control support smooth operation and efficient workflow, and the machine can also be used with compatible multi-bit boring heads for higher productivity.
This model is well suited for cabinetmakers, furniture builders, and production-oriented woodworkers who need dependable horizontal boring performance. With its compact footprint, sturdy steel stand, and capacity for stock up to 7-1/2 inches wide, it fits well in dedicated woodworking shops looking to improve speed and accuracy.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

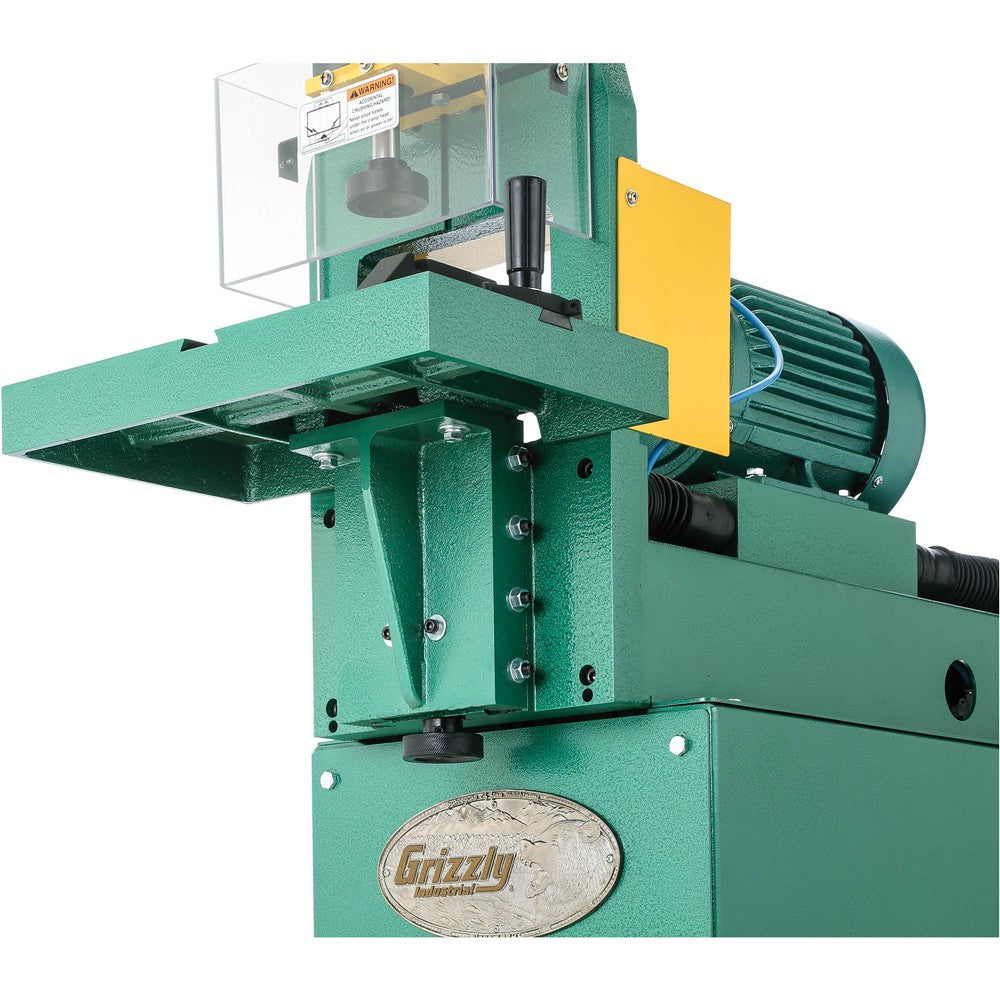

- Precision-ground cast-iron table
- Dovetailed miter gauge and slots

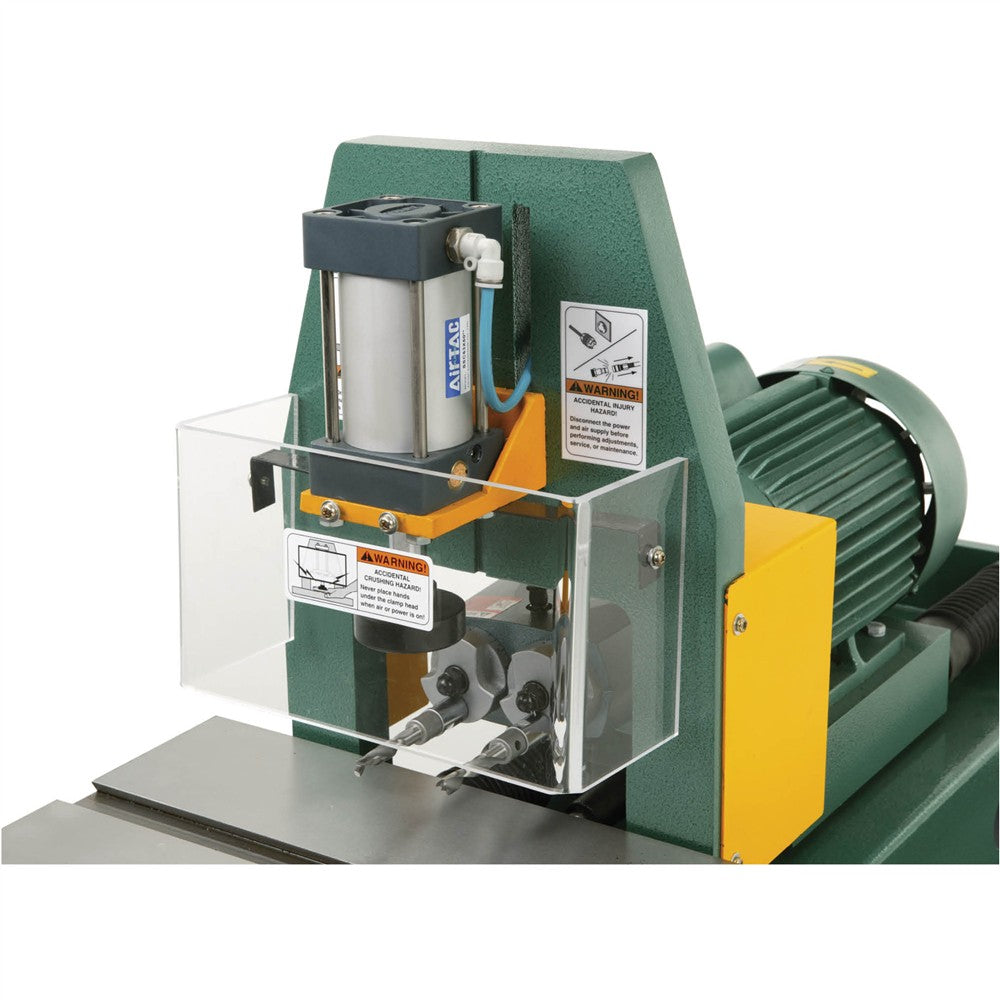

- Pneumatic clamp and spindle travel
- Accepts RH threaded boring bits
- Preformed steel stand
- Dovetailed table ways
- Convenient foot pedal control
Specifications
| Motor | 2 HP, 220V, single-phase, 12A |
| Spindle travel | 3'' |
| Spindle speed | 3450 RPM |
| Maximum strokes per minute | 12 at 90 PSI |
| Maximum stock width | 7-1/2 in. |
| Drill Bit Type | RH threads |
| Drill bit capacity | 9/16" |
| Air Requirements | 0.5 CFM at 90 PSI |

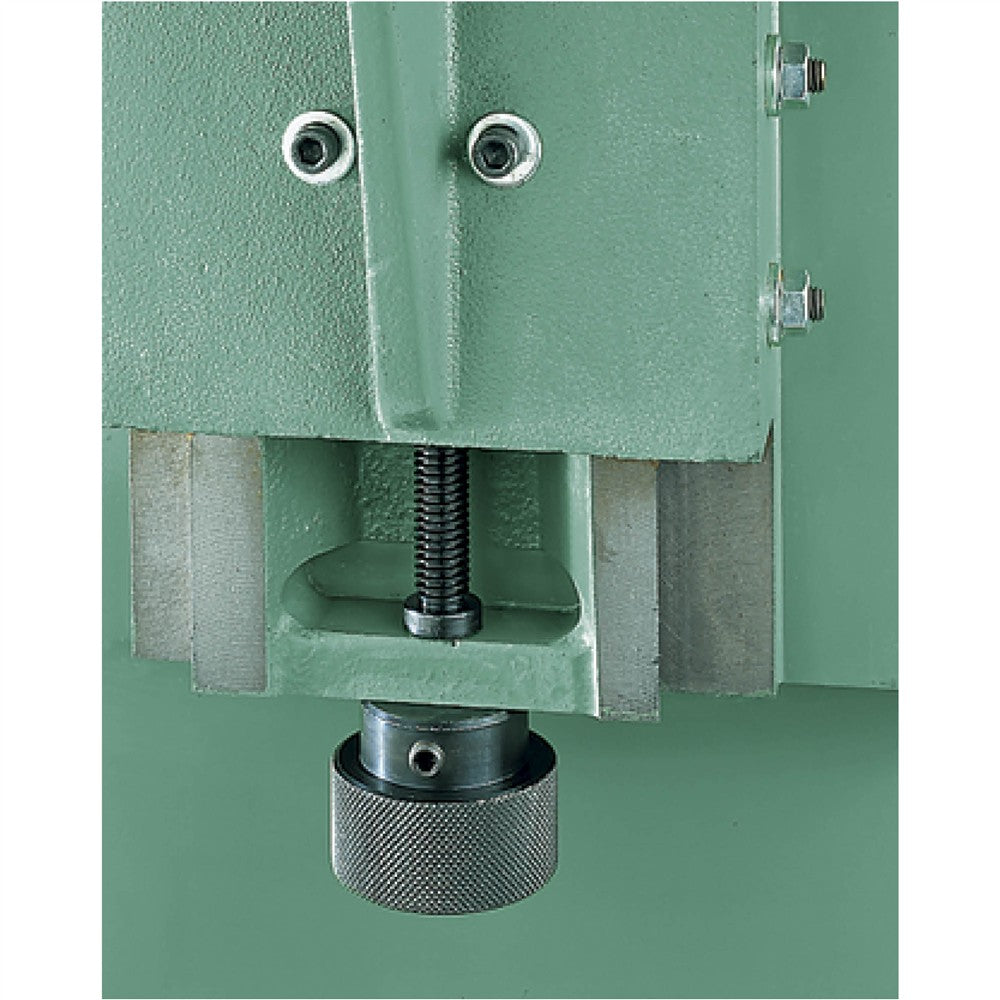

| Table travel, vertical | 3-1/2'' |
| Table size | 15-3/4'' wide x 9-3/4'' deep |
| Footprint | 15-1/2'' x 27-1/2'' |
| Overall size | 15" W x 37-1/4" D x 47-1/2" H |
| Approximate shipping weight | 346 lbs. |
Warranty
This item comes with a 1 year factory warranty.
